Raspberry Pi Compute Module 4 CM4 12mm Embedded Aluminum Heatsink / Cooler / Radiator / Protective Shell Support 30mm Fan customize

Note：

Not include Raspberry pi Compute Module 4 Motherboard

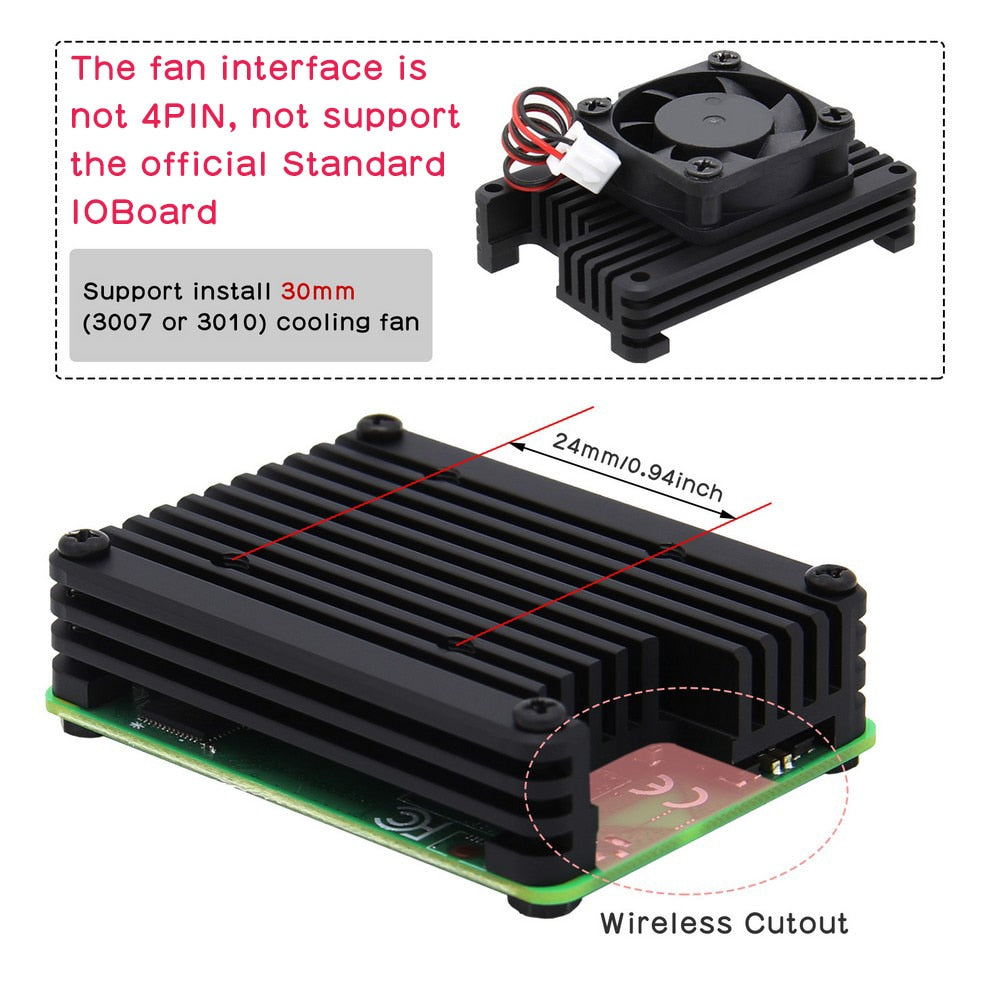

The fan interface of Bundle2 is not 4PIN, so it does not support the official Standard IOBoard

Overview：

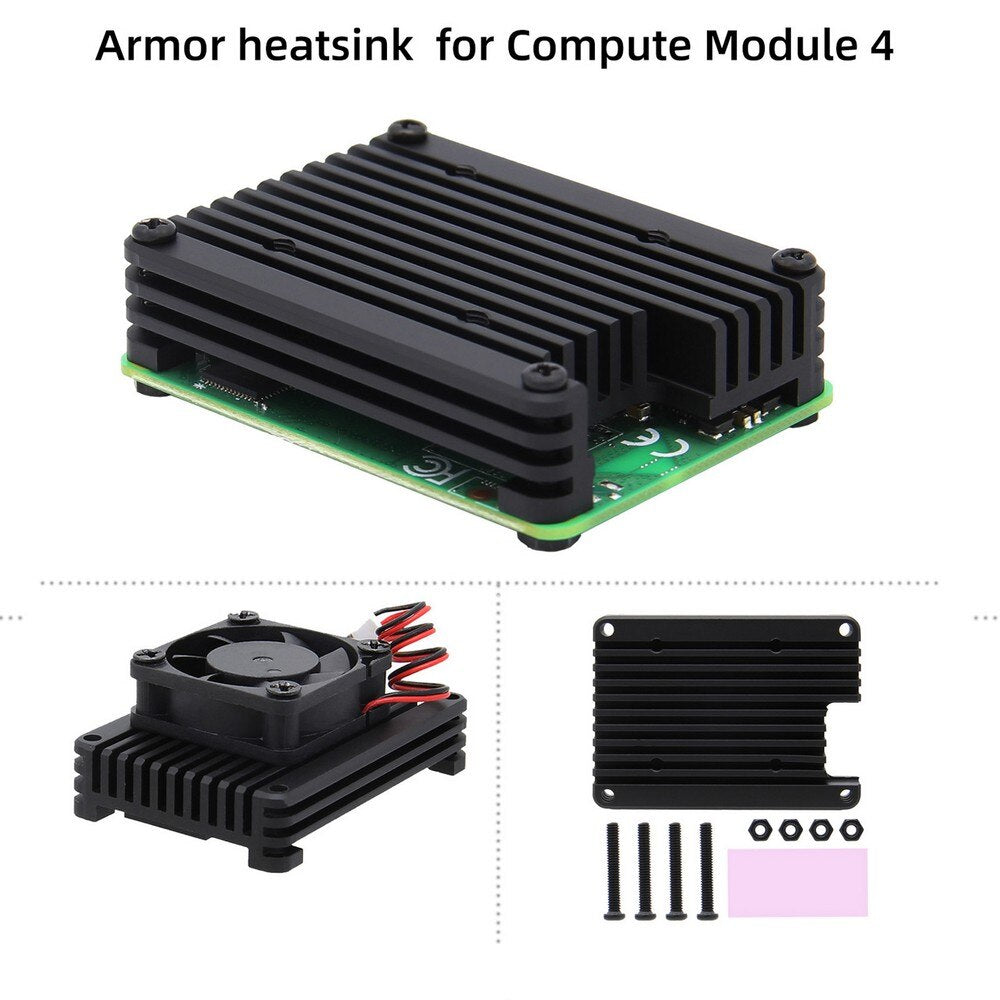

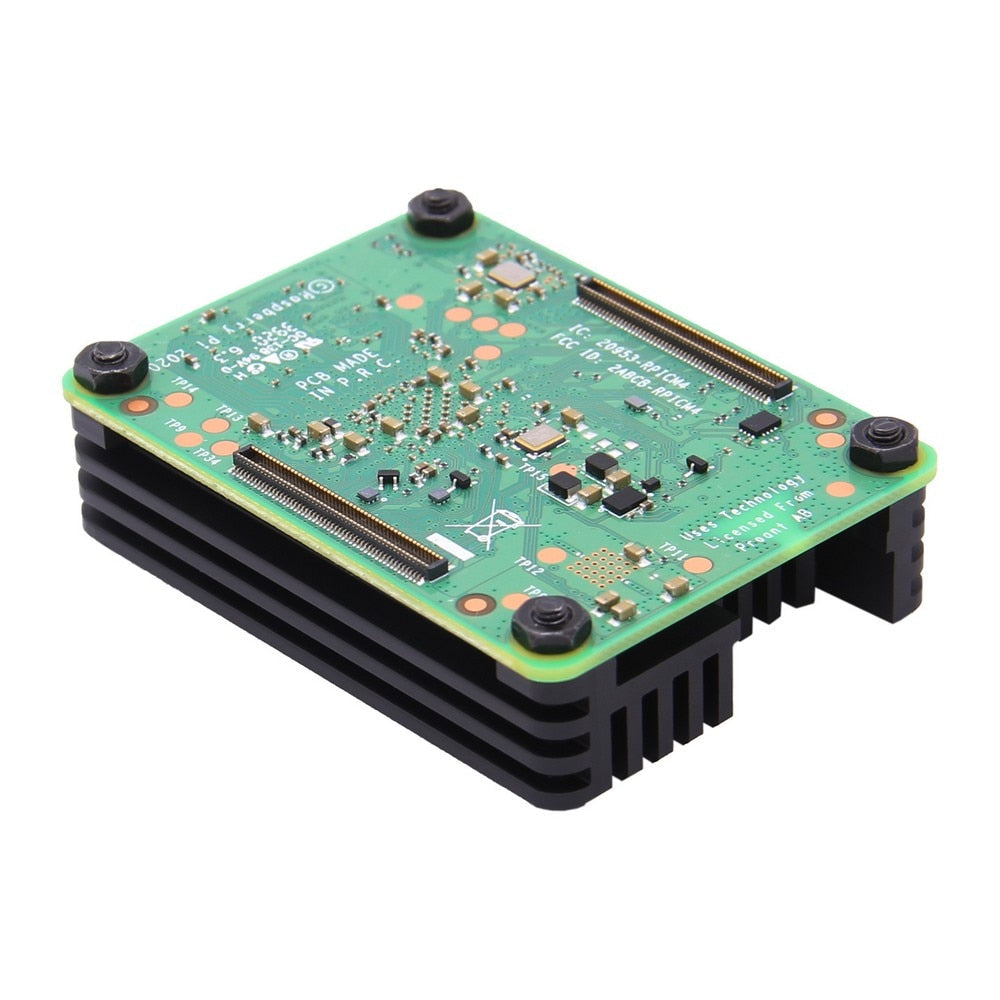

• Geekworm design this 12mm embedded armor aluminum alloy heatsink to slove its heat generation problem for the Raspberry Pi Compute Module 4 CM4, This heatsink can also be used with a 30mm cooling fan above.

Features：

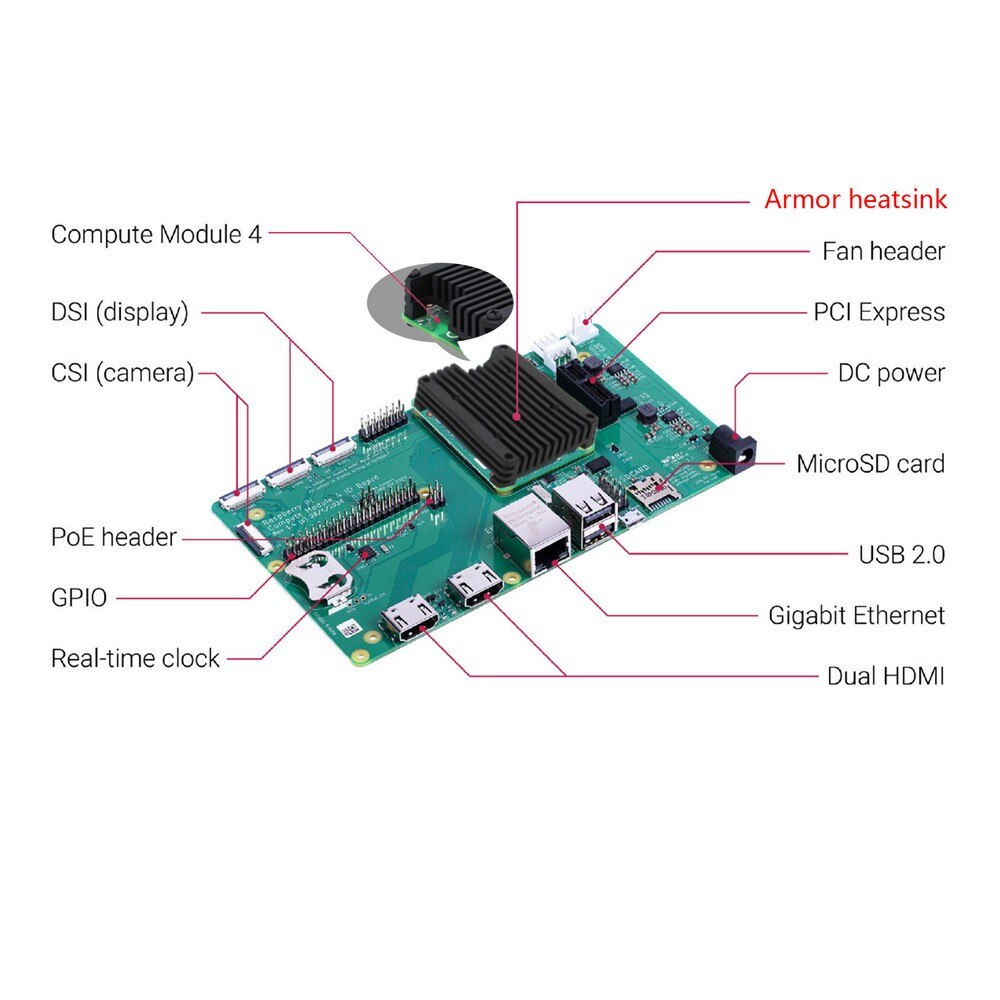

• Compatible with Raspberry pi Compute Module 4 Motherboard

• High quality embedded Armor Aluminum Alloy Heatsink

• Supports to install a 30mm fan to get more cooling down

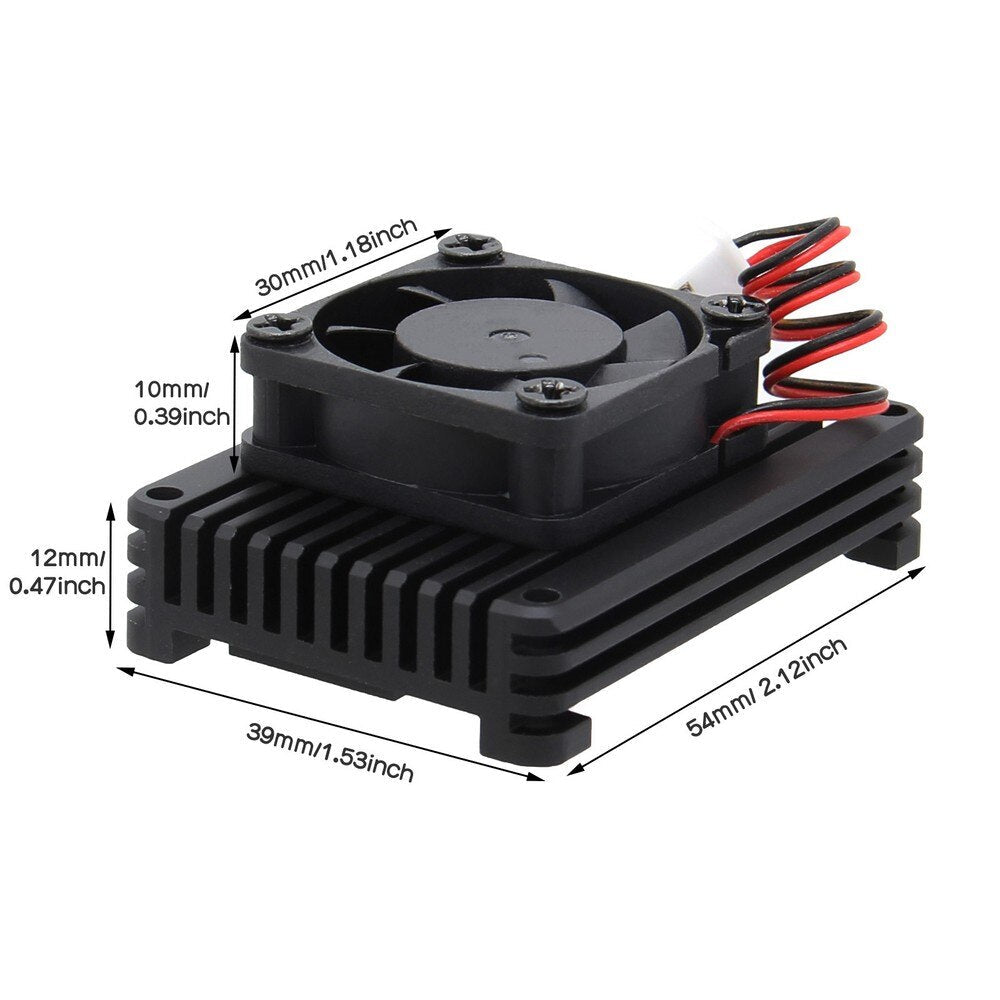

• Heatsink dimensions: 54x39x12mm/2.12x1.53x0.47inch;

• Net weight: 30g/0.07lb

Packing List：

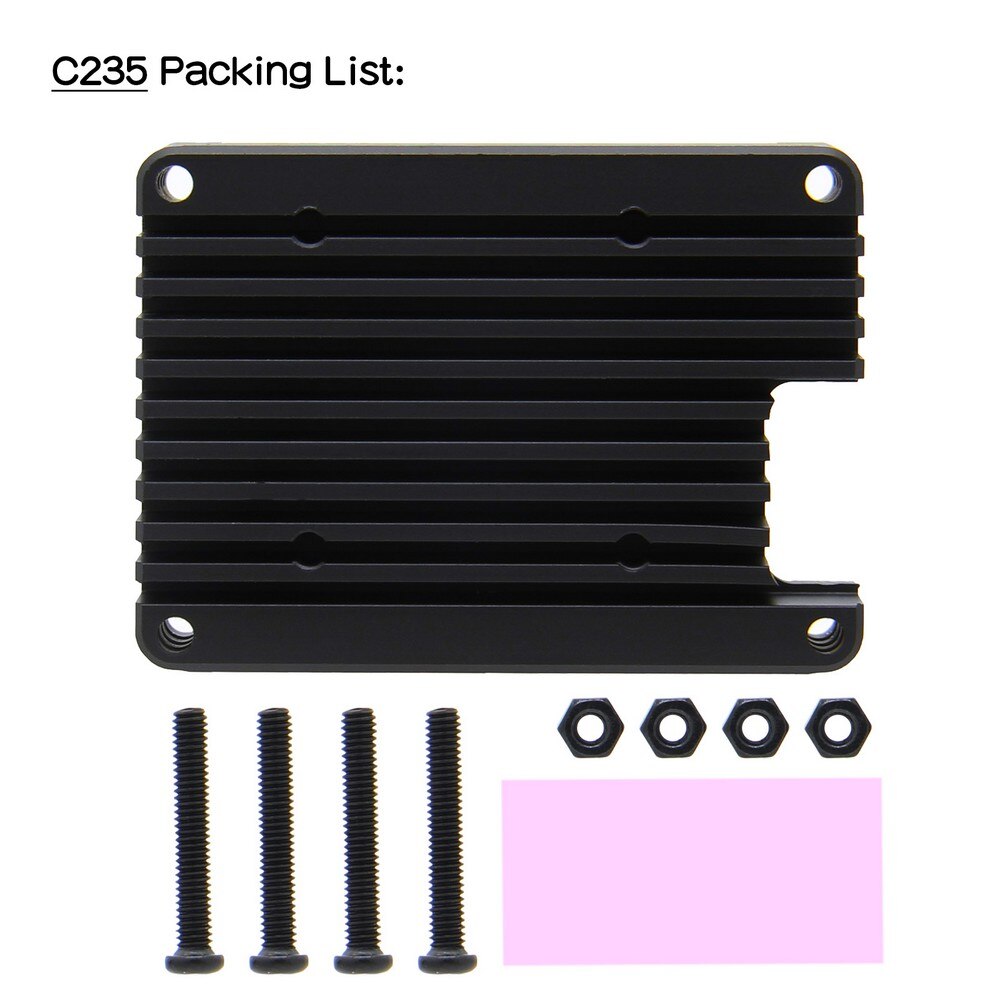

Bundle1：

• 1x 12mm heatsink for CM4

• 4x PM2.5x16mm Screws

• 4x M2.5 Nuts

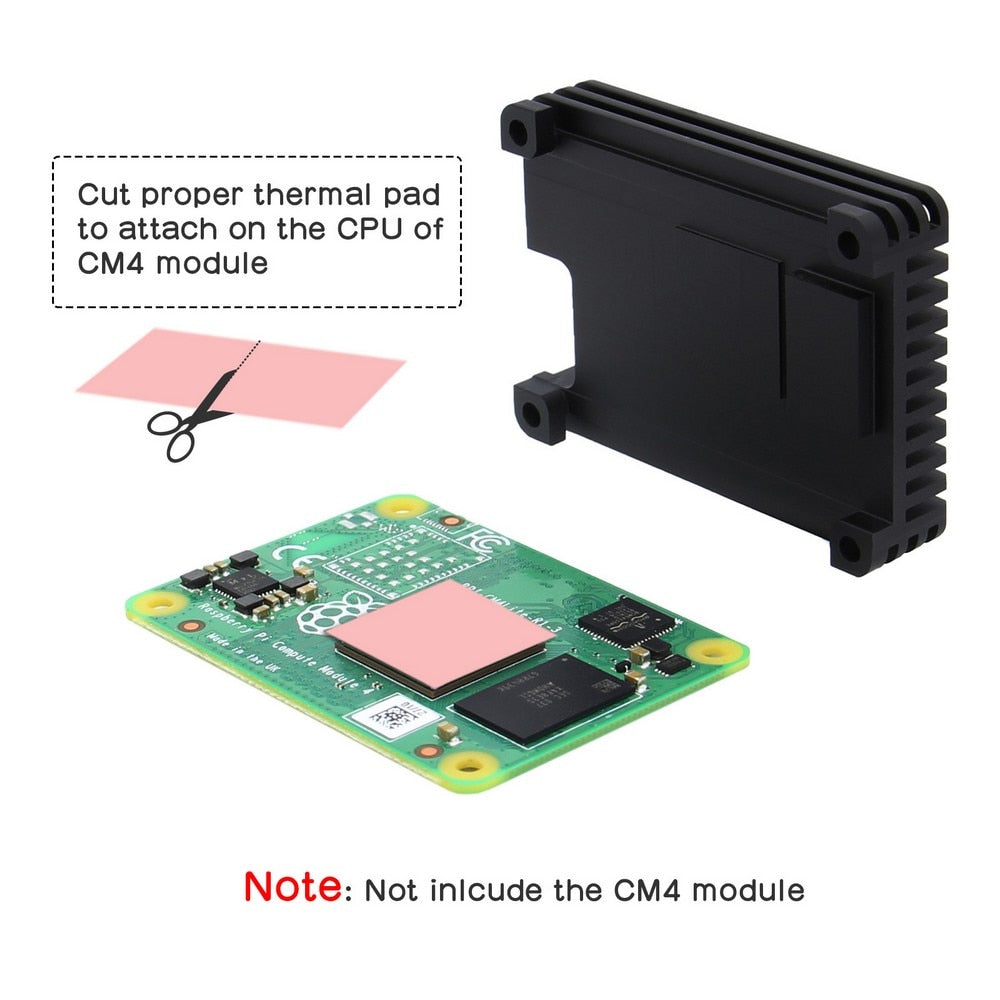

• 1x Thermal Tape(attach on the CPU of CM4)

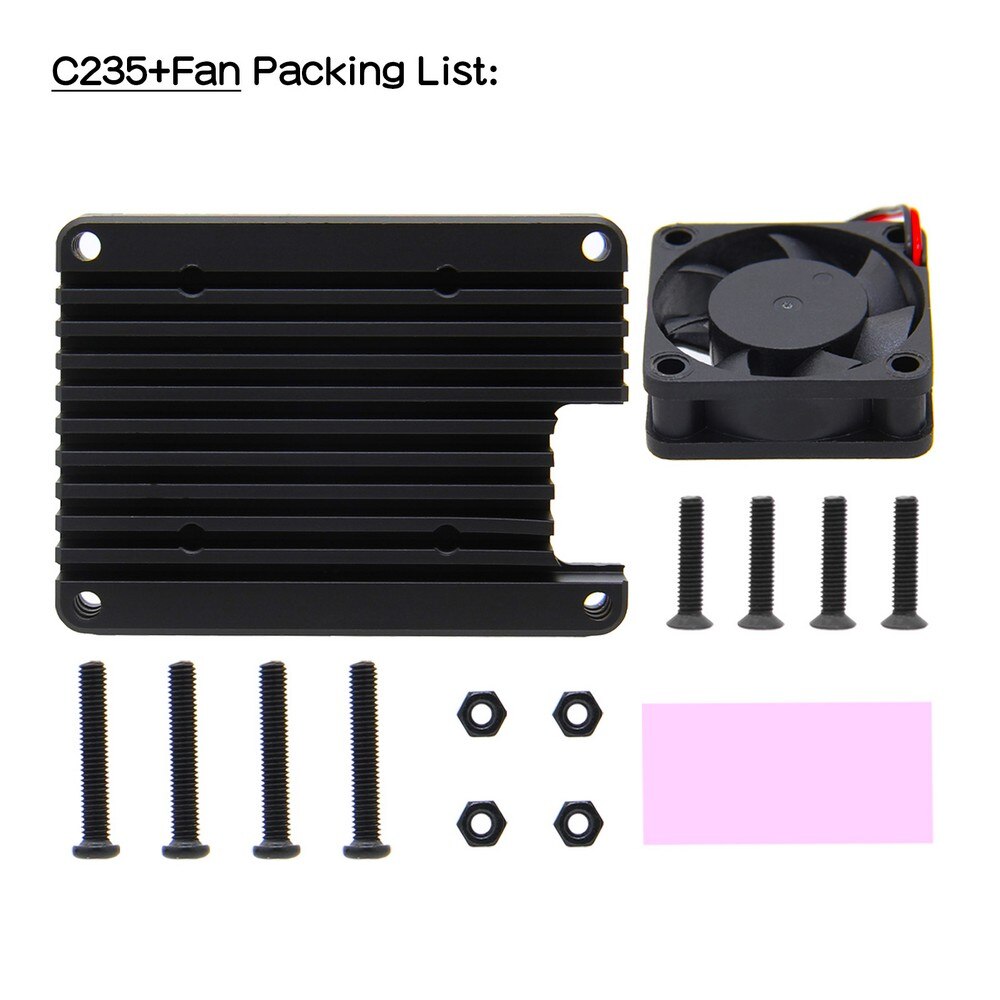

Bundle2：

• Bundle1 + 3010 Fan（fan interface not 4PIN, not support the official Standard IOBoard）
