Custom Raspberry Pi Compute Module 4 Antenna Kit, Certified for Use with CM4 Manufacturer
Custom Raspberry Pi Compute Module 4 Antenna Kit, Certified for Use with CM4 Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability

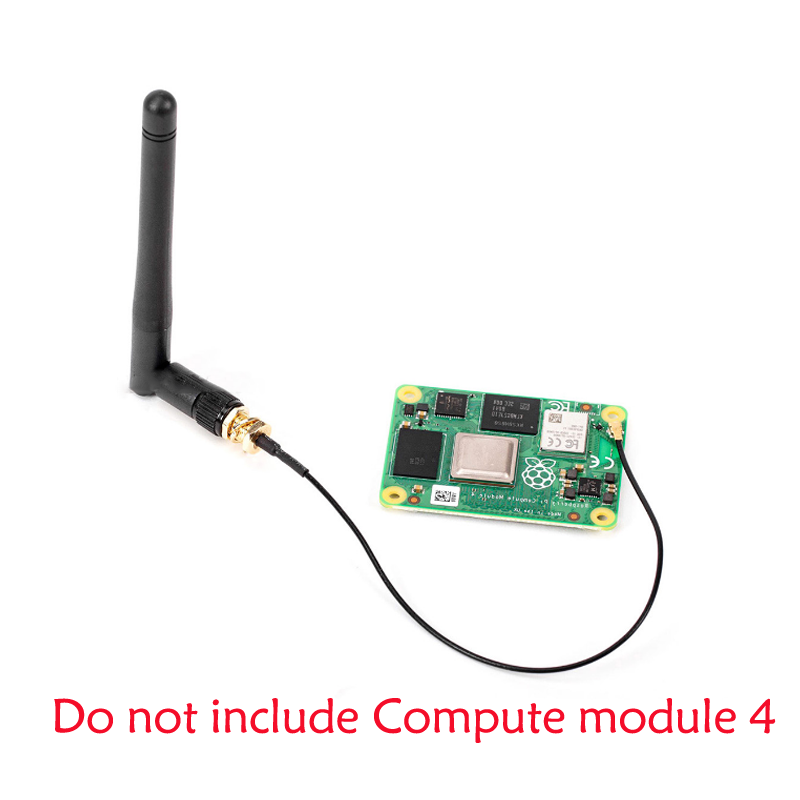

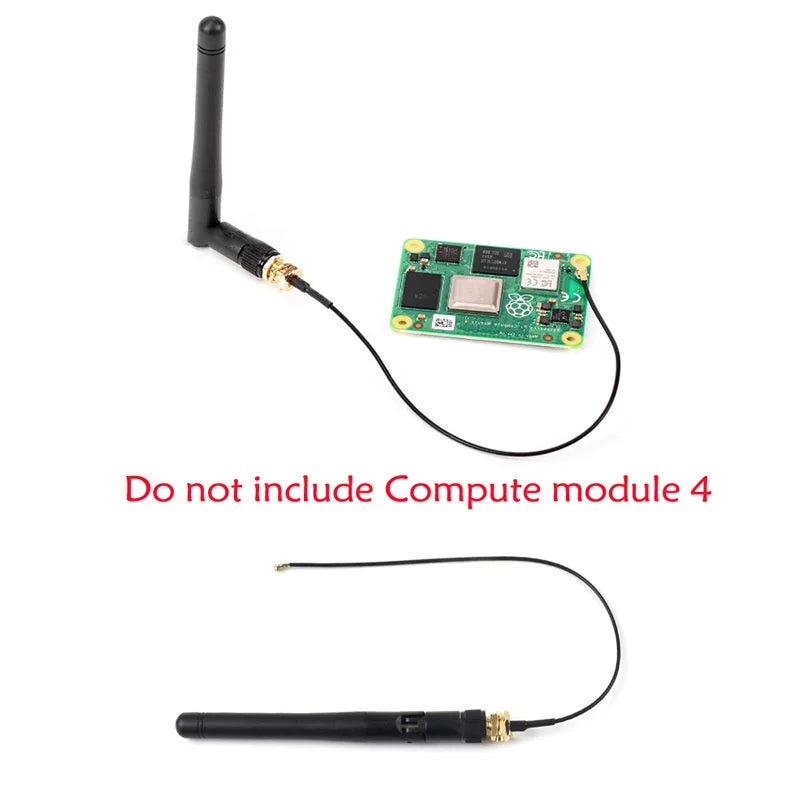

Do not include Raspberry Pi.
Features

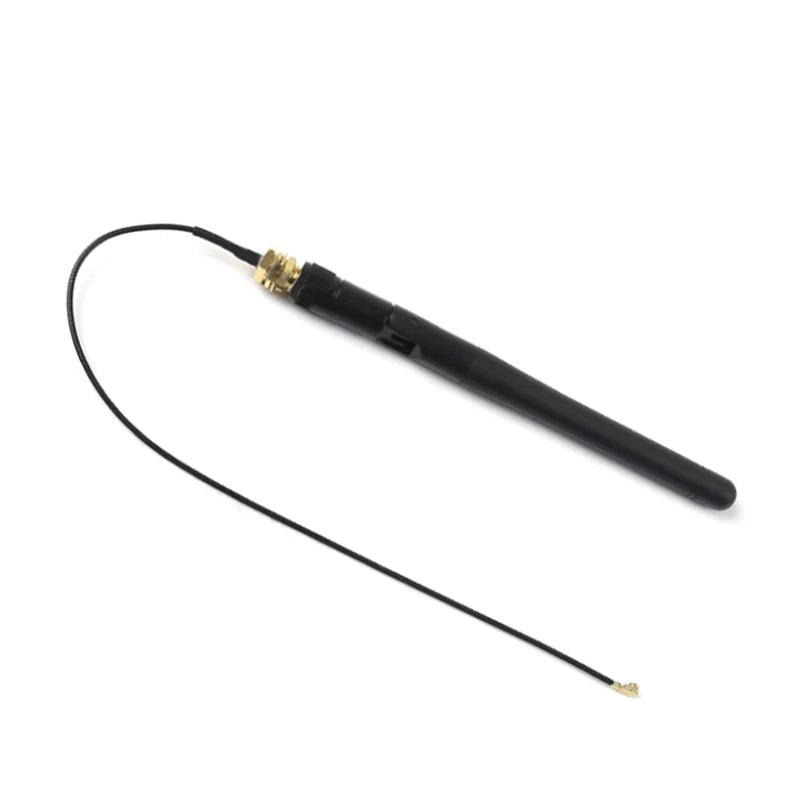

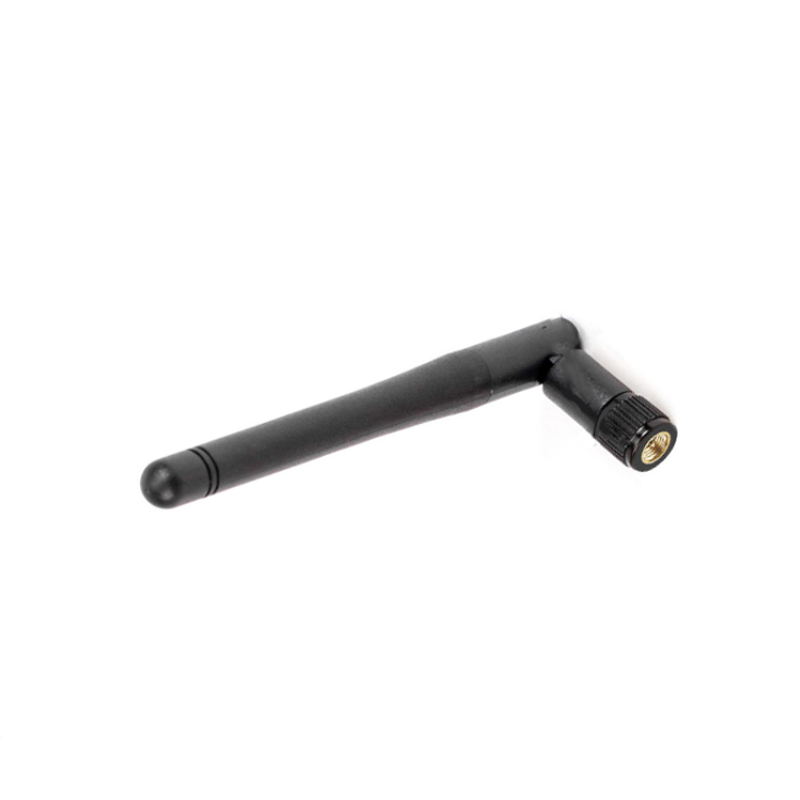

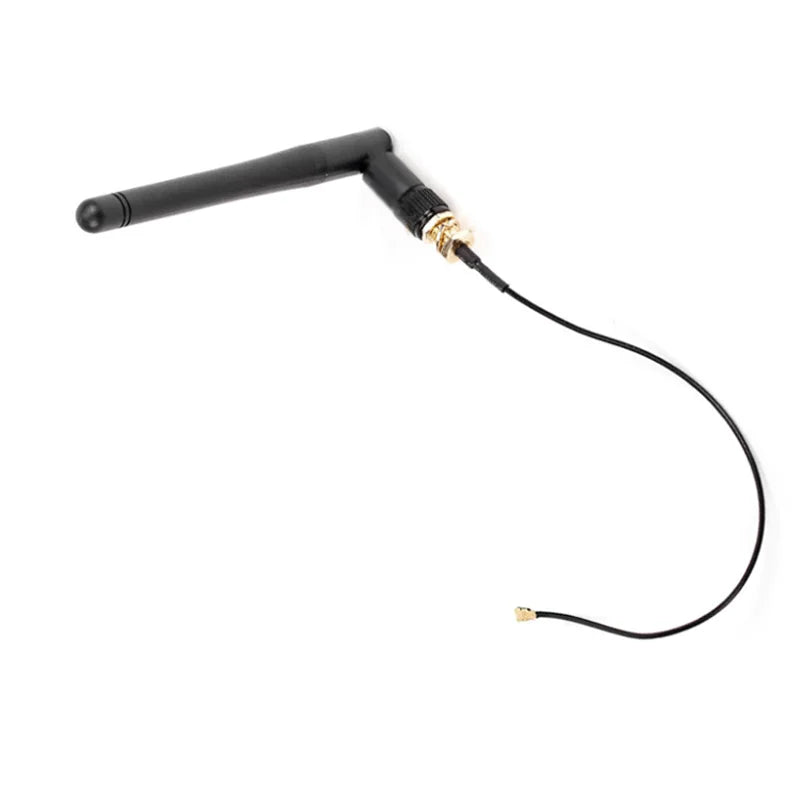

Compute Module 4 Antenna Kit
TheRaspberry Pi Compute Module 4 Antenna Kithas undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates atraspberrypi.org/compliance.
This Antenna Kit is certified for use with Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer.
TheCompute Module 4is NOT included.
Antenna Specification
-
Frequency range: 2400-2500/5100-5800 MHz
-
Bandwidth: 100–700MHz
-
VSWR: ≤ 2.0
-
Gain: 2 dBi
-
Impedance: 50 ohm
-
Polarisation: Vertical
-
Radiation: Omnidirectional
-
Maximum power: 10W
-
Antenna dimensions: 108 mm × 10 mm
Outline Dimensions
Package Content
