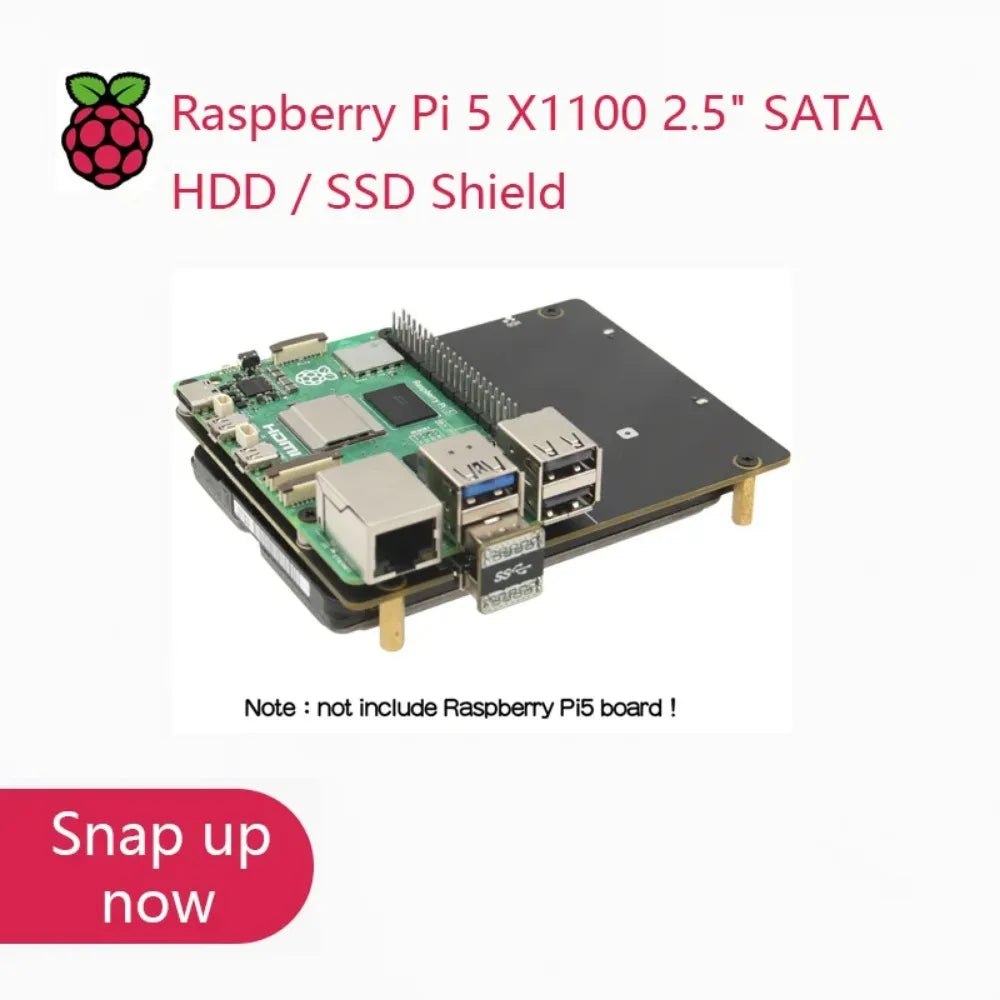

Raspberry Pi 5 X1100 2.5" SATA HDD / SSD Shield Custom Custom

[Important Notes]

• Not include Raspberry Pi5!!!

• Recommended Raspberry Pi official 27W USB-C Power Supply or Geekworm 27W USB-C Power Supply, which provides up to 5A current at +5.1V to drive your hard drives.

• If you are using a power supply that cannot provide 5A at +5V or not compatible, setting usb_max_current_enable=1 in the /boot/firmware/config.txt file will override this and increases the USB current limit to 1.6A. otherwise, it might affect USB booting or cannot provide enough power to your hard drives and SSDs .

• The X1100, a USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi5. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

[Overview]

• The X1100 2.5 inch SATA HDD/SSD expansion board, offering an easy and fast way to create bigger storage solution for your Raspberry Pi 5. Its elegant and ultra-compact design allows 2.5" HDD/SSD to be conveniently attached to Raspberry Pi. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds. The mounting holes and standoffs help protect the hard disk drives, while effectively drawing the heat away from the drive for reliable performance. The built-in LED light indicates the reading or writing status – no more guesswork again.

• The X1100 can be the perfect storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world. the X1100 also supports operating system booting from your HDD/SSD for faster app opens, web serving and file copying.

[Features]

• Compatible With Raspberry Pi 5B

• Ideal storage solution for Raspberry Pi 5 - 2.5" SATA HDD/SSD Shield

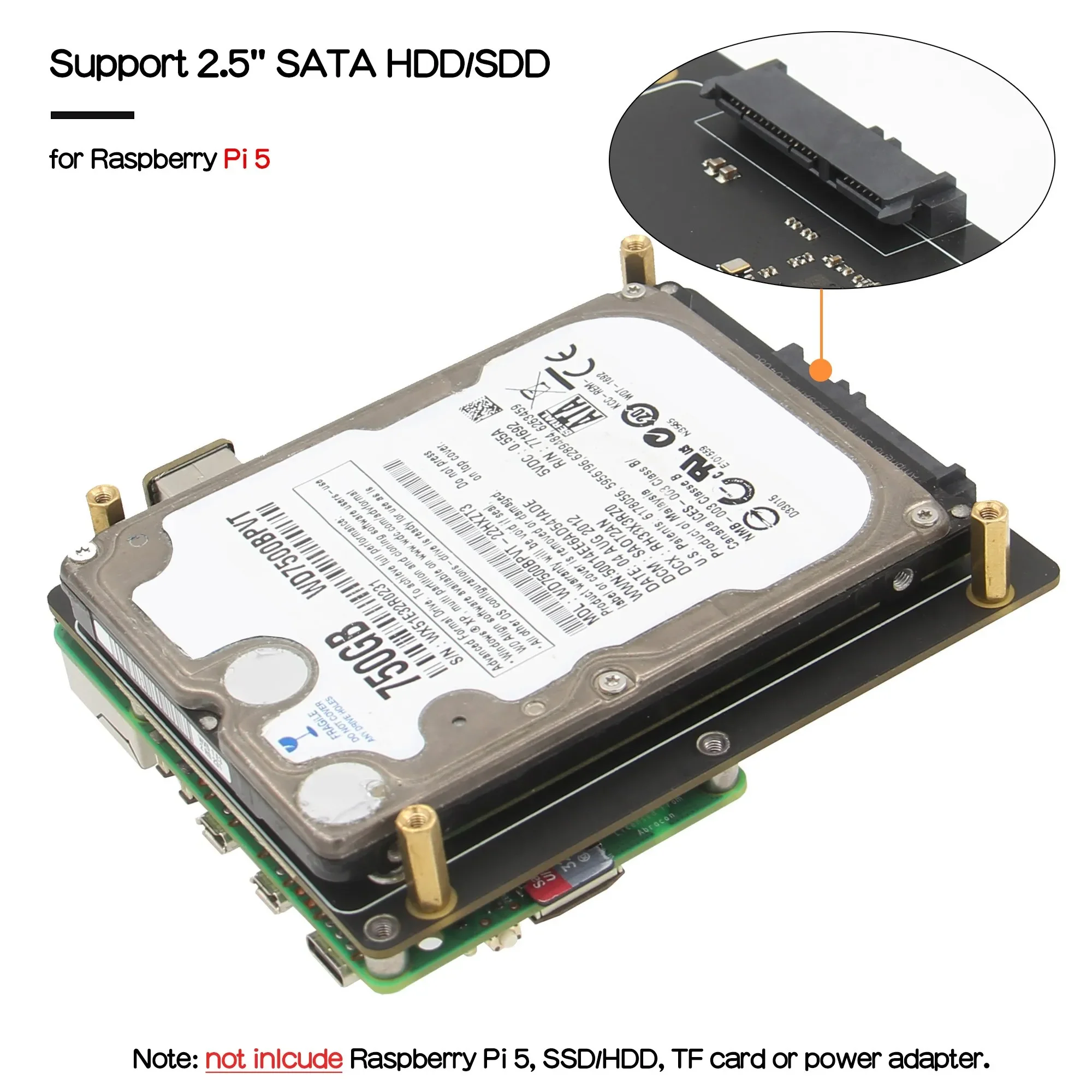

• Supports up to 5TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)

• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi

• Supporting booting OS from your HDD/SSD for faster app opens, web serving and file copying

• Compatible with USB 2.0

• USB bus-powered - only one PSU required

• LED blue indicator indicates drive status

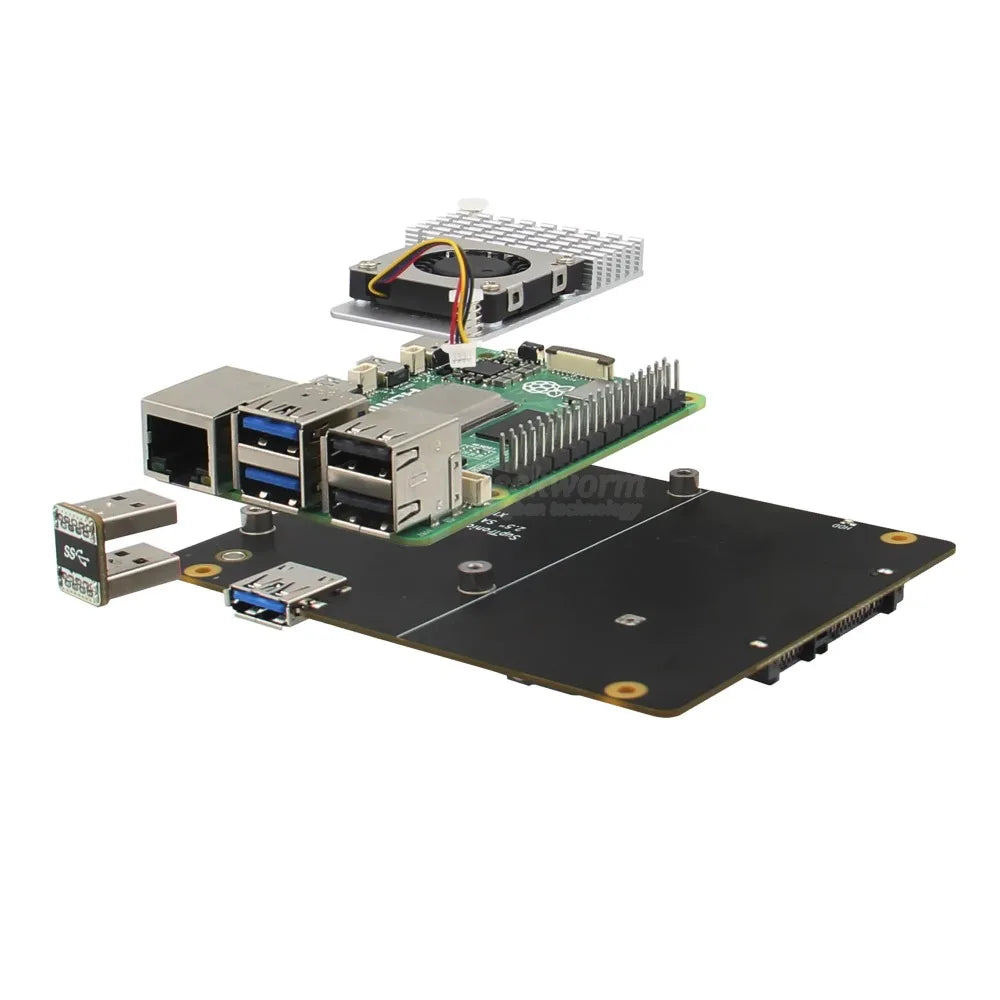

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed

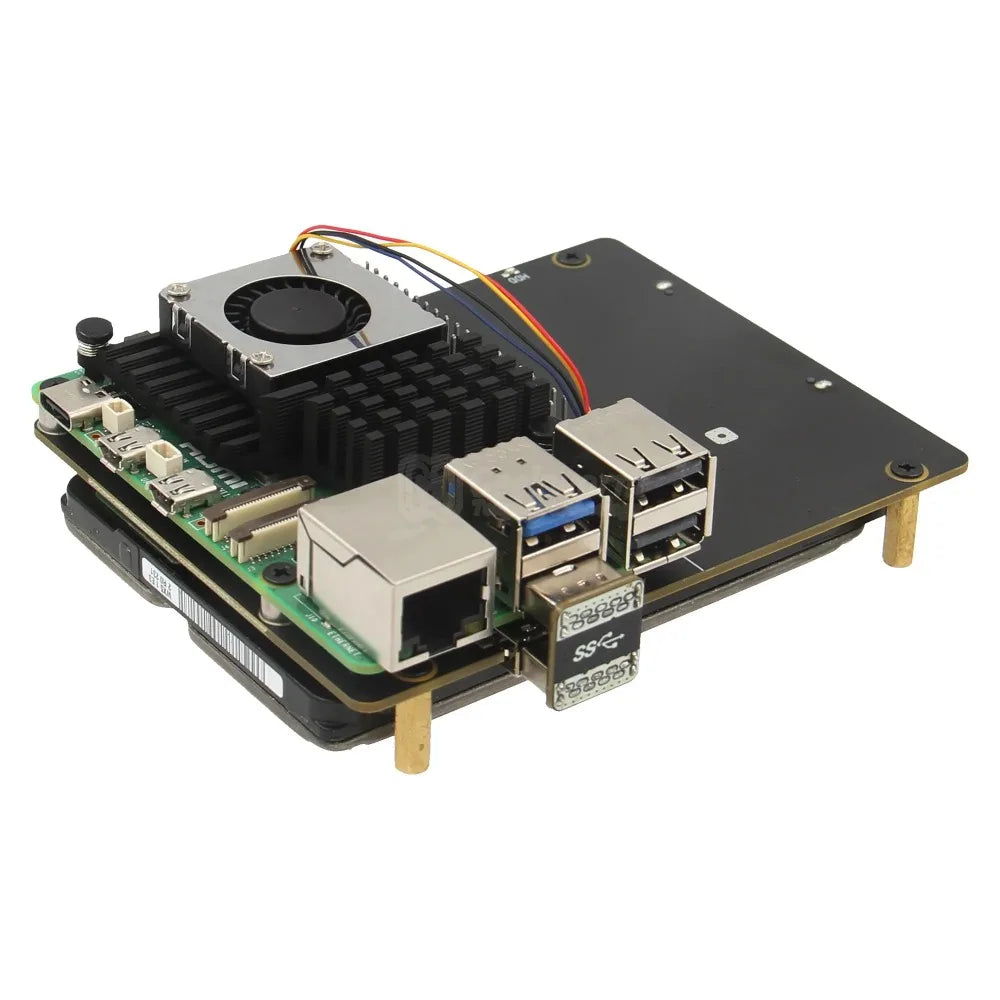

• Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X1100 assembly

[Technical Specification]

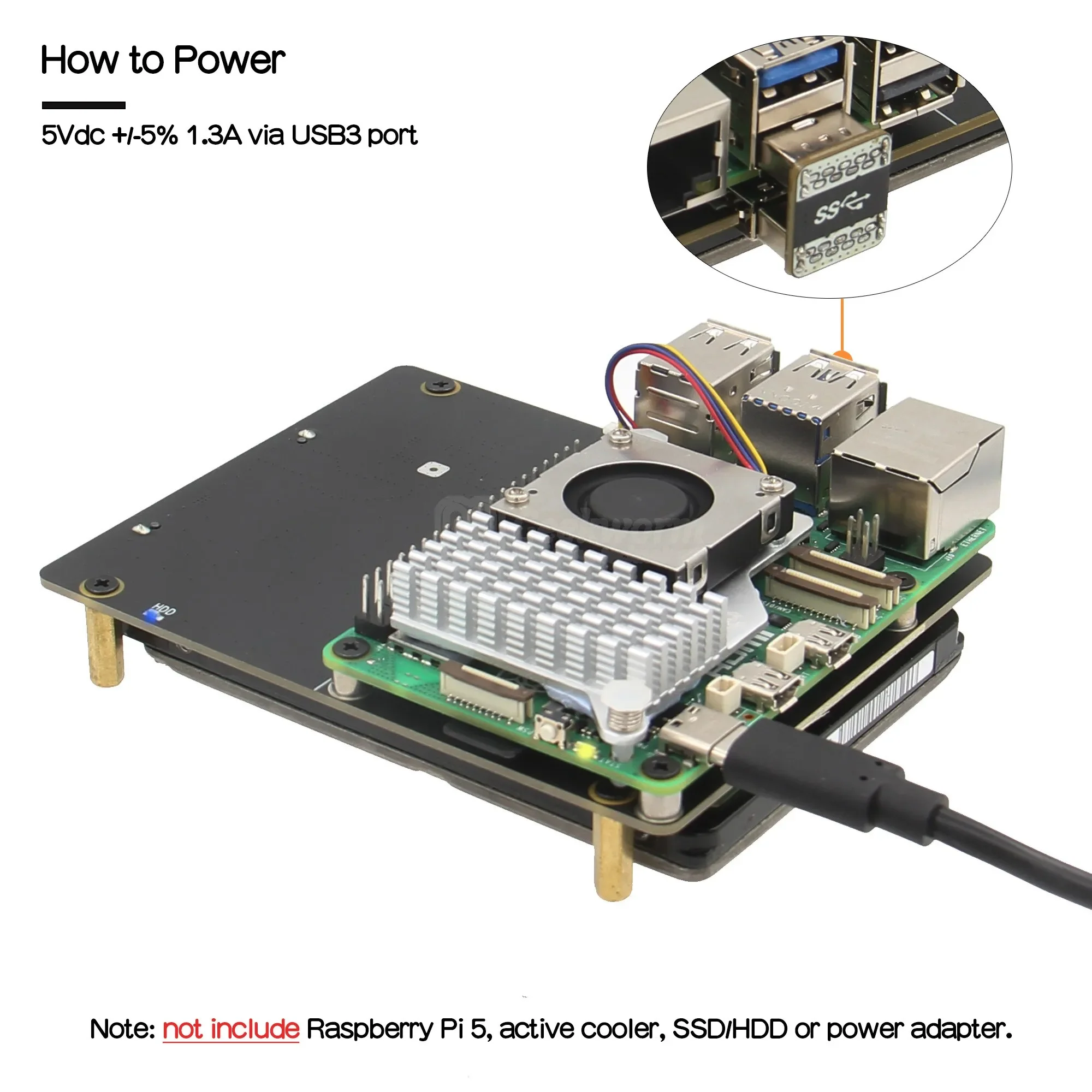

• Power supply :5Vdc +/-5% 1.3A via USB3 port

• Ports & Connectors :USB socket - USB 3.0 type A

• SATA HDD connector - 7P+15P

• PCB Size : 107.5mm x 85mm

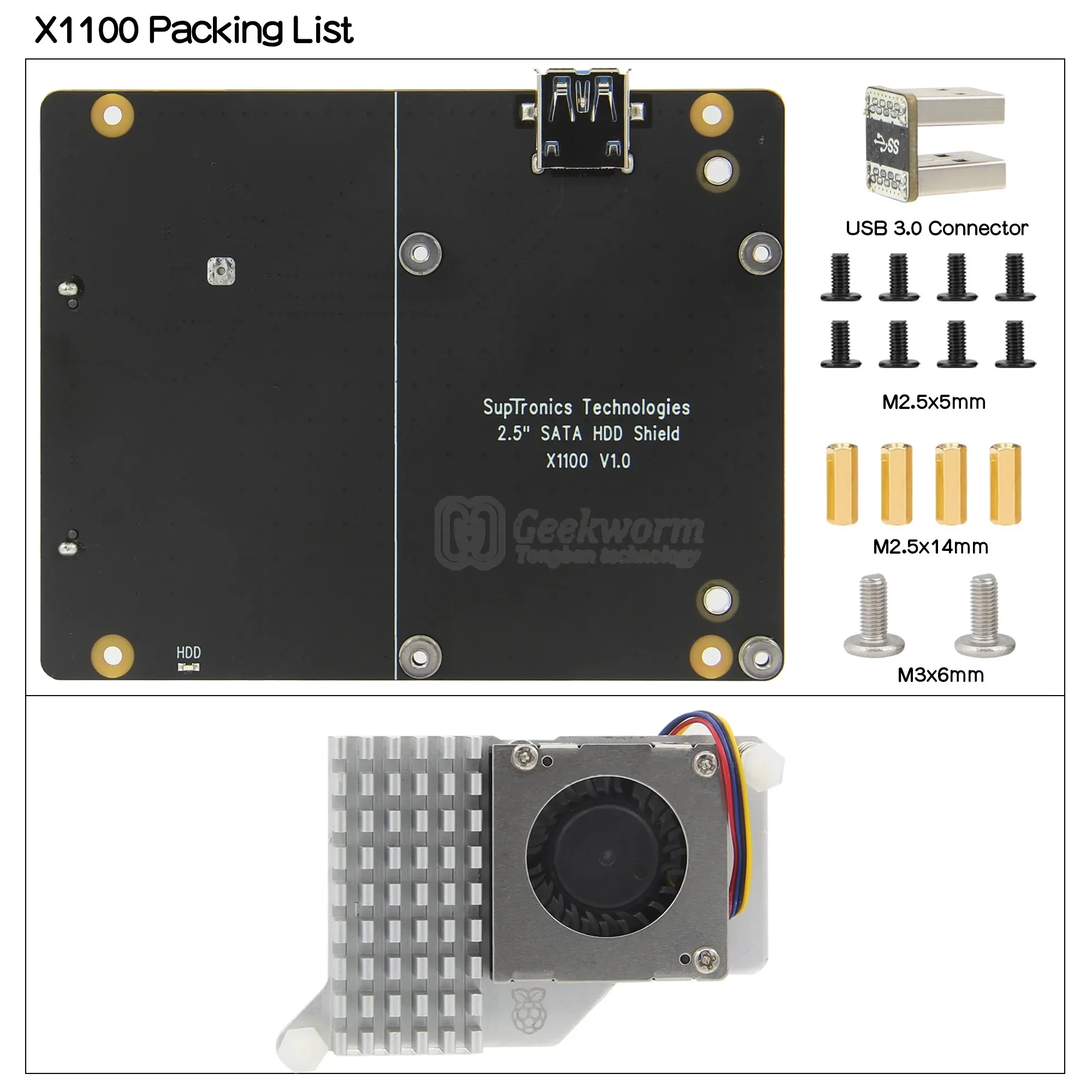

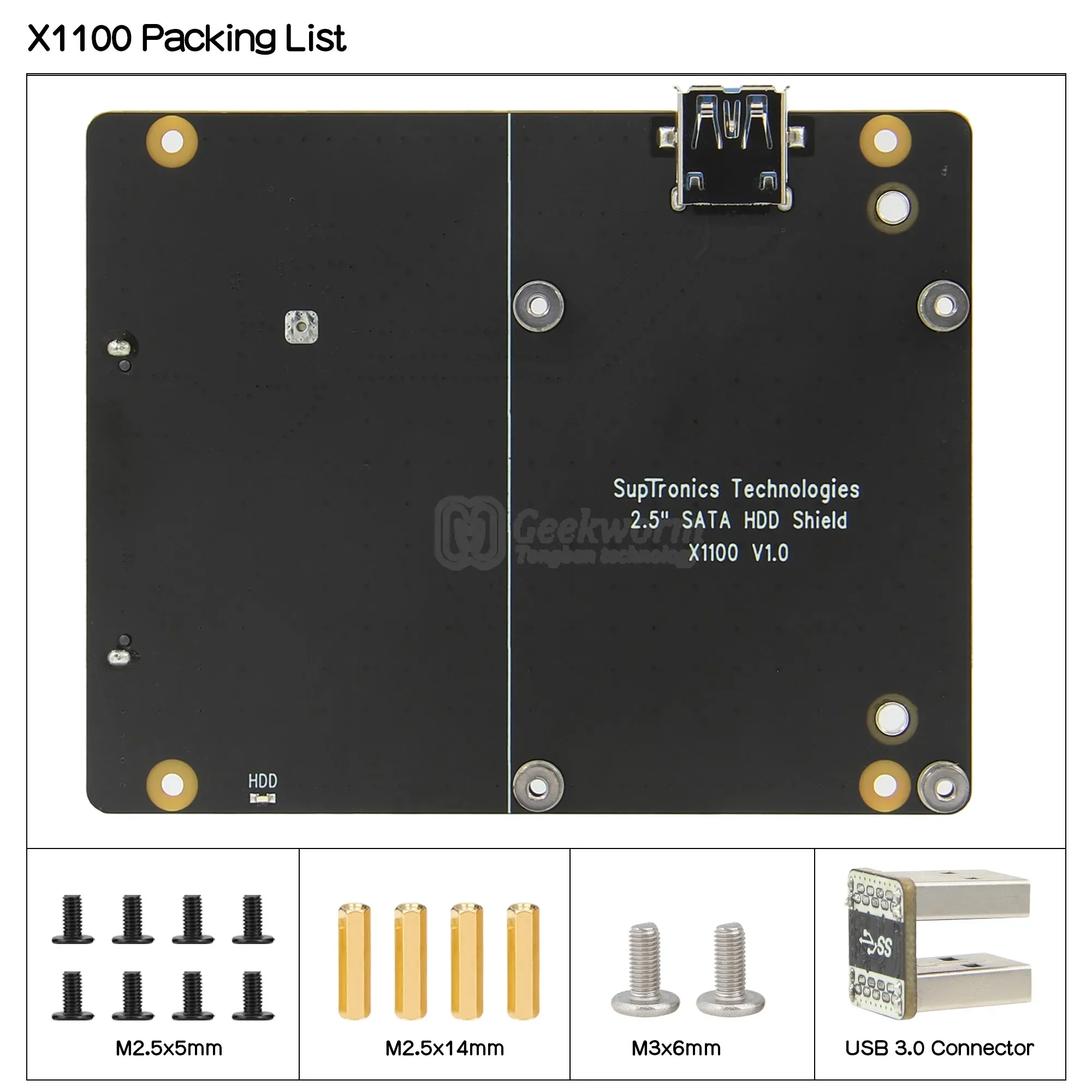

[Packing List]

Bundle1: Not include Raspberry Pi5!

• 1 x X1100 V1.0 shield

• 1 x USB3.0 connector

• 4 x M2.5*14 spacers

• 2 x CM3*6 screws

• 8 x CM2.5*5 screws

Bundle2: Not include Raspberry Pi5!

• 1 x X1100 V1.0 shield

• 1 x USB3.0 connector

• 4 x M2.5*14 spacers

• 2 x CM3*6 screws

• 8 x CM2.5*5 screws

• 1 x Official Active Cooler
