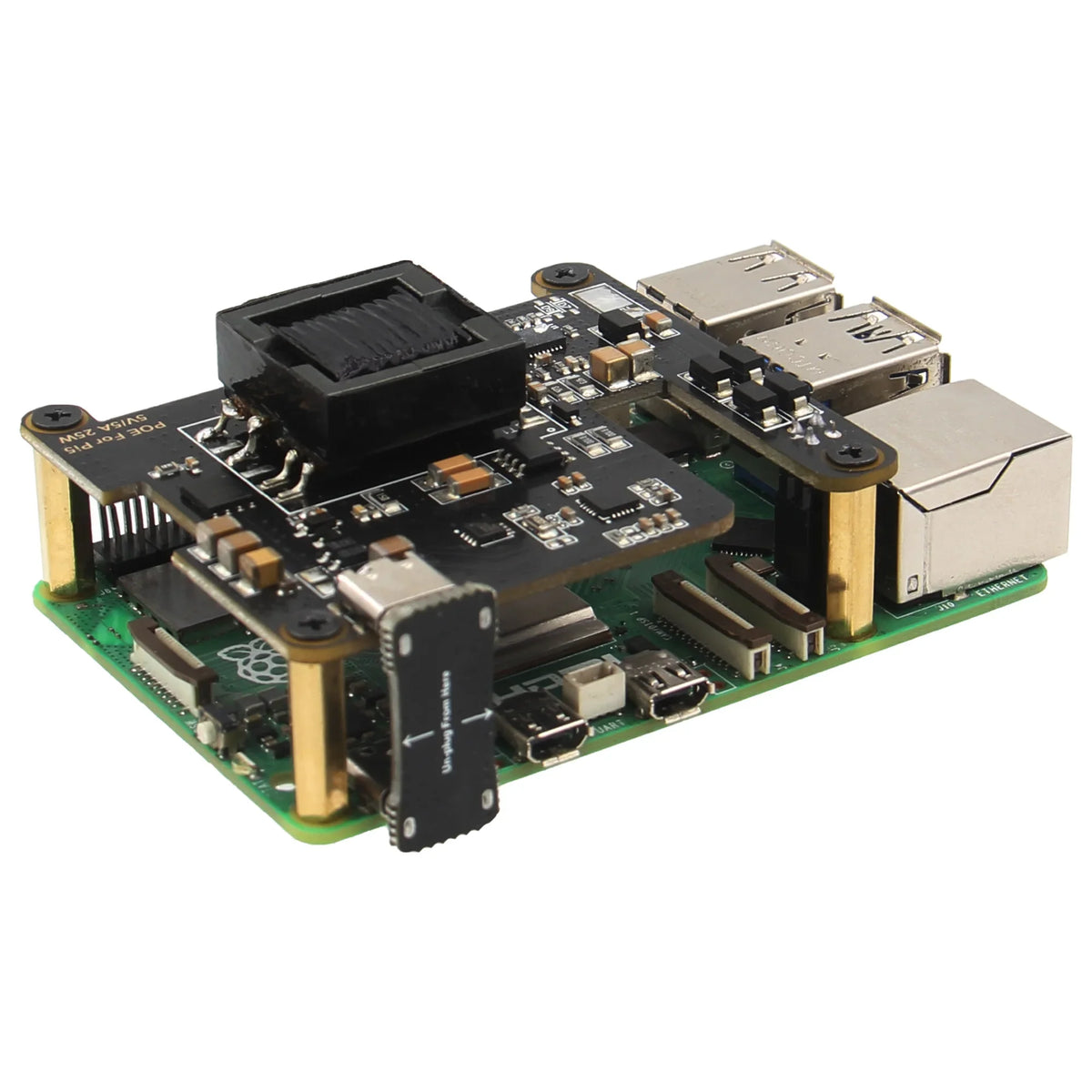

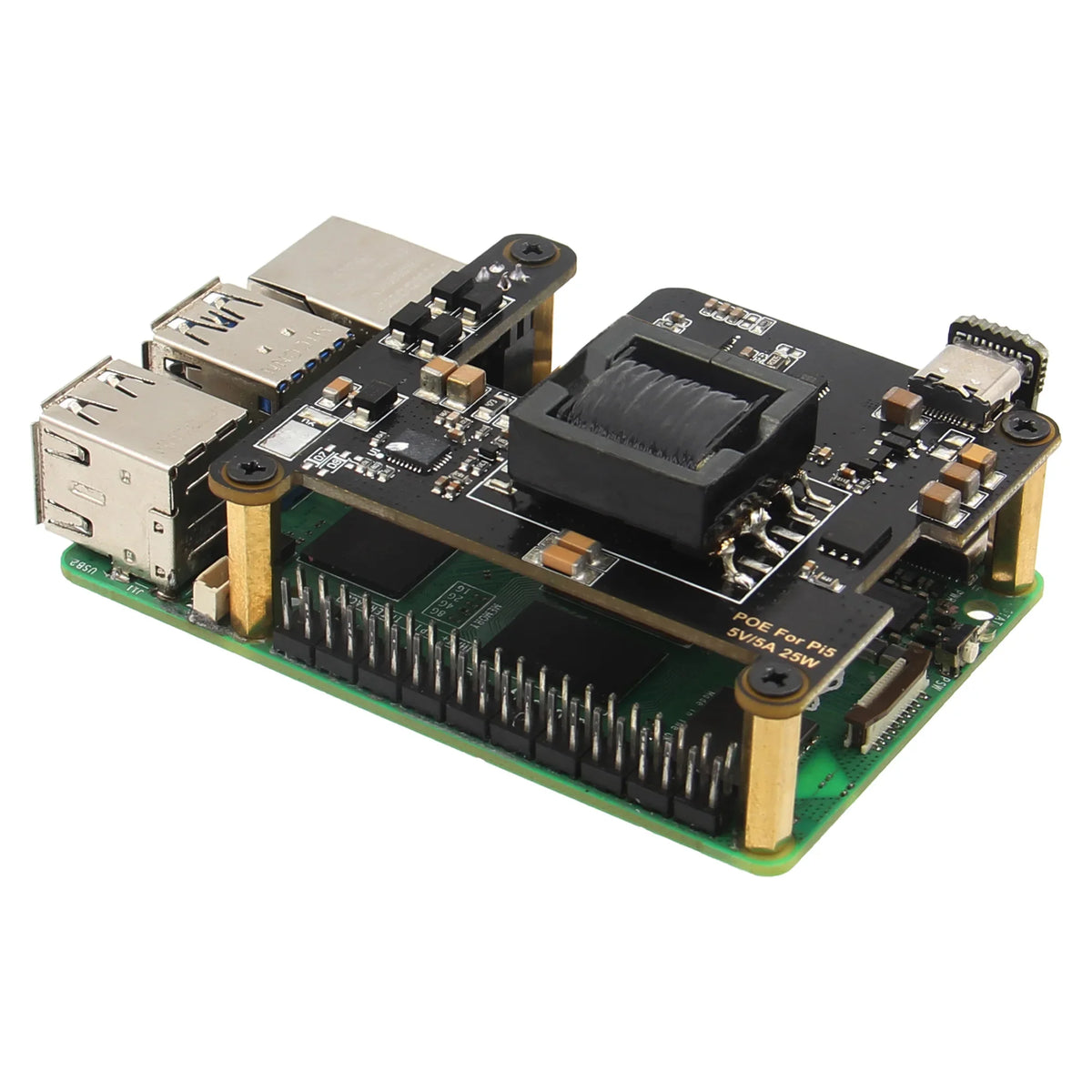

Raspberry Pi 5 PoE Hat with PD Trigger Activation Type C Power Support 802.3af/at

[Note]
Not
include Raspberry Pi board.
Due to the limitations of the USB-C connector, there is currently no matching case now.
[Overview]
The
Raspberry Pi 5
Ethernet power expansion board supports the
IEEE 802.3af/at
network standards. It is ideal for use with PoE routers or switches that also support
these standards
, allowing for both
power
and
networkconnectivity
to the Raspberry Pi through a single Ethernet cable. This setup utilizes
Type C
for power delivery, offering
higher current suitable
for the
Raspberry Pi 5
and includes a
PD active protocol
to prevent the 5A startup warning.
[User Manual]
No configuration required,
plug and play
,
Don't forget
insert the usb-c connector.
[Features]
Supports the
IEEE 802.3af/at
network standards
No configuration required,
plug and play
with a
PD protocol IC
to prevent the 5A warning at Raspberry Pi startup.
All GPIO ports are reserved,
Don't
occupy Raspberry Pi 40P GPIO.
Offers
Type C power supply
for higher current, ensuring a more standard power supply For Pi5
Supports Raspberry Pi Official Active Cooler and other third party cooler.
Input: 37V~57V / Output: 5V 4.5A (MAX)

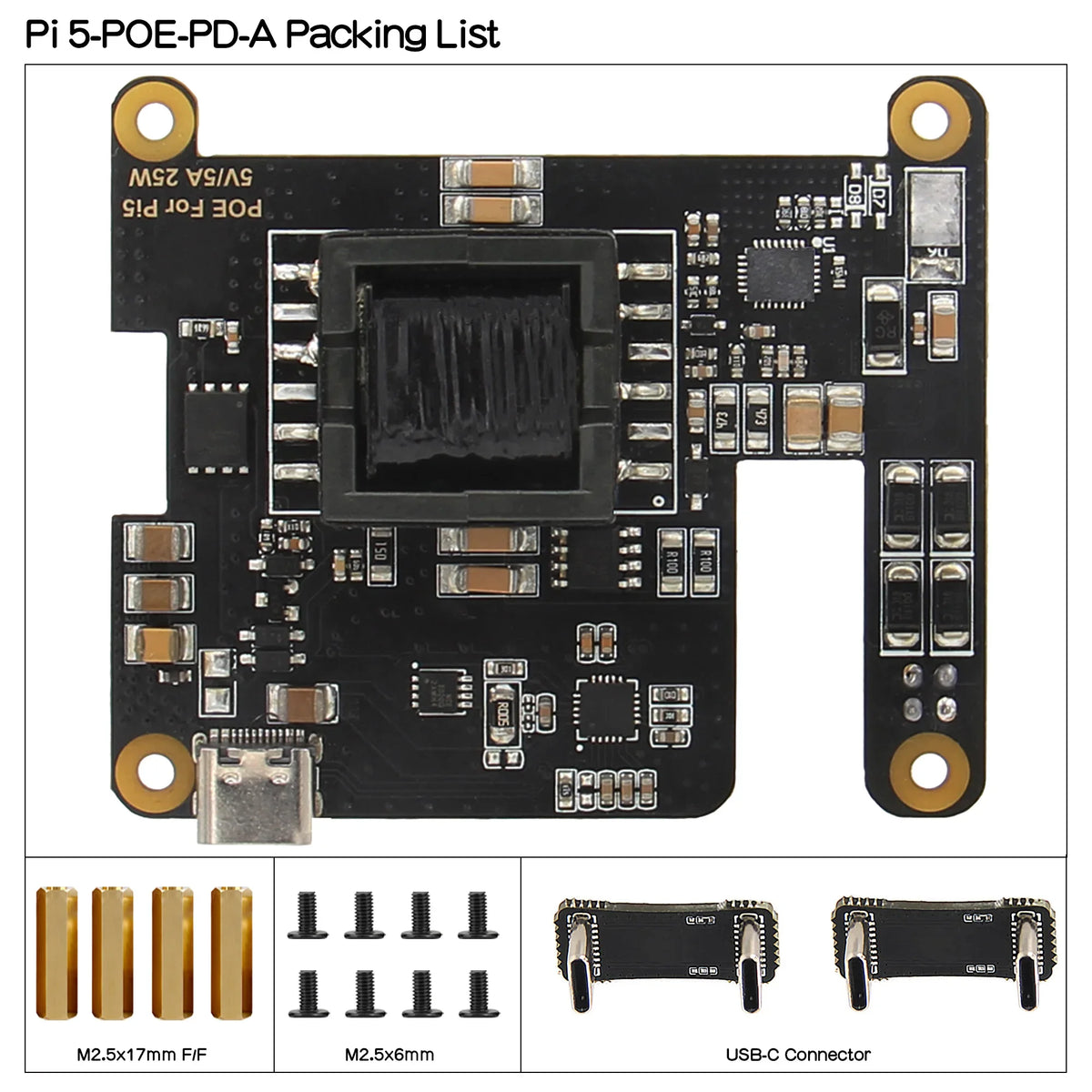

[Packing List]
1 x PoE shield
1 x USB C Connector
1 x Screw pack
