Lonten Tech

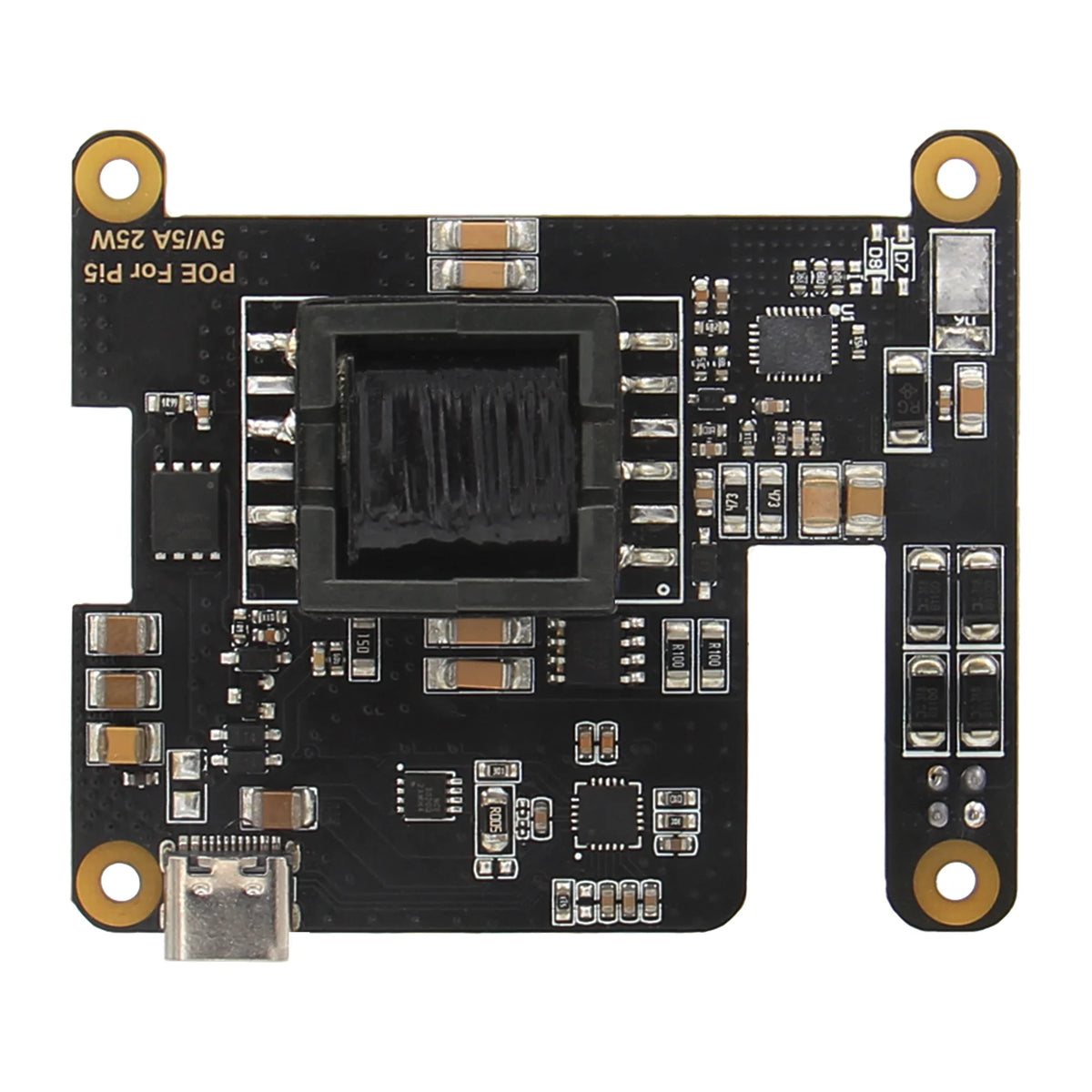

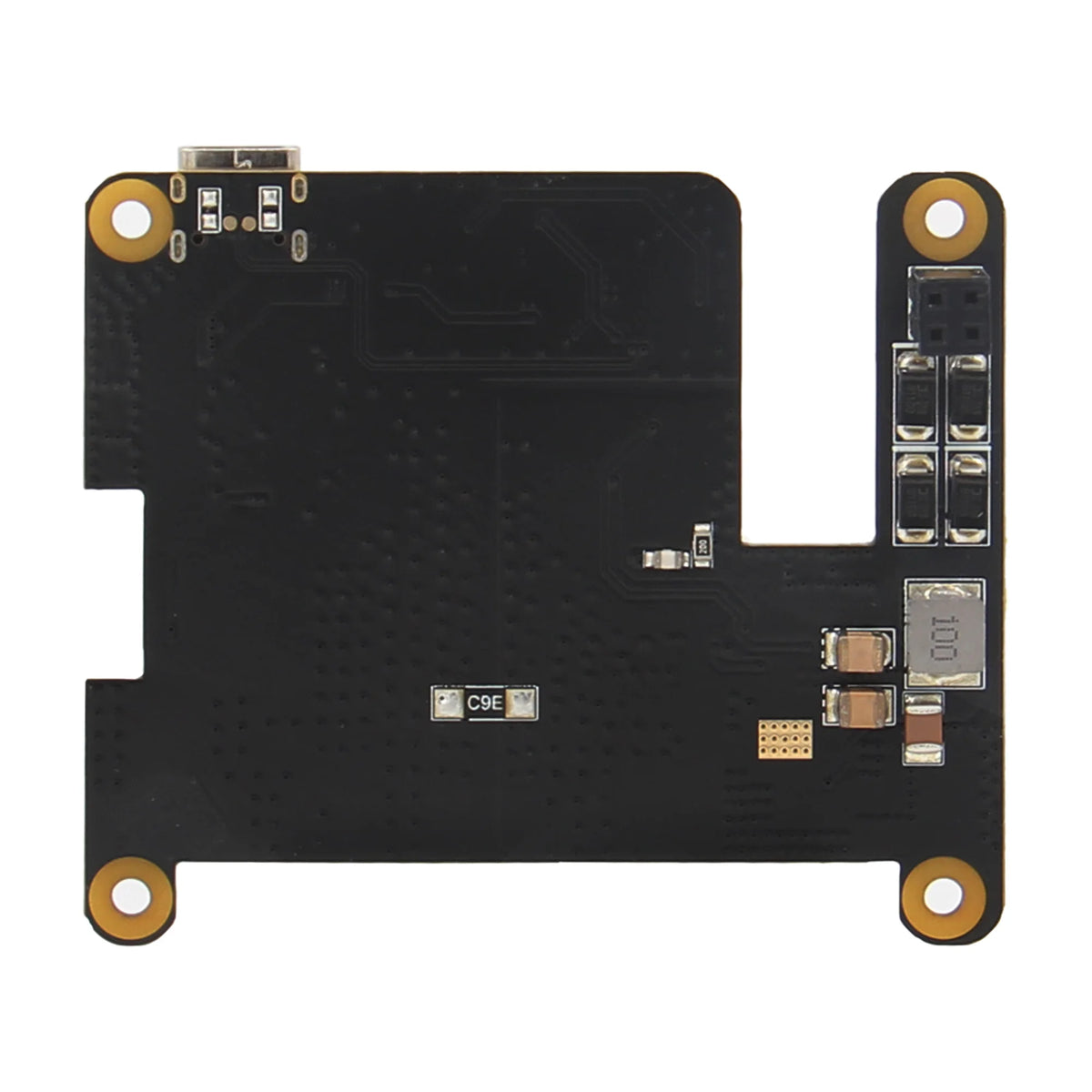

Raspberry Pi 5 PoE Hat with PD Trigger Activation Type C Power support 802.3af/at

Raspberry Pi 5 PoE Hat with PD Trigger Activation Type C Power support 802.3af/at

$27.00 USD
$27.00 USD $27.00 USD
Sale Sold out



[Note]

Not include Raspberry Pi board.

Due to the limitations of the USB-C connector, there is currently no matching case now.



[Overview]

The Raspberry Pi 5 Ethernet power expansion board supports the IEEE 802.3af/at network standards. It is ideal for use with PoE routers or switches that also support these standards, allowing for both power and network connectivity to the Raspberry Pi through a single Ethernet cable. This setup utilizes Type C for power delivery, offering higher current suitable for the Raspberry Pi 5 and includes a PD active protocol to prevent the 5A startup warning.



[User Manual]

  • No configuration required, plug and play, Don't forget insert the usb-c connector.

[Features]

  • Supports the IEEE 802.3af/at network standards

  • No configuration required, plug and play

  • with a PD protocol IC to prevent the 5A warning at Raspberry Pi startup.

  • All GPIO ports are reserved, Don't occupy Raspberry Pi 40P GPIO.

  • Offers Type C power supply for higher current, ensuring a more standard power supply For Pi5

  • Supports Raspberry Pi Official Active Cooler and other third party cooler.

  • Input: 37V~57V / Output: 5V 4.5A (MAX)

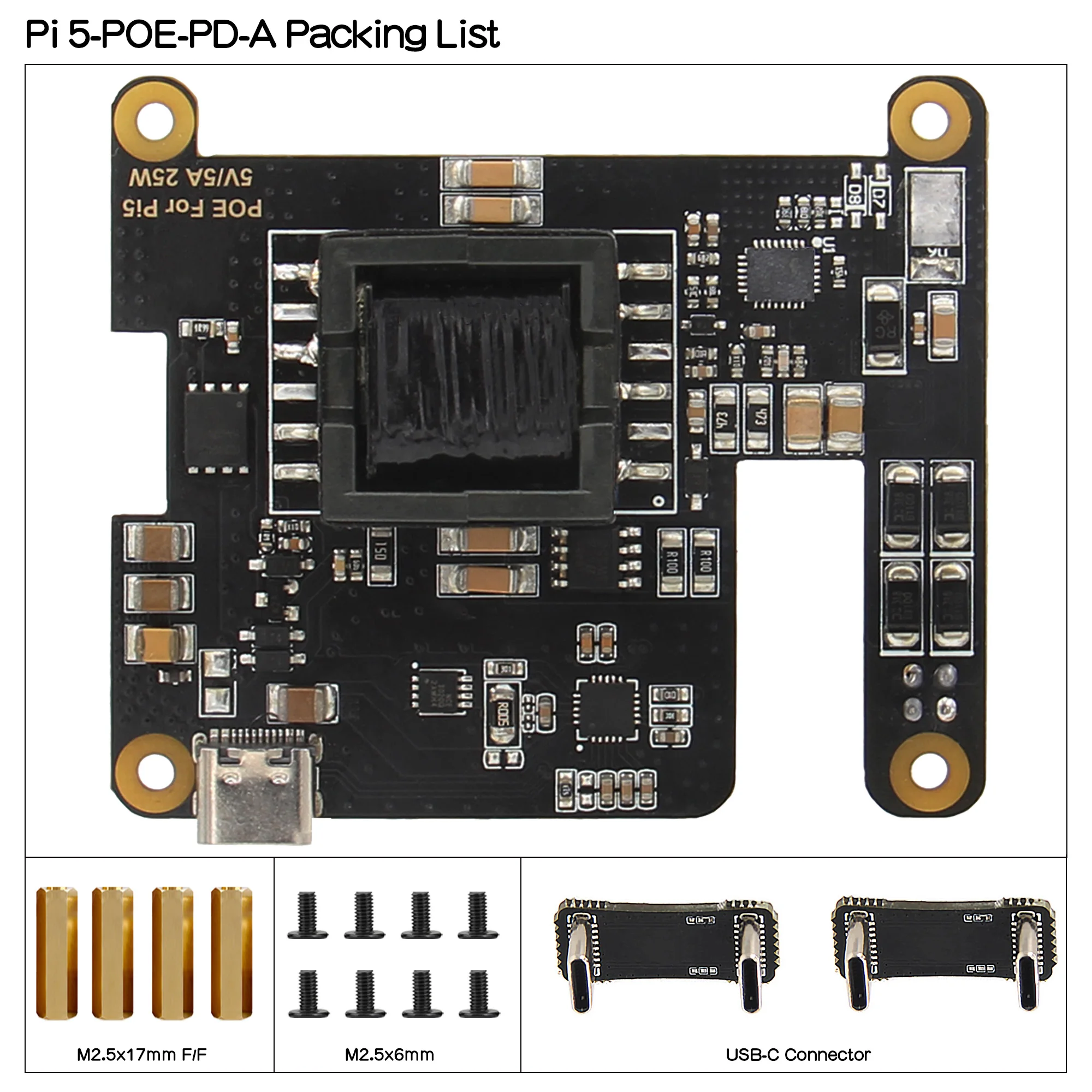

[Packing List]

  • 1 x PoE shield

  • 1 x USB C Connector

  • 1 x Screw pack
