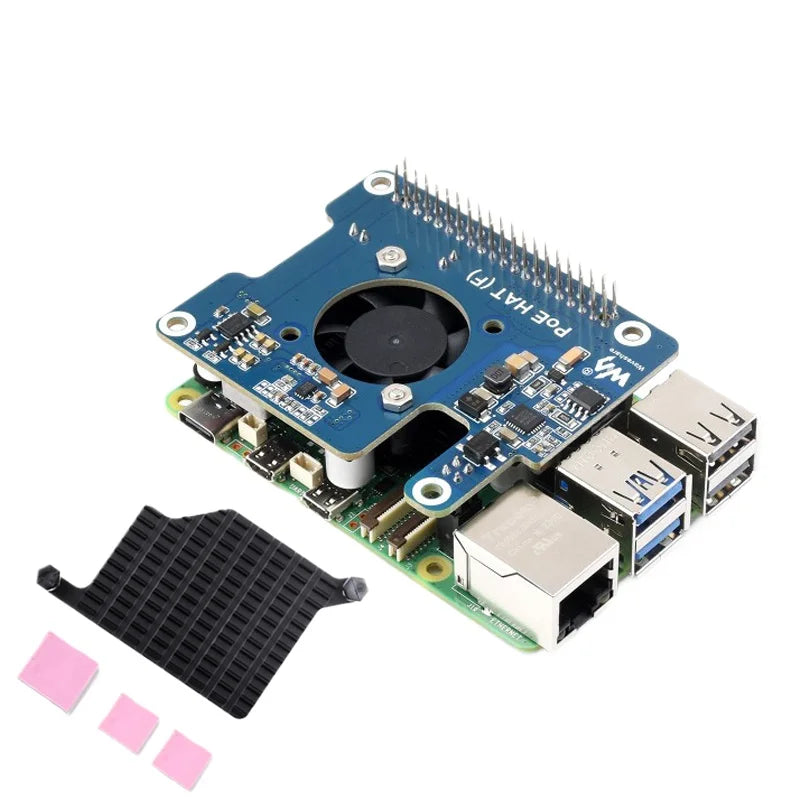

Raspberry Pi 5 PoE HAT (F) 802.3af/at High Power Power Over Ethernet Onboard Cooling Fan with Metal Heatsink for RPi 5 Pi5

Raspberry Pi 5 PoE HAT (F) 802.3af/at High Power Power Over Ethernet Onboard Cooling Fan with Metal Heatsink for RPi 5 Pi5

$14.41 USD
$14.41 USD $14.41 USD
Sale Sold out
Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/At Network Standard
POE HAT For Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard

12V And 5V Power Outputs To Support More Peripherals



Features At A Glance

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5

  • PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant

  • Fully isolated switched-mode power supply (SMPS)

  • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation


Specifications

POE POWER INPUT

37V ~ 57V DC in

POWER OUTPUT

GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)

DIMENSIONS

56.5 × 70.0mm

NETWORK STANDARD

IEEE 802.3af/at PoE

Suitable For Raspberry Pi 5

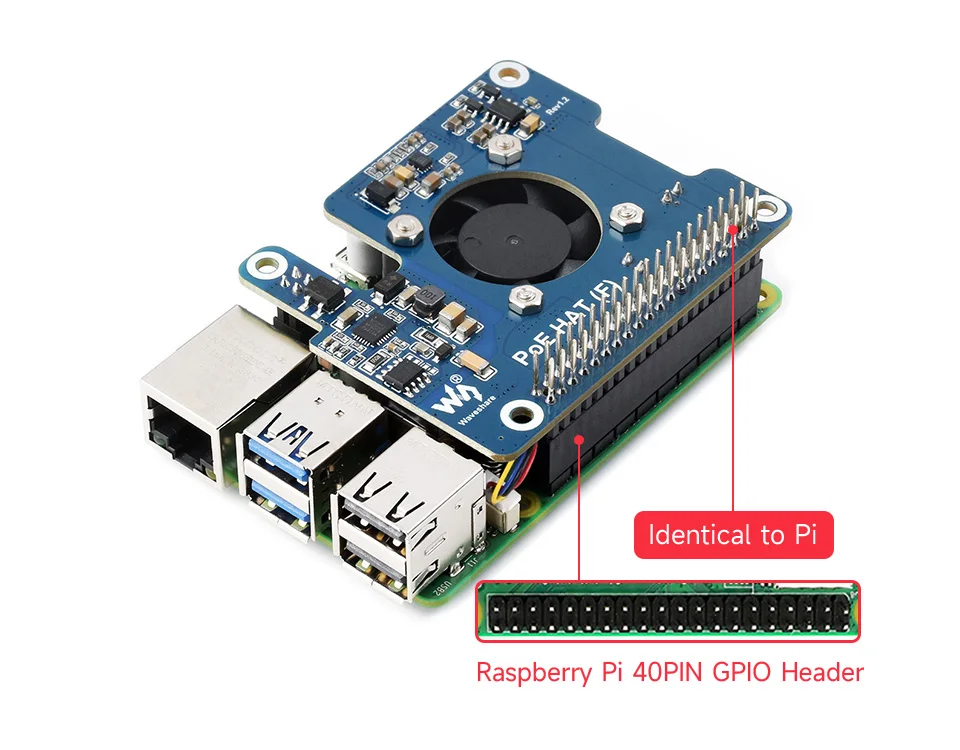

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

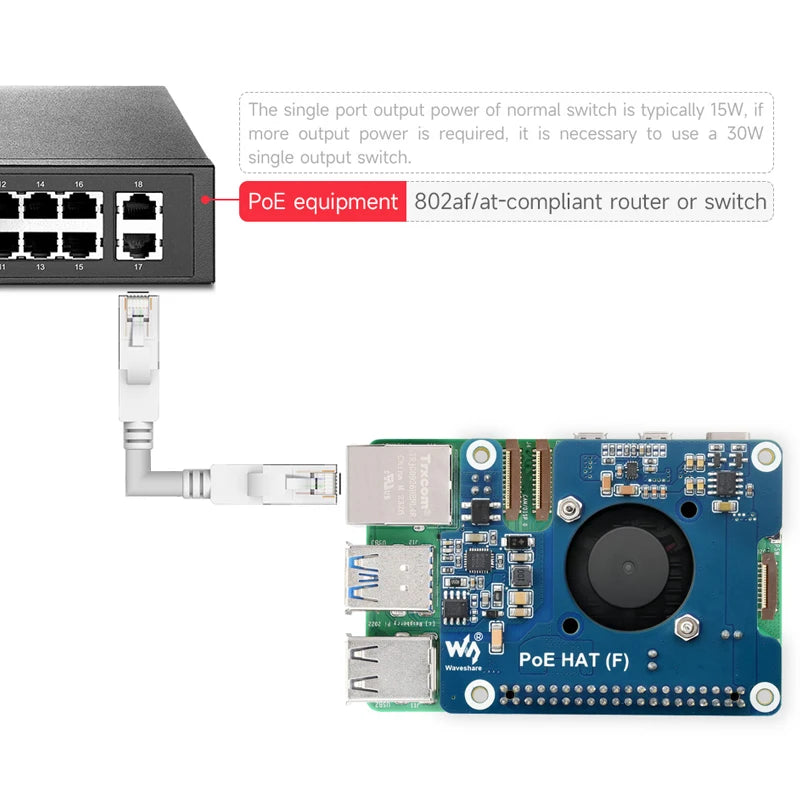

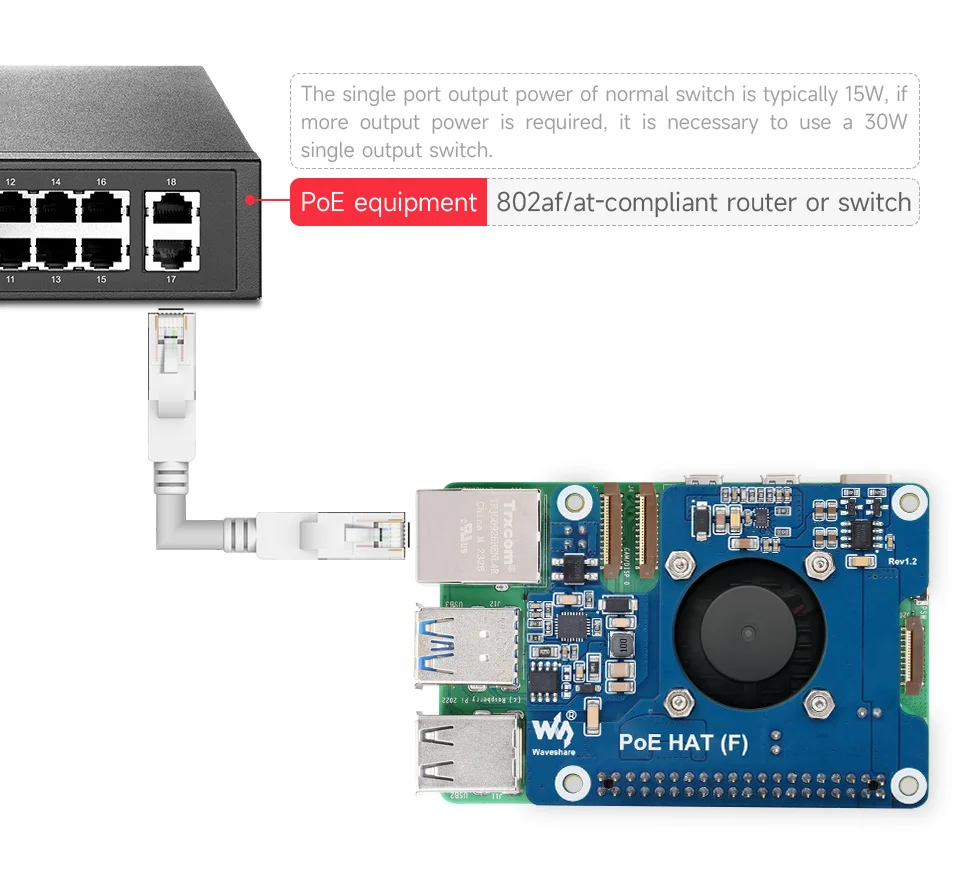

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

* for reference only, the Raspberry Pi 5 and switch are NOT included.

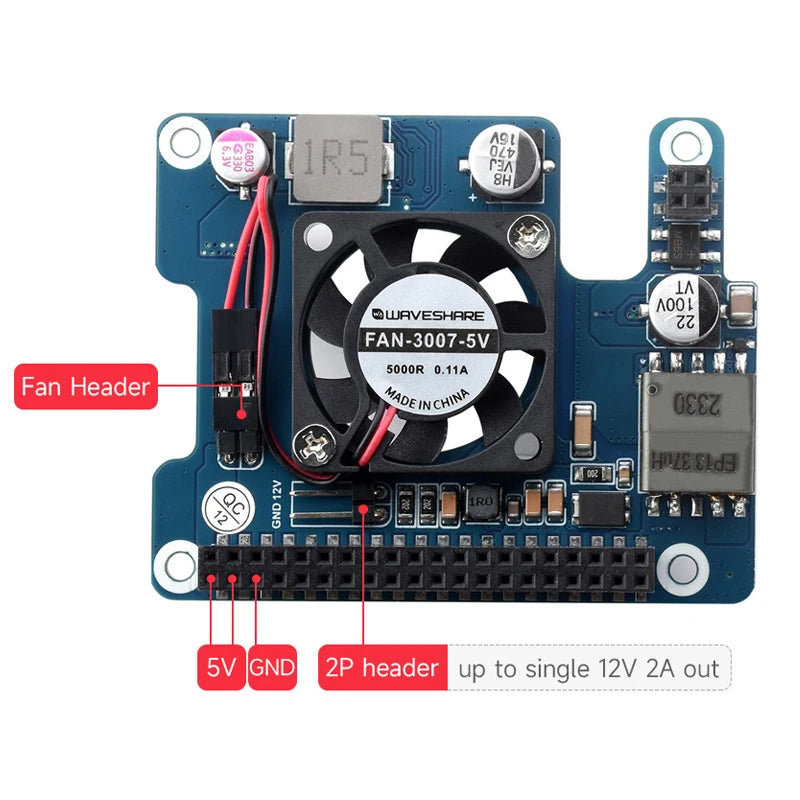

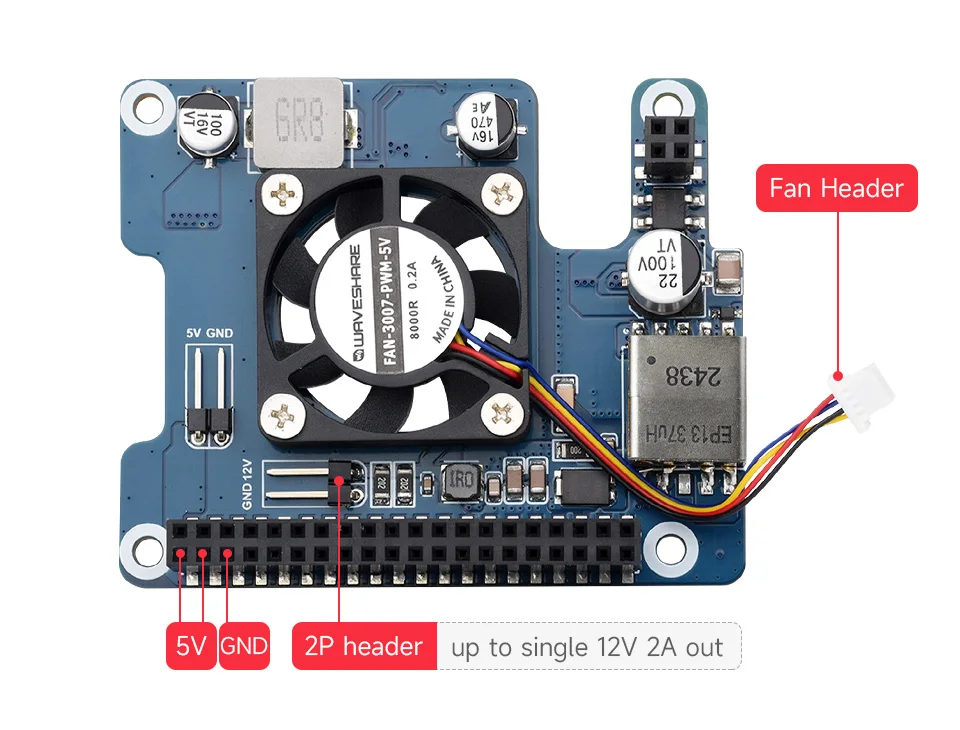

Onboard 5V & 12V Header Outputs

5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi

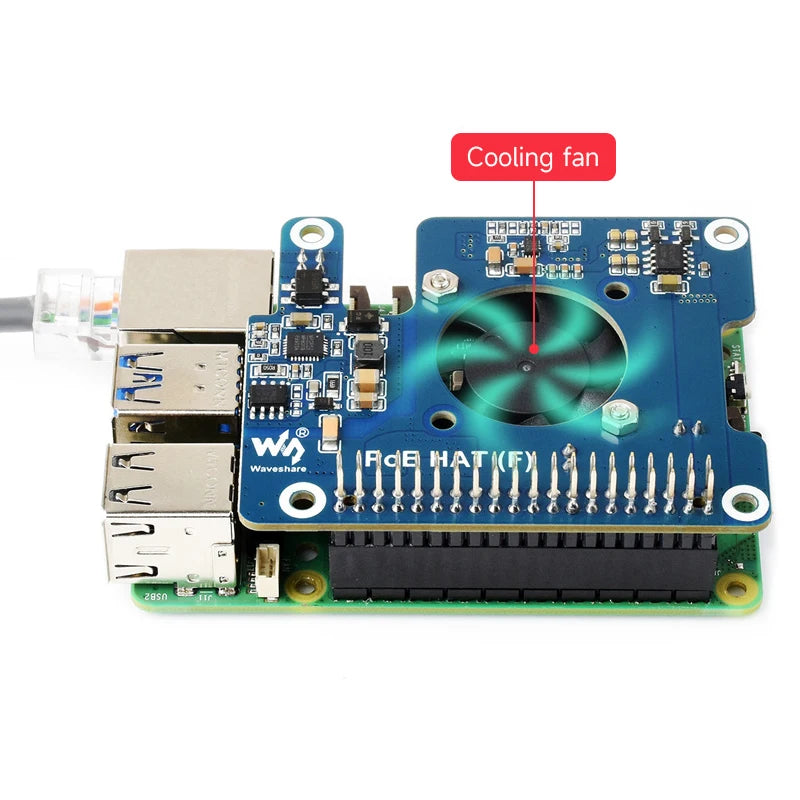

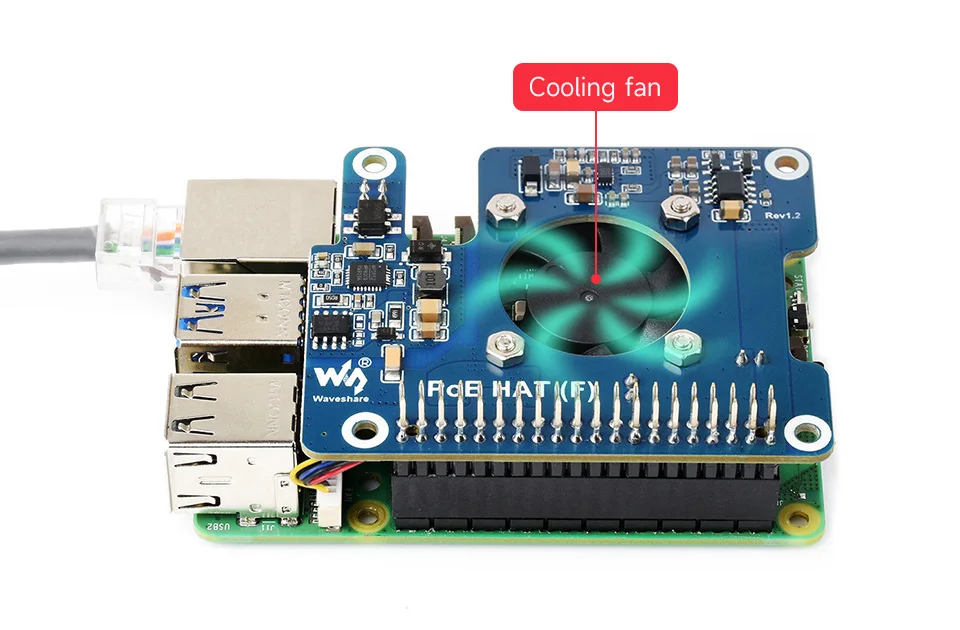

Active Cooling Fan

Accelerate Cooling Effect, More Stable Performance

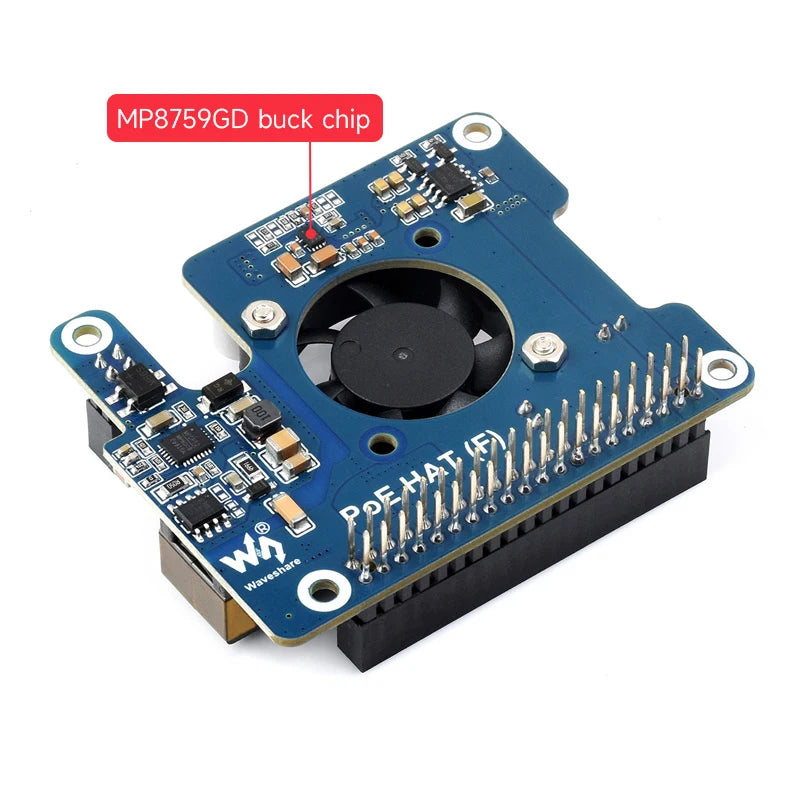

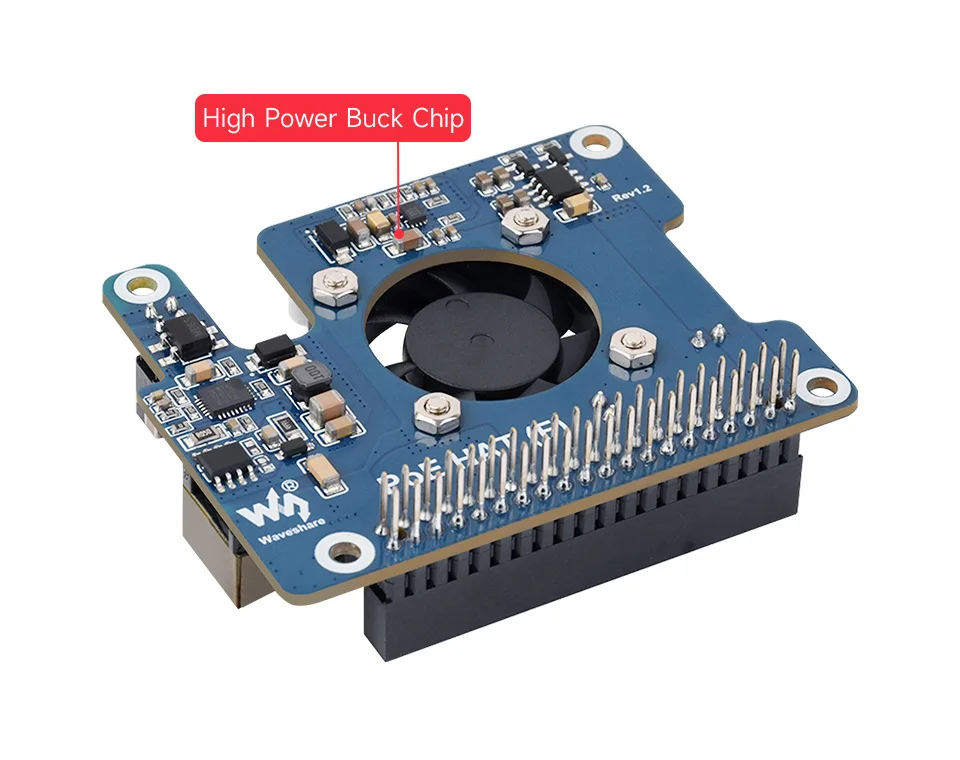

Onboard MP8759GD Buck Chip

Incorporates Original Voltage Buck Chip
Providing Up To 5A Under Sufficient Heat Dissipation Condition

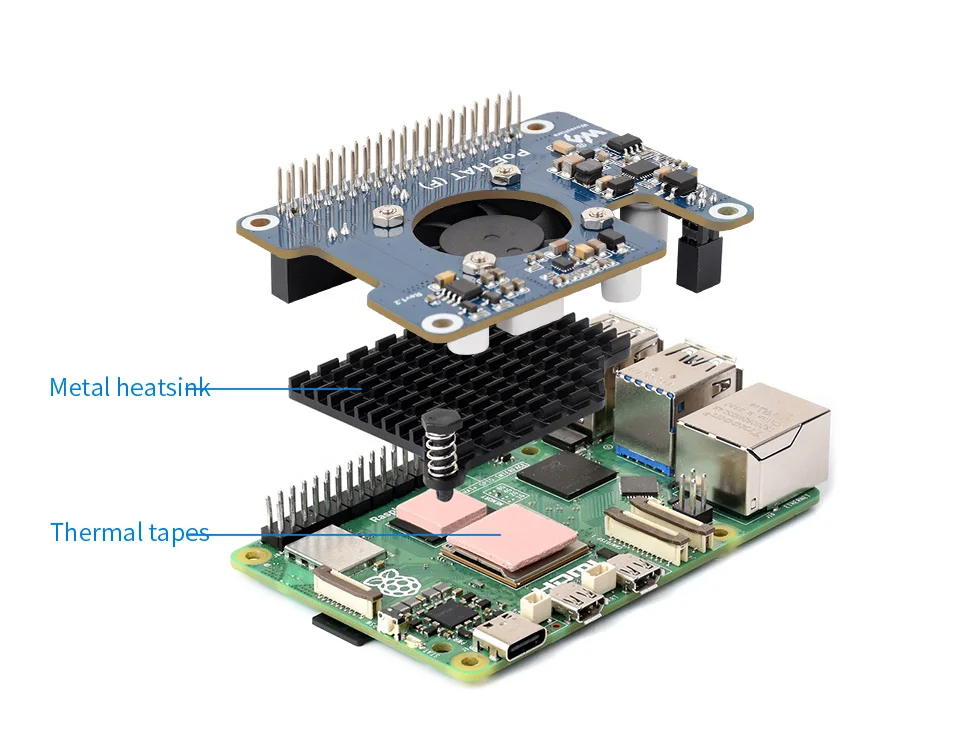

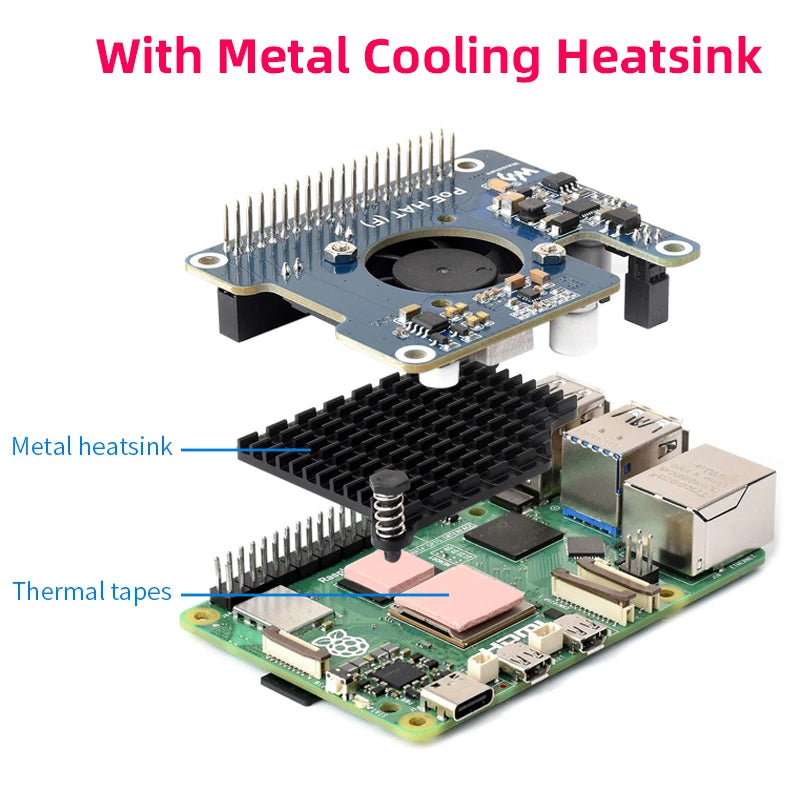

How To Install

Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT

* for reference only, please refer to the Package Content for detailed part list

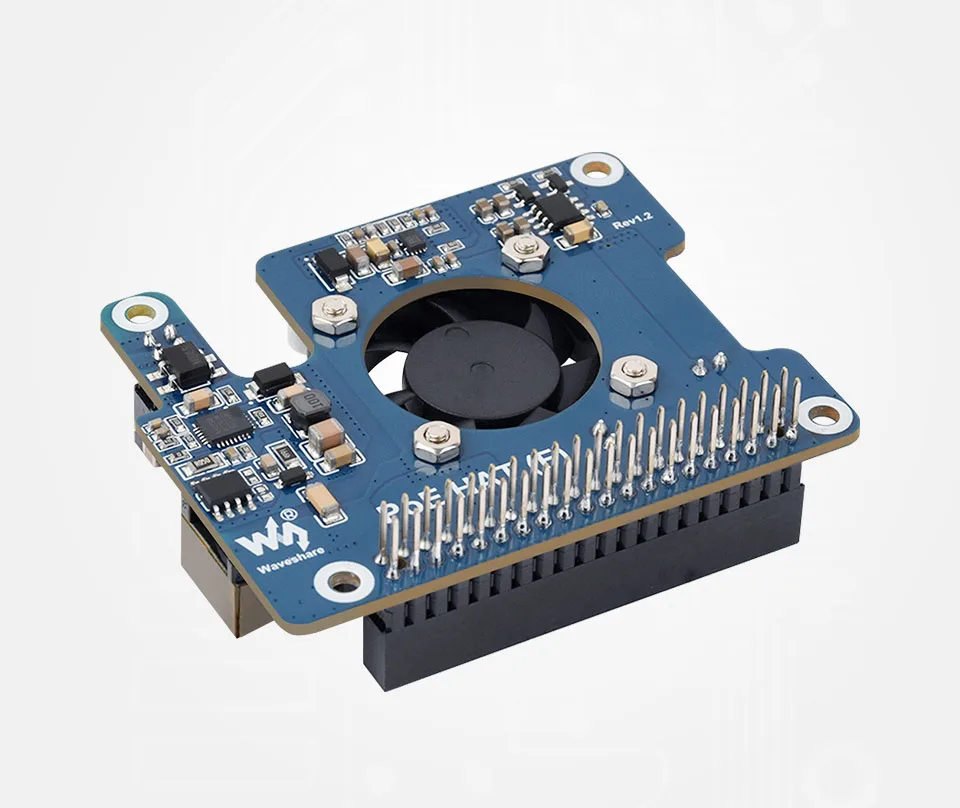

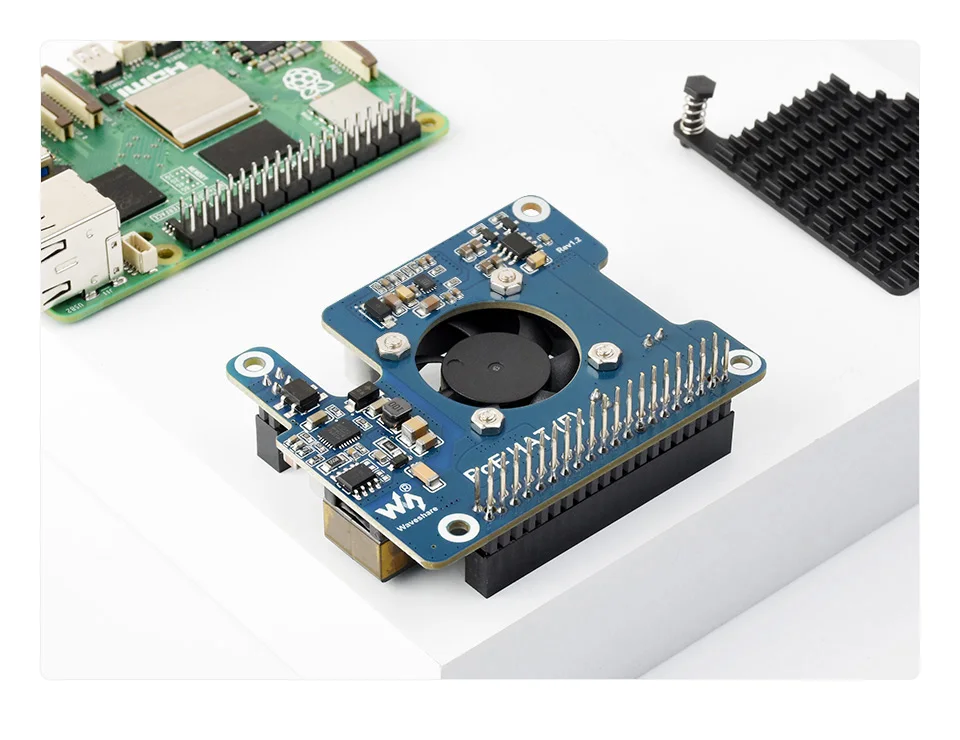

Product Show

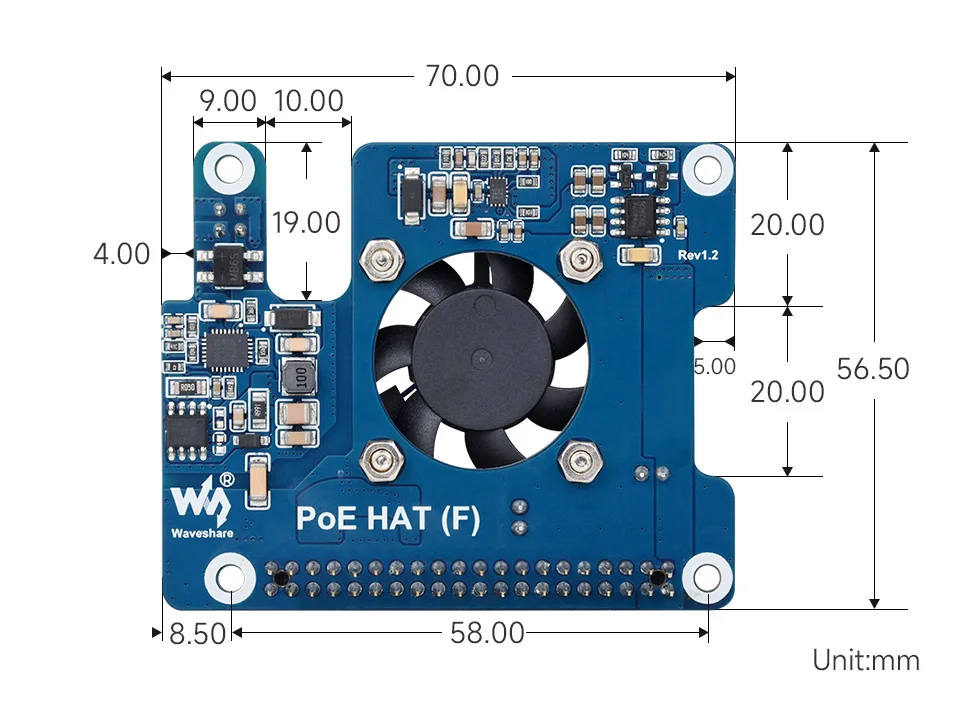

Outline Dimensions
Resources & Services


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

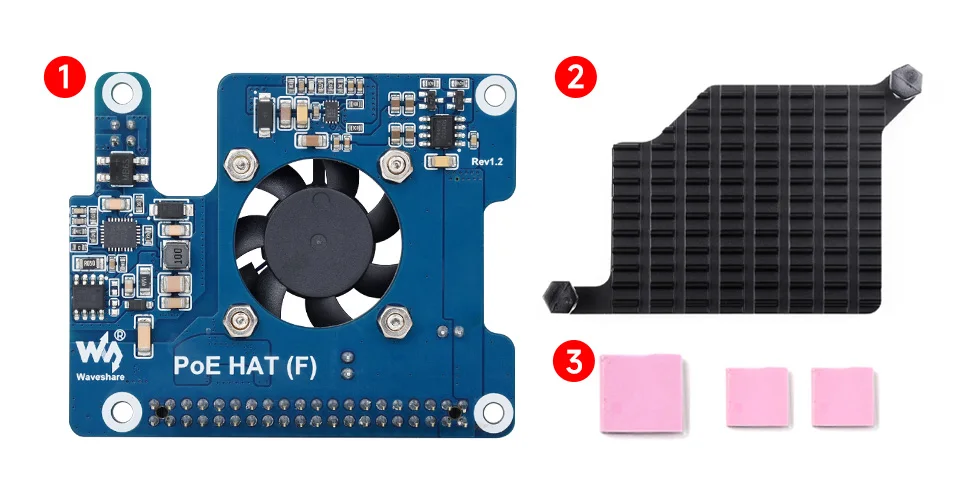

Packing List



  1. PoE HAT (F) x1

  2. Metal heatsink x1

  3. Thermal tape (3PCS) x1

Weight: 0.056 kg
