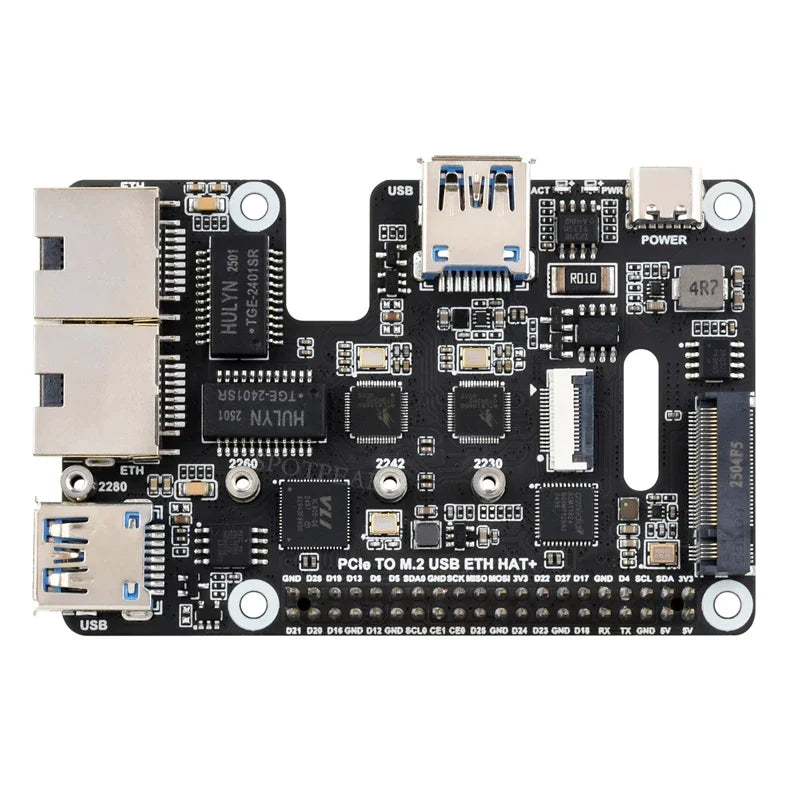

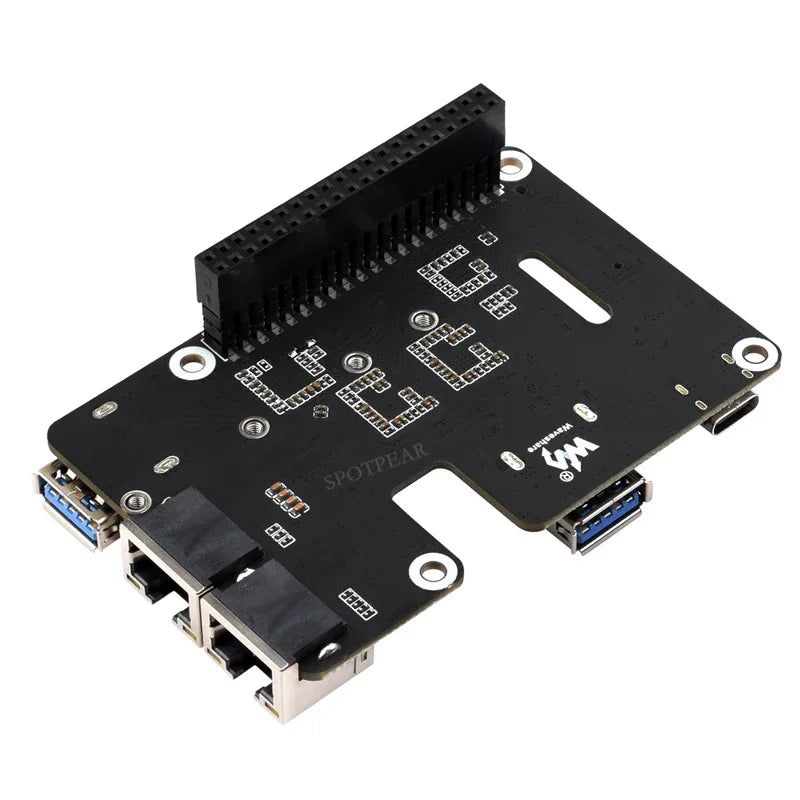

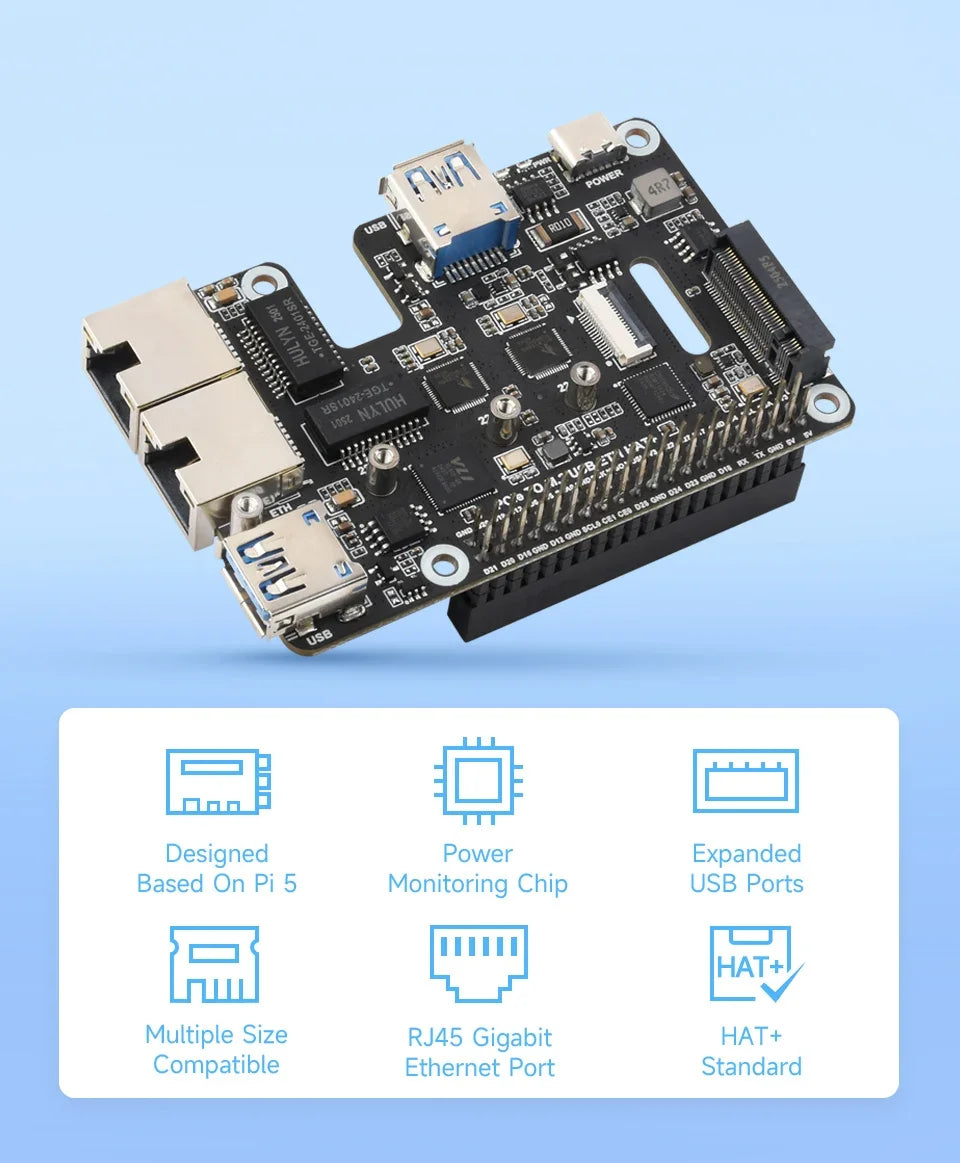

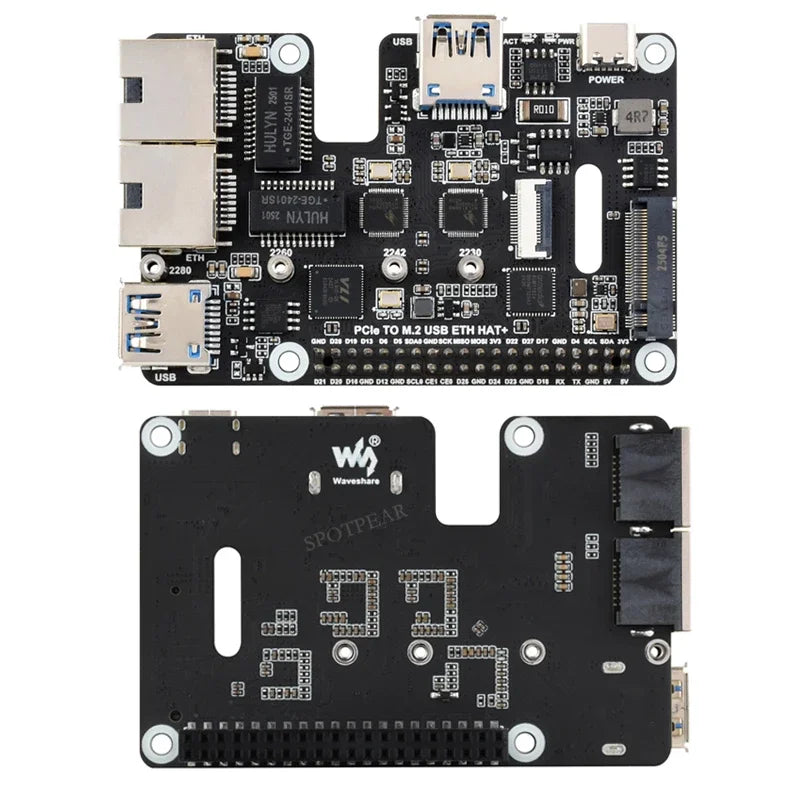

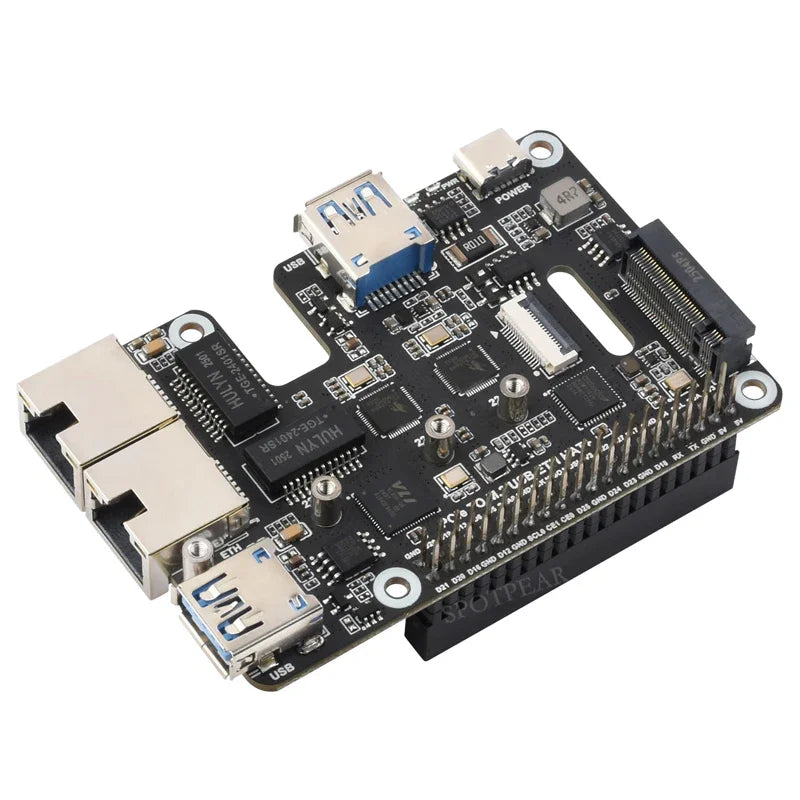

Raspberry Pi 5 PCIe to USB3 HUB Double 2.5G ETH RJ45 and M.2 NVMe SSD PI5 Expansion board HAT+

PCIe TO M.2 USB ETH HAT+
Designed For Raspberry Pi 5, Driver-Free, Plug And Play
Dual 2.5G Ethernet Ports | Dual USB 3.2 Ports | M.2 NVMe Slot
Connecting To Pi 5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5
* for reference only, the
Raspberry Pi 5
is not included
NVMe Drive Protocol Support
Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 Mode, Supports Booting PI5 From Solid State Drive
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
Onboard 2-Channel USB 3.2 Ports
Extends The PCIe Interface To 2-Ch High-Speed USB 3.2 Gen1 Ports For Connecting
More Peripherals
Extends 2-Channel 2.5G Ethernet Ports
Onboard RTL8156B High-Performance Gigabit ETH Chip, Sinking Design Of Network Port, Neat And Beautiful
* for reference only, the
Raspberry Pi 5
is not included
Improves Reading/Writing Speed Of Your Pi
Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive
* for reference only, the
Raspberry Pi 5
and Solid State Drive are not included.
Onboard Dual LED Indicators
Easy To Monitor The Working Status
Onboard Power Monitoring Chip And EEPROM
Real-Time Monitoring Of Solid State Drive Power Status For More Stable Operation
How To Install
Attach The Thermal Tapes First, Then Install The Official Active Cooler And Fix The HAT
* for reference only, please refer to the Package Content for the detailed part list.
Outline Dimensions
Package Contains
PCIe TO M.2 USB ETH HAT+ x1
