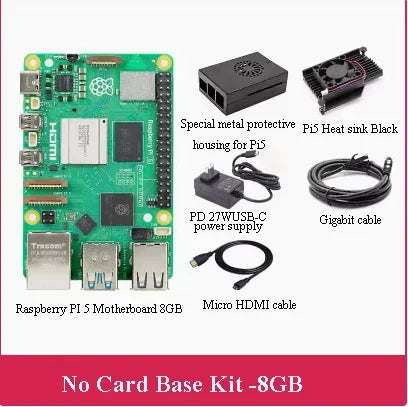

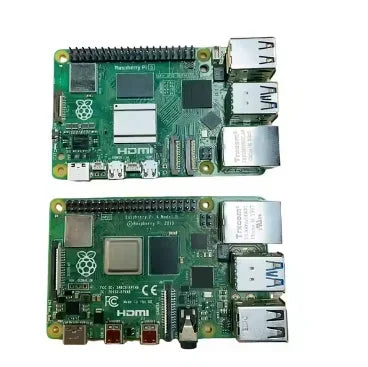

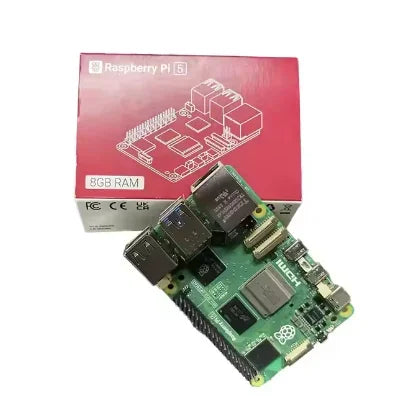

Raspberry PI 5 Cardless Base Kit 8G Electronic Components

$150.82 USD

~~$150.82 USD~~ $150.82 USD

Sale Sold out

规格 10*10*10

Quantity

Shenzhen Lonten Technology Co.,Ltd
support OEM and ODM
Any question just contact with me,thanks

Since 2014, Lonten Technology Co.,itd specializing in R&D, producing, distribution of lOT smart lifeproducts, such as smart wall switch/breaker (light,Curtain door), security electronic products (motionsensor, opening, flooding), wireless controller, Smart bulb, Smart lock, Smart Garage Door Openerand so on.
Local in Shenzhen Longgang district have 4000 square meters manufacturing workshop and officespace, equipped with 4 lines manufacturing machinery and test machinery.Providing OEM & ODM service and Regularly developing new products to lead in marketing treadsand demand. And With several certification(CE, ROHS, SGS, BV, FCC and SAA) and cooperated withsupermarket brands with high quality guarantee.

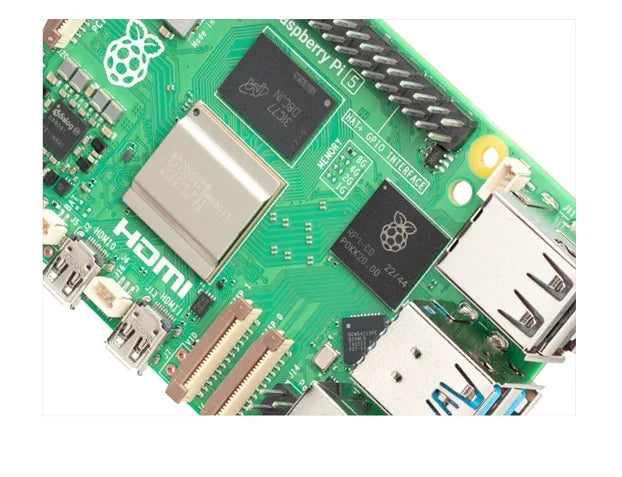

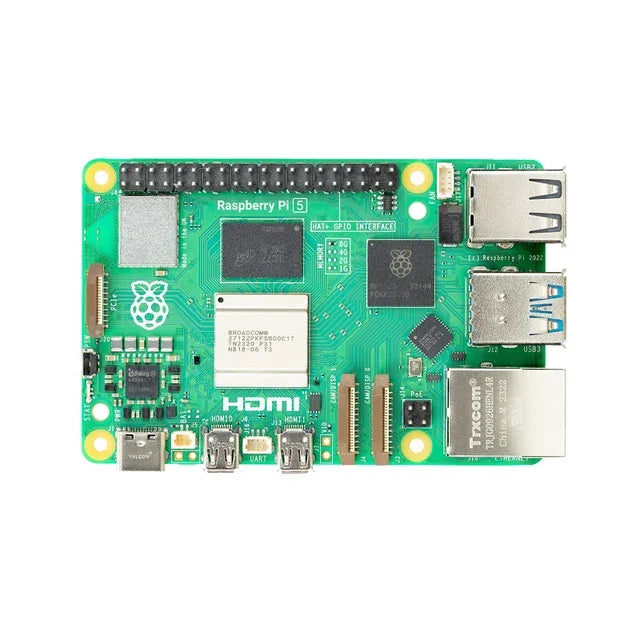

The Raspberry Pi 5 is powered by a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, providing 2-3 times better CPU performance compared to the Raspberry Pi 4. In addition, the graphics performance of the 800MHz VideoCore VII GPU has been significantly improved; Dual 4Kp60 display output via HDMI; As well as advanced camera support from the redesigned Raspberry PI image signal processor, it provides users with a smooth desktop experience and opens the door to new applications for industrial customers.

Raspberry PI's first Raspberry PI chip in a flagship product!

The RP1 "south-bridge" provides most of the I/O capabilities for the Raspberry PI 5 and makes significant changes in peripheral performance and functionality. More than double the total USB bandwidth for faster transfers to external UAS drives and other high-speed peripherals; The dedicated dual-channel 1Gbps MIPI camera and display interface on earlier models has been replaced by the MIPI transceiver, triples the total bandwidth and supports any combination of up to two cameras or displays; SD card's peak performance is doubled by supporting SDR104 high-speed mode; For the first time, the platform exposes a single-wire PCI Express2.0 interface to support high-bandwidth peripherals.

2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU with 512KB L2 cache and 2MB shared L3 cache

VideoCore VII GPU, support OpenGL ES 3.1, Vulkan 1.2

Dual 4Kp60 HDMI@ display output with HDR support

4Kp60 HEVC decoder

LPDDR4X-4267 SDRAM (.Available with 4GB and 8GB RAM at launch)

Dual-band 802.11ac Wi-Fi

Bluetooth 5.0 / Bluetooth Low Energy (BLE)

MicroSD card slot, supporting high-speed SDR104 mode

Two USB 3.0 ports, supporting 5Gbps synchronous operation

2 USB 2.0 ports

Gigabit Ethernet, PoE+ support (separate PoE+ HAT required)

2 x 4-channel MIPI camera/display transceiver
