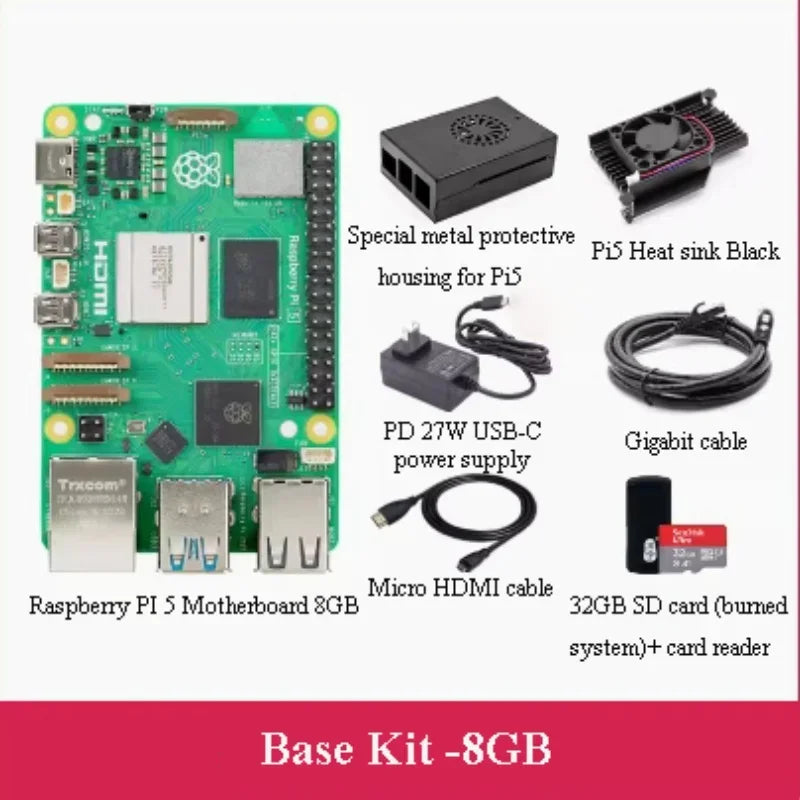

Raspberry PI 5 basic kit, optional memory 2G/4G/8G, to meet different needs, efficient and stable operation
Raspberry PI 5 basic kit, optional memory 2G/4G/8G, to meet different needs, efficient and stable operation
Couldn't load pickup availability
| Since 2014, Lonten Technology Co.,ltd specializing in R&D, producing, distribution of lOT smart lifeproducts, such as smart wall switch/breaker (light,Curtain door), security electronic products (motionsensor, opening, flooding), wireless controller, Smart bulb, Smart lock, Smart Garage Door Openerand so on. Local in Shenzhen Longgang district have 4000 square meters manufacturing workshop and officespace, equipped with 4 lines manufacturing machinery and test machinery.Providing OEM & ODM service and Regularly developing new products to lead in marketing treadsand demand. And With several certification(CE, ROHS, SGS, BV, FCC and SAA) and cooperated withsupermarket brands with high quality guarantee. |
The Raspberry Pi 5 is powered by a 64-bit quad-core Arm Cortex-A76 processor
running at 2.4GHz, providing 2-3 times better CPU performance compared to
the Raspberry Pi 4. In addition, the graphics performance of the 800MHz
VideoCore VII GPU has been significantly improved; Dual 4Kp60 display
output via HDMI; As well as advanced camera support from the redesigned
Raspberry PI image signal processor, it provides users with a smooth
desktop experience and opens the door to new applications for industrial customers.
Raspberry PI's first Raspberry PI chip in a flagship product!
The RP1 "south-bridge" provides most of the I/O capabilities for the Raspberry
PI 5 and makes significant changes in peripheral performance and functionality.
More than double the total USB bandwidth for faster transfers to external UAS
drives and other high-speed peripherals; The dedicated dual-channel 1Gbps
MIPI camera and display interface on earlier models has been replaced by the
MIPI transceiver, triples the total bandwidth and supports any combination of
up to two cameras or displays; SD card's peak performance is doubled by supporting
SDR104 high-speed mode; For the first time, the platform exposes a single-wire
PCI Express2.0 interface to support high-bandwidth peripherals.
2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU with 512KB L2 cache and 2MB shared L3 cache
VideoCore VII GPU, support OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI@ display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (.Available with 4GB and 8GB RAM at launch)
Dual-band 802.11ac Wi-Fi⑧
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
MicroSD card slot, supporting high-speed SDR104 mode
Two USB 3.0 ports, supporting 5Gbps synchronous operation
2 USB 2.0 ports
Gigabit Ethernet, PoE+ support (separate PoE+ HAT required)
2 x 4-channel MIPI camera/display transceiver
PCIe 2.0 x1 interface for fast peripherals (separate M.2 HAT or other adapter required)
5V/5A DC power supply, USB-C interface, support power supply
Raspberry PI standard 40 needles
Real-time clock (RTC), powered by an external battery
