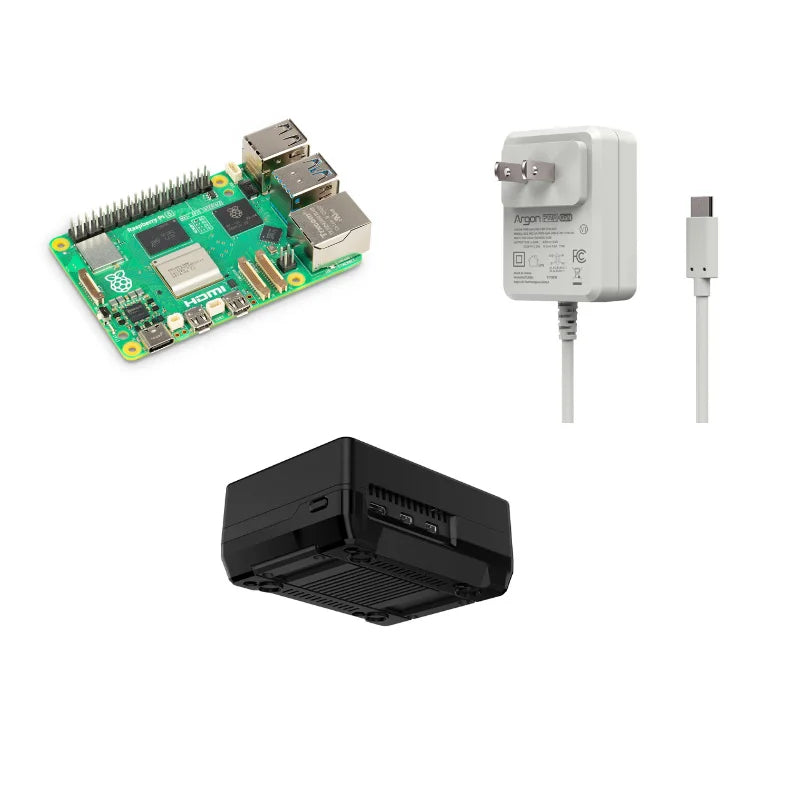

Raspberry Pi 5 8GB Board With NEO5 M.2 NVME PCIE Case Kit
Raspberry Pi 5 8GB Board With NEO5 M.2 NVME PCIE Case Kit
Couldn't load pickup availability

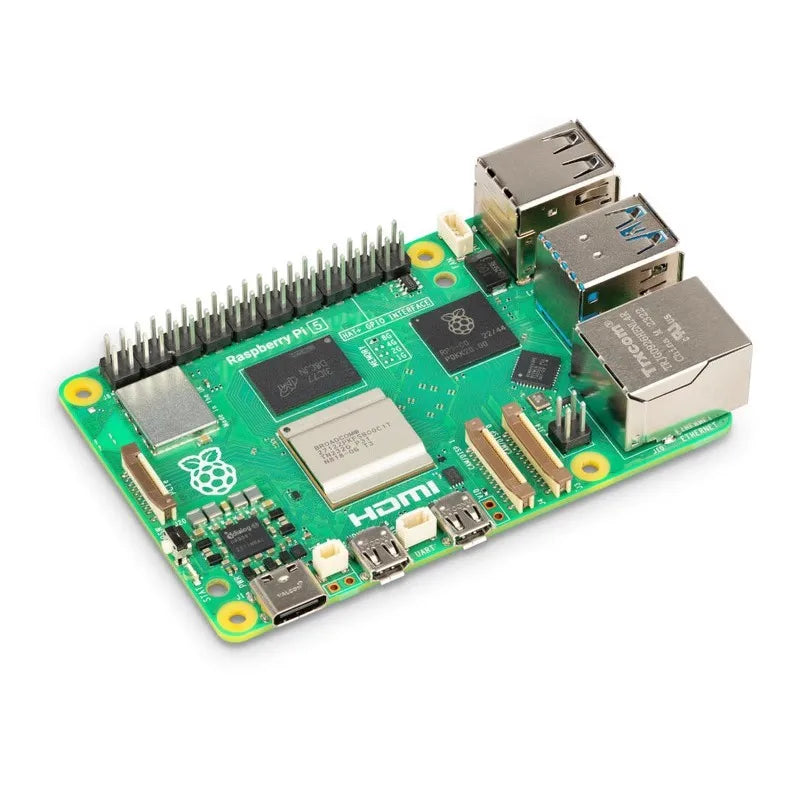

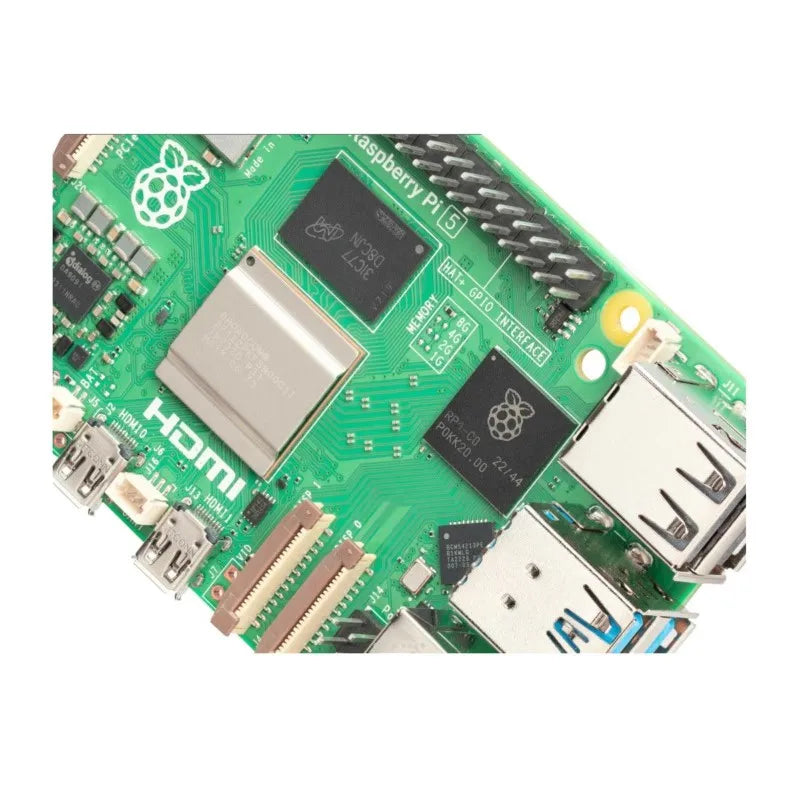

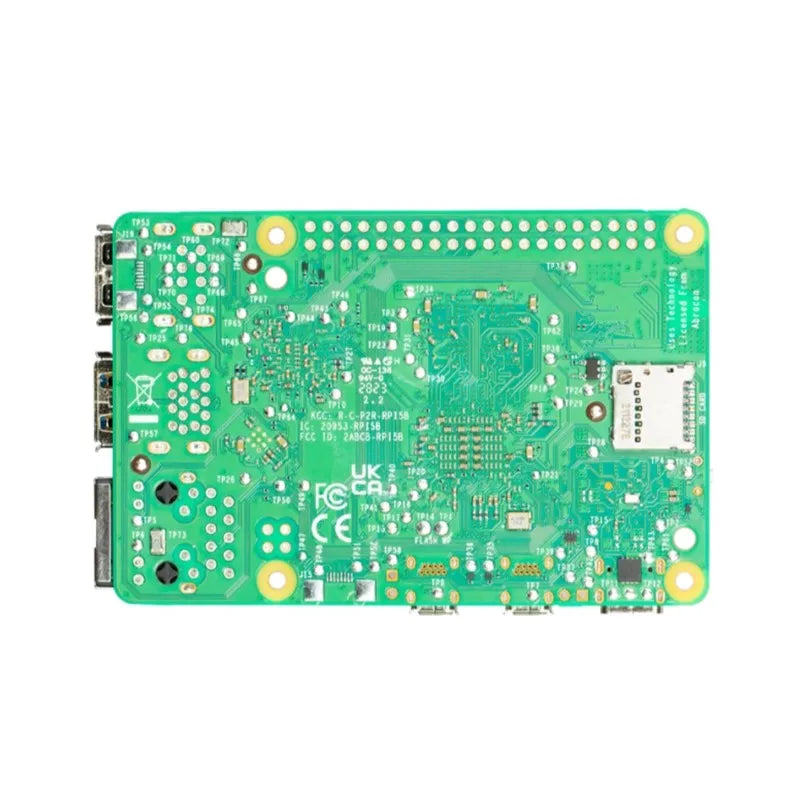

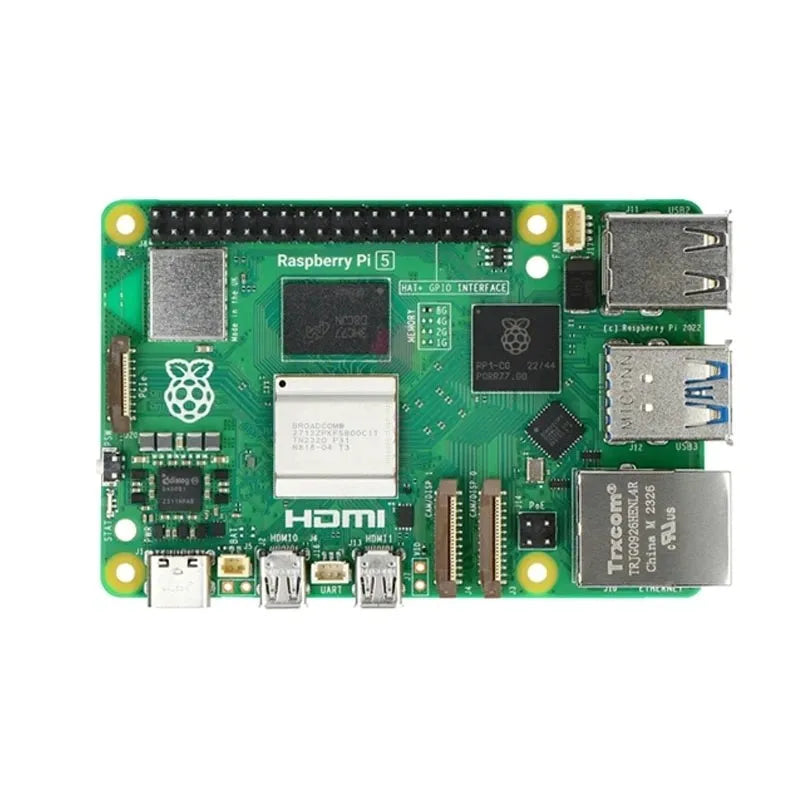

Raspberry Pi 5 is the latest product in the popular Raspberry Pi range of computers. It offers up to 2-3x improved CPU performance compared to the prior-generation Raspberry Pi 4. Significant increase in video performance driven by the VideoCore VII GPU that allows for dual 4Kp60 display over both HD ports. For the end user, Raspberry Pi 5 provides a smooth desktop performance and can be the next 'everything computer.'
This product's key features include the following:
-
Integrated power button and power management IC
-
Built in RTC support
-
One (1) PCIe 2.0 interface
-
high-performance 64-bit quad-core processor
-
dual-display support at resolutions up to 4K via a pair of micro-HD ports
-
hardware video decode at up to 4Kp60
-
up to 8GB of RAM
-
dual-band 2.4/5.0 GHz wireless LAN
-
BT 5.0
-
Gigabit Ethernet
-
USB 3.0, simultaneous support for 5 Gbps transfer
-
PoE+ capability, PoE 802.3at compliant (via a separate PoE+ HAT add-on)
-
Two (2) 4-lane MIPI DSI/CSI port allowing for up to 2 cameras or displays
The dual-band wireless LAN and BT have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
| Processor: | Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4 GHz |
| Memory: | 4GB LPDDR4X-4267 SDRAM 8GB LPDDR4X-4267 SDRAM |
| Connectivity: | 2.4 GHz and 5.0 GHz 802.11ac wireless LAN |
| GPIO: | Standard 40-pin GPIO header |
| Video & Sound: | 2 x micro HD ports (up to 4Kp60 supported) |
| Multimedia: | 4Kp60 HEVC decoder |
| SD card support: | Micro SD card slot, now with support for high-speed SDR104 mode |
| PCIe Interface: | PCIe 2.0 x 1 slot |
| Power: | 5V/5A DC power via USB-C, with Power Delivery support Integrated power button and power management controller |
| Compliance: | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
| Production lifetime: | The Raspberry Pi 5 will remain in production until at least January 2035 |
