Raspberry Pi 4B X873 V1.2 NVMe M.2 SSD Shield + X708 V1.2 UPS & Power Management Board + Matching Metal kit customize

Overview：

• This is a newest X873 V1.2 NVMe M.2 SSD storage expansion board with X708 V1.2 UPS & Power Management Board and Matching Metal kit for raspberry pi 4 model b.

WiKi：

• X873 V1.2:raspberrypiwiki.com/X873

• X708 V1.2:raspberrypiwiki.com/X708

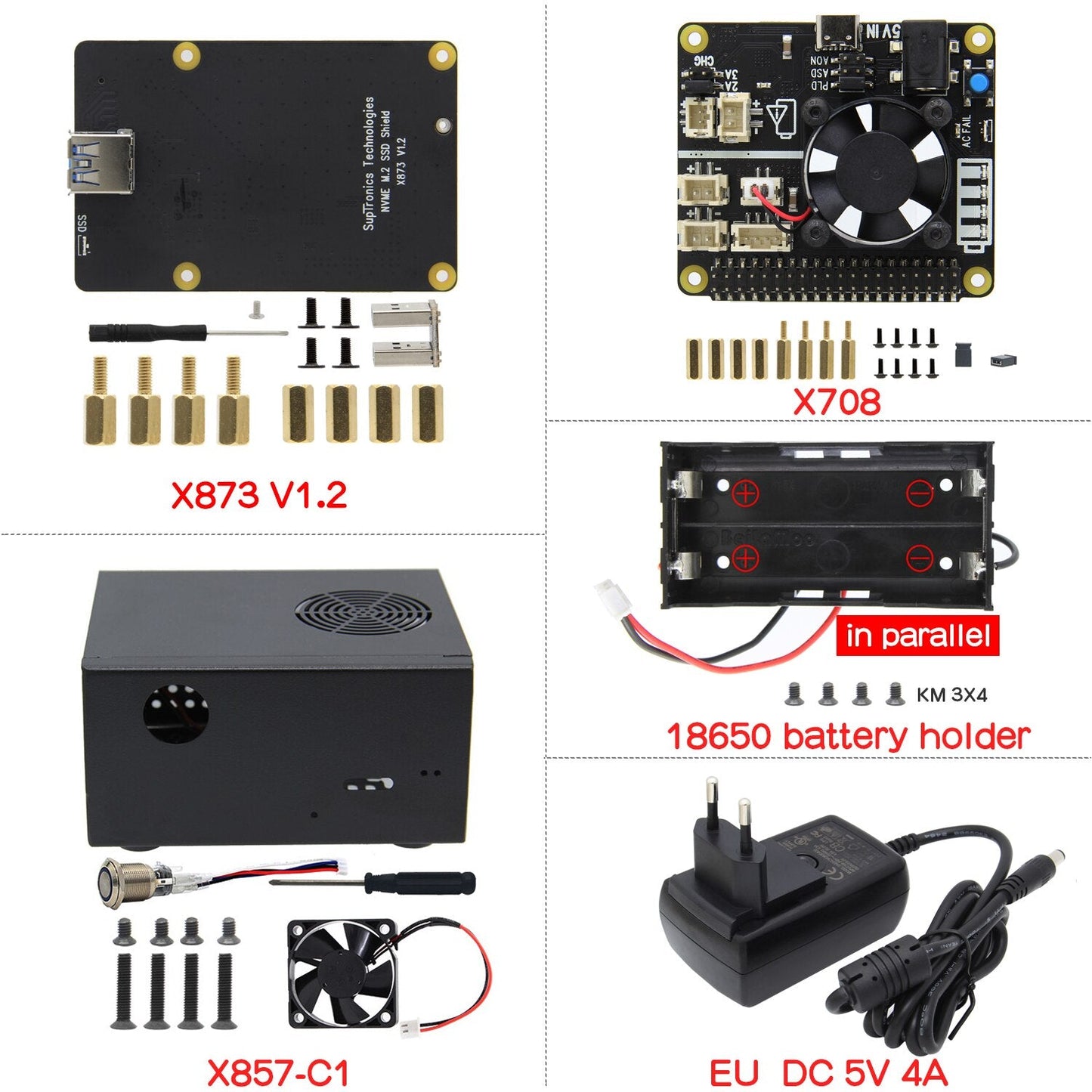

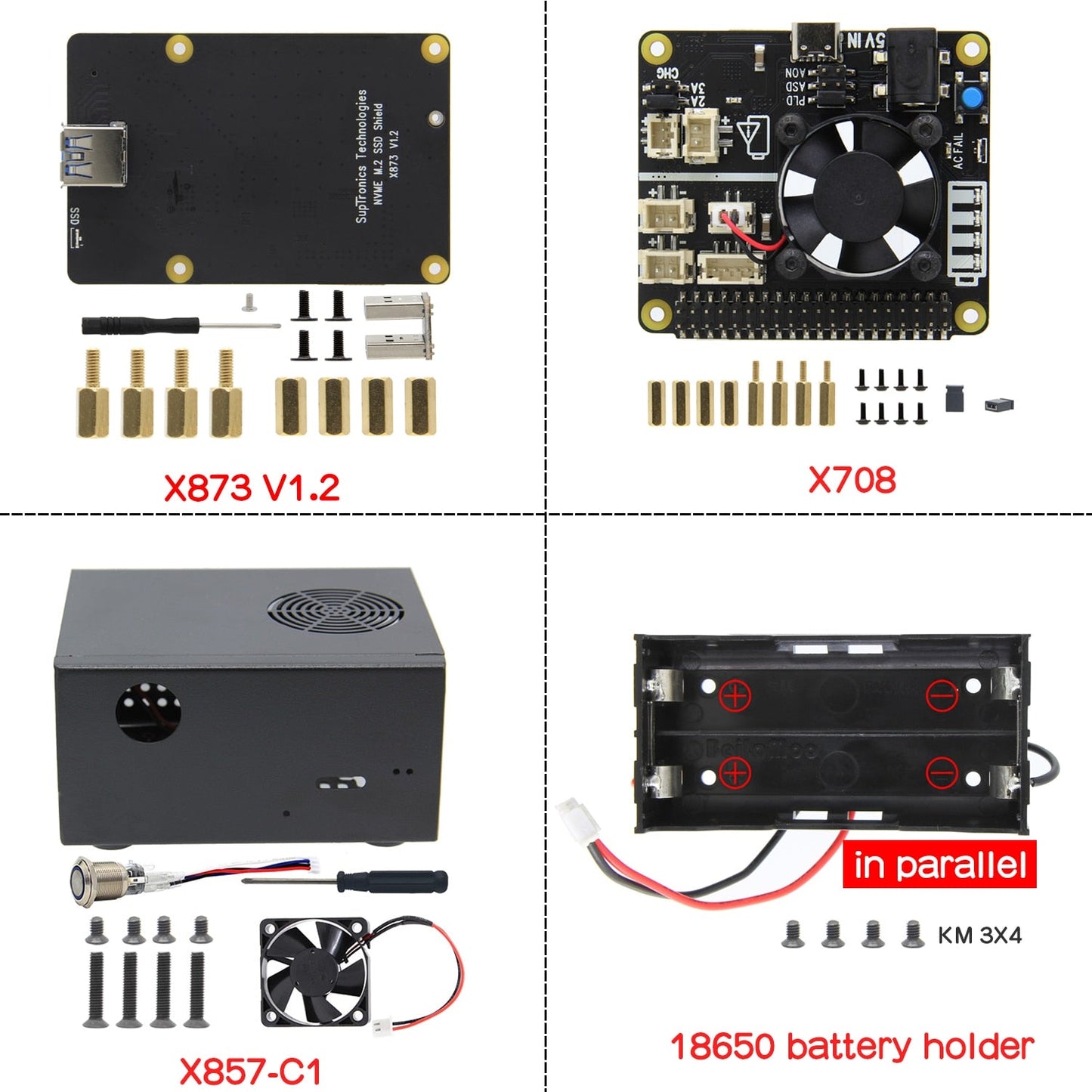

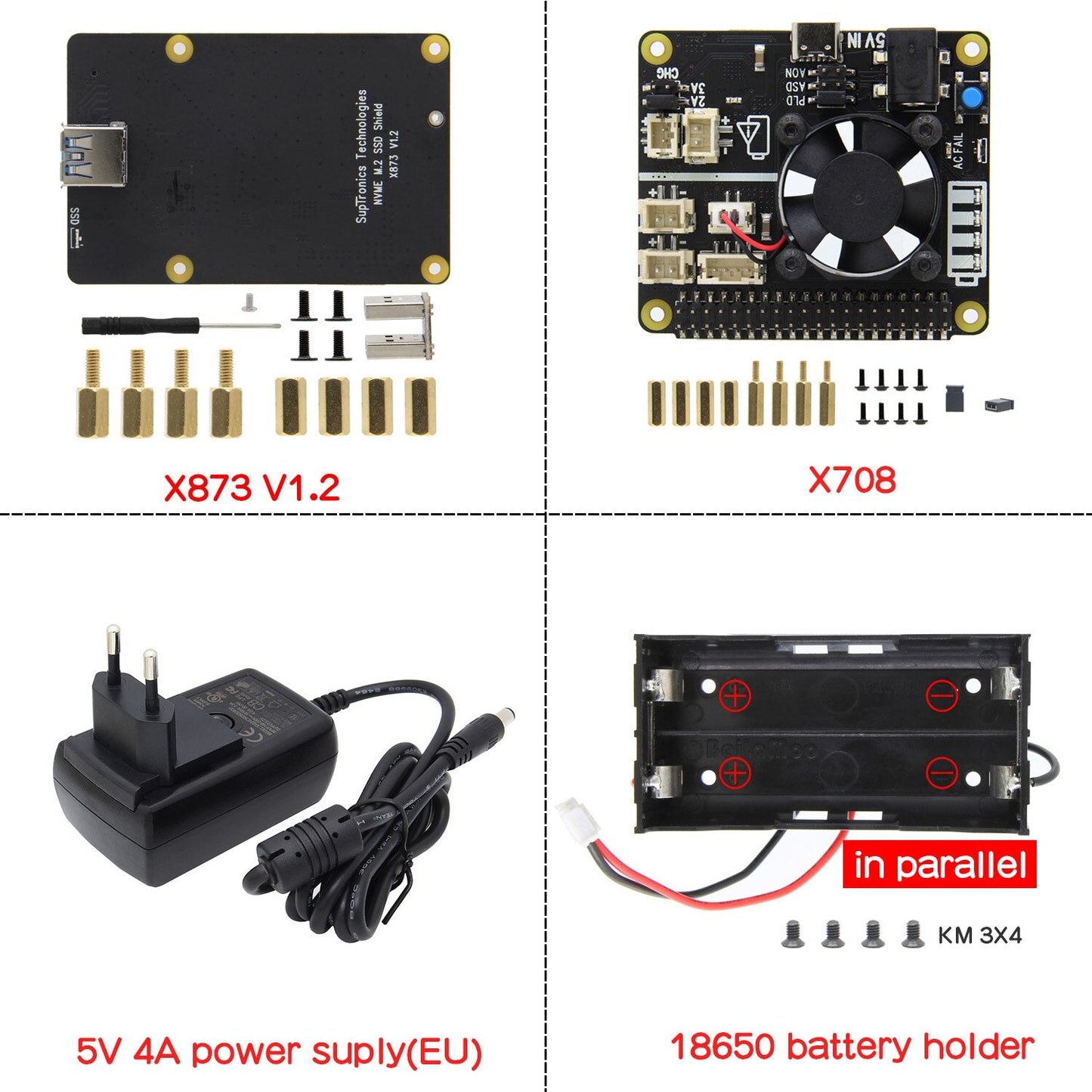

Packing List：

Bundle 1:

• 1 x X873 NVMe M.2 SSD shield (Not including NVMe M.2 SSD)

• 1 x USB3.1 jumper

• 1 x Installation screw pack

• 1 x X708 V1.2 Expansion Board

• 8 x M2.5 *5mm Screws

• 4 x M2.5 *12+6mm Spacers

• 4 x M2.5 *12mm Spacers

• 2 x Jumper link Pitch 2.54mm

• 1 x 18650 Battery Holder

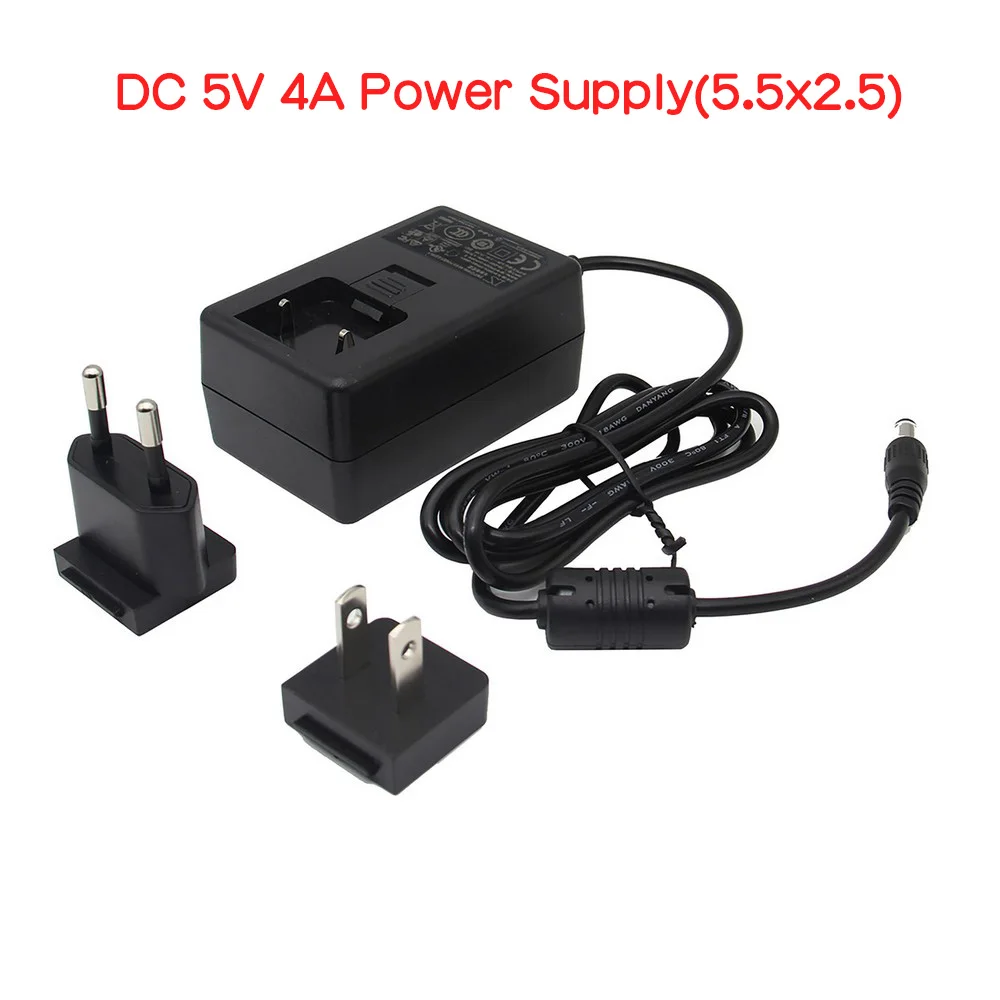

• 1 x 5V 4A power supply（EU）

Bundle 2:

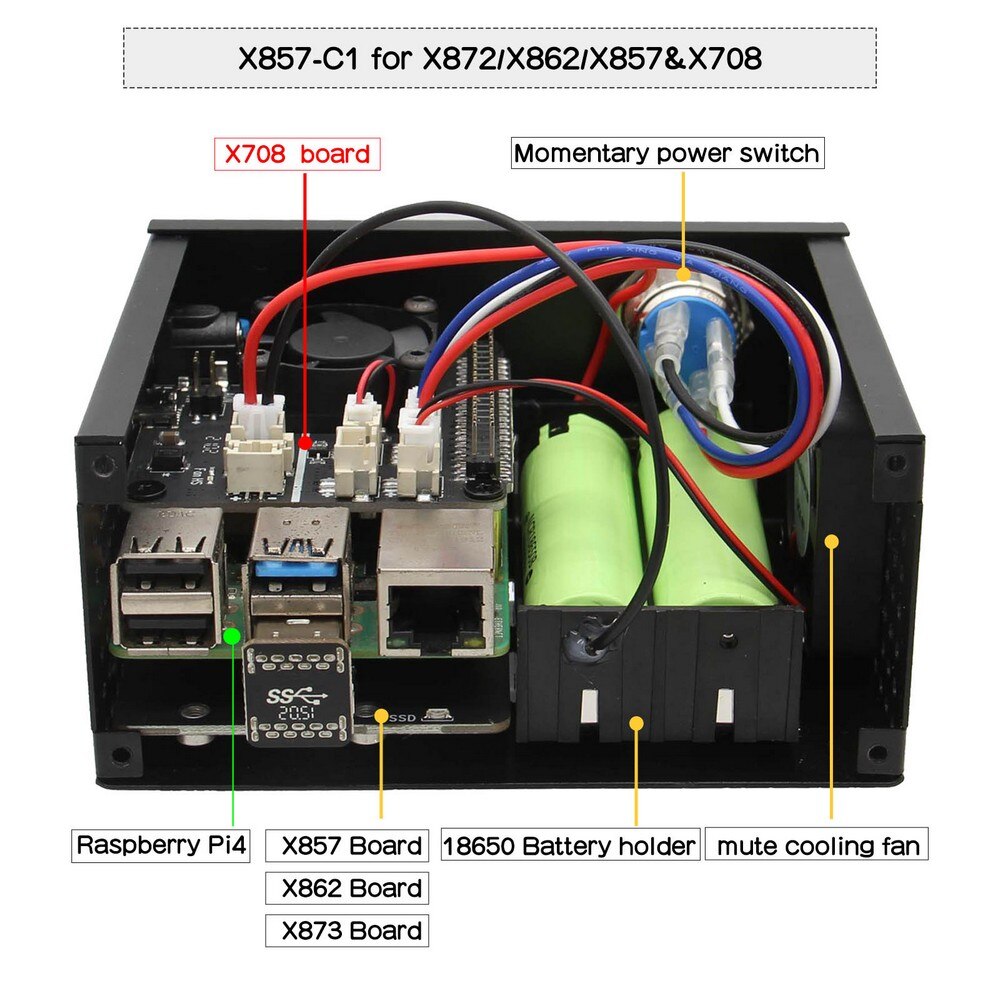

• Bundle 1 + X857-C1

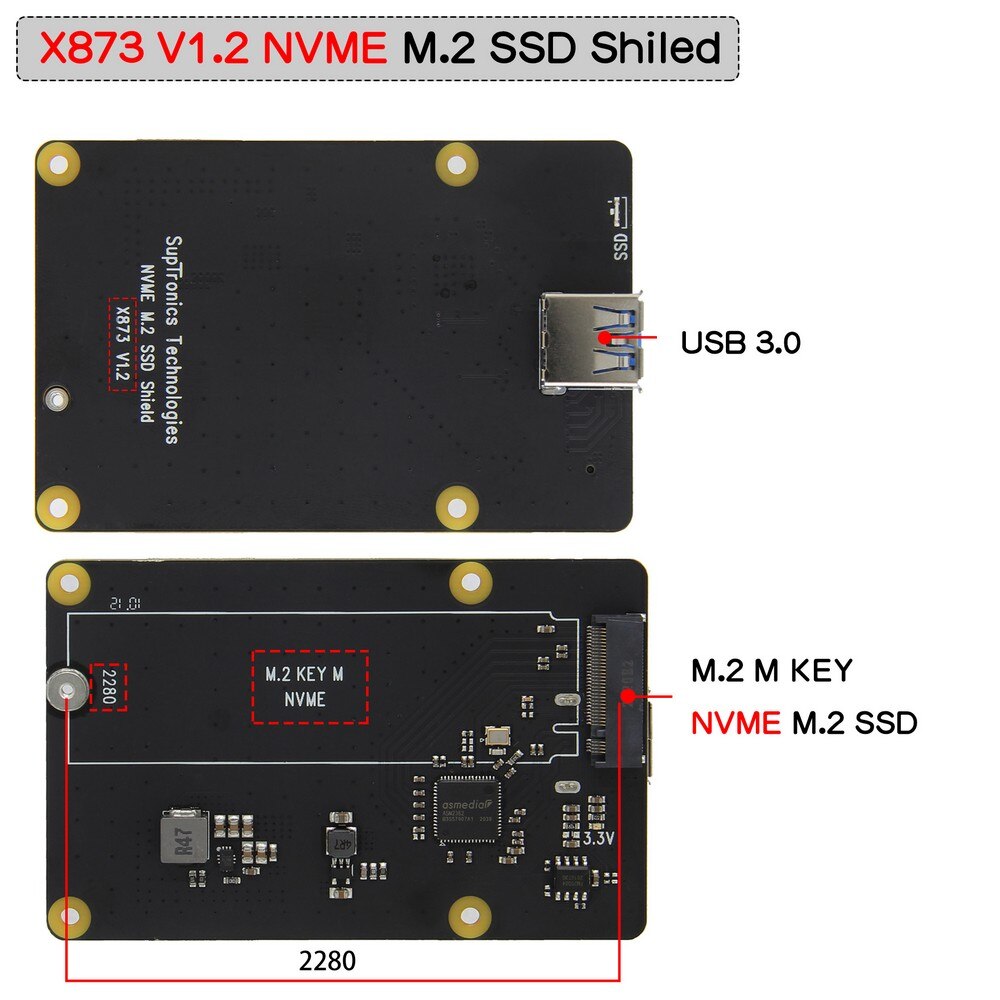

X873 NVMe M.2 SSD Expansion Board：

• Ideal storage solution only for Raspberry Pi 4 - M.2 NVMe SSD Shield

• Supports up to 2TB M.2 NVMe SSD solid-state drives

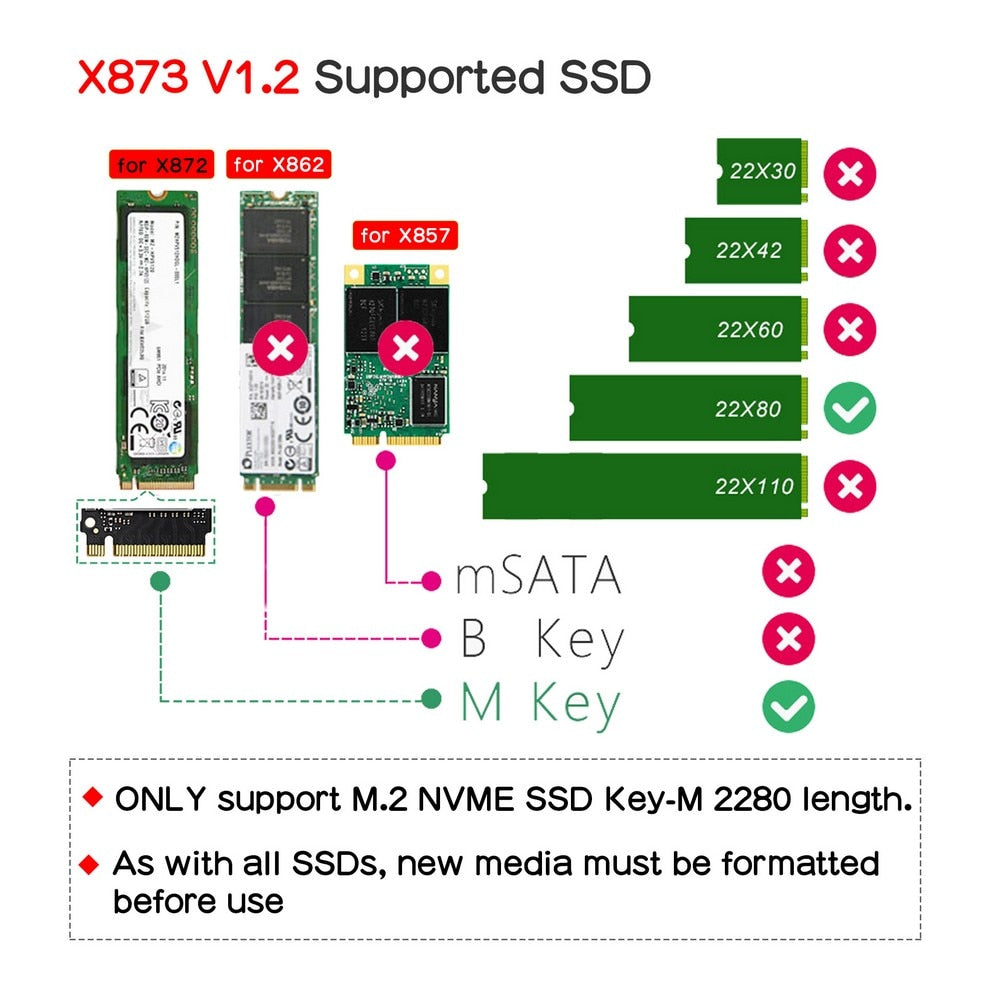

• Only supports M.2 NVMe SSD 2280

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see FAQ 1)

• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

• Ultra-fast Data Transfers from a PC or a Mac (USB3.1 Gen2 10Gb/s, Gen1 5Gb/s, USB2.0 480Mb/s)

• Integrated USB 3.1 Gen2 to PCIe Gen3x2 10Gb/s bridge controller

• External self-powered or USB bus-powered

• LED red indicator indicates powered status and blue indicator indicates drive status

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

• PCB Size: 87mm x 56mm

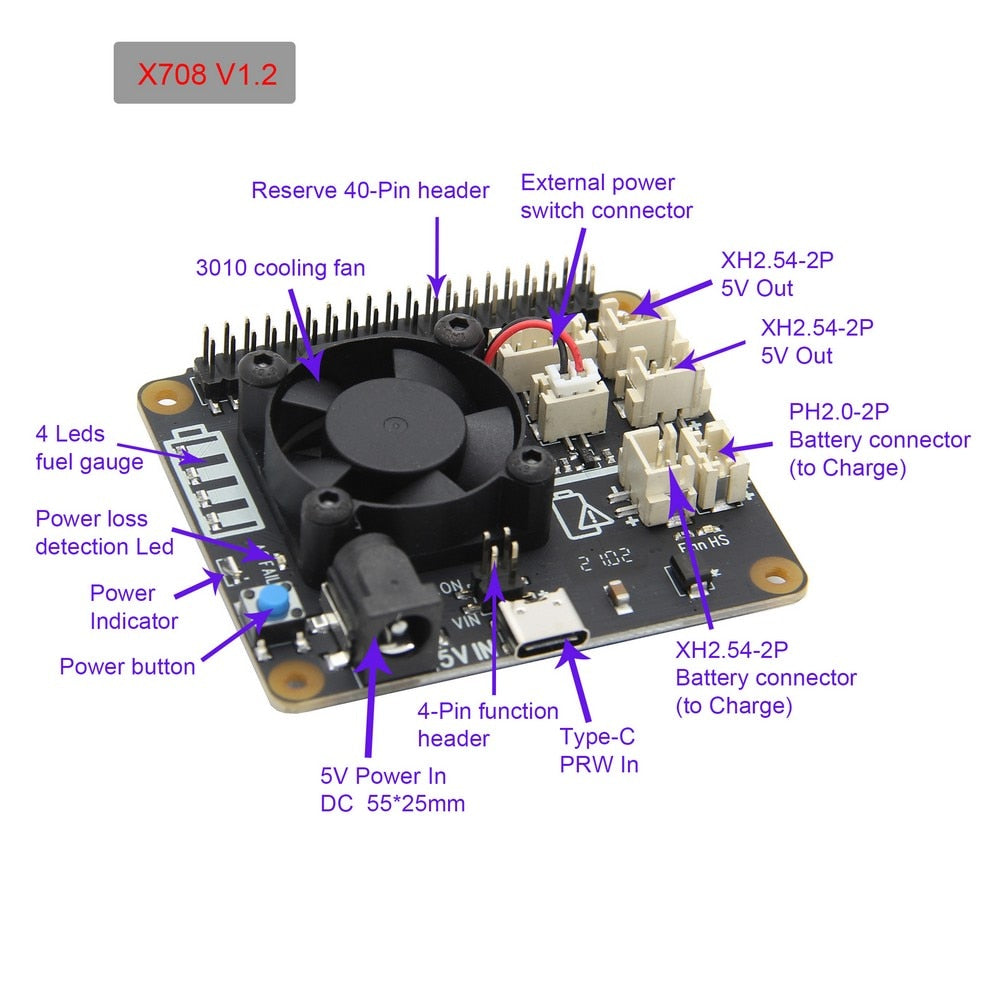

X708 UPS：

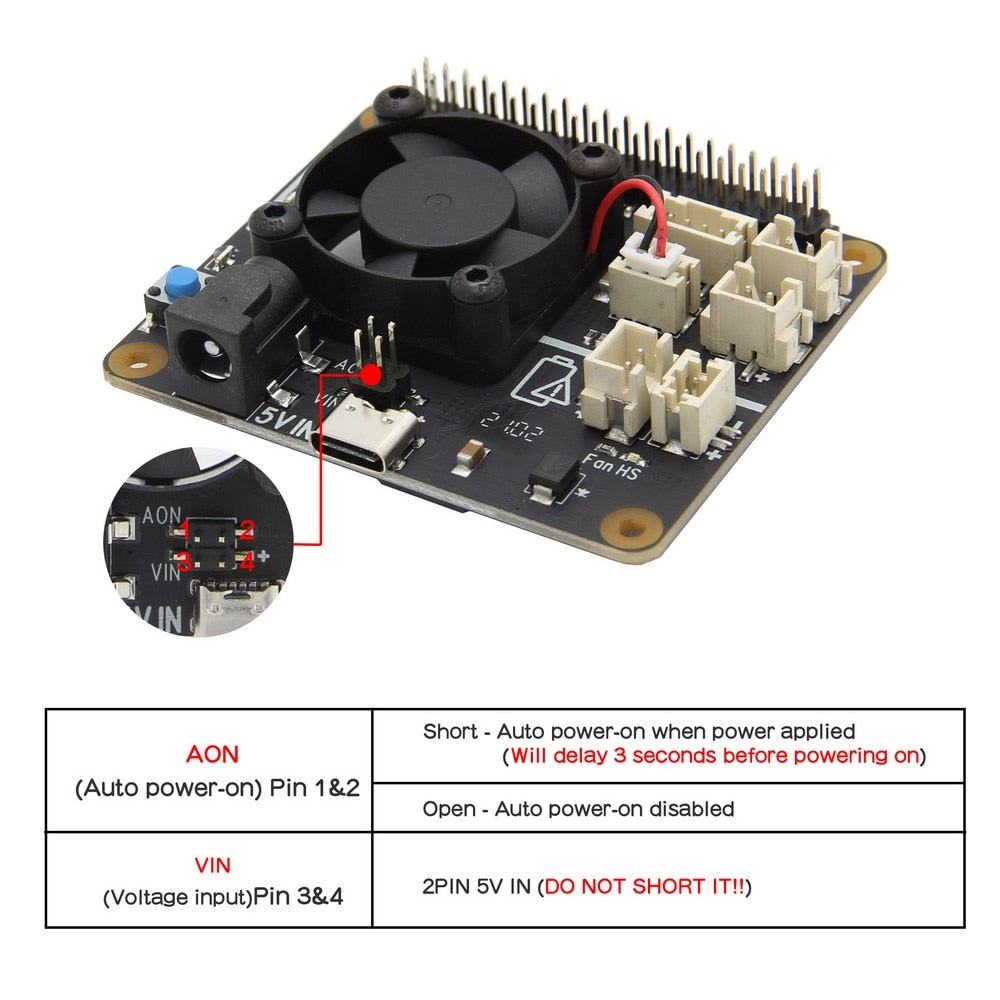

• Excellent UPS function such as Power Loss Detection(PLD), Auto Power On(AON) etc., DC 5V Max. 8A output;

• With cooling fan, no extra cooling solution.

• HAT size. Separate the battery from the expansion board, which can save a lot of space, which will bring more flexibility.

• Reserved two kind battery port (XH2.54 and PH2.0), supports 3.7V 18650 lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery (No include lithium battery)
