Raspberry Pi 4B X862 V2.0 M.2 NGFF 2280 SATA SSD Board +X735 Power Management Board+Metal Case + Type-C Power Supply customize

NOTES:

• Not include Raspberry Pi 4 & M.2 Key-B SSD

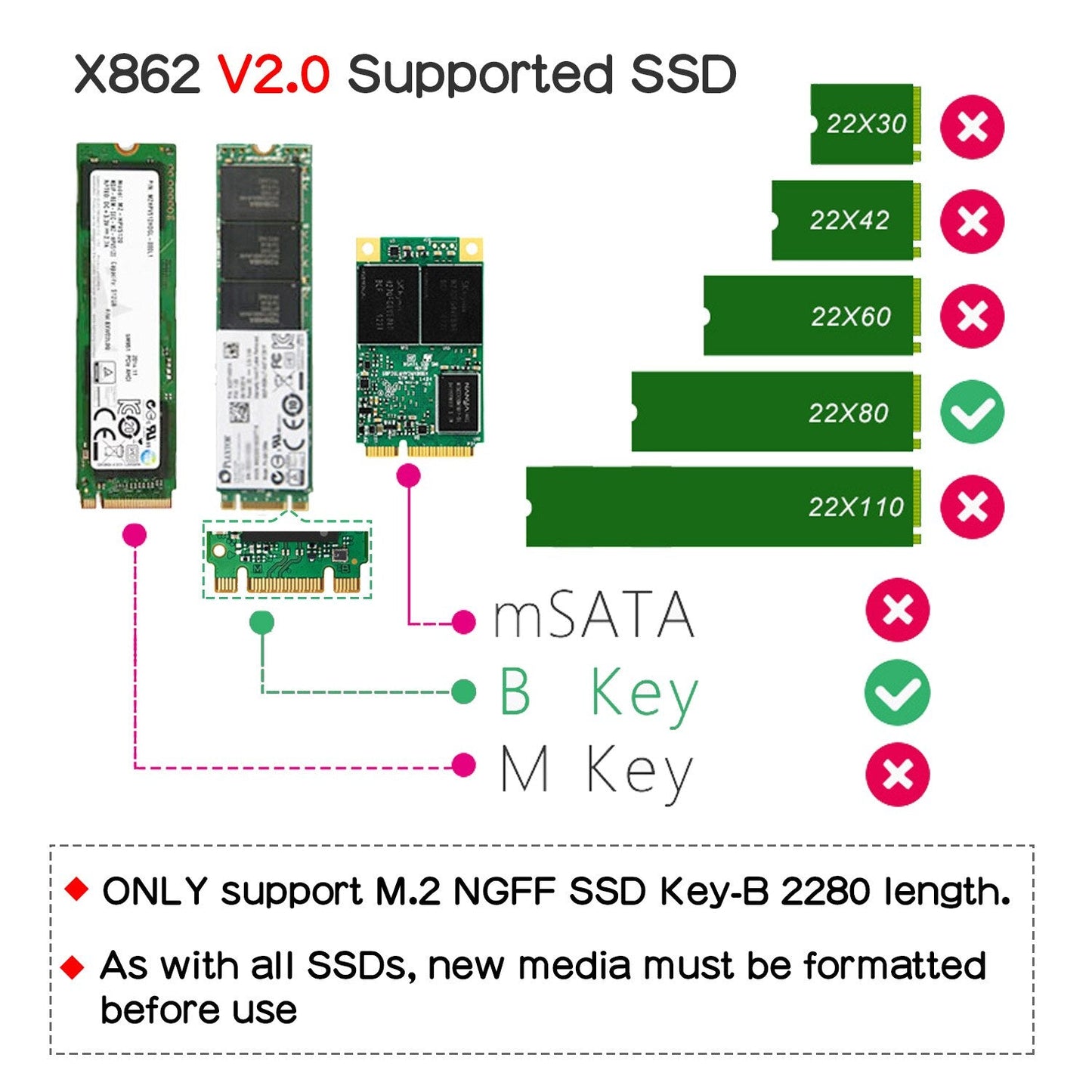

• Only compatible with Key-B SSD length 2280

• Compatible with M.2 NGFF SATA SSDs only, not compatible with NVMe M.2 SSDs

• As with all SSDs, new media must be formatted before use

• SSDs use exceptionally high performance storage media that will run hot when under load

• Older SSD drives with less efficient flash media may not perform as well as newer drives

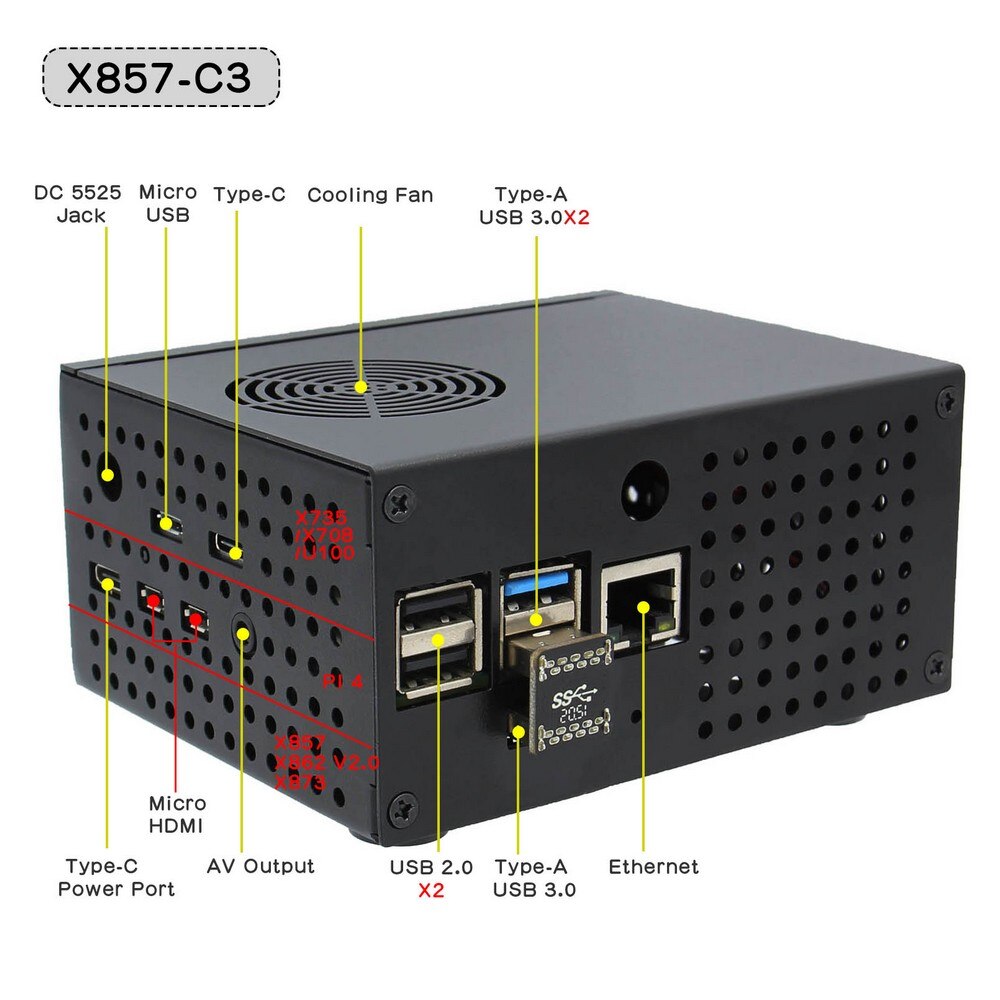

Matching Metal Case:

• If you use X857-C3 metal case, it will not support 2.4GHz, please try using the 5GHz band instead. The X857-C1 case does not support X862 V2.0

Wiki:

• https://wiki.geekworm.com/X862_V2.0

• https://wiki.geekworm.com/X735

• https://wiki.geekworm.com/X857-C3

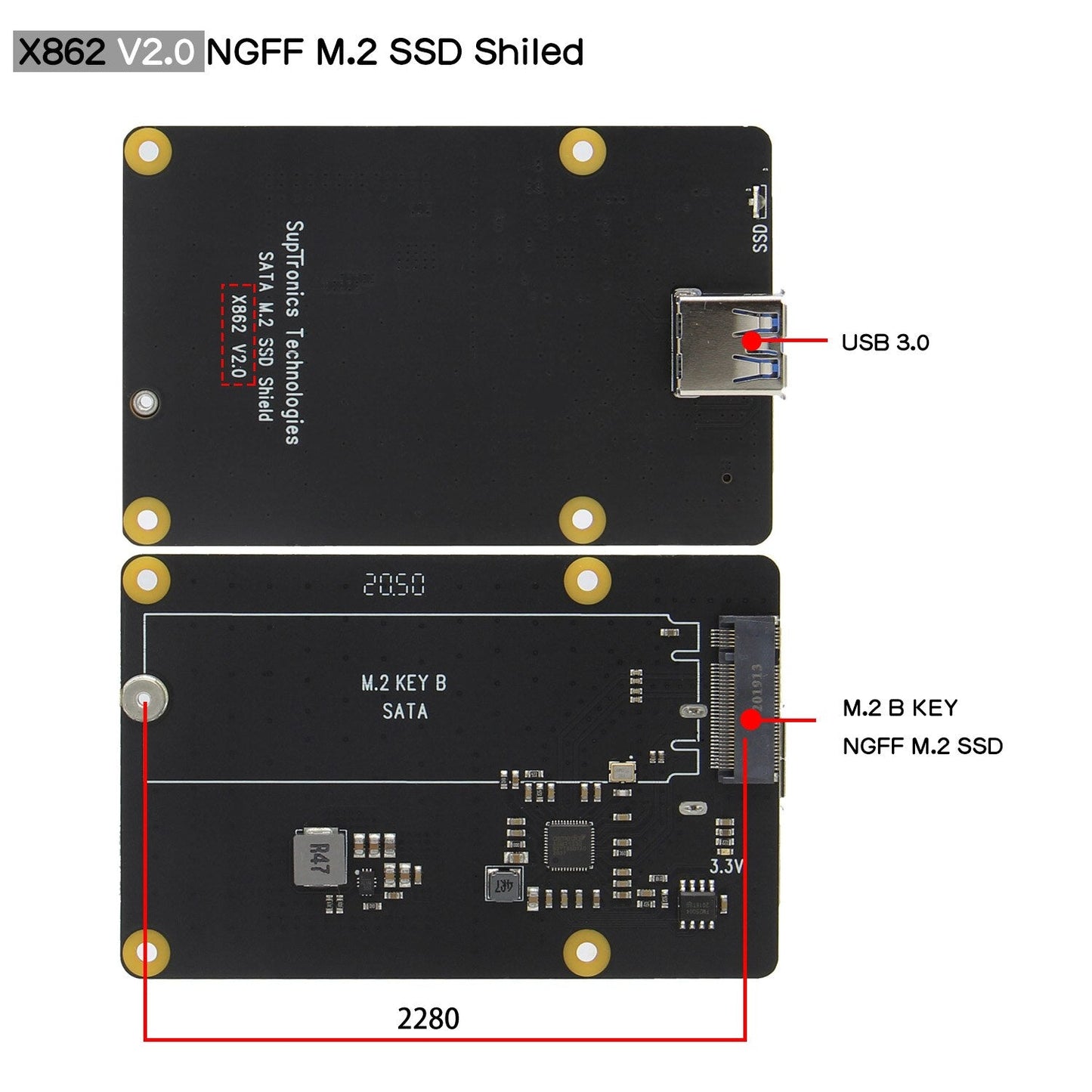

X862 V2.0 Board Overview:

This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.

The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4. New X862 V2.0 ONLY support M.2 NGFF SSD Key-B 2280 length. The X860 V2.0 support UASP.

Operating System：

• All Raspberry Pi operating systems

Key Features：

• Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield

• Supports up to 2TB M.2 NGFF SSD solid-state drive

• Only supports M.2 NGFF SSD 2280 length

• UASP supported for Raspberry Pi 4

• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

• Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)

• LED blue indicator indicates drive status

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

• Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

• Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

• Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

• Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

Specification：

Power supply:5Vdc +/-5% , Powered via USB port by Raspberry Pi 4

Ports & Connectors：

• USB socket - USB 3.0 type A x1

• 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1

• PCB Size 87mm x 56mm

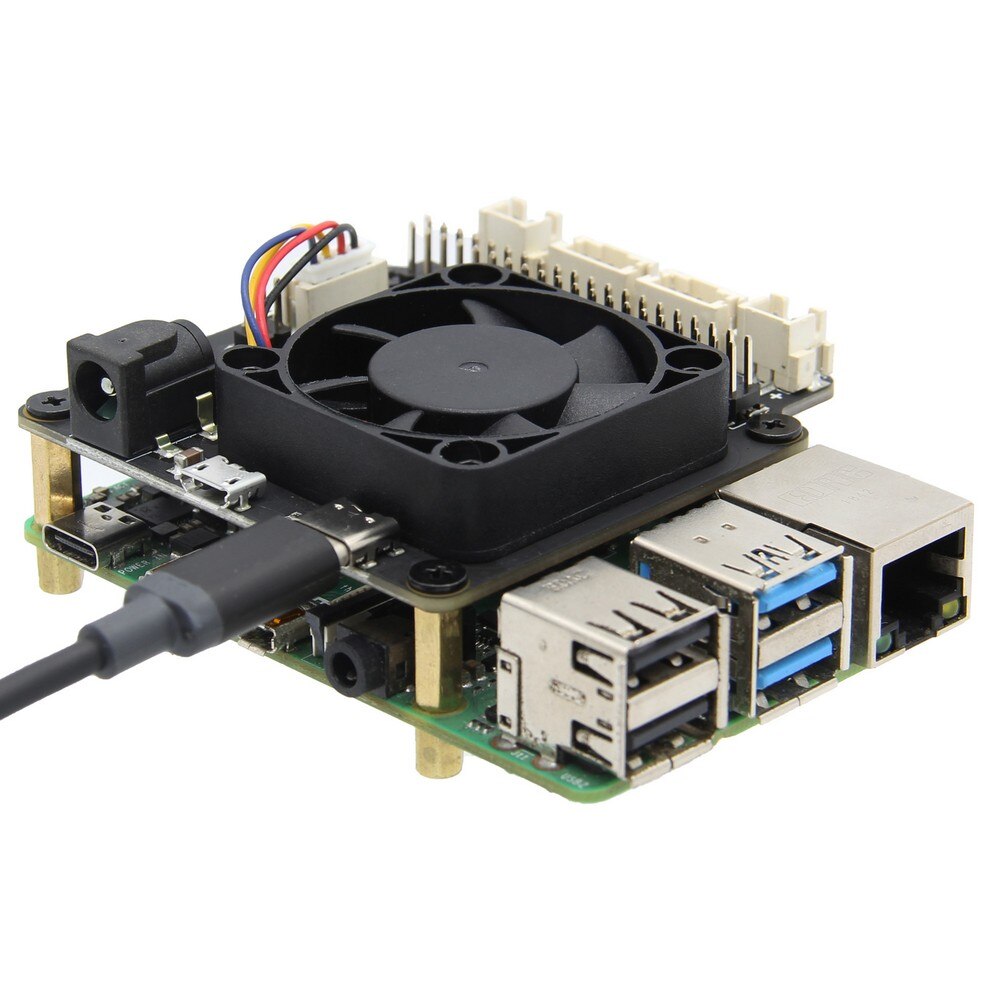

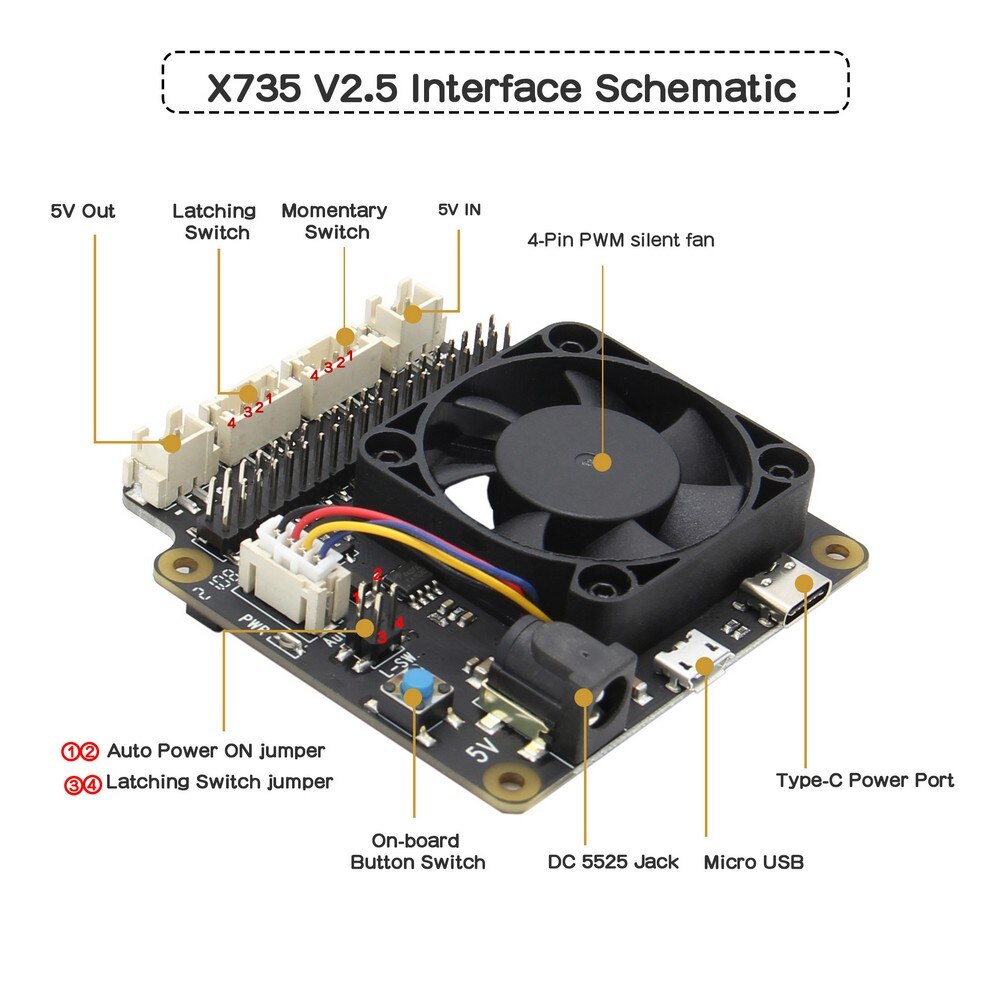

X735 V2.5 Board Overview：

Some new features of X735 v2.5:

• Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code.

• You must install shell script to enable the PWM fan work fine since it's a PWM fan, refer to X735 V2.5 Software

• Support TRUE AUTO ON function (in the old version,the power management function is disabled if AUTO ON is enabled)

• Considering that some customers use X735 together with other DAC shield, we adjusted the GPIO pins used.

• Please install shell script to get safe shutdown function. please refer to X735 V2.5 Software

• Remove the 2pin power cable from X735 v2.5

• No any size changes.

NOTE：

• Full poweroff through software is not supported when using latching power switch

• Do not apply power to your Raspbeery Pi via the Pi's Micro-USB socket

Features：

• Intelligent and safe power management

• Equipped with both momentary button and latching switch for easy power control

• Press the momentary button or external momentary power switch to turn on

• Press the momentary button or external momentary power switch and hold for 1~2seconds to reboot

• Press the momentary button or external momentary power switch and hold for 3~7seconds to implement safe shutdown

• Press the momentary button or external momentary power switch and hold for more than 8 seconds to force shutdown

• Supports safe shutdown and full poweroff through software

• On-board switch convenient to select latching or momentary power control switches

• Press the latching power switch once to turn on and again to implement safe shutdown

• On-board LED shows the status of power on, reboot and shutdown

• On-board PH2.0 connectors allows to use external latching switch or momentary button

• Powers the Raspberry Pi via the 40-pin header - no additional cabling required

• Allows power input via DC jack or Micro-USB socket or XH2.54 connector

• Allows power output via XH2.54 socket and or the 40-pin header

• PWM Cooling Fan for X735 V2.5

• Dedicated PWM cooling fan for Raspberry Pi

• Air flow up to 6.01CFM and maximum speed of 5000 RPM

• Smooth PWM adjustment provides a quiet experience

• Real-Time fan speed reading

• Programmable temperature and fan speed

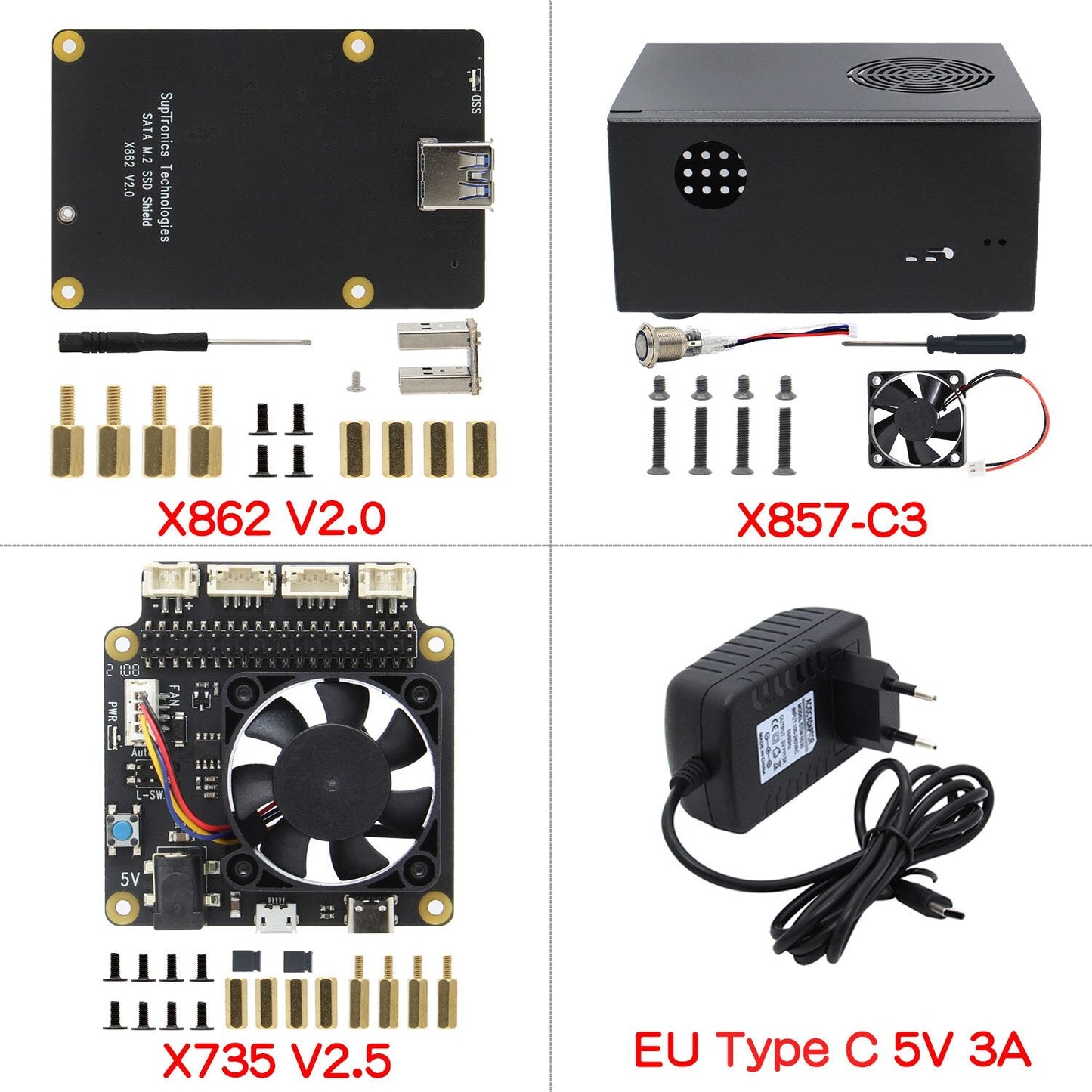

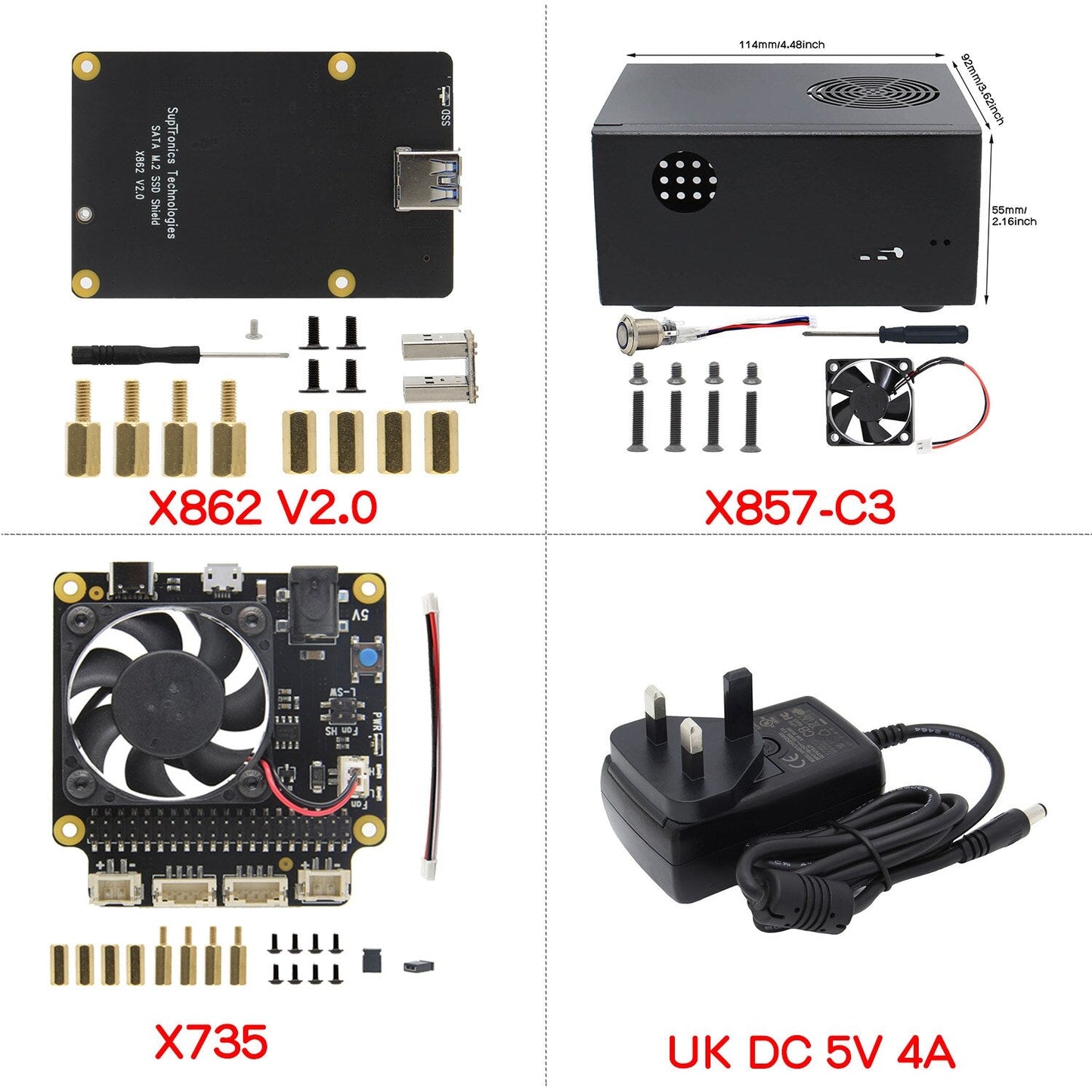

Packing List：

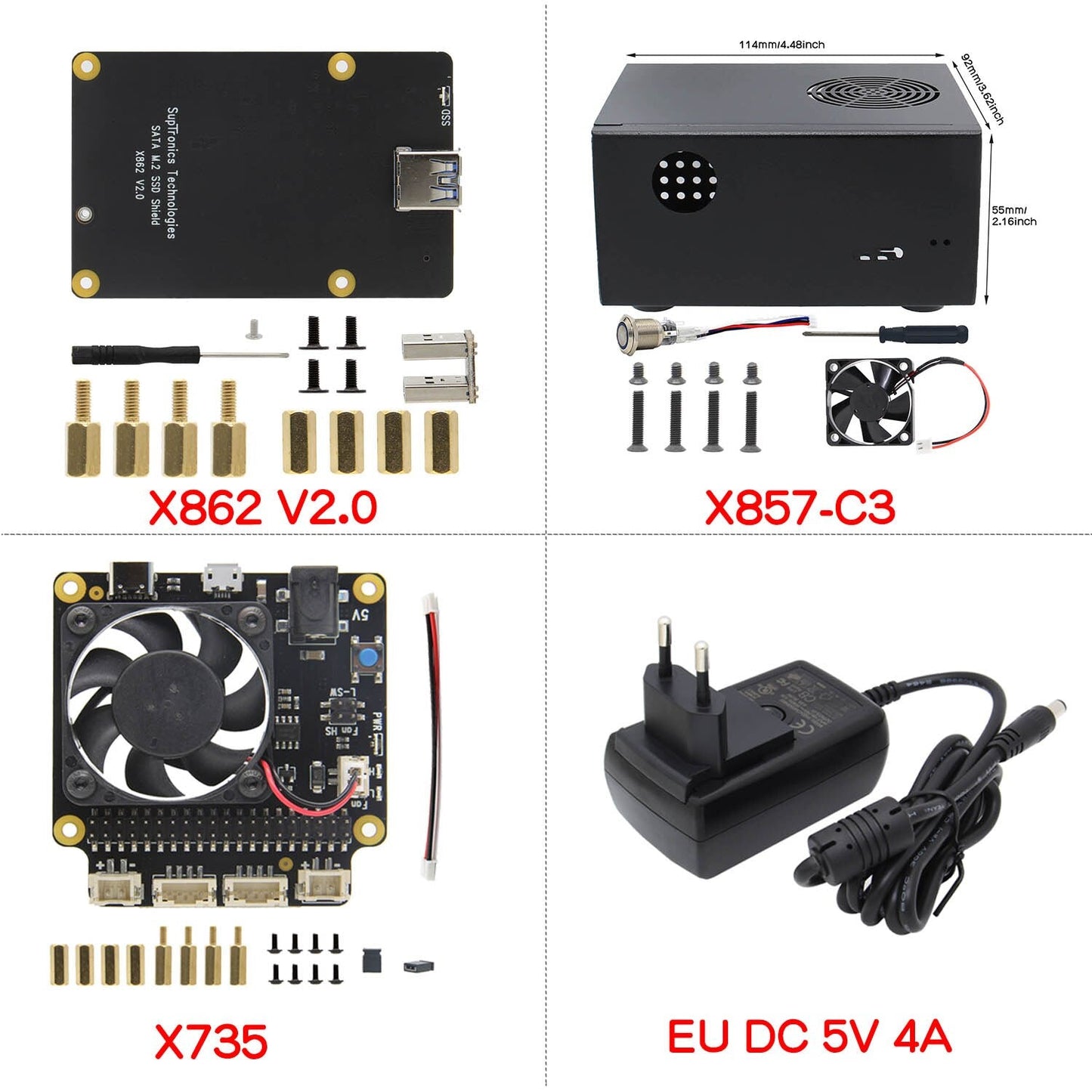

Bundle1:

• 1 x X862 M.2 NGFF SATA SSD Shield

• 1 x X735 Board

• 1 x X857-C3 Metal Case with cooling fan

• 1 x Type-C Power Supply 5V 3A（EU）

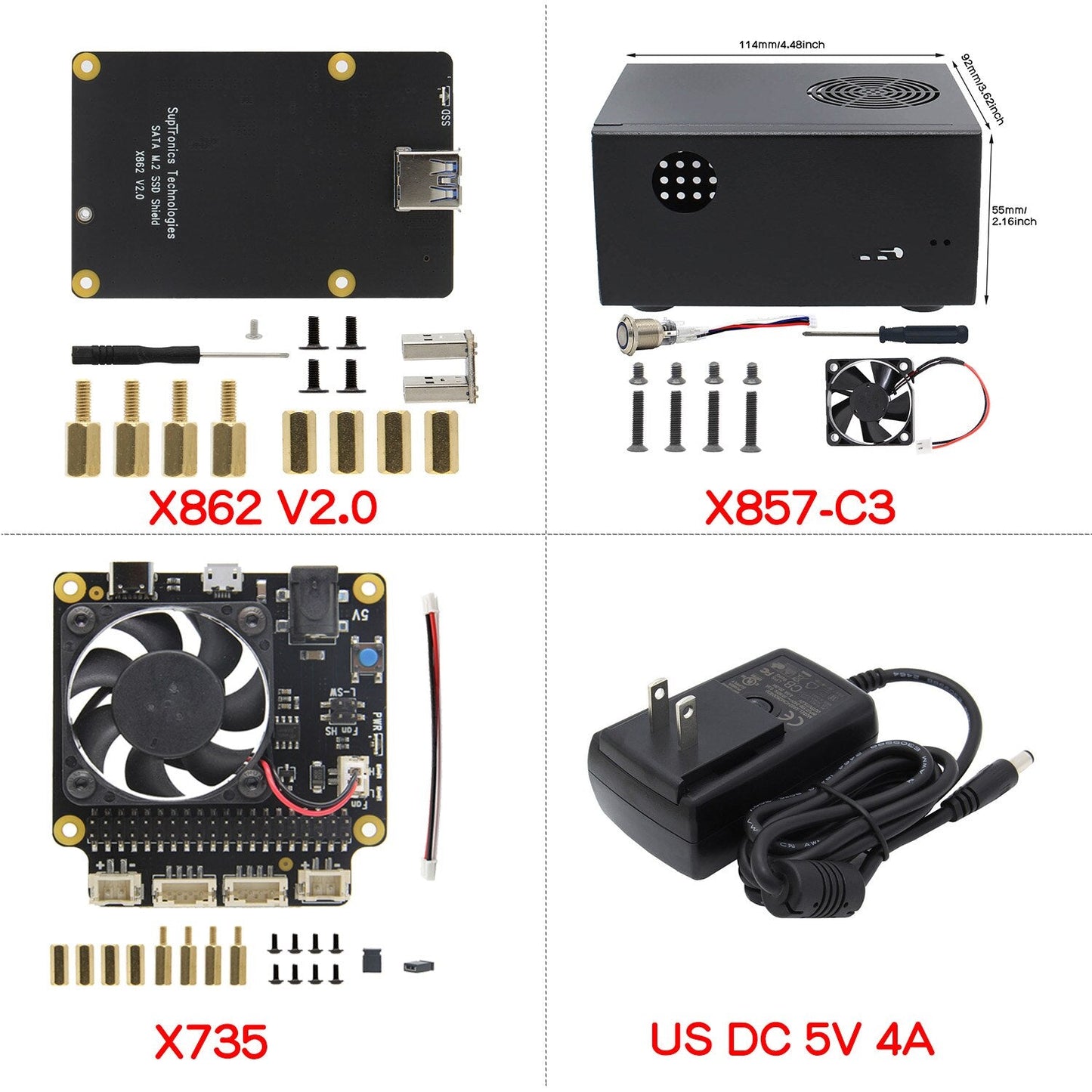

Bundle2:

• 1 x X862 M.2 NGFF SATA SSD Shield

• 1 x X735 Board

• 1 x X857-C3 Metal Case with cooling fan

• 1 x Type-C Power Supply 5V 3A（US）

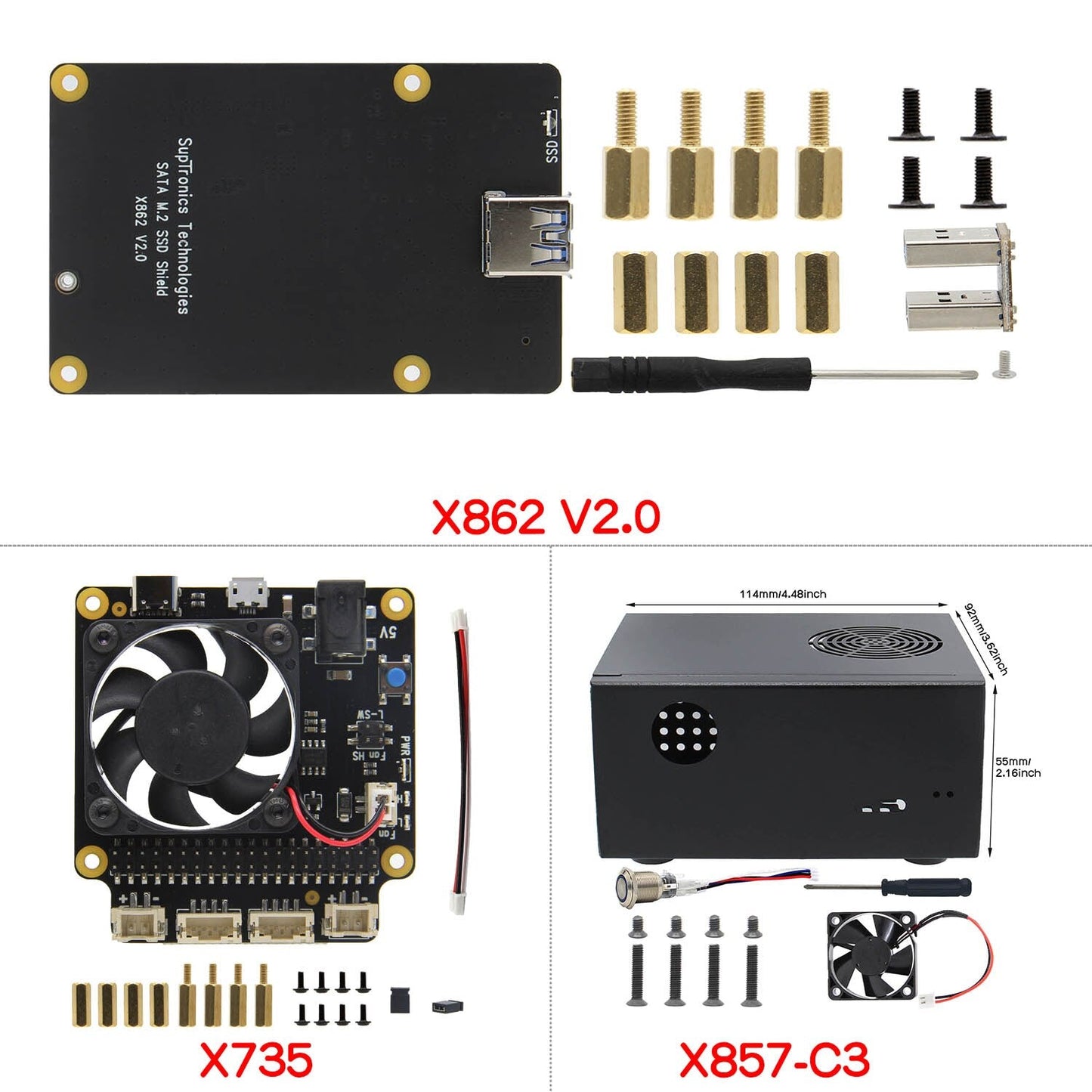

Bundle3:

• 1 x X862 M.2 NGFF SATA SSD Shield

• 1 x X735 Board

• 1 x X857-C3 Metal Case with cooling fan
