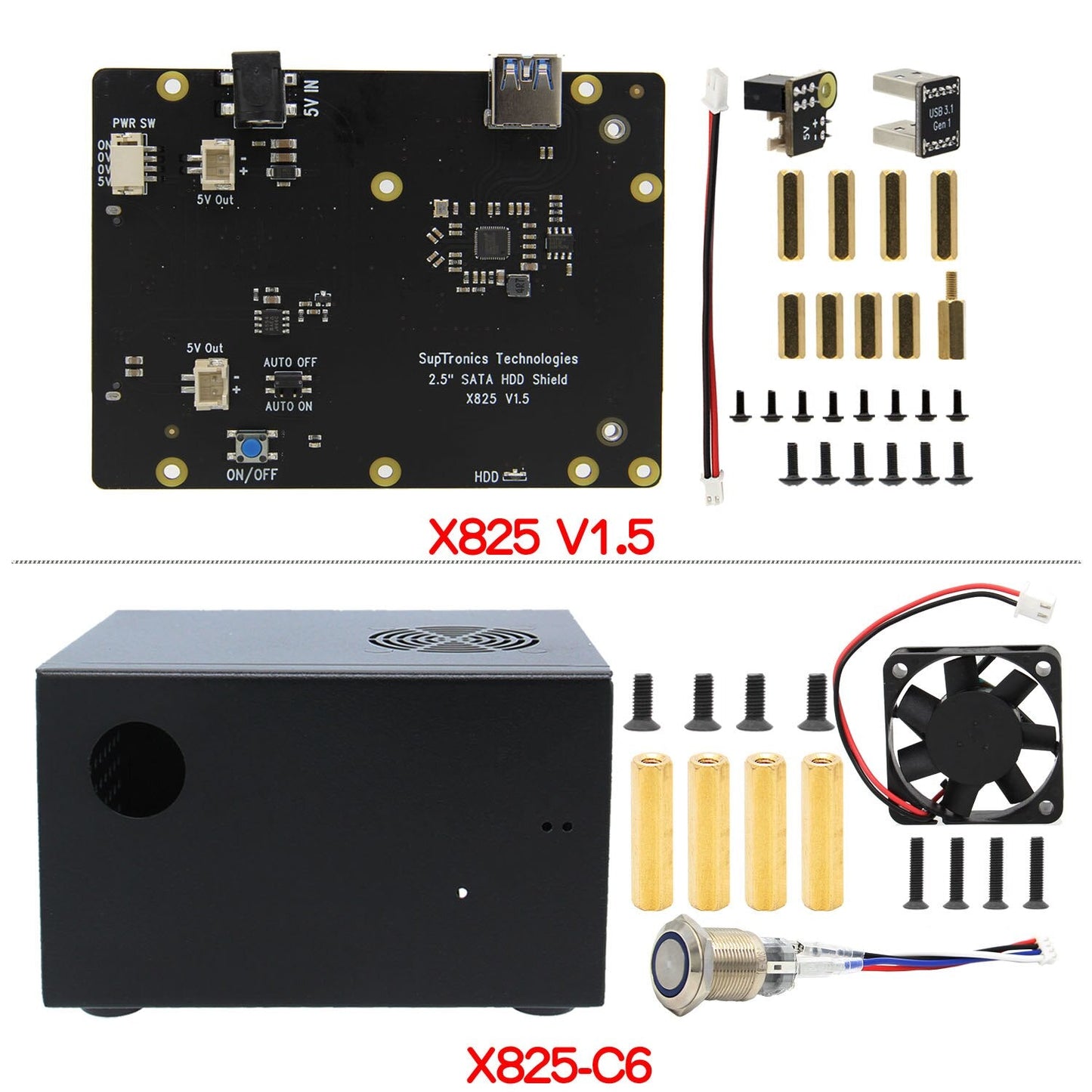

Raspberry Pi 4B 2.5 inch SATA HDD/SSD Shield / X825 V1.5 Storage Expansion Board customize
Raspberry Pi 4B 2.5 inch SATA HDD/SSD Shield / X825 V1.5 Storage Expansion Board customize
Notes
-
A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
-
WARNING: Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.
-
USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

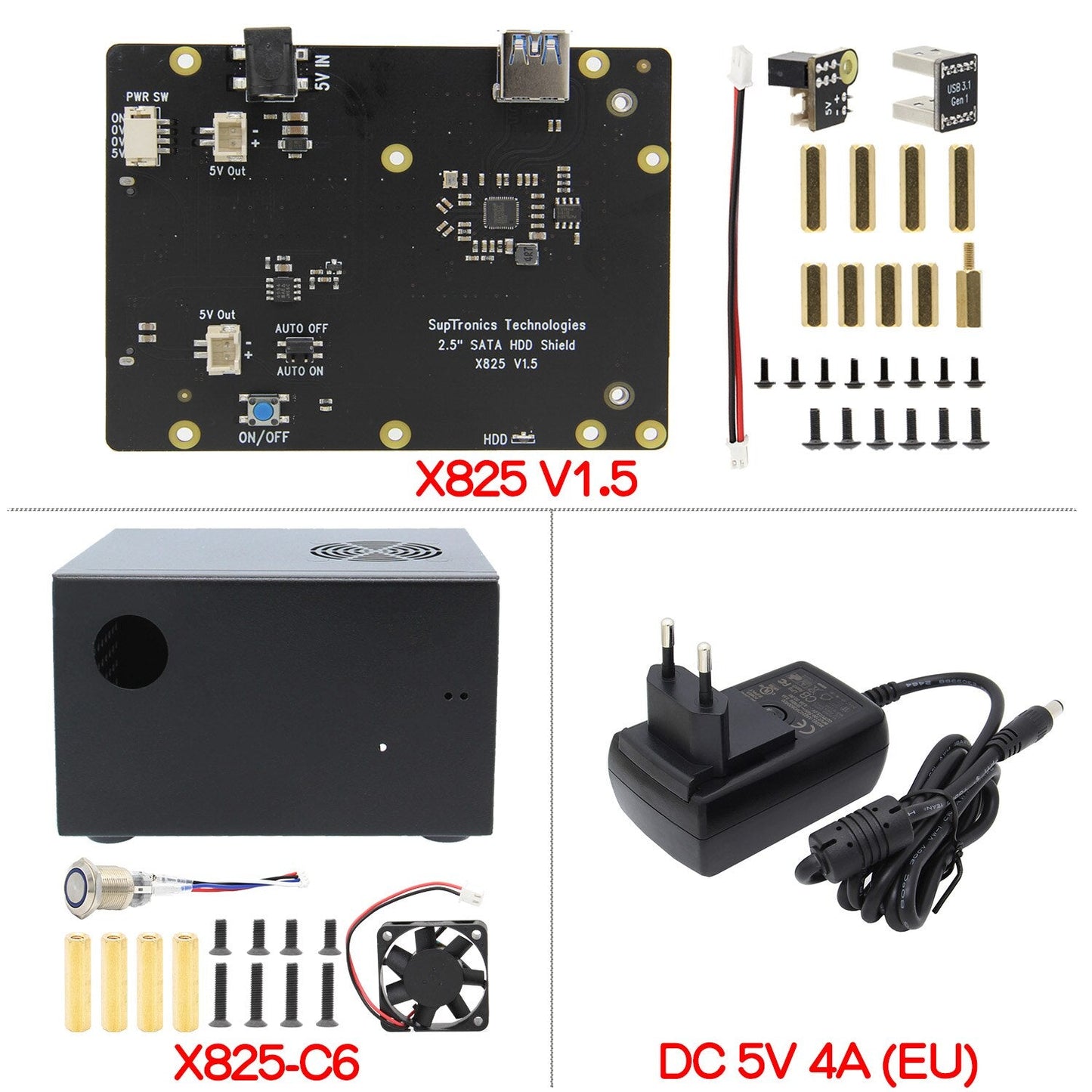

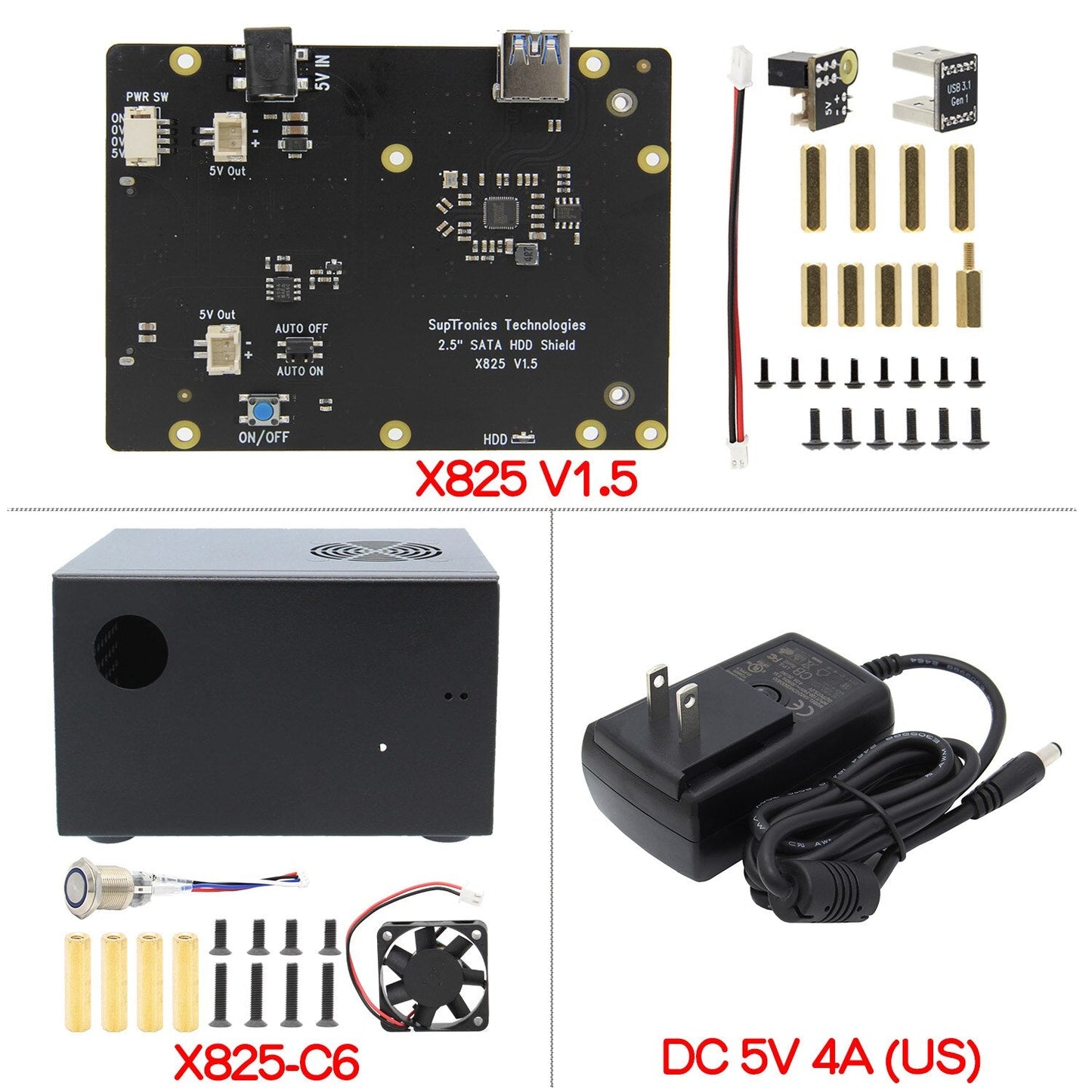

Power Supply Requirement
-
Power supply: AC 100 - 240V input 50 / 60Hz, 5V DC 4A output
-
DC Power Plug Size : 5.5*2.5mm
-
Important Note: Please use high quality power supply, the low quality power supply will generate Surge Voltage, which will damage the board chip.

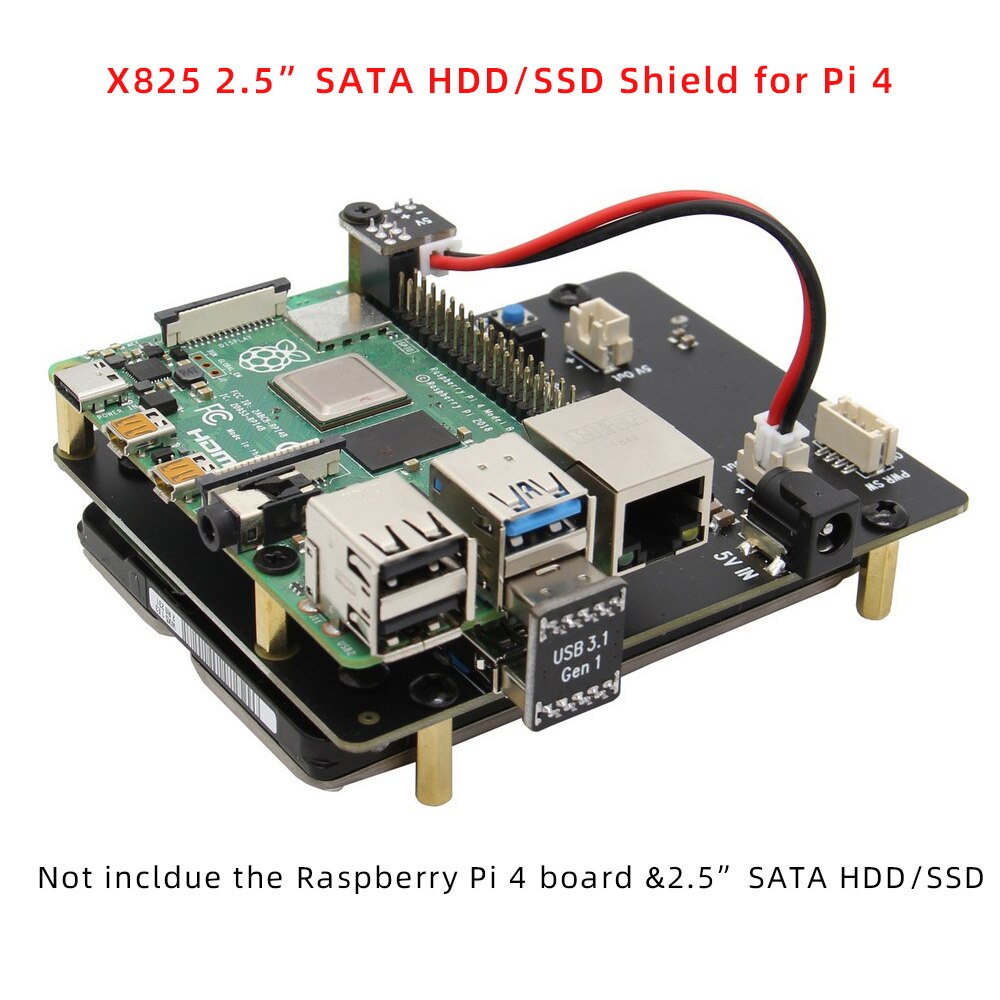

Overview
-
The X825 expansion board provides a complete storage solution for newest raspberry pi 4, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board;
-
It is updated from raspberry pi 3b+/3b X820 V3.0 2.5 inch SATA SSD expansion board. (Please refer to X820 if you want use the 2.5 inch SATA SSD on raspberry pi 3b+/3b/2b)
For Use With
-
Raspberry Pi 4 Model B
Operating System
-
All Raspberry Pi operating systems
Key Features
-
Ideal storage solution for Raspberry Pi 4 - 2.5" SATA HDD/SSD Shield
-
Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.) 【not recommend to use Samsung SSD】
-
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
-
USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
-
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see notes)
-

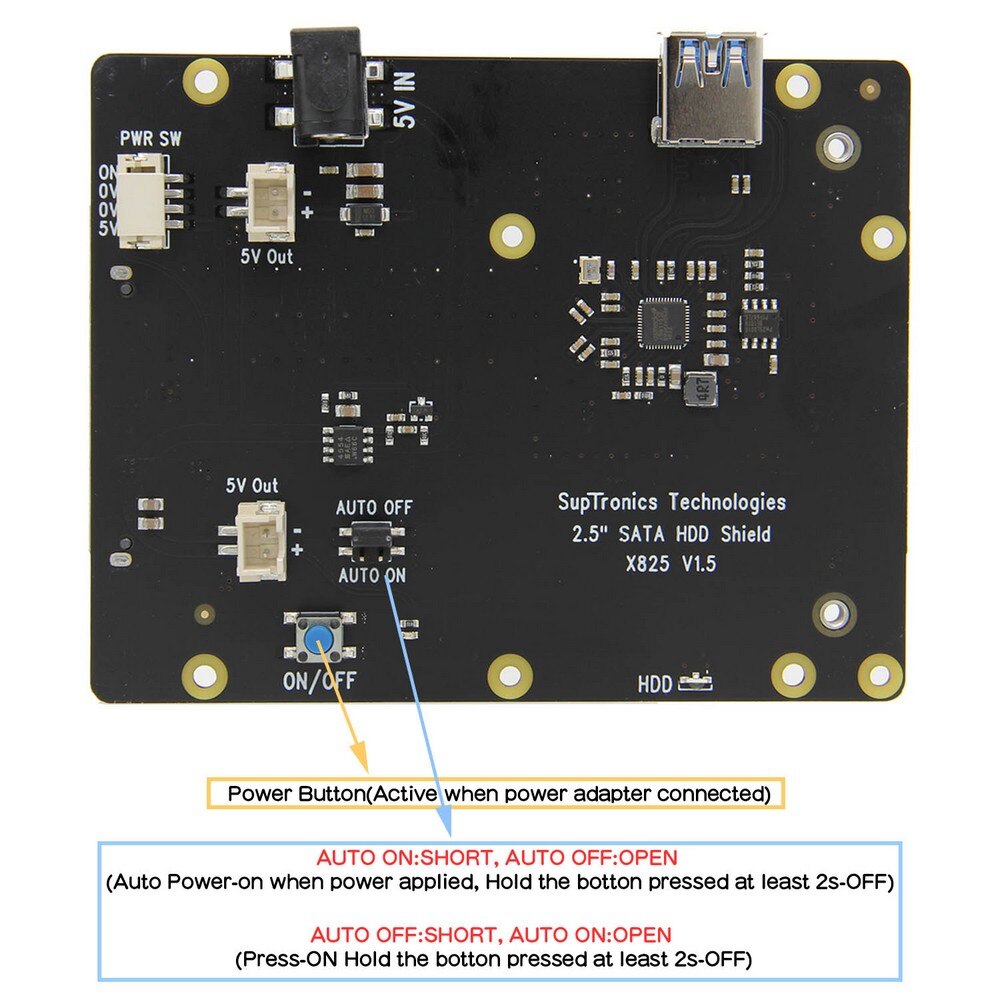

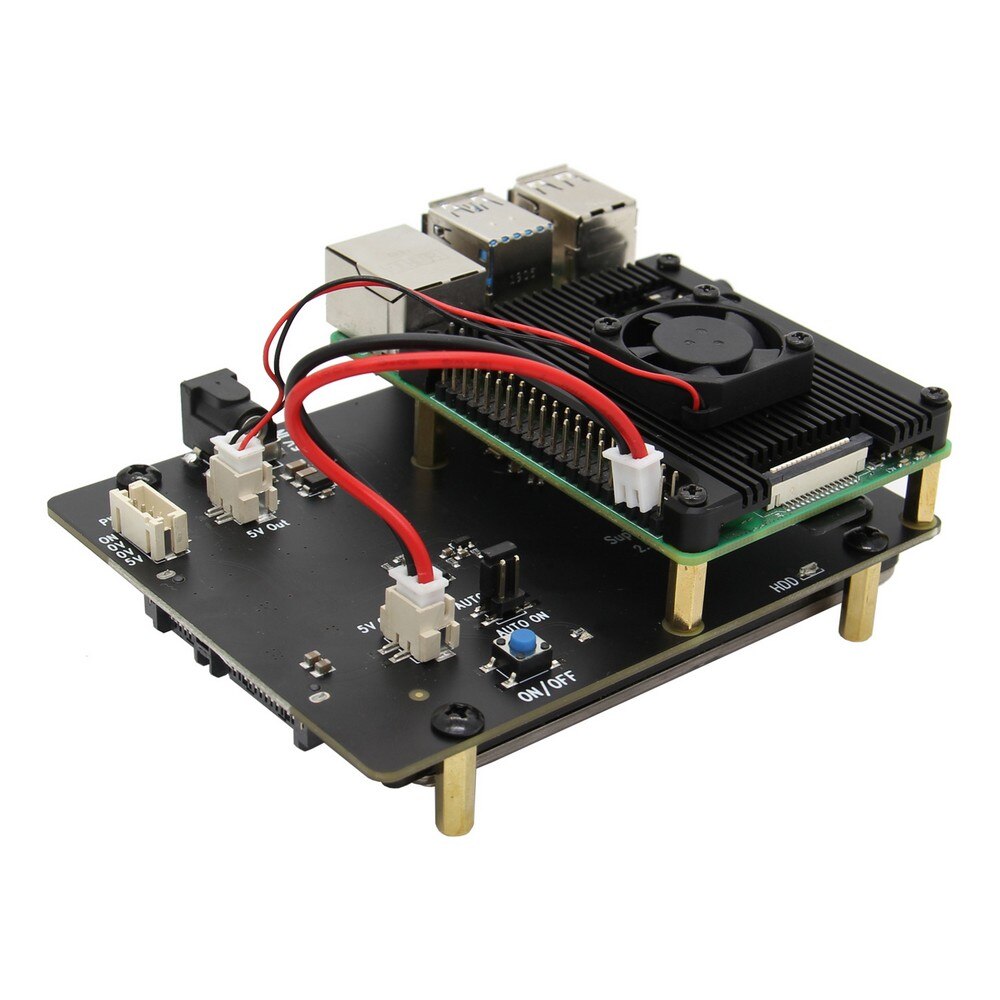

On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)
-
On-board XH2.54 power connectors allows to power other devices
-
LED blue indicator indicates drive status
-

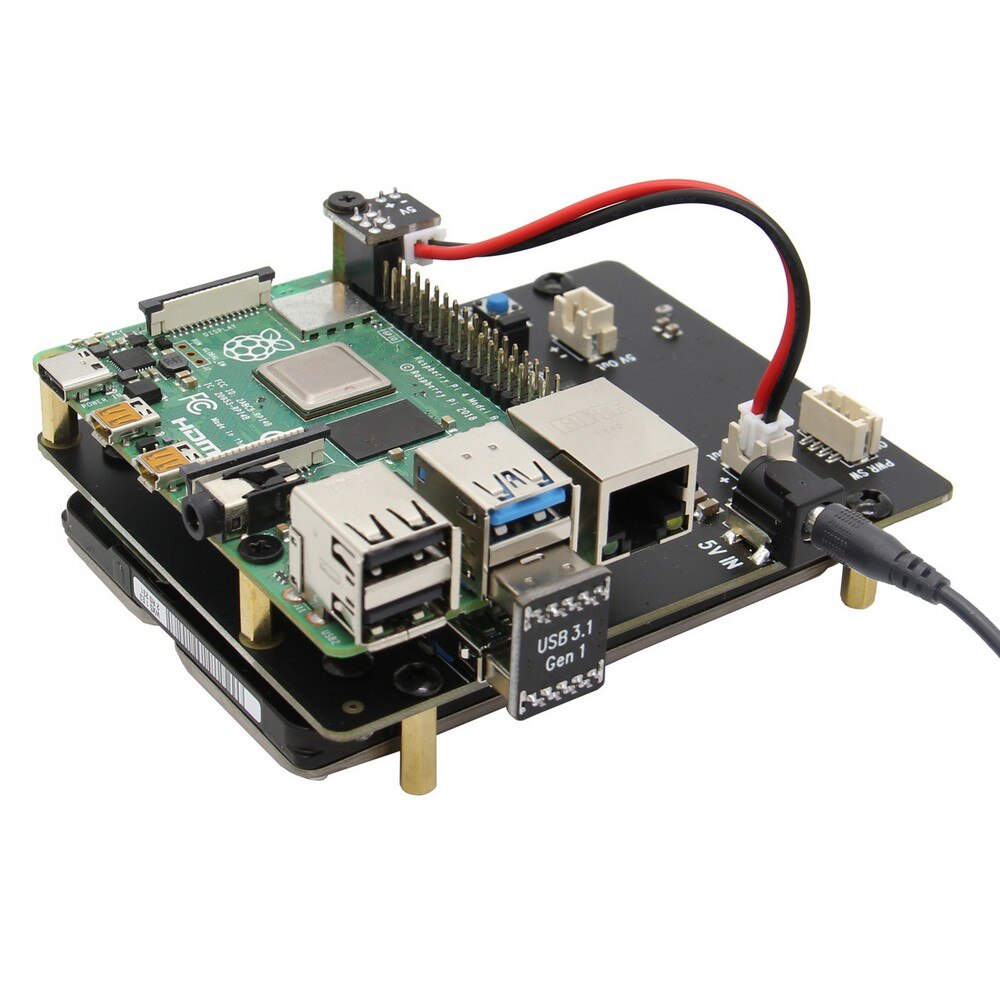

External Self Powered - Do not require power from Raspberry Pi USB port
-
Powers the Raspberry Pi - no additional power supply for RPi
-
Duplicated Raspberry Pi HDMI port
Specification
Power supply: 5Vdc +/-5% , 4A

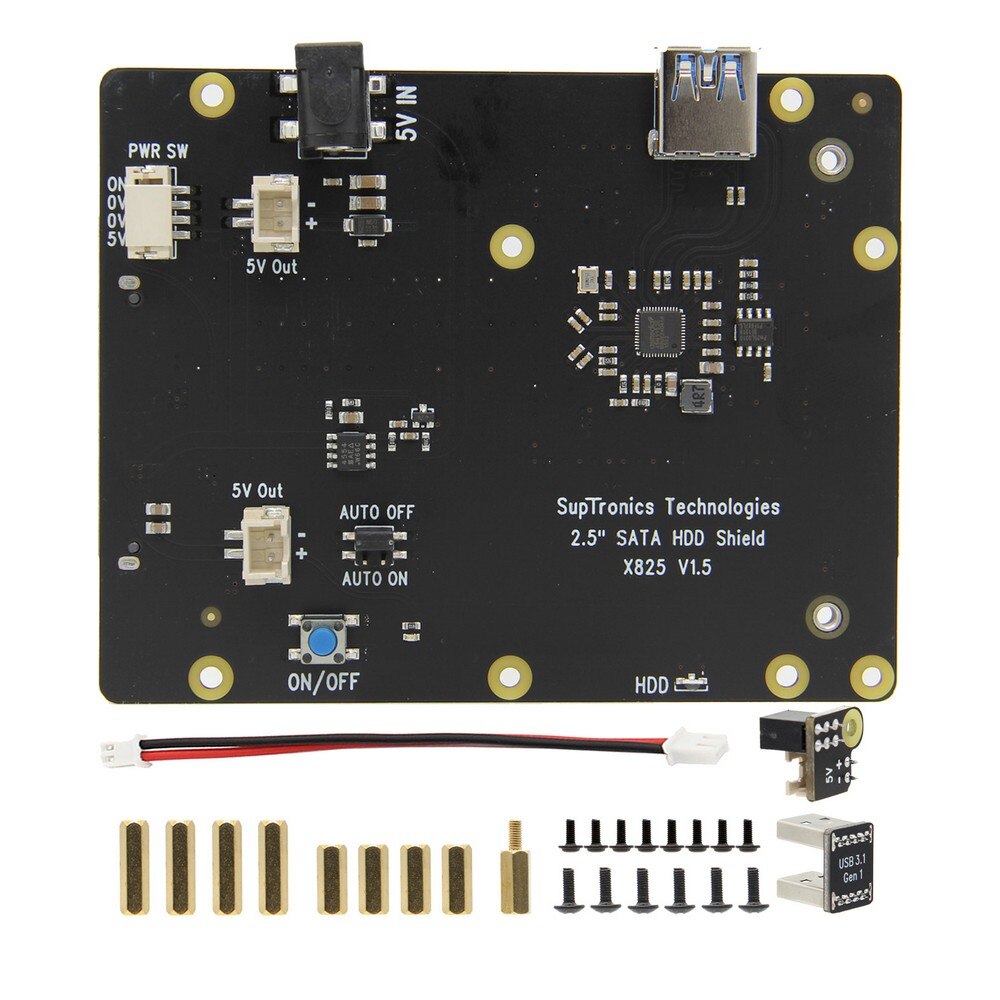

Ports & Connectors:

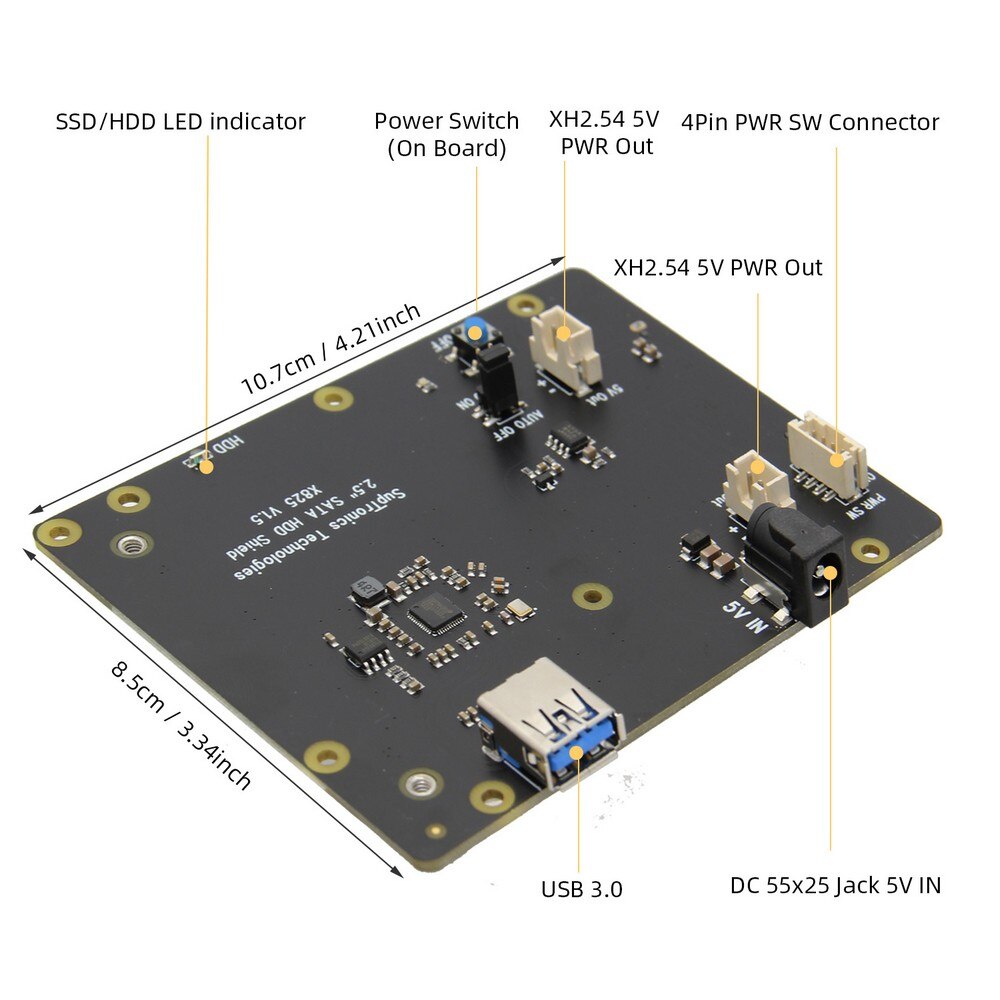

DC jack - 5.5x2.5mm, USB socket - USB 3.0 type A,
Power output connector - XH2.54 2-pin
Power switch connector -PH2.0 4-pin
PCB Size: 107.5mm x 85mm
Welcome Customize Order!
