Raspberry Pi Case-LTRIG

Raspberry Pi 4 Model B mSATA SSD X857 V2.0 Shield + X735 Power Management Board + X857-C3 Matching Metal Case customize

Raspberry Pi 4 Model B mSATA SSD X857 V2.0 Shield + X735 Power Management Board + X857-C3 Matching Metal Case customize

Regular price $67.49 USD
Regular price $0.00 USD Sale price $67.49 USD
Sale Sold out
Color
NOTE:

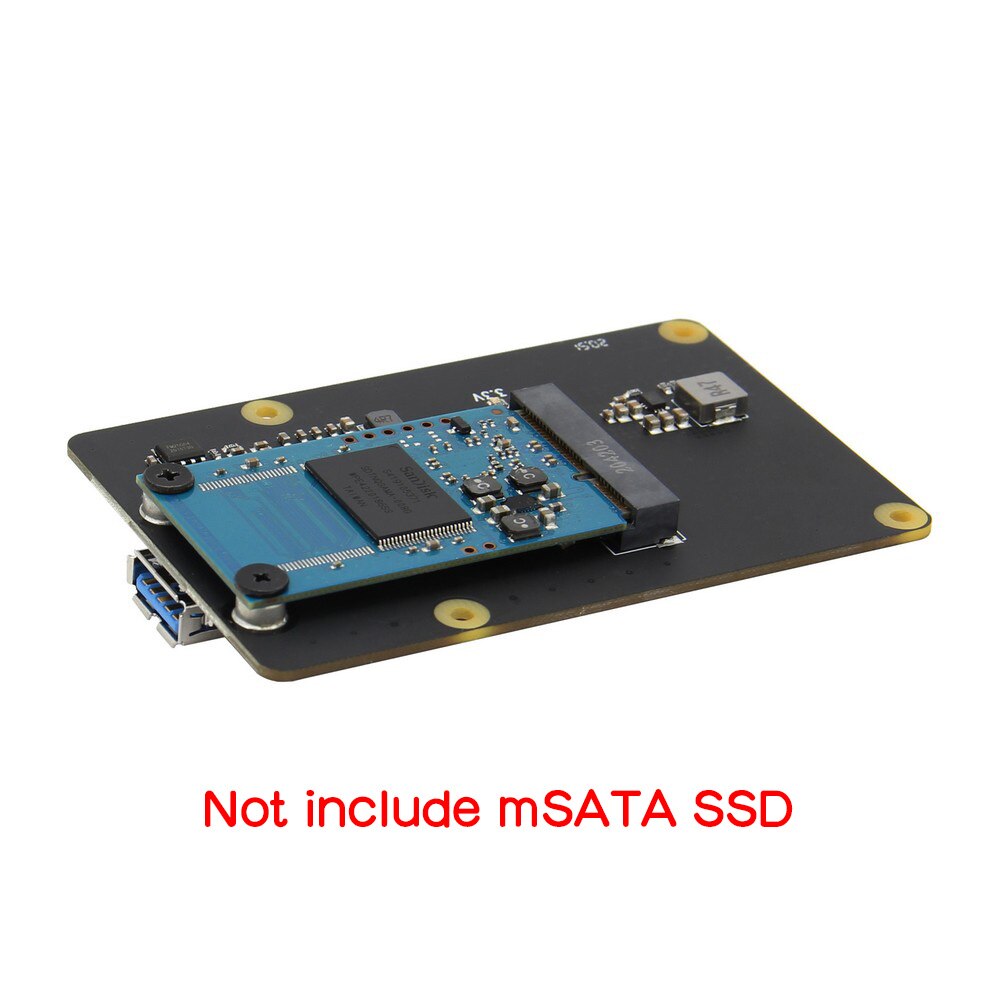

  • Not include raspberry pi 4 and mSATA SSD

  • X857 V1.2 is not be producted, and X857 V1.2 is upgraded to X857 V2.0
  • X857 V2.0 is not support TRIM, only support UASP!
  • A microSD card is required for forcing the Raspbian OS to use the HDD/SSD for its "root" partition
  • USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.
  • WARNING:

    • Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.

    • This X857 mSATA board is only suitable for raspberry pi 4, if you need mSATA SSD board for raspberry pi 3b+/3b, please refer to:X850 mSATA Board

    Installation video
    • youtu.be/HGPpfDbfyxM

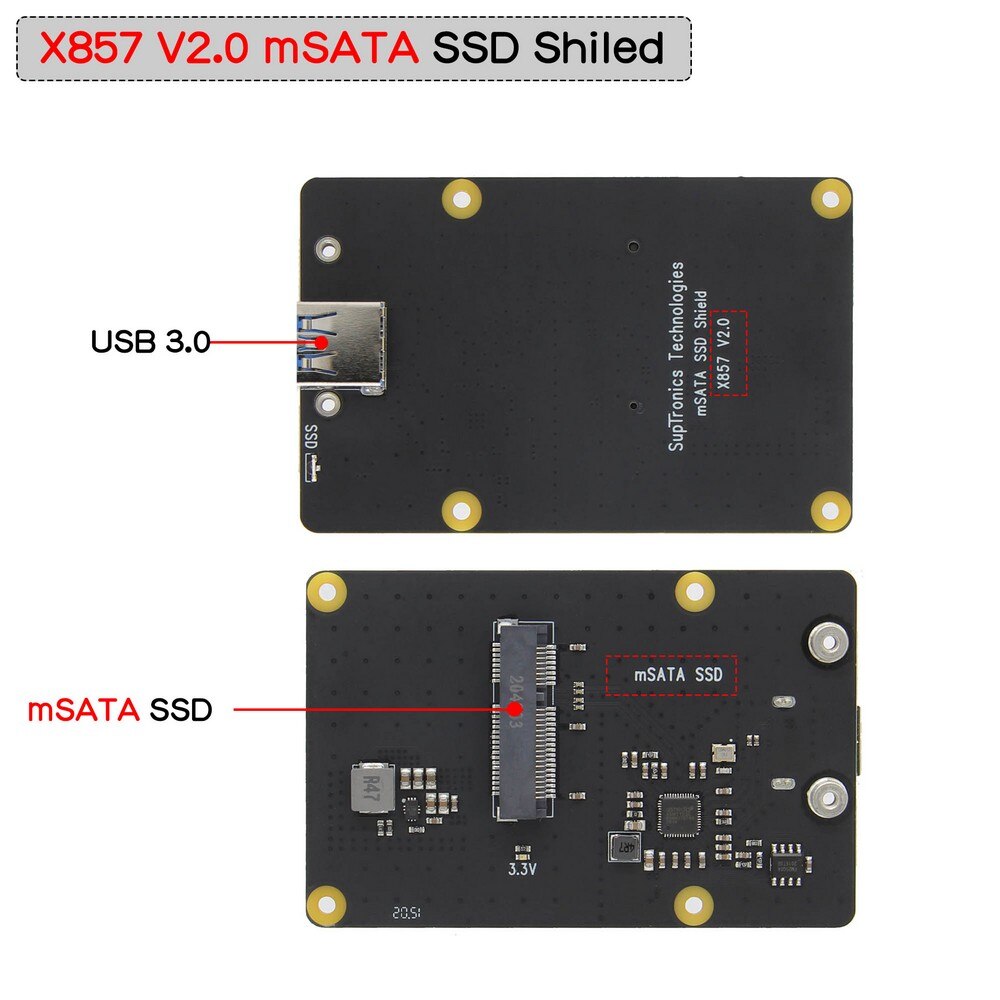

    X857 Board Features:
    • Ideal storage solution for Raspberry Pi 4 - mSATA SSD Shield
    • Supports up to 2TB mSATA solid-state drive (SSD)

    • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

    • Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

    • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see notes)

    • LED blue indicator indicates drive status

    • External self-powered or USB bus-powered

    • Onboard DC jack & XH2.54 connector for extra SSD power supply (Additional power may be required only when using a large capacity hard disk)

    • PCB Size 85mm x 56mm

    • Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

    • Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

    • Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

    • Fully compatible with X725 for uninterruptible power supply (18650 UPS, 5.1V 8A, WOL)

    Power Supply I/O ports

    • Power supply: 5Vdc +/-5% , Powered via Pi's USB port

    • 5Vdc via micro-USB socket

    • Ports & Connectors: USB socket - USB 3.0 type A x1

    • 52P Mini PCI-E mSATA slot x1

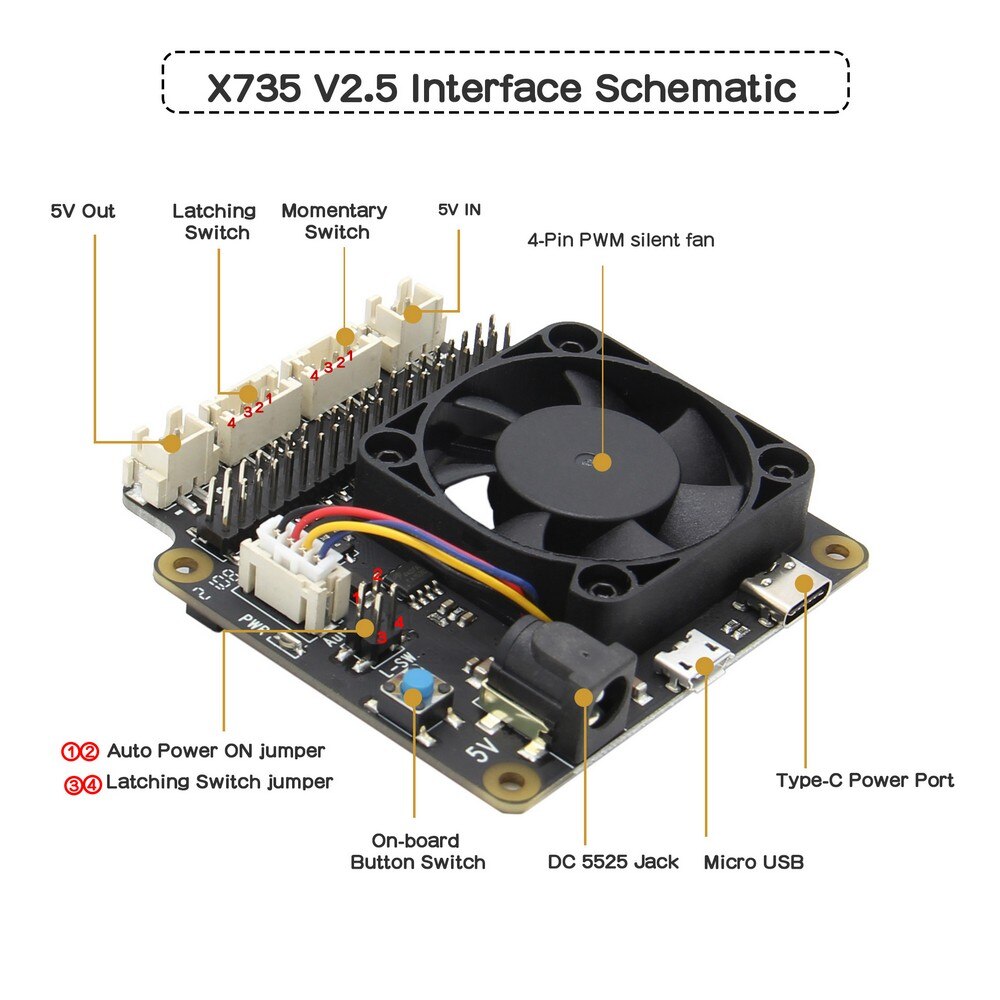

    X735 V2.5 Board Features:

Some new features of X735 v2.5:

  • Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code.

  • You must install shell script to enable the PWM fan work fine since it's a PWM fan, refer to X735 V2.5 Software

  • Support TRUE AUTO ON function (in the old version,the power management function is disabled if AUTO ON is enabled)

  • Considering that some customers use X735 together with other DAC shield, we adjusted the GPIO pins used.

  • Please install shell script to get safe shutdown function. please refer to X735 V2.5 Software

  • Remove the 2pin power cable from X735 v2.5

  • No any size changes.

NOTE:

  • Full poweroff through software is not supported when using latching power switch

  • Do not apply power to your Raspbeery Pi via the Pi's Micro-USB socket

Features:

  • Intelligent and safe power management

  • Equipped with both momentary button and latching switch for easy power control

  • Press the momentary button or external momentary power switch to turn on

  • Press the momentary button or external momentary power switch and hold for 1~2seconds to reboot

  • Press the momentary button or external momentary power switch and hold for 3~7seconds to implement safe shutdown

  • Press the momentary button or external momentary power switch and hold for more than 8 seconds to force shutdown

  • Supports safe shutdown and full poweroff through software

  • On-board switch convenient to select latching or momentary power control switches

  • Press the latching power switch once to turn on and again to implement safe shutdown

  • On-board LED shows the status of power on, reboot and shutdown

  • On-board PH2.0 connectors allows to use external latching switch or momentary button

  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required

  • Allows power input via DC jack or Micro-USB socket or XH2.54 connector

  • Allows power output via XH2.54 socket and or the 40-pin header

  • PWM Cooling Fan for X735 V2.5

  • Dedicated PWM cooling fan for Raspberry Pi

  • Air flow up to 6.01CFM and maximum speed of 5000 RPM

  • Smooth PWM adjustment provides a quiet experience

  • Real-Time fan speed reading

  • Programmable temperature and fan speed

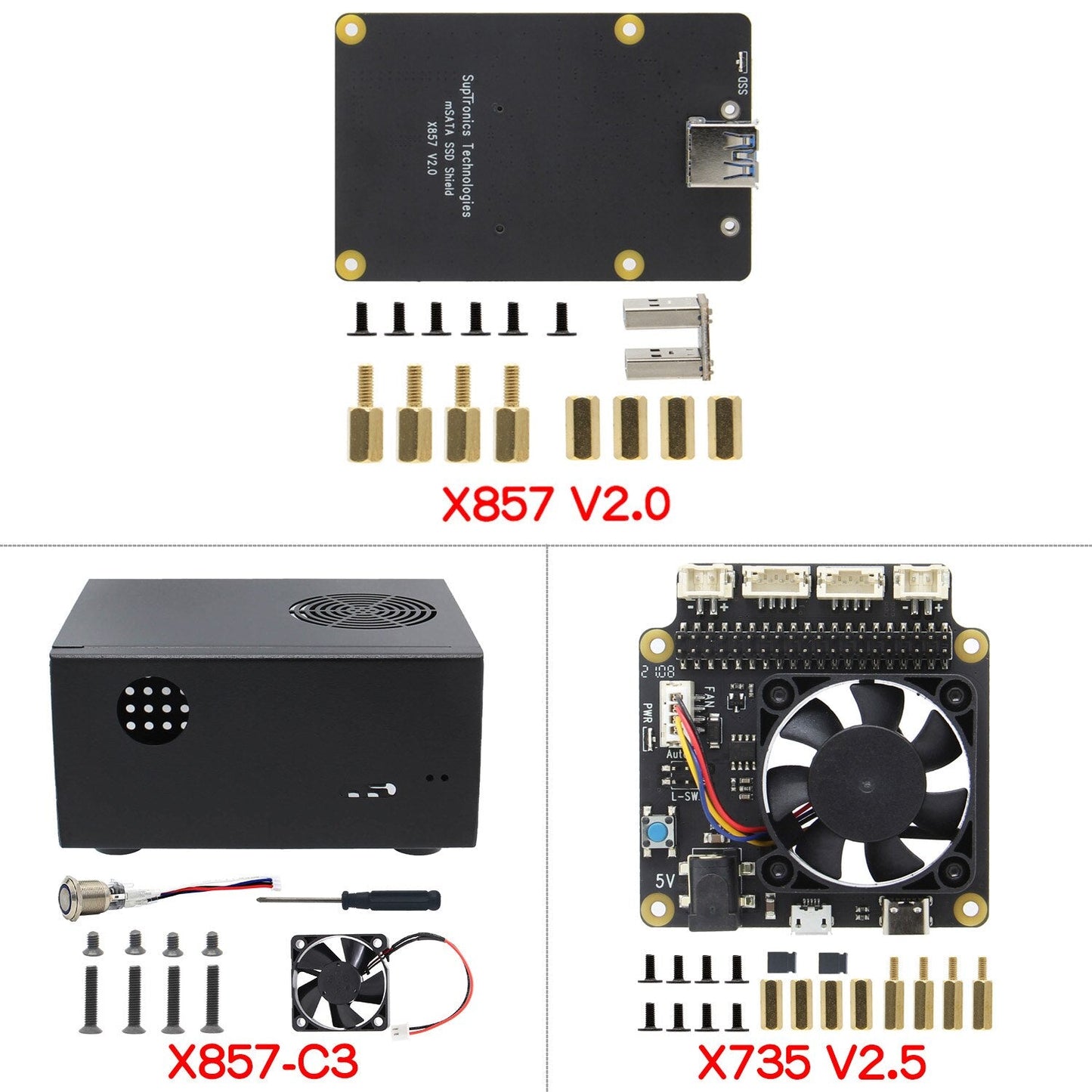

Packing List:

Bundle1:

  • 1 x X857 V2.0 mSATA SSD Storage Expansion Board

  • 1 x X735 V2.5 Power Management Board

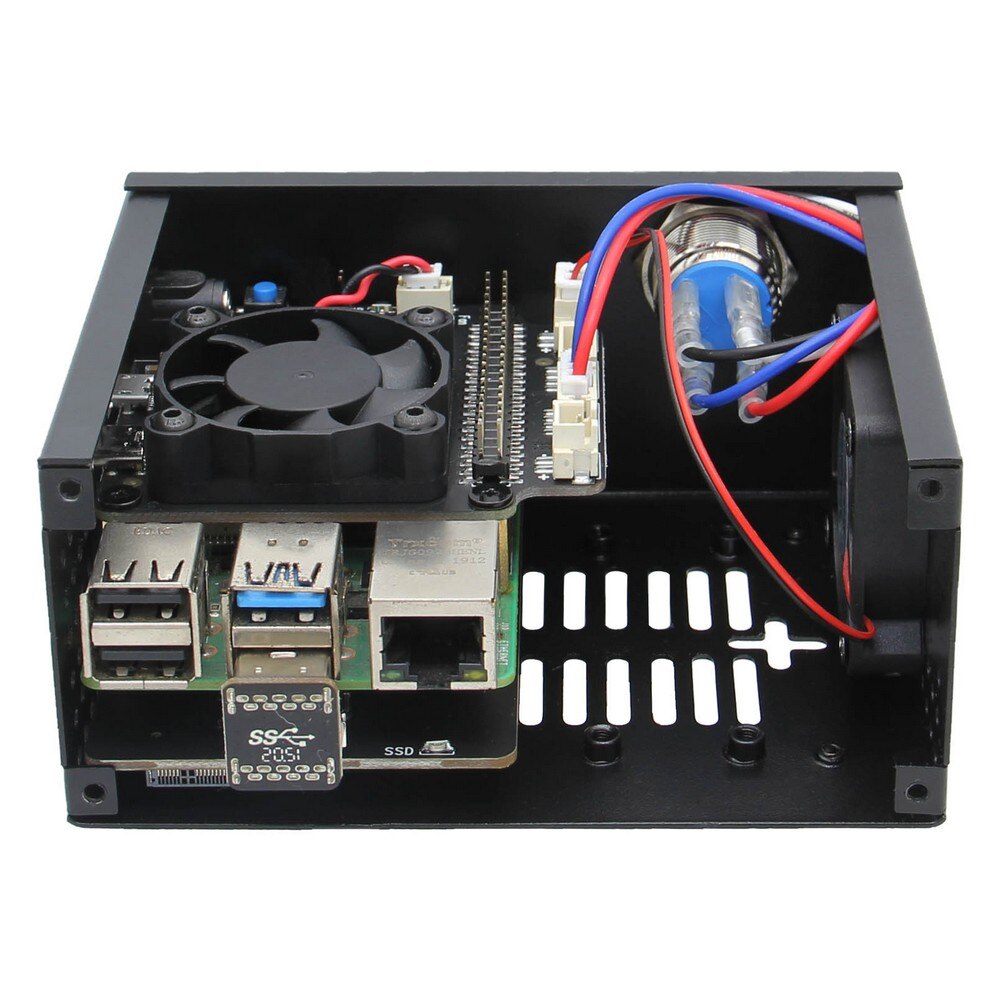

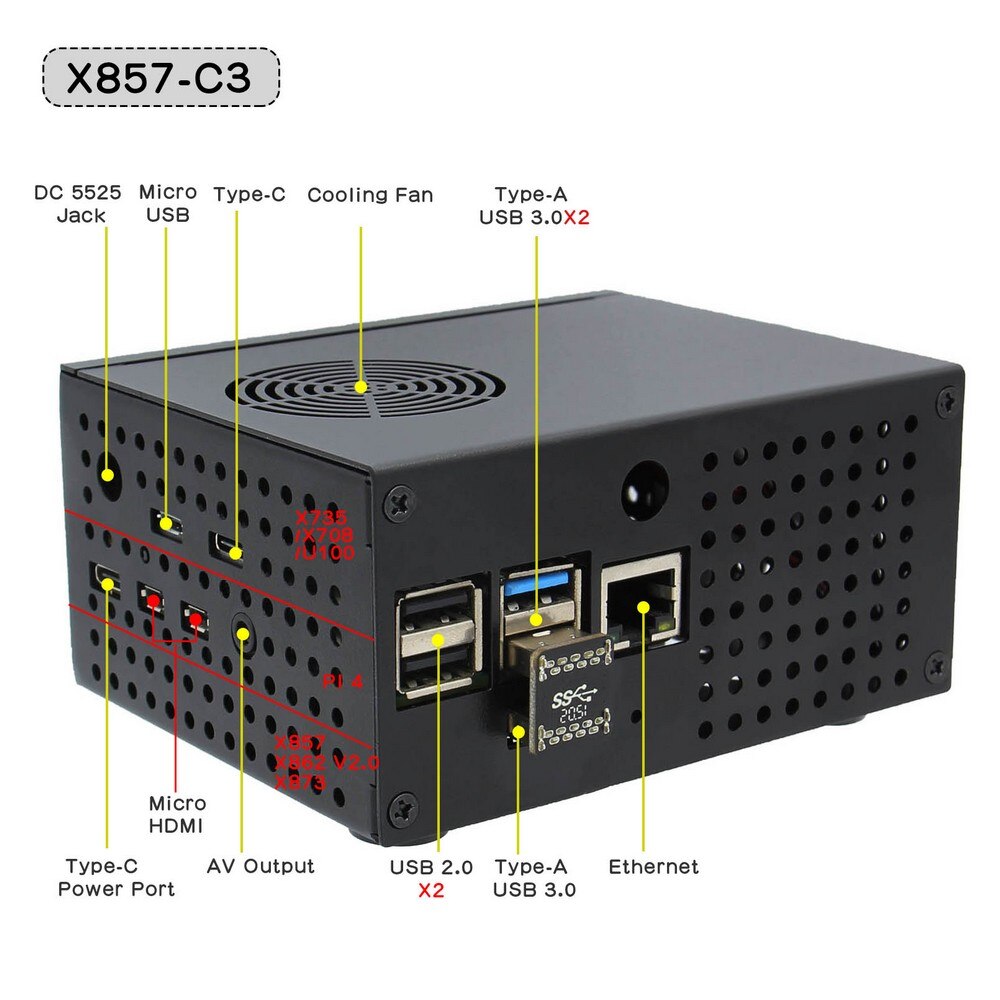

  • 1 x X857-C3 Metal Case with Cooling Fan(4010)& Power Control Switch



 Welcome Customize Order!
