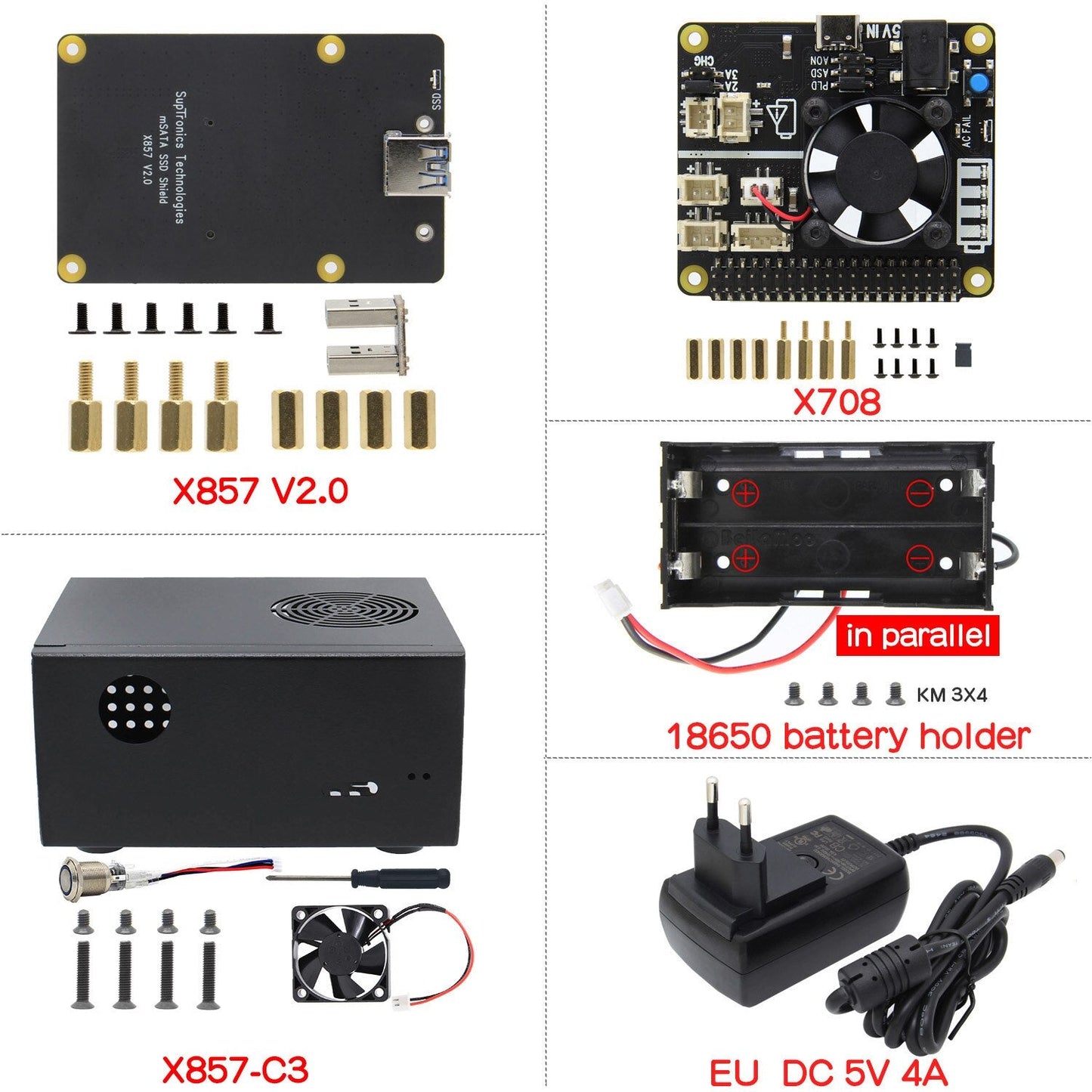

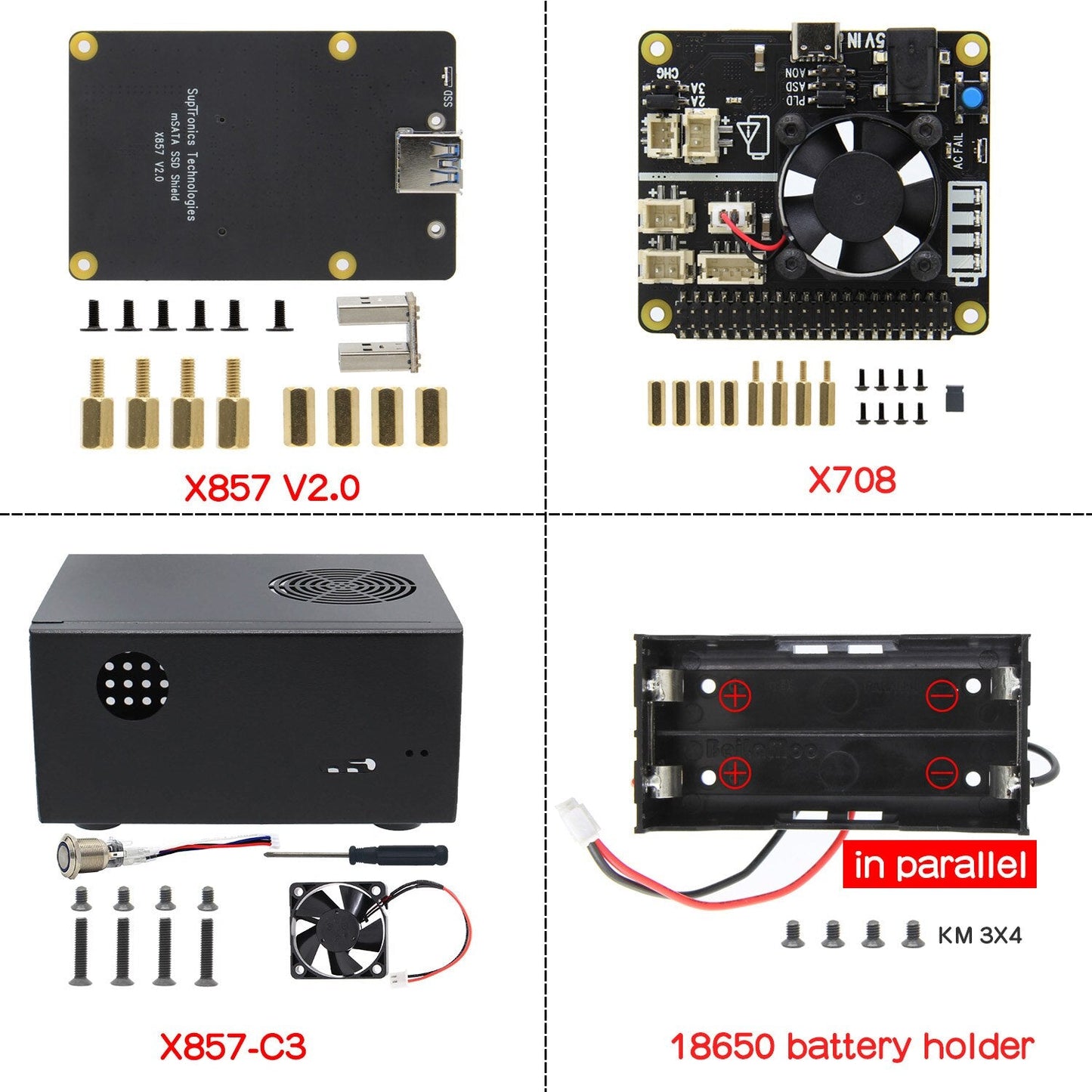

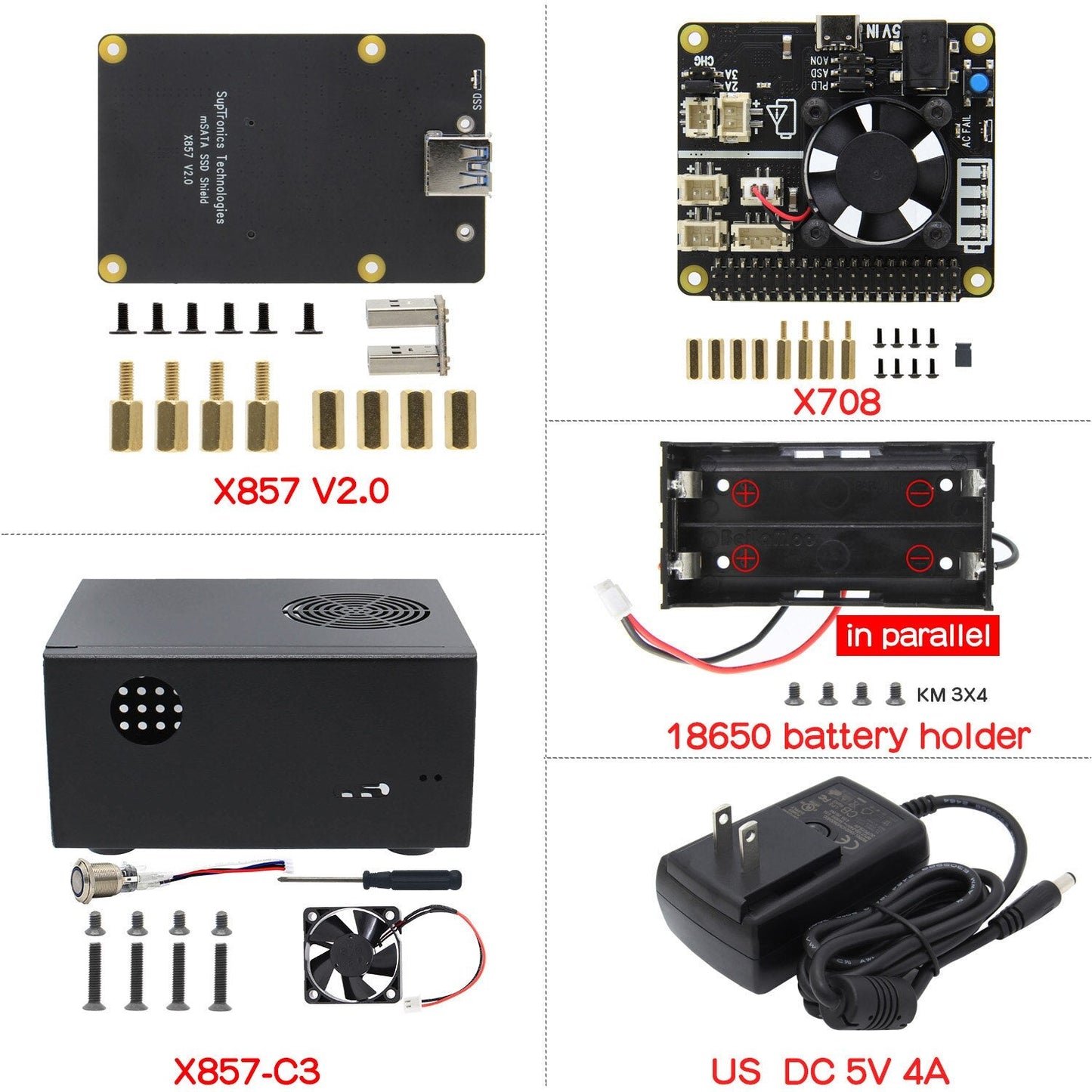

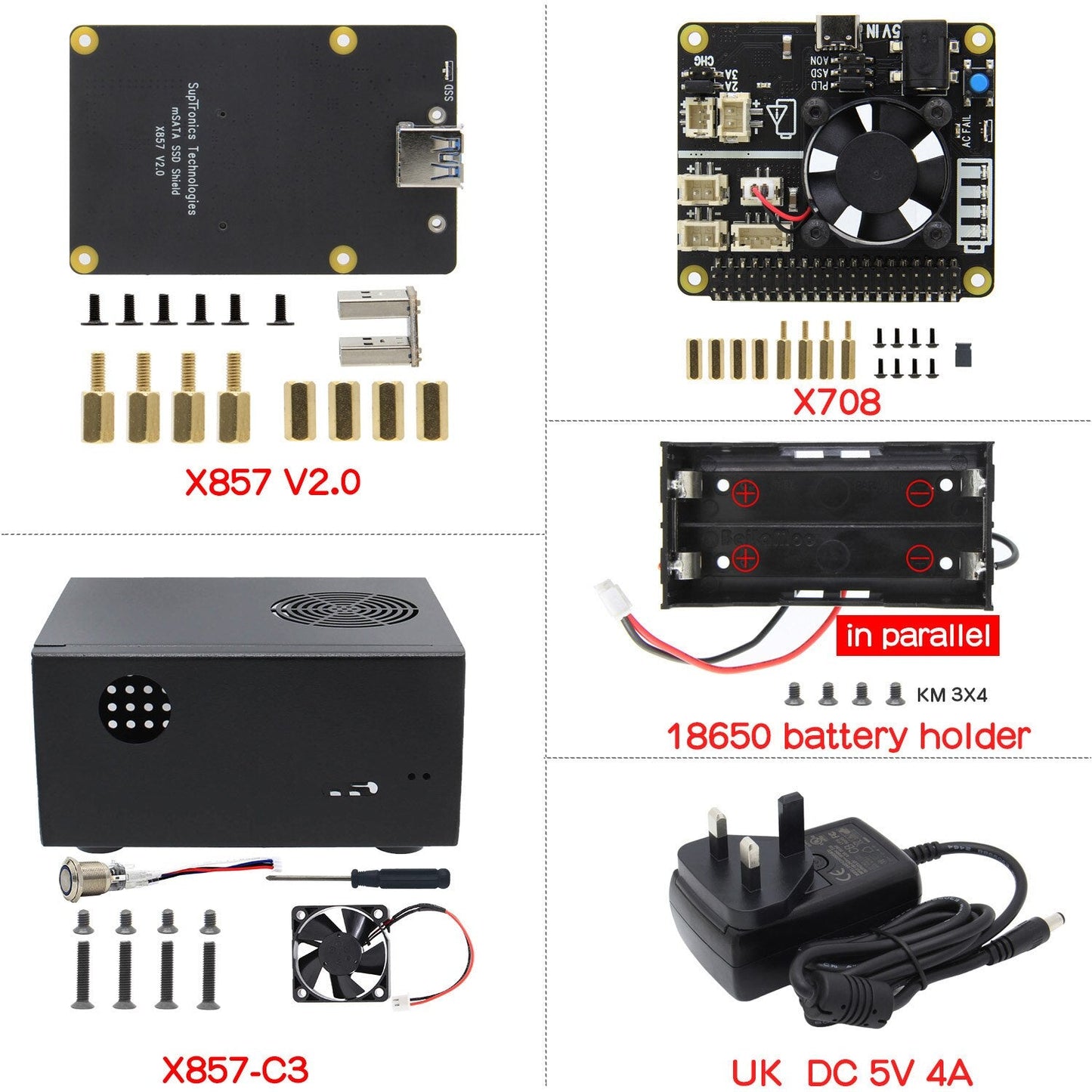

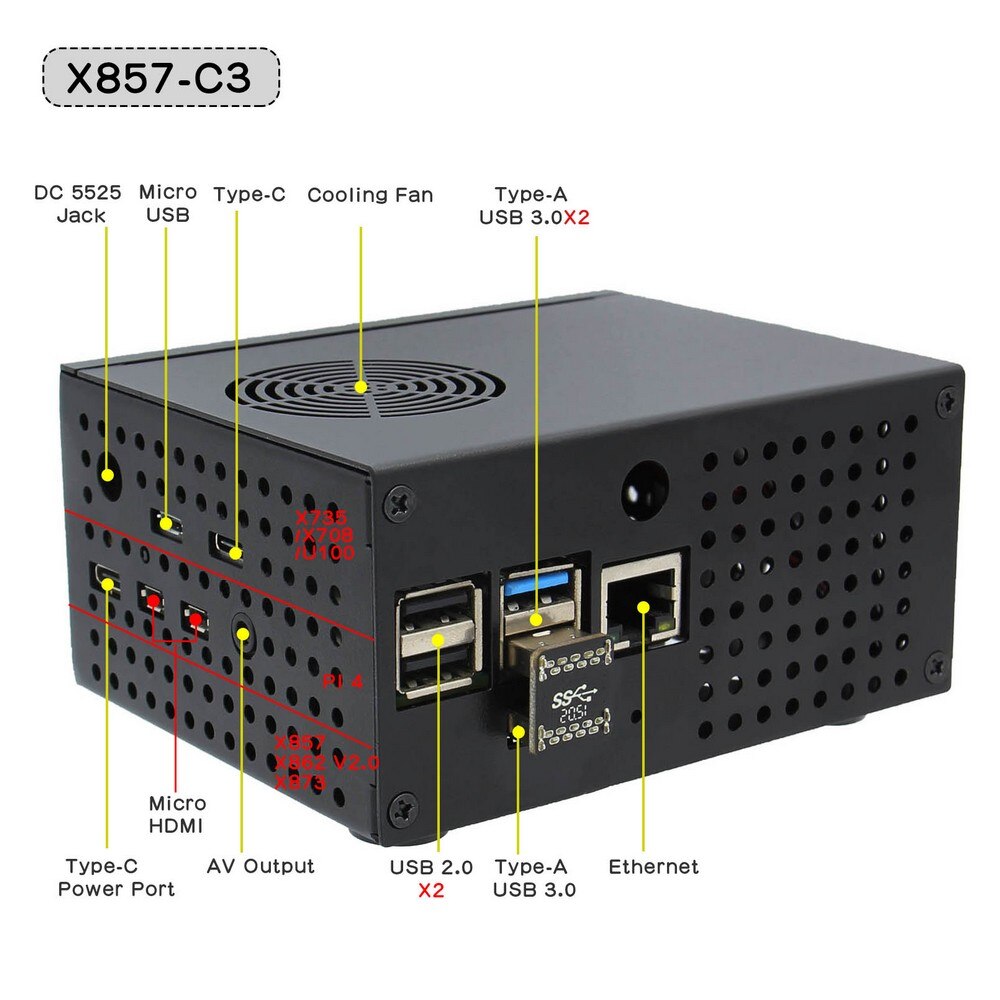

Raspberry Pi 4 Model B mSATA SSD Storage Expansion Board, X857 V2.0 Shield + X708 UPS HAT & Power Management Board customize

$99.67 USD

~~$0.00 USD~~ $99.67 USD

Sale Sold out

Color Bundle2 Bundle1 Bundle3 Bundle4

Quantity

NOTE:

X857 V1.2 is not be producted, and X857 V1.2 is upgraded to X857 V2.0
X857 V2.0 is not support TRIM, only support UASP!
A microSD card is required for forcing the Raspbian OS to use the HDD/SSD for its "root" partition
WARNING: Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.
USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

After continuously collecting customers' feedback, we have updated and released this final version of the mSATA port SSD: X857 V1.2. It is upgraded from X855 (1st generation) and X856 (2nd generation).

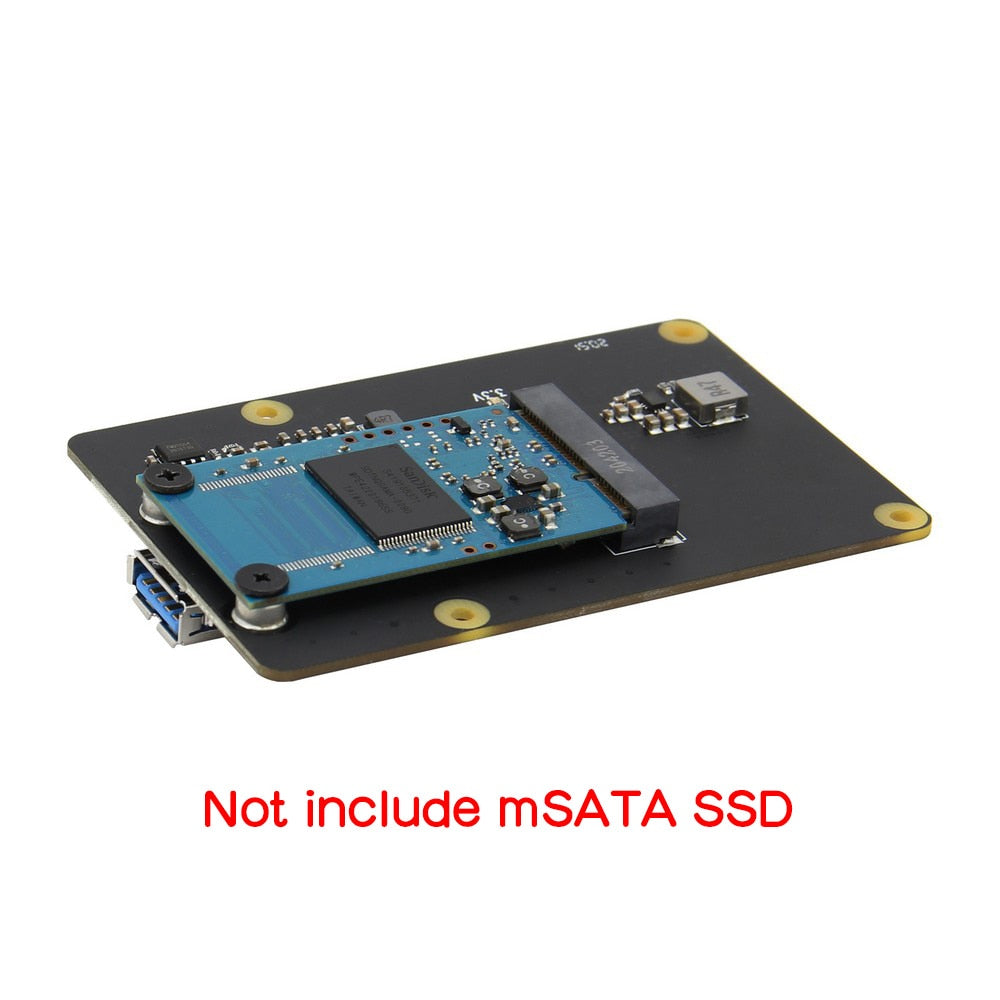

This X857 V1.2 mSATA SSD Shield expansion board provides a complete storage solution for Raspberry Pi 4 Model B, only mSATA interface SDD hard disk is suitable for X857 mSATA SSD extension board; Support up to 2TB mSATA solid-state drive (SSD); Now it is time to build a mobile hard disk with a mSATA SSD for your Raspberry Pi 4 Model B.

For Use With:

Raspberry Pi 4 Model B

Operating System:

All Raspberry Pi operating systems

Key Features

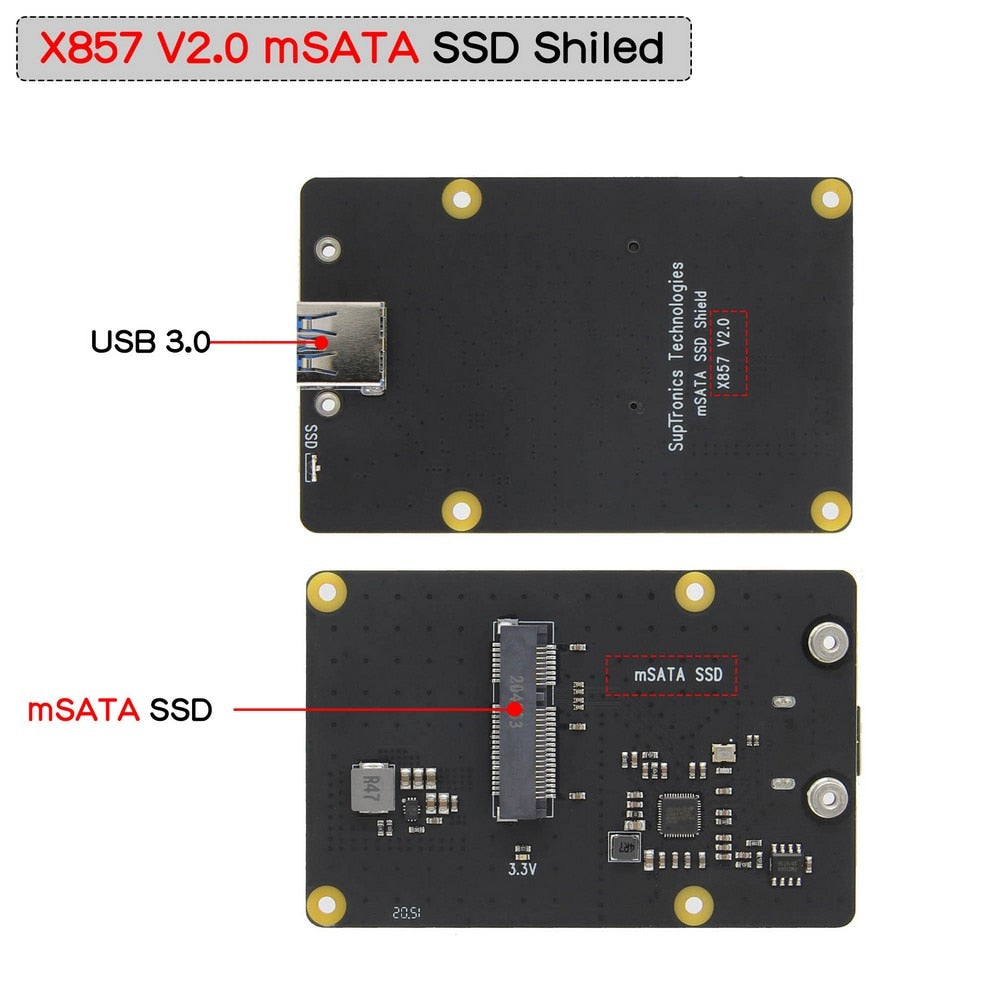

Ideal storage solution for Raspberry Pi 4 - mSATA SSD Shield
Supports up to 2TB mSATA solid-state drive (SSD)
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see notes)
LED blue indicator indicates drive status
External self-powered or USB bus-powered
Onboard DC jack & XH2.54 connector for extra SSD power supply (Additional power may be required only when using a large capacity hard disk)
PCB Size 85mm x 56mm

Power Supply I/O ports

Power supply: 5Vdc +/-5% , Powered via Pi's USB port
5Vdc via micro-USB socket
Ports & Connectors: USB socket - USB 3.0 type A x1
52P Mini PCI-E mSATA slot x1

X708 UPS HAT & Power Management Board

NOTE:

Current version is V1.2, there are the following change with V1.0;

Some changes:

Remove the ASD function but you can achieve this function through software programming. Please refer to X708-Software
Added voltage surge protection circuit

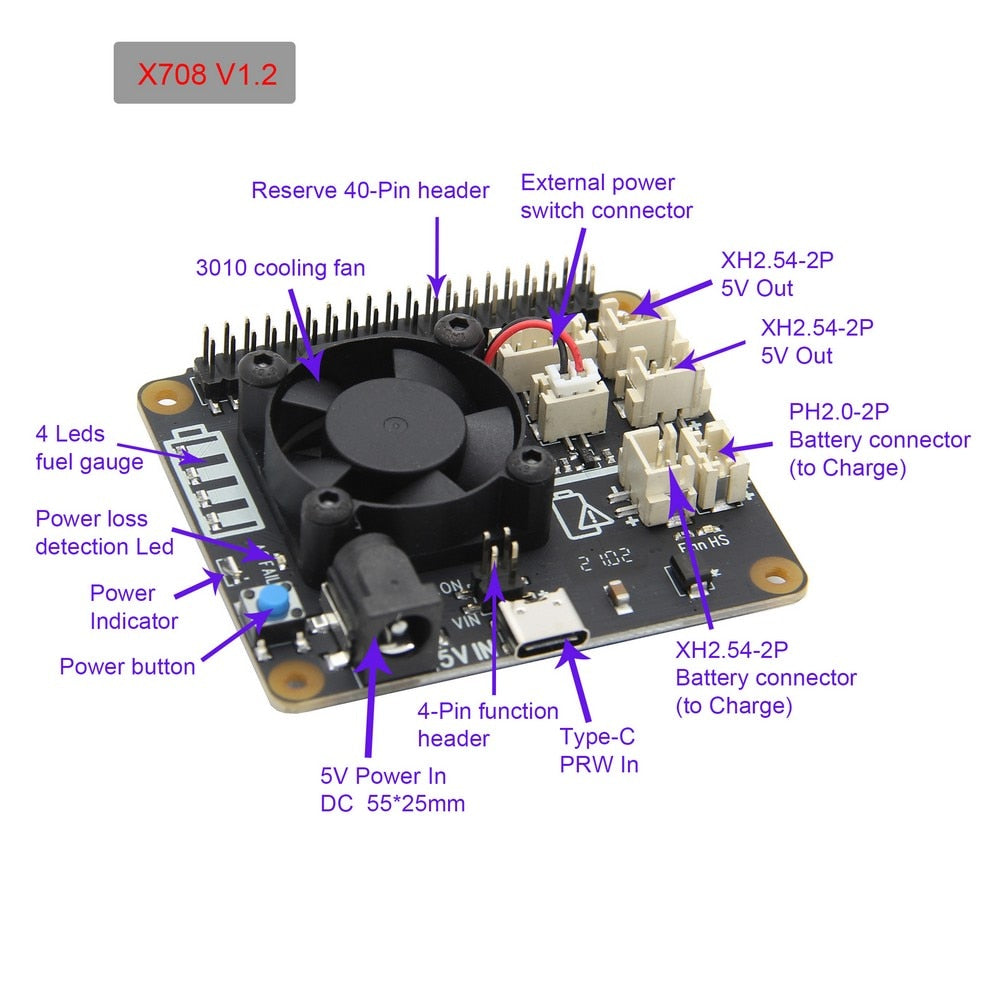

The X708 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides 5.1V Max. 8000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown，AC power loss/ power adapter failure detection , auto power-on, full poweroff from software, and a cooling fan.

Some key features:

Excellent UPS function such as Power Loss Detection(PLD), Automatic Safe Shutdown(ASD), Auto Power On(AON) etc., DC 5V Max. 8A output;
With cooling fan, no extra cooling solution.
HAT size. Separate the battery from the expansion board, which can save a lot of space, which will bring more flexibility.
Reserved two kind battery port (XH2.54 and PH2.0), supports 3.7V 18650 lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery (No include lithium battery)
The X708 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X708 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872(MSATA/M.2 SSD shield) for safe data backup.
