Raspberry Pi Case-LTRIG

Raspberry Pi 4 Model B mSATA SSD Storage Expansion Board, X857 V2.0 Shield for Raspberry Pi 4 B customize

Raspberry Pi 4 Model B mSATA SSD Storage Expansion Board, X857 V2.0 Shield for Raspberry Pi 4 B customize

Regular price $27.44 USD
Regular price $0.00 USD Sale price $27.44 USD
Sale Sold out
Color
NOTE:
  • Not include raspberry pi 4 and mSATA SSD

  • X857 V1.2 is not be producted, and X857 V1.2 is upgraded to X857 V2.0
  • X857 V2.0 is not support TRIM, only support UASP!
  • A microSD card is required for forcing the Raspbian OS to use the HDD/SSD for its "root" partition
  • USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

WARNING:

Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.

This X857 mSATA board is only suitable for raspberry pi 4, if you need mSATA SSD board for raspberry pi 3b+/3b, please refer to:X850 mSATA Board

Installation video:youtu.be/HGPpfDbfyxM
Overview:
  • After continuously collecting customers' feedback, we have updated and released this fanal version of the mSata port SSD: X857. It is upgraded from X855 (1st generation) and X856 (2nd generation).

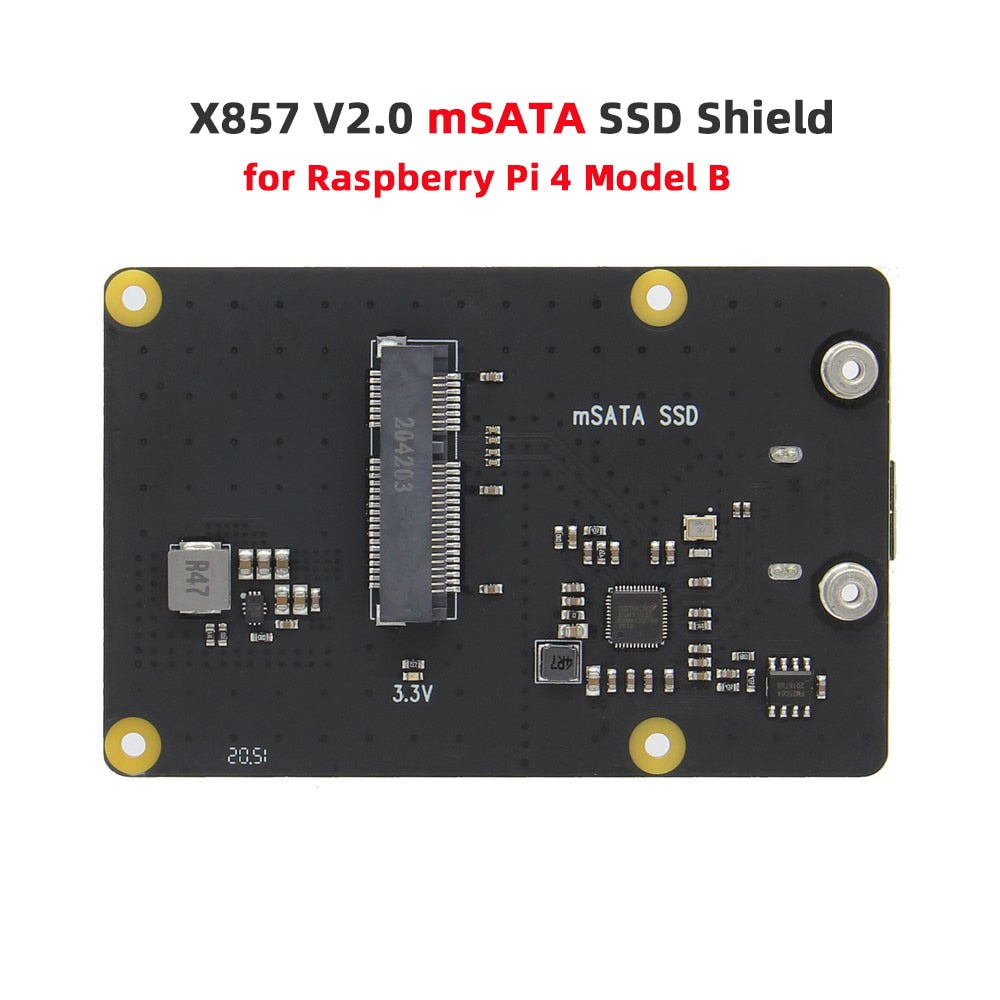

  • This X857 mSATA SSD Shield expansion board provides a complete storage solution for Raspberry Pi 4 Model B, only mSATA interface SDD hard disk is suitable for X857 mSATA SSD extension board; Support up to 2TB mSATA solid-state drive (SSD); Now it is time to build a mobile hard disk with a mSATA SSD for your Raspberry Pi 4 Model B.

Features:
  • Ideal storage solution for Raspberry Pi 4 - mSATA SSD Shield

  • Supports up to 2TB mSATA solid-state drive (SSD)

  • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

  • Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

  • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see notes)

  • LED blue indicator indicates drive status

  • External self-powered or USB bus-powered

  • Onboard DC jack & XH2.54 connector for extra SSD power supply (Additional power may be required only when using a large capacity hard disk)

  • PCB Size 85mm x 56mm

  • Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

  • Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

  • Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

  • Fully compatible with X725 for uninterruptible power supply (18650 UPS, 5.1V 8A, WOL)

Power Supply I/O ports

  • Power supply: 5Vdc +/-5% , Powered via Pi's USB port

  • 5Vdc via micro-USB socket

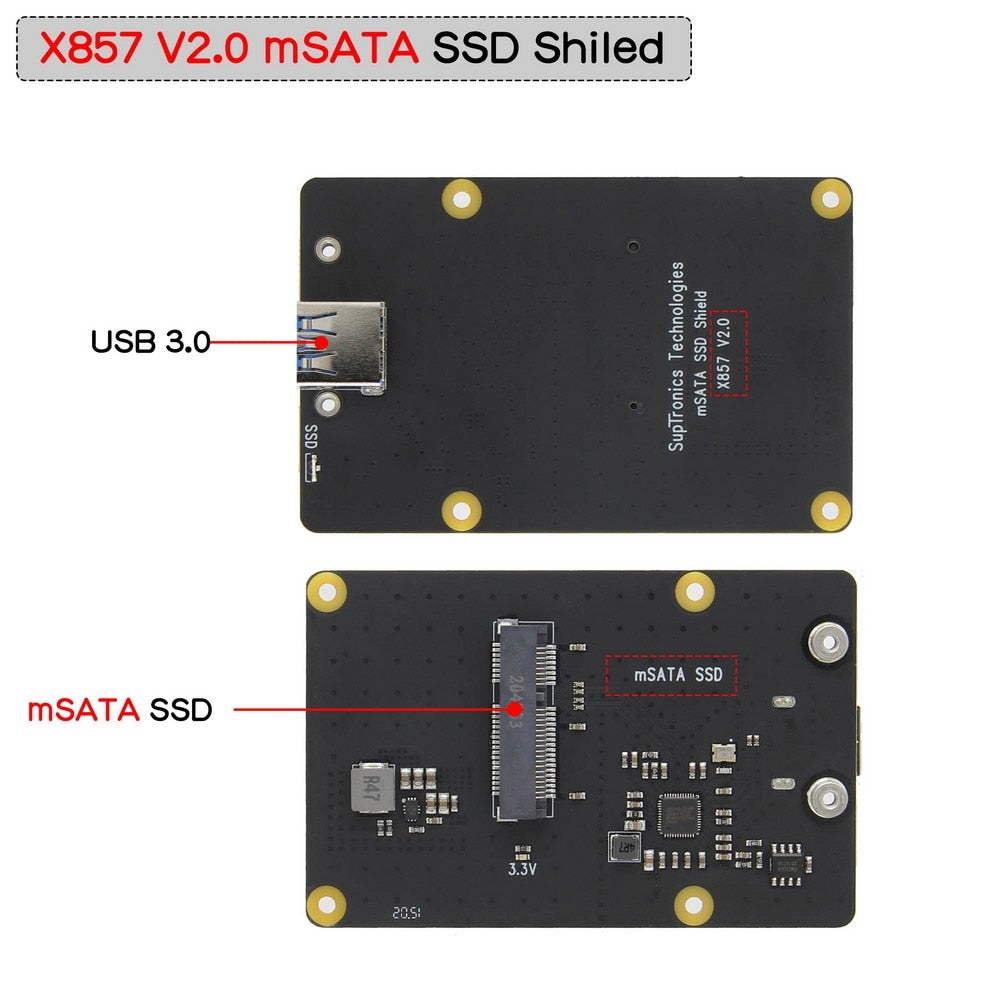

  • Ports & Connectors: USB socket - USB 3.0 type A x1

  • 52P Mini PCI-E mSATA slot x1

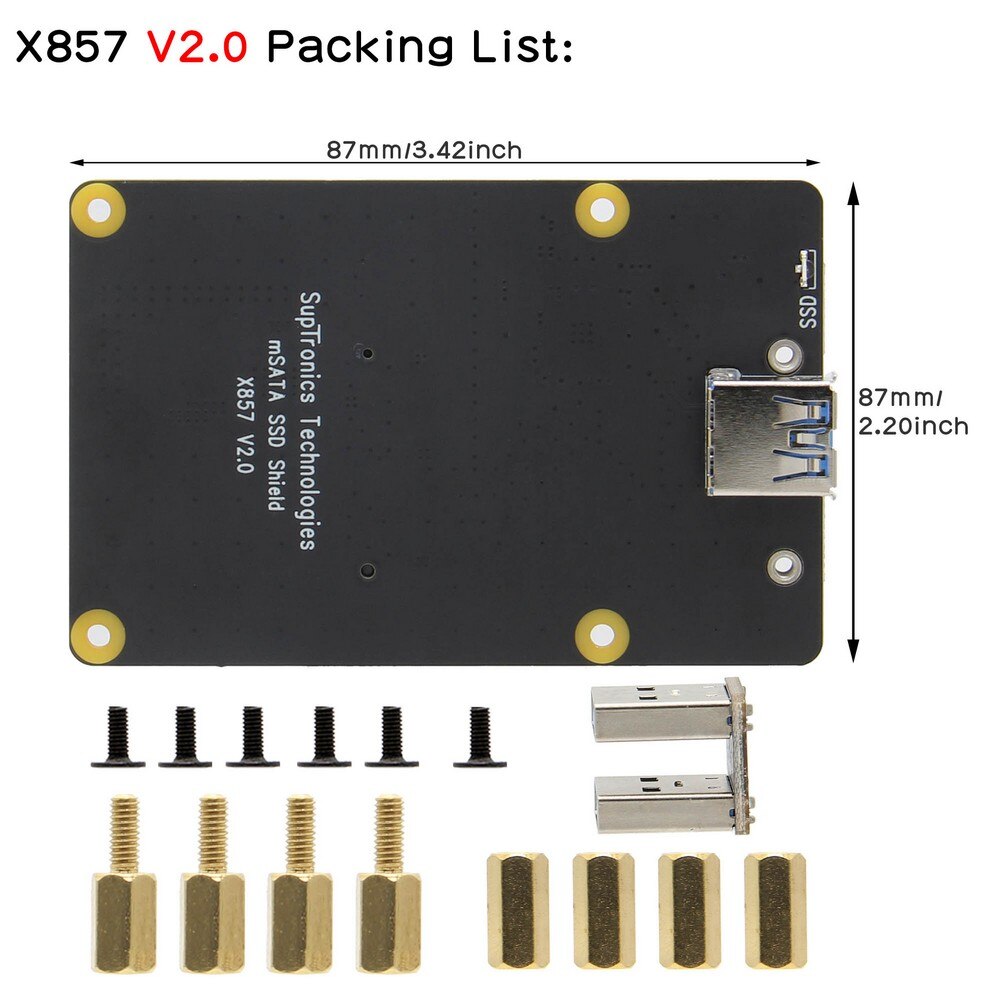

Packing List(Not include raspberry pi 4 and mSATA SSD):
Bundle 1:
  • 1 x X857 mSATA SSD Expansion Board

  • 1 x USB 3.1 connector

  • 1 x Install Screws pack

Bundle 2:

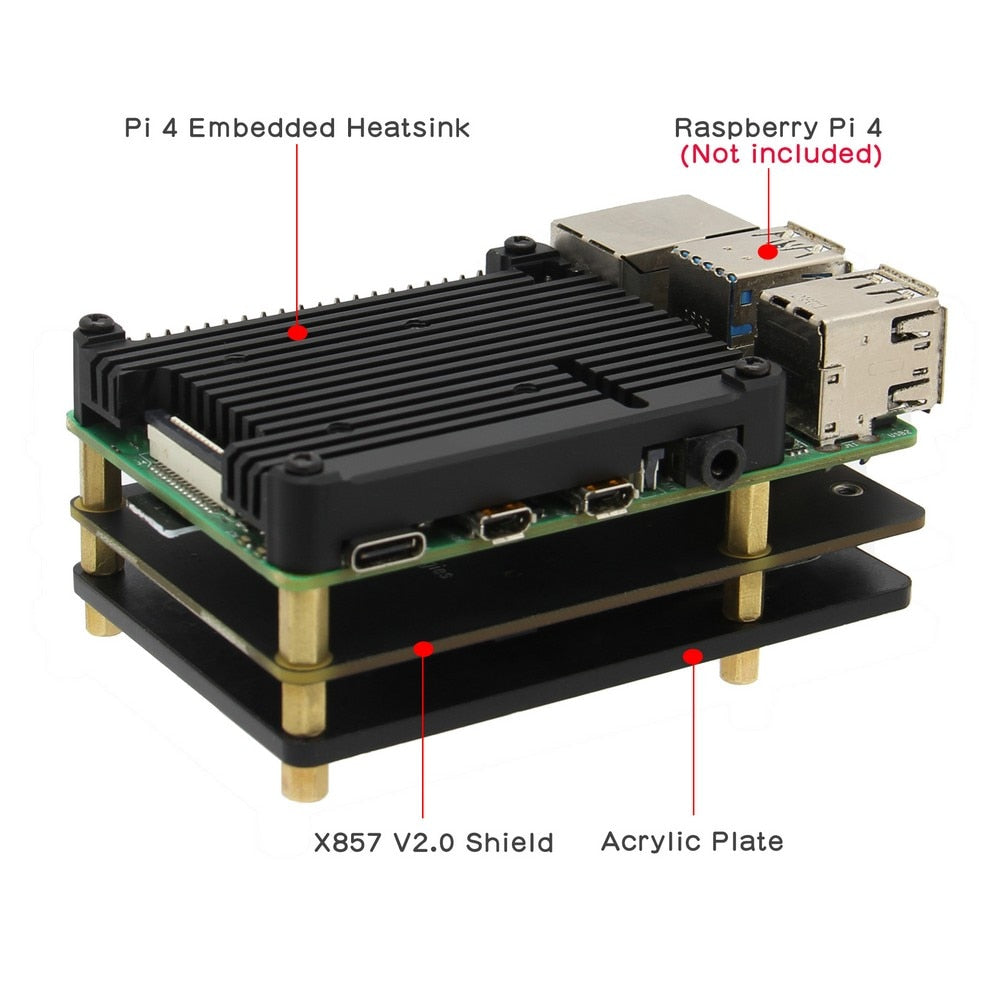

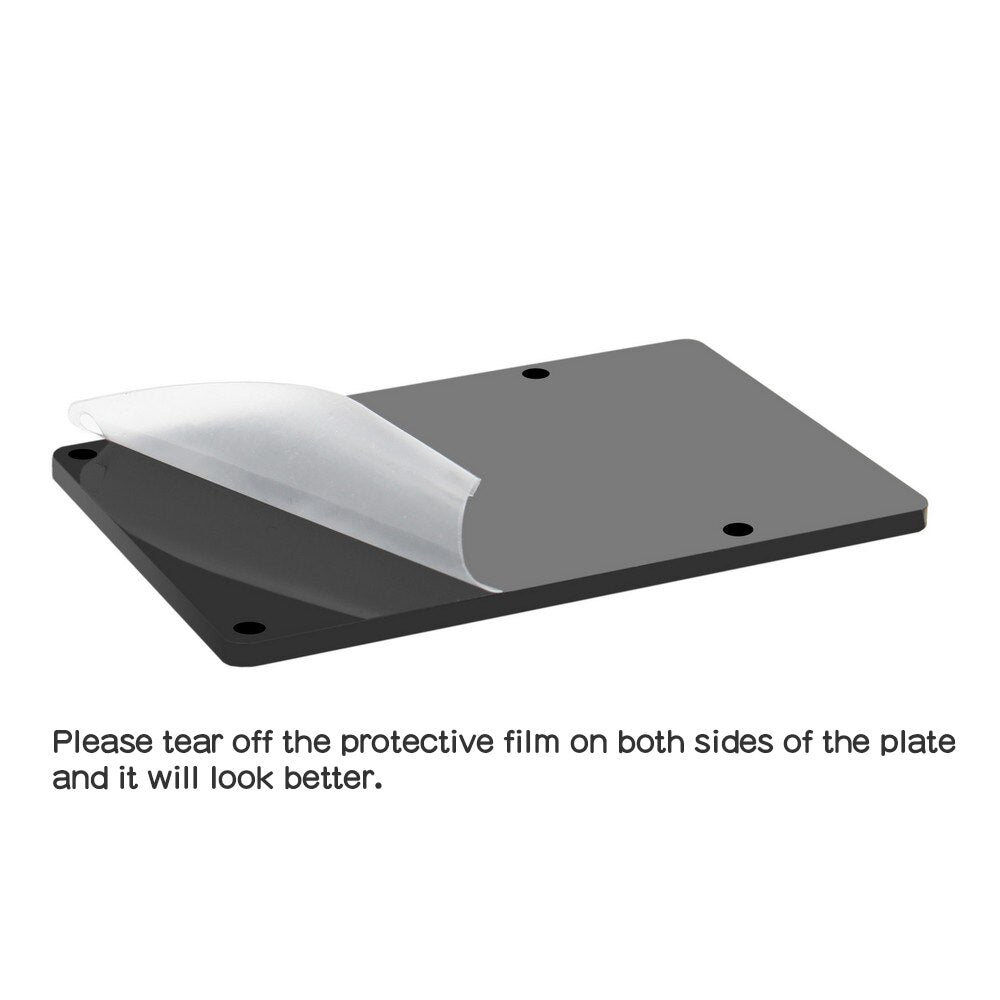

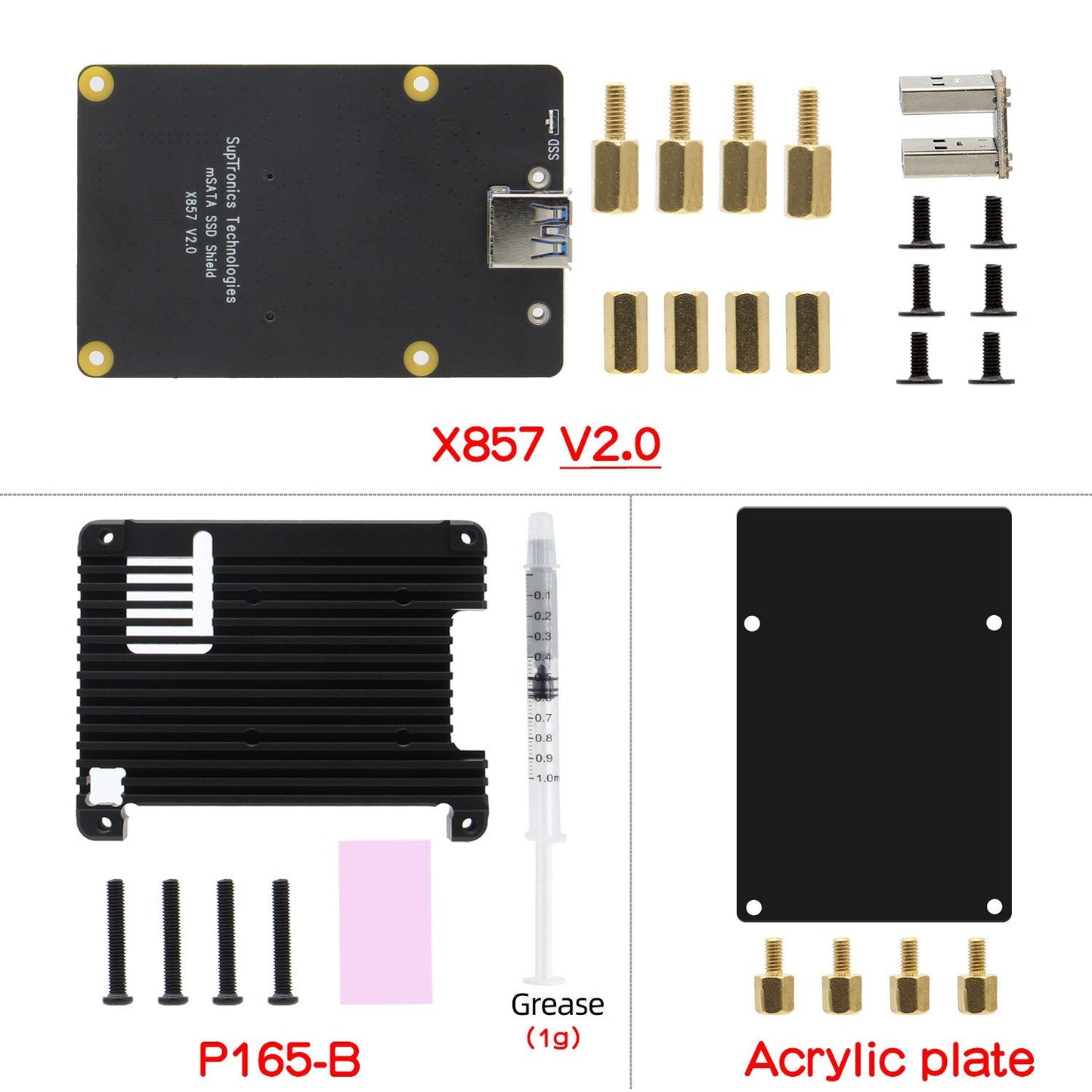

  • X857 mSATA SSD Board + P165-B(include Shin-Etsu Silicone Grease/1g) + Acrylic plate

Bundle 3:

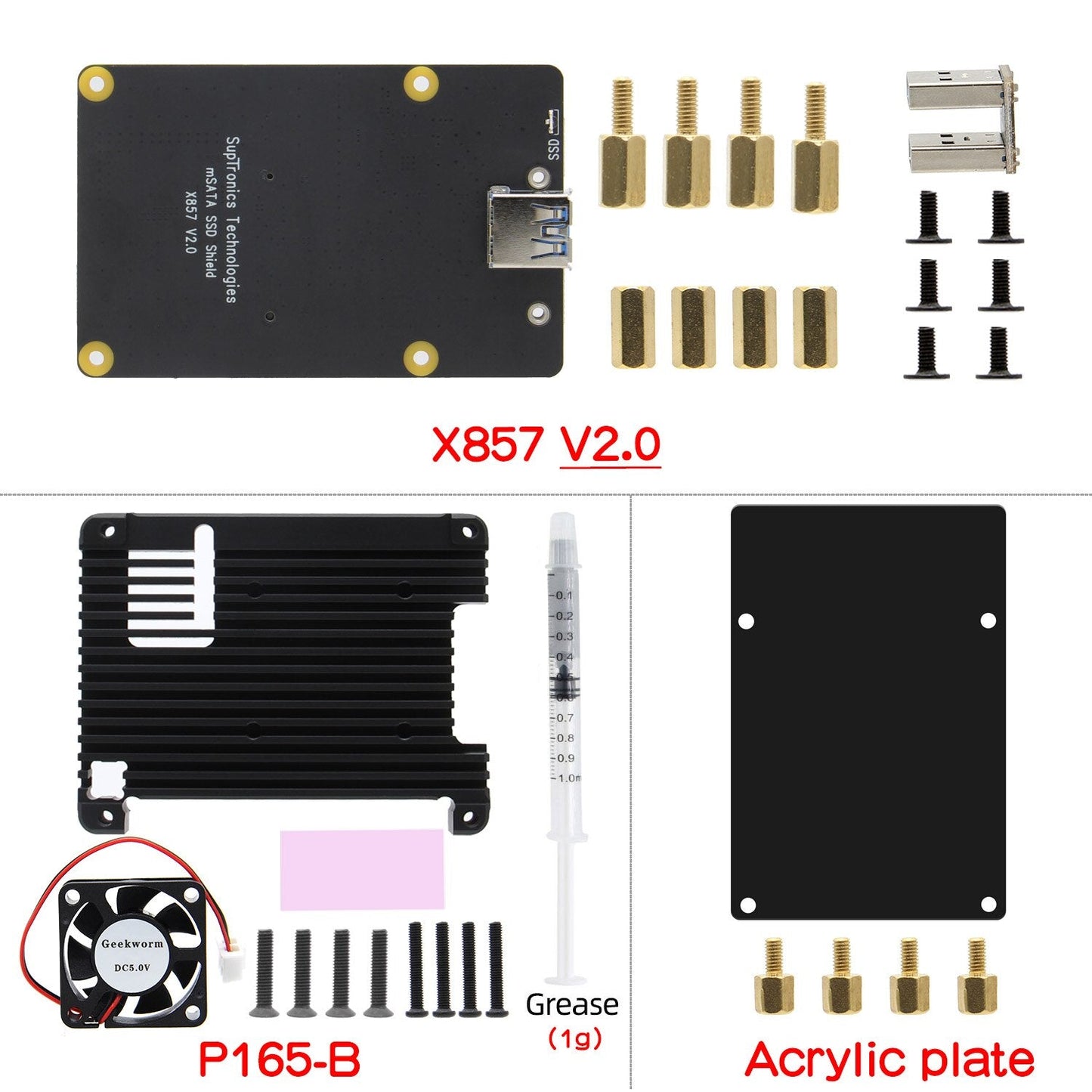

  • X857 mSATA SSD Board + P165-B with fan(include Shin-Etsu Silicone Grease/1g) + Acrylic plate



 Welcome Customize Order!
