Raspberry Pi Case-LTRIG

Raspberry Pi 4 Model B Aluminum Alloy Case Ultra-thin CNC Metal Shell Passive Cooling Enclosure customize

Raspberry Pi 4 Model B Aluminum Alloy Case Ultra-thin CNC Metal Shell Passive Cooling Enclosure customize

Regular price $18.59 USD
Regular price $0.00 USD Sale price $18.59 USD
Sale Sold out
Color
Note:The Raspberry Pi 4B mother board is not included in all the packing list.
3.5 Inch TFT Touch Screen:
WIKI for reference: raspberrypiwiki.com/3.5_inch_LCD_B

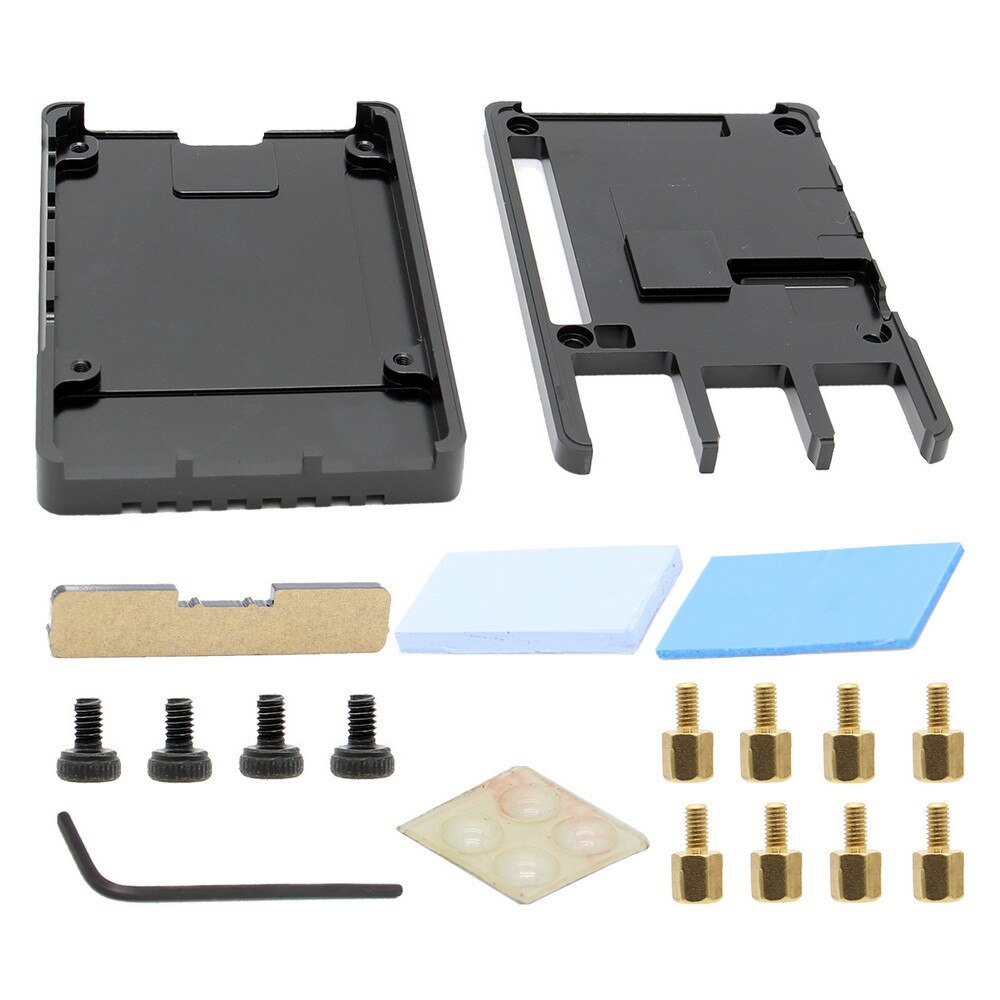

Packing List:
Bundle1:
  • 1 x CNC Aluminum Case for Raspberry Pi 4B
  • 2 x Thermal Tapes
  • 1 x Rubber Mats
  • 1 x Screw Packs
Bundle2:Bundle1 + 3.5 Inch TFT Touch Screen
Overview:

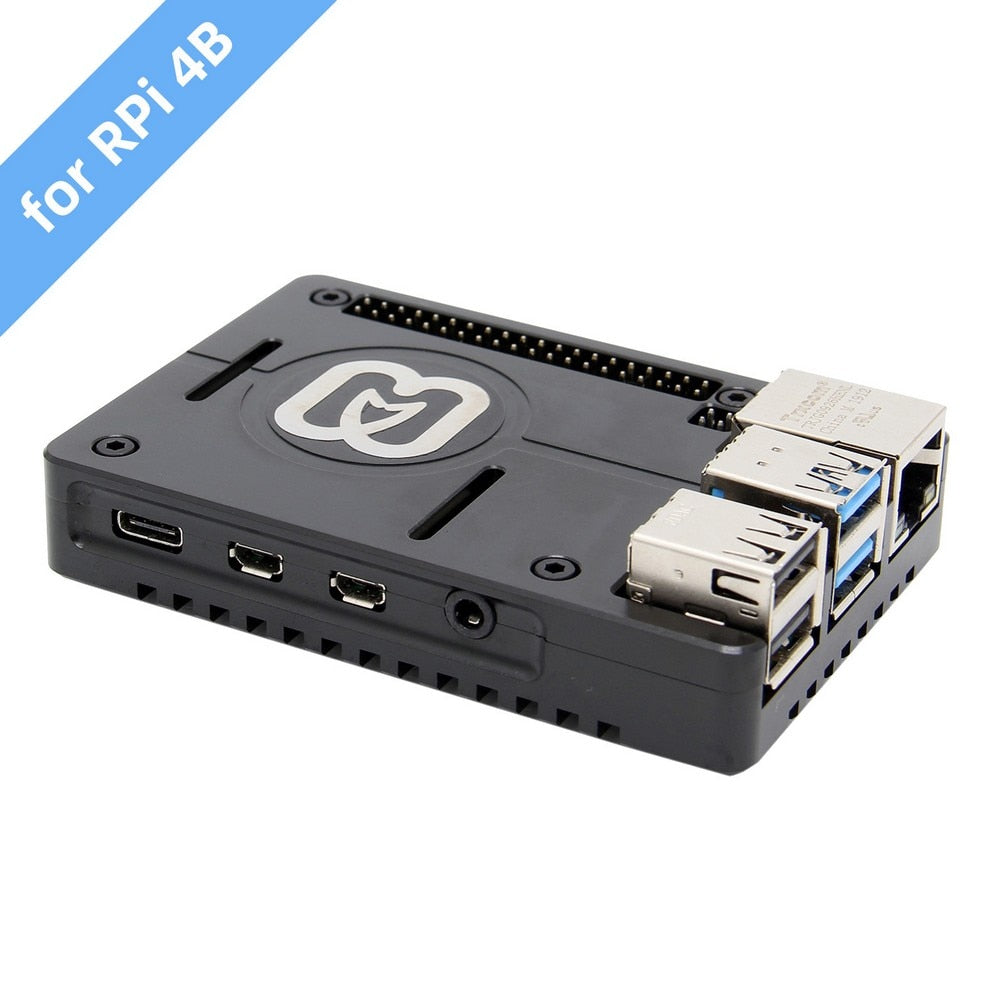

  • This is a Raspberry Pi 4 aluminum case - ultra-thin aluminum alloy metal protective CNC Case that specially designed for Raspberry Pi 4 Model B, which compatible with Raspberry Pi 4 Model B 1GB/2GB/4GB Versions, use this Pi 4 case you can have easy access to all ports and slots of your Raspberry Pi 4B. At the buttom of this pi 4 b case there are regular bump design not flat for better heat dissaption. It is a good raspberry pi 4 passive cooling case. We name it N300.
Key Features:
  • Whole aluminum alloy CNC processing, sand blasting, anodizing
  • Ultra-thin with ONLY 16mm thickness

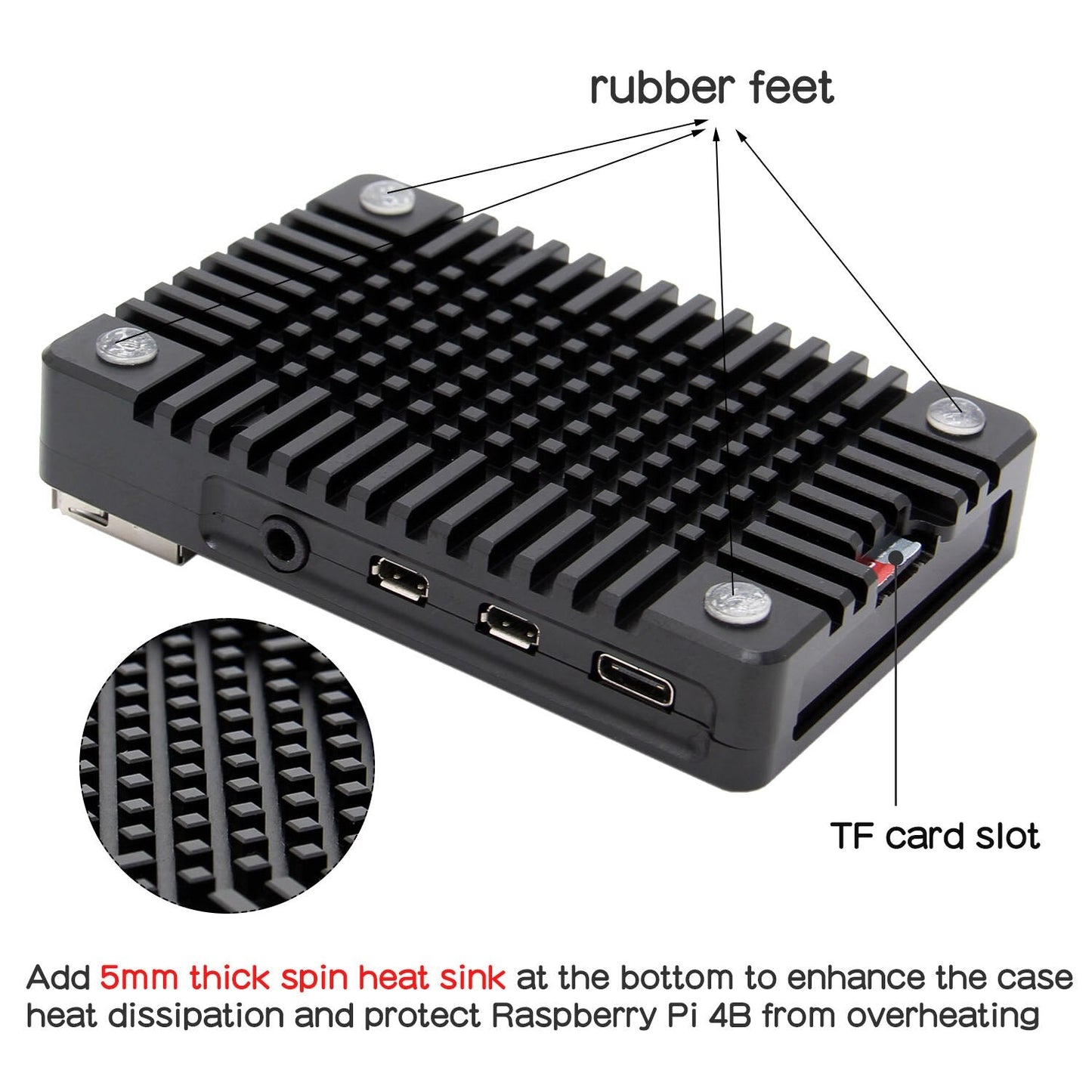

  • Add 5mm thick heat sink at the bottom to enhance the case heat dissipation and protect Raspberry Pi 4B from overheating
  • With black acrylic translucent plate to maximize compatibility with WiFi and Bluetooth signals, almost no weakness
  • The Pi 4B indicators is visiable after installation
  • Access to all ports of Raspberry Pi 4 Model B
  • Prepared with 4 rubber feets to stable the case and not easy to scratch

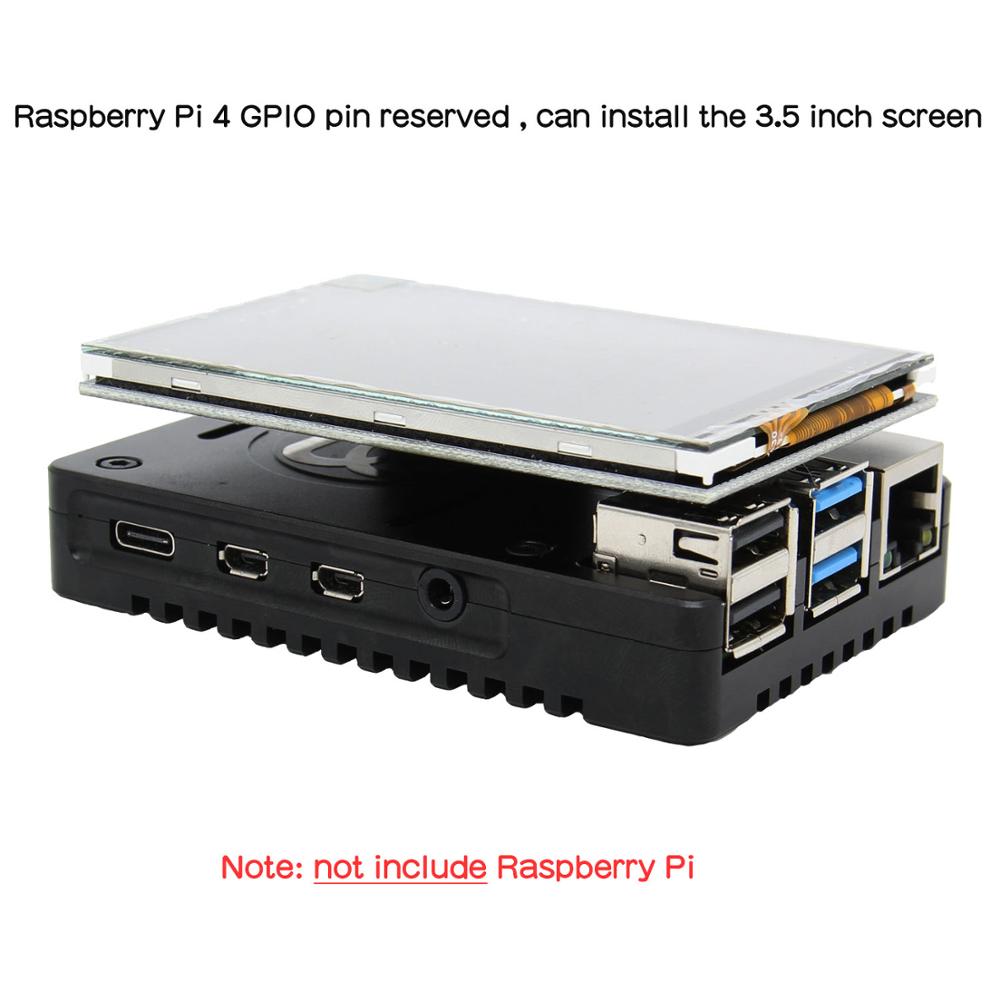

  • The Raspberry Pi 4B GPIO pin is avaiable for other application

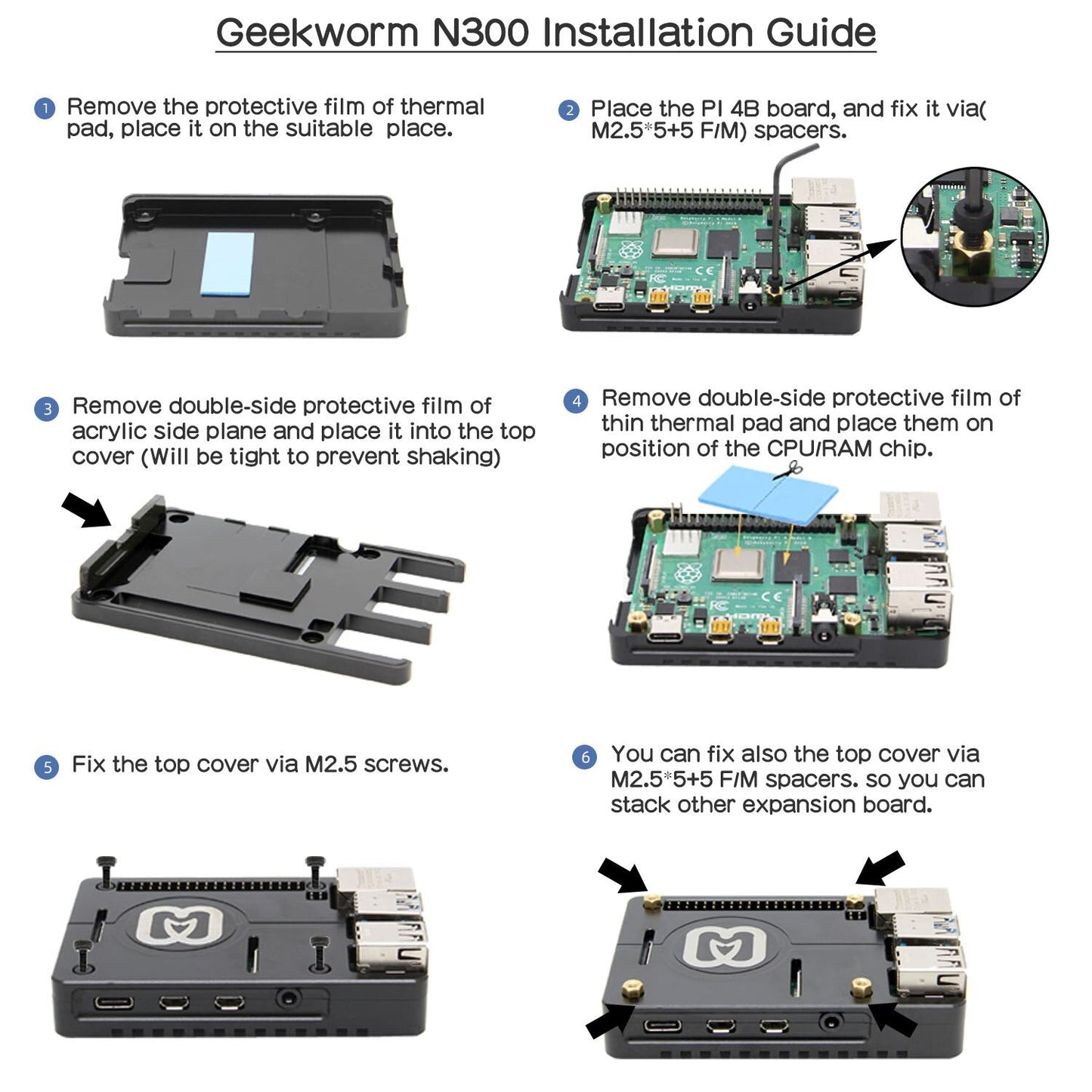

  • Please remove double-sided protective films of thin thermal pad and place them on postiton of the CPU/RAM chip.
  • The thick thermal pad should be place at the bottom cover for thermal conduction
Overview:

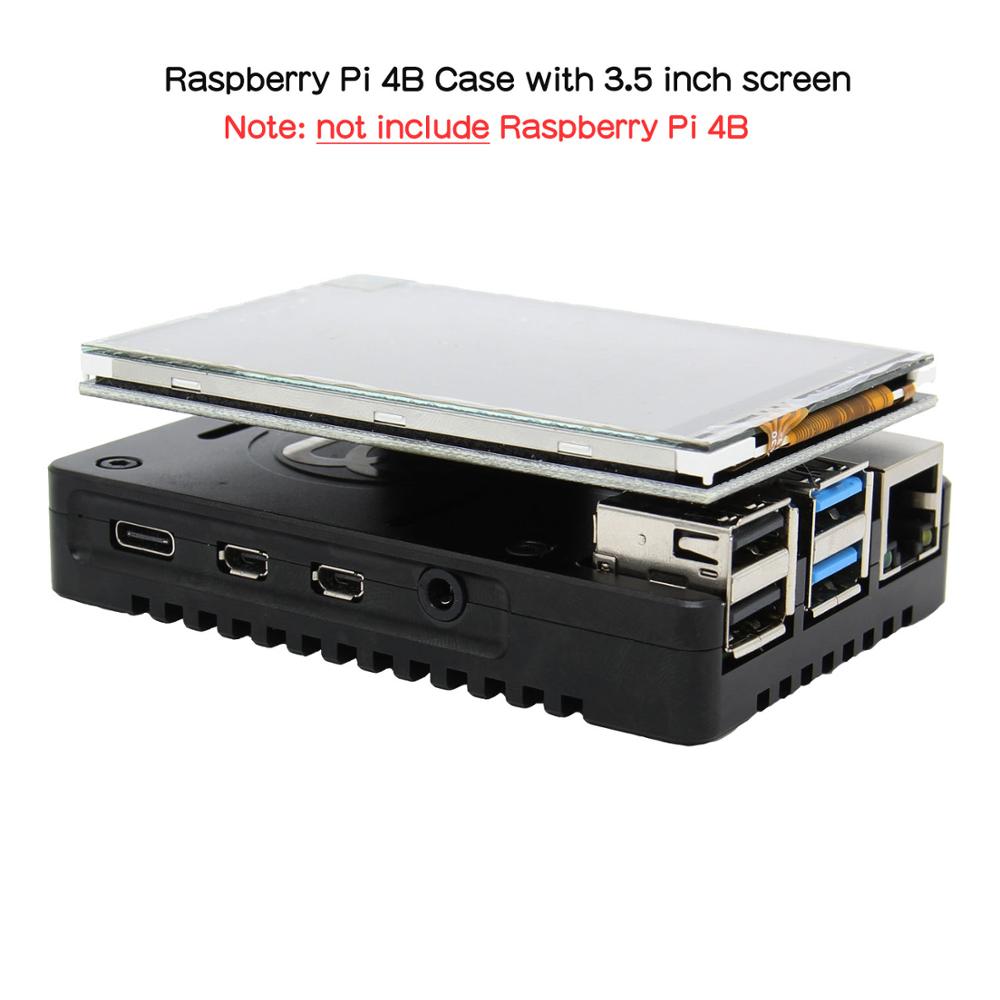

  • This is a raspberry pi 3.5 Inch TFT Touch Screen with 480*320 physical resolution, it is compatible with the newest Raspberry Pi 4 Model B computer.
Key Features:
  • 320×480 resolution
  • Resistive touch control
  • With the refresh rate of raspberry pi around 50Hz, play video to play the game without pressure

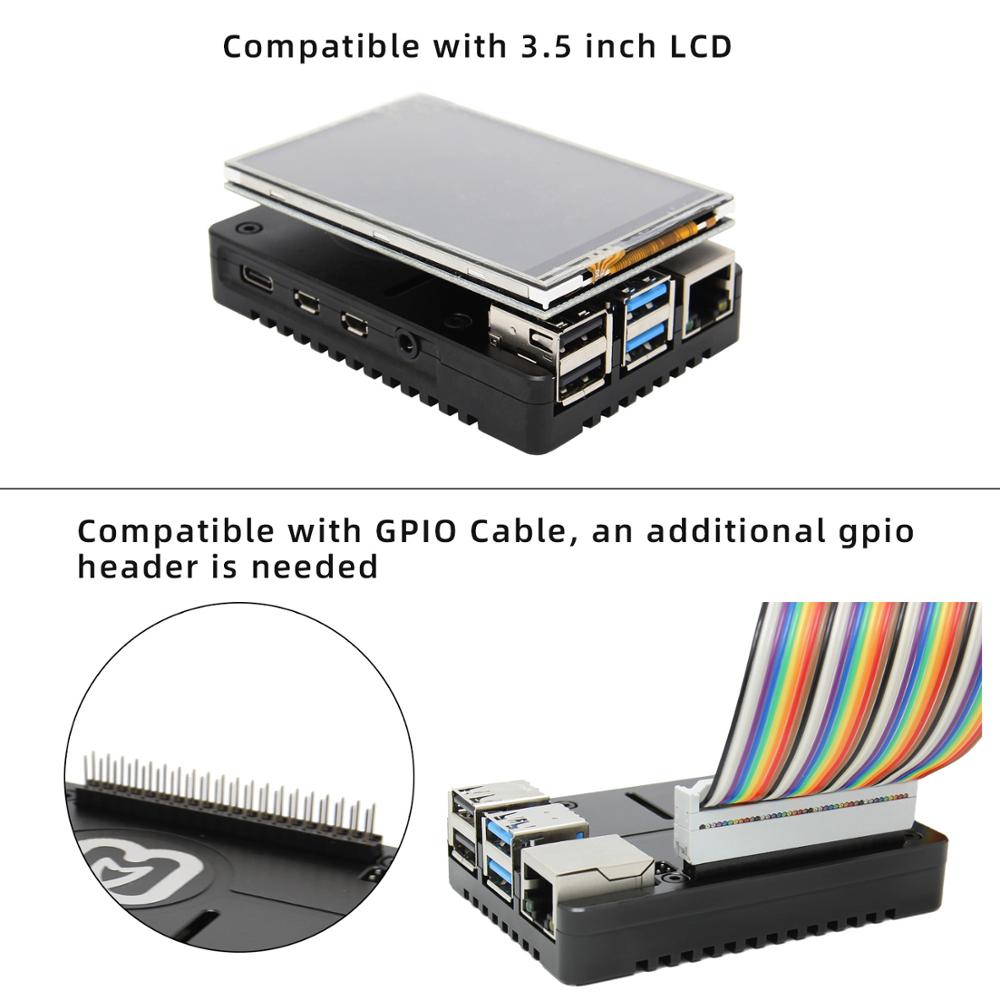

  • Compatible with the newest Raspberry Pi 4 Model B
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • Supports Raspbian system, ubuntu system ,kali Linux system
Key Parameters:
  • LCD Type: TFT
  • LCD driver IC: ILI9486L
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • LCD Interface: SPI (up to 125MHz SPI input, Max FPS: 50Mhz)
  • Colors: 65536
  • Backlight: LED
  • Resolution: 480 x 320 (Pixel)
  • Backlight Current: 120ma
  • Power: 0.16A x 5V
  • Operating Temp. (℃): -20~70

 Welcome Customize Order!
