Raspberry Pi Case-LTRIG
Raspberry Pi 4 Model B 2.4 inch High PPI LCD TFT Screen Display with Aluminum CNC Case and Cooling Fan for Raspberry Pi 4 customize
Raspberry Pi 4 Model B 2.4 inch High PPI LCD TFT Screen Display with Aluminum CNC Case and Cooling Fan for Raspberry Pi 4 customize
Regular price
$56.99 USD
Regular price
$0.00 USD
Sale price
$56.99 USD
Unit price
per
Couldn't load pickup availability
NOTE :
- Not include the Raspberry Pi 4 Board.
Overview:

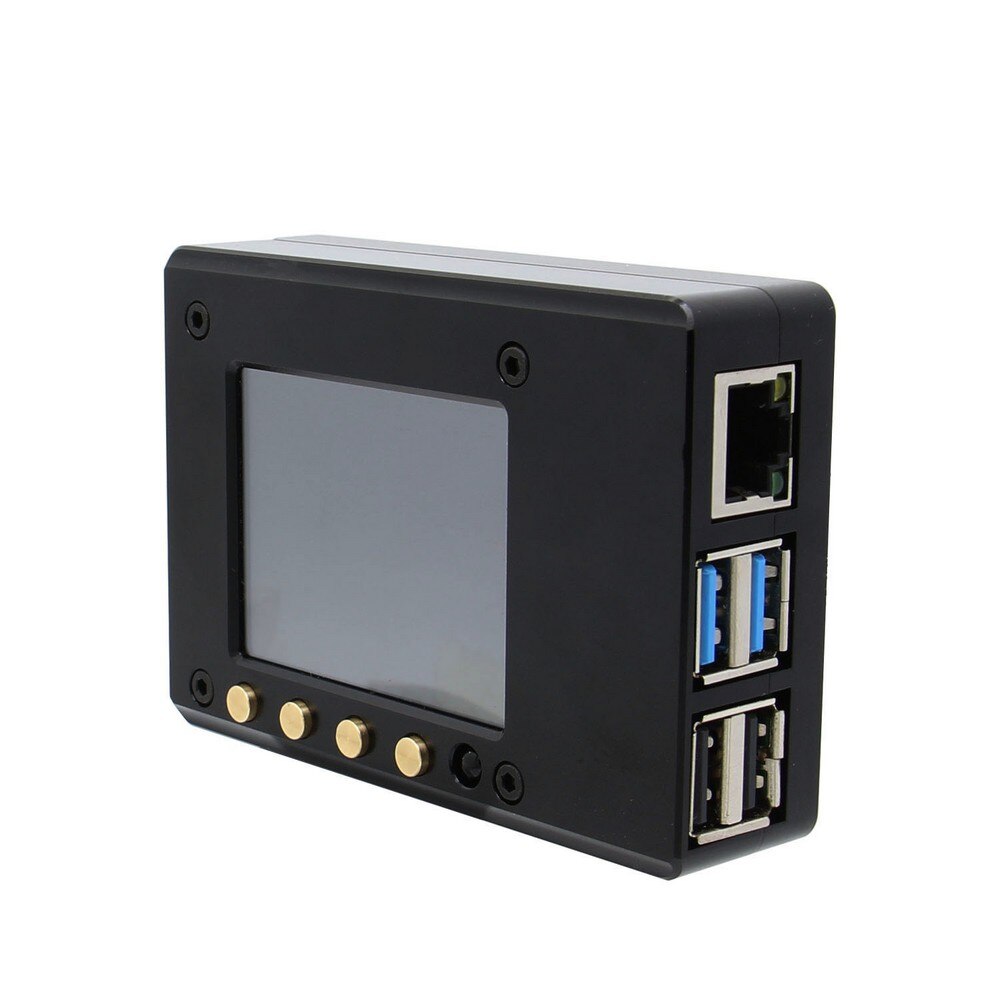

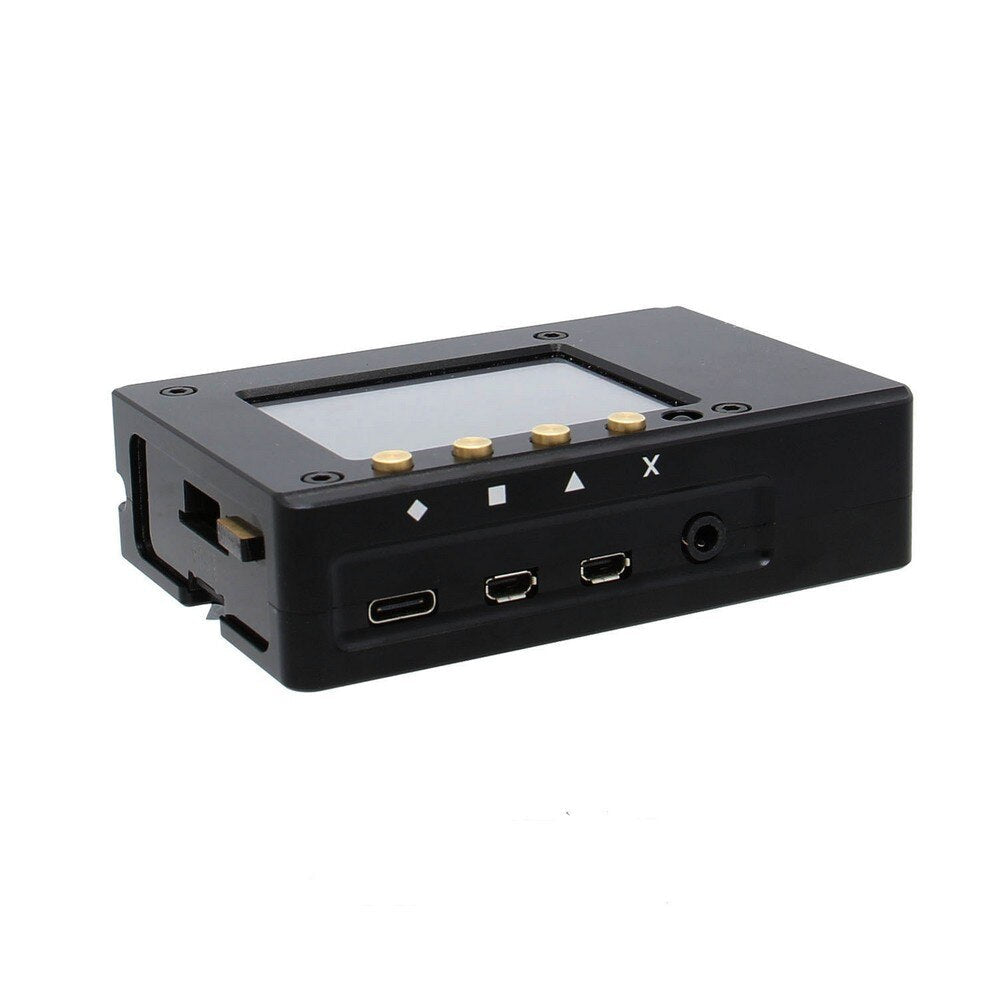

- This is a portable 2.4 inch screen with fan and aluminum alloy CNC case kit specially for Raspberry Pi 4B. It contains a 2.2 inch High PPI TFT Screen(240*320 Resolution); Equipped with a ultra-thin silent fan and a aluminum passive cooling case.
- It support upto 5 independent programmable Buttons with IR function, to meet your daily needs of a variety of control. Now you can implement the hand-written Note function and achieve a variety of application!
LCD Features:
- LCD Size: 65mm × 56.5mm, HAT size;
- Resolution: 320 × 240, 2.4 inches, high PPI display;

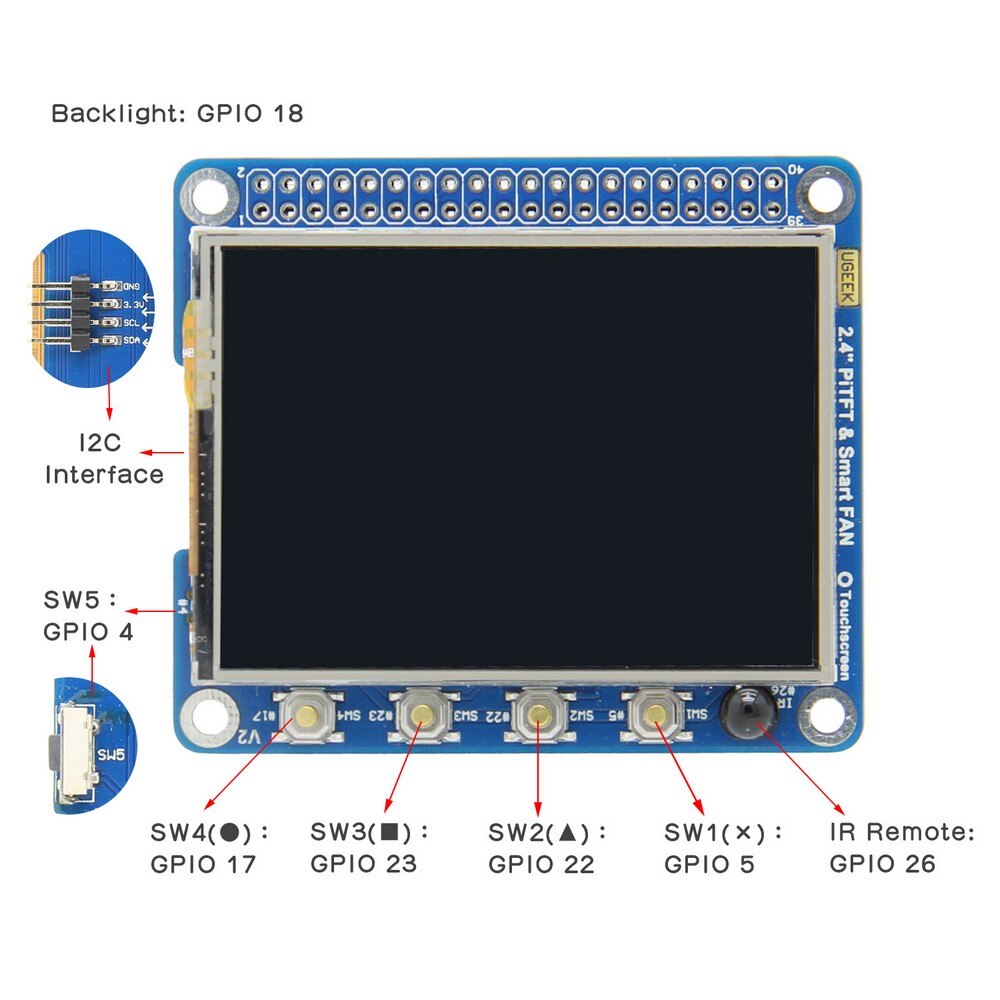

- Supports up to 5 buttons, the status light is visible, does not affect WiFi and Bluetooth functions.
- With IR function;
- Support I2C expansion function and CSI expansion interface, can connect modules such as sensors

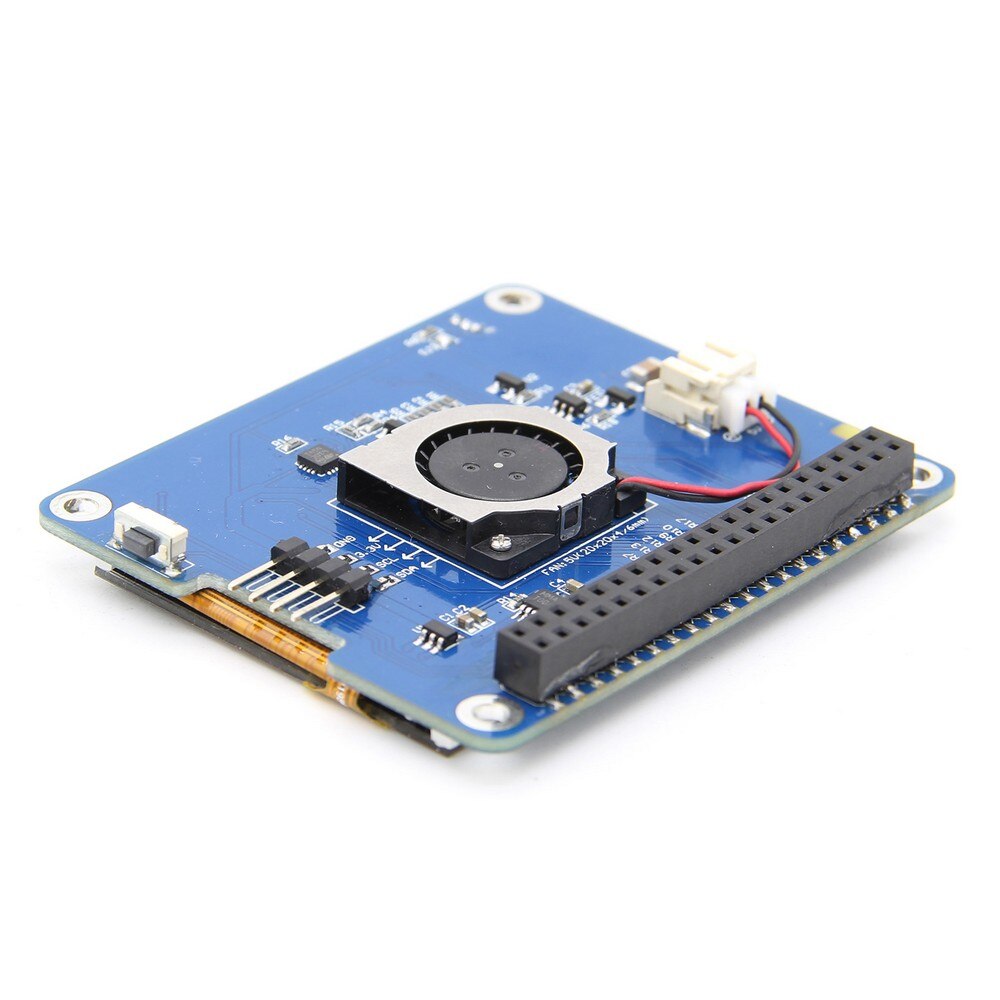

- Supports PH2.0 ultra-thin mute fan

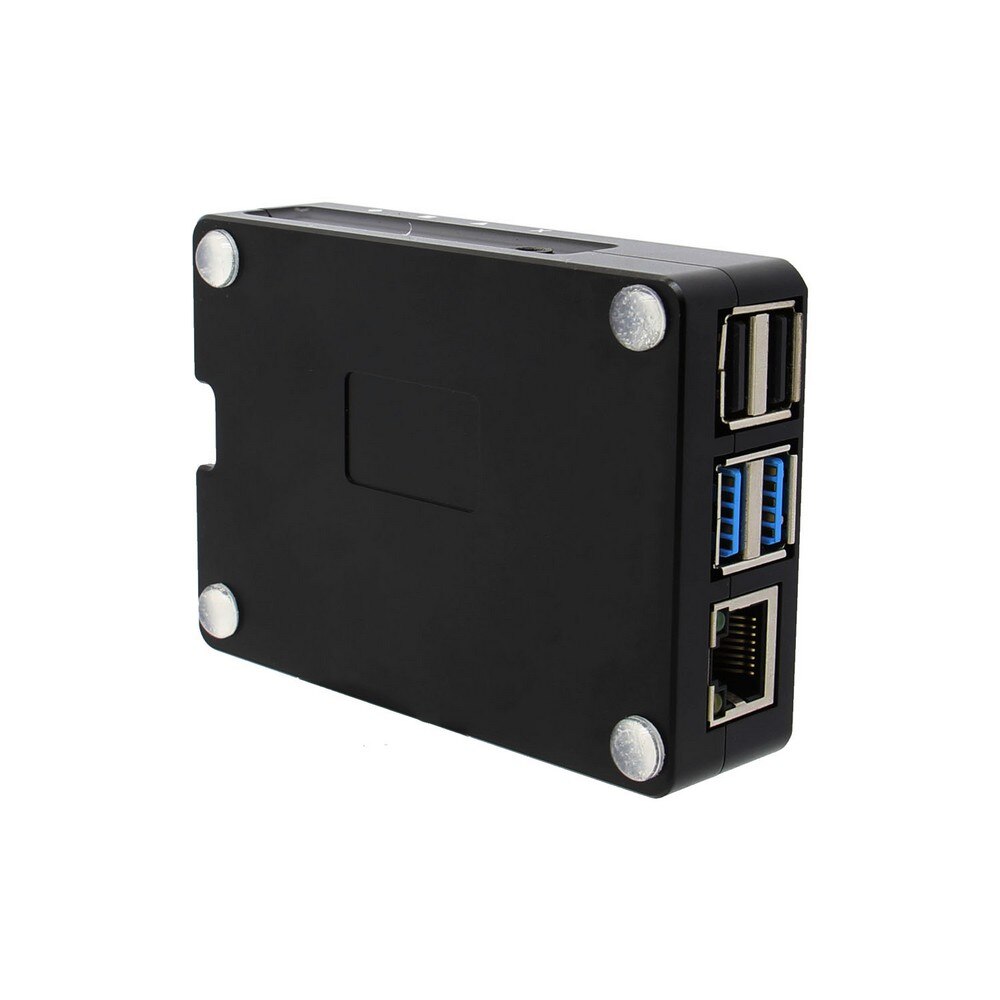

Passive Cooling Case:
- Considering Raspberry Pi 4B heat dissipation, this case itself can provide a good passive cooling function, and a ventilation-type silent fan was added at the same time to help raspberry pi 4 cool down and work more stable during operation.
- As thermal imager test, when the Raspberry Pi 4B CPU is running at 100%, the temperature of the Raspberry Pi CPU is about 60 degrees when it in the case, and the temperature of the naked Raspberry Pi CPU is about 80 degrees. It is about 20 degrees lower than the naked Raspberry Pi CPU, which really provide a good heat dissipation.

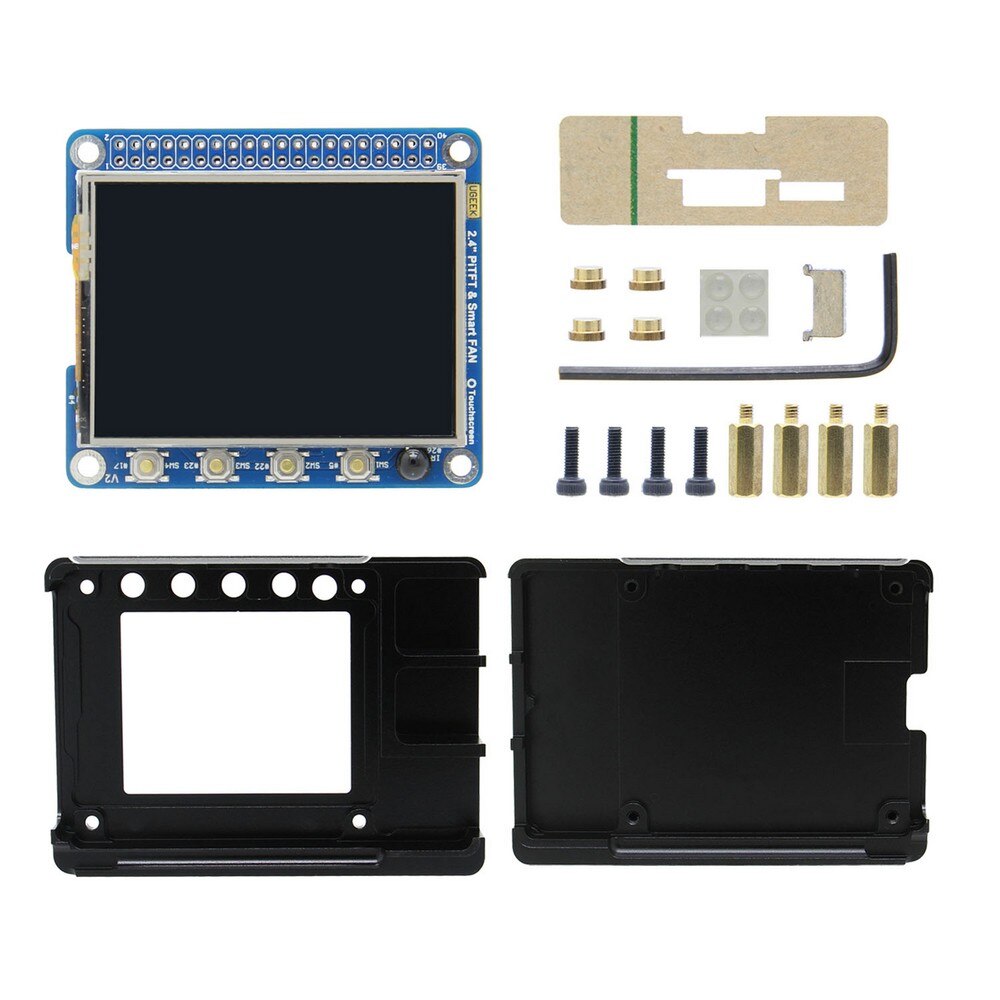

Packing List:
- 1 x 2.4 inch Screen
- 1 x Aluminum Case with install screws pack for Raspberry Pi 4
- (Not including the raspberry pi board)
