Raspberry Pi Case-LTRIG

Raspberry Pi 4 model B 18650 UPS HAT,X703 V1.2 Shield/Expansion Board customize

Raspberry Pi 4 model B 18650 UPS HAT,X703 V1.2 Shield/Expansion Board customize

Regular price $22.79 USD
Regular price $0.00 USD Sale price $22.79 USD
Sale Sold out
Color

Note:

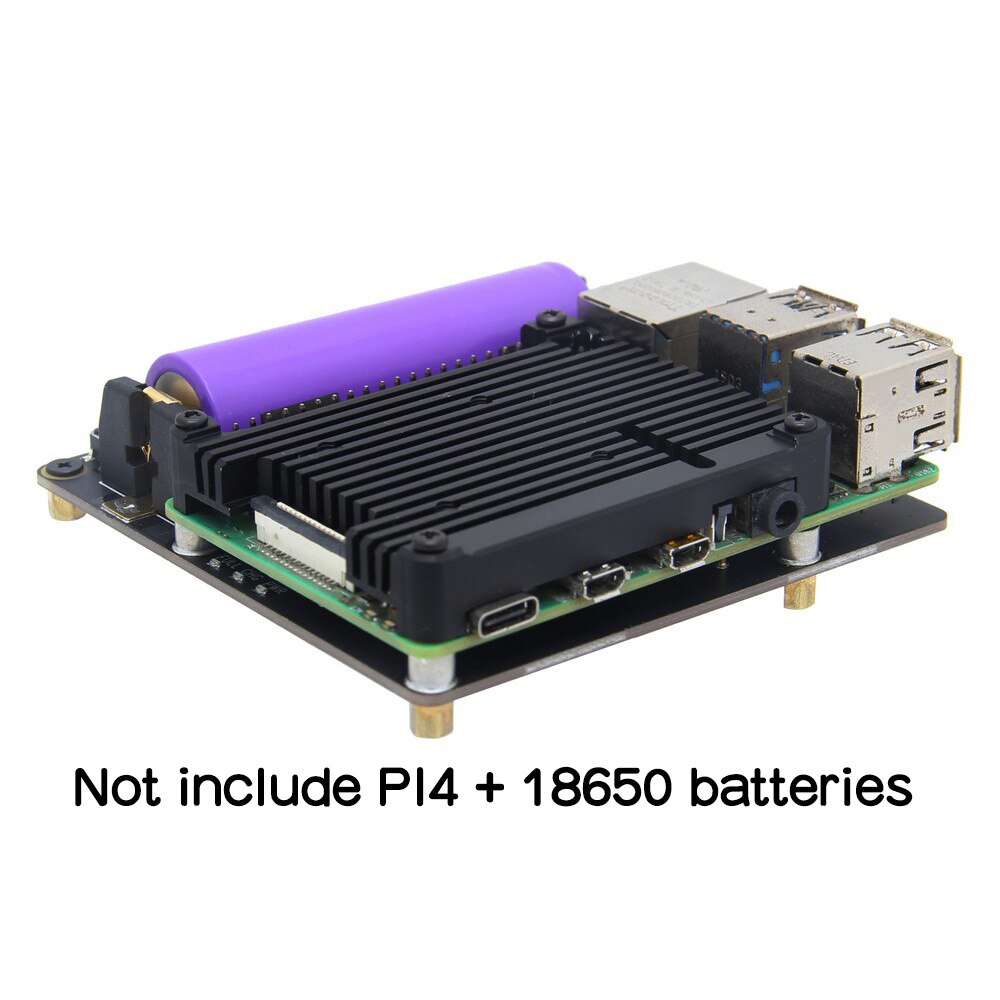

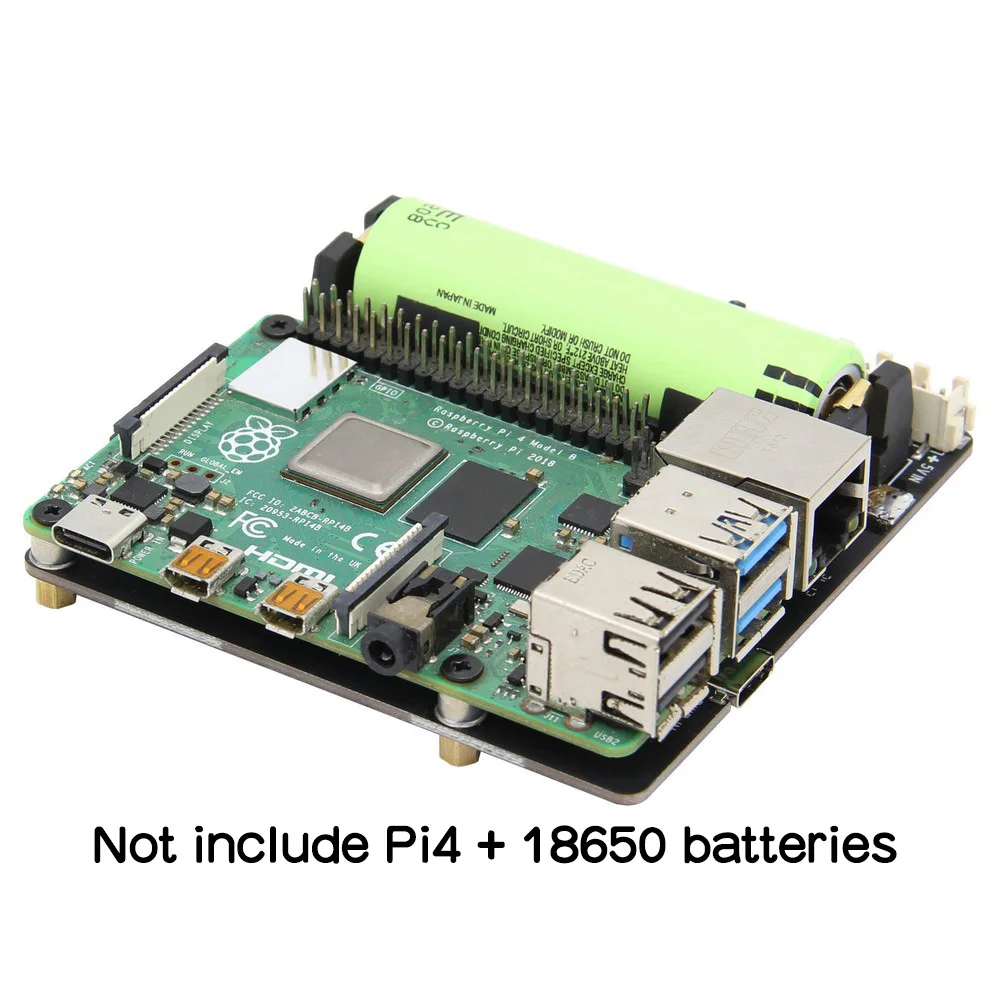

  • NOT include Raspberry Pi 4 & 18650 Batteries.

  • NOT supports software safe shutdown.

  • Do not apply power to your Raspberry Pi 4 via the Type-C socket.

  • Must use the battery without built-in protection circuit. Please use high quality power supply, the low quality power supply will generate Surge Voltage, which will damage the board chip.

  • Only the on-board switch is pressed to charge the 18650 battery if 【CHG】 pin is OPEN, or the battery will be charged automatically after being powered on.

  • If short the"AON" pin enable the auto power on function, the blue power button will be no use.

  • Be sure to power off & remove the 18650 battery then wait for 2 seconds when toggle charging mode

Overview

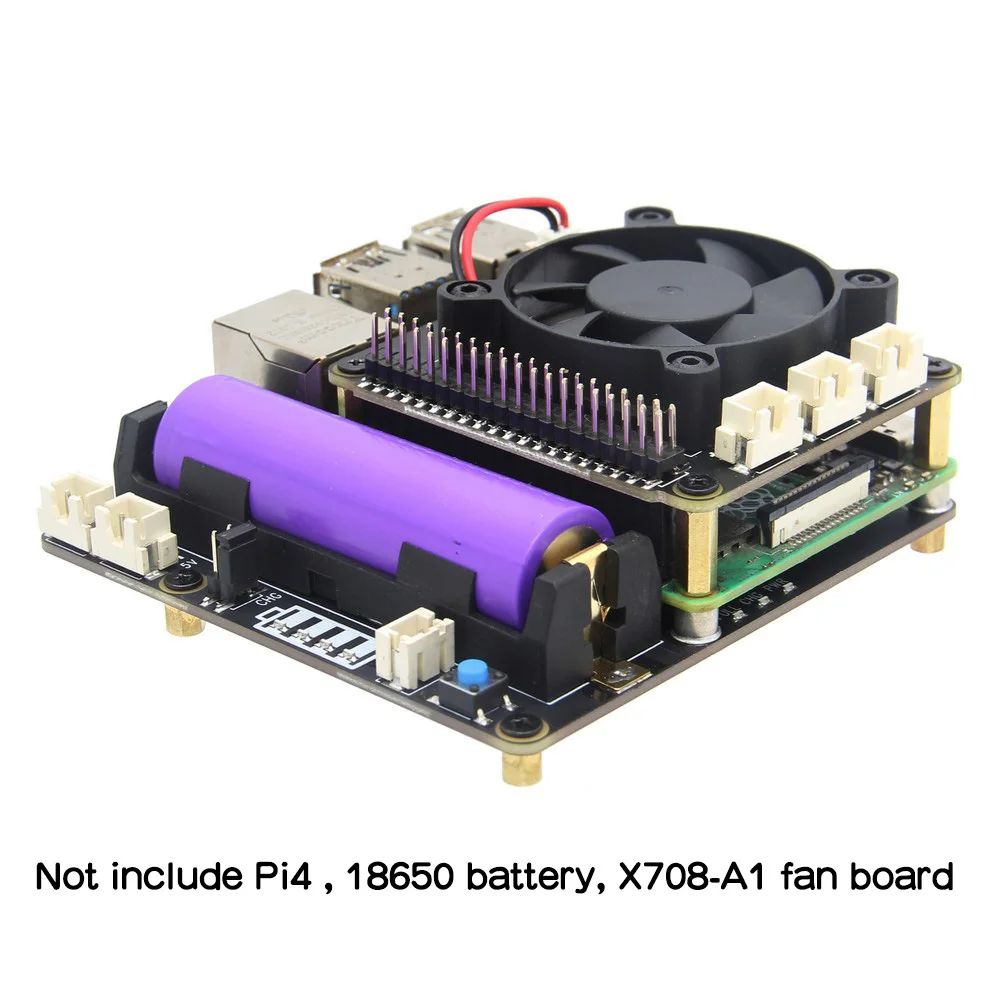

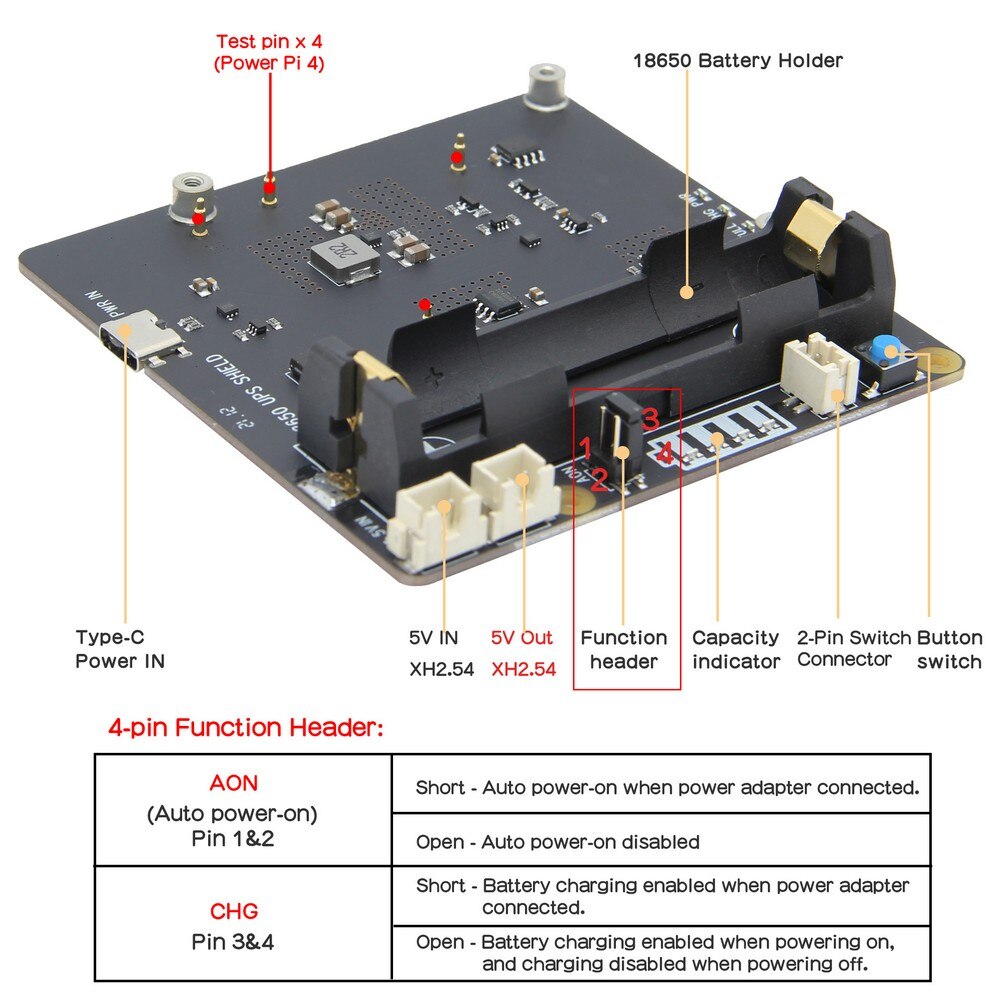

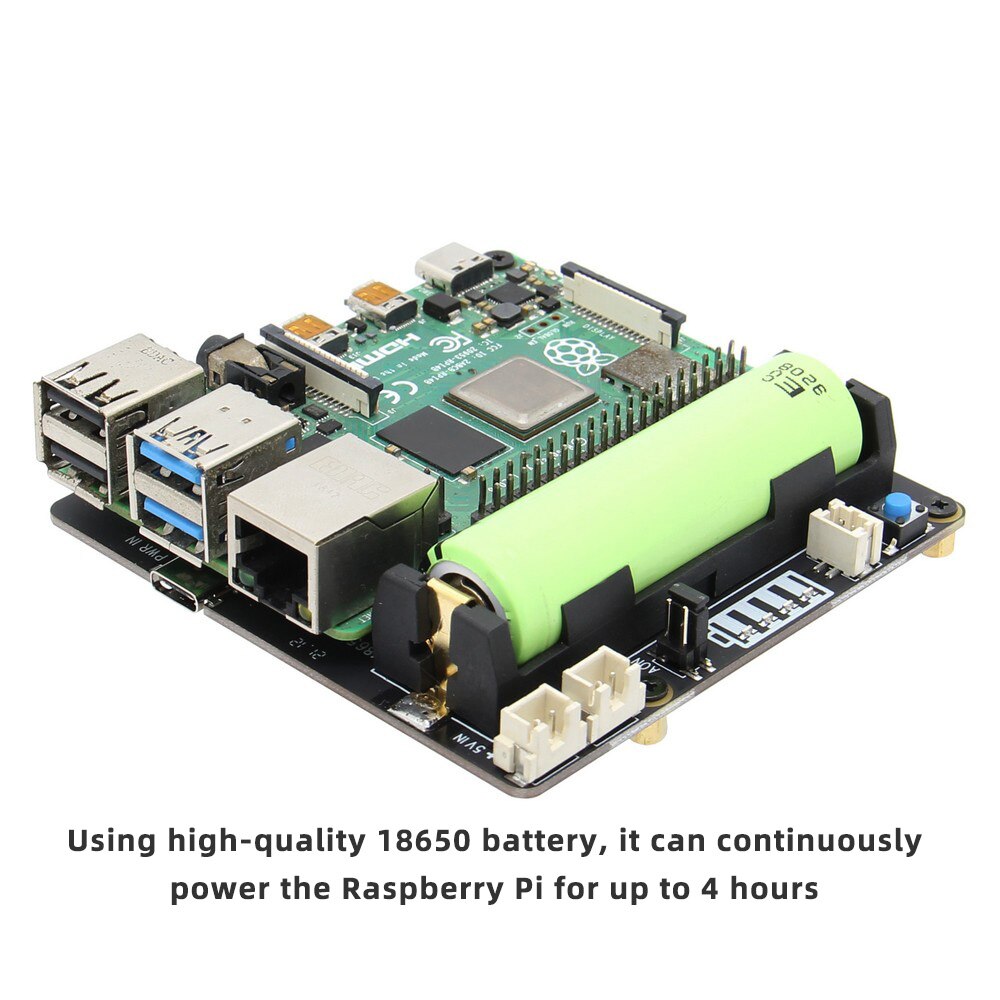

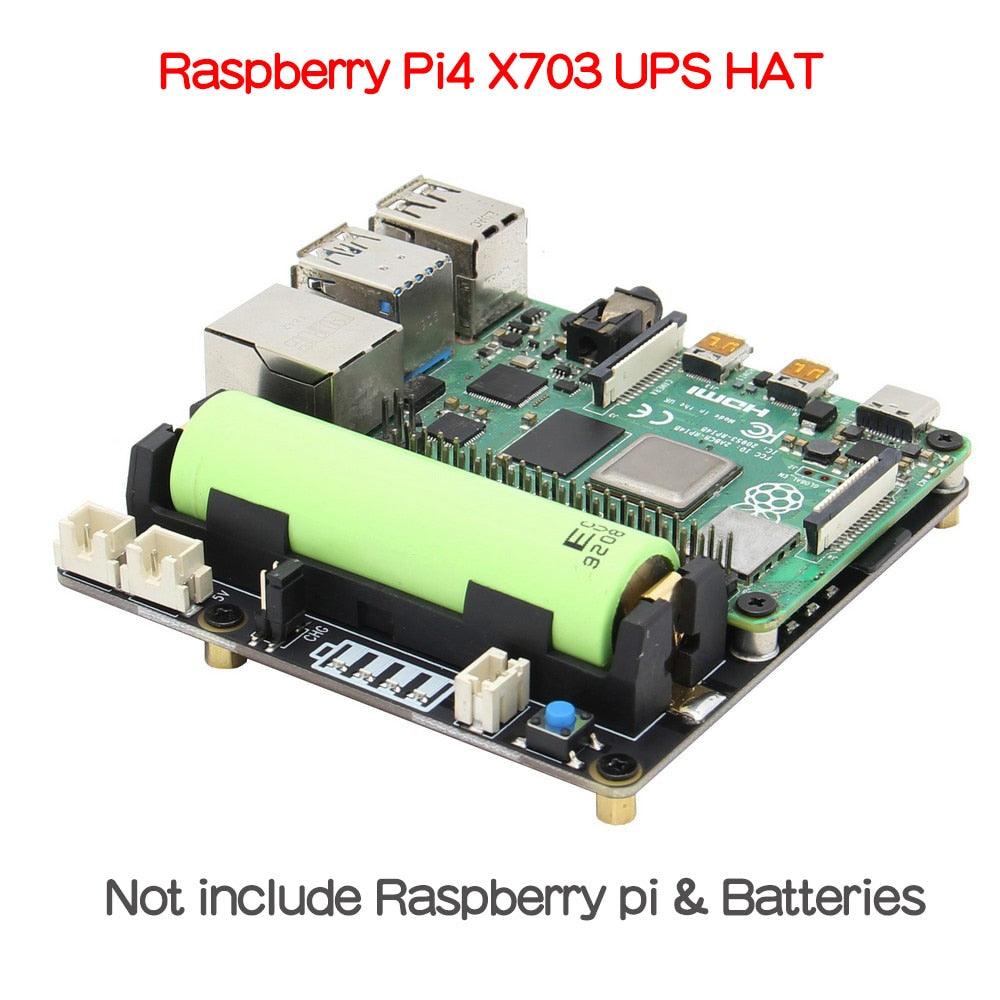

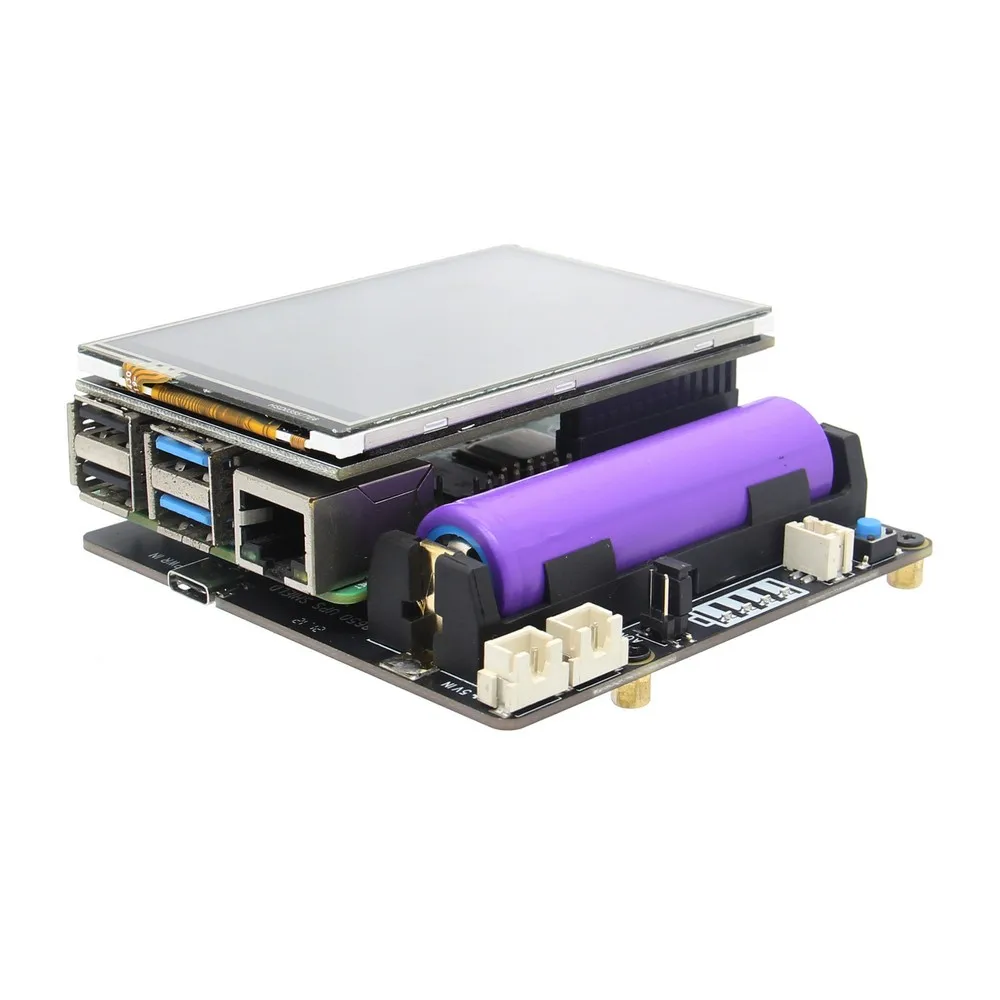

  • The X703 is a new design UPS board which is specially designed for Raspberry Pi 4 Model B only. It provides an advanced uninterruptible power supply and power. The X703 adds 4 test pins to achieve powered between X703 and Raspberry Pi 4 without additional cable.


Features

  • Smart Uninterruptible Power Supply (UPS)

  • Supports 3A via Type-C socket fast charging

  • Add 4 test pins to achieve powered between X703 and Raspberry Pi 4 without additional cable.

  • Only work with single 18650 Lithium Ion battery

  • Integrated battery protection circuit

  • Integrated over current protection and over voltage protection

  • On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

  • On-board red LED show the status of battery charging or fully charged

  • On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)

  • Allows power input via Type-C socket or XH2.54 connector

  • On-board 2-Pin PH2.0 connector allows to connect external power switch

  • DON'T supports software safe shutdown.




Packing List

Bundle1:

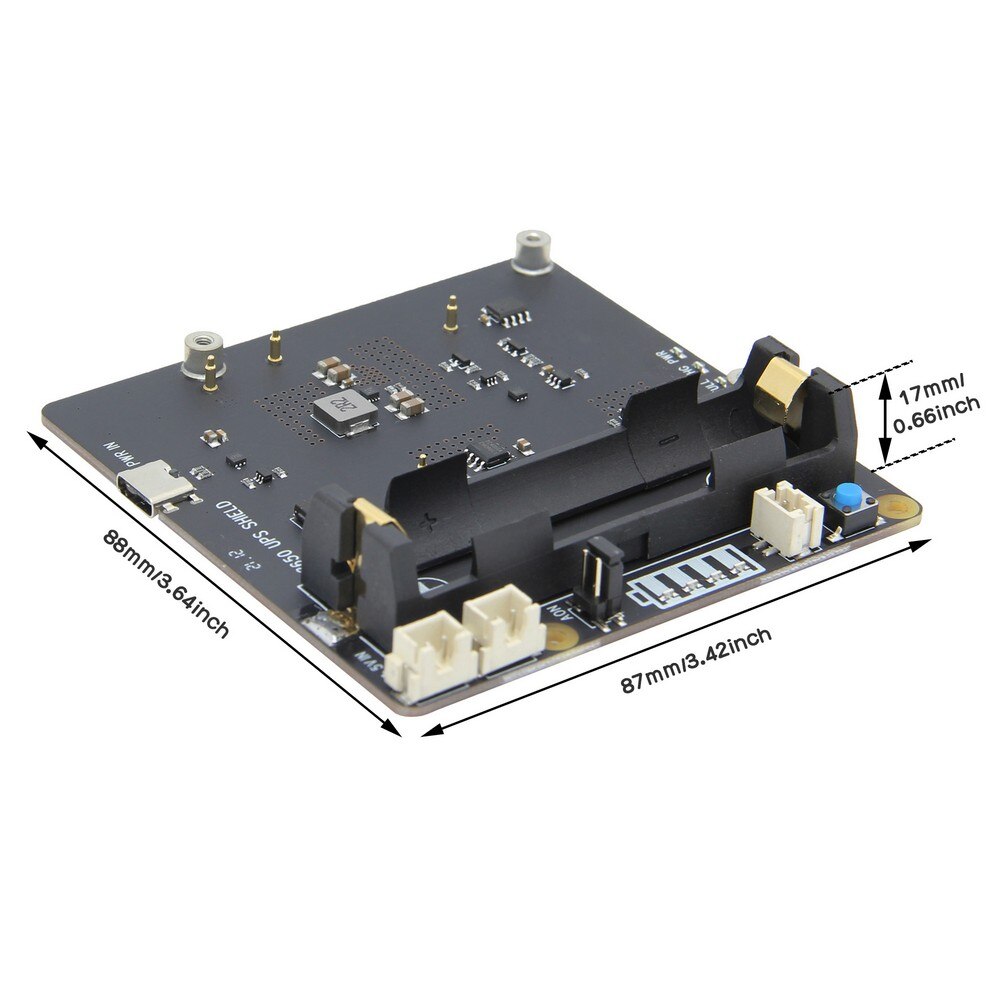

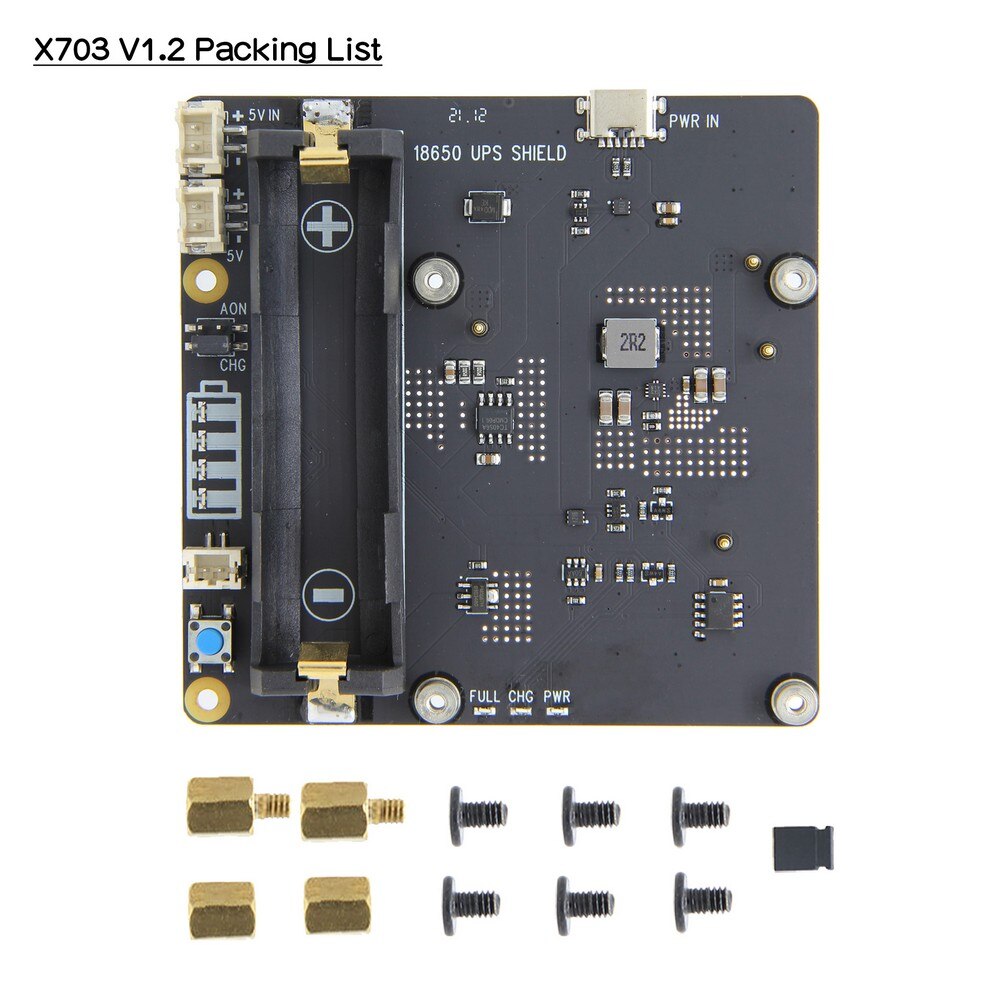

  • 1 x X703 V1.2 18650 UPS Shield

  • 1 x Jumper link Pitch 2.54mm

  • 6x M2.5 *4mm Screws

  • 2x M2.5 *5+3mm Spacers

  • 2x M2.5 *5mm Spacers

Bundle2:

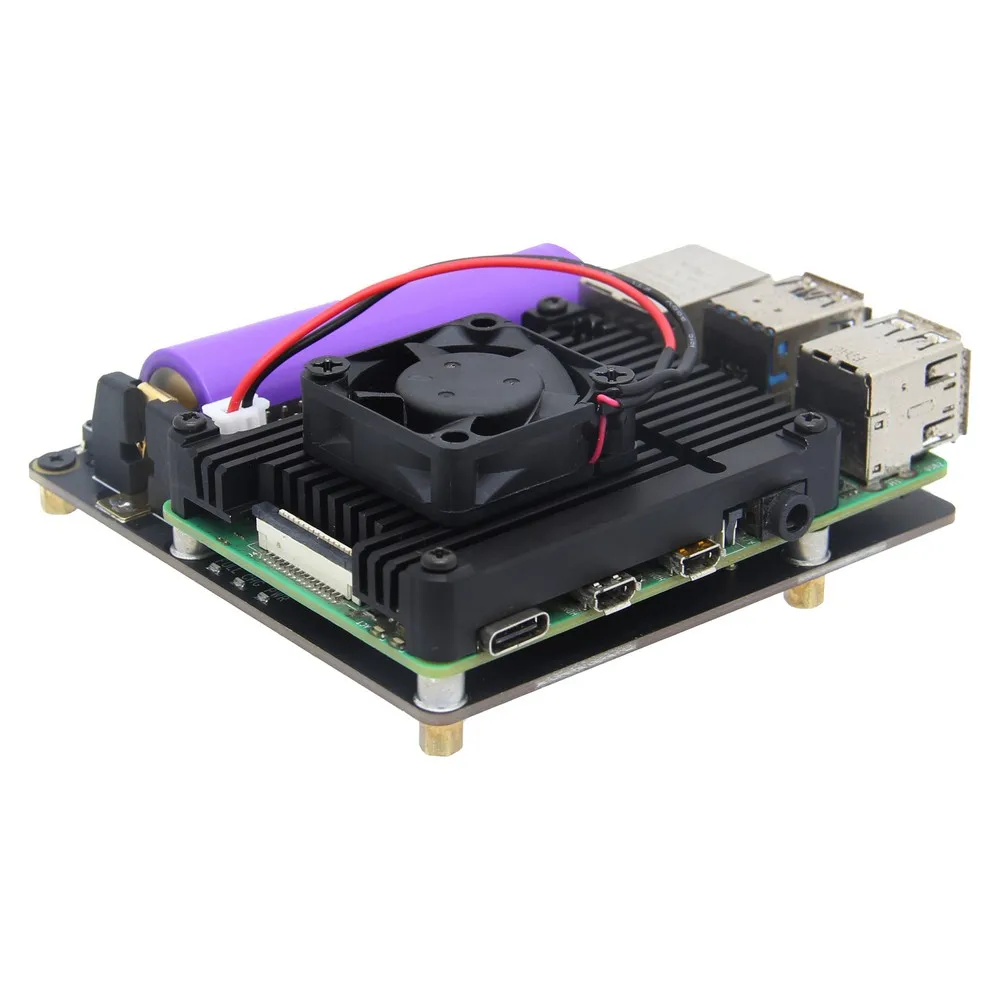

  • Bundle1 + P165-B Heatsink

Bundle3:

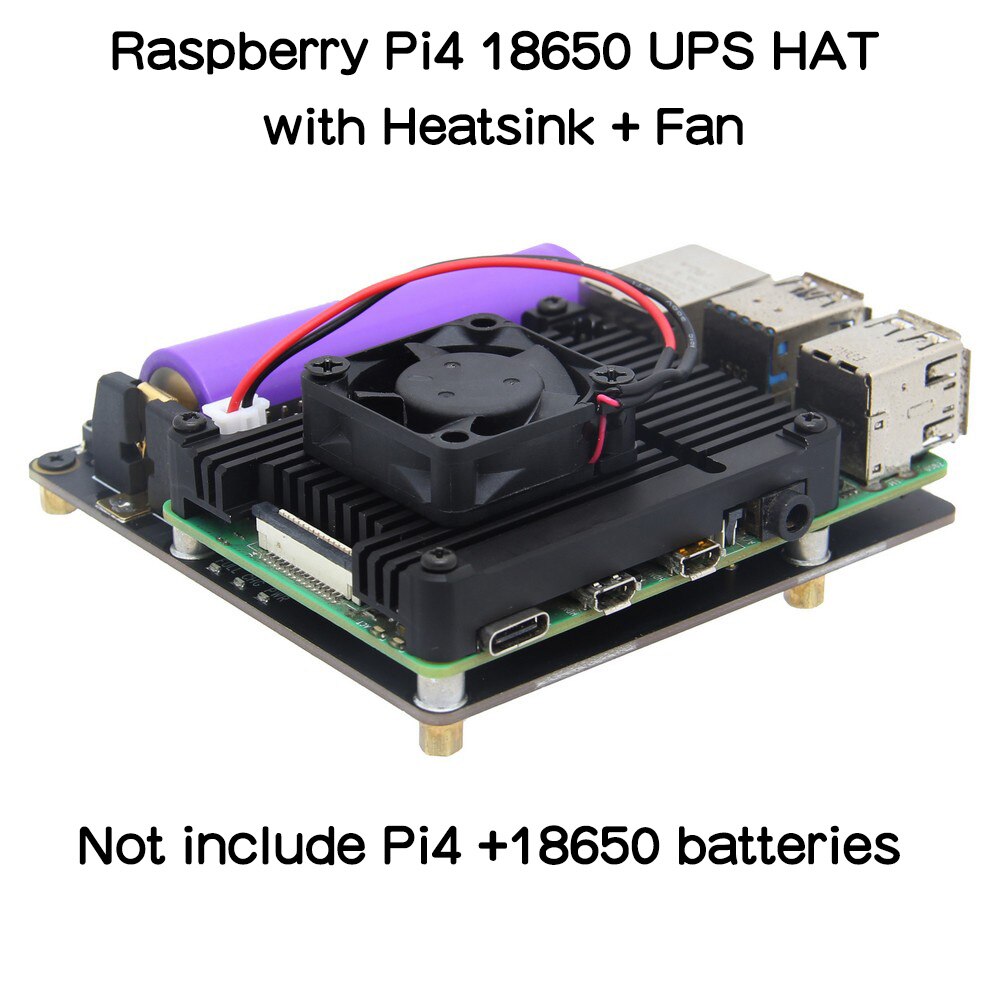

  • Bundle1 + P165-B Heatsink with Fan

 Welcome Customize Order!
