Raspberry Pi Case-LTRIG

Raspberry Pi 4 (8GB)Board + X825 2.5 inch SATA HDD/SSD Shield with Case + X735 Power Management Board + Power Supply Kit customize

Raspberry Pi 4 (8GB)Board + X825 2.5 inch SATA HDD/SSD Shield with Case + X735 Power Management Board + Power Supply Kit customize

Regular price $178.99 USD
Regular price $0.00 USD Sale price $178.99 USD
Sale Sold out
Notes:
  • A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
  • For use with original power supply unit only
  • WARNING: Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.
  • USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have
    issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still
    exists, please turn off WiFi and use the wired network instead.

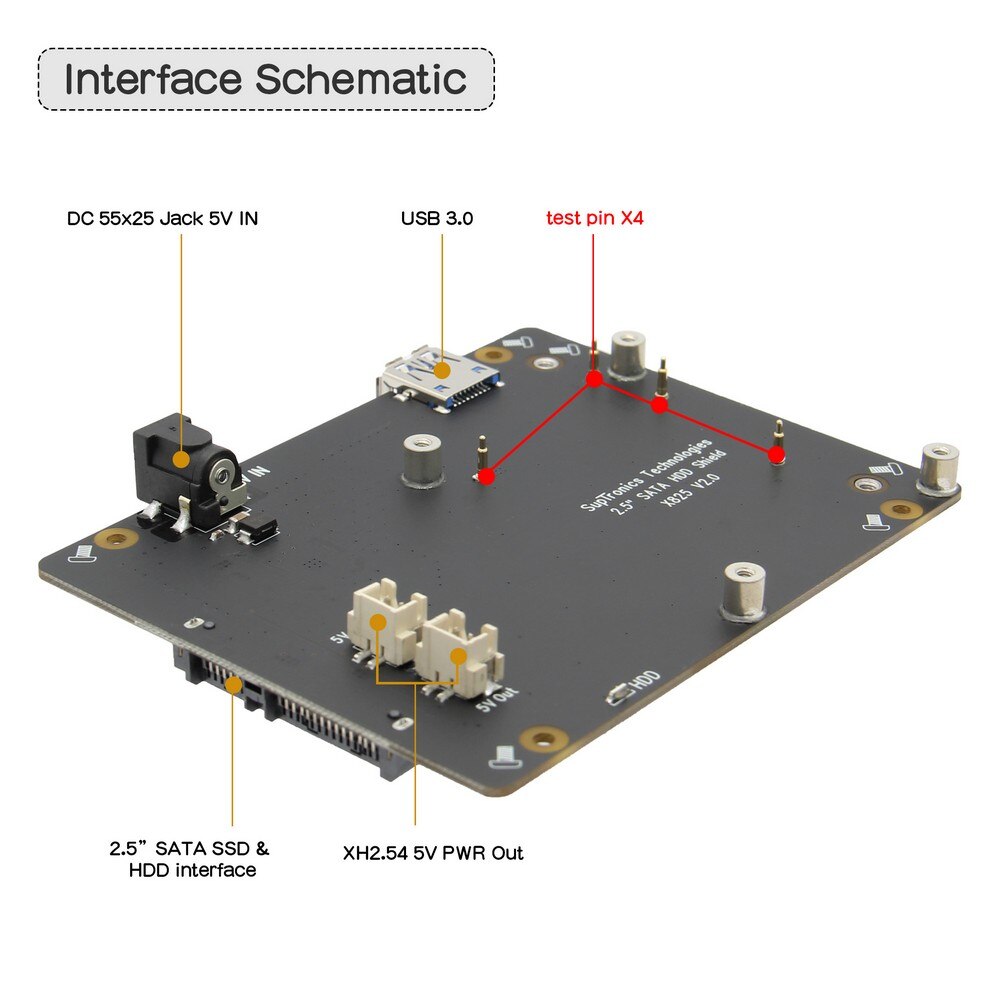

Some new features of X825 V2.0:
  • ① Add 4 test pins to achieve powered between X825 V2.0 and Pi4 without additional cable. You can get power from the PI4's Type-C port or X825 V2.0 DC JACK power socket.
  • ② Removed the on-board power button and 4-pin external switch interface. You can connect the X735 board for software safe shutdown & power management .
  • ③ Use more shorter USB 3.0 jumper/connector, so the matching metal case is X825-C8 NOT X825-C6.
Some new features of X735 v2.5:
  • ① Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code.
  • ② You must install shell script to enable the PWM fan work fine since it's a PWM fan, refer to X735 V2.5 Software
  • ③ Support TRUE AUTO ON function (in the old version,the power management function is disabled if AUTO ON is enabled)
  • ④ Considering that some customers use X735 together with other DAC shield, we adjusted the GPIO pins used.
Overview:
  • The X825 expansion board provides a complete storage solution for Raspberry Pi 4 Model B, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board;

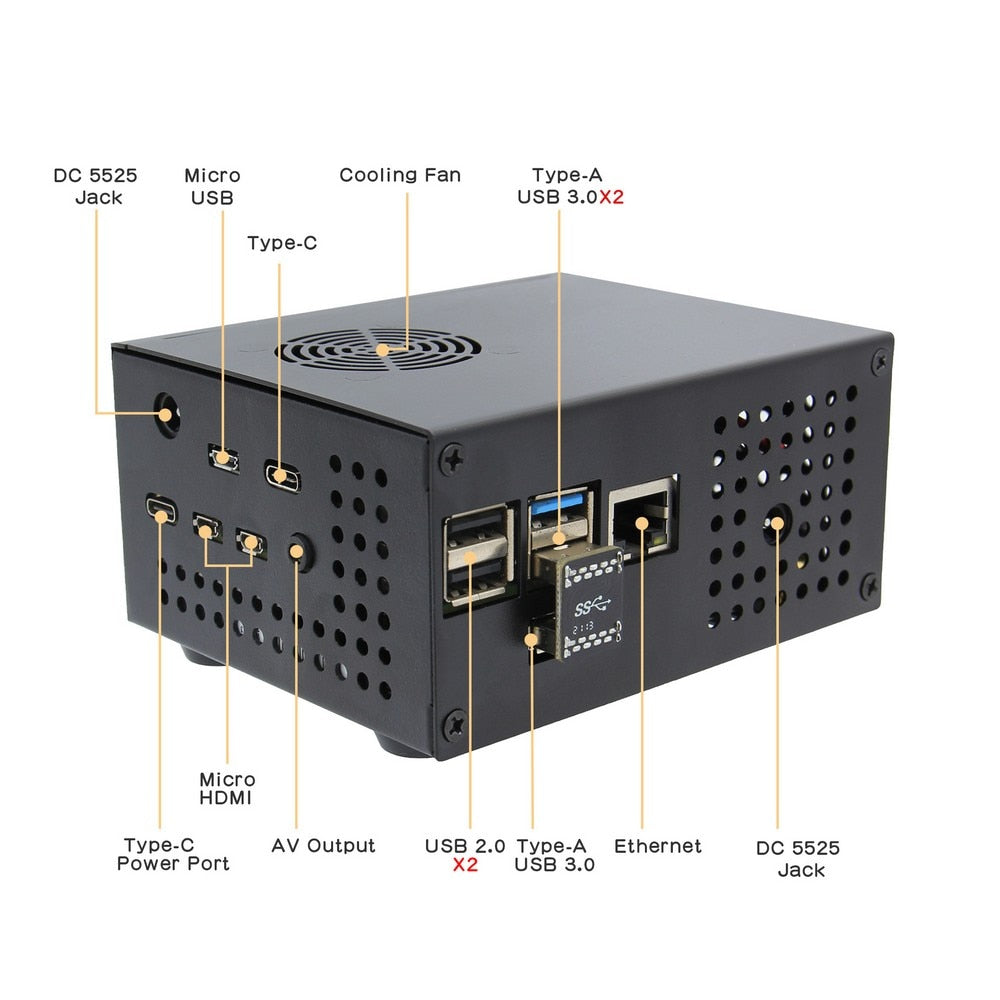

  • The X825-C8 metal case with power control switch and super mute cooling fan, it is a perfect choice for X825 V2.0 SSD/HDD storage board user. It also support to install the X735 Auto Cooling & safe shutdown board over Raspberry Pi 4.
  • The X735 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40-pin header. It provides intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.
Features:(X825 expansion board )
  • Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) 【not recommend to use Samsung SSD】(Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)
  • Ideal storage solution for Raspberry Pi 4 Model B
  • LED red indicator indicates powered status and blue indicator indicates drive status
  • USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
  • Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac

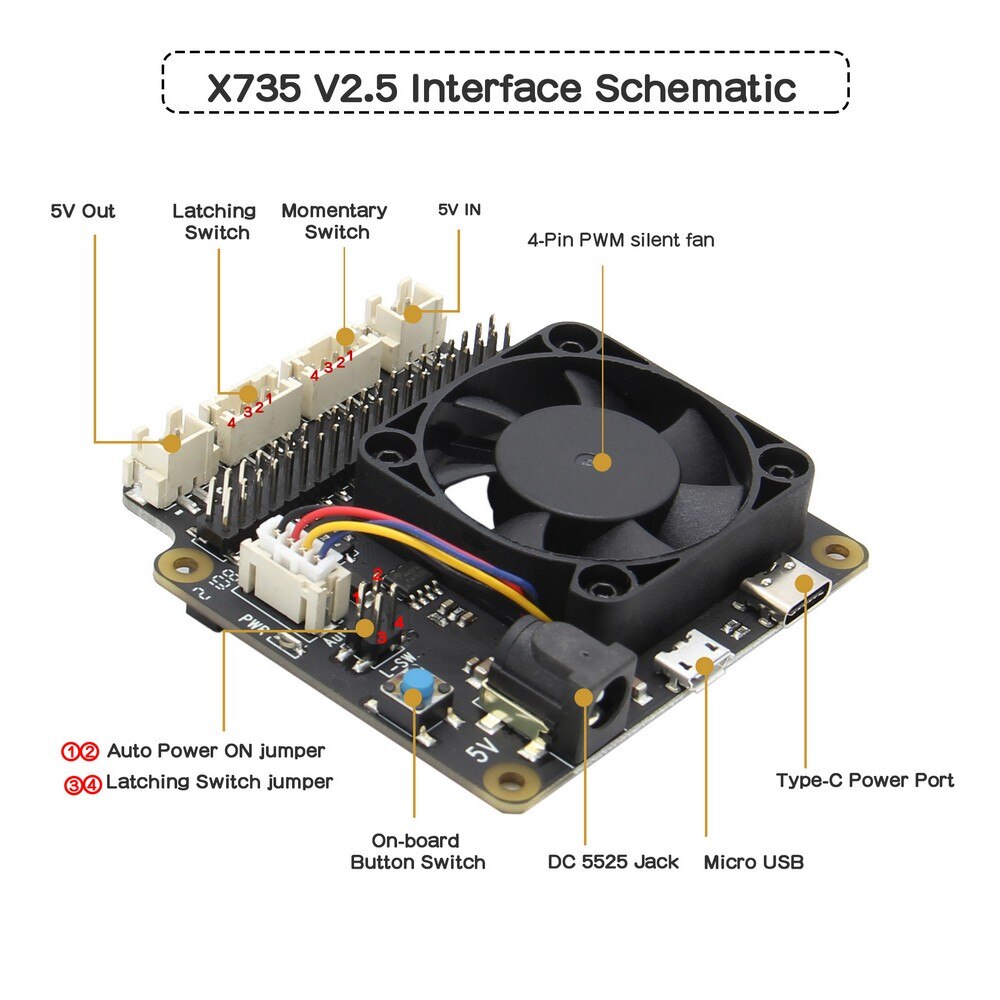

Features:(x735 power management board)
  • Intelligent and safe power management
  • Equipped with both momentary button and latching switch for easy power control
  • Press the momentary button or external momentary power switch to turn onPress the momentary button or external momentary power switch and hold for 1~2seconds to reboot
  • Press the momentary button or external momentary power switch and hold for 3~7seconds to implement safe shutdown
  • Press the momentary button or external momentary power switch and hold for more than 8 seconds to force shutdown
  • Supports safe shutdown and full poweroff through software
  • On-board switch convenient to select latching or momentary power control switches
  • Press the latching power switch once to turn on and again to implement safe shutdown
  • On-board LED shows the status of power on, reboot and shutdown
  • On-board PH2.0 connectors allows to use external latching switch or momentary button
  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required
  • Allows power input via DC jack or Micro-USB / Type-C socket
  • NOTE:Full poweroff through software is not supported when using latching power switch
  • Do not apply power to your Raspbeery Pi via the Pi's Micro-USB socket

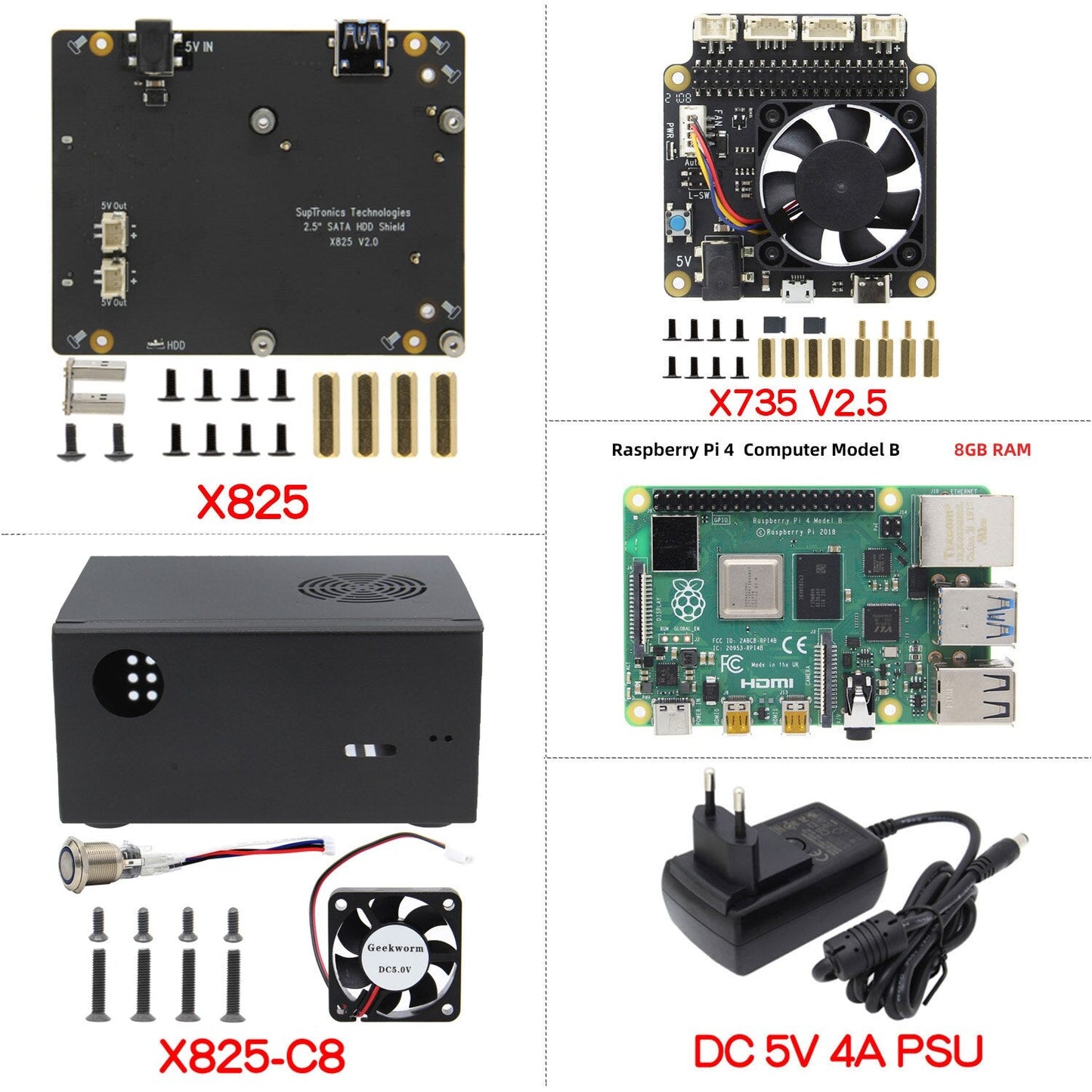

Packing List:
Bundle 1:Pi 4 (8GB) + X825 V2.0 Board + X825-C8 Case +X735 V2.5 Board +DC 5V 4A Supply(EU /US / UKPlug ; Please leave a message in the order to let us know the plug you need)

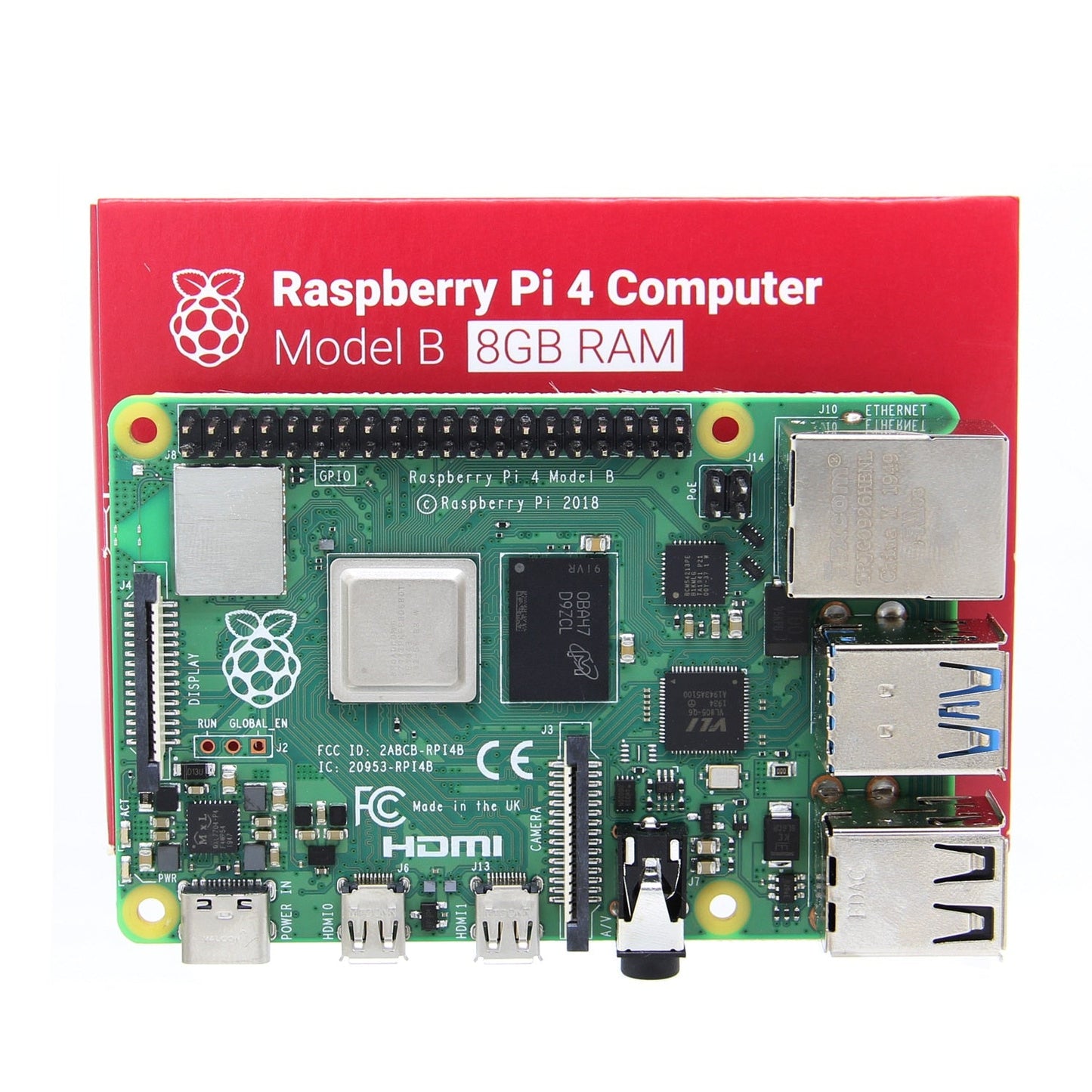

1 x Raspberry Pi 4B Board(8GB)
1 x X825 Expansion Board
1 x X825 Metal Case
1 x X735Board

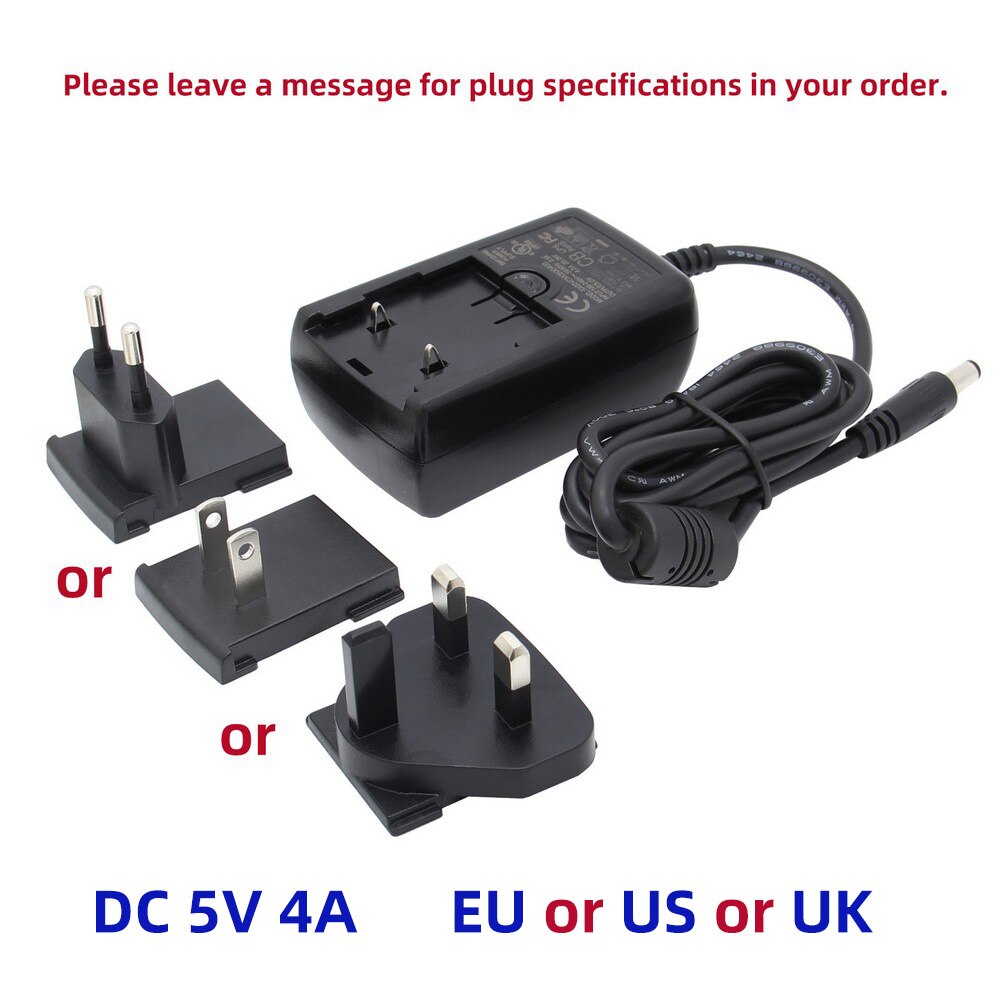

1 x DC 5V 4A Power Supply (EU orUS or UKPlug




 Welcome Customize Order!
