Raspberry Pi Case-LTRIG

Raspberry Pi 3 B+ Motor HAT Stepper Servo Motor IR Remote Robot Expansion Board Module for Raspberry Pi 3 Model B+ Plus / Pi 2B customize

Raspberry Pi 3 B+ Motor HAT Stepper Servo Motor IR Remote Robot Expansion Board Module for Raspberry Pi 3 Model B+ Plus / Pi 2B customize

Regular price $22.99 USD
Regular price $0.00 USD Sale price $22.99 USD
Sale Sold out

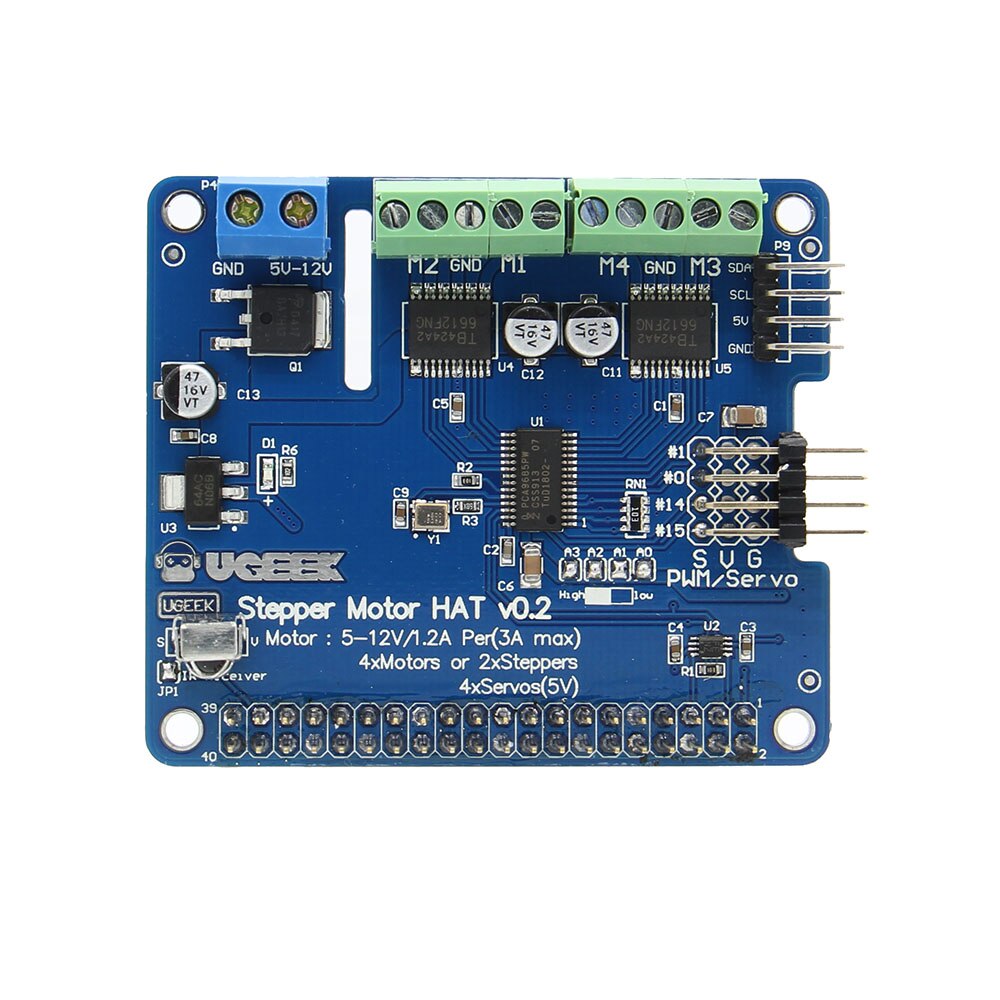

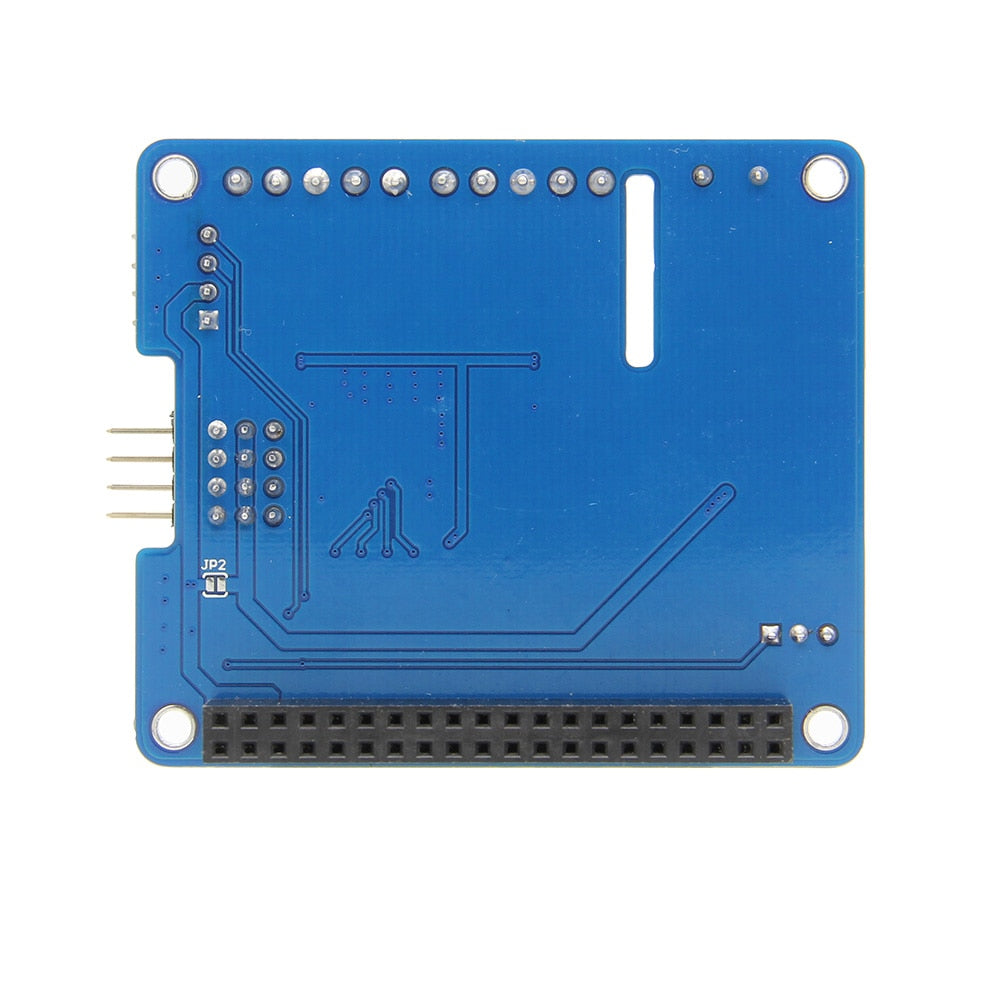

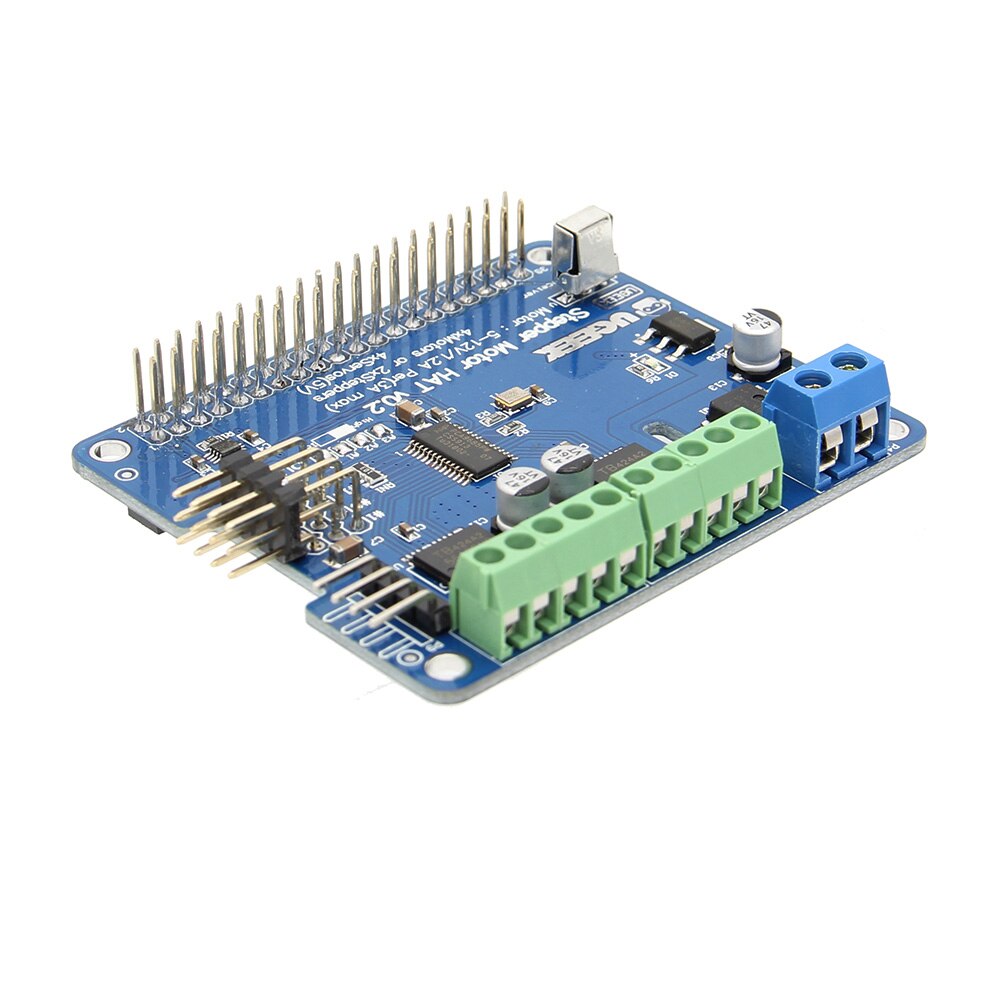

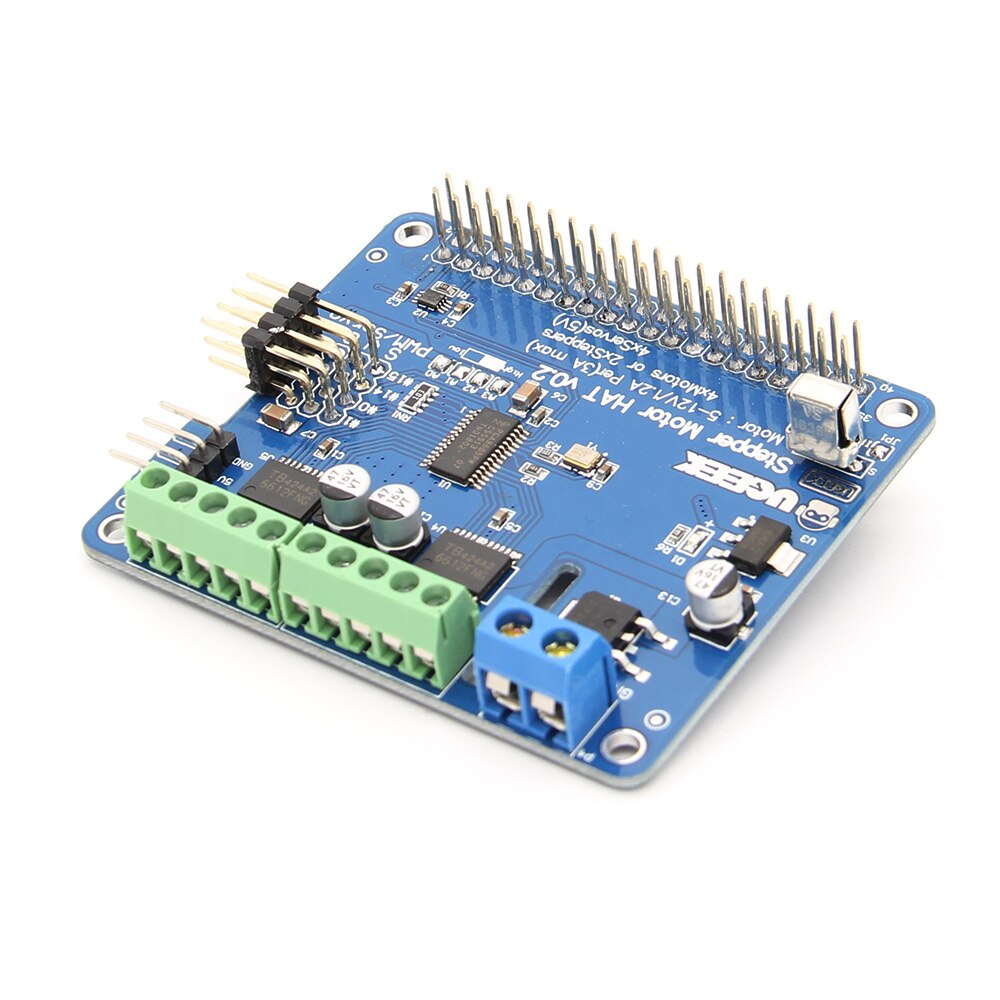

Raspberry Pi 3 B+ Motor HAT Stepper Servo Motor IR Remote Robot Expansion Board Module for Raspberry Pi 3 Model B+ Plus / Pi 2B.

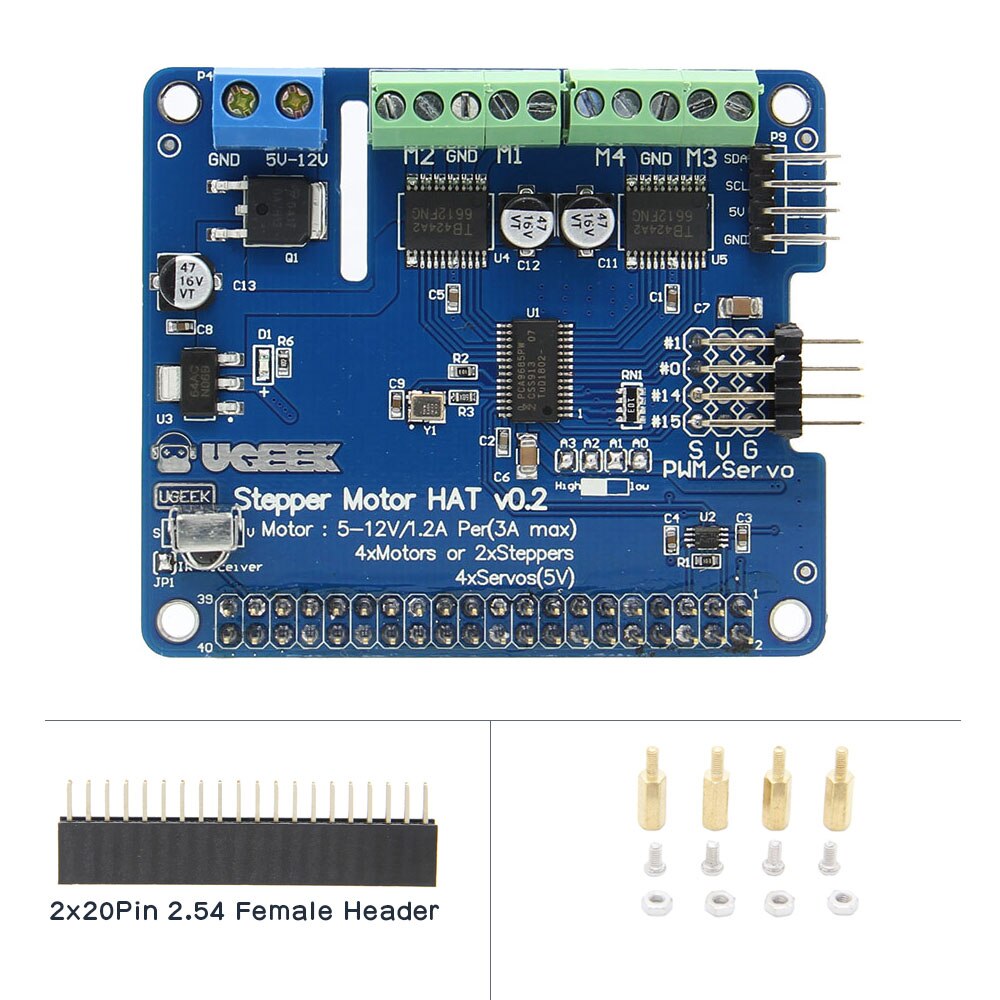

Packing List:

  • 1 x Motor HAT Expansion Board
  • 1 x 2X20Pin 2.54 Female Header

Note: The raspberry pi 3 board is not included.

Features:

  • 4 H-Bridges: TB6612 chipset provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 5VDC to 12VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
  • Up to 4 Channel 12-bit PWM/Servo(5V)
  • One Infrared Receiver(GPIO26)
  • Big terminal block connectors to easily hook up wires (18-26AWG) and power
  • Polarity protected 2-pin terminal block and jumper to connect external 5-12VDC power
  • Works best with Raspberry Pi model A+, B+, Pi 2, or Pi 3;
  • Install the easy-to-use Python library, check out the examples and you're ready to go!
  • Pi HAT 2x20P Conector with Extra Long pins





A+
