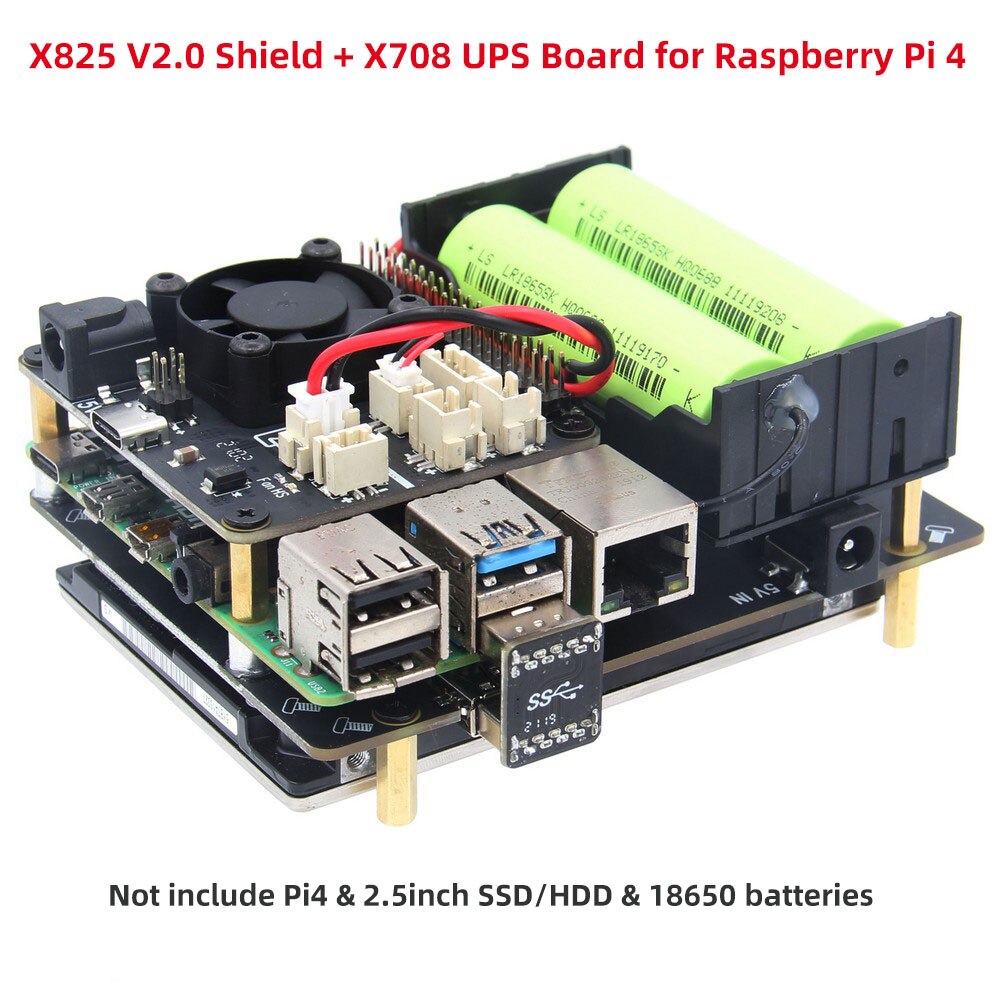

Raspberry Pi 2.5 inch SATA HDD/SSD X825 V2.0 Shield + X708 UPS Board for Raspberry Pi 4 Modle B customize
Raspberry Pi 2.5 inch SATA HDD/SSD X825 V2.0 Shield + X708 UPS Board for Raspberry Pi 4 Modle B customize
-
Not include Raspberry Pi 4B & 2.5" SATA HDD & 18650 Batteries.
-
A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
-
Additional USB3.0 A Male to A Male cable is required (not supplied)
-
Do not power your Raspberry Pi via the Pi's 40-pin header and Type-C USB socket at the same time
-
We do not recommend using Samsung hard drives,Please use hard drives of other brands

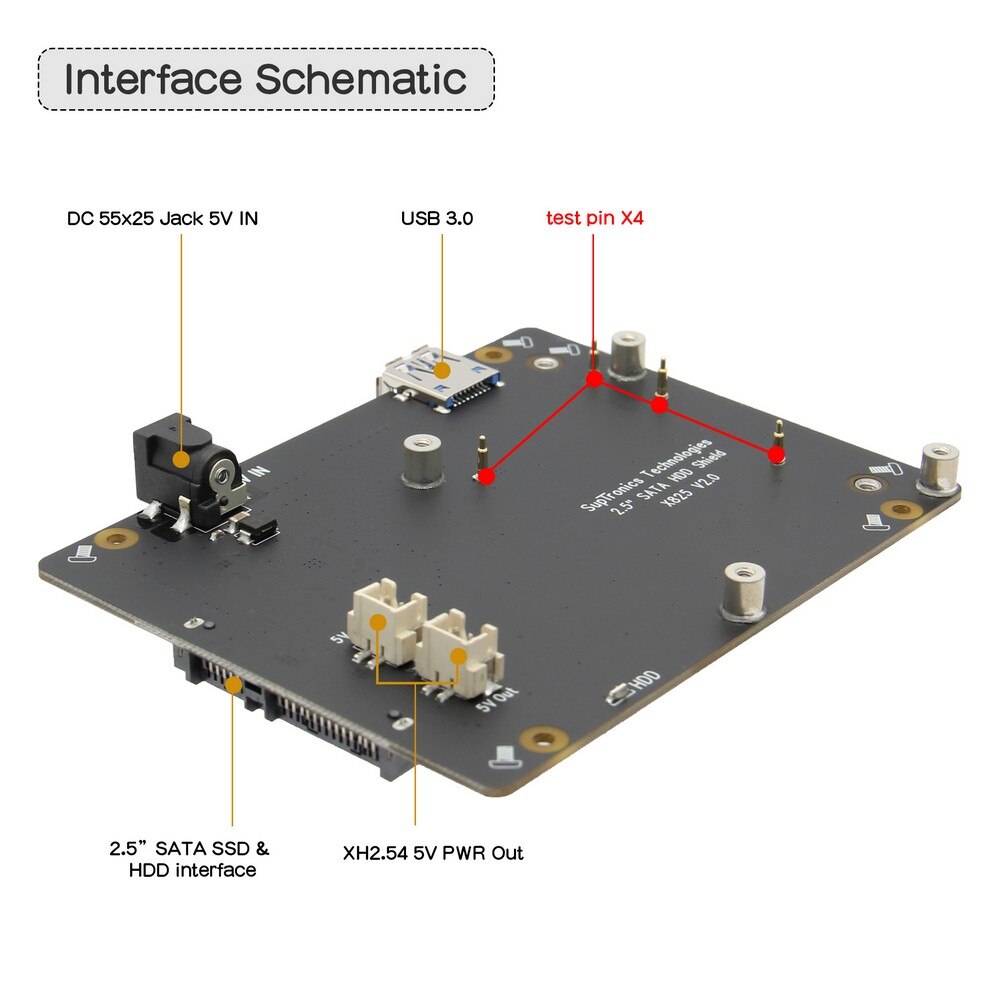

Features:(X825 V2.0 expansion board )
-
Add 4 test pins to achieve powered between X825 V2.0 and Pi4 without additional cable. You can get power from the PI4's Type-C port or X825 V2.0 DC JACK power socket.
-
Removed the on-board power button and 4-pin external switch interface. You can connect the X735 board for software safe shutdown & power management .
-
Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) 【not recommend to use Samsung SSD】(Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)
-
Ideal storage solution for Raspberry Pi 4 Model B
-
LED red indicator indicates powered status and blue indicator indicates drive status
-
USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
-
Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac

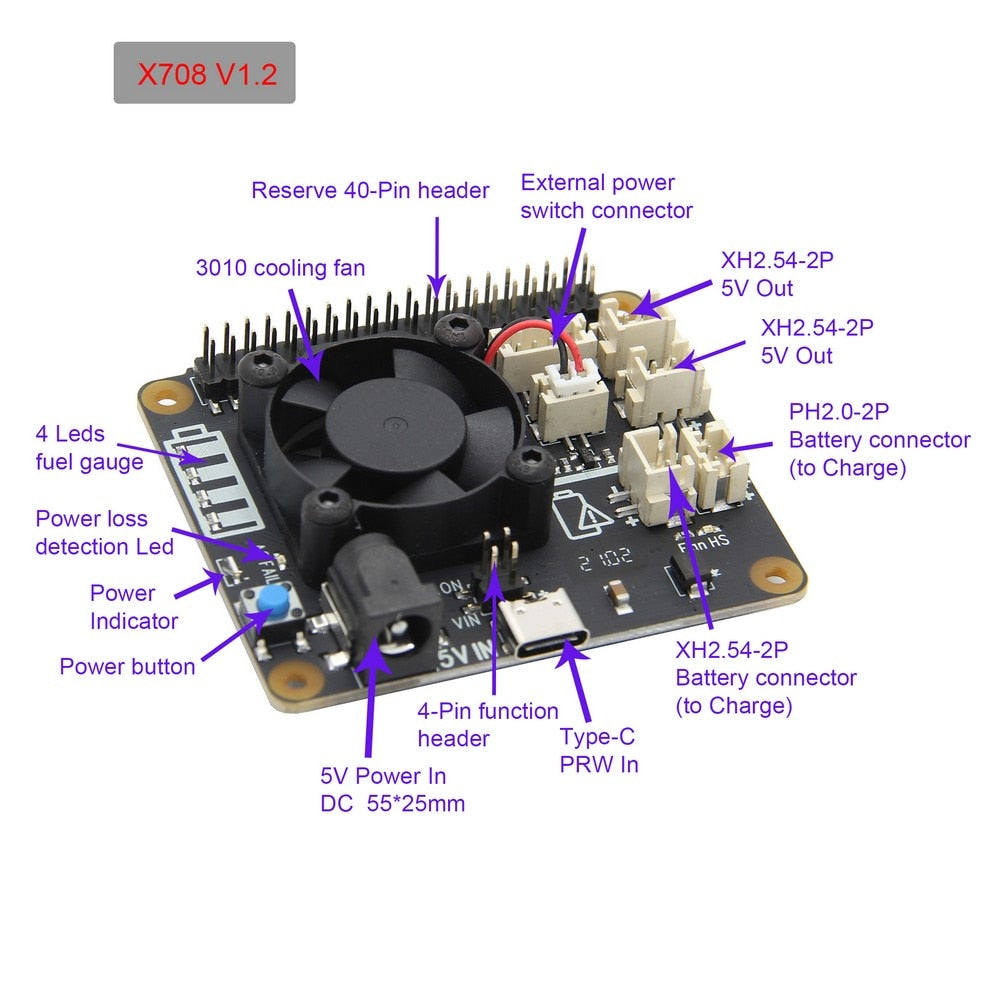

Features:(X708 V1.2 expansion board )
Smart and powerful Uninterruptible Power Supply (UPS)
-
Provides continuous operations for up to 10~30hours (depending on battery type and qty used)
-
Max 5.1V 8000mA Power Backup for even the most demanding RPi set ups
-
Supports 2A/3A fast battery charging
-
Integrated over current protection and over voltage protection
-
Integrated Maxim's fuel-gauge systems (Reading battery voltage and percentage via i2c)
-
Integrated 10-A fully-integrated synchronous boost converter
-
Intelligent automatic charging and discharging
-
Operate in both charge mode and boost mode to allow full system management and battery power mgt
-
Integrated IN-to-SYS pass-through path to pass the input voltage to the system
-
Advanced system power-path management avoids batteries frequent charging and discharging
-
Advanced system power-path management allows 3A fast charging and powering Raspberry Pi at the same time
-
On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%
-

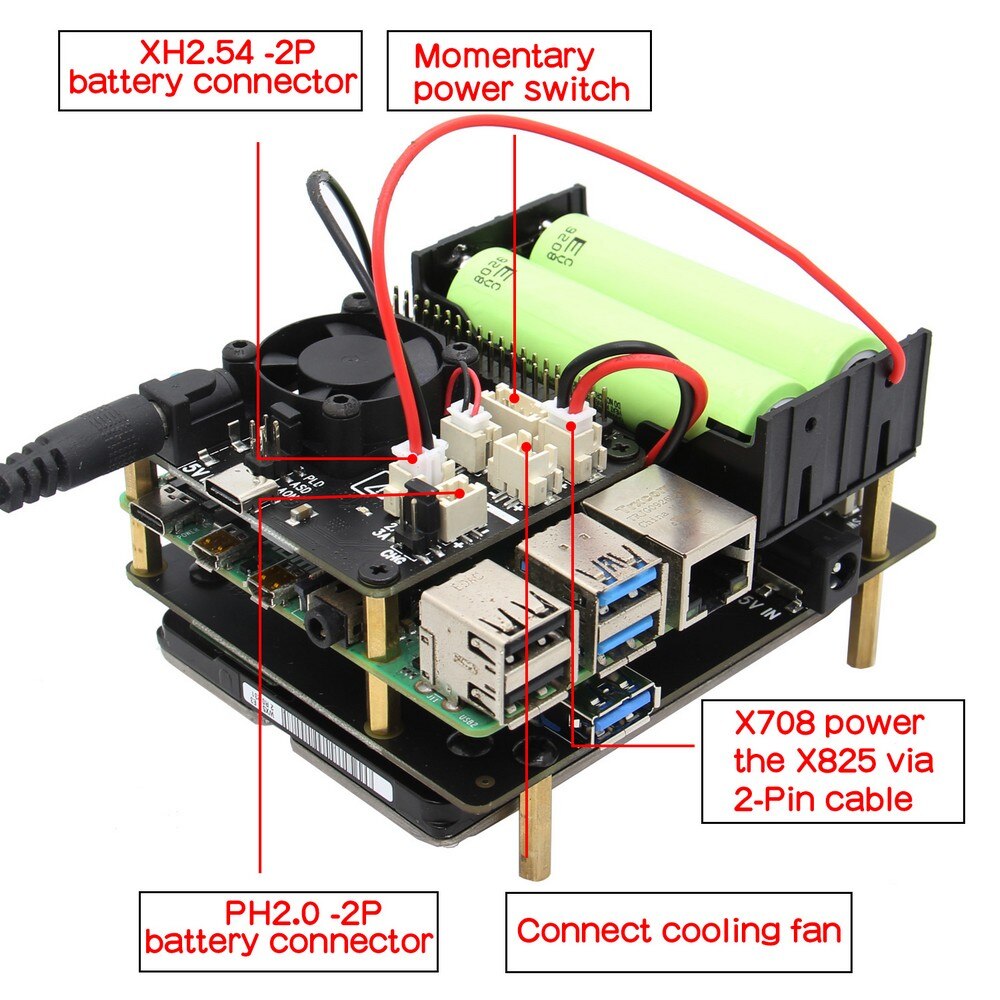

Batteries attach via PH2.0-2P or XH2.54-2P
-
Intelligent and safe power management
-
Equipped with momentary button for easy power control
-
Press the button to turn on
-
Press the button and hold for 1~2seconds to reboot
-
Press the button and hold for 3~7seconds to implement safe shutdown
-
Press the button and hold for >8seconds to force shutdown
-
Supports safe shutdown and full poweroff from software
-
On-board blue LED shows the status of power on, reboot and shutdown
-
AC power loss or power adapter failure detection (LED and GPIO indication)
-
Optional to enable Auto power on when power applied or restored
-
Automatic safe shutdown when battery low (voltage <3.0V)
-
Ultra-low standby power consumption to maximize battery life
-
Integrated cooling fan that allows the heat from your Raspberry Pi to dissipate!
-
Completely solve the overheating problem of your Raspberry Pi
-
Efficient drop temp of Raspberry Pi CPU
Misc
-

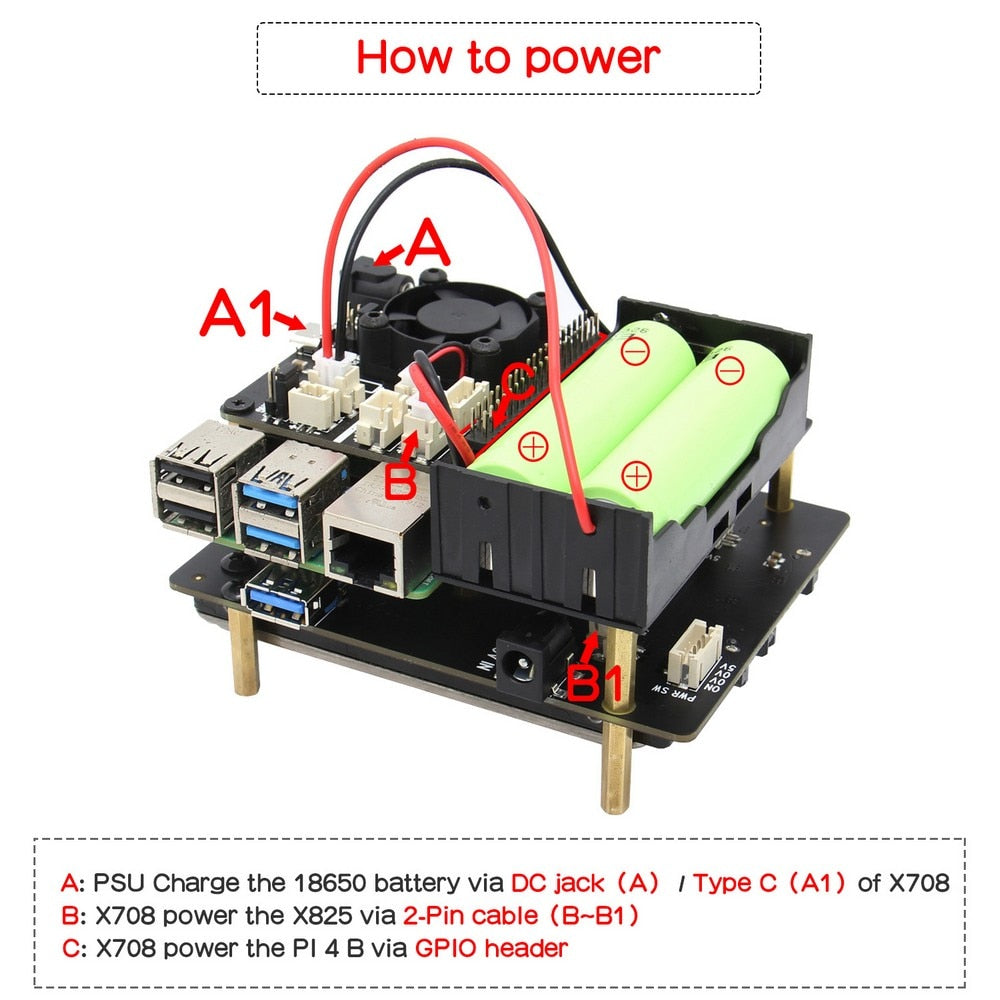

Powers the Raspberry Pi via the 40-pin header - no additional cabling required
-
Standard Raspberry Pi extension interface, compatible with other expansion boards
-
DC power jack (5.5*2.5mm) and Type-C socket convenient for power input
-
On-board PH2.0 connector allows to connect external power switch and DIY your perfect case
-
On-board XH2.54 power output connector allows to power other devices
-
Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X708 assembly
SPECIFICATION
-
Power supply via Type-C socket: 5Vdc ±5%, ≥3A; Via DC power jack: 5Vdc ±5%, ≥4A
-
UPS output : 5.1V ±5% Max 8A
-
UPS charging current: 1.8~2.2A / 2.3~3.2A
-
Terminal Battery Voltage : 4.24V
-
Recharge Threshold : 4.1V
-
Battery: 3.7 Lithium Battery
-

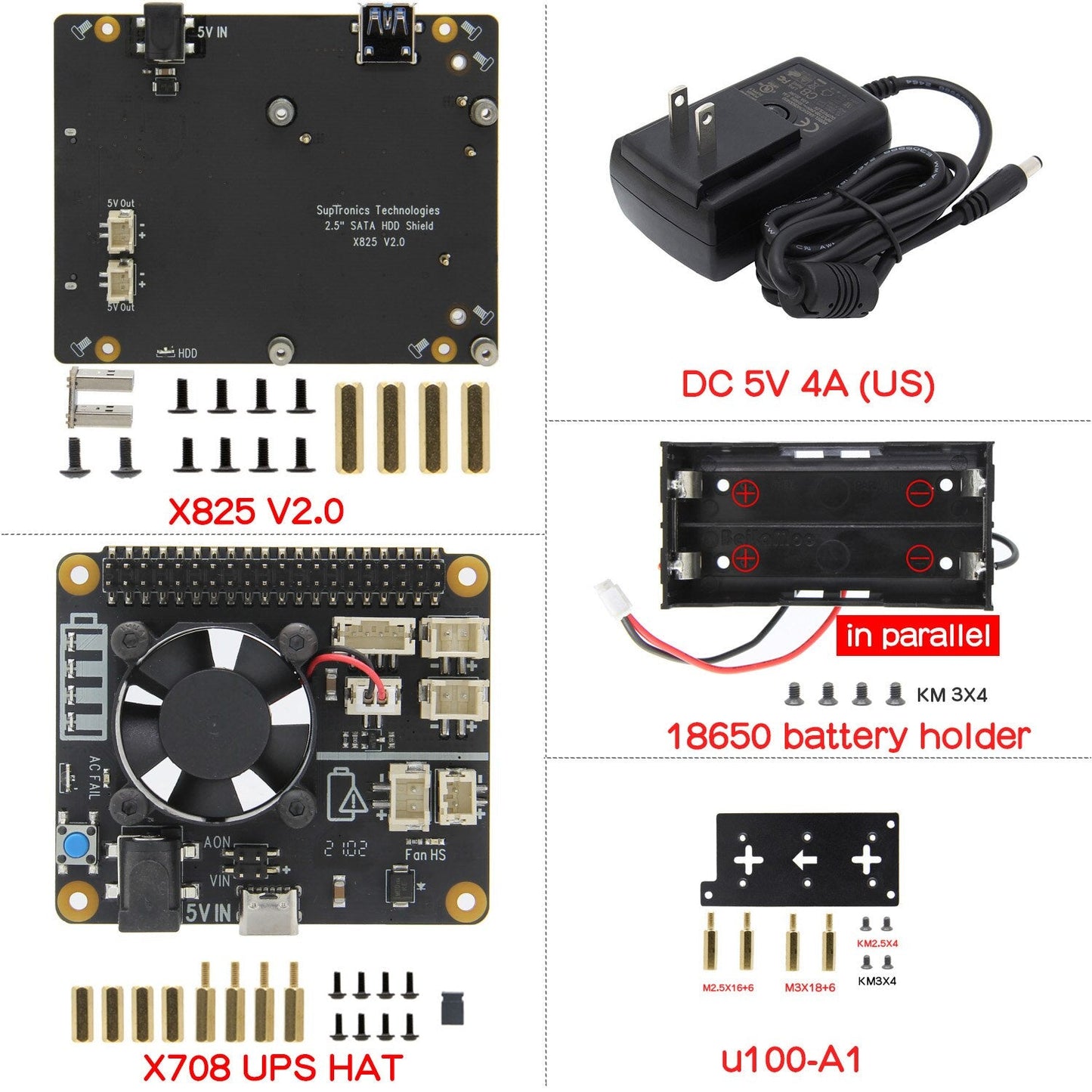

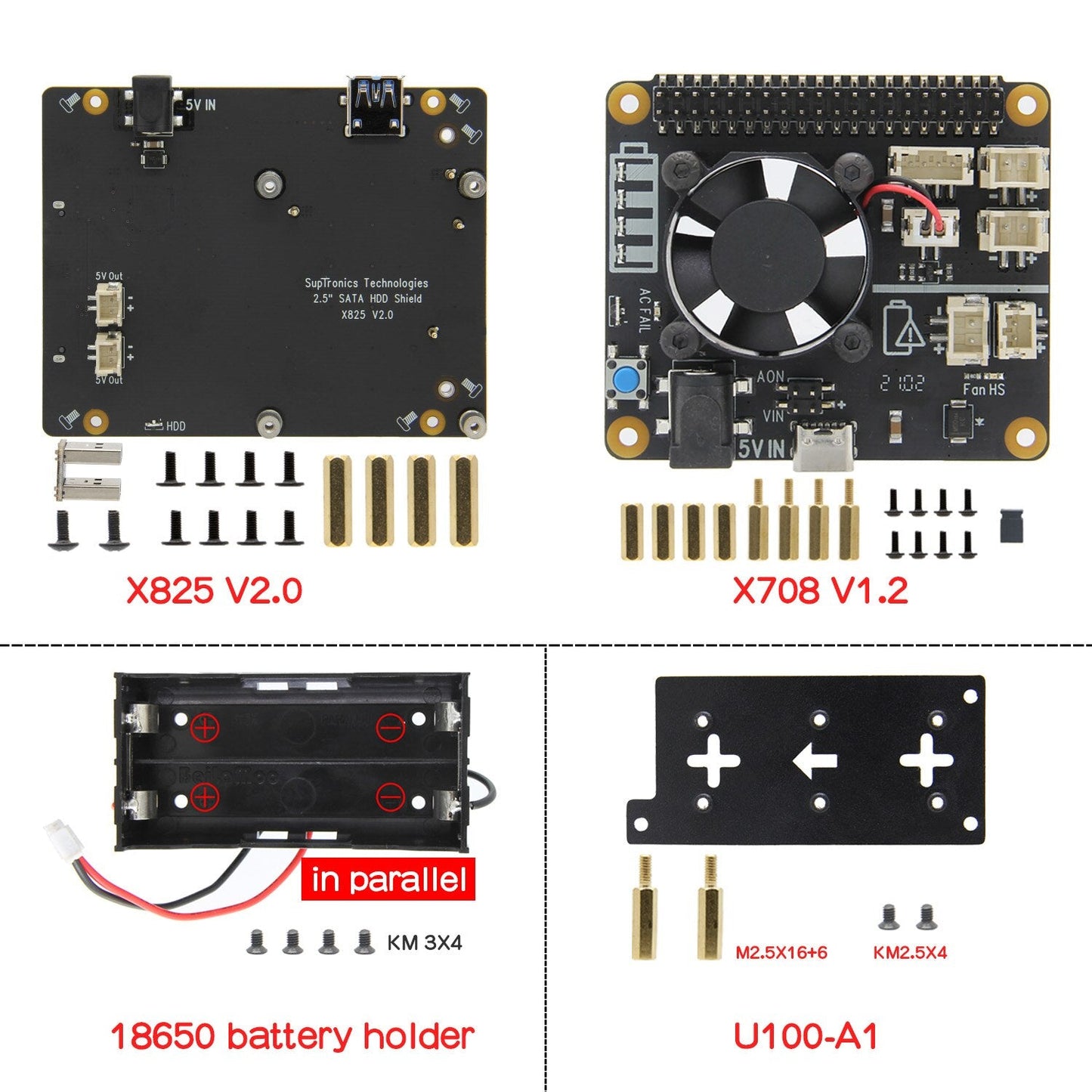

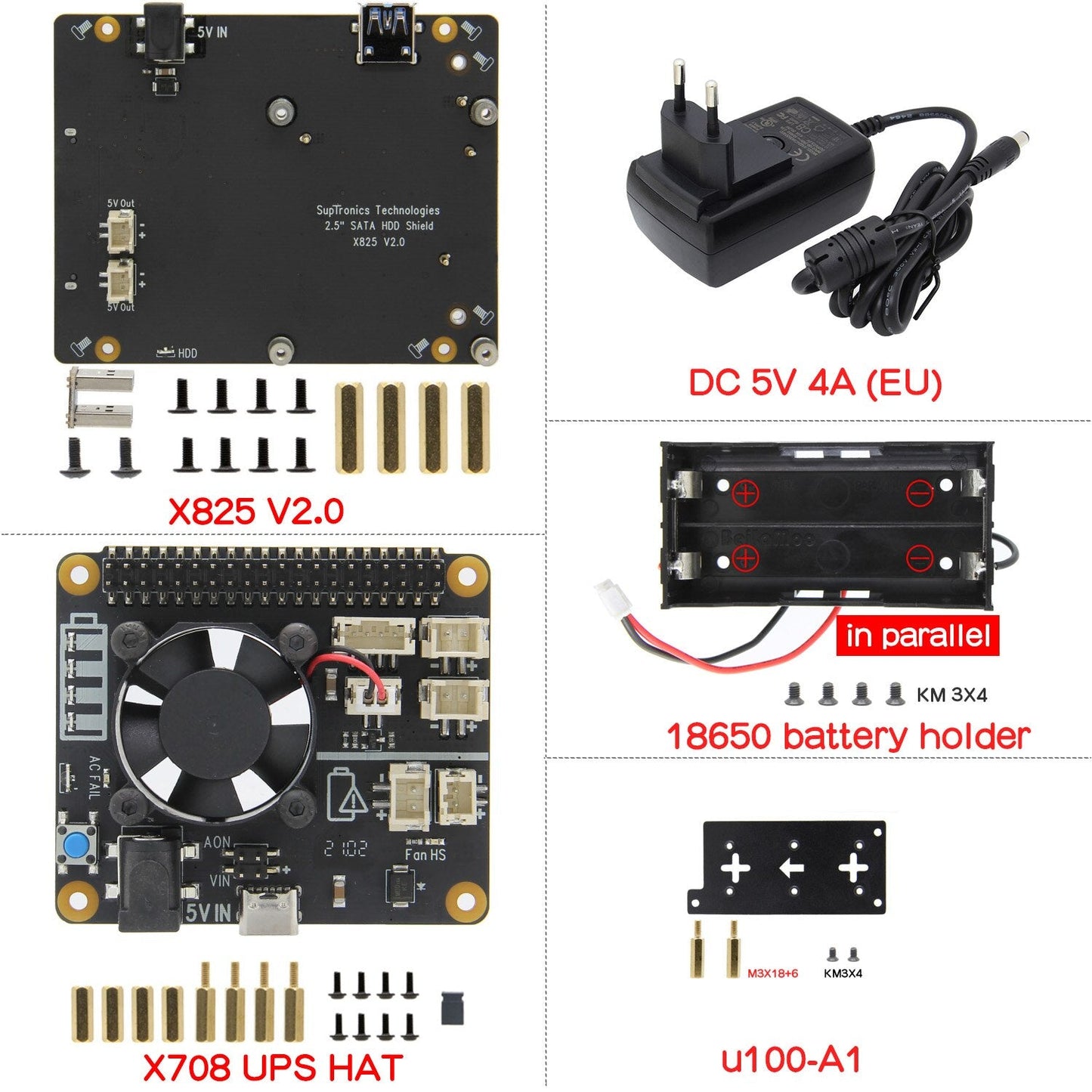

1 x X825 V2.0 Storage Board
-
1 x X708 UPS HAT
-
1 x 18650 Battery Holder
-
1 x U100-A1
-

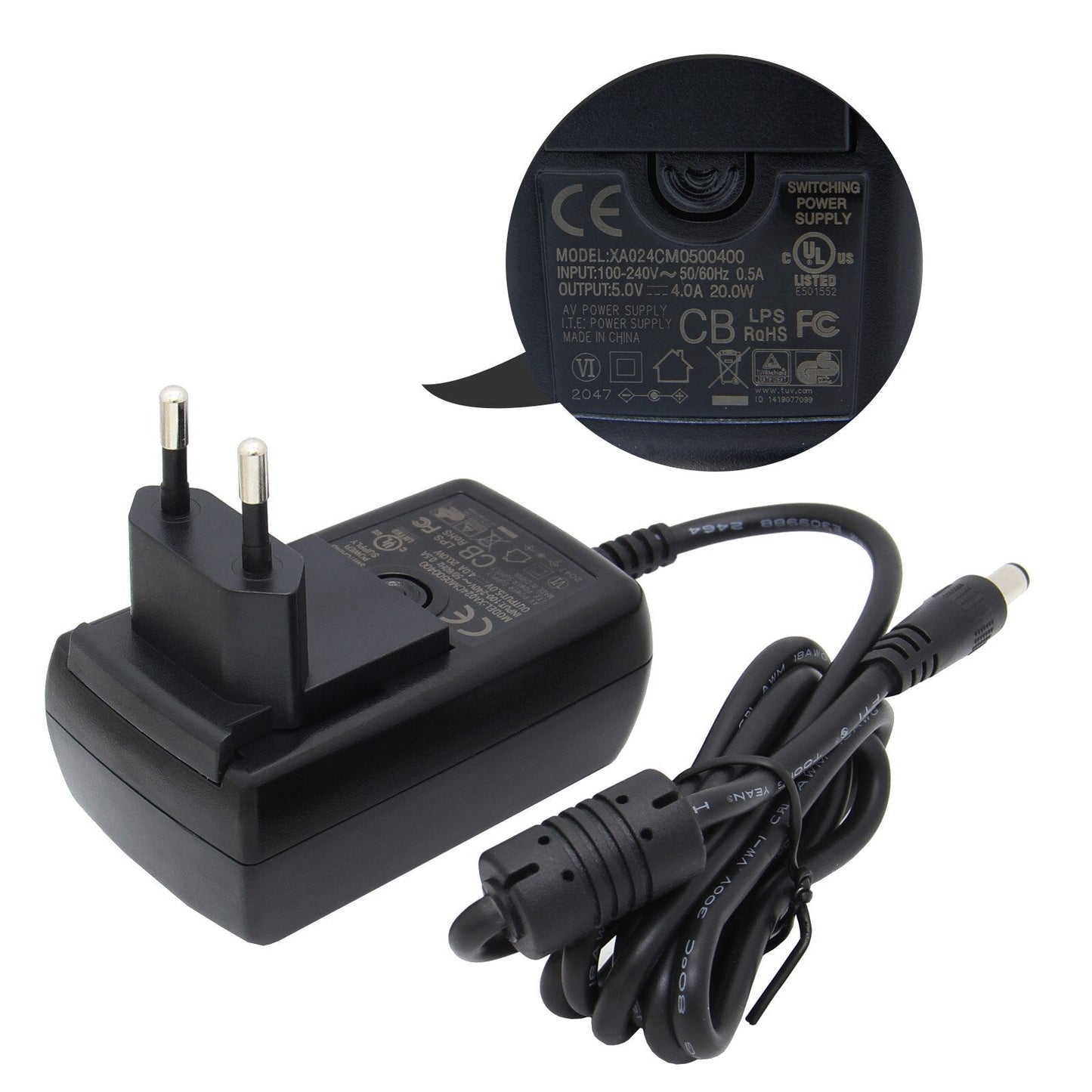

Bundel1+DC 5V 4A Power Supply(EU)
-
Bundel1+DC 5V 4A Power Supply(US)
Welcome Customize Order!
