Raspberry Pi Case-LTRIG

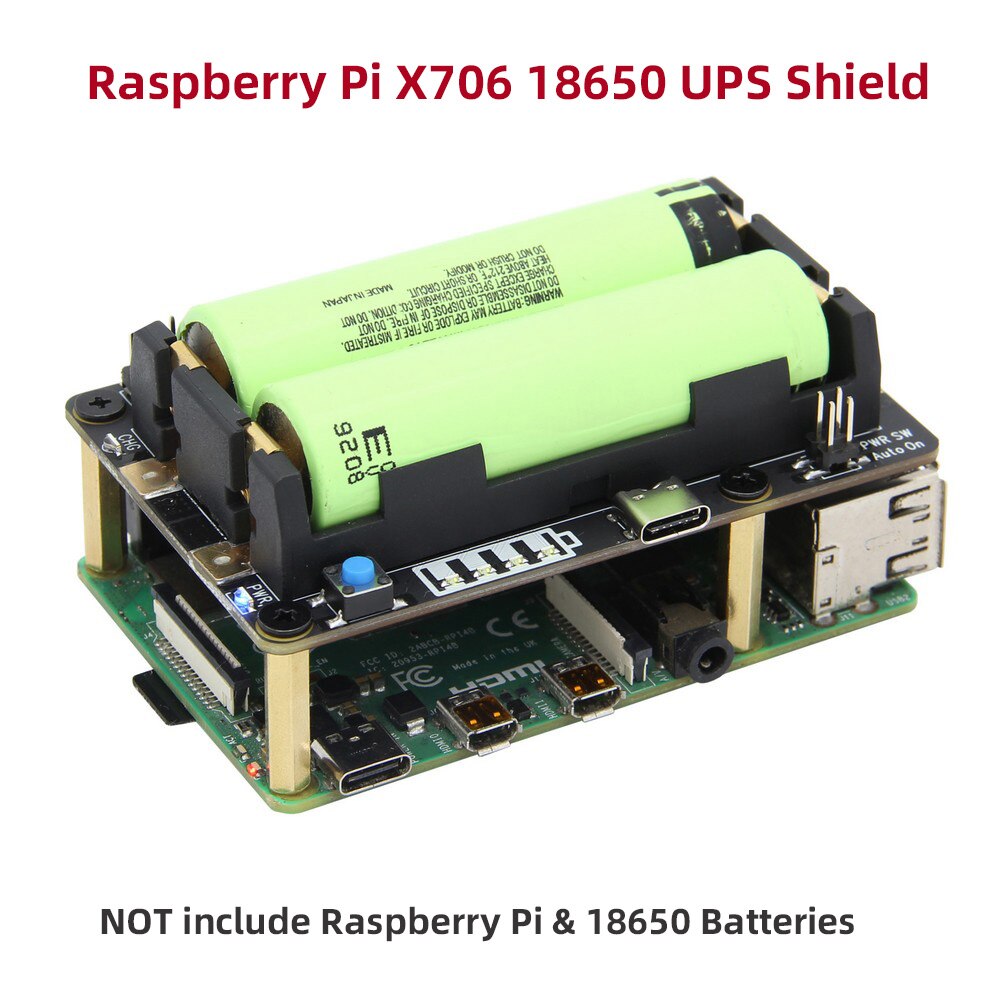

Raspberry Pi 18650 UPS HAT,X706 V1.1 Shield/Expansion Board supports Auto Power On for Raspberry Pi 4 model B/3B+/3B customize

Raspberry Pi 18650 UPS HAT,X706 V1.1 Shield/Expansion Board supports Auto Power On for Raspberry Pi 4 model B/3B+/3B customize

Regular price $25.92 USD
Regular price $0.00 USD Sale price $25.92 USD
Sale Sold out
Color

Note

  • Do not apply power to your Raspberry Pi via the Micro USB socket or Type-C socket.

  • Must use the battery with built-in protection circuit.

  • NOT supports software safe shutdown.

  • Please use high quality power supply, the low quality power supply will generate Surge Voltage, which will damage the board chip.

Overview

  • The X706 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides an advanced uninterruptible power supply and power . The X706 can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X706 can also be used with the X820/X825 (2.5" HDD/SSD Shield), X850/X855/X857 (MSATA SSD shield), X862(M.2 NGFF SATA SSD Shield), X872/X873(NVMe M.2 SATA SSD Shield).

Features

  • Smart Uninterruptible Power Supply (UPS)

  • Out 5.1V enough 3000mA Power Backup for even the most demanding Raspberry Pi set ups

  • Supports 3A via Type-C socket fast charging

  • Can work with single or dual 18650 Lithium Ion battery

  • Integrated battery protection circuit

  • Integrated over current protection and over voltage protection

  • Intelligent automatic charging and discharging

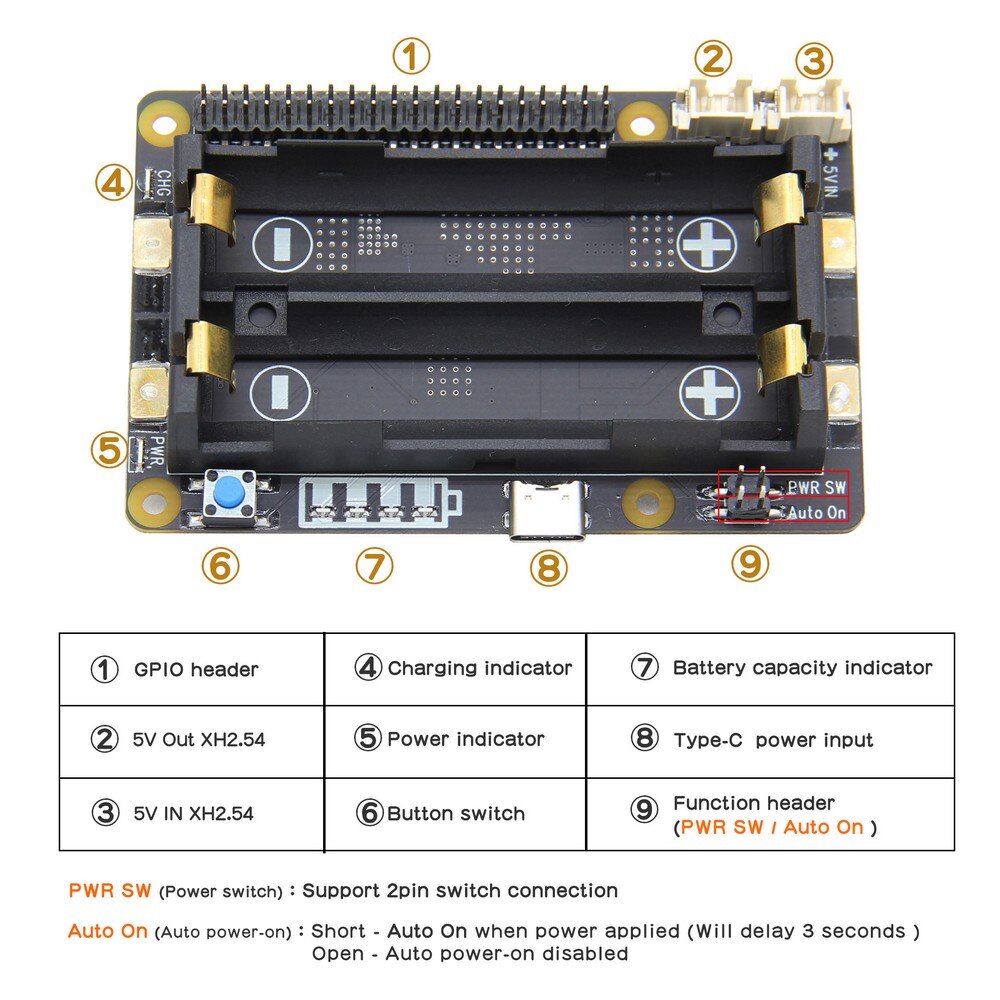

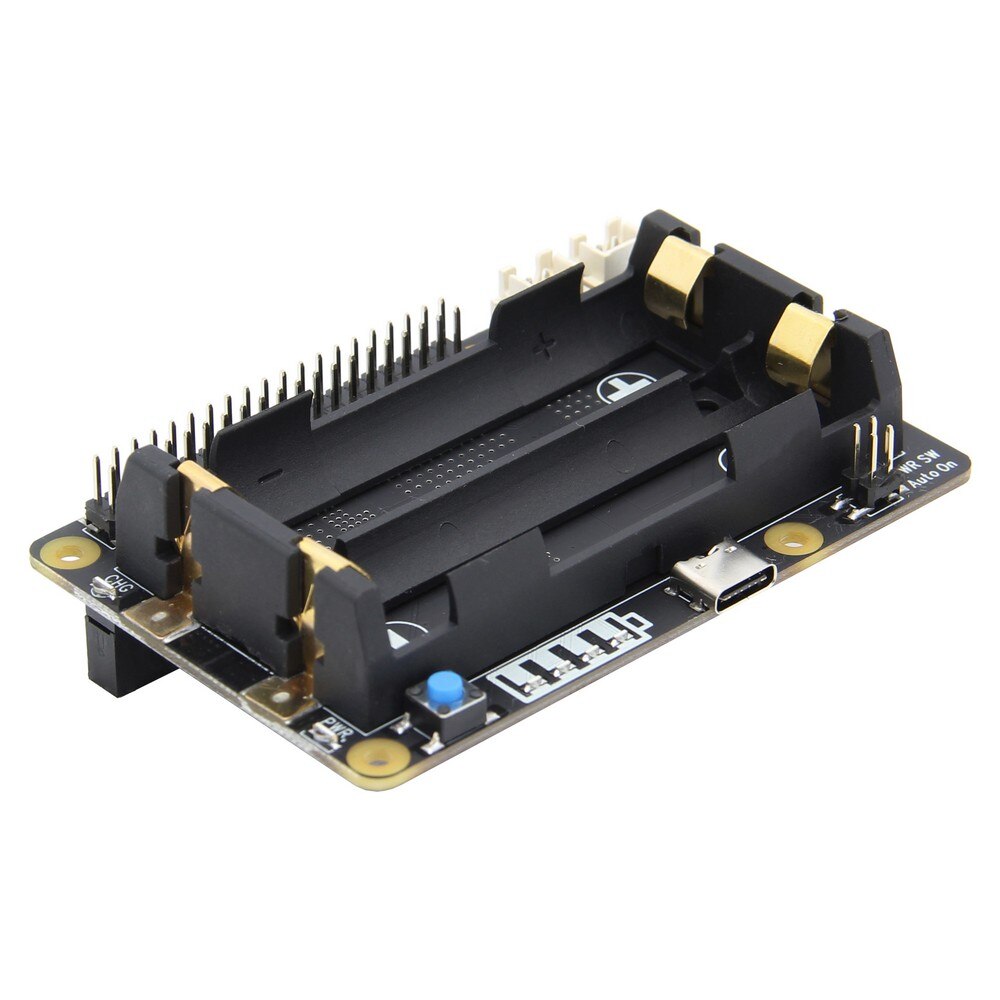

  • On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

  • On-board red LED show the status of battery charging or fully charged

  • On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)

  • On-board pin header allows to select AUTO power-on when power supplied or battery installed

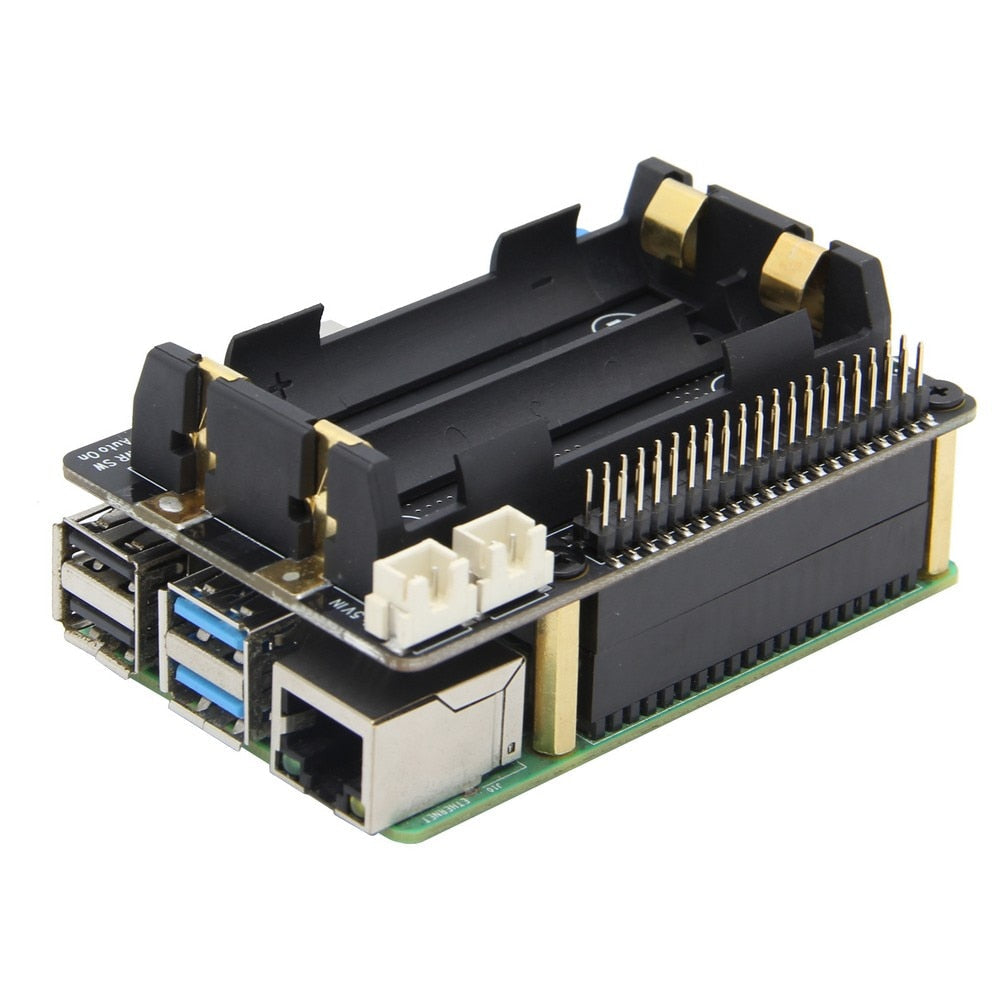

  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required

  • Standard Raspberry Pi extension interface, compatible with other expansion boards

  • Allows power input via Type-C socket or XH2.54 connector

  • On-board XH2.54 power input connectors allows to integrate with your products

  • DON'T supports software safe shutdown.

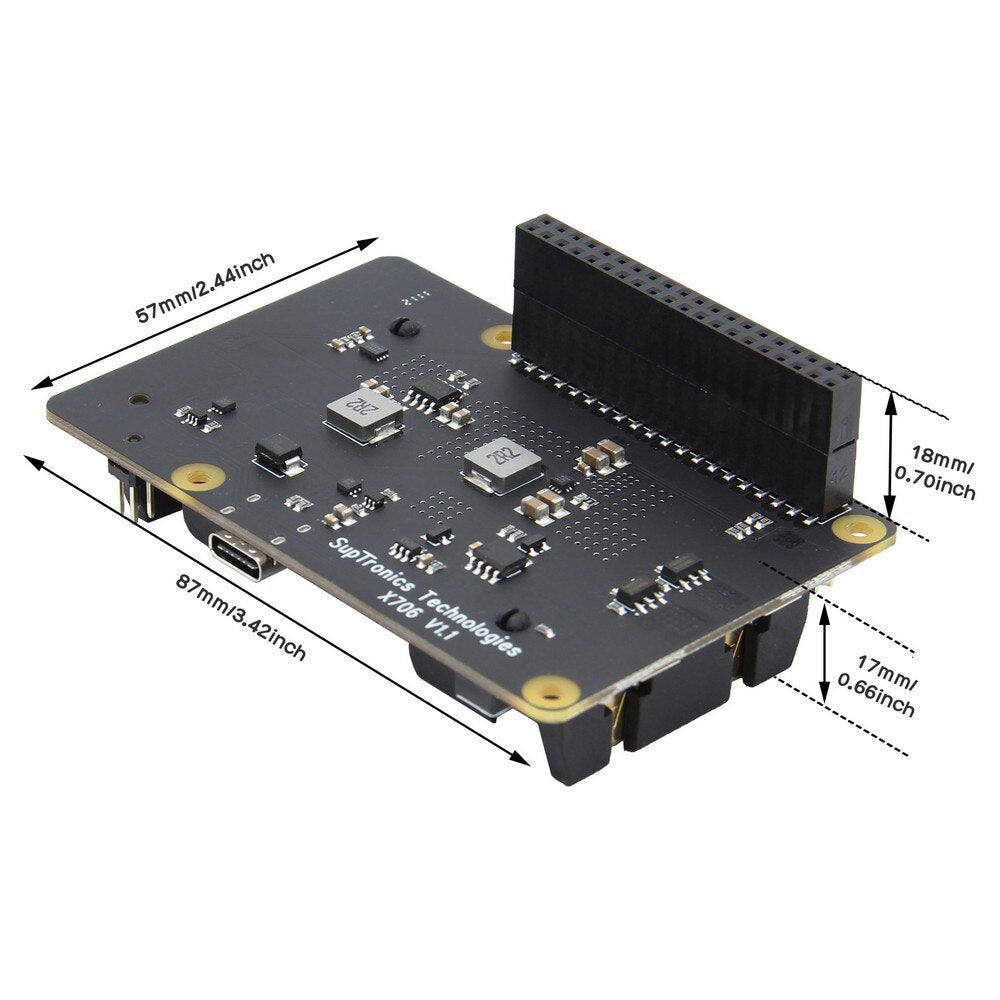

Technical Specification

  • Power supply: via Type-C socket : 5Vdc ±5%, ≥3A;

  • UPS output : 5.1V ±5% Max 8A

  • UPS charging current: 1.8~2.2A

  • Terminal Battery Voltage : 4.2V

  • Recharge Threshold : 4.1V

Packing List

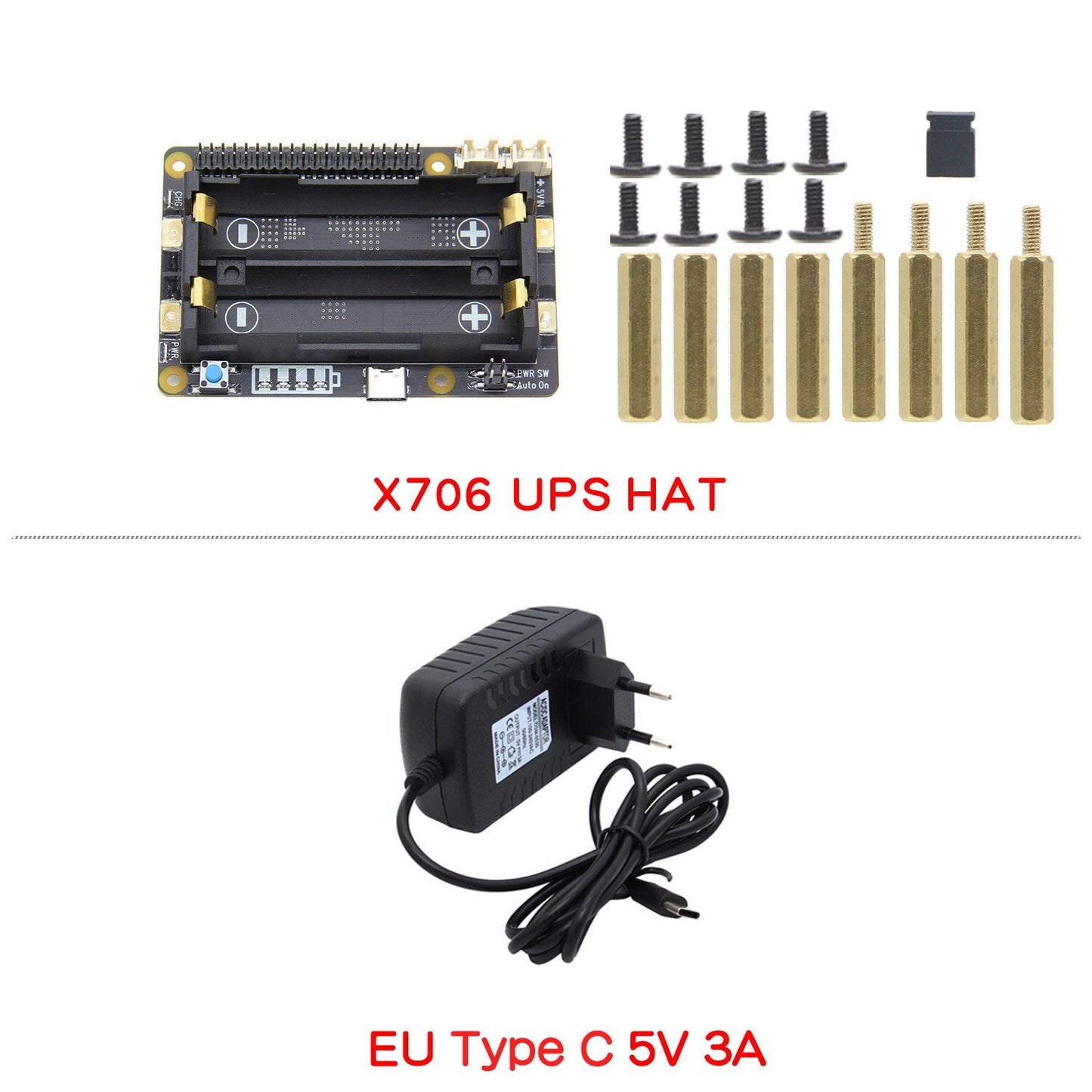

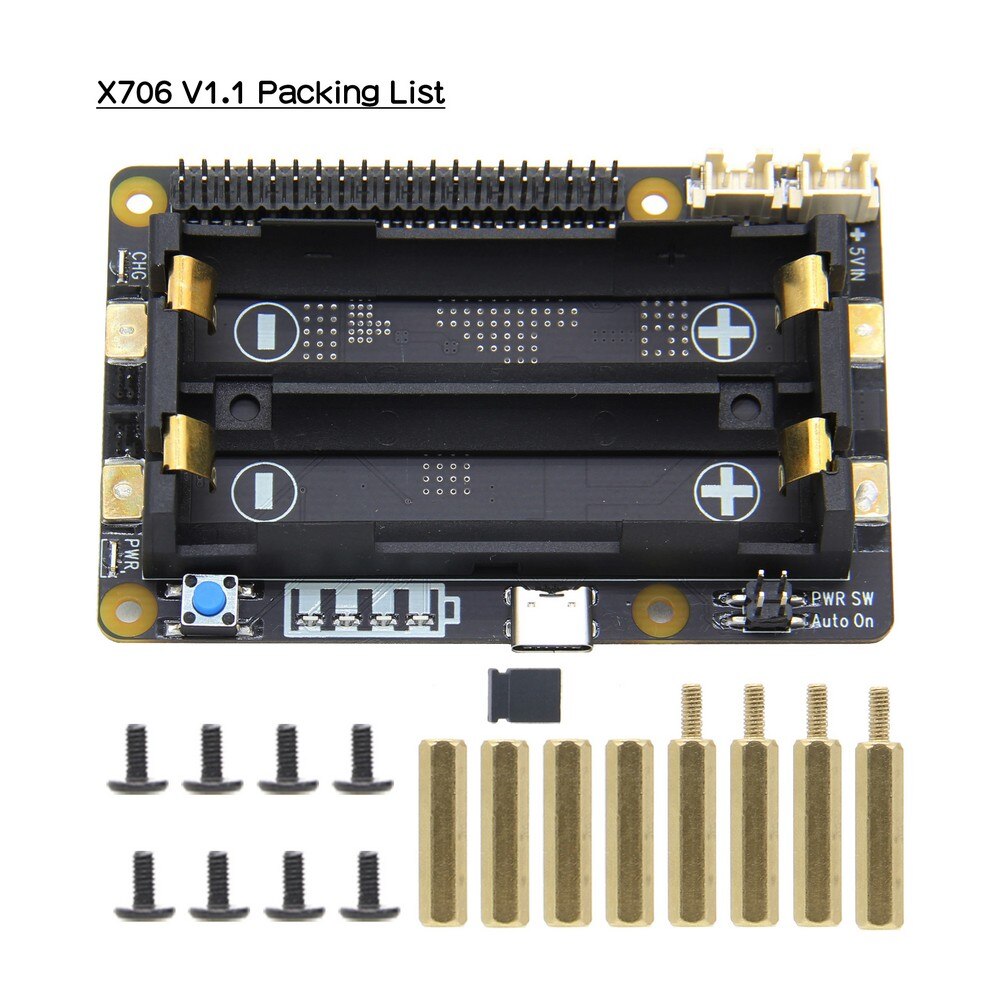

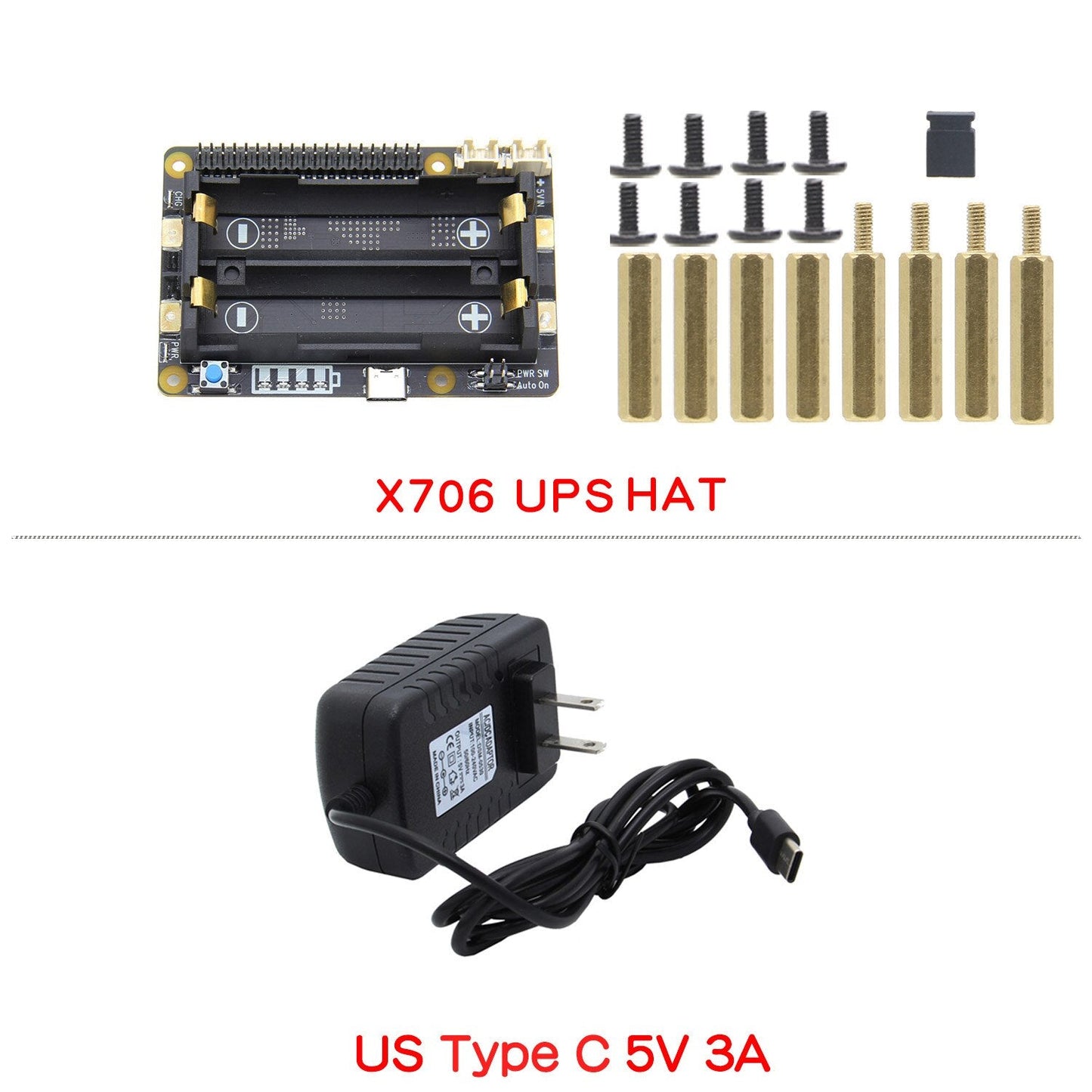

  • 1 x X706 V1.1 18650 UPS Shield

  • 1 x Jumper link Pitch 2.54mm

  • 8x M2.5 *5mm Screws

  • 4x M2.5 *20+6mm Spacers

  • 4x M2.5 *20mm Spacers
