Radiolink R6F 2.4GHz 6 Channel FHSS Receiver Radio Control System for RC6GS RC4GS RC3S RC4G T8FB Transmitter

 Features:
* 6ch: 6ch receiver suitable for Radiolink’s transmitter RC4GS/RC6GS/RC4G/T8FB/RC3S.
* FHSS Signal Spread Spectrum: Adopt FHSS spectrum anti-interference technology, keep the signal stable, the size only 35*20*13mm.
* 10 Models Memories: Big storage of mode memory, it compatible all RC cars and boats.
* Long Distance Control: R6F receiver with amazing distance control, more than 400 meters on the ground.(The actual control distance depends on the environment).
* Support HV servo:  DC R6F rc car and boat receiver support 4.8~10.0V of servo.

How to Match Code With Transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the R6F.

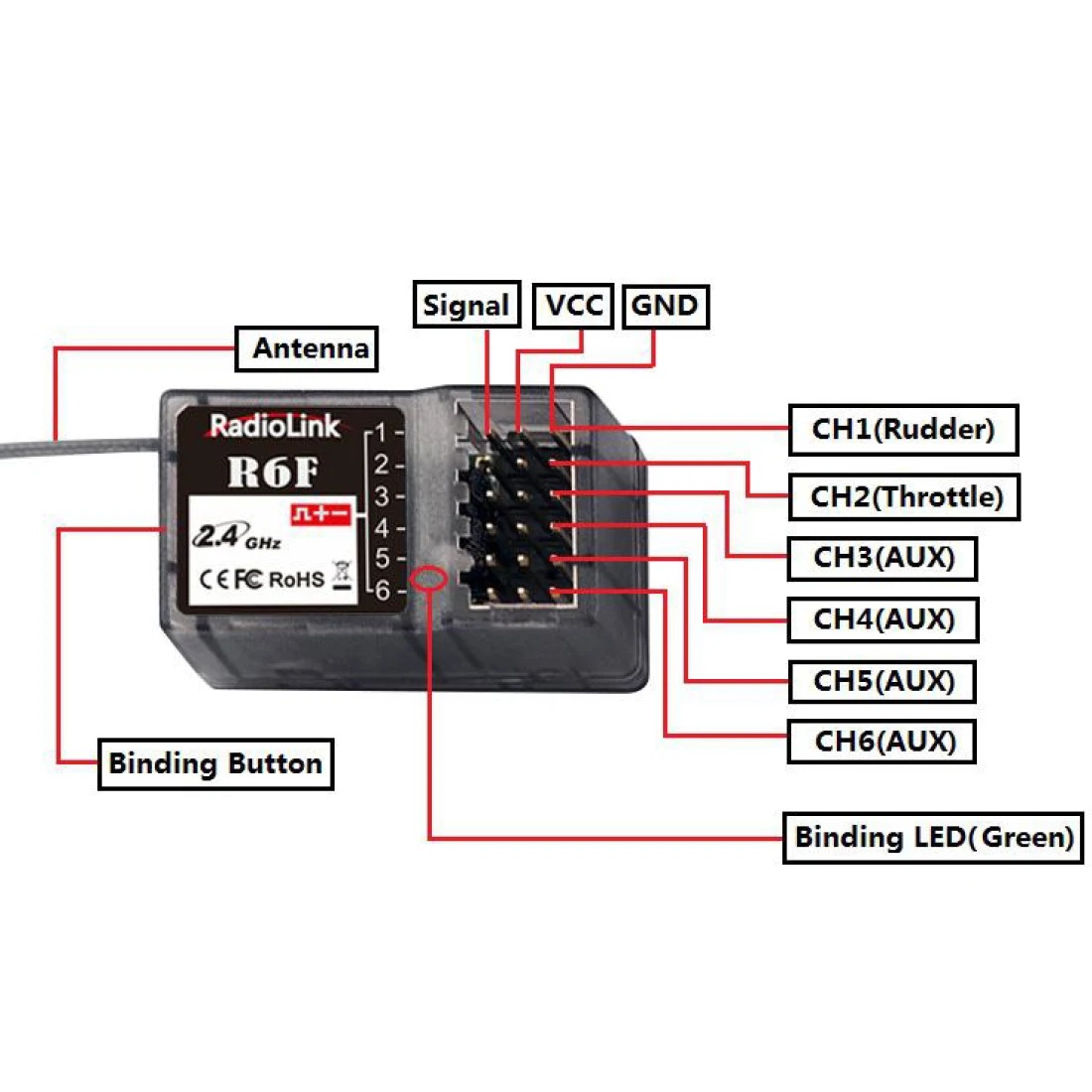

3. There is a black button on the R6F, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

Specification:
Channel: 6
Model: Cars/boats
Control Distance: more than 400m
Spread Spectrum: FHSS
Antenna Length: 200mm
Work Current: 30mA
Power Supply: 4.8~10.0V DC
RF Power: <10dbm
Channel Resolution: 4096
Size: 35*20*13mm
Weight: 6g

Compatible transmitters: Suitable for RC6GS, RC4GS, RC4G, RC3S, T8FB

Package Included:
1x R6F RC Receiver
