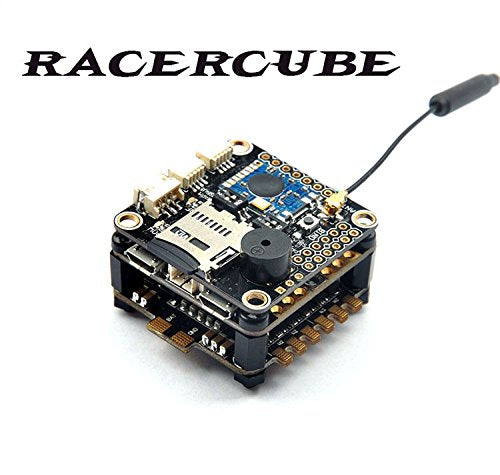

RacerCube SP Racing F3 EVO Flight Controller Integrated 4in1 ESC PDB MWOSD Frsky 8CH PPM SBUS Receiver for DIY FPV Racing Mini Quadcopter

Specification:

Weight: 23 g
Size: 36mm * 36mm * 25mm
Installation hole distance: 30.5mm * 30.5mm
.

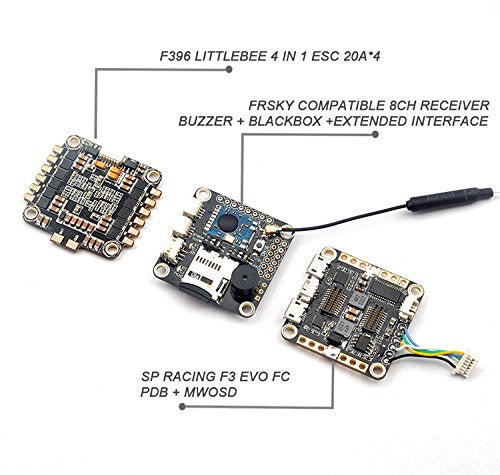

The complete electronic system includes:.

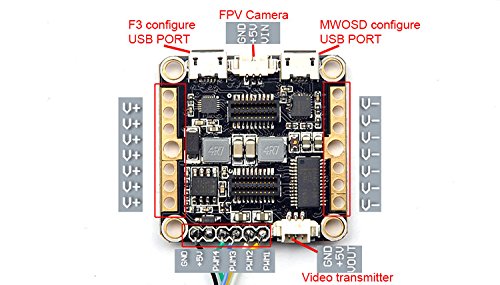

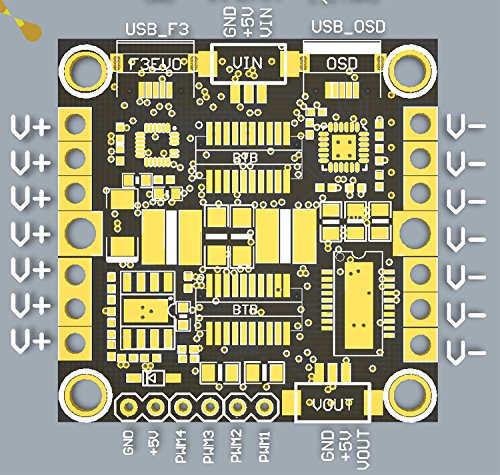

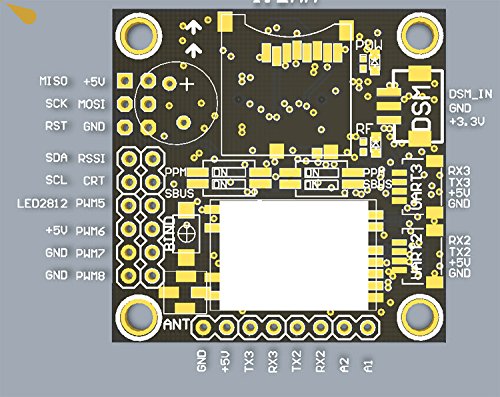

SP RACING F3 EVO flight control integrated MWOSD and PDB board .

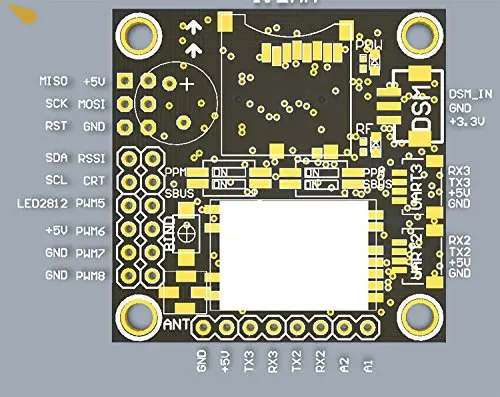

Frsky Compatible 8CH PPM / SBUS Receiver Integrated F3 Flight Control BLACKBOX Functionality and External Expansion Interface .

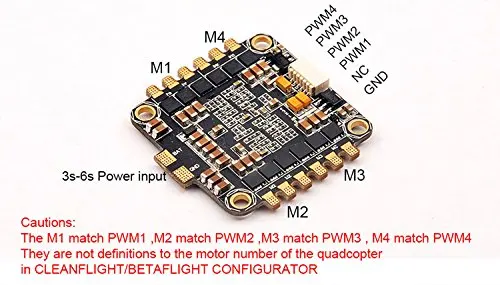

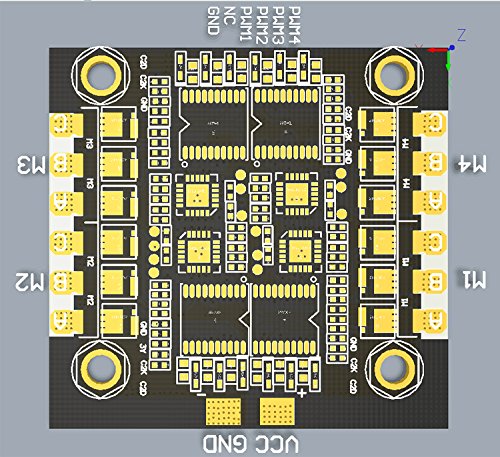

High quality F396 MCU 4IN1 20Ax4 Small Bee ESC.
Suitable for 150-230 wheelbase multirotor frame kit, especially for X and Monster DIY frame kit.

Features:
1. Ultra-light integration suite,PNP, do not need cumbersome wiring
2. STM32F3 chip F3 EVO flight control, support CLEANFLIGHT / BETAFLIGHT program
3. Built-in MWOSD, aircraft real-time data status real-time back to the FPV display or GOGGLES
4. Built-in SD card, integrated CLEANFLIGHT BLACKBOX function, PID adjustment more at a glance

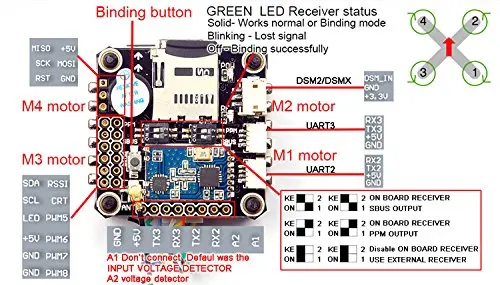

5. Integrated FRSKY compatible 8-channel SBUS / PPM two-way receiver, FRSKY Taranis X9D and DJT / DFT / XJT tuner directly on the frequency can be used
6. Bbased on high-quality F396 MCU 4 in 1 ESC, support Oneshot125 / Multishot, support Damped Light function, can be directly configured by CLEANFLIGHT
