Power Over Ethernet HAT (Type B) For Raspberry Pi 3B+/4B, 802.3af Power-Sourcing Equipment Required
POE HAT FOR RASPBERRY PI

Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)

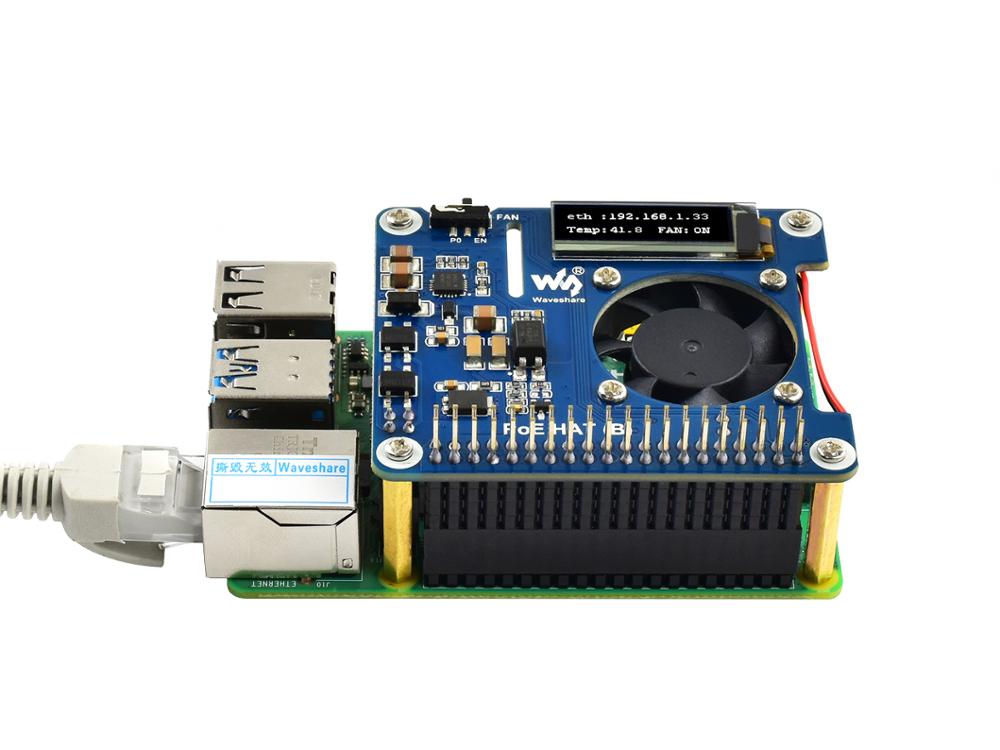

OLED for real-time monitoring temperature, IP, and fan status

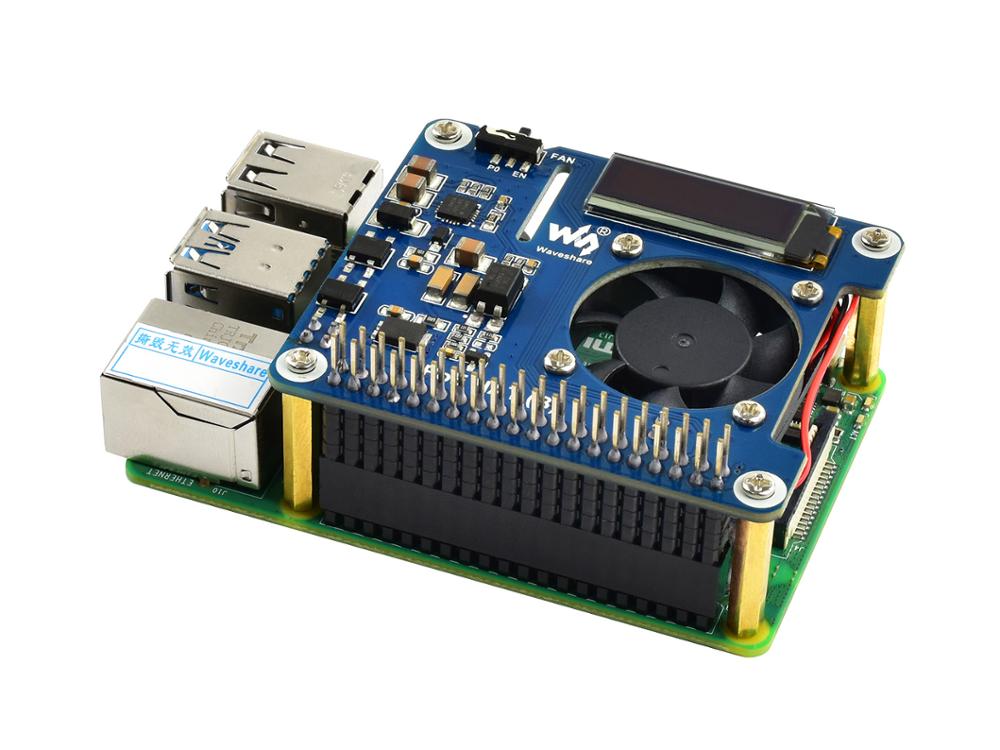

The PoE HAT (B) is a 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Features At A Glance

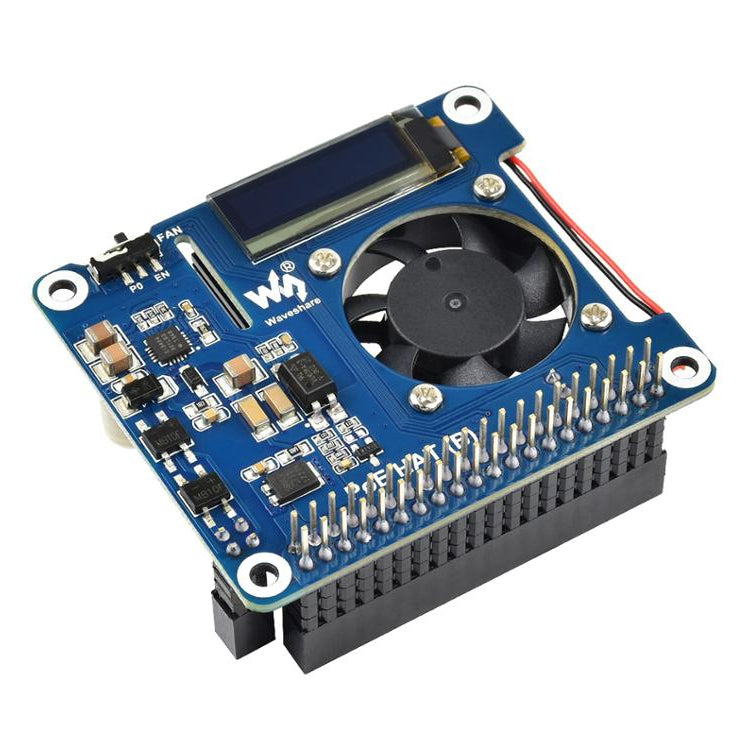

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
  • PoE (Power Over Ethernet) capability,802.3af-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time
  • Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
  • Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins
Specifications
POE POWER INPUT 37V ~ 57V DC in OLED SIZE 0.91"
POE POWER OUTPUT 5V 2.5A DC out OLED PIXELS 128×32
NETWORK STANDARD 802.3af PoE OLED DRIVER SSD1306
DIMENSIONS 56.5 × 65mm OLED DISPLAY COLOR white
For Use With Raspberry Pi 3B+/4B

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

* proper 802.3af-compliant power sourcing equipment is required

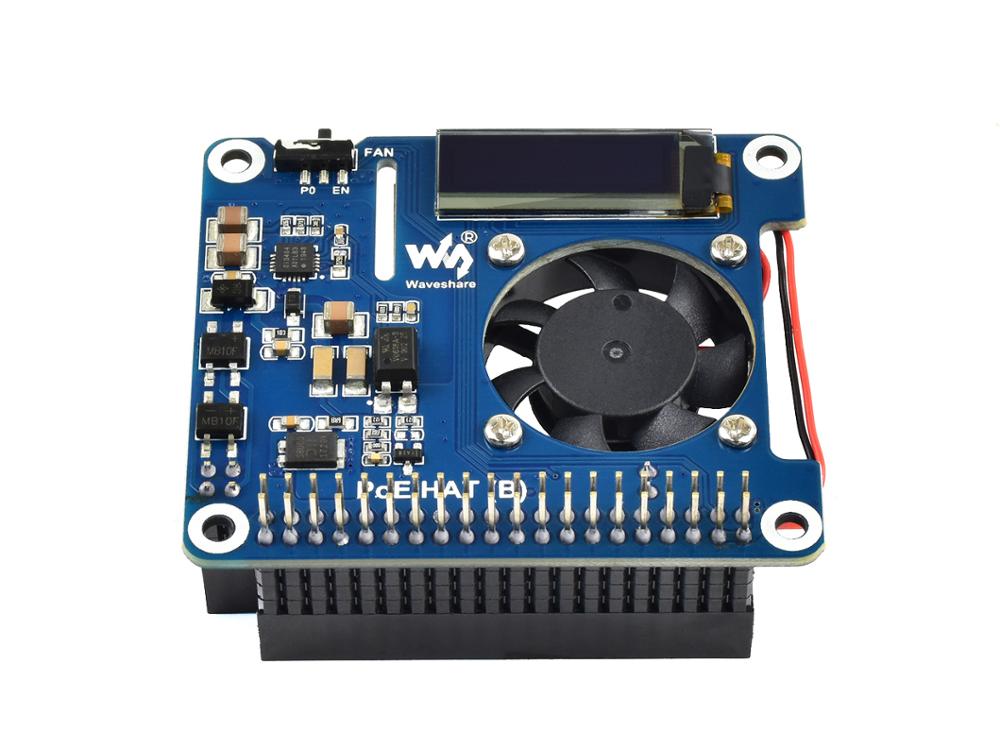

0.91" OLED Display

128 × 32 Pixels, I2C-Bus Controlled
Monitoring Processor Temperature, IP Address, Fan Status In Real-Time

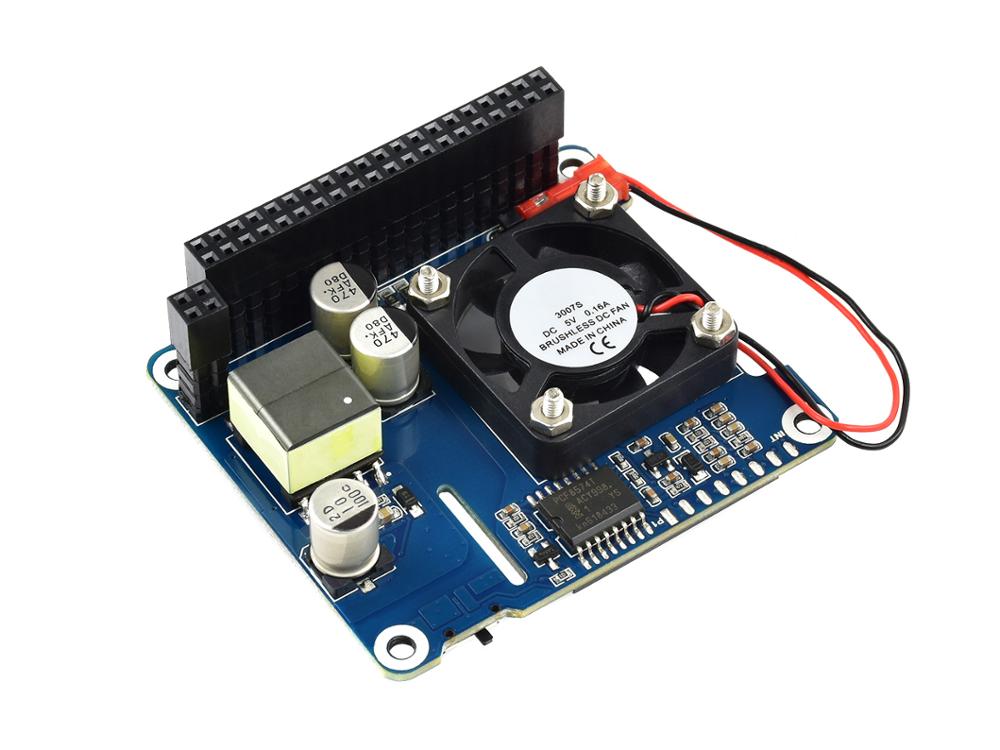

Cooling Fan

Allows Auto Running On Powerup OR Programmable Control, Configured By Switch
Automatically Turn On/Off Depending On The Raspberry Pi Processor Temperature

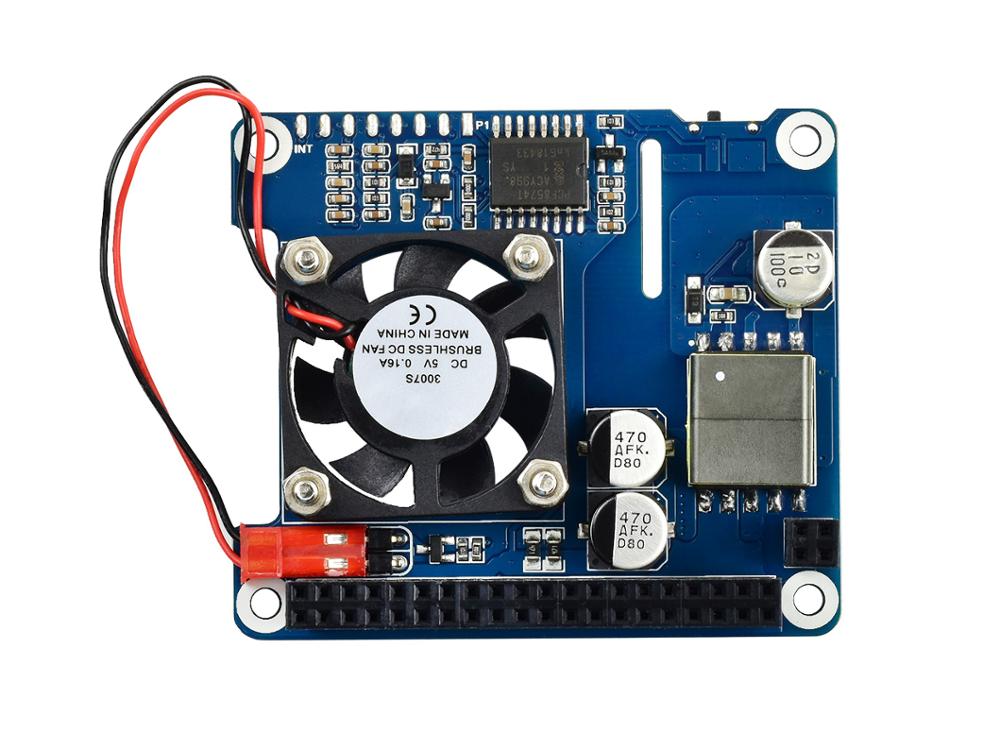

Onboard PCF8574 Chip

PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control
And Extra Spare Pins On Solder Pads (P1-P7, INT)

Pinout Definition
Outline Dimensions
Resources & Services

WIKI: www.waveshare.com/wiki/PoE_HAT_(B)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.







PACKAGE CONTENT

Weight: 0.052 kg

  1. PoE HAT (B) x1
  2. Standoffs pack x1
1
2
