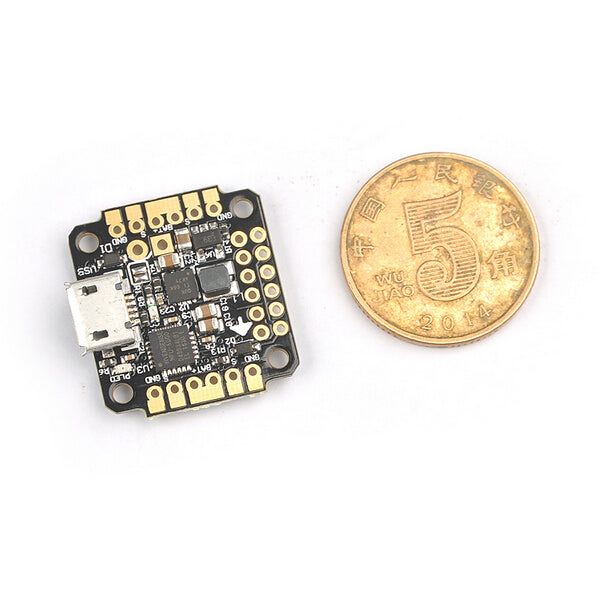

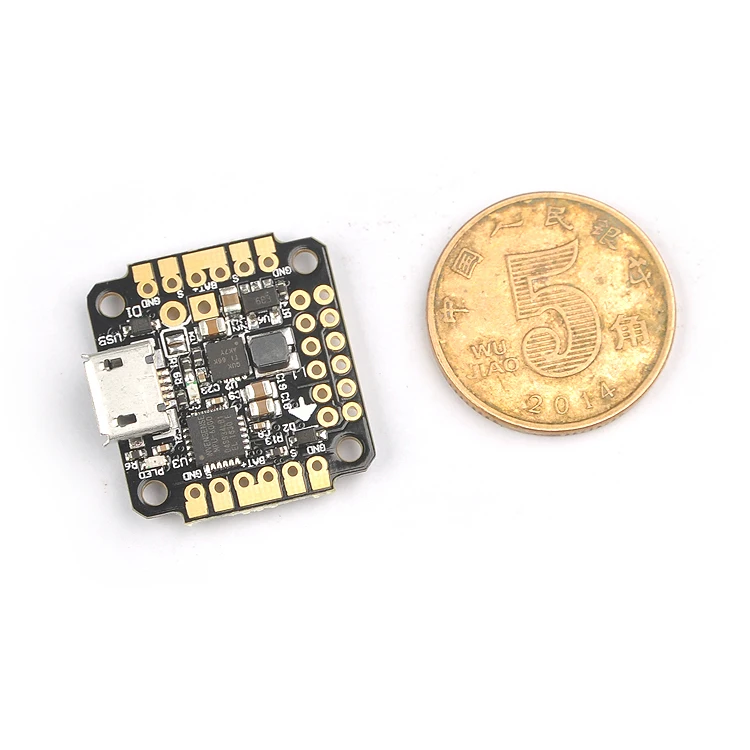

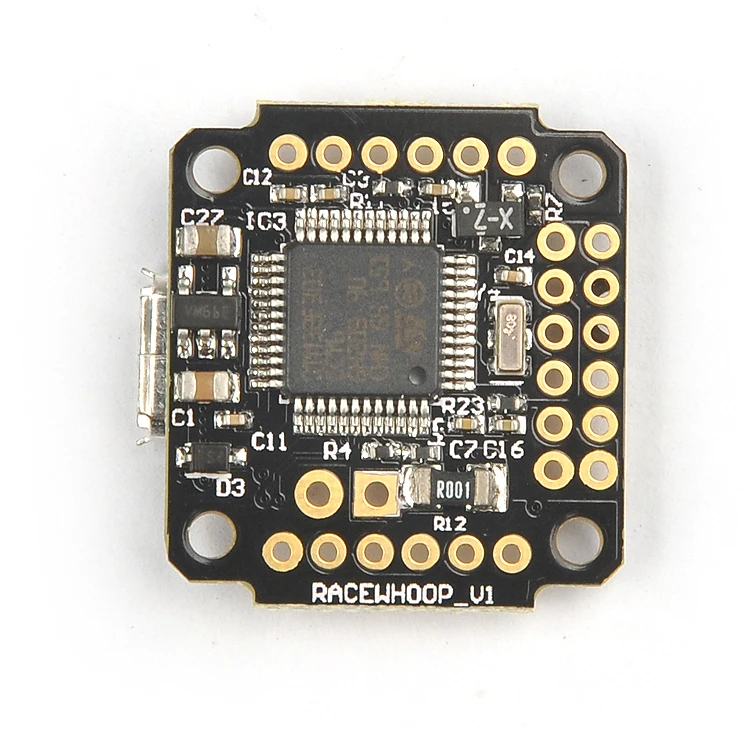

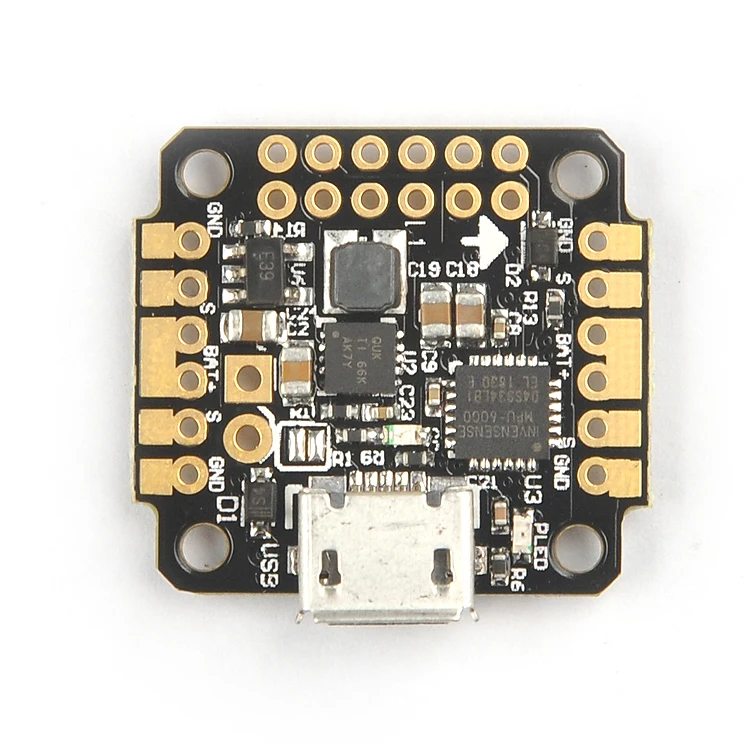

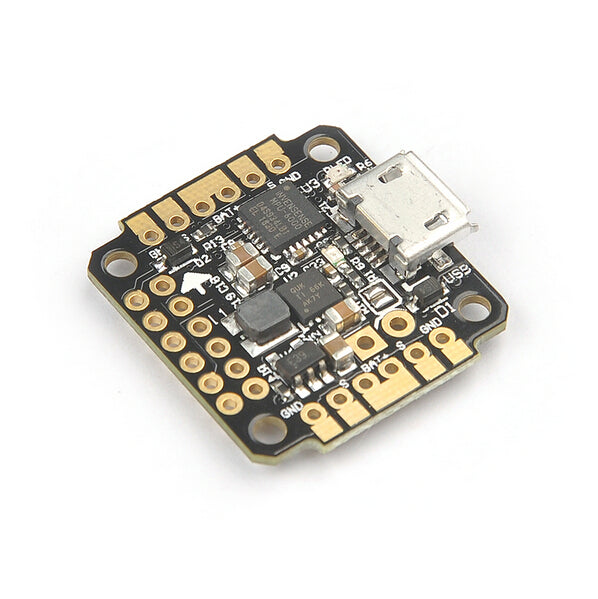

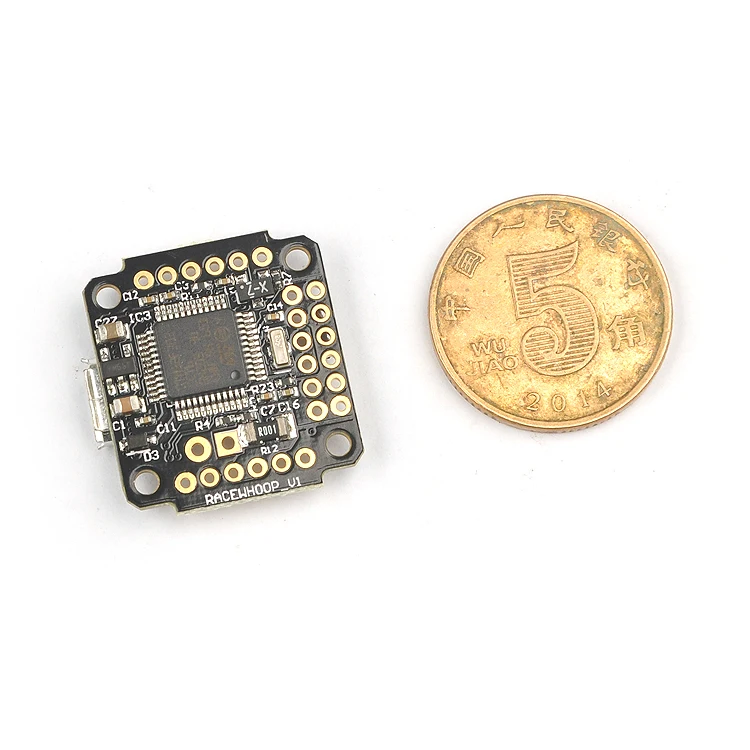

PIKO BLX Evolution Version 16mm x 16mm Brushless Mini F3 Flight Control Micro flight controller with F3 chip / MPU 6000

Features & Capabilities:

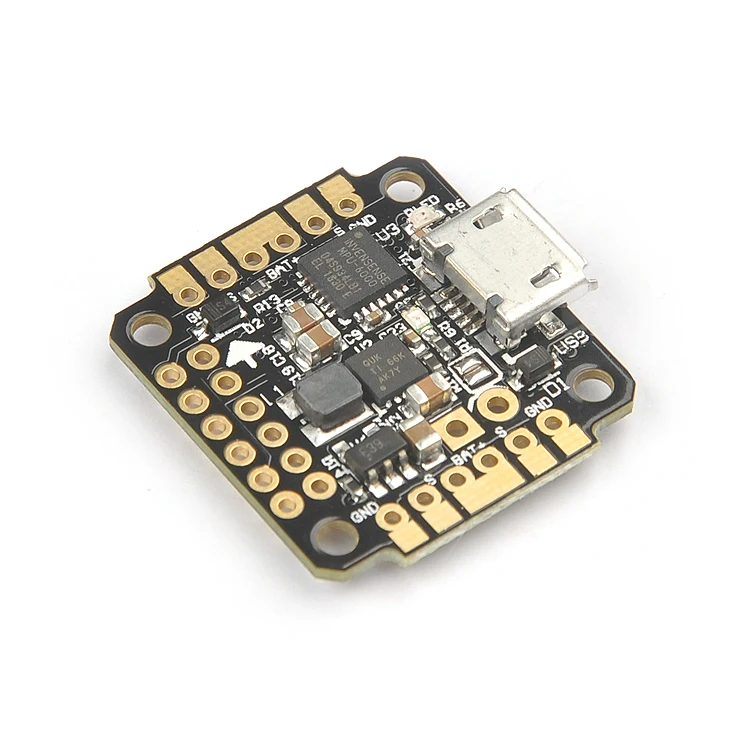

Micro flight controller with F3 chip / MPU 6000

Smallest Flight controller for micro brushless 20x20mm with hole to hole 16x16

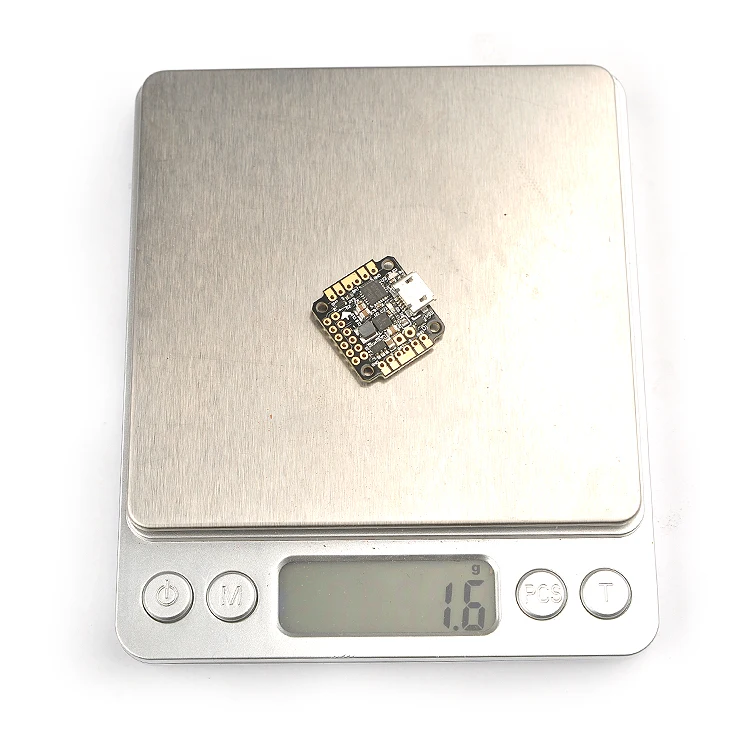

Lightweight 1.7 gram

Power input 1-2s LiPo battery

Support ESC protocol: One Shot, Multi Shot and D Shot 100/300

Micro flight controller with PDB built-in up to 15Ampe

Current sensor built in

Heavy duty 1.5A BEC @ 5V output built-in

Buzzer port

Gold plated dads for the very best connectivity

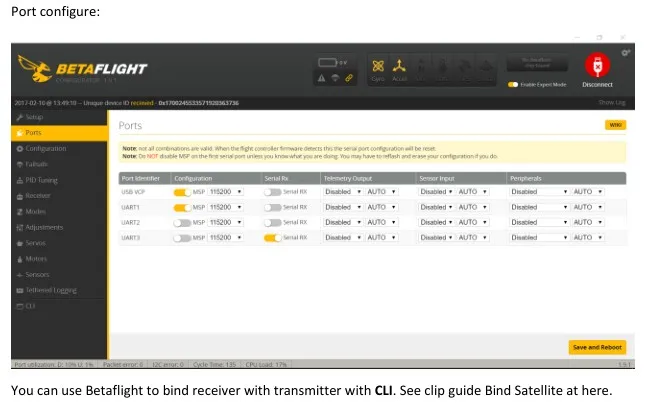

Firmware perfection via CleanFlight & BetaFlight

Support telemetry

Full USB support

Ultra compact design for ease of installation

BLHeli ESC Pass through works fine on Racewhoop.

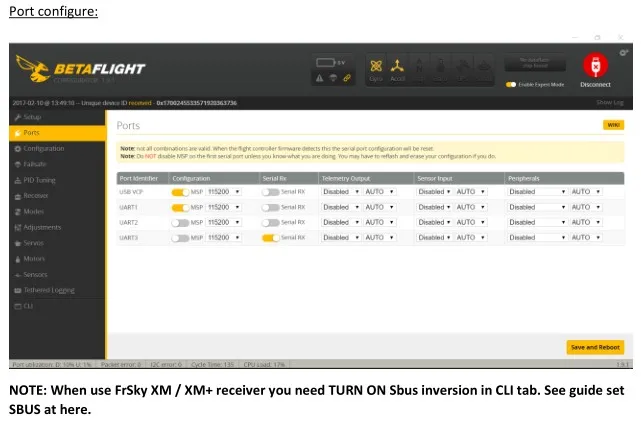

Receiver mode - serial based receiver
