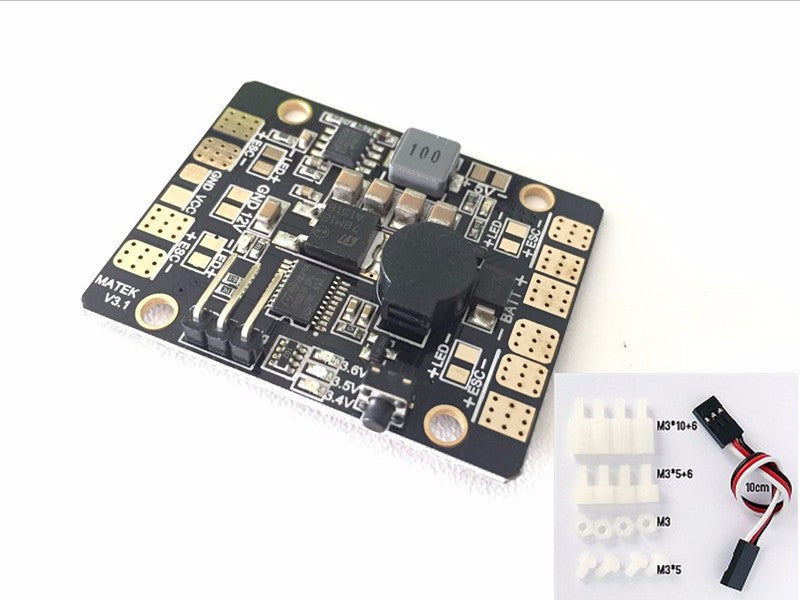

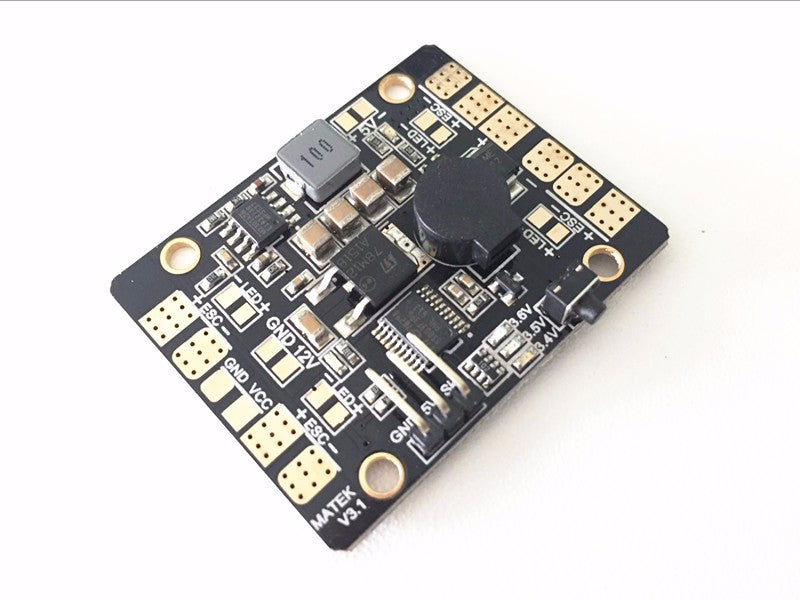

PDB BEC-5V/3A LED Lighting Control Tracker Low Voltage Alarm LED POWER 5 in 1 Hub Double BEC V3
5 functions: panel, dual BEC, LED lighting control, tracker, low voltage alarm;
2oz copper 4-layer PCB, to ensure large current through;
Dual BEC, DC-DC synchronous rectified 5V regulated (3A), linear 12V regulated (500mA @ 4S input, 250mA @ 6S input);
BEC input with TVS protection, to prevent high-voltage impact DC chip when plug the battery;
With 5V LED lighting control, long bright, slow flashing, flash, three states can be free to switch with the remote control lever;
Tracker, remote control lever to trigger the buzzer and LED flashing, easy to look for machine;
Low-voltage alarm, 3.4V, 3.5V, 3.6V cut-off voltage can be selected;
36 * 46mm, 9g, installation hole distance 30.5mm (with Naze32, CC3D and other 36 * 36 size flight control mounting holes)
Do not touch the carbon plate behind the panel, easy to short-circuit. Please use double-sided foam plastic or nylon column isolation installation.
