[Note]

Not

include Raspberry Pi 5 board and NVMe M2 SSD!!!

Compatible with M.2 NVMe SSDs

Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices

Older NVMe drives with less efficient flash media may not perform as well as newer drives

New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

[Overview]

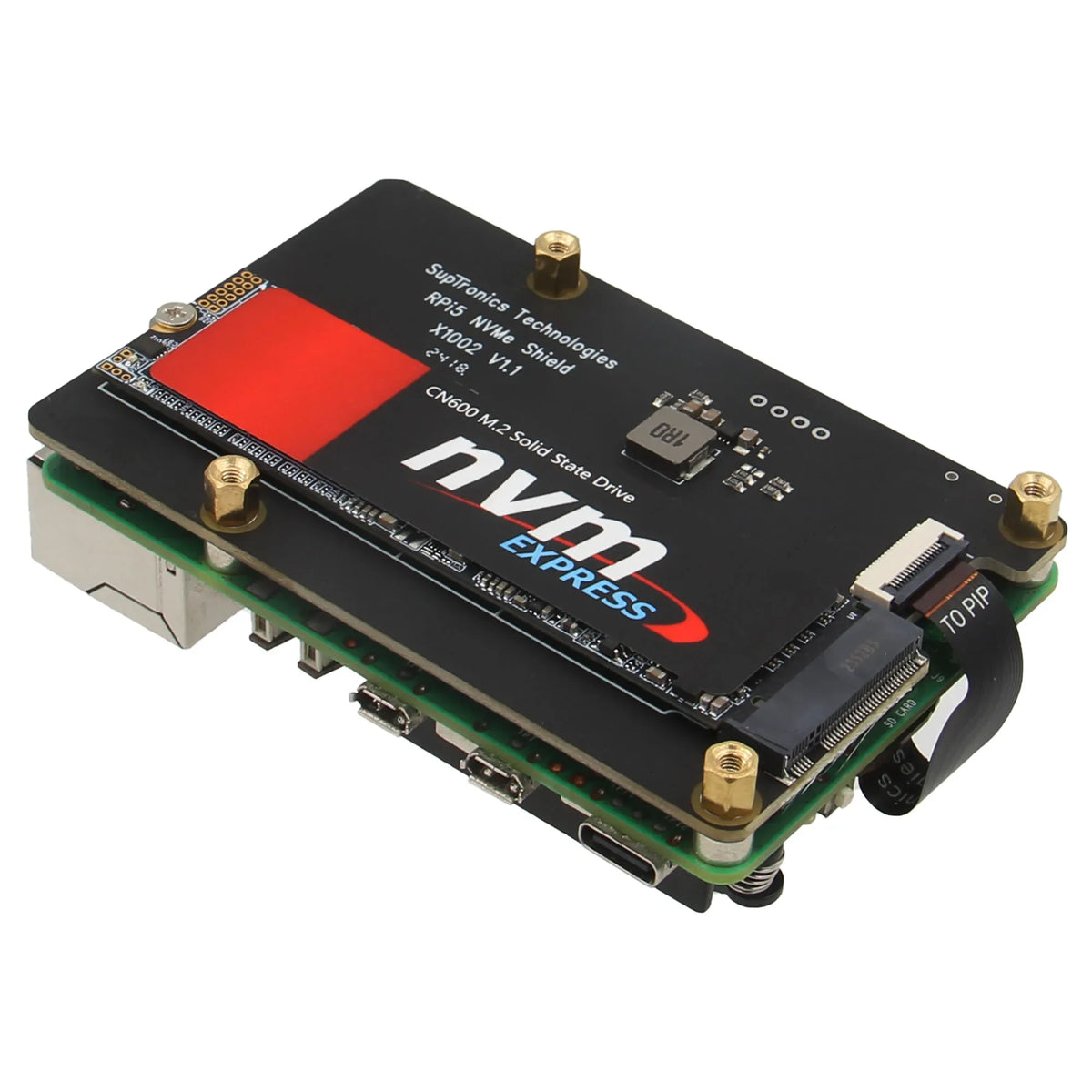

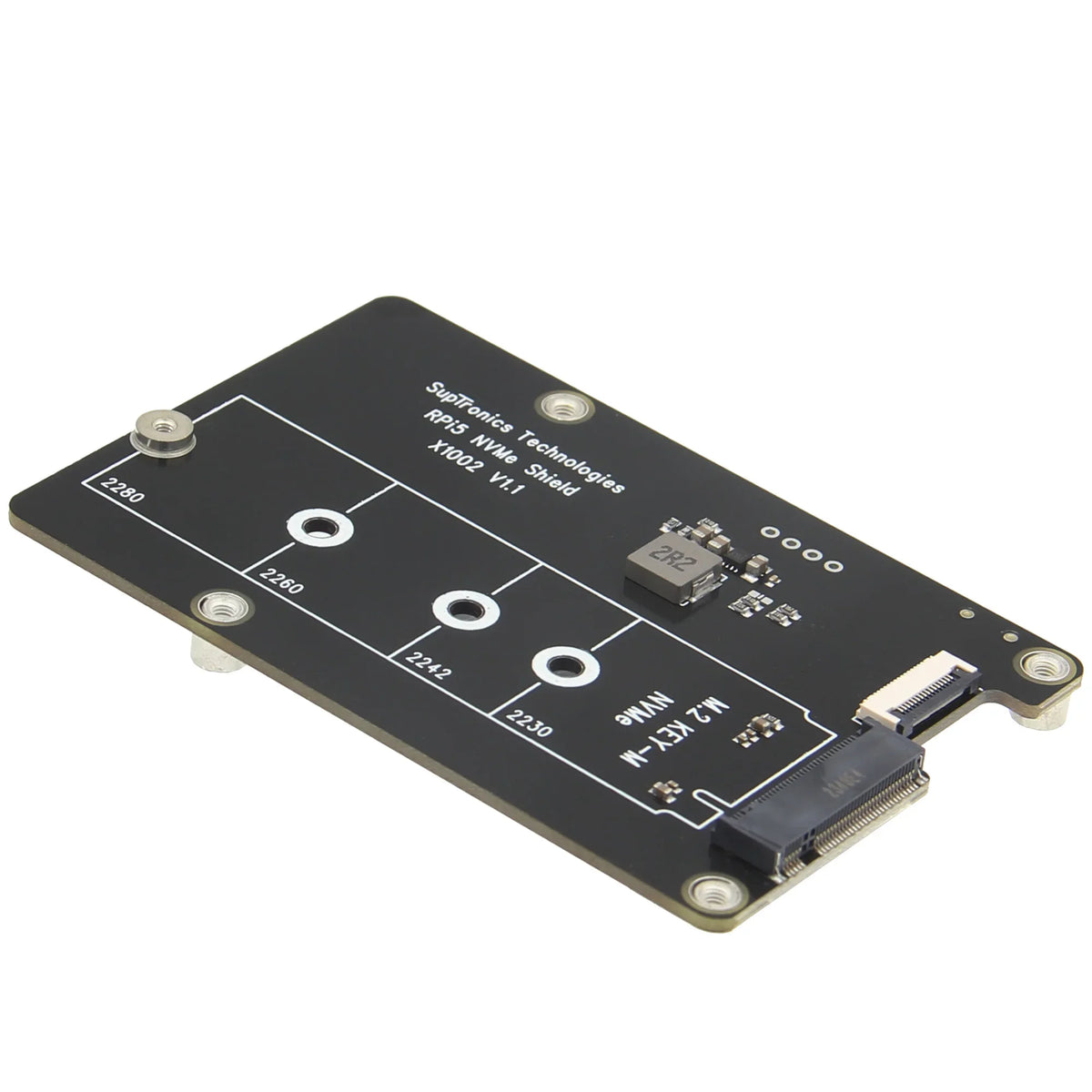

The X1002 V1.0 shield is a bottom NVMe M2 2280 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

Now we use black FPC wire, which has electromagnetic shielding and anti-interference.

[Features]

Full compatible with other HAT shield;

Customized FPC cable for easy use of TF card;

Supports installation of official active coolers also;

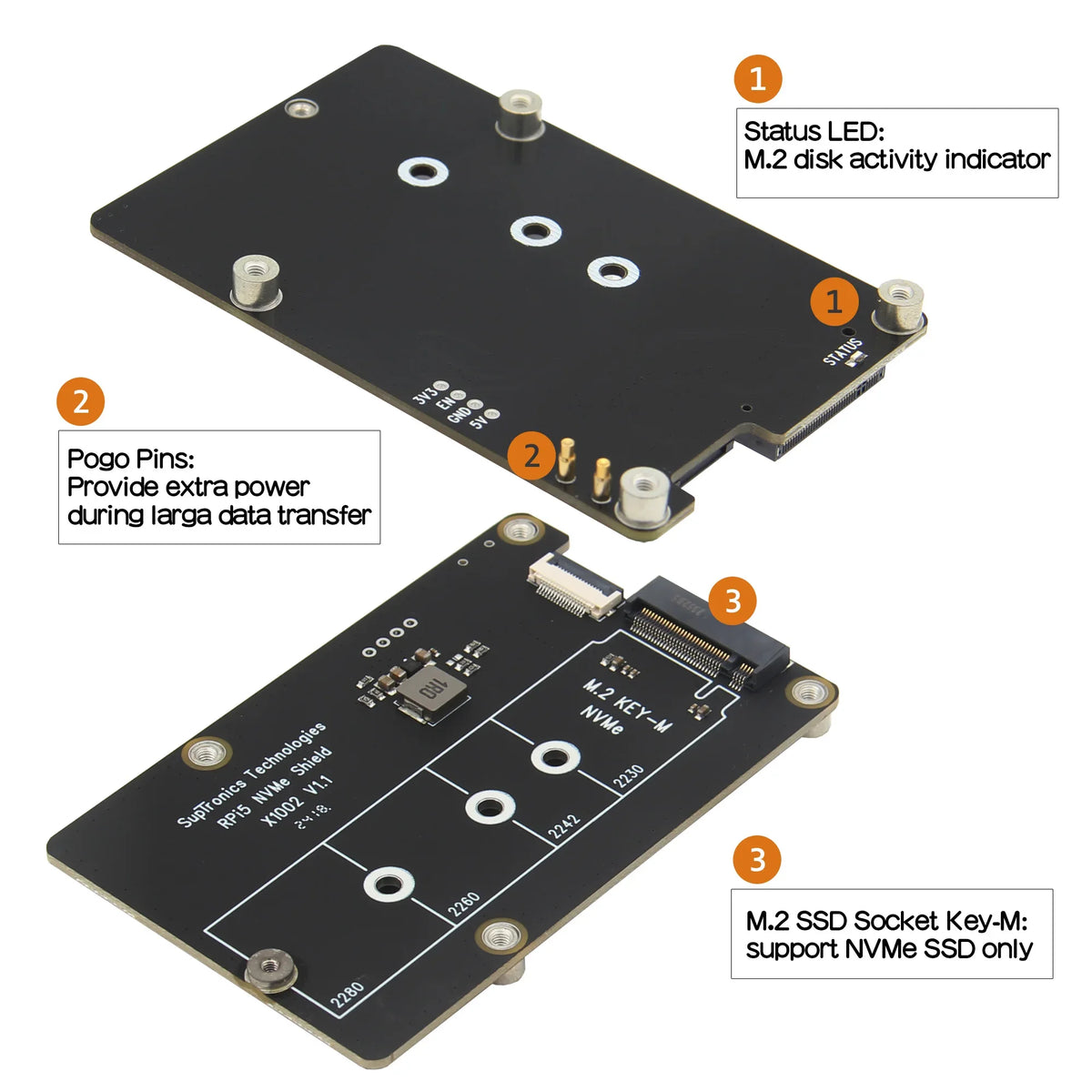

With ACT LED Indicator;

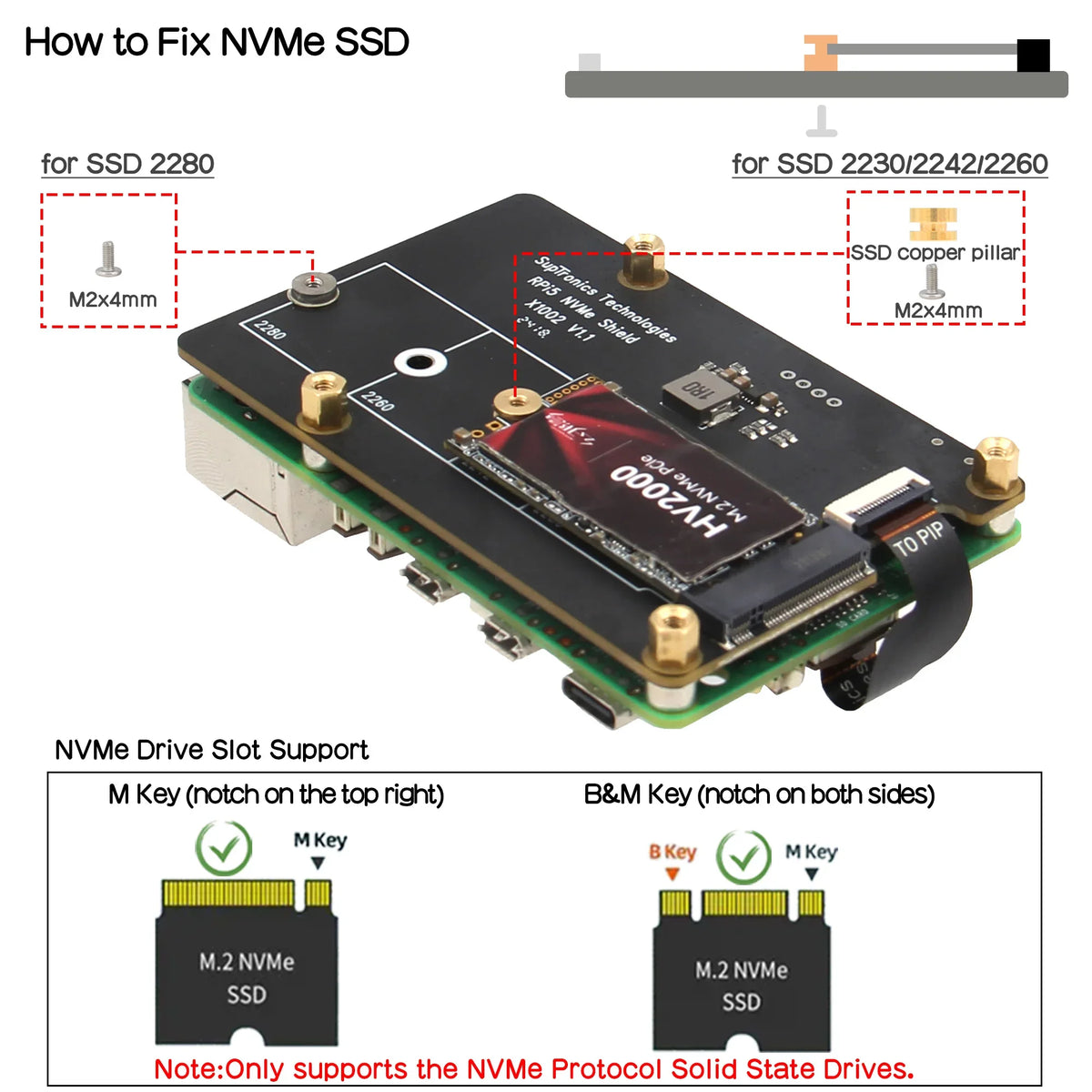

Supports 2230/2242/2260/2280 NVMe M2 SSD.

Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

PS:

• Maximum current for pcie connector is 1A, and voltage is 5V

• If you find that the SSD is not working properly, it is possible that the power supply of SSD is not enough, then you need to check the current requirement of your SSD to decide whether power the SSD separately.

• The X1002 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.

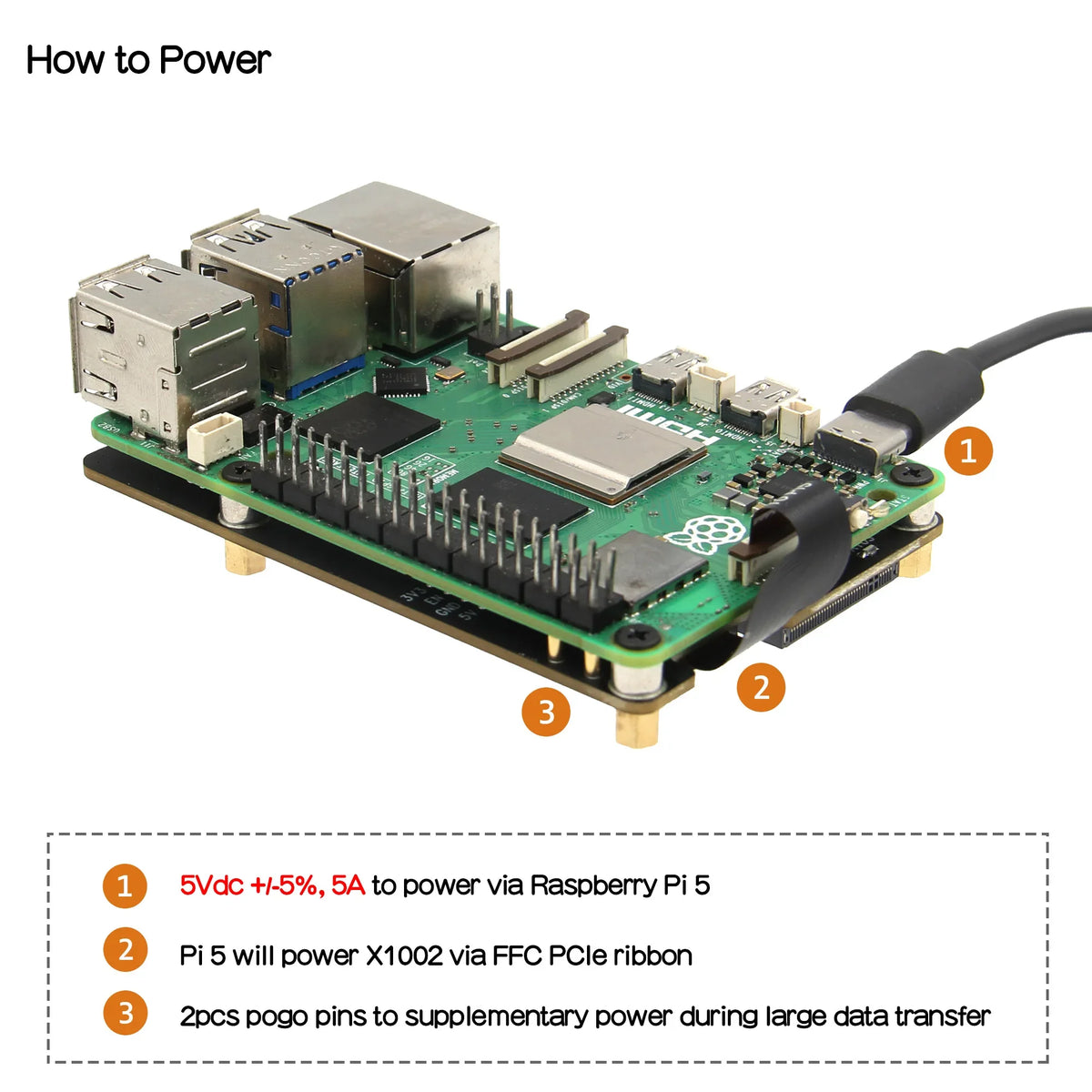

[How to Power]

Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

[Manual]

https://wiki.geekworm.com/X1002

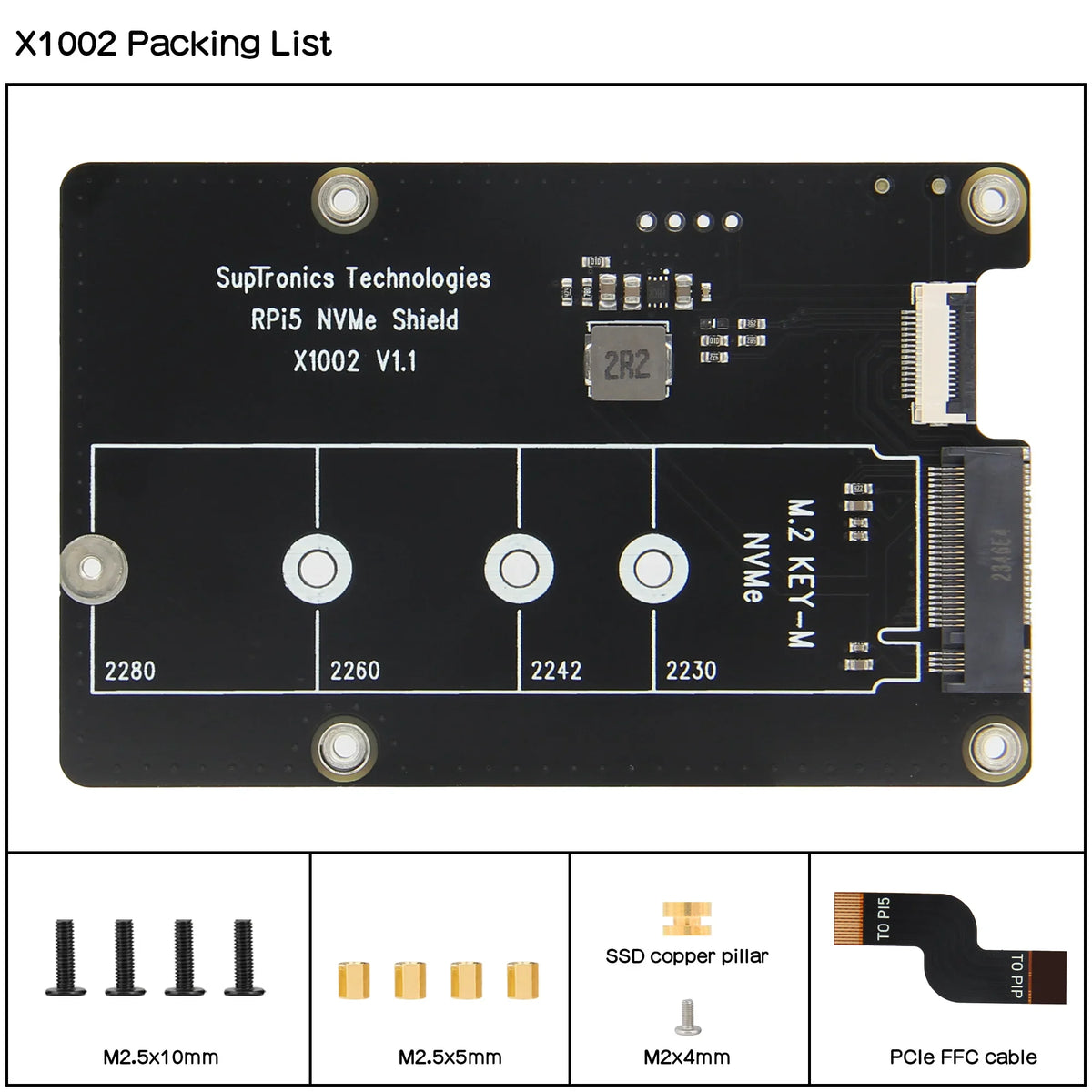

[Packing List]

1 x X1002 NVMe SSD Shield bottom

1 x PCIe FPC Cable

4 x M2.5x5mm F/F Spacers

4 x M2.5x10mm Screws

1 x M2x4mm Screws (to fix NVMe M2 SSD)
