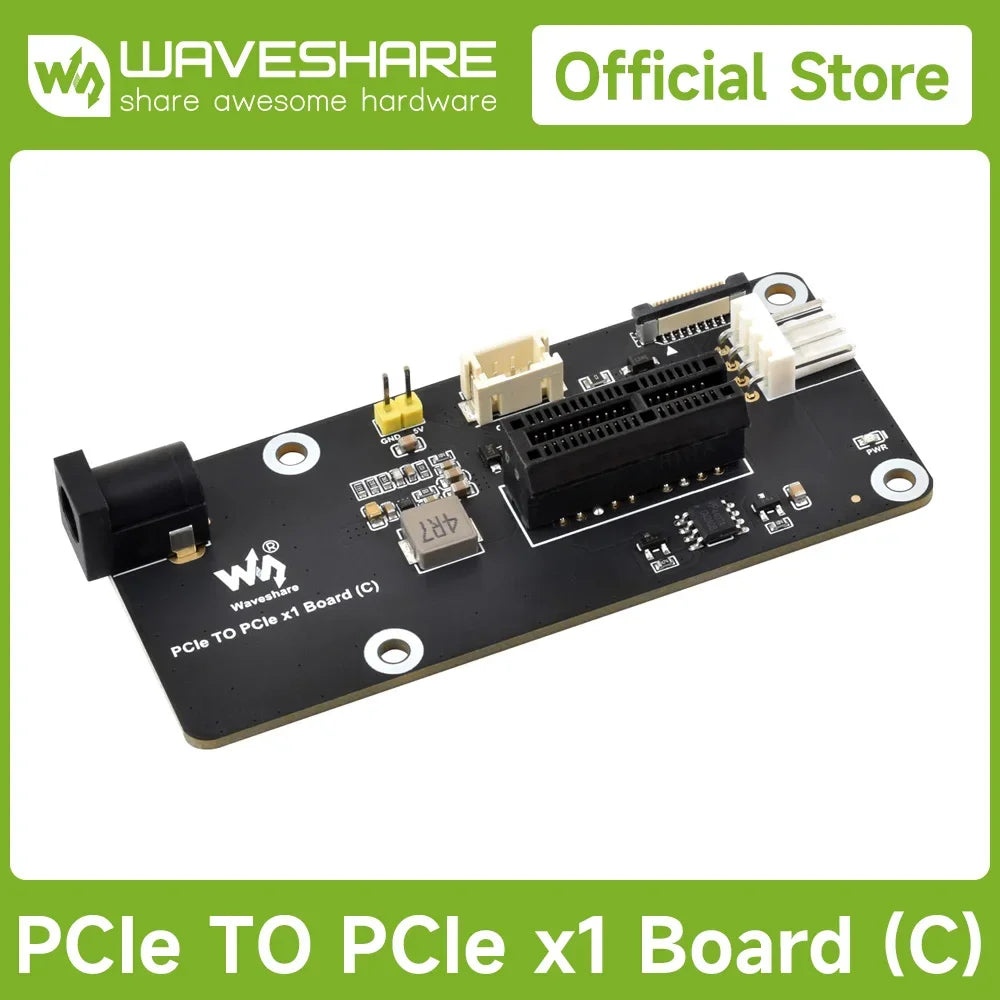

PCIe FFC Connector To Standard PCIe X1 Slot Adapter Board (C) for Raspberry Pi 5, Compatible with PCIe X1, X4, X8, X16 IFD

PCIe FFC Connector To Standard PCIe x1 Slot Adapter Board (C) For Raspberry Pi 5, Compatible With PCIe x1, x4, x8, And x16 Interface Devices

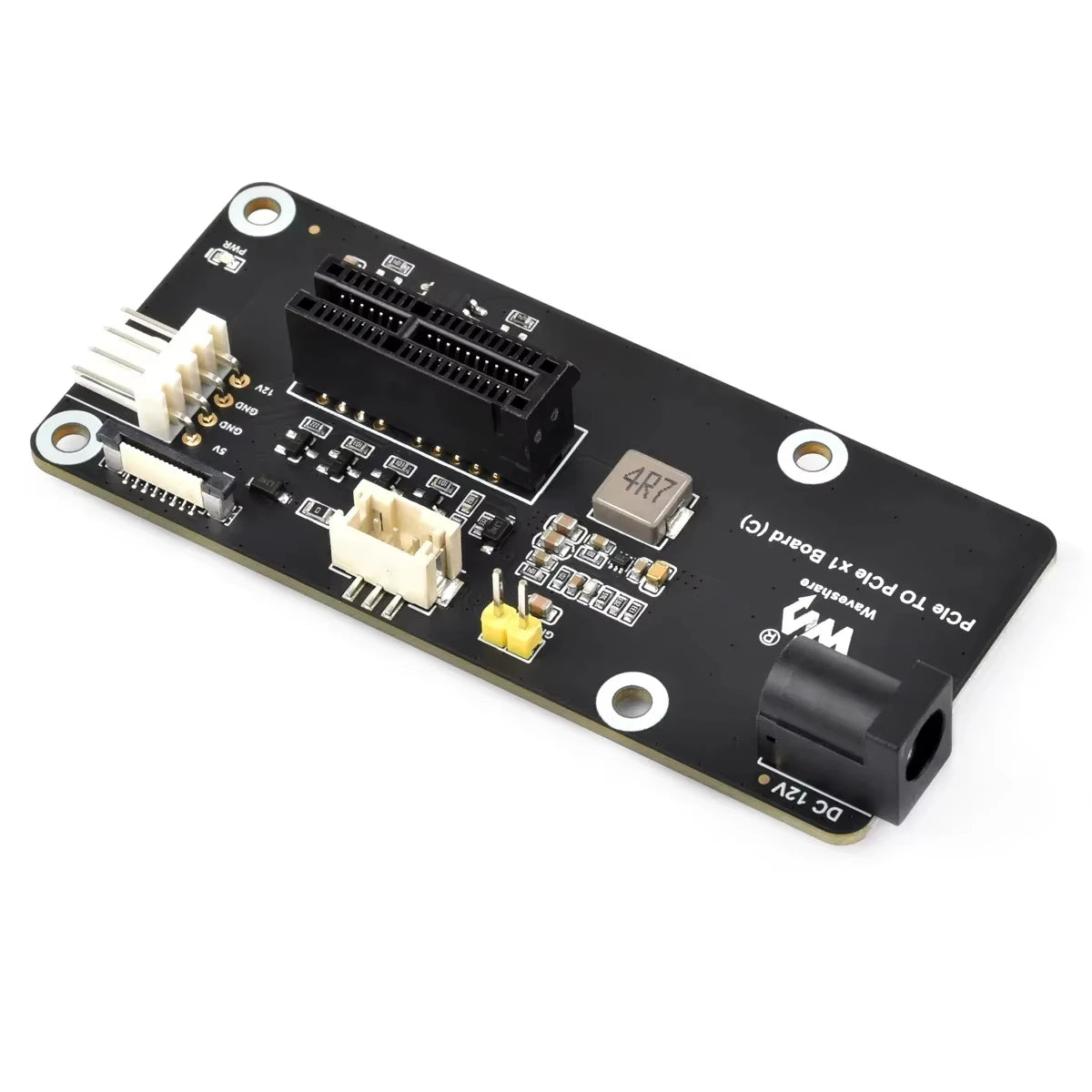

PCIe TO PCIe x1 Board (C)

Designed for Raspberry Pi 5

Compatible With PCIe x1, x4, x8, And x16 Interface Devices

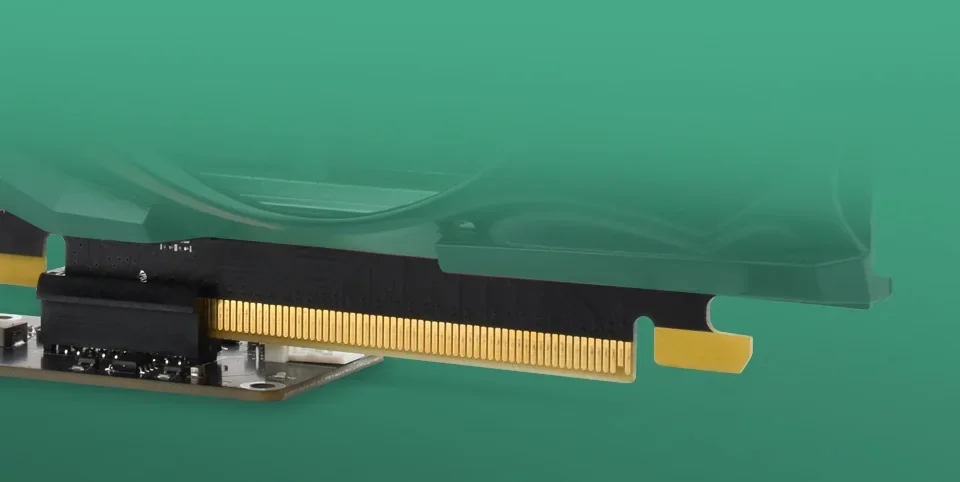

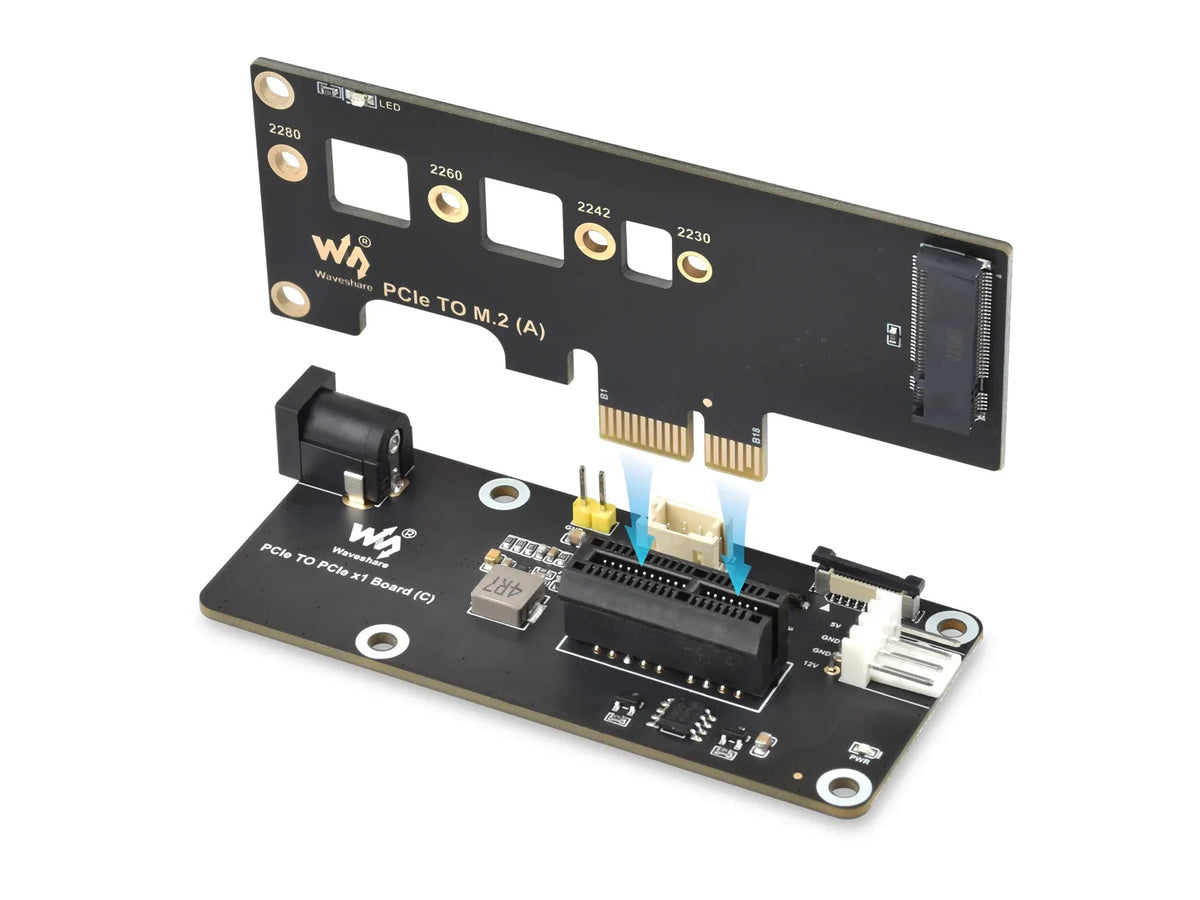

PCIe Connection

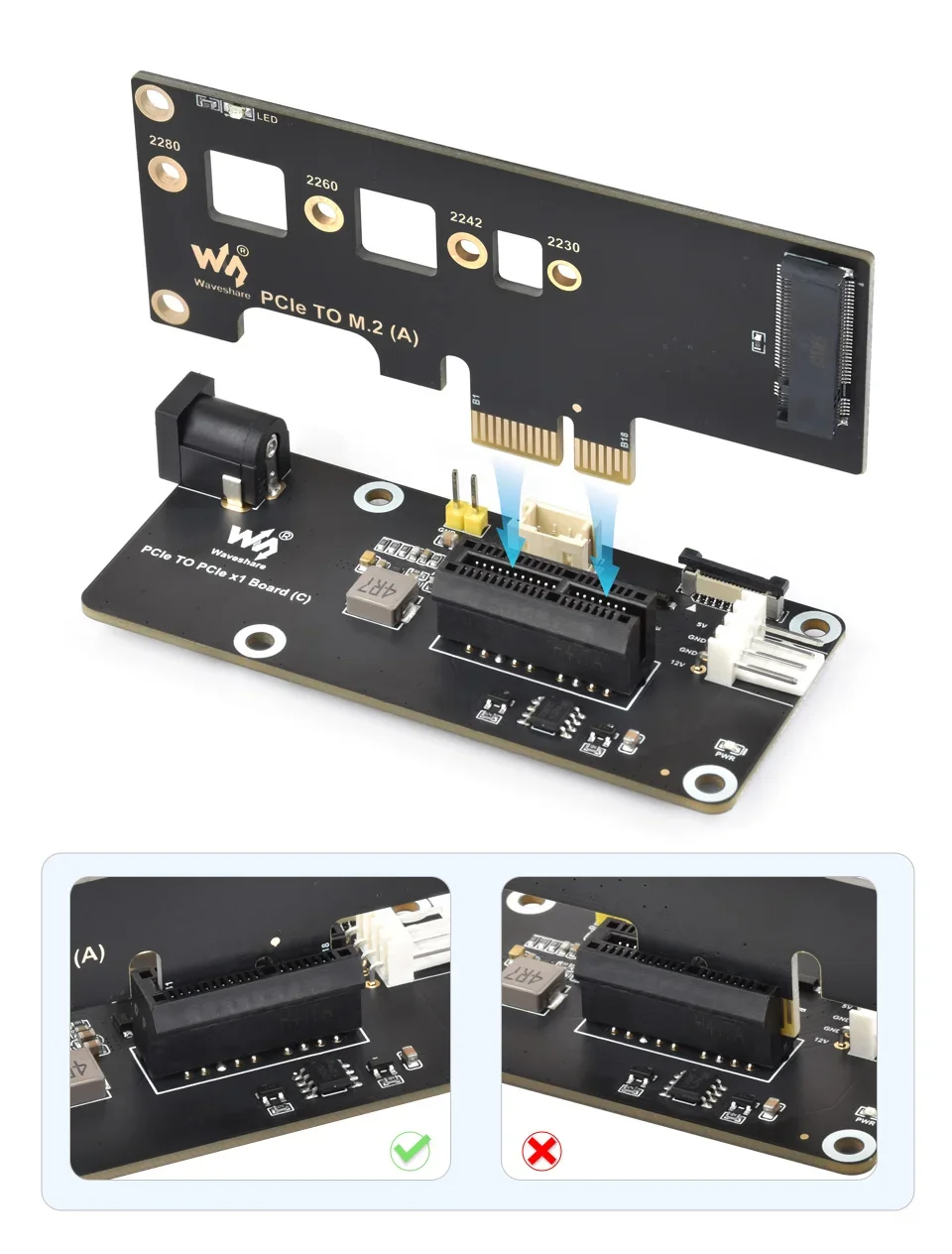

* Note: the PCIe slot can only be connected in one direction as in the picture above.
for reference only, please refer to the Package Content for detailed part list.

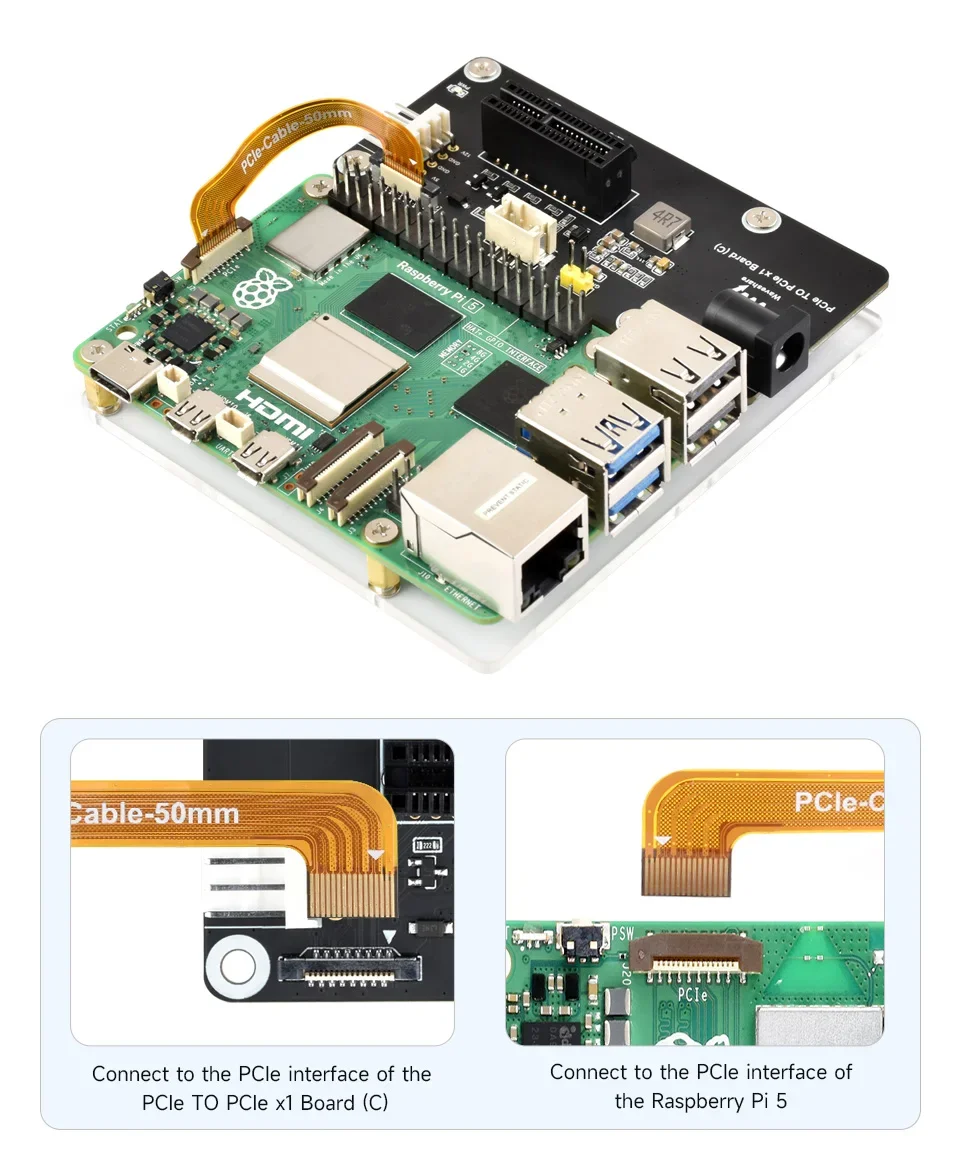

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

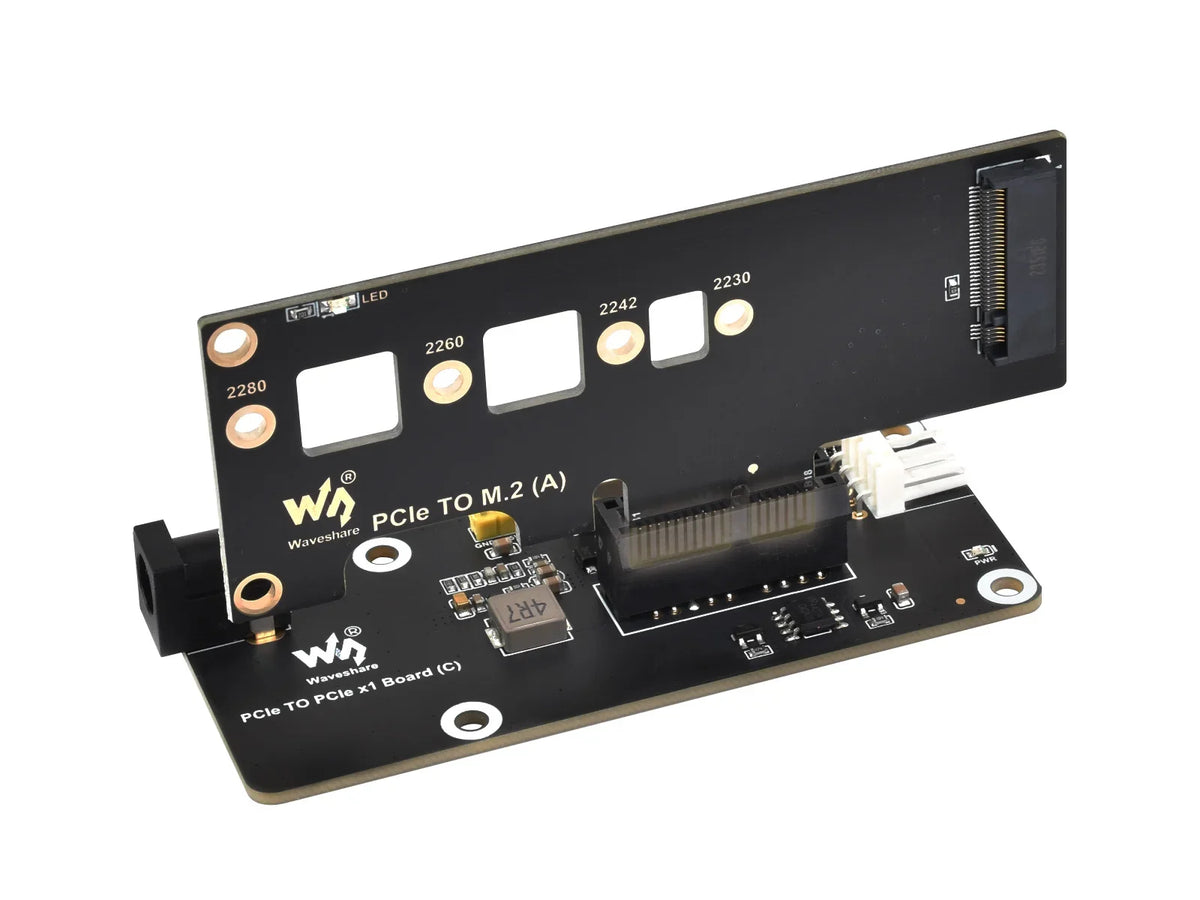

Applicable Interfaces

Onboard PCIe x1 slot, with opening for connecting with PCIe x1 x4 x8 x16 devices

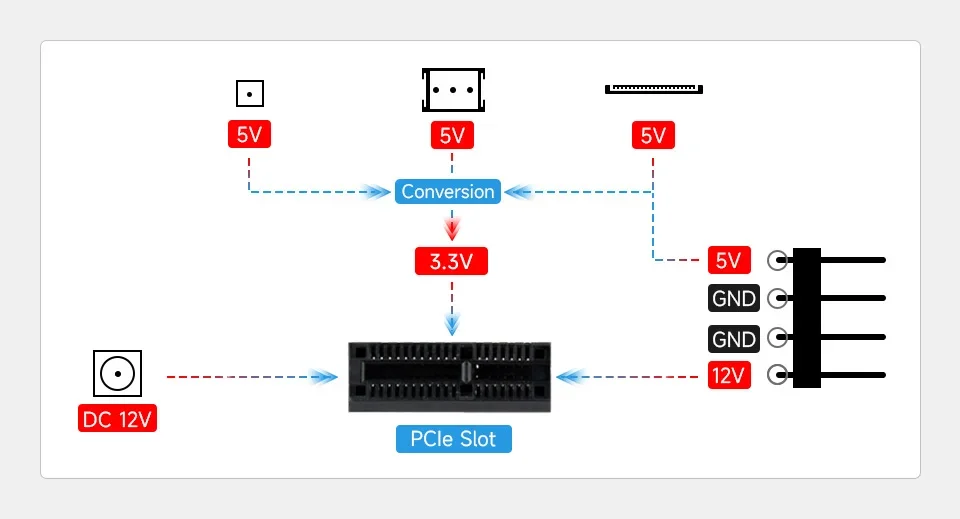

power supply description

The 12V header and DC jack only supply power to the 12V pins of the PCIe slot and do not provide power to the 5V and 3.3V pins

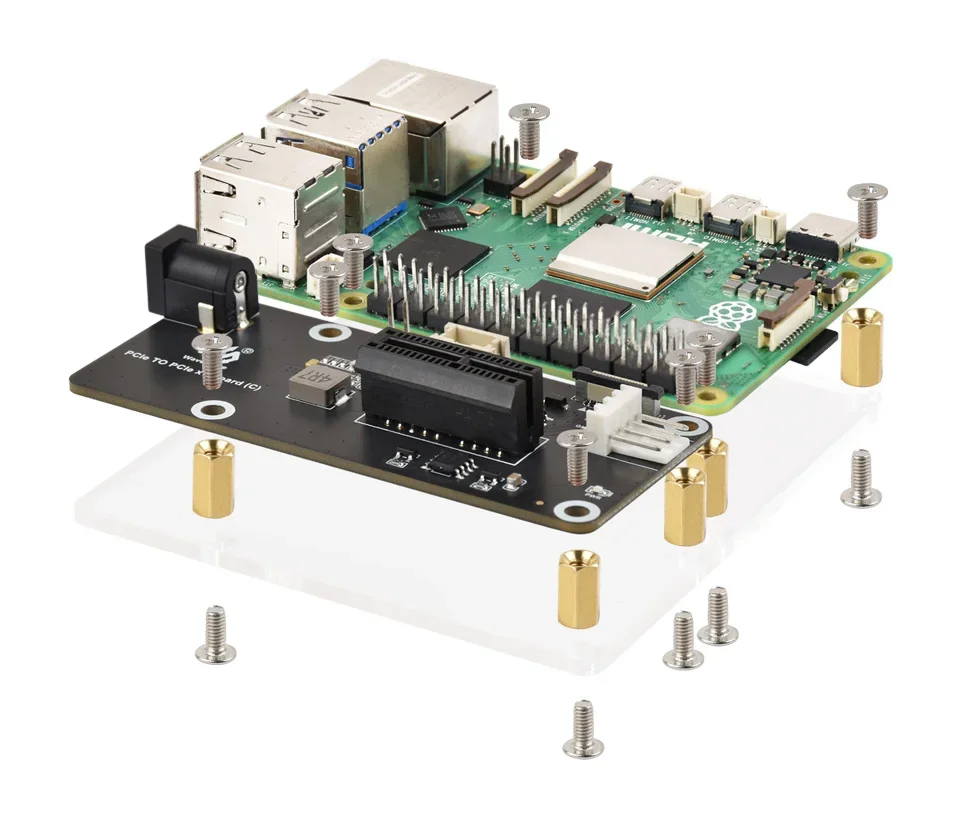

How to install

* for reference only, please refer to the Package Content for detailed part list

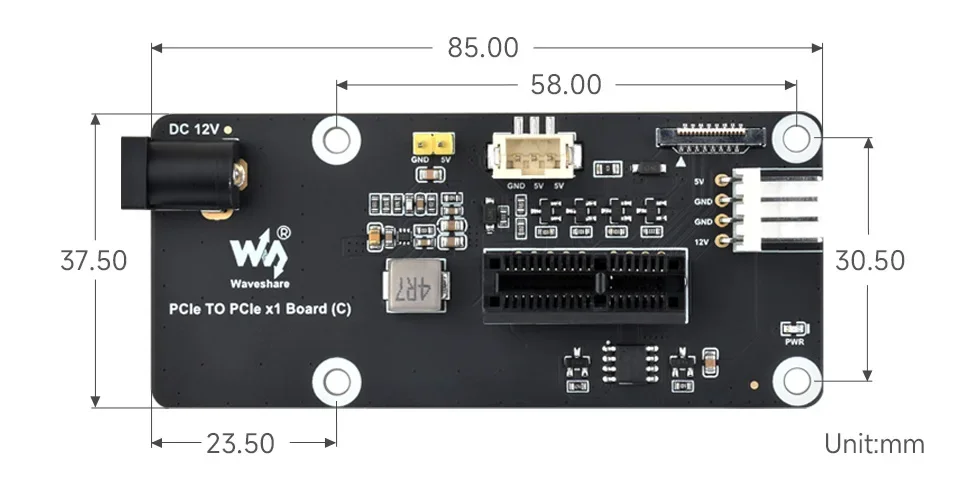

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_PCIe_x1_Board_(C)

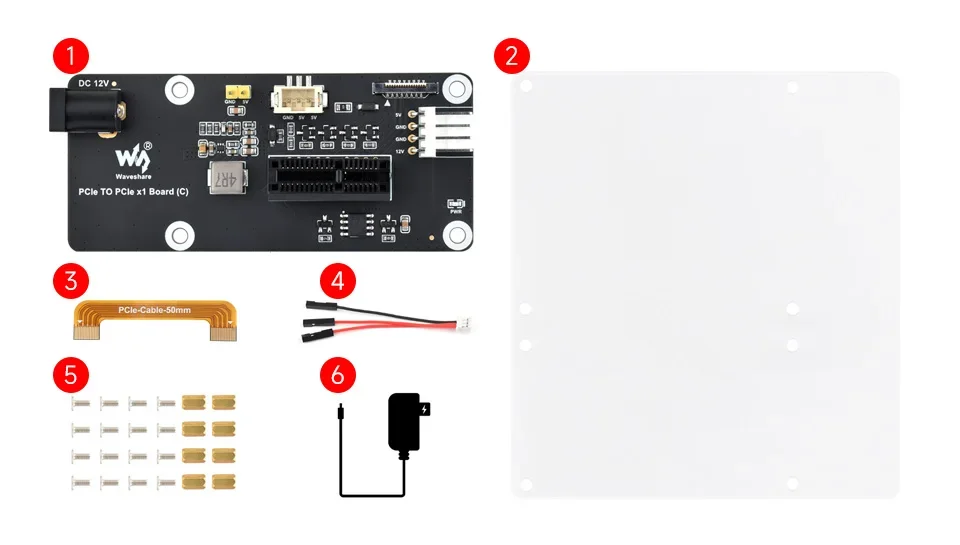

Package Content



1. PCIe TO PCIe x1 Board (C) x1

2. Transparent acrylic mounting plate x1

3. PCIe-Cable-50mm x1

4. PH2.0 3PIN cable x1

5. Screws pack x1

6. OPTIONS 12V 2A power supply x1

Weight: 0.184 kg
