PCB design multilayer PCB PCBA manufacturer Dual BTS7960 43A-H Bridge High-power Motor Driver / Smart Module Manufacturer
PCB design multilayer PCB PCBA manufacturer Dual BTS7960 43A-H Bridge High-power Motor Driver / Smart Module Manufacturer
Regular price
$10.00 USD
Regular price
$10.00 USD
Sale price
$10.00 USD
Unit price
/
per

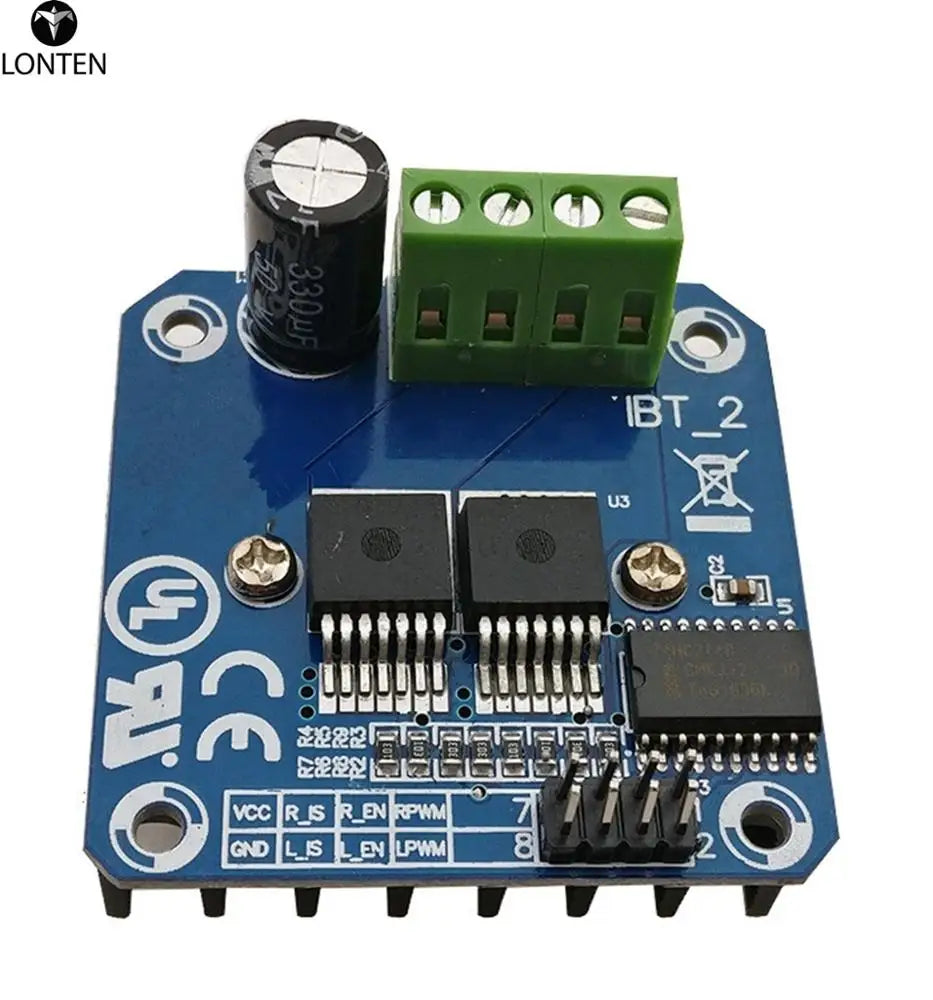

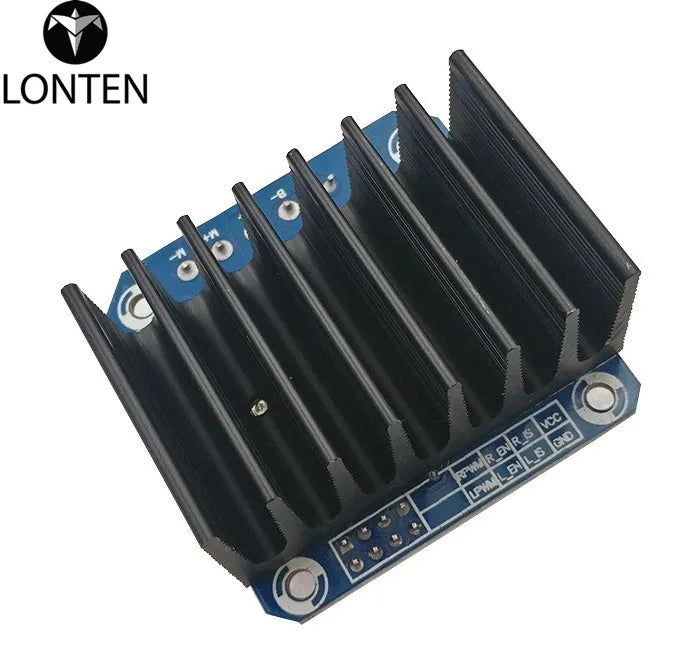

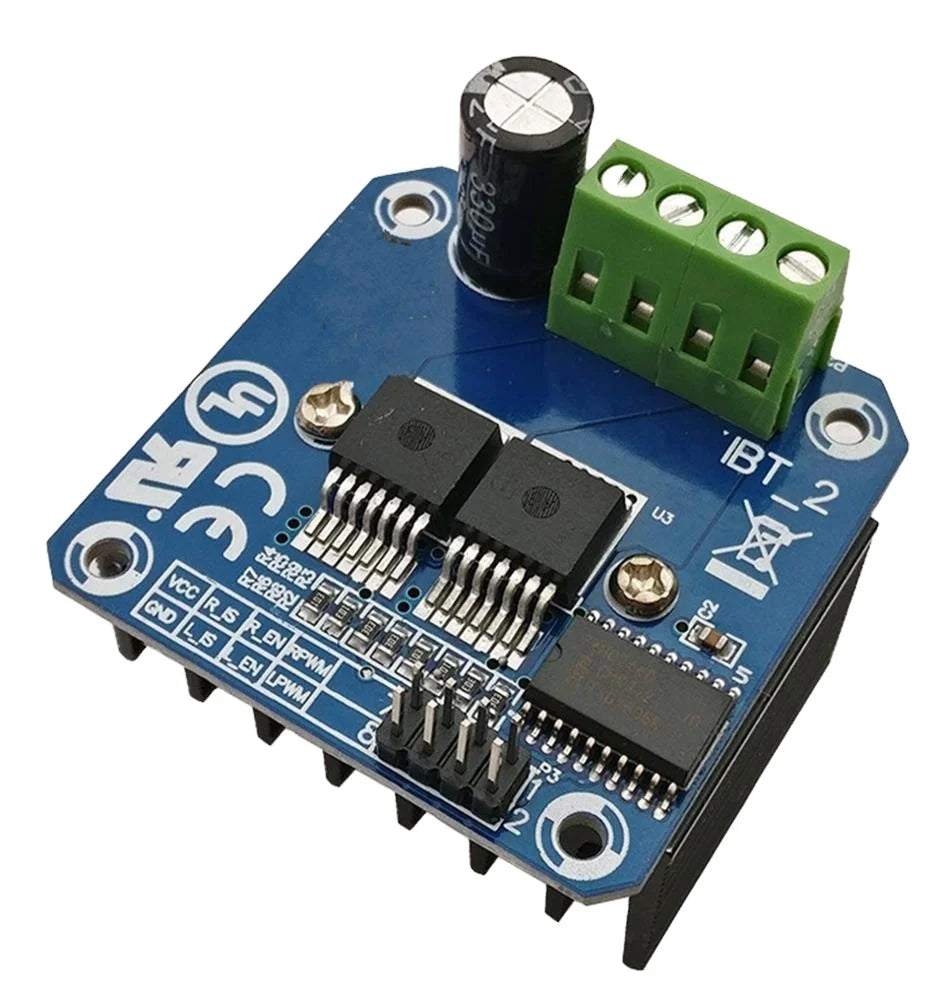

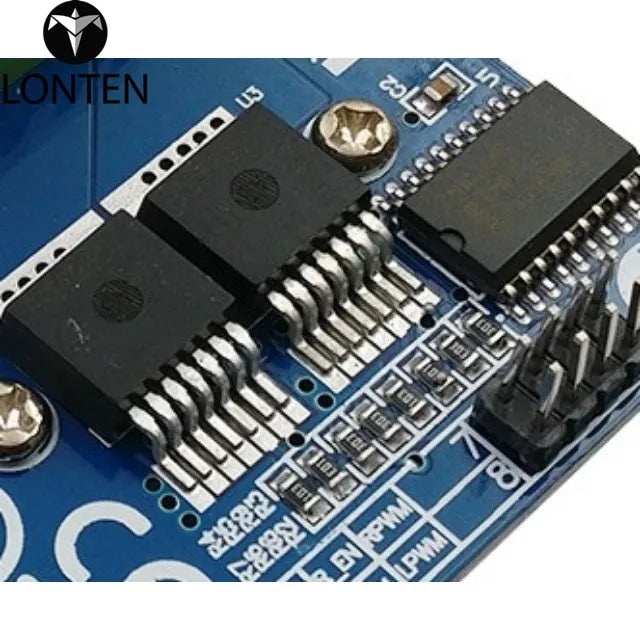

Product Description BTS7960B-H-bridge 43A high-power motor driver Module Overview: This driver uses BTS7960 chipset composed of high-power full-bridge H driver module with thermal over-current protection. BTS7960-H bridge dual circuit driver, with a strong boost and braking, effectively isolate the microcontroller and motor driver! High-current 43A Characteristics: Double BTS7960 large chain (43 A) H driver bridge; 5 v isolate with MCU, and effectively protect MCU; 5 v onboard power indicator; Indication of the output voltage of the final motor driver; Can weld heat sink; PIN setting: 1. RPWM: Turn Right PWM 2. LPWM: Turn Left PWM 3. R_EN: Turn Right Enable (High Active) 4. L_EN: Turn Left Enable (High Active) 5. R_IS: Turn Right Current Warning (May Leave Floating) 6. L_IS: Turn Left Left Notice (May Leave Floating) 7. VCC: (5 v) 8. GND connection: method 1: VCC: 5 V Microcontroller (MCU) GND: GND of the microcontroller (MCU) L_PWM: PWM or 5 V microcontroller (MCU) for CCW (CW) conversion R_PWM: PWM or 5 V microcontroller (MCU) for CW (CCW) conversion R_EN and L_EN: 5 V microcontroller (MCU) Method 2: VCC: 5 V Microcontroller (MCU) GND: GND of the microcontroller (MCU) L_PWM: 5 V microcontroller (MCU) for CCW (CW) conversion R_PWM: 5 V microcontroller (MCU) for CW (CCW) conversion R_EN and L_EN: Microcontroller PWM (MCU) The driver module only needs four rows of MCUs (GND 5 v.PWM1, PWM2); Insulated chip 5v power supply (can share 5v with MCU); Size: 4 * 5 * 1.2 cm; Ability to reverse motor forward with two input PWM frequencies up to 25 kHz; Two heat current outputs pass the error signal; Isolation of 5V chip power supply (can share 5V with MCU), can also use 5V onboard power supply; Supply voltage 5.5 V to 27 V; |
||||||||
