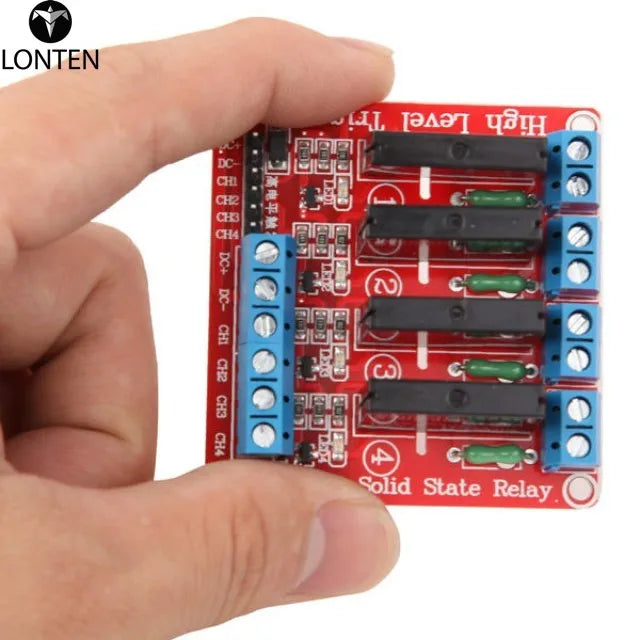

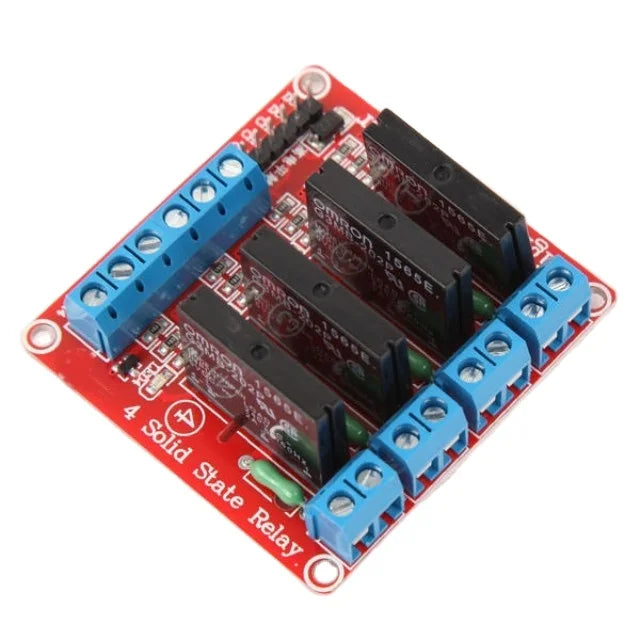

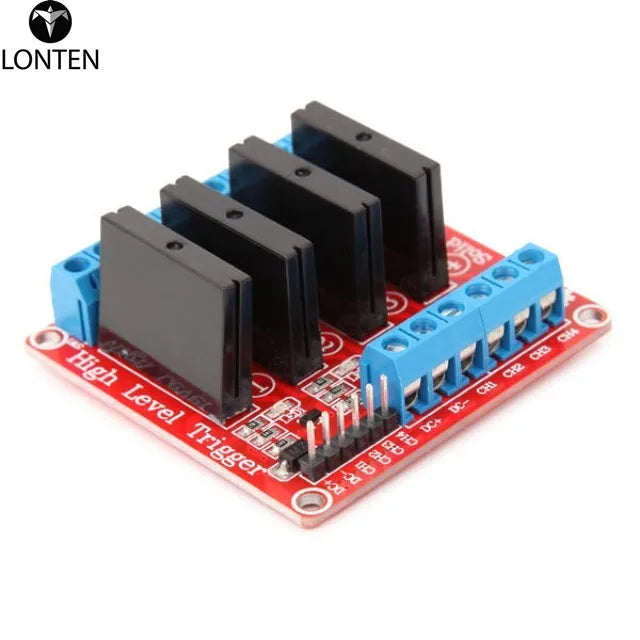

Custom pcb assembly and remote control circuit board 94v0 pcb boards maker 5v 4ch 4 way Solid State Relay Module Manufacturer

Description:

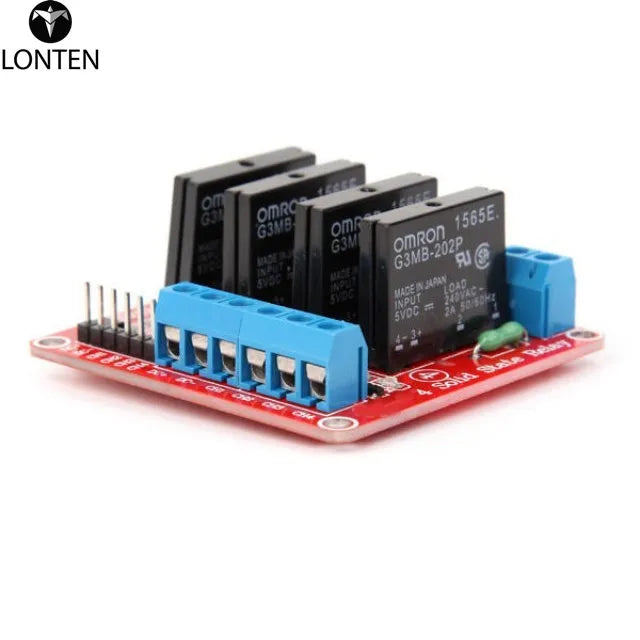

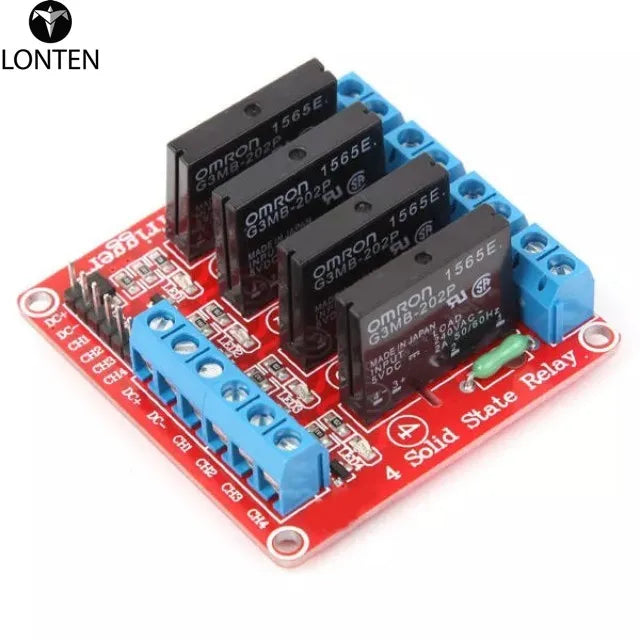

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
Dimensions: 57x55x25 (length x width x height)
Input Power: 5VDC
Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)

Feature:

Voltage:5V
Quiescent current: 0 mA
Operating current: 12.5mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA
DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (high to trigger active)
CH2: relay module signal triggering end (high to trigger active)
CH3: relay module signal triggering end (high to trigger active)
CH4: relay module signal triggering end (high to trigger active)
