NVIDIA Jetson Xavier NX Metal Case with Power & Reset Switch +M.2 NGFF Card Dual Band WiFi Antenna Kit customize

Note: not include NVIDIA Jetson Xavier NX board.



Overview：

• The Geekworm N100 case can also be used for install the NVIDIA Jetson Xavier NX developer kit, but you will need these extra 2pcs WiFi Antenna with IPEX MHF4 to RP SMA Female Extension Cable. To use this WiFi antenna, it need to remove the buttom holder of NVIDIA Jetson Xavier NX.

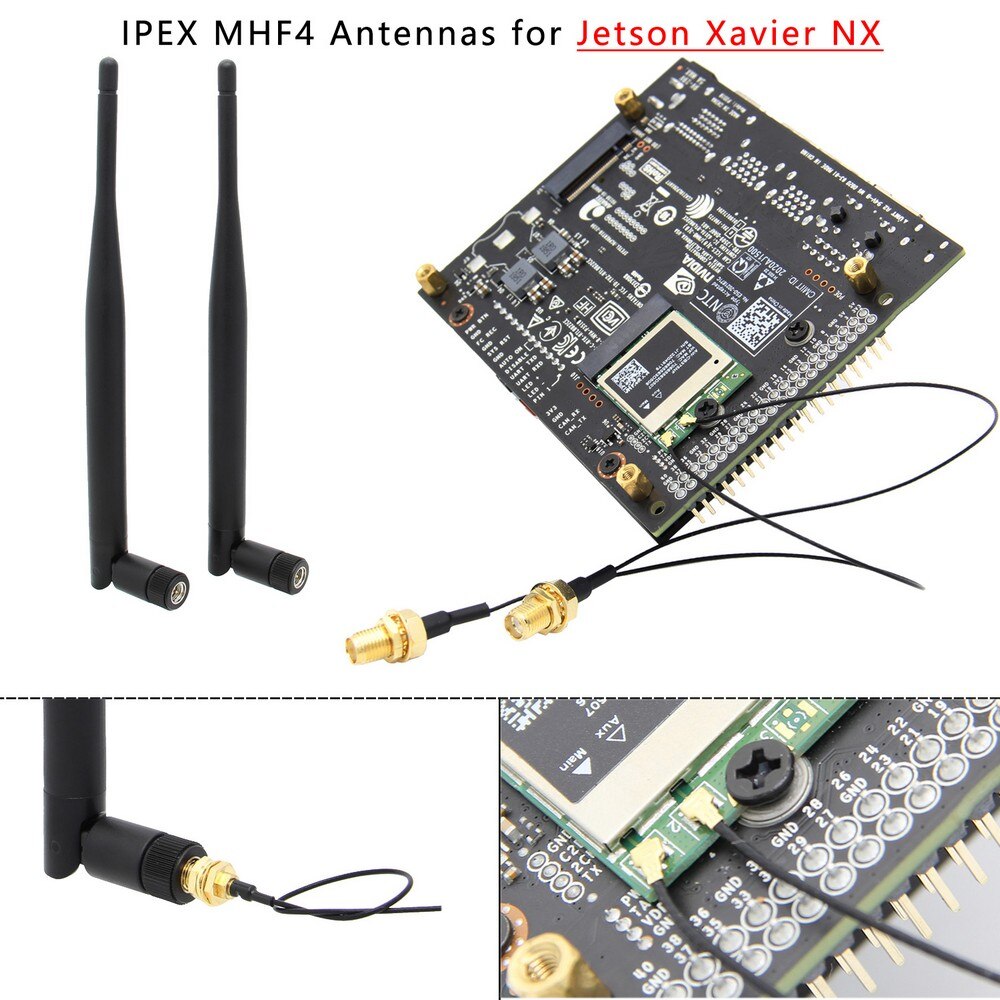

• This is a WiFi Antenna with IPEX MHF4 to RP SMA Female Extension Cable which can be used for NVIDIA Jetson Xavier NX developer kit. To use this WiFi antenna, it need to remove the buttom holder of NVIDIA Jetson Xavier NX.

WiKi：https://raspberrypiwiki.com/N100

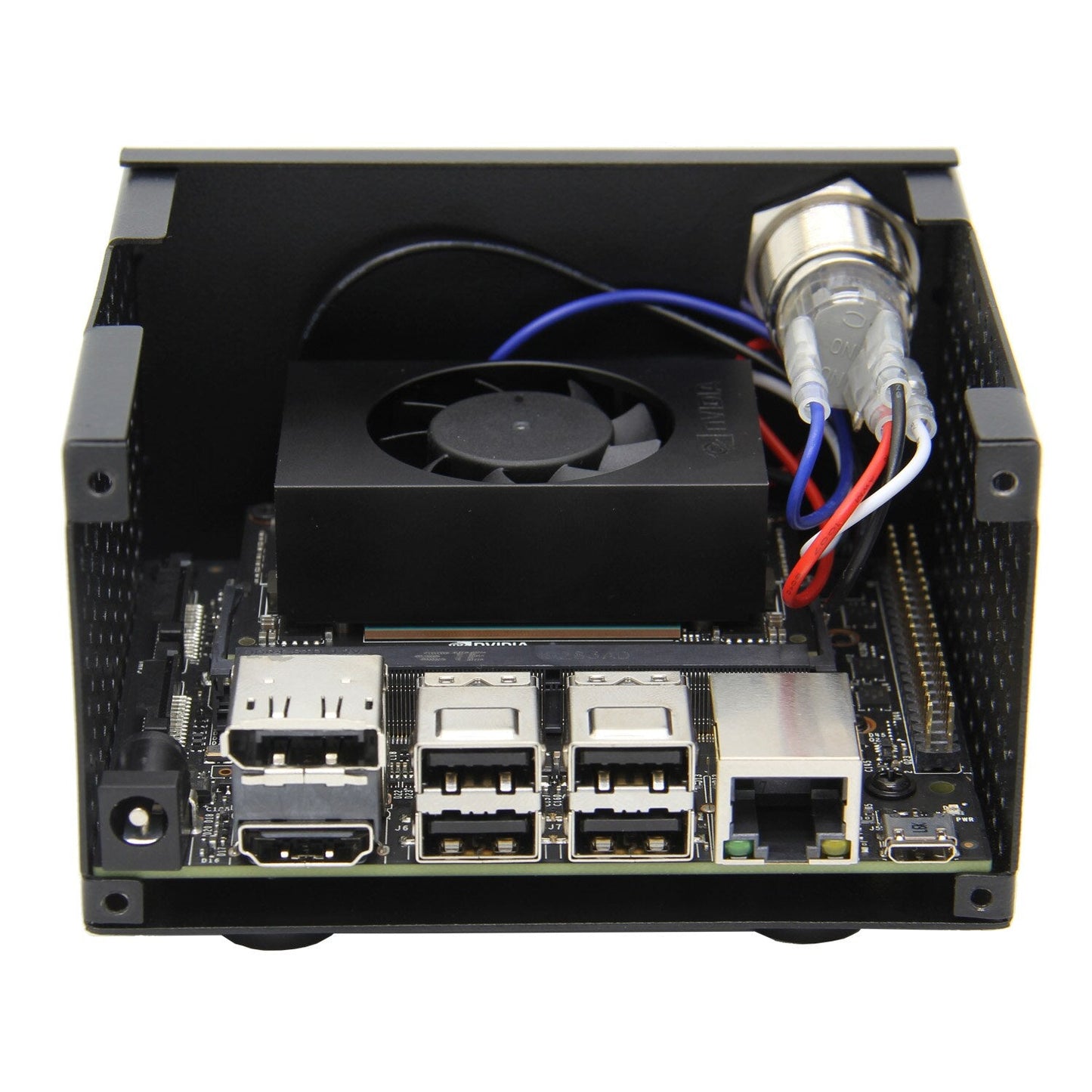

N100 case Key Features:

• Compatible with NVIDIA Jetson Xavier NX Development Board;

• With power switch and Reset switch, it is convenient to start with one button;

• The power switch has an LED light display;

• The reset switch is placed on the back to prevent accidental touch;

• Support fan installation, reserve 22mm high fan installation height; easy to install the official recommended fan;

• The antenna hole is reserved to facilitate the arrangement of the external antenna;

• Easy to install;

Antenna Key Features：

• 6 dBi WiFi Antenna

• Antenna Information

• Frequency: 2.4GHz, 5.8GHz

• Length of Antenna: 6.69 inch(17cm)

• SMA Type of Antenna: RP-SMA Male(Hole in Center)

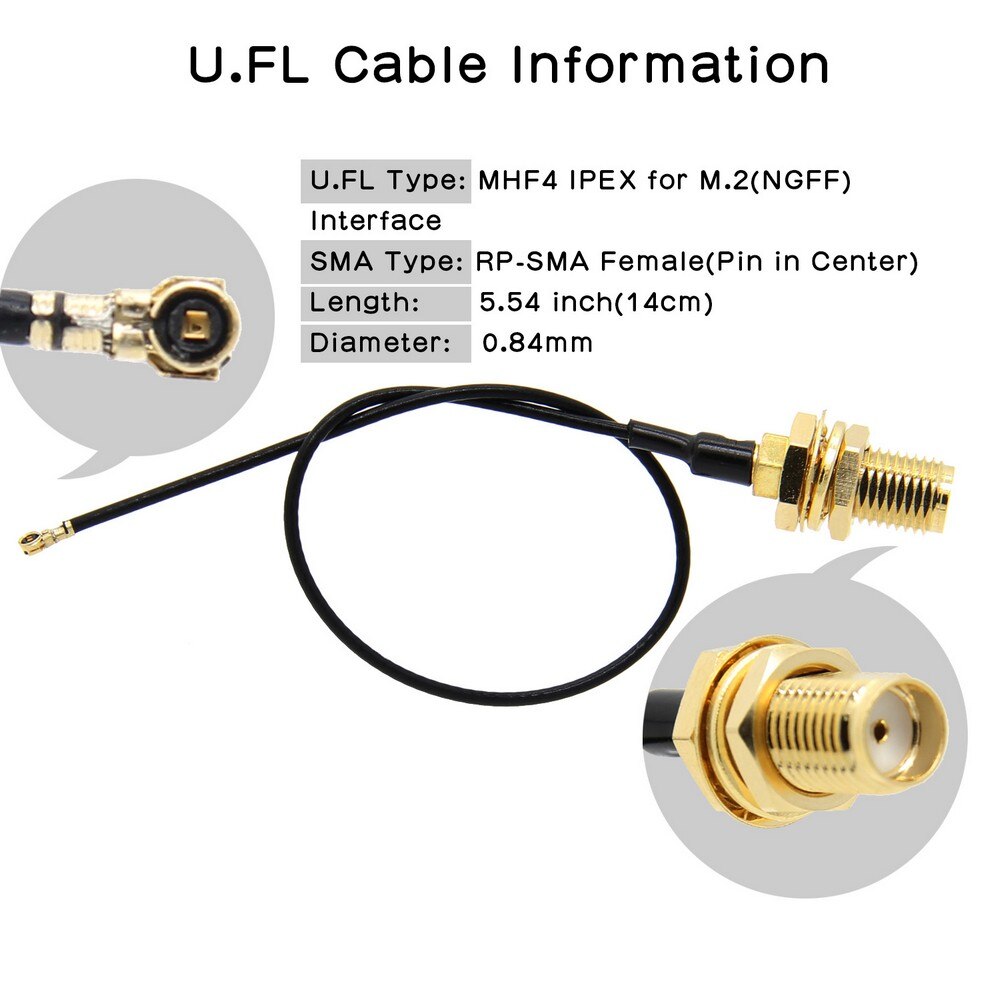

• U.FL Cable Information

• U.FL Type: MHF4 IPEX for M.2(NGFF) Interface

• SMA Type: RP-SMA Female(Pin in Center)

• Length: 5.7 inch(14.5cm)

• Diameter: 0.84mm

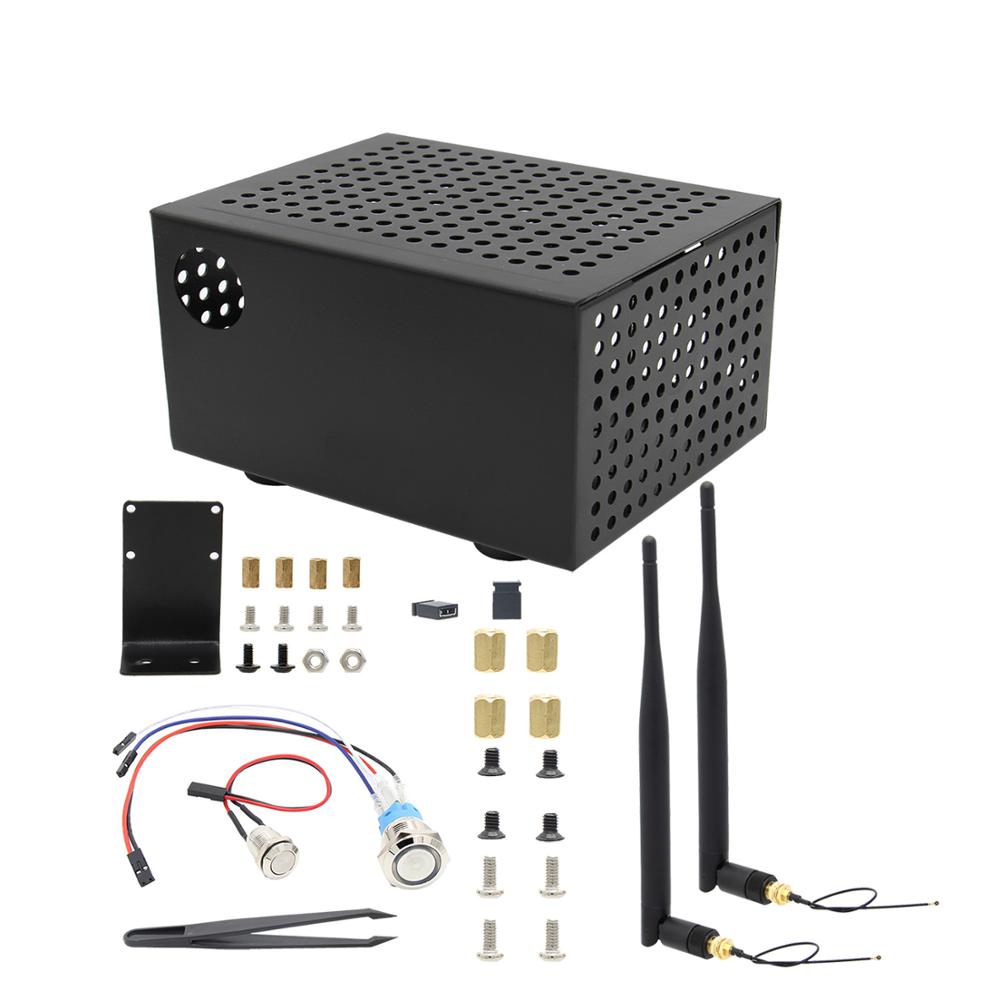

Packing List：

N100 Case

• 1 x Metal Case for NVIDIA Jetson Nano Board

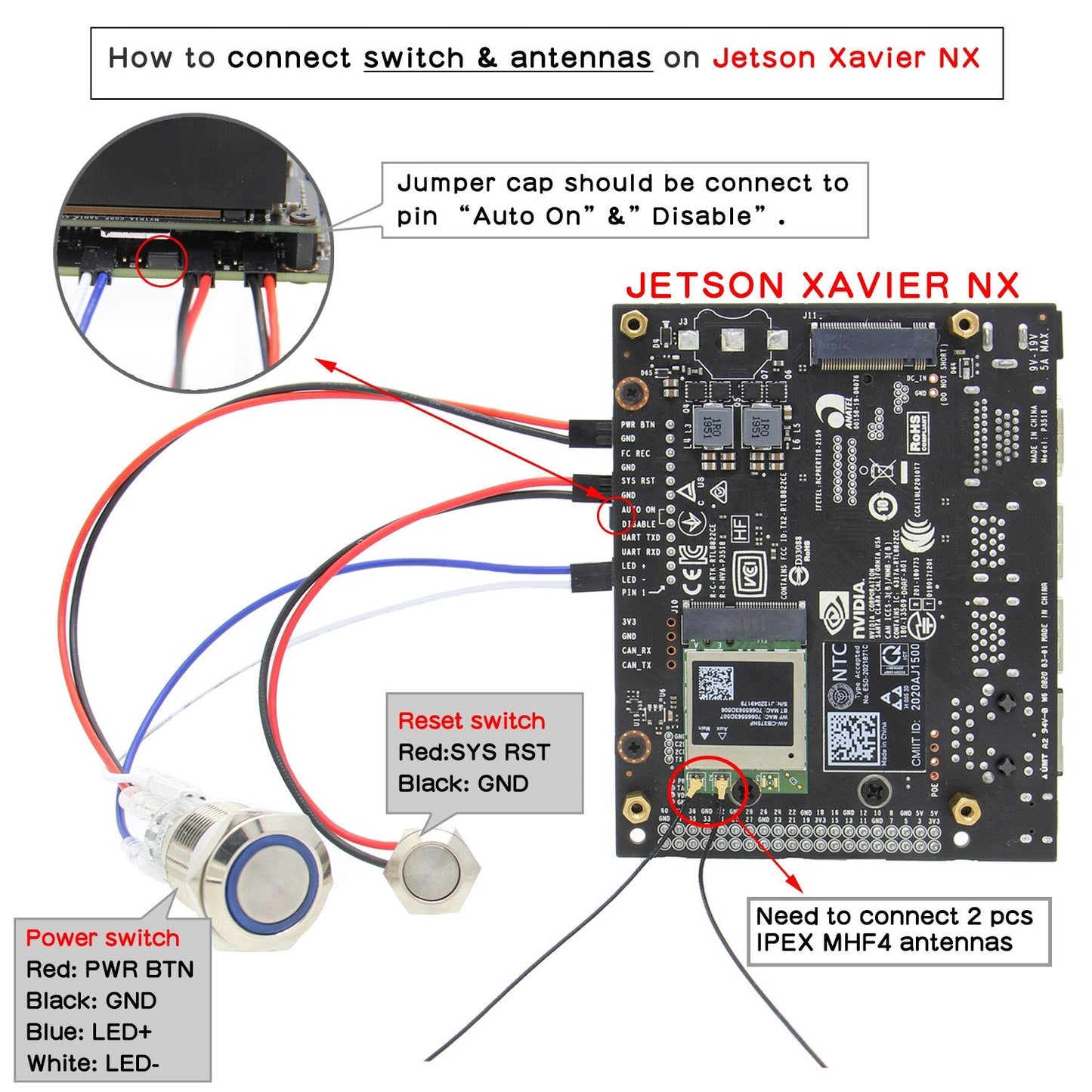

• 1 x Power Switch(Momentary switch, power on the board)

• 1 x Reset Switch (Momentary switch, reset the board)

• 2 x Jumper (Disabled the AUTO ON, and toggle the power supply between Micro USB and DC Jack)

• 1 x Screws Pack

• 1 x ABS Tweezers (It is useful when you install a fan only)

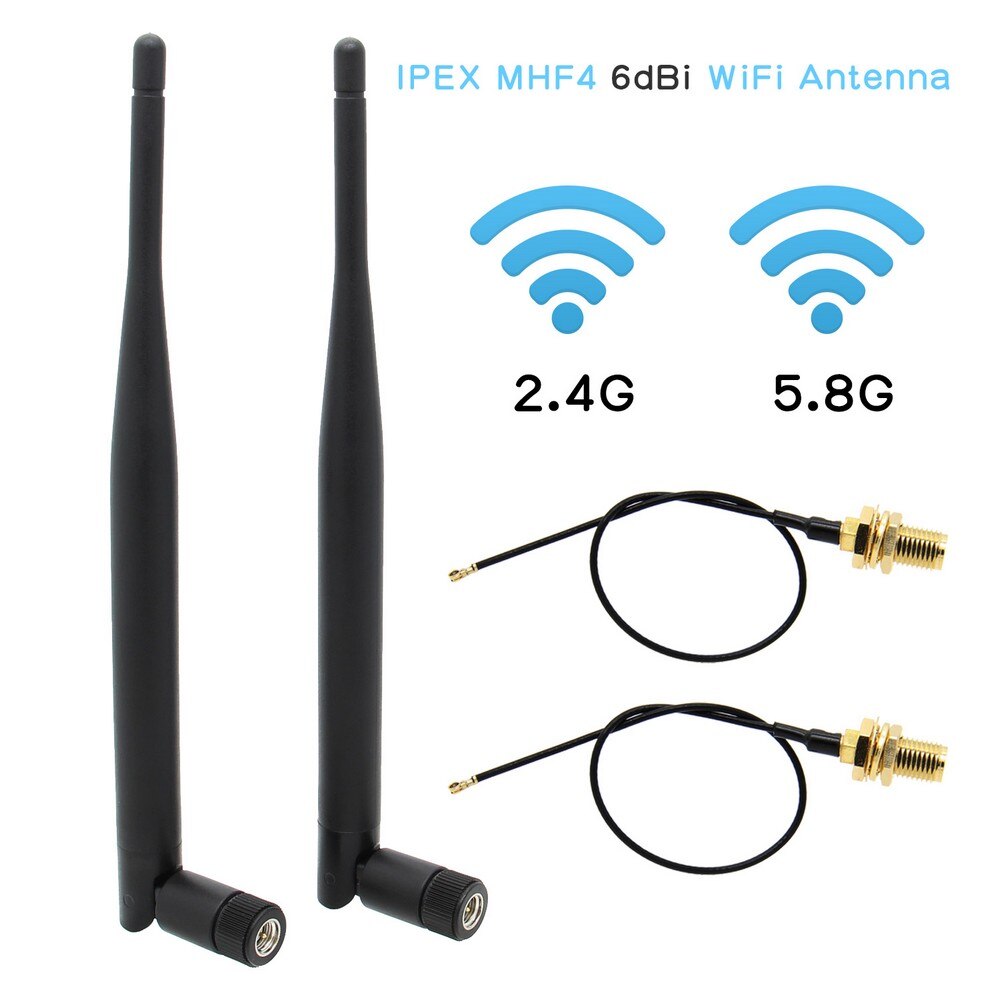

6 dBi WiFi Antenna

• 2 x 6dBi RP-SMA male (Hole in Center) Antenna for 2.4GHz 5.8GHz. 6.69 inch(17cm)

• 2 x M.2(NGFF) U.FL to RP-SMA Female connector cable. 5.7 inch(14.5cm)

 Welcome Customize Order!
