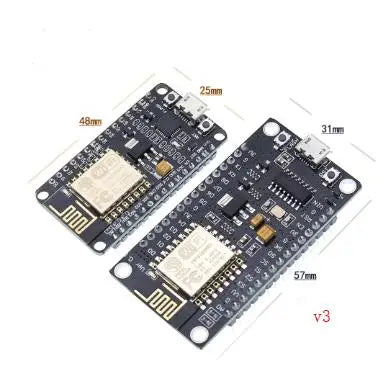

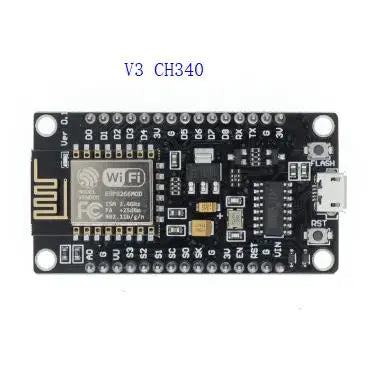

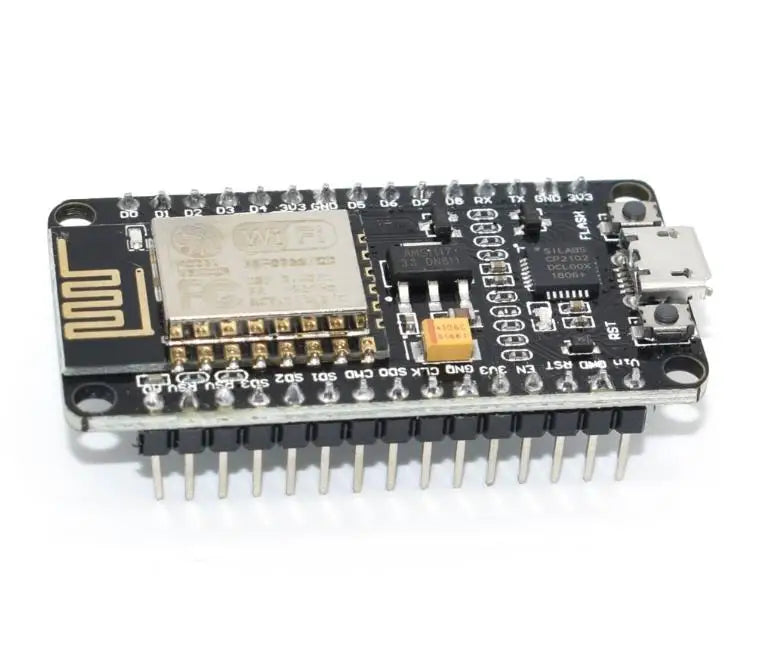

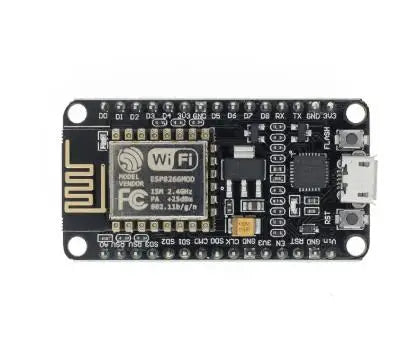

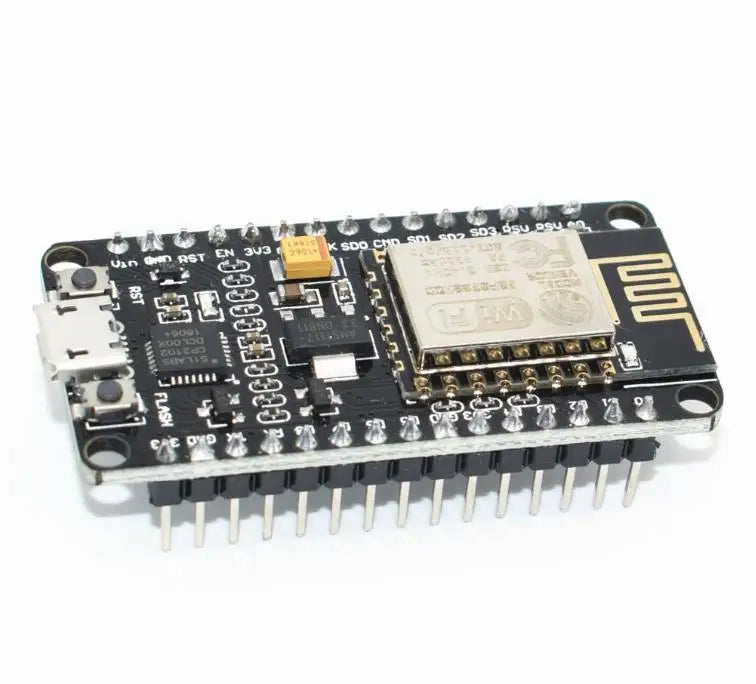

Custom NodeMcu CH340/CP2102 V3 V2 Lua WIFI development board based ESP8266 module ESP32 ESP-32 Development Board Manufacturer

Custom NodeMcu CH340/CP2102 V3 V2 Lua WIFI development board based ESP8266 module ESP32 ESP-32 Development Board Manufacturer

Regular price $1.20 USD
Regular price $1.20 USD Sale price $1.20 USD
Sale Sold out
Supplier Type

Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.



esp-01.jpgesp-01S.jpgESP07.jpgesp-07.jpgesp-12E.jpgesp-12F.jpg2.jpg3.jpg33.jpg44.jpg55.jpg

Item specifics
  • Condition:New
  • Supply Voltage:standard
  • Dissipation Power:standard
  • Operating Temperature:-40-+85
  • Model Number:NodeMCU ESP-12E
  • is_customized:Yes
  • Type:WIFI
  • Application:NodeMCU
  • Package:Mode
Product Description

Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
Code like ard--uino, but interactively in Lua script.
Nodejs style network API
Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.
Greatly speed up your IOT application developing process.

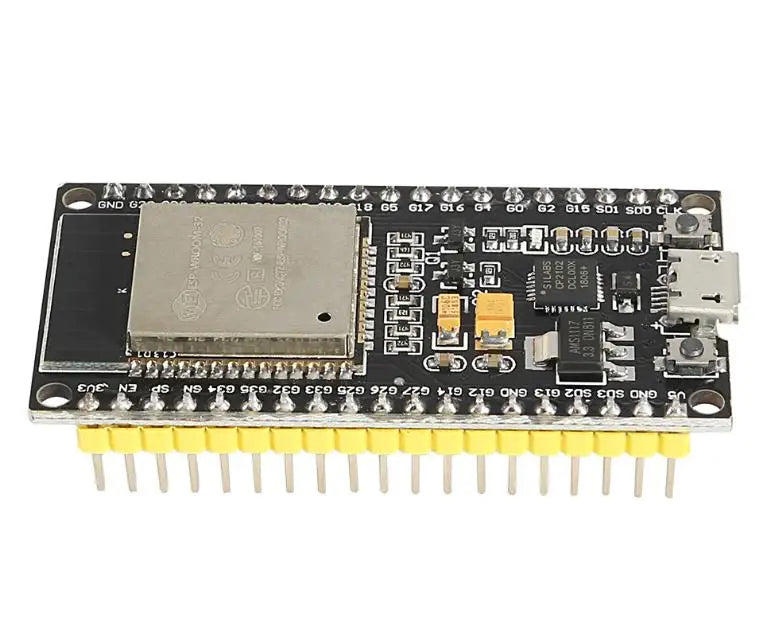

Introduction:
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,
and power management module. The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi chips by TSMC 40nm low power technology,
power and RF properties best, which is safe, reliable, and scalable to a variety of applications.

Features:
High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop

  • ESP-07

    Model:ESP8266
    ISM 2.4GHz
    PA +25dBm
    802.11b/g/n

    Warnings:
    1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
    2.It is not 5V tolant,Connect RX or TX on 5V FOR Arduino will destroy this module.
    3.You must use a logic level converter, or a 3.3V FOR Arduino
    4.The 3.3V supply on the FOR Arduino Uno has inadequate current capabilit to power this module.

    5.You must provide a separate,higher 3.3V supply(about 300mA or better)




    ESP-12F
    ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification , Have been greatly improved! For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient, More extensive!
    Standards Certification: FCC / CE / TELEC

    Wireless standards: 802.11 b / g / n

    Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

    Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM

    Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)

    Working Current: Average: 80mA

    Operating temperature: -40 ° ~ 125 °

    Storage temperature: Nomal temperature









    ESP-12E

    Model:ESP8266-12
    ISM 2.4GHz
    PA +25dBm
    802.11b/g/n
    Warnings:

    1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.

    2.It is not 5V tolant,Connect RX or TX on 5V FOR Arduino will destroy this module.

    3.You must use a logic level converter, or a 3.3V FOR Arduino

    4.The 3.3V supply on the FOR Arduino Uno has inadequate current capabilit to power this
    module.

    5.You must provide a separate,higher 3.3V supply(about 300mA or better)























Packaging Details
  • Unit Type:piece
  • Package Weight:0.08kg (0.18lb.)
  • Package Size:5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
 Welcome Customize Order!
