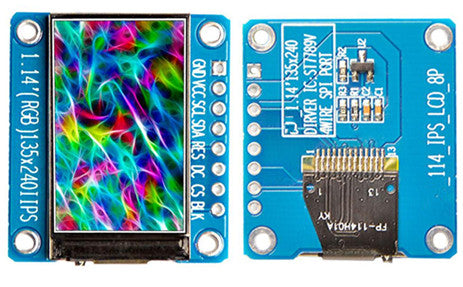

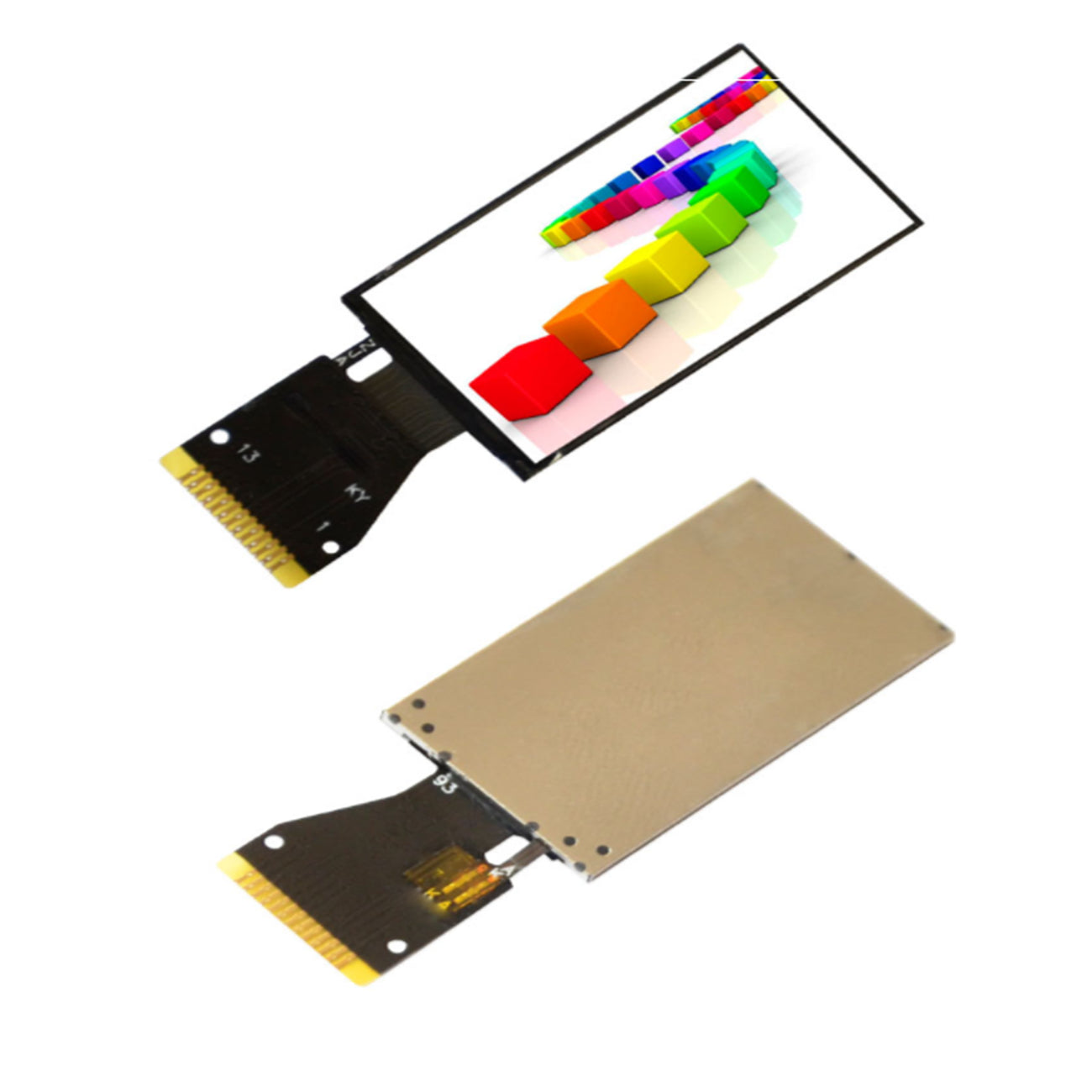

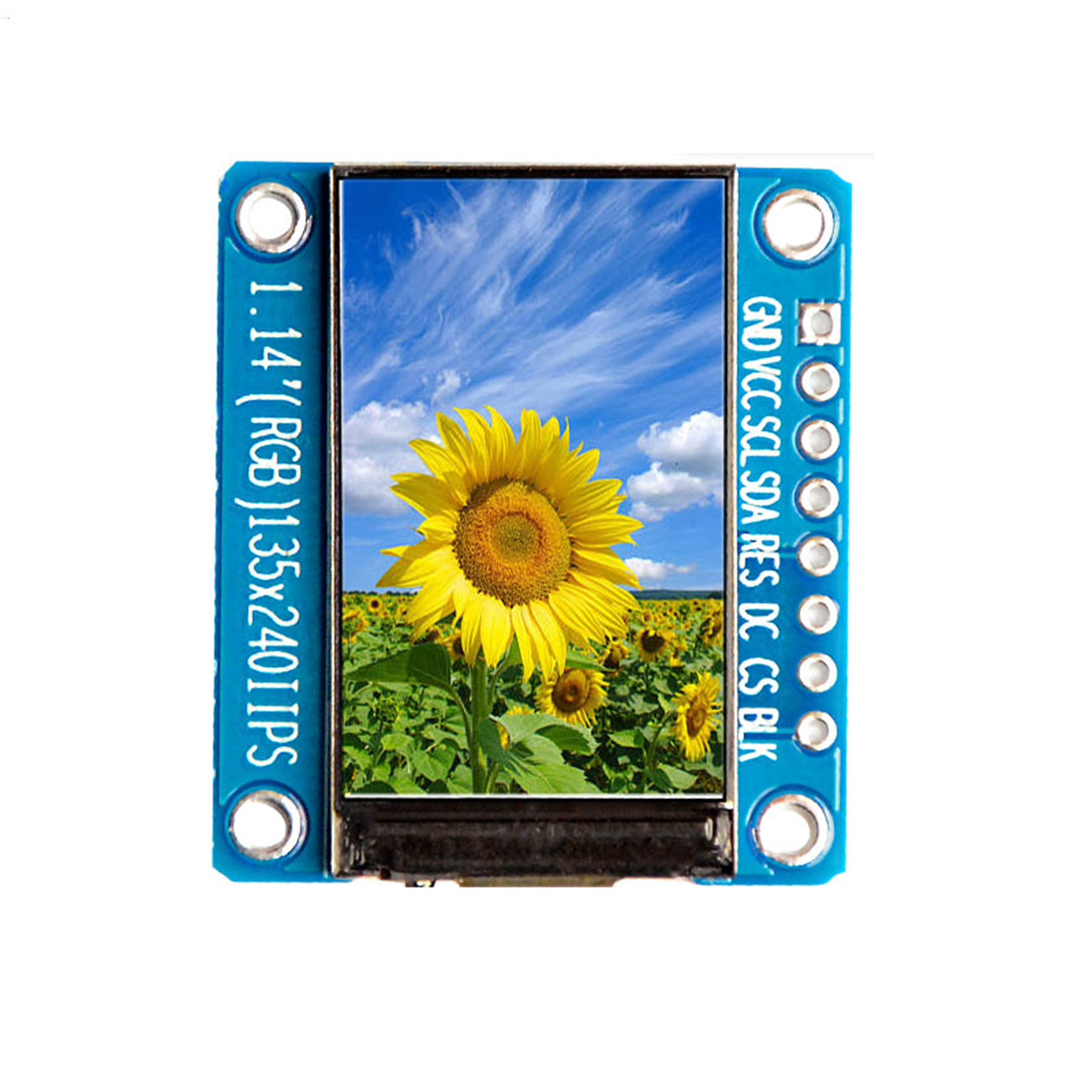

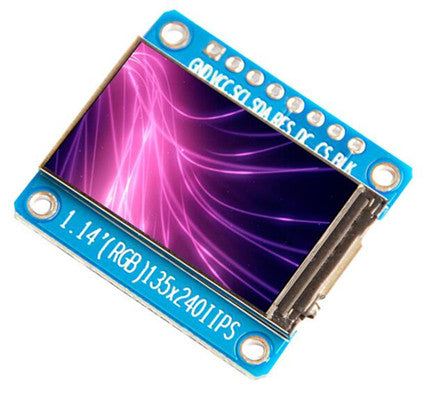

New IPS 1.14 inch 3.3V 8PIN SPI HD Full Color TFT Display Screen ST7789 Drive IC 135*240 Custom

1.14 inch TFT Display Screen



Parameter

1. LCD Size: 1.14 inches

2. Dot Matrix Size: 135*240 (Display direction can be adjusted, horizontal screen and vertical screen are ok)

3. LCD Color: Full Color

4. Hardware Interface: 4-Wire SPI interface

5. Driver IC: ST7789

6. Operating Temperature: -20 - 70

8. Working Power Supply: 3.3V

9. PIN NO.: 8P

10. Display Area: 14.864*24.912mm

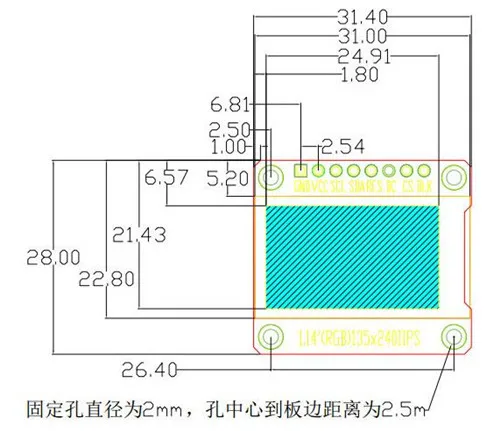

11. Size: 28*31.4mm

12 Viewing Direction: Full viewing angle (IPS)

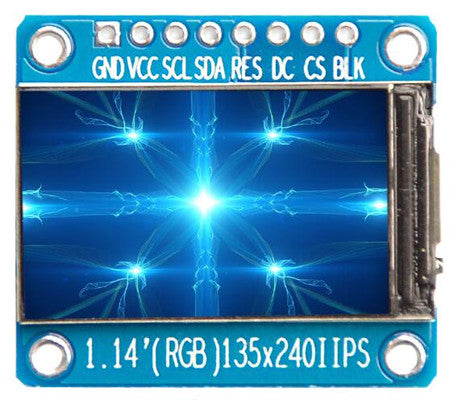

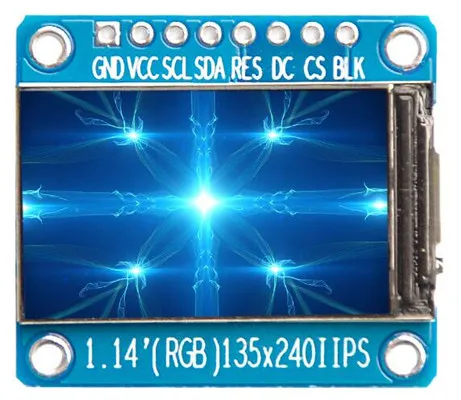

Pin Definition

1 GND

2 VCC

3 SCL

4 SDA

5 RES

6 DC

7 CS

8 BLK
