Custom Nema23 Stepper Motor 57Hs112 TB6600 23HS5628 2.8A With Tb6600 4A Stepper Motor Driver Nema17 23 For Cnc And 3D Printer

Custom Nema23 Stepper Motor 57Hs112 TB6600 23HS5628 2.8A With Tb6600 4A Stepper Motor Driver Nema17 23 For Cnc And 3D Printer

$26.80 USD
$0.00 USD $26.80 USD
Sale Sold out
Color

  •

    Please note to buyers: European warehouses cannot be shipped to areas whose postcode starts with 35/38/39.
    Please choose China warehouse for delivery. (Some areas are remote areas, and additional remote fees need to be paid)
    This is the reason for the logistics channel, which is not under our control.
    We apologize for the inconvenience caused to you, thank you!

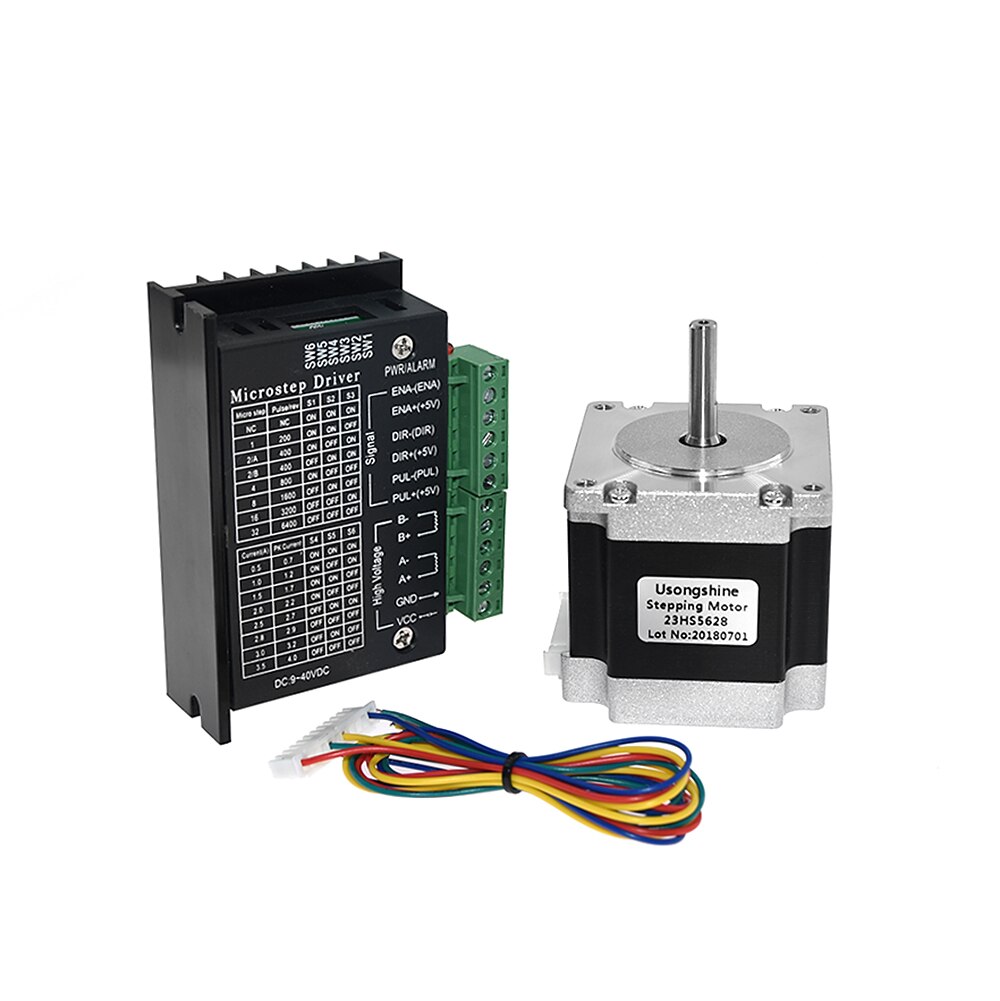

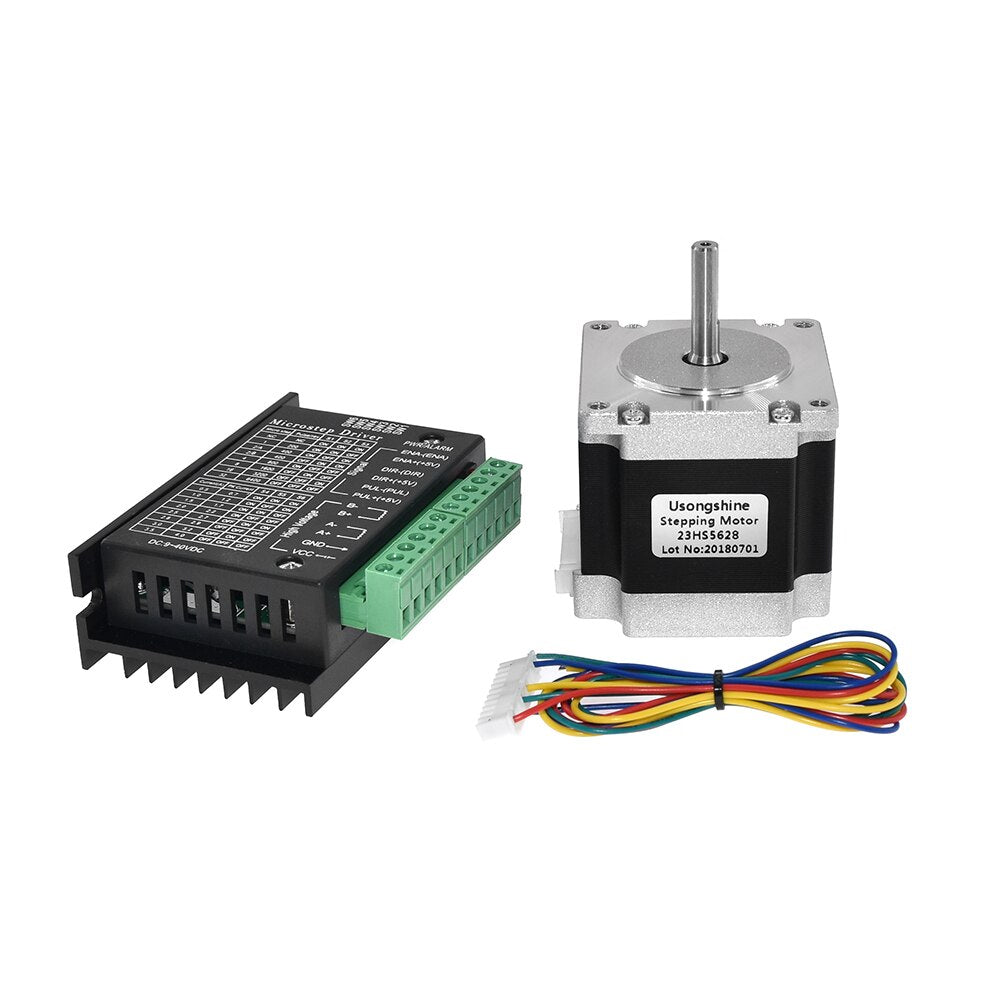

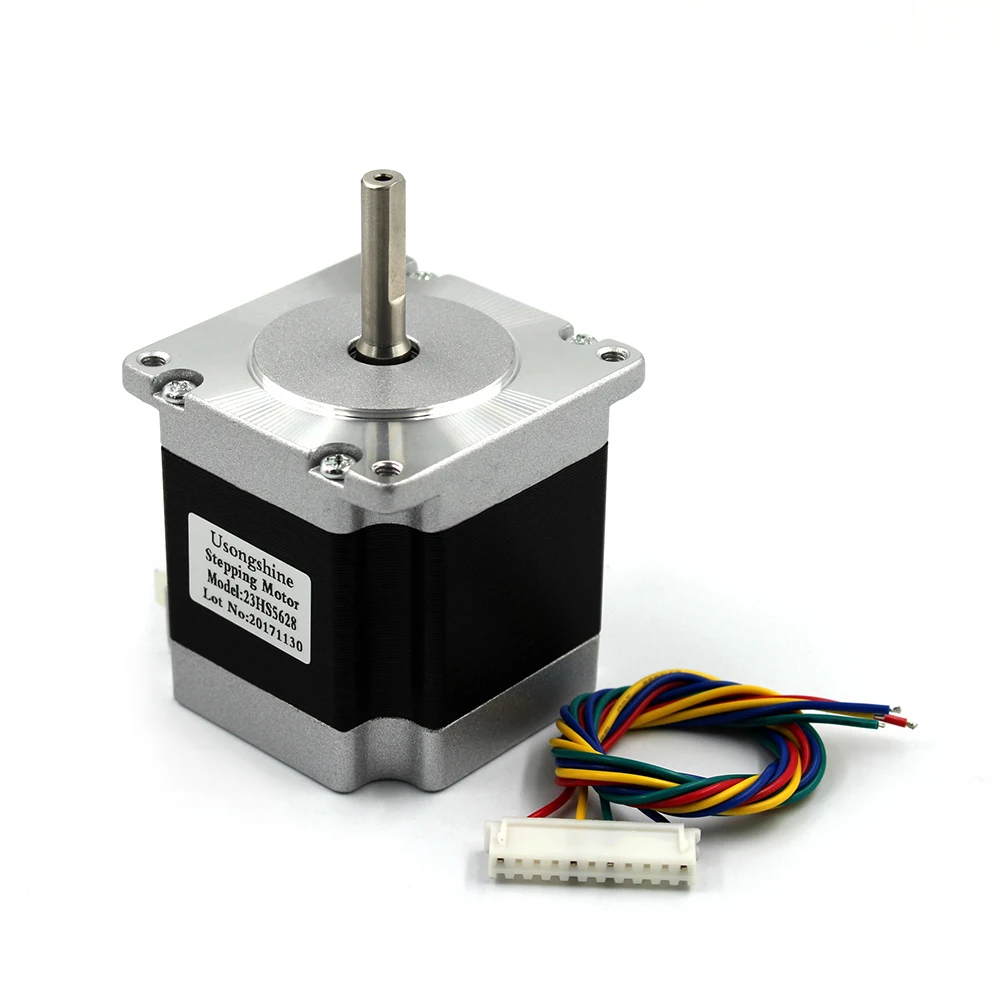

    • 1PCS 23HS5628 motor

    • 1PCS TB6600 Stepper motor driver

    • 1PCS 30CM  line

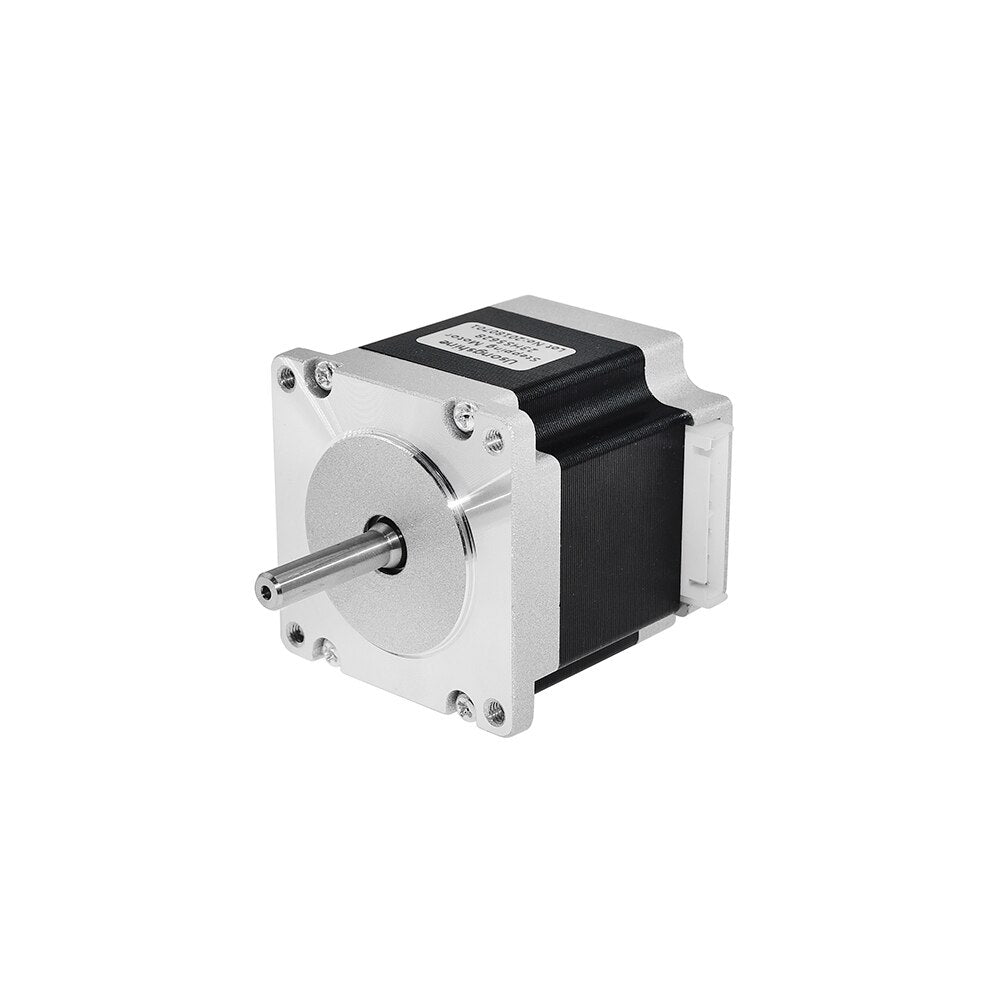

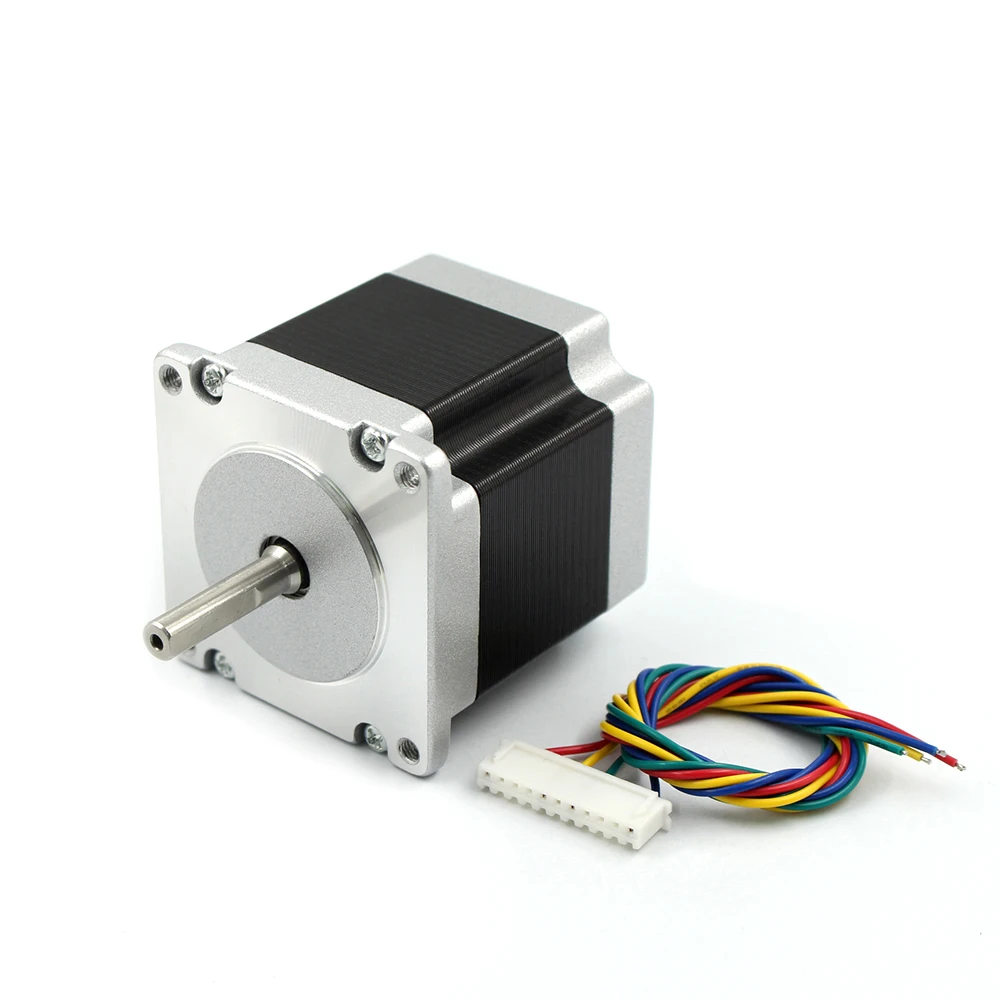

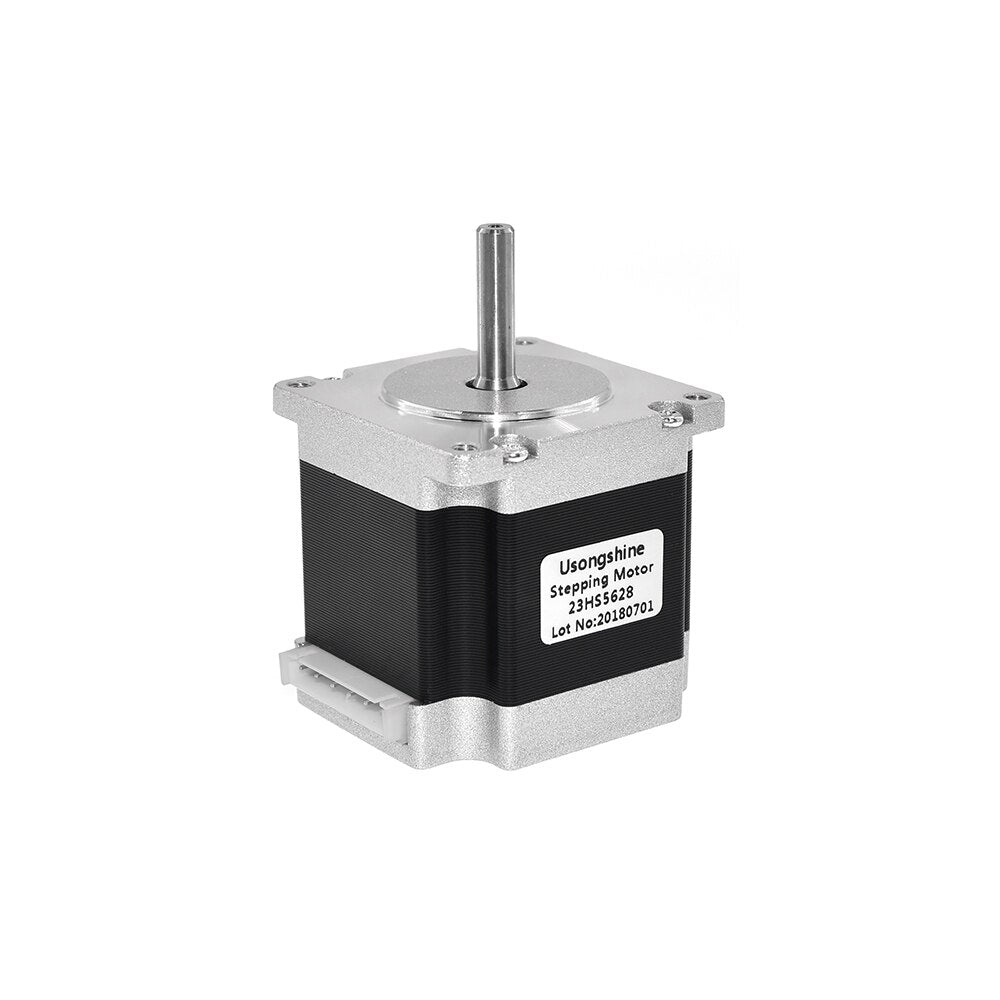

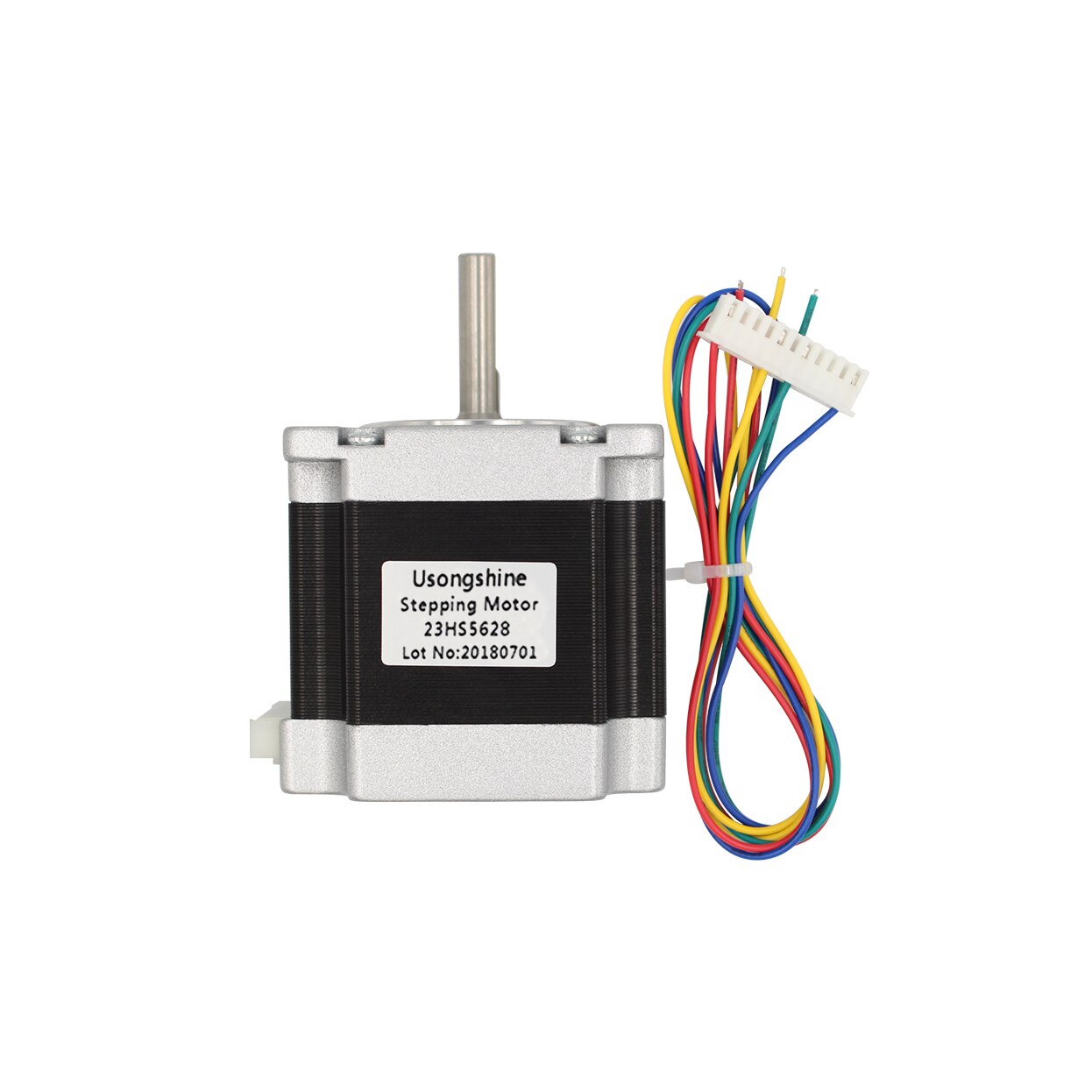

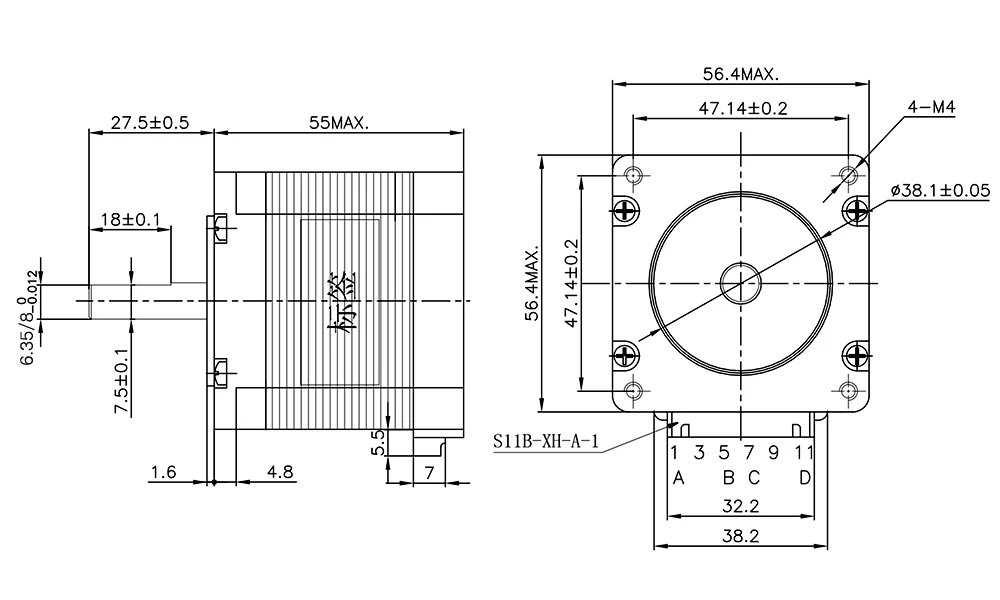

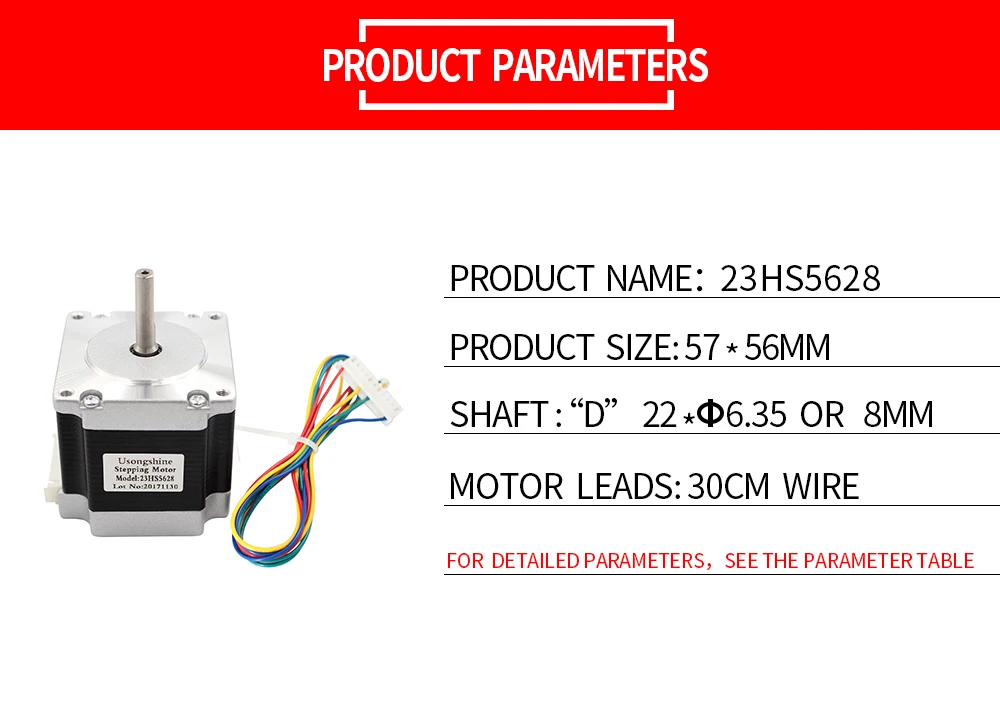

    Model:23HS5628

    Step Angle:1.8deg

    Mitir Length:56mm

    Rated Current:2.8A

    Phase REsistance:0.9Ohm

    Phase Inductance:2.5mH

    Holding Torque:126N.cm

    ROtor Inertia:300g.cm2

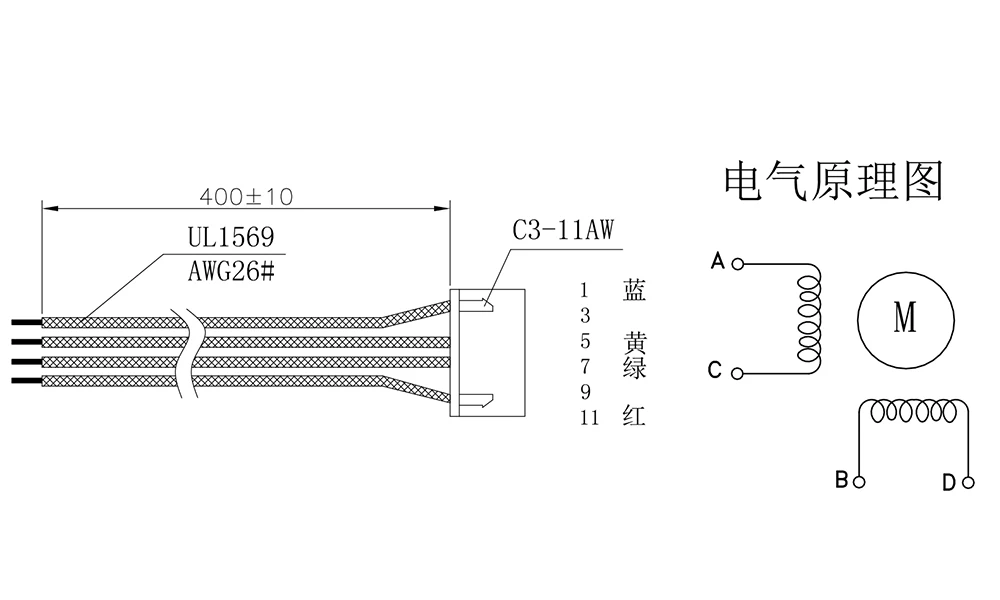

    Lead wire 4 No

    Motor Weight:700g


    Introduction:

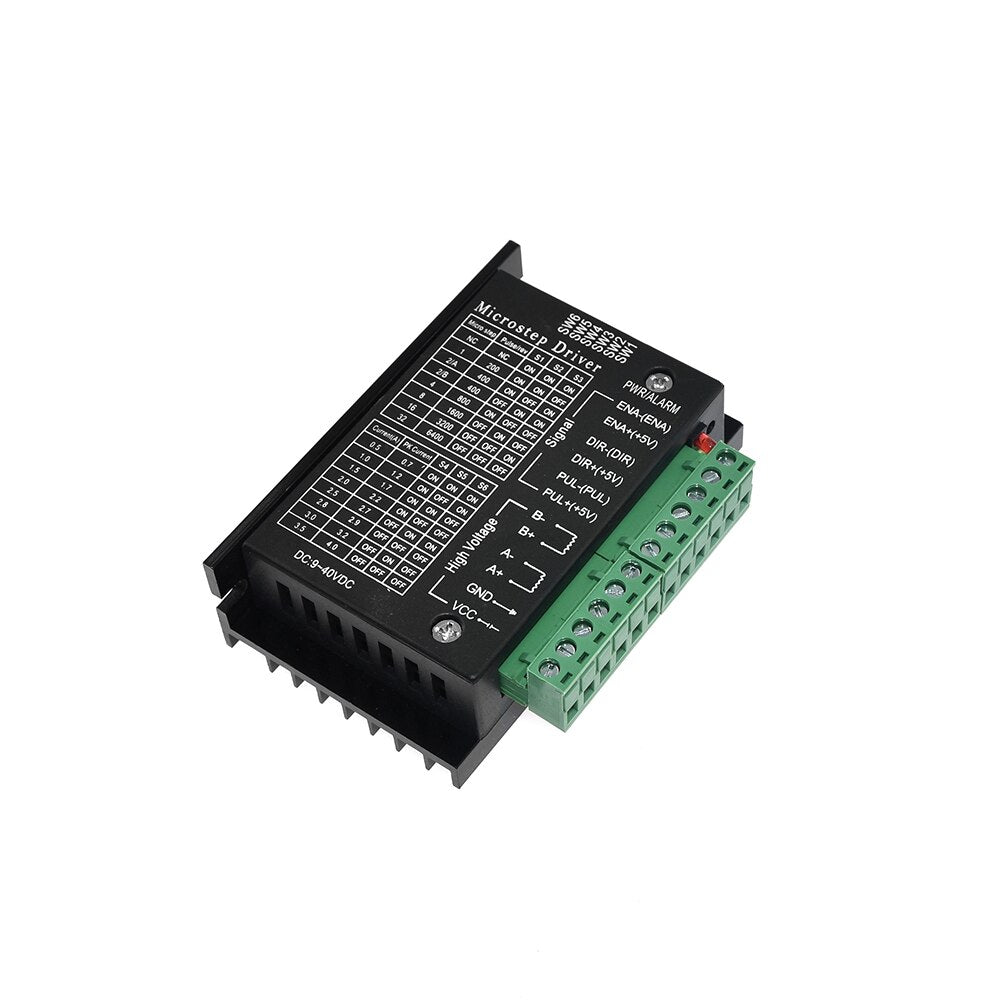

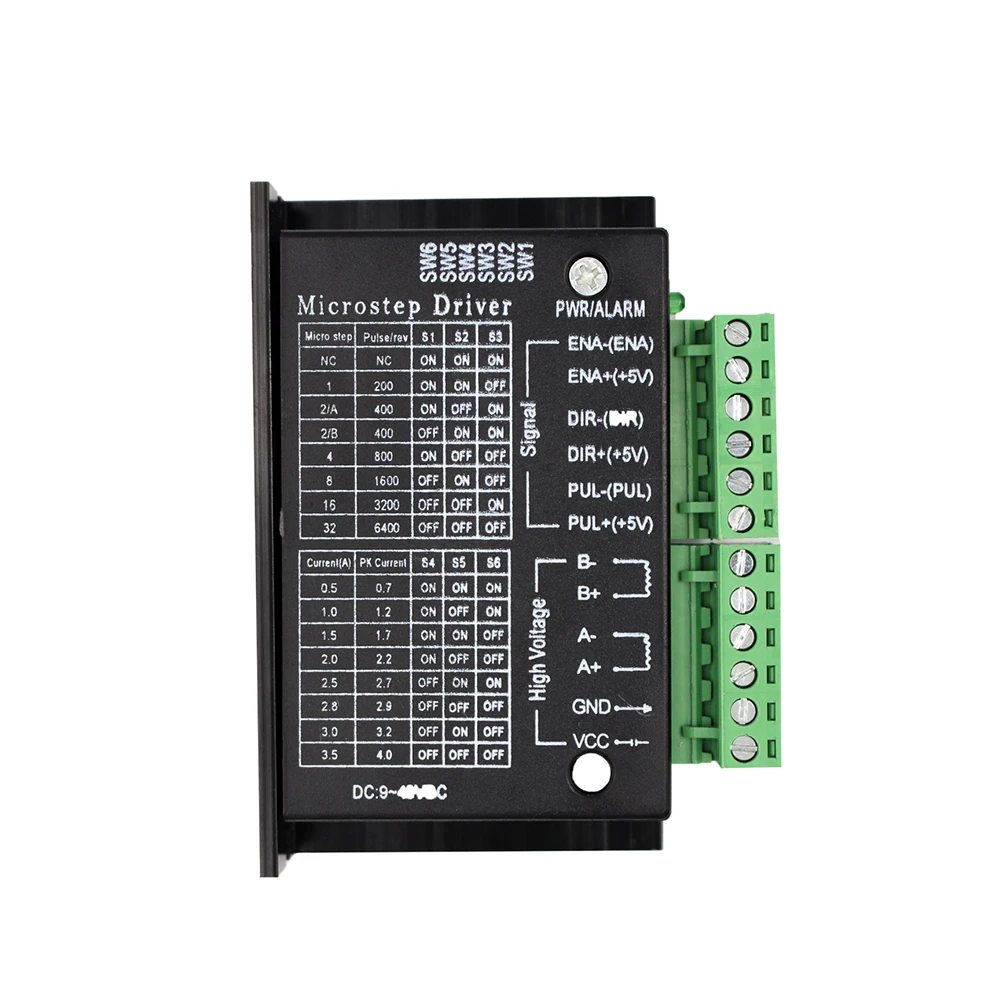

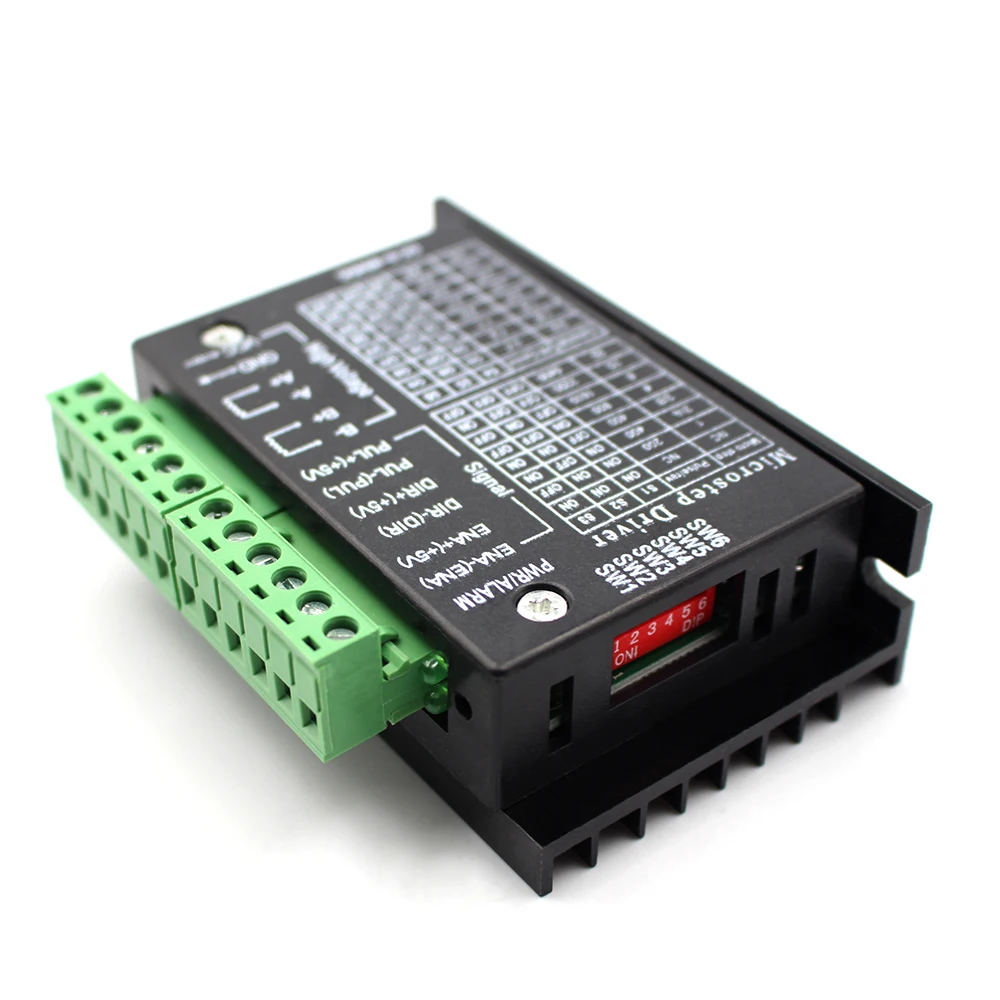

    The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.

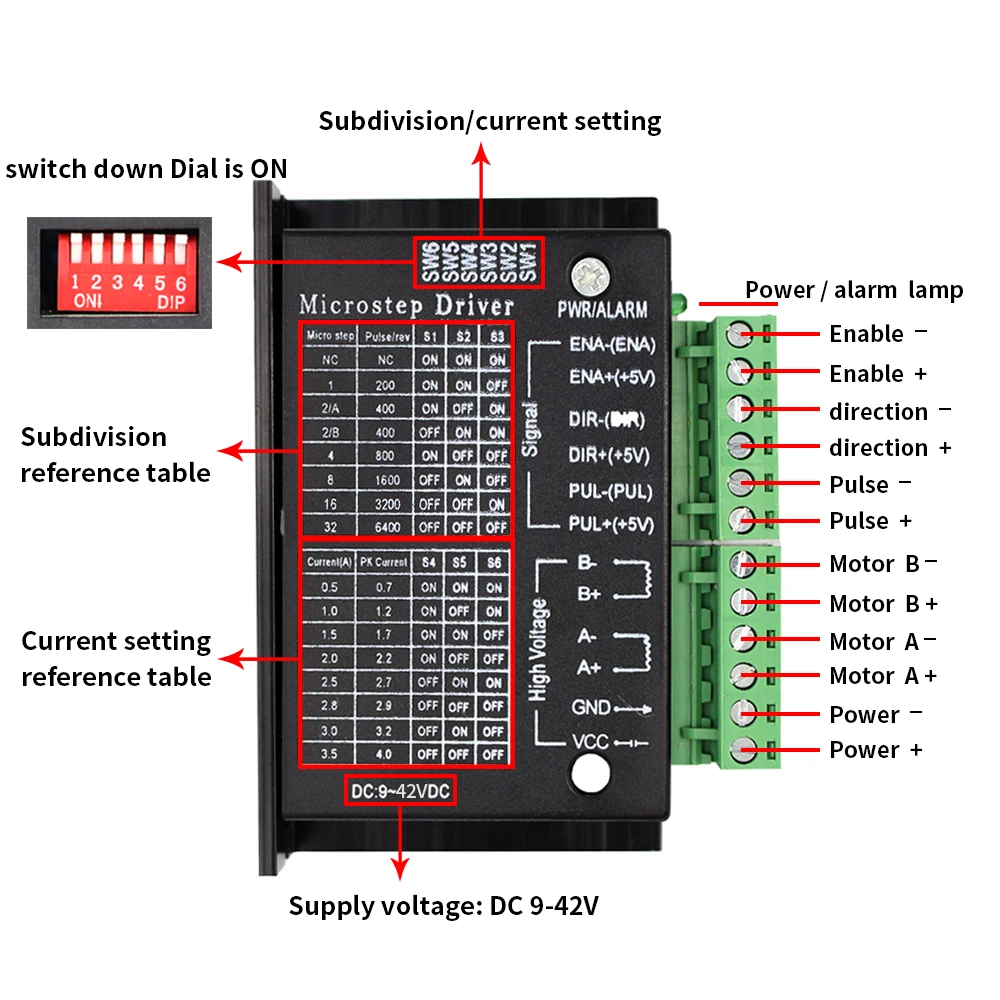

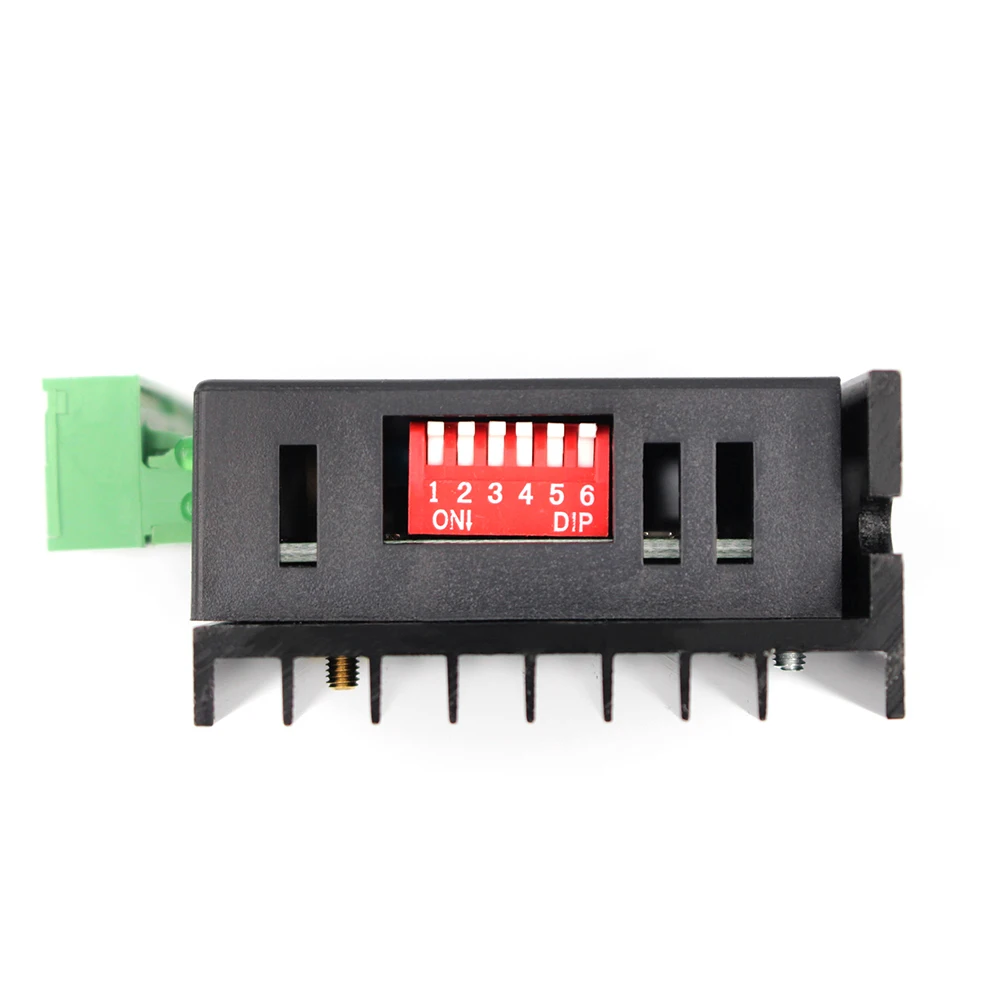

    Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch
    And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)
    Widely used in various small and medium-sized automation equipment and hardware,
    Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.
    The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.
