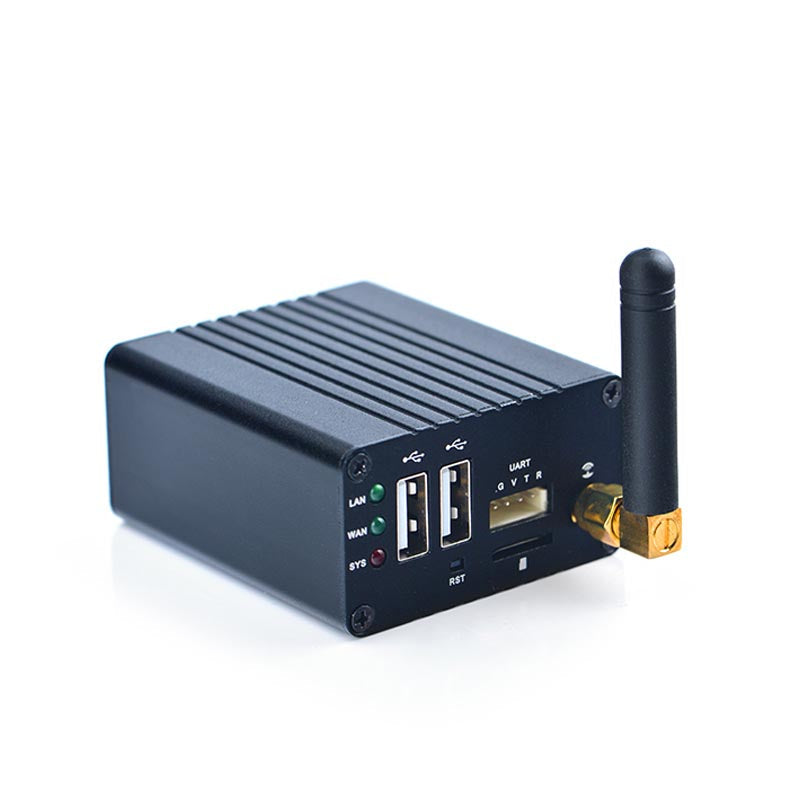

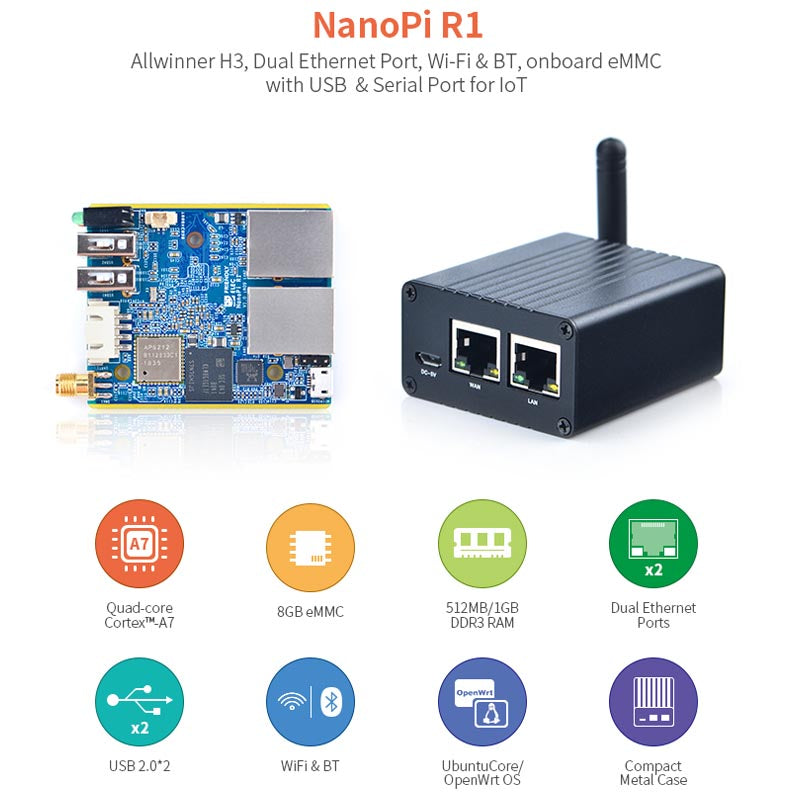

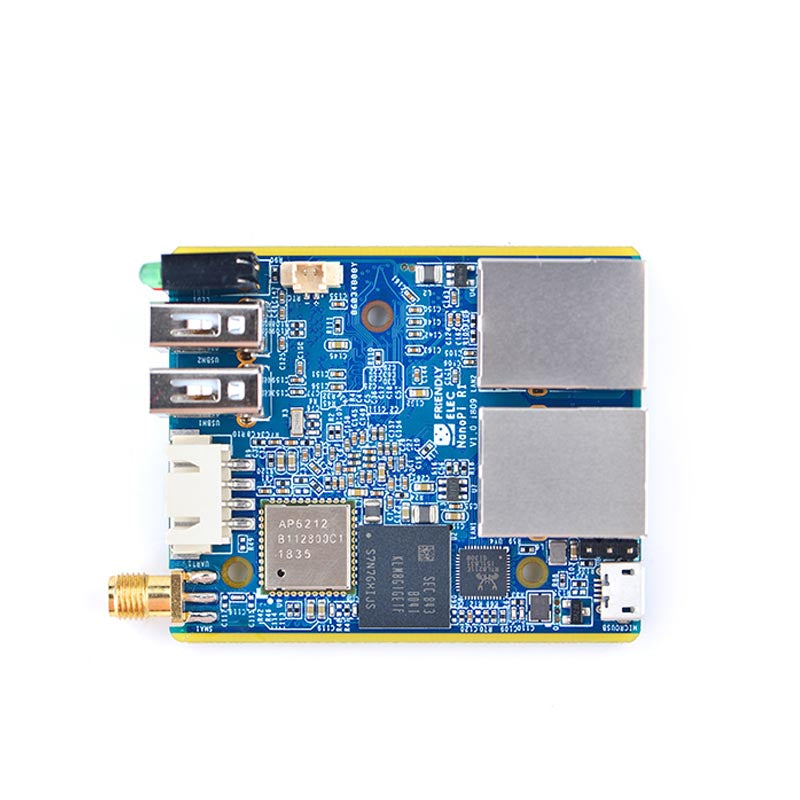

Nanopi R1 Dual-screen internet of things IoT router, support open source Ubuntu and OpenWrt Custom PCB pcba smartlock customize

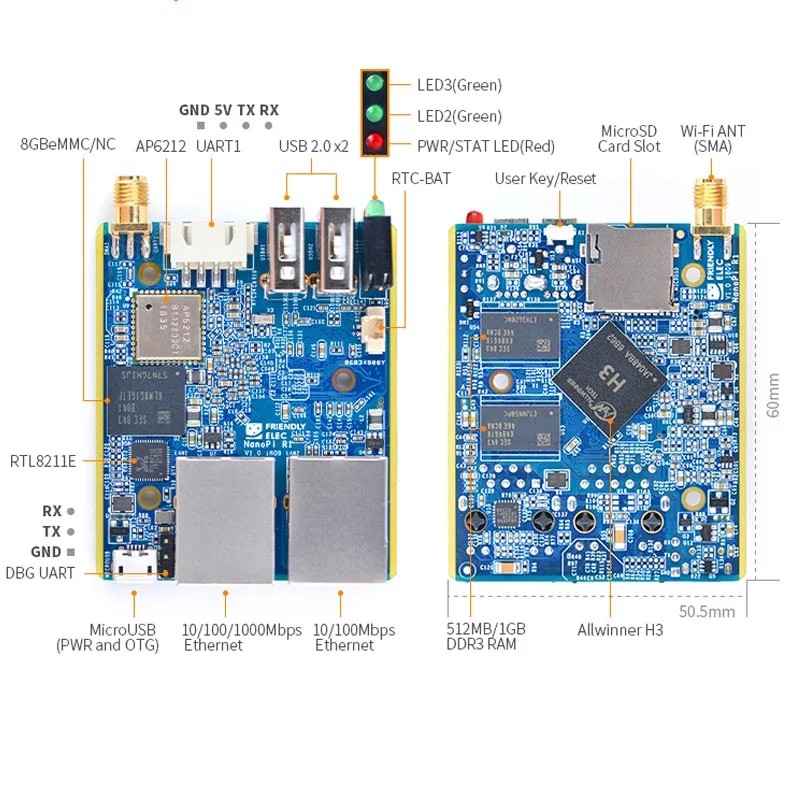

CPU

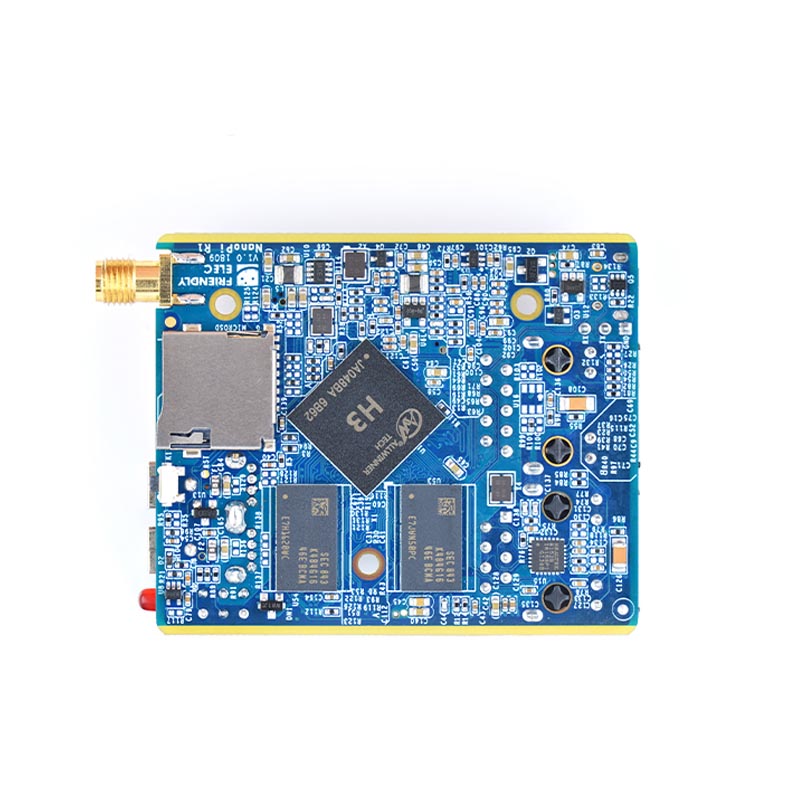

Model: Allwinner H3

Number of Cores: Quad-core

Frequency: 4*Cortex-A7 Up to 1.2GHz

Memory

RAM: 512MB(16-bit)/1GB(32-bit)

Storage

eMMC: NC/8GB

MicroSD Slot: MicroSD*1 for external storage up to 128GB

Connectivity

Ethernet: 10/100M Ethernet x1

                10/100/1000M Ethernet x 1

WiFi: based on AP6212 Module, 802.11b/g/n, with SMA antenna interface

Blth: 4.0 dual mode

USB

MicroUSB*1: MicroUSB 2.0, OTG & Power In

USB Host: 2.0 Type A x2

Pin-header

Serial Debug Port: 2.54mm pitch 3-pin-header

Connector

UART x1: 2.54mm pitch 4-pin-connector

LED

PWR/STAT LED(Red) x1

LED(Green) x2

Others

Button: User button x 1

RTC-BAT x1: Input Voltage 3.0~3.6V

Working Temperature: -20℃ to 70℃

Power

MicroUSB DC 5V/2A

OS Support

FriendlyCore(based on UbuntuCore-16.04)

OpenWrt

eFlasher

Kernel version

Linux-4.4-LTS

U-boot-2017.11

PCB

6 Layer

Dimension

50.5*60mm

Weight

33g(only board)/125g(with metal case & heat sink)
