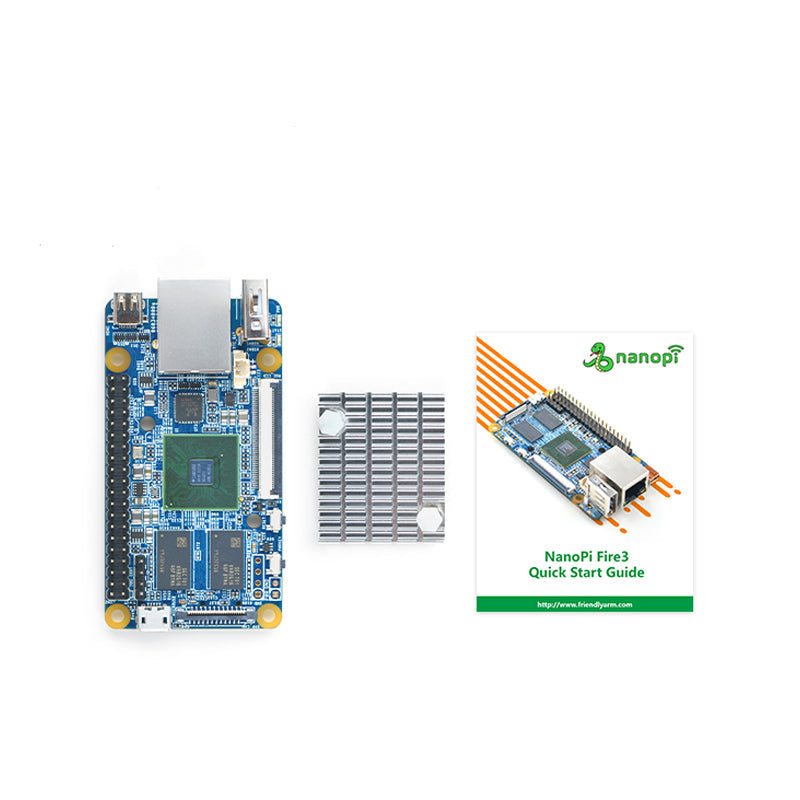

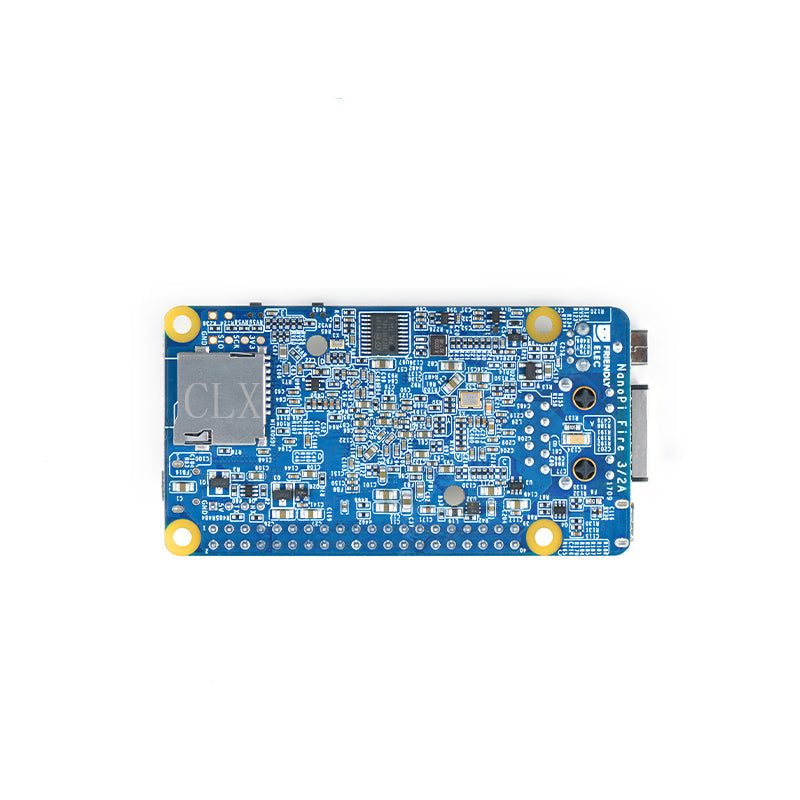

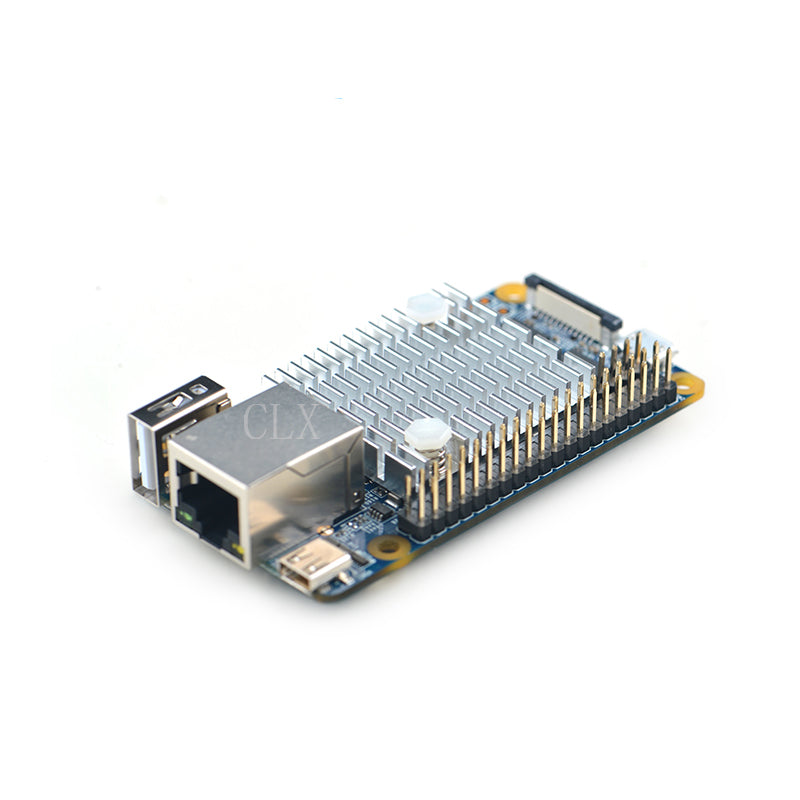

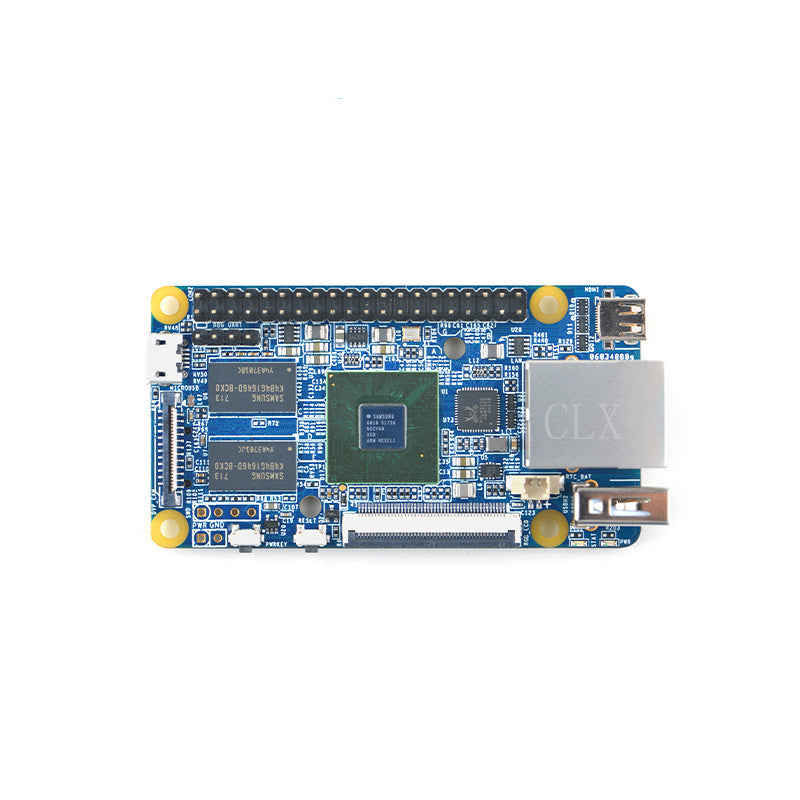

NanoPi Fire3 Development Demo Board S5P6818 1.4GHz CPU 1GB DDR3 GPIO Port support Android Debian FriendlyCore Custom PCB customize

NanoPi Fire3 Development Demo Board S5P6818 1.4GHz CPU 1GB DDR3 GPIO Port support Android Debian FriendlyCore

Introduction The NanoPi Fire3 is a high performance ARM Board developed by FriendlyElec for Hobbyists, Makers and Hackers for IOT projects. It features Samsung's Cortex-A53 Octa Core S5P6818 @ 1.4GHz SoC and 1GB 32bit DDR3 RAM. It has a Gbps Ethernet port. It boots Android and Debian from a TF card. It integrates an HDM1 and LCD interface. Its adoption of the Raspberry Pi's GPIO pin header makes it compatible with both Raspberry Pi's external GPIO modules and Ard's shield boards. Its PCB dimension is 75 x 40 mm Specification CPU: S5P6818, 1.4GHz RAM: 1GBMB DDR3 Connectivity: Gbps Ethernet port PMU Power Management: Implemented by a Cortex-M0 MCU, support software power-off, sleep and wakeup functions USB 2.0 Type A x 1 Debug Serial Port/UART0 x 1 microSD Slot x 1 microUSB x 1: for data transmission and power input LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8) HDM1: HDM1 1.4A, microHDM1(Type-D), 1080P60 DVP Camera Interface: 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C and IO GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc Button: Power Button x 1, Reset Button x 1 LED: LED for Power Indication x 1, System LED x 1 RTC: RTC Battery Seat PCB Dimension: 75 x 40mm Power: DC 5V/2A Temperature measuring range: -20℃ to 80℃ OS: Android, Debian and FriendlyCore(Linux Kernel 4.4 + Qt5.9 + OpenGL2.0)
