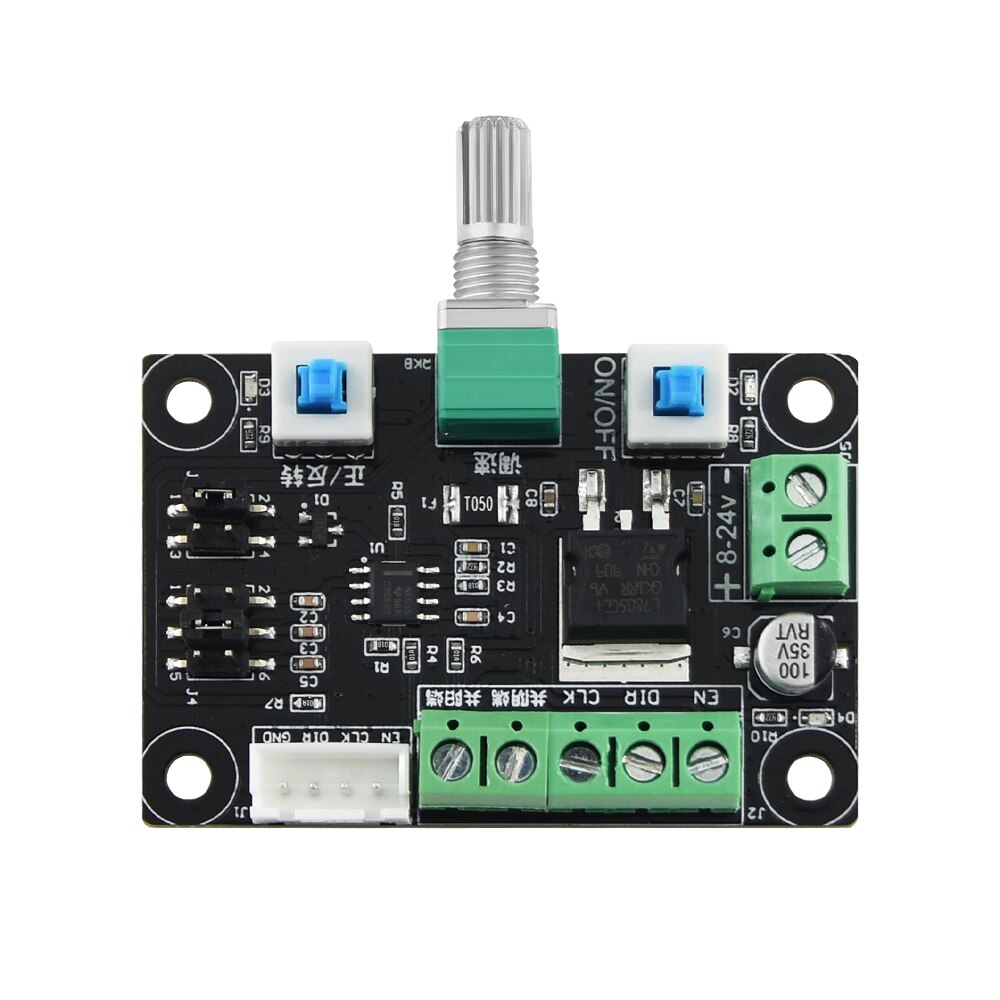

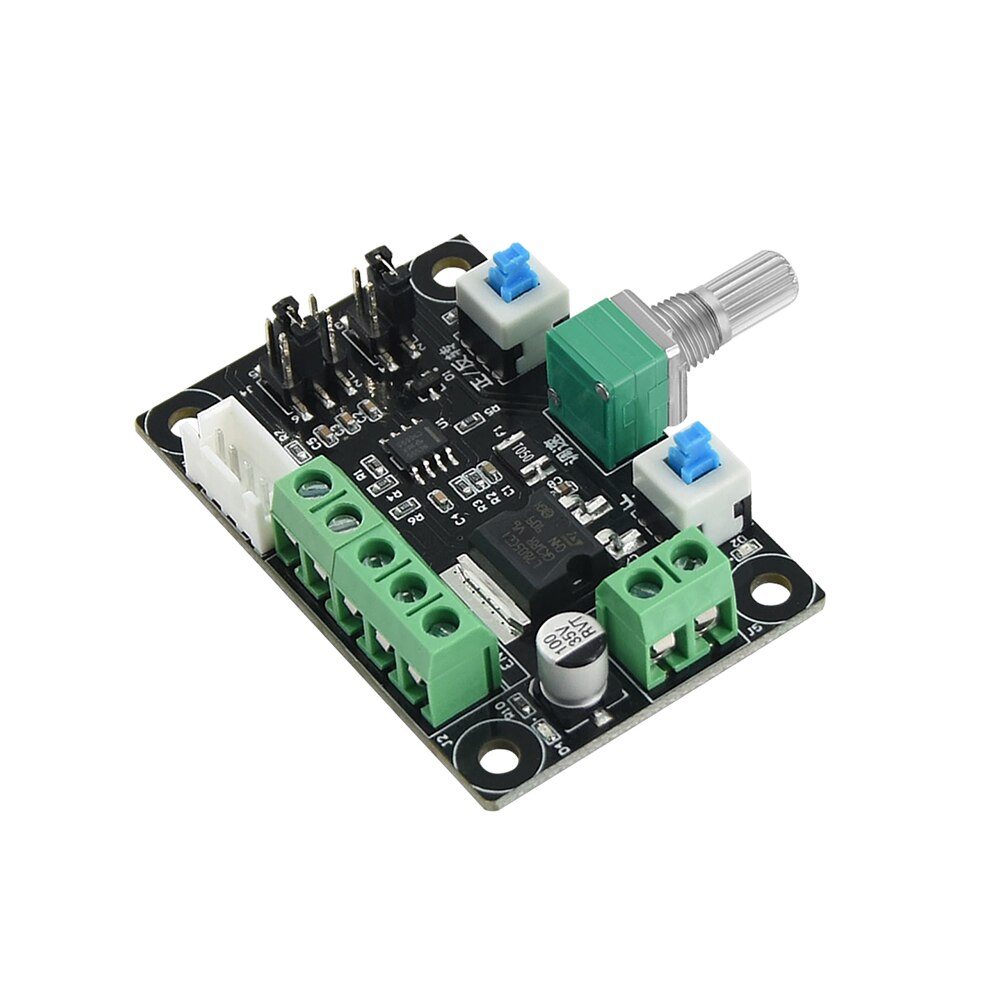

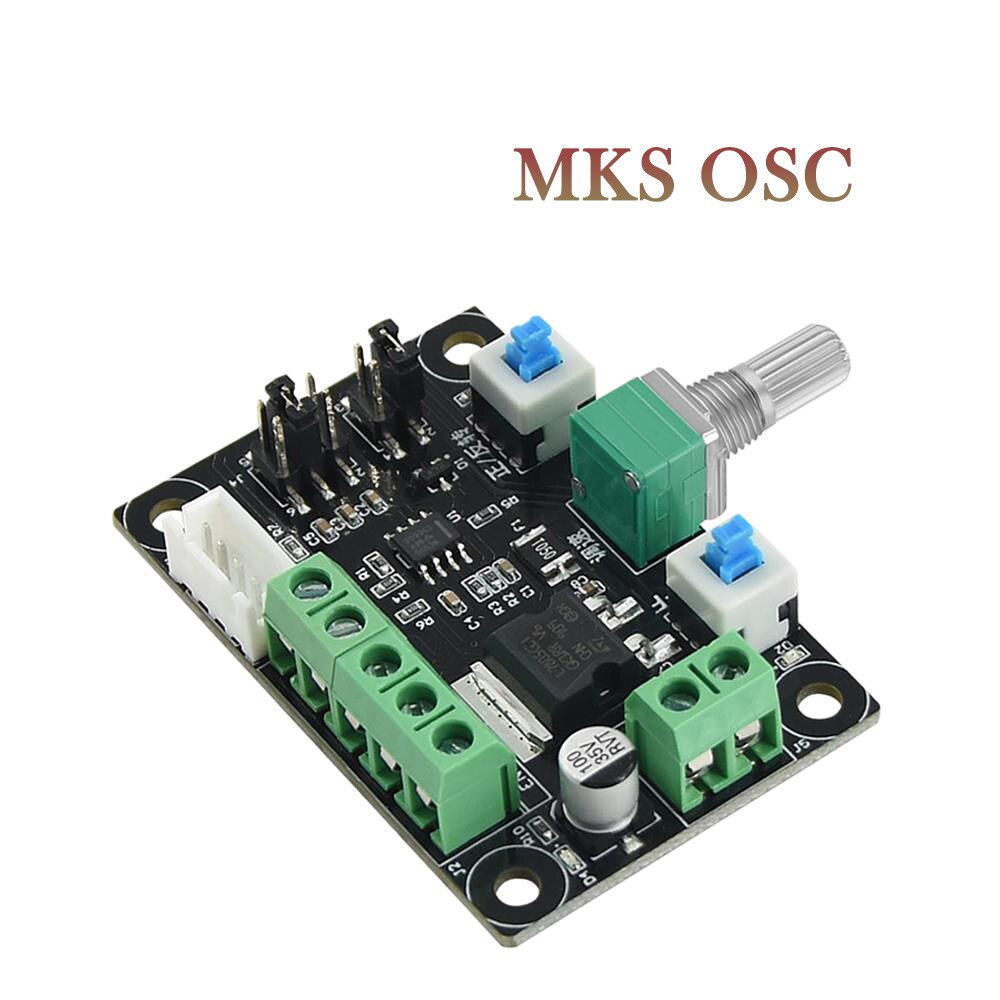

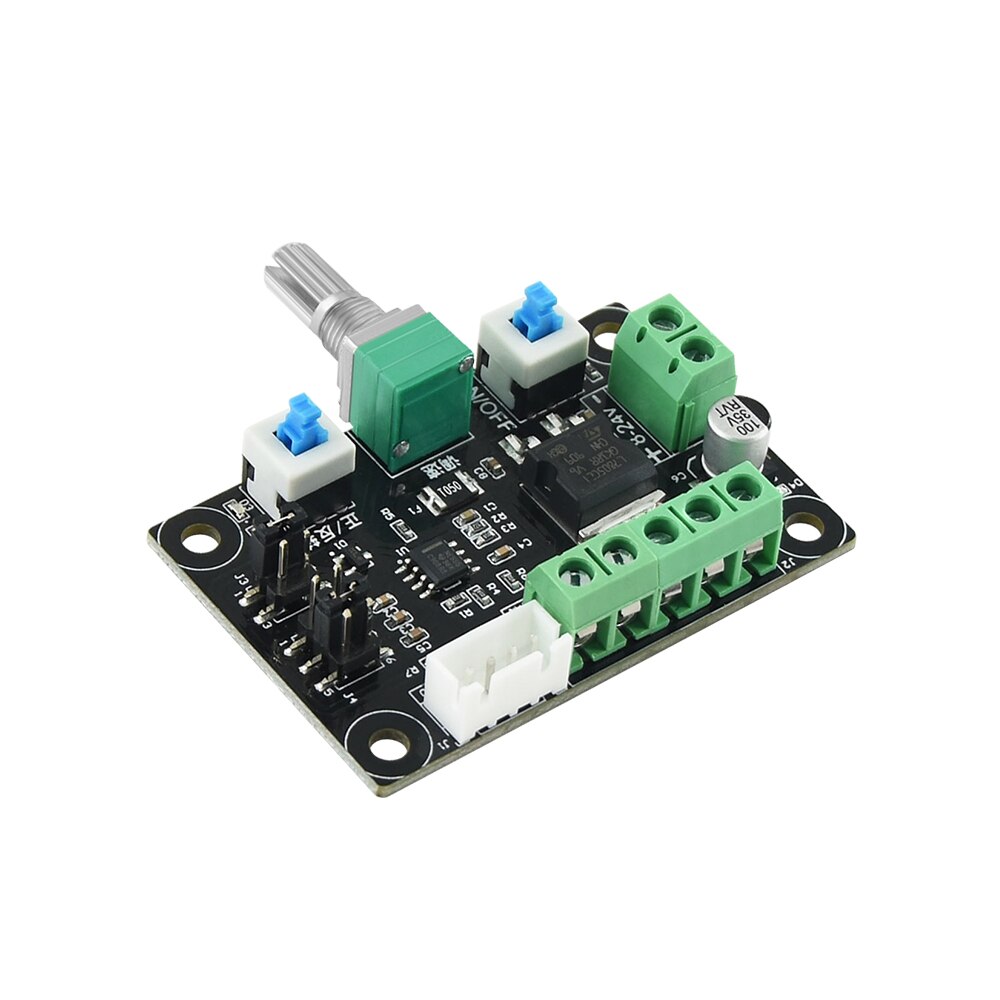

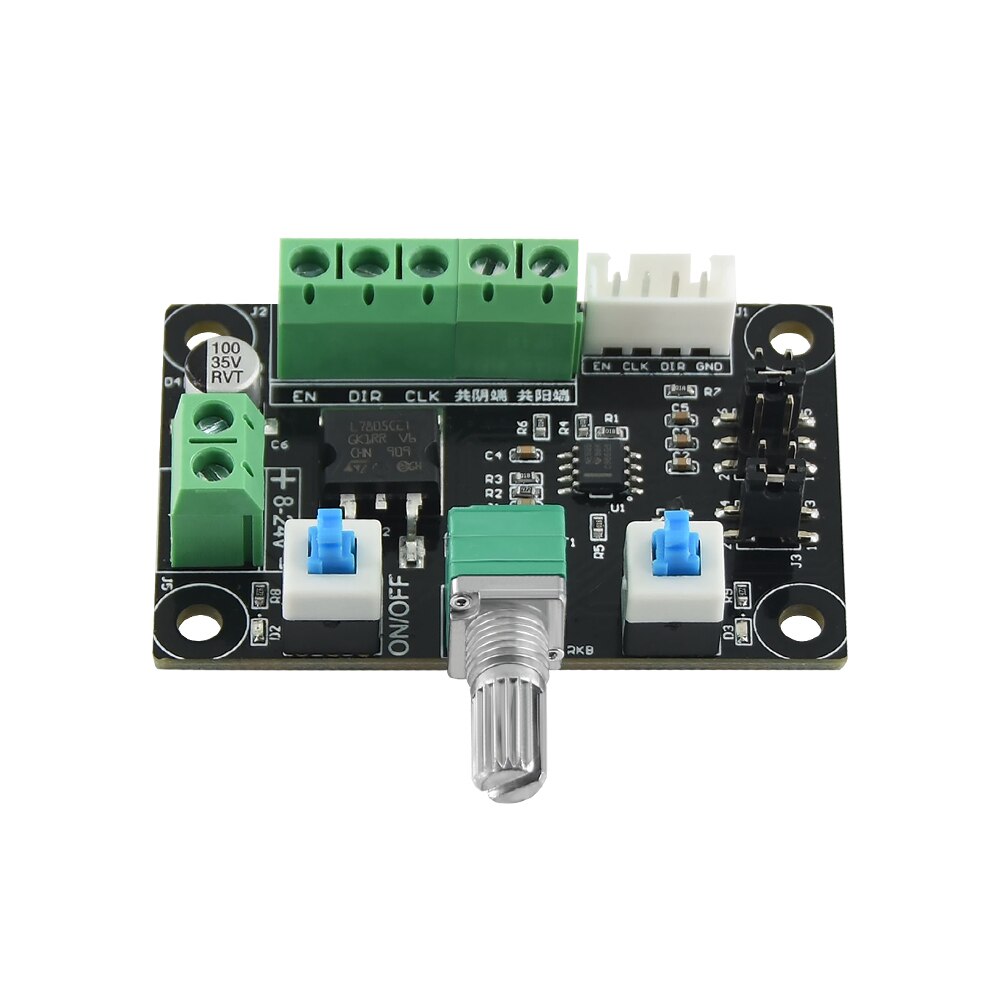

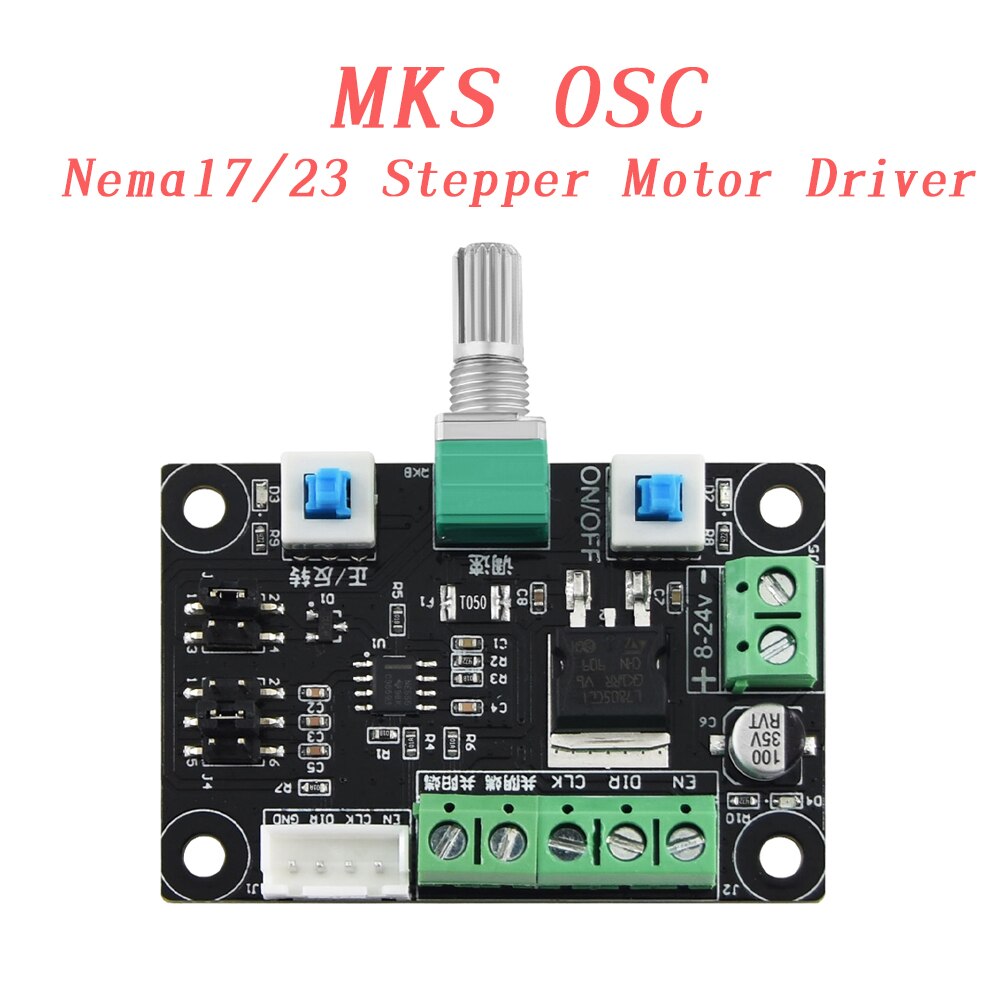

MKS OSC Nema17/23 Stepper Motor Driver Speed Frequency Direction Control Regulator Pwm Pulse Signal Generator Module customize
MKS OSC Nema17/23 Stepper Motor Driver Speed Frequency Direction Control Regulator Pwm Pulse Signal Generator Module customize
Couldn't load pickup availability
-
Features:
1.this module is a pulse generation module, supply the control signal to stepper driver.
To control the stepper motor, it must be equipped with a drive.

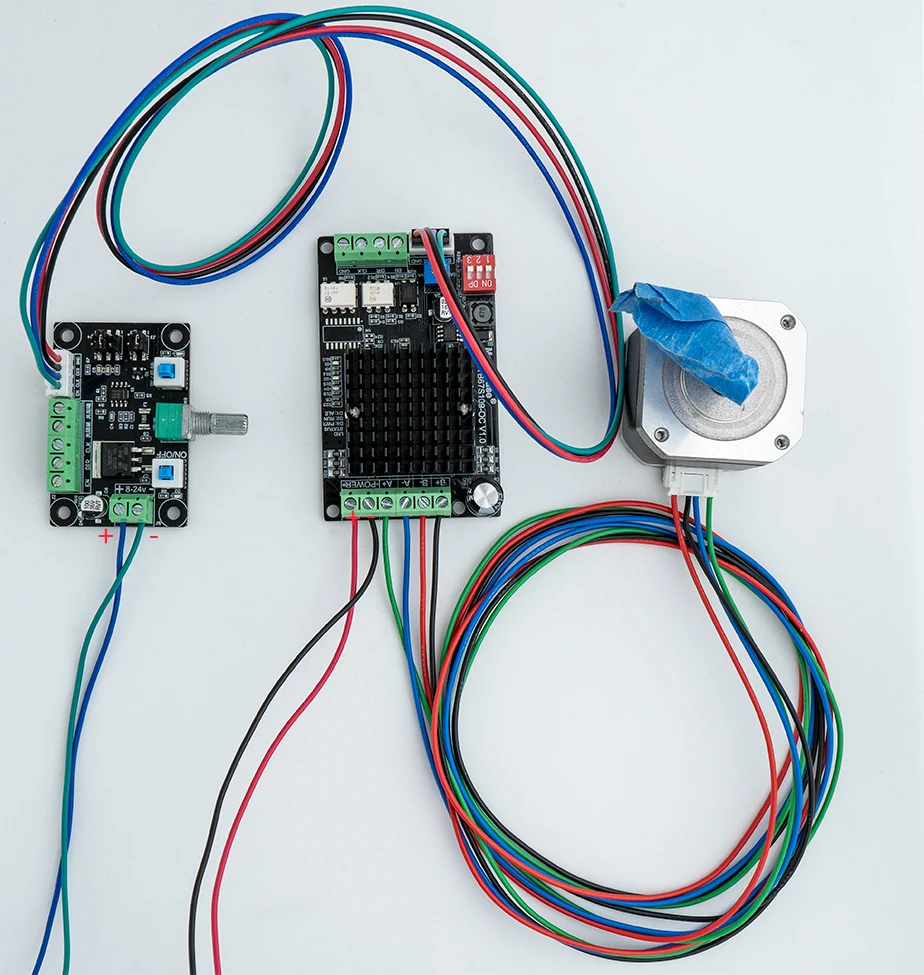

2.this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform.

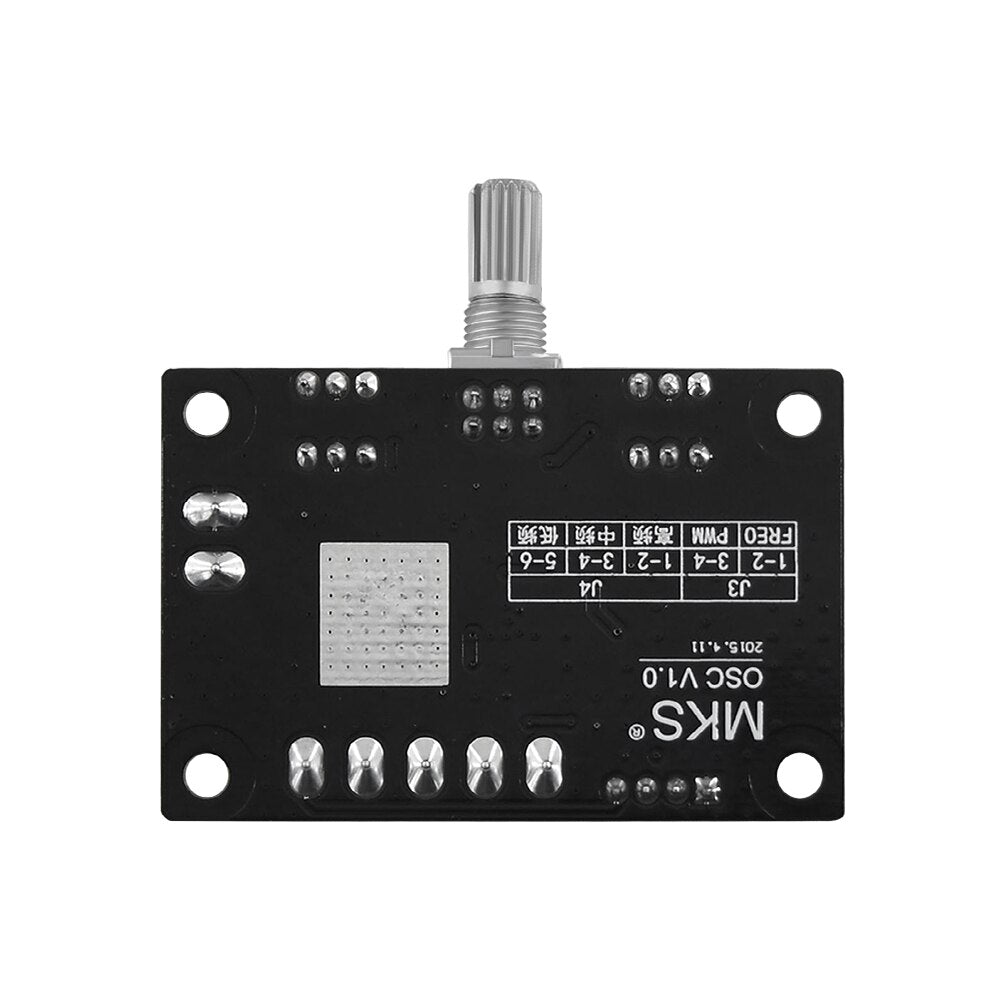

3.the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper.
4.can produce pulse signal, can also produce PWM signal, can choose the jumper.
5.the frequency of measurement: PUL and common cathode end.
Different stepper driver may mark different name
EN=ENA=FREE Enable
PUL=PULS=CLK Pulse
DIR=CW=CWW Direction
Common anode Connection method (B)
EN+ PUL+ DIR+ connect together to com+.
EN- connect EN
PUL- connect CLK
DIR- connect DIR
Shipping List:
1pcs* MKS OSC Overview:
MKS OSC is a pulse generating module which can supply pwm signal as you need.MKS OSC + motor driver + motor + DC power supply = Easy control platform
Parameter:
-
Frequency Range:5.4k-160khz,540-16.6khz,80-2.4khz
-
Signal type:pwm/pulse
-
Direction:clockwise/anticlockwise
-
Voltage:8v-24v
Size:
Wiring:
Different stepping motor driver different port sign, but same functionEN=ENA=FREE enablePUL=PULS=CLK pulseDIR=CW=CWW direction
common anode connection (connect with B)EN+ PUL+ DIR+ all link together to common anode portEN- connect to ENPUL- connect to CLKDIR- connect to DIR
common cathode connection (connect with B)EN- PUL- DIR- all link together to common cathode portEN+ connect to ENPUL+ connect to CLKDIR+ connect to DIR
Use the drivers that Makerbase designs, can directly connect to A white card port (common cathode connection ).
Welcome Customize Order!
