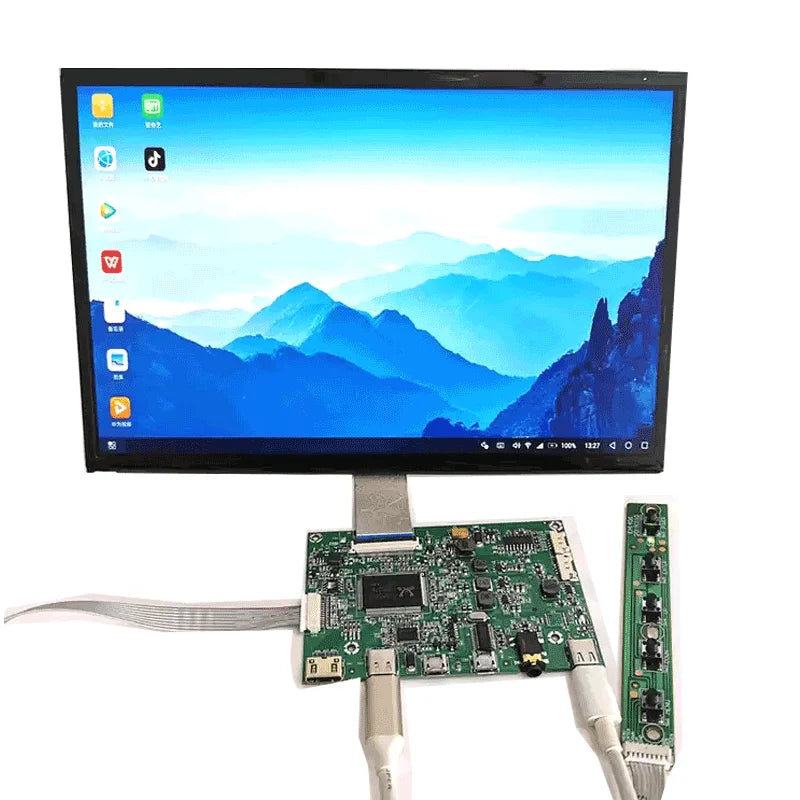

Custom mini HD+Type-C+Audio LCD driver board+10.1 inch LCD panel VVX10T025J00 2560 * 1600 2K LCD DYI kits for Raspberry Pi 3B 2 Manufacturer

Specification:

With Fixed Hole
LCD type IPS
Screen Size Inside: 10.1 inch
Model Name: VVX10T025J00
Resolution: 2560(RGB)×1600 (WQXGA)
Active Area(mm): 216.96 × 135.6 (H×V)
Outline(mm): 229.75 × 151.22 (H×V)
Response Time: 30 (Max.)(Tr+Td) ms
Color 1670w Colors 8-Bit
Refresh frequency 60Hz
Luminance: 400 (Typ.)(cd/m²)
Viewing Angle: 80/80/80/80 (Min.)(CR≥10)
Contrast: 1000 : 1 (Typ.) (TM)
Color Depth: 16.7M 72% NTSC
Blacklight WLED
Signal Interface mini HDMI/Type-C/2 Micro USB/Audio
Voltage USB5V2A (Typ.)
Certification standards RoHS

Attention Please:

1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.

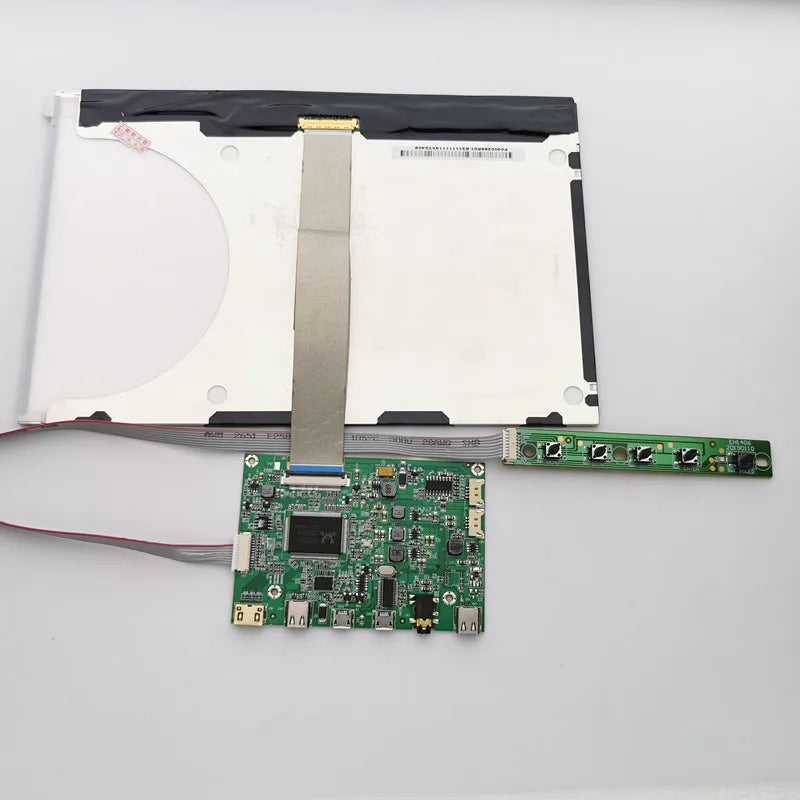

contenido del paquete

1 *10.1 inch LCD

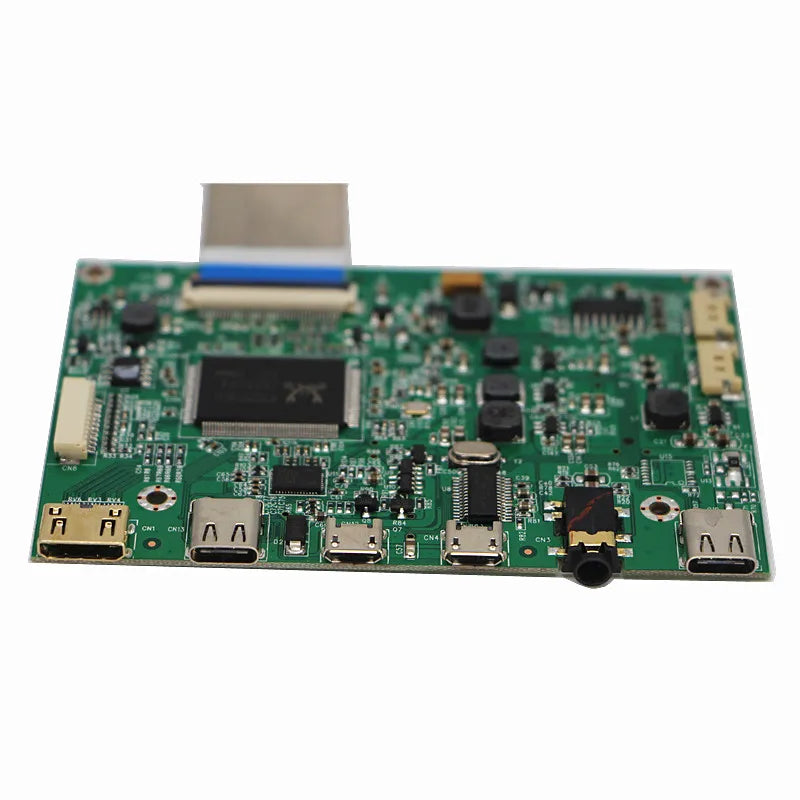

1 * Driver board
1 * EDP cable
1 * teclado OSD
