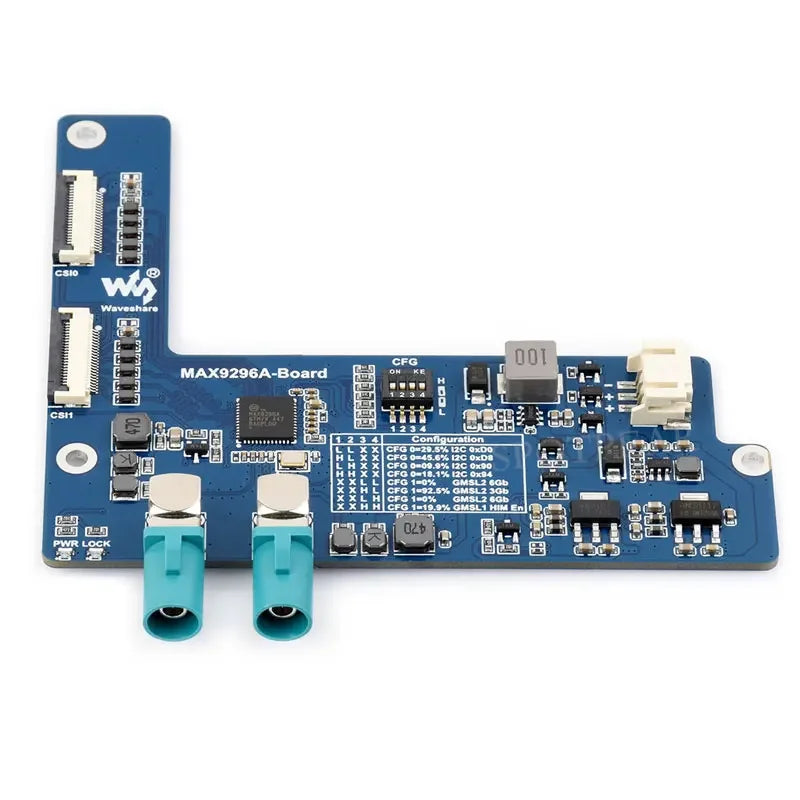

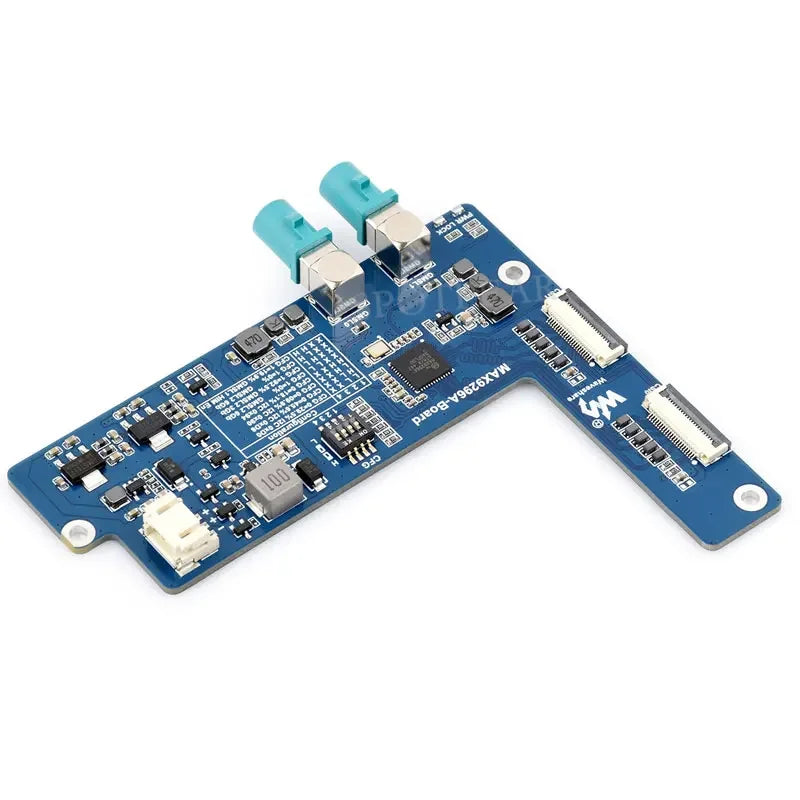

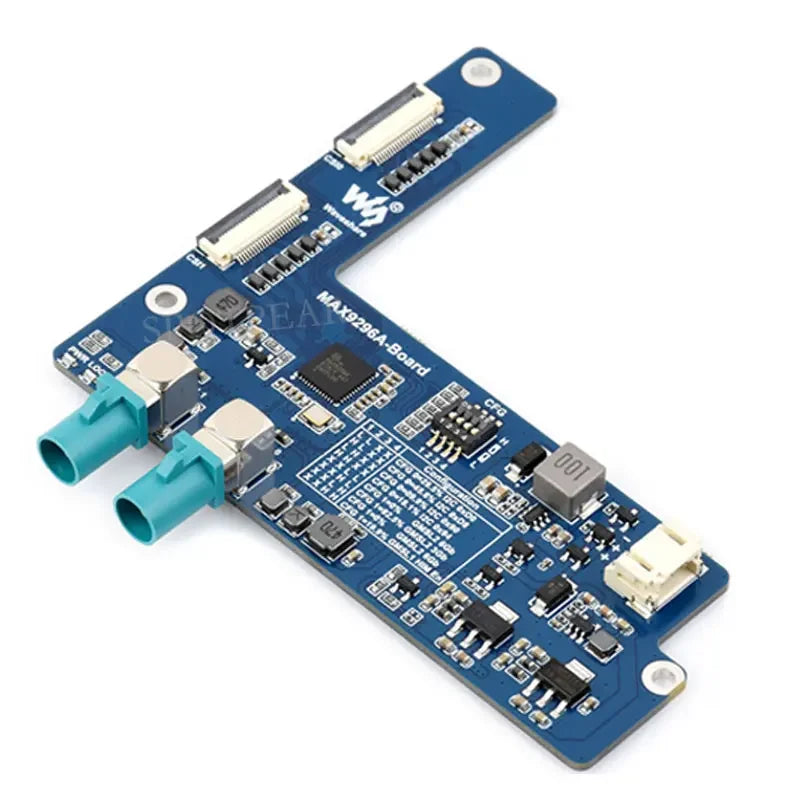

MAX9296A GMSL Camera Adapter Board 2-Ch High-Speed And Low-Latency Transmission For Raspberry Pi 5 Jetson Orin Nano/NX

2-Ch GMSL Camera Adapter
MAX9296A Deserializer, Compatible With Raspberry Pi 5 And Jetson Orin Nano/NX
Features
The
MAX9296-GMSL-DESER-MODULE
is a GMSL camera adapter that allows up
to two GMSL cameras to be connected to the host board such as Raspberry Pi 5,
Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2
protocol interfaces through software configuration. Adopts MAX9296A chip,
specially designed for applications that require high-bandwidth and low-latency
video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.
GMSL (Gigabit Multimedia Serial Link)
is a high-speed serial transmission
technology designed for high-bandwidth multimedia data transmission, with the
advantages of long-distance, low-delay, high anti-interference and simple
wiring. It is mainly used in automotive electronics and industrial applications, and
is capable of transmitting high-definition video, audio, and data signals over one
cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance
signal transmission.
Key features include:
Supports simultaneous access to two GMSL cameras (ISX031)
Adopts MAX9296A serializer solution
Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX
Specifications
DESERIALIZER
MAXIM (ADI) MAX9296A
HOST SUPPORT
Raspberry Pi 5, Jetson Orin NX / Nano development kit
SERIALIZER MODEL SUPPORT
MAX9295, MAX96717, MAX96705, etc.
GMSL INPUT
2-ch GMSL2 (compatible with GMSL1) cameras
INPUT INTERFACE
2 × MATE_AX FAKRA Z connectors
OUTPUT INTERFACE
2 × 22PIN CSI interfaces
GMSL CAMERA SUPPORT
ISX031
POWER SUPPLY
5V input

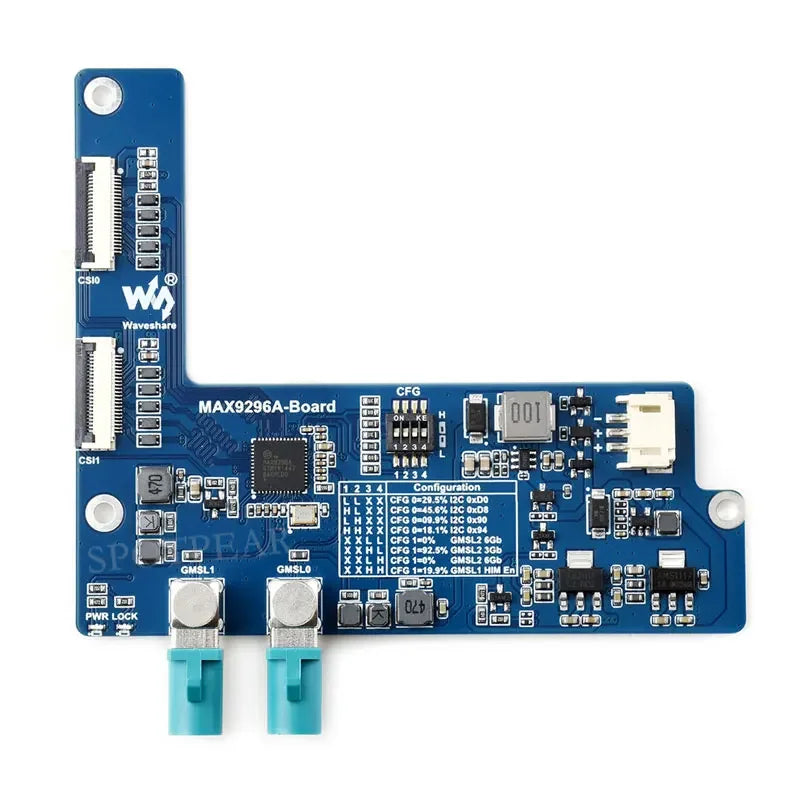

What’s On Board
Application Scenarios
Application Example
* for reference only, the Jetson Orin NX Kit and GMSL cameras are NOT included, please check the Package Content for the detailed part list.
Outline Dimensions
Package Contains
[]
MAX9296-GMSL-DESER-MODULE
