X862 V2.0 M.2 NGFF 2280 SATA SSD Storage Expansion Board for Raspberry Pi 4 Model B





NOTES:

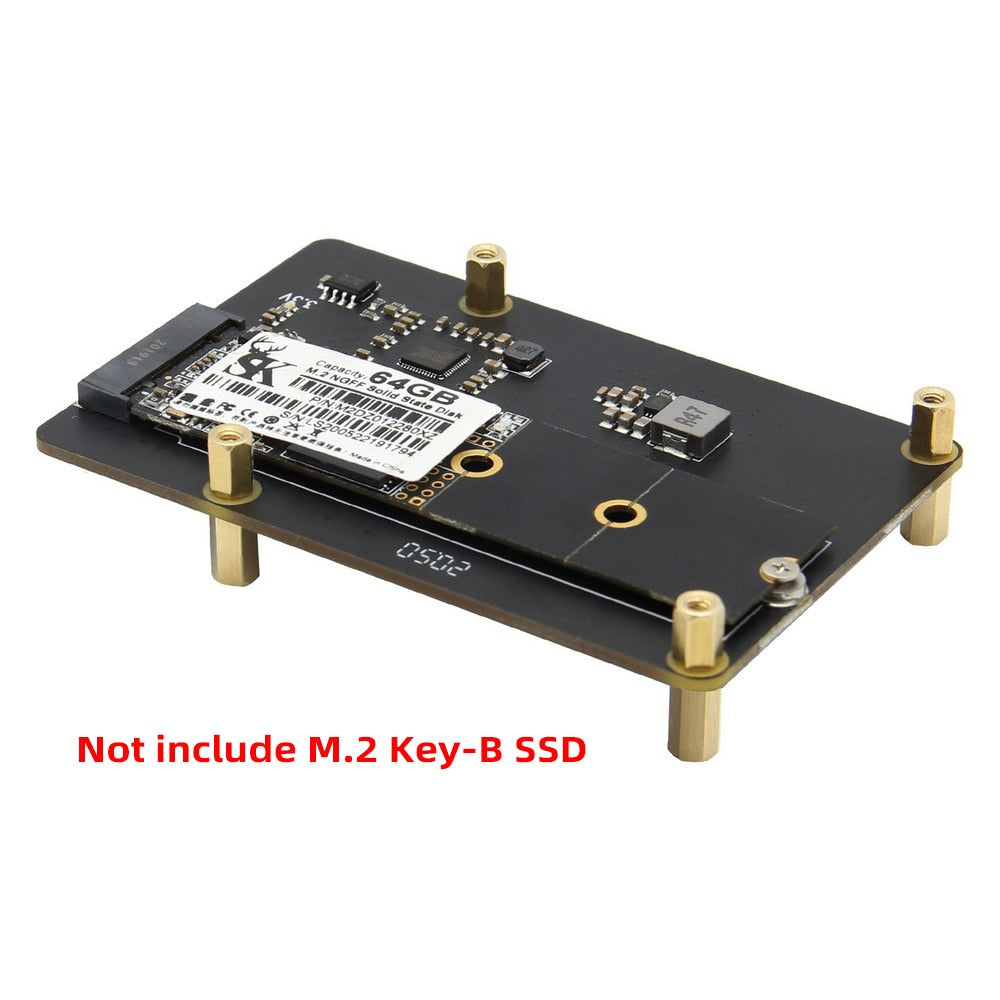

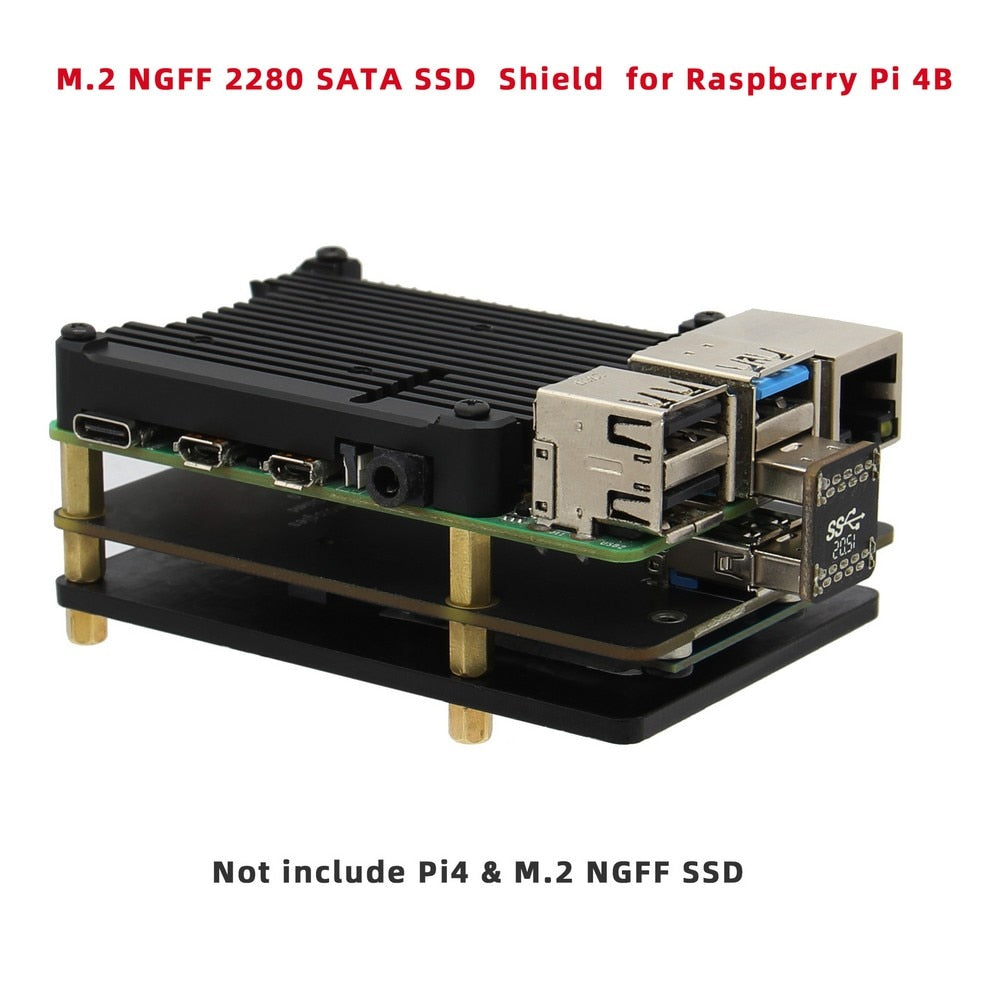

  • Not include Raspberry Pi 4 & M.2 Key-B SSD

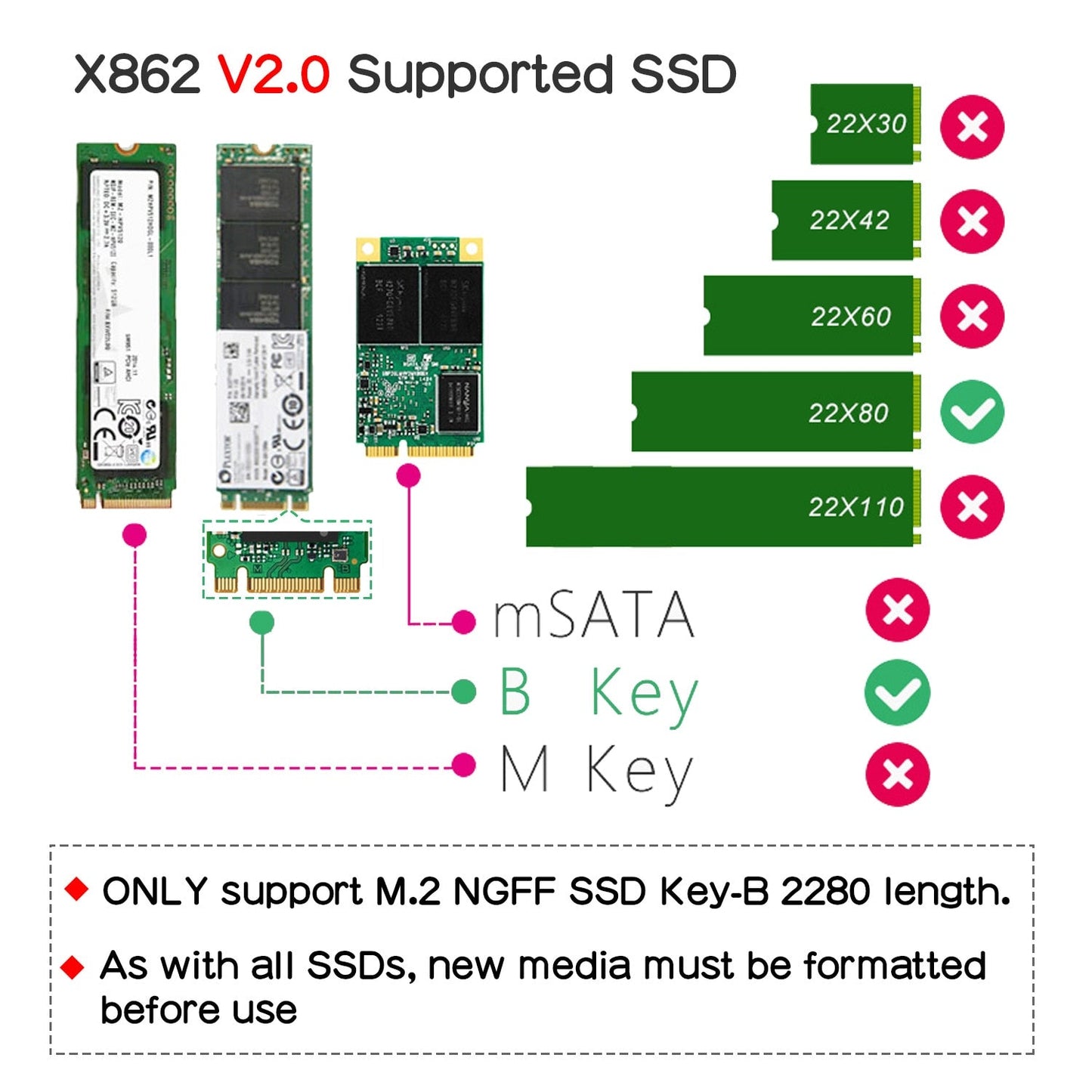

  • Only compatible with Key-B SSD length 2280

  • Compatible with M.2 NGFF SATA SSDs only, not compatible with NVMe M.2 SSDs

  • As with all SSDs, new media must be formatted before use

  • SSDs use exceptionally high performance storage media that will run hot when under load

  • Older SSD drives with less efficient flash media may not perform as well as newer drives





Overview:


  • This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.

  • The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4. New X862 V2.0 ONLY support M.2 NGFF SSD Key-B 2280 length. The X860 V2.0 support UASP.





Wiki: raspberrypiwiki.com/X862 V2.0





Operating System:


  • All Raspberry Pi operating systems





Key Features:


  • Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield

  • Supports up to 2TB M.2 NGFF SSD solid-state drive

  • Only supports M.2 NGFF SSD 2280 length

  • UASP supported for Raspberry Pi 4

  • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

  • Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

  • USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

  • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)

  • LED blue indicator indicates drive status

  • Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

  • Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

  • Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

  • Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

  • Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)



Specification:

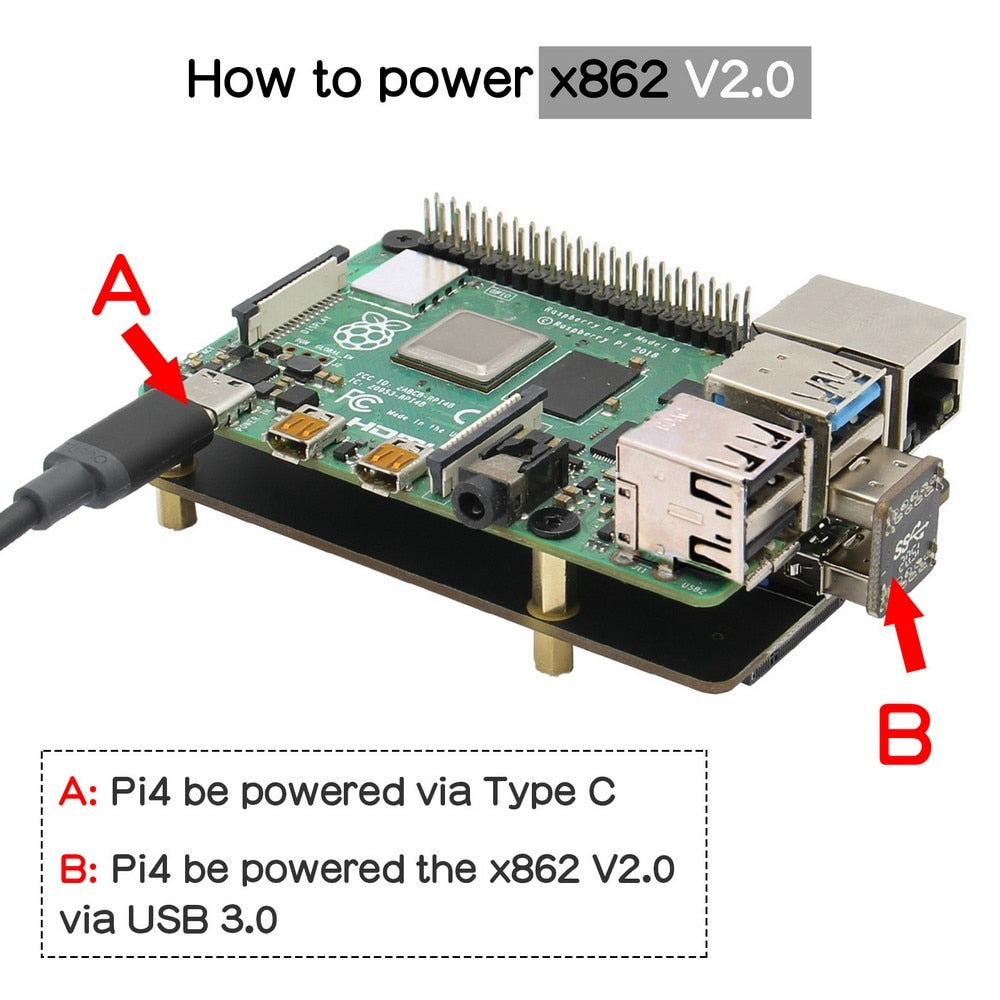

  • Power supply:5Vdc +/-5% , Powered via USB port by Raspberry Pi 4



Ports & Connectors:

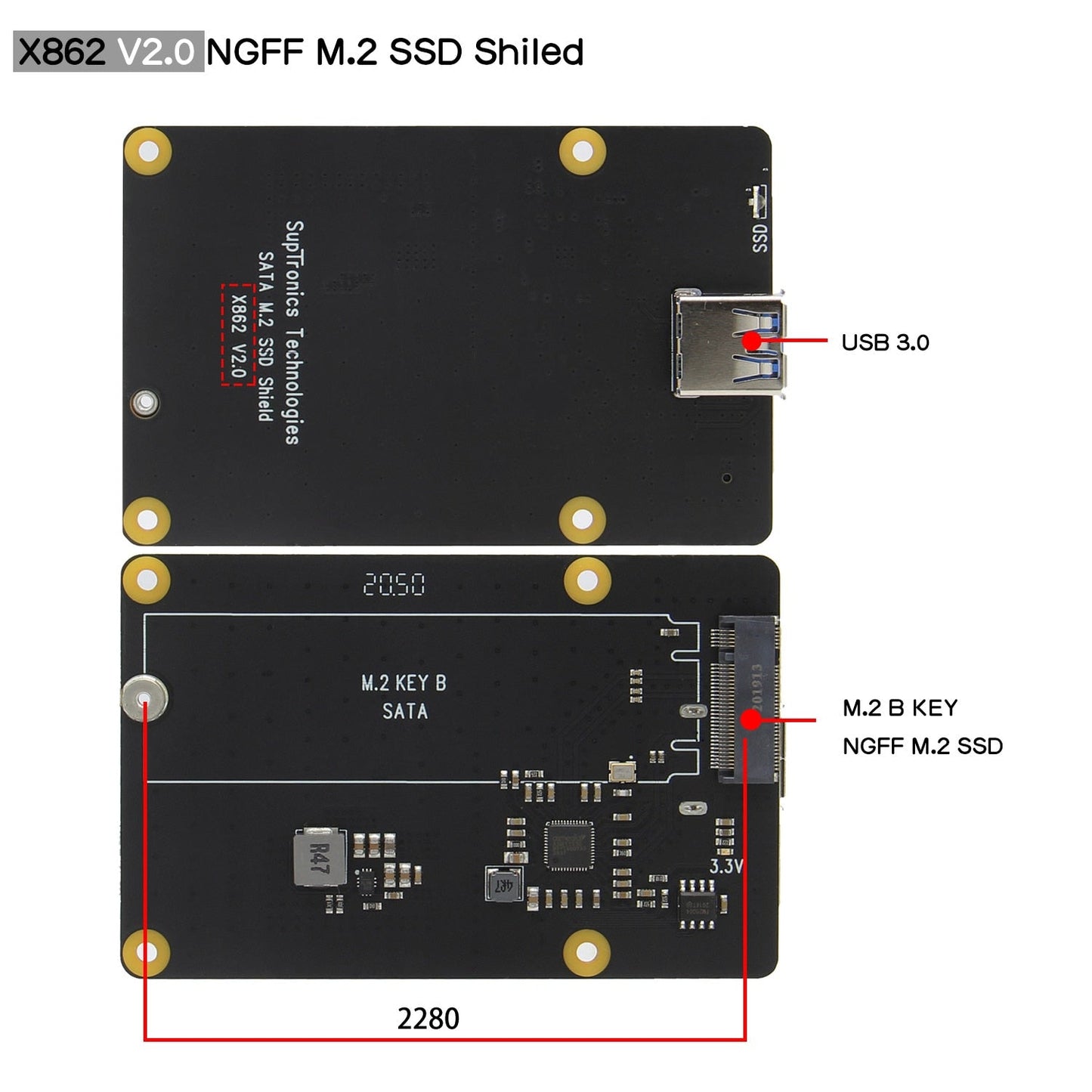

  • USB socket - USB 3.0 type A x1

  • 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1

  • PCB Size 87mm x 56mm





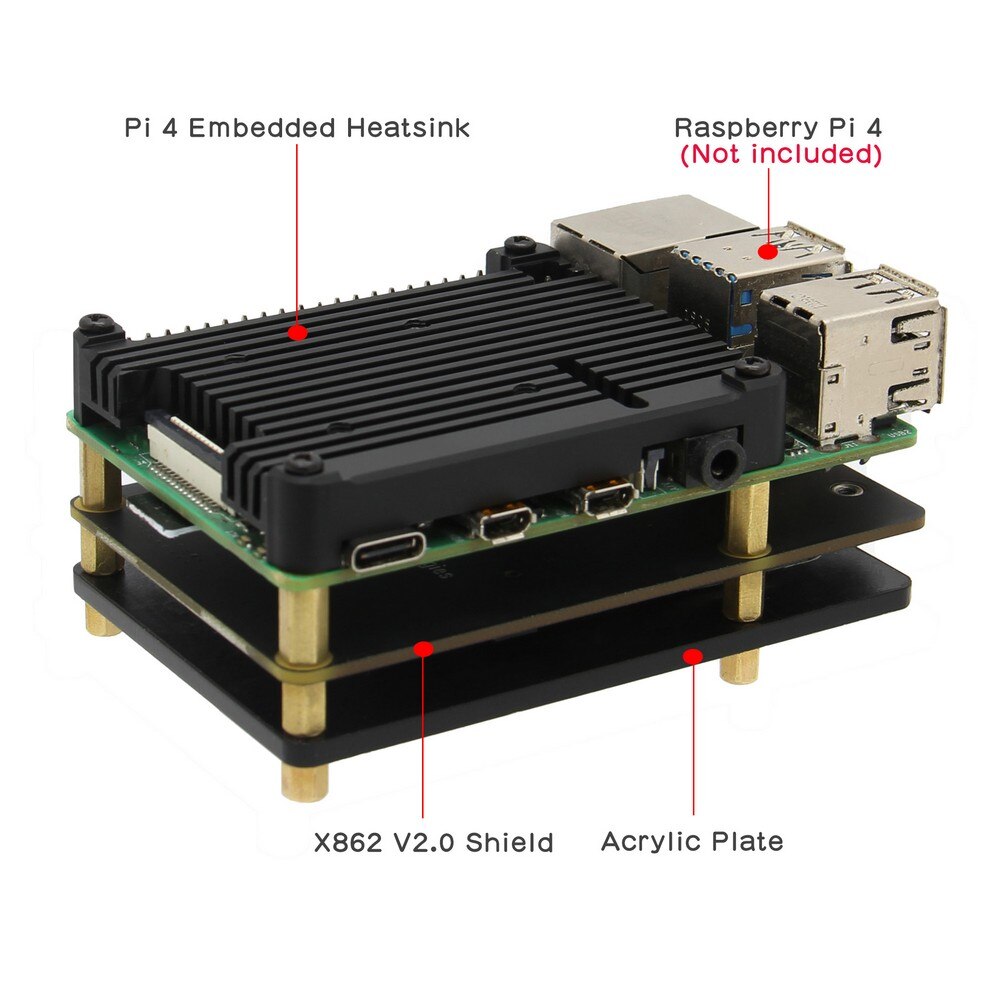

Packing List:

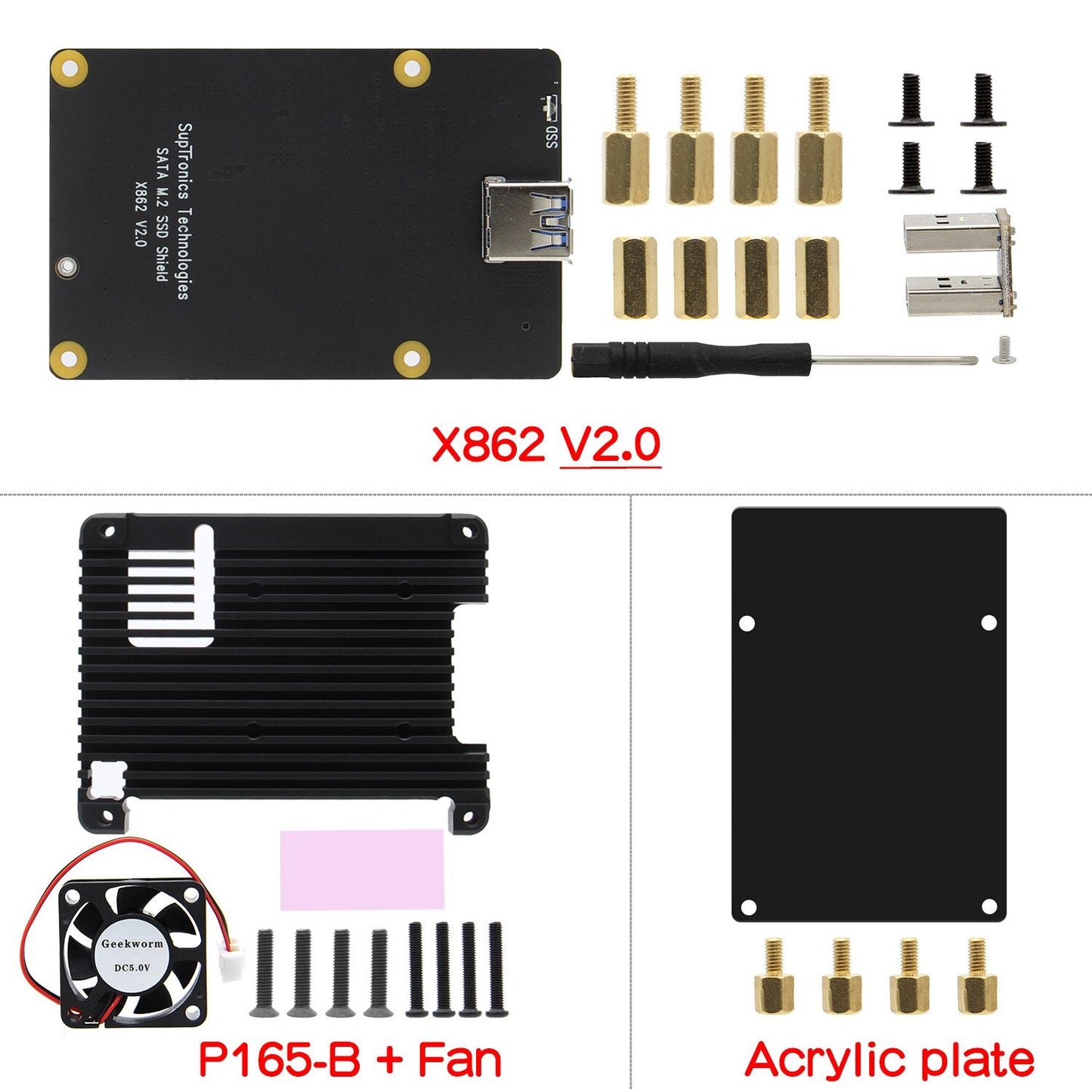

Bundle1:


  • 1x X862 M.2 NGFF SATA SSD Shield

  • 1x Embedded Heatsink(P165-B ) with Fan

  • 1x 3010 Cooling Fan

  • 1x Acrylic plate

  • 1x USB3.1 jumper

  • 1x Screw pack



Bundle2:

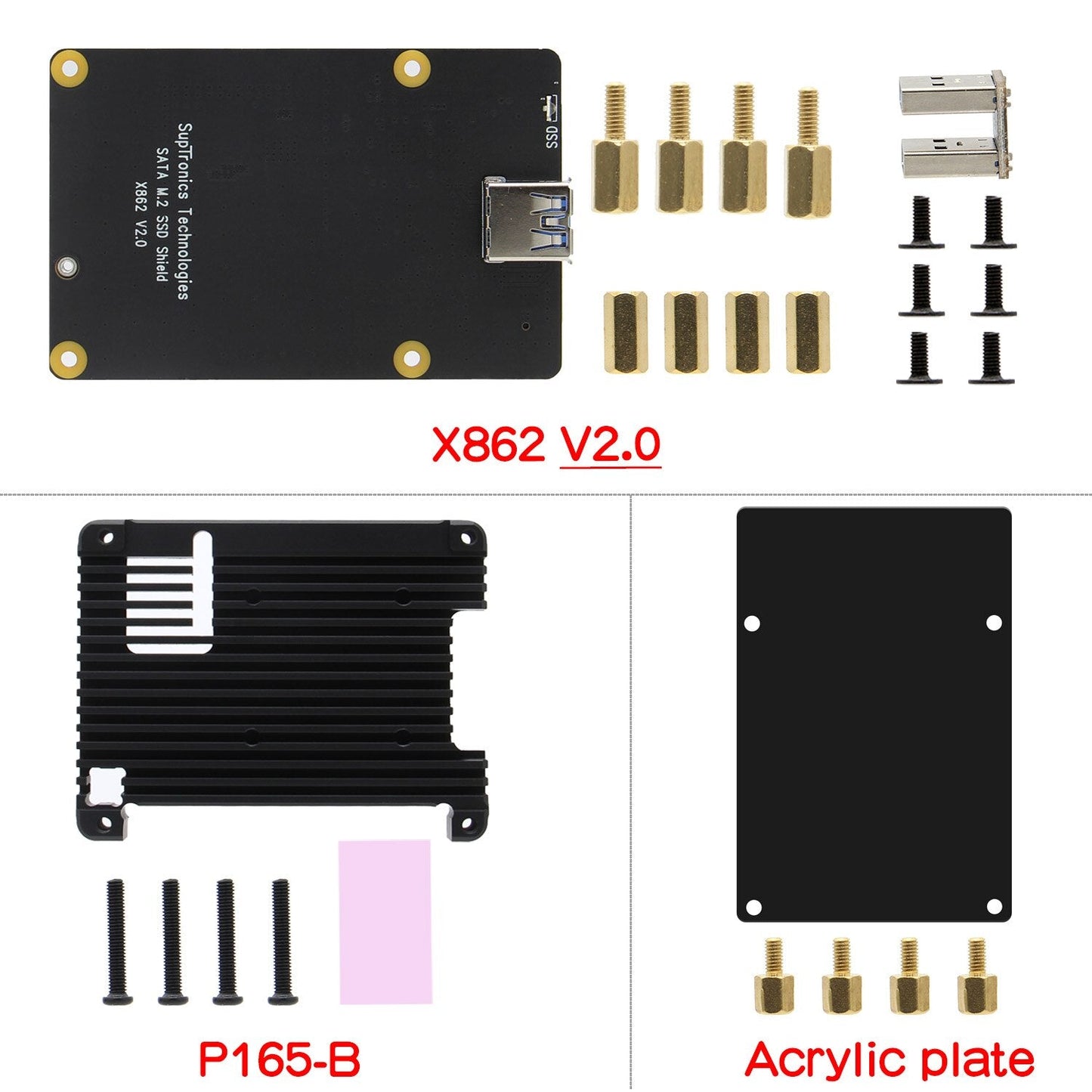

  • 1x X862 M.2 NGFF SATA SSD Shield

  • 1x Embedded Heatsink(P165-B )

  • 1x Acrylic plate

  • 1x USB3.1 jumper

  • 1x Screw pack
