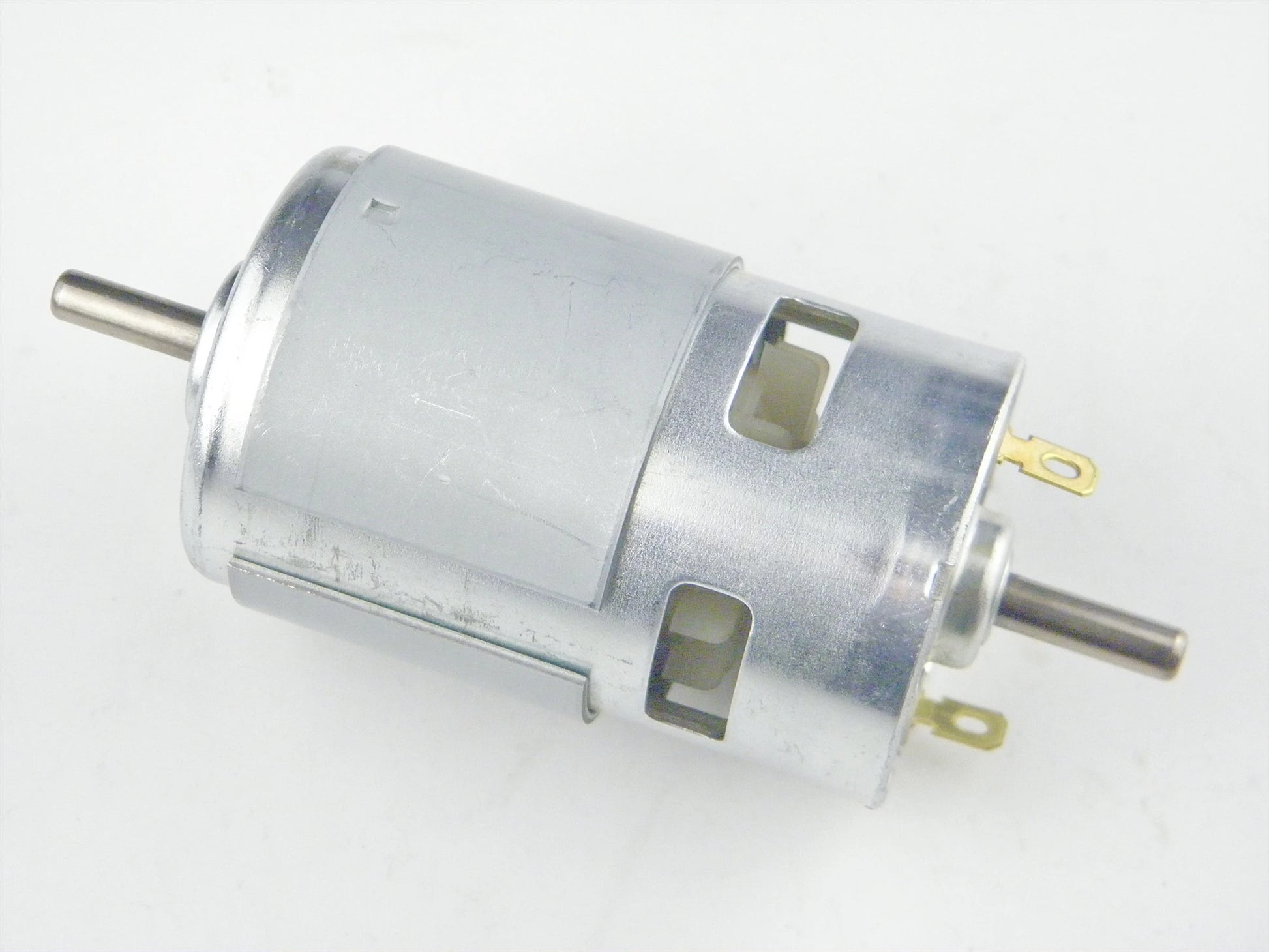

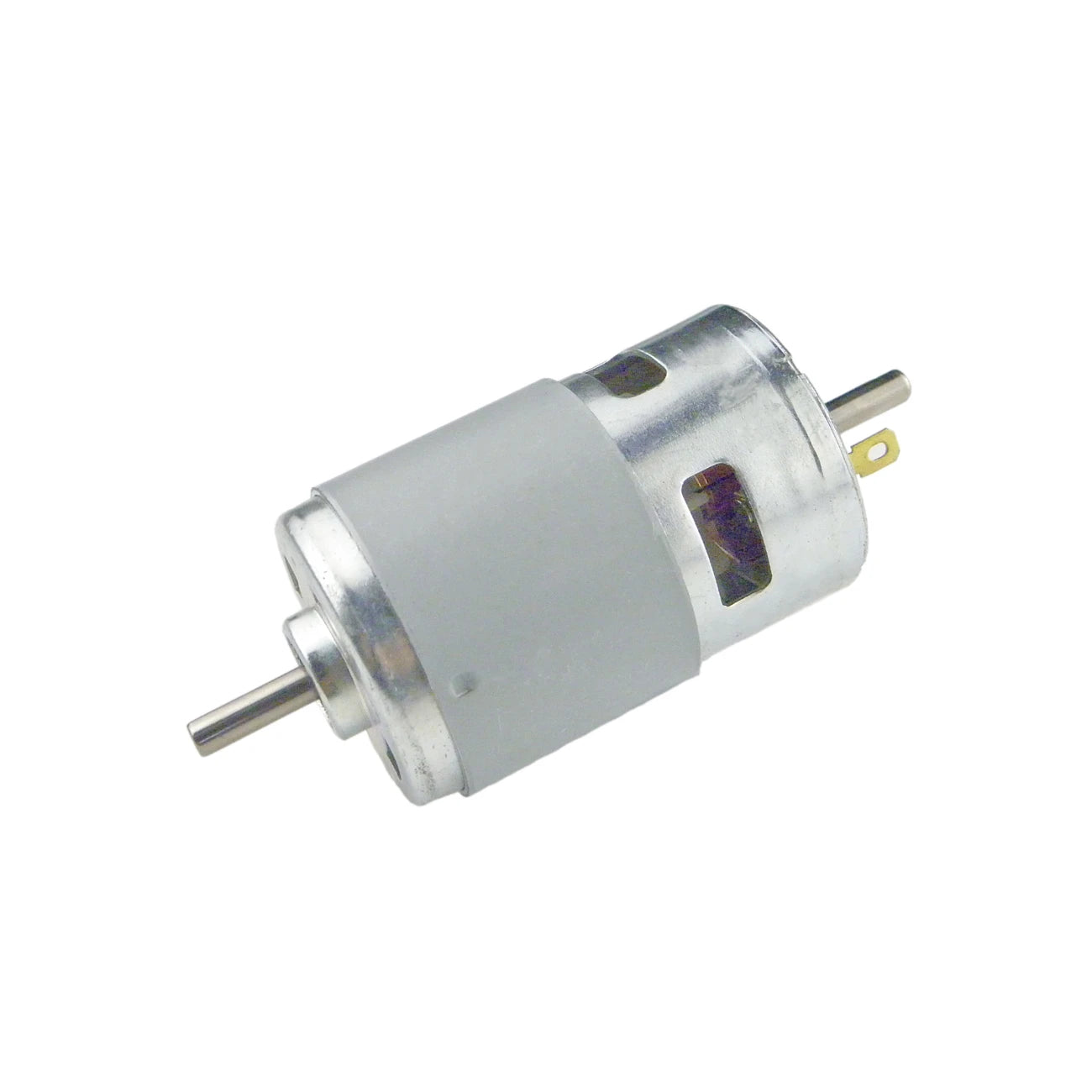

Custom Low Noise Electric Motor 775 DC 12V/24V 4000RPM/8000RPM 6000RPM/12000RPM High Torque High Power for circular saw Manufacturer

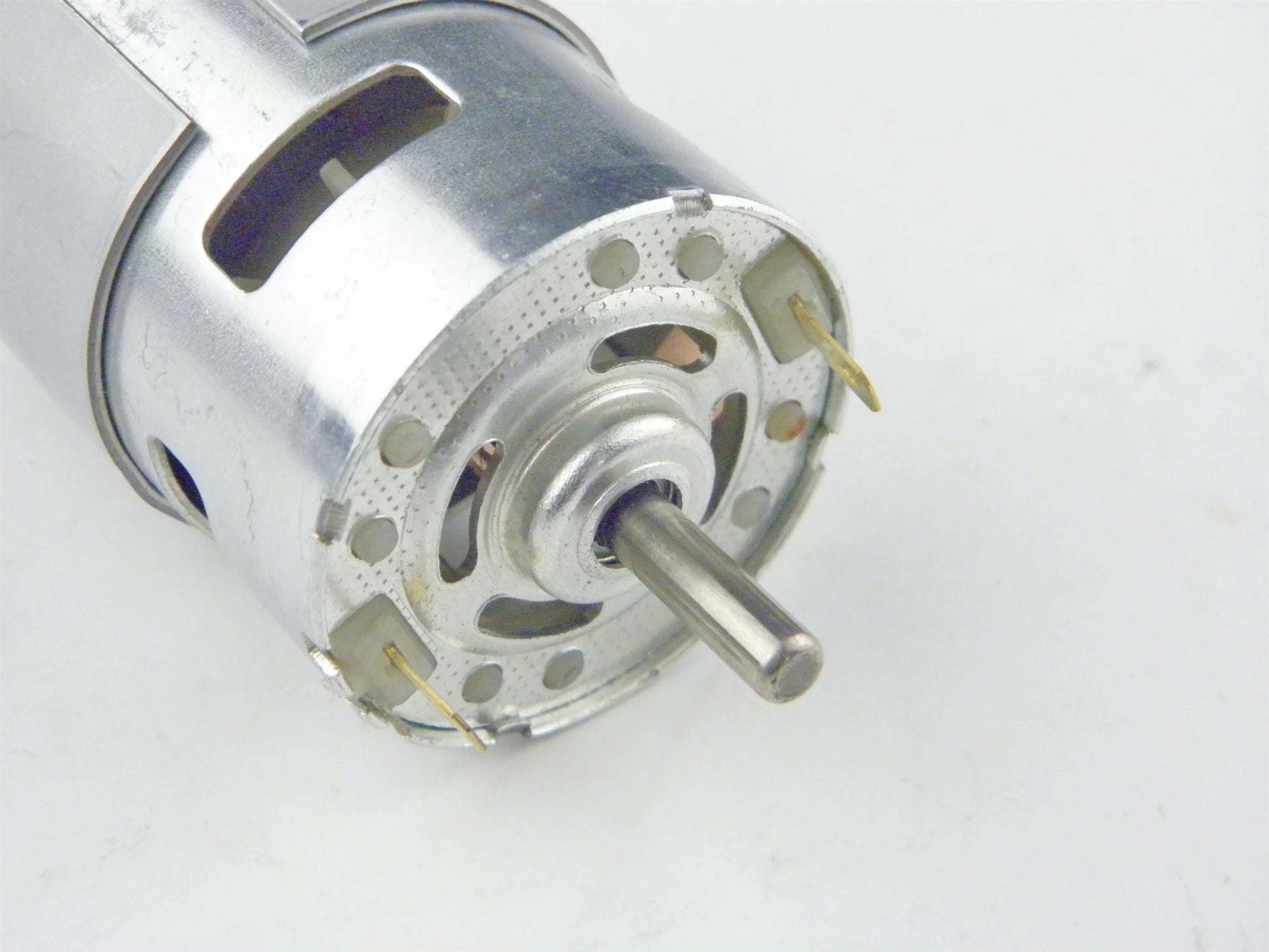

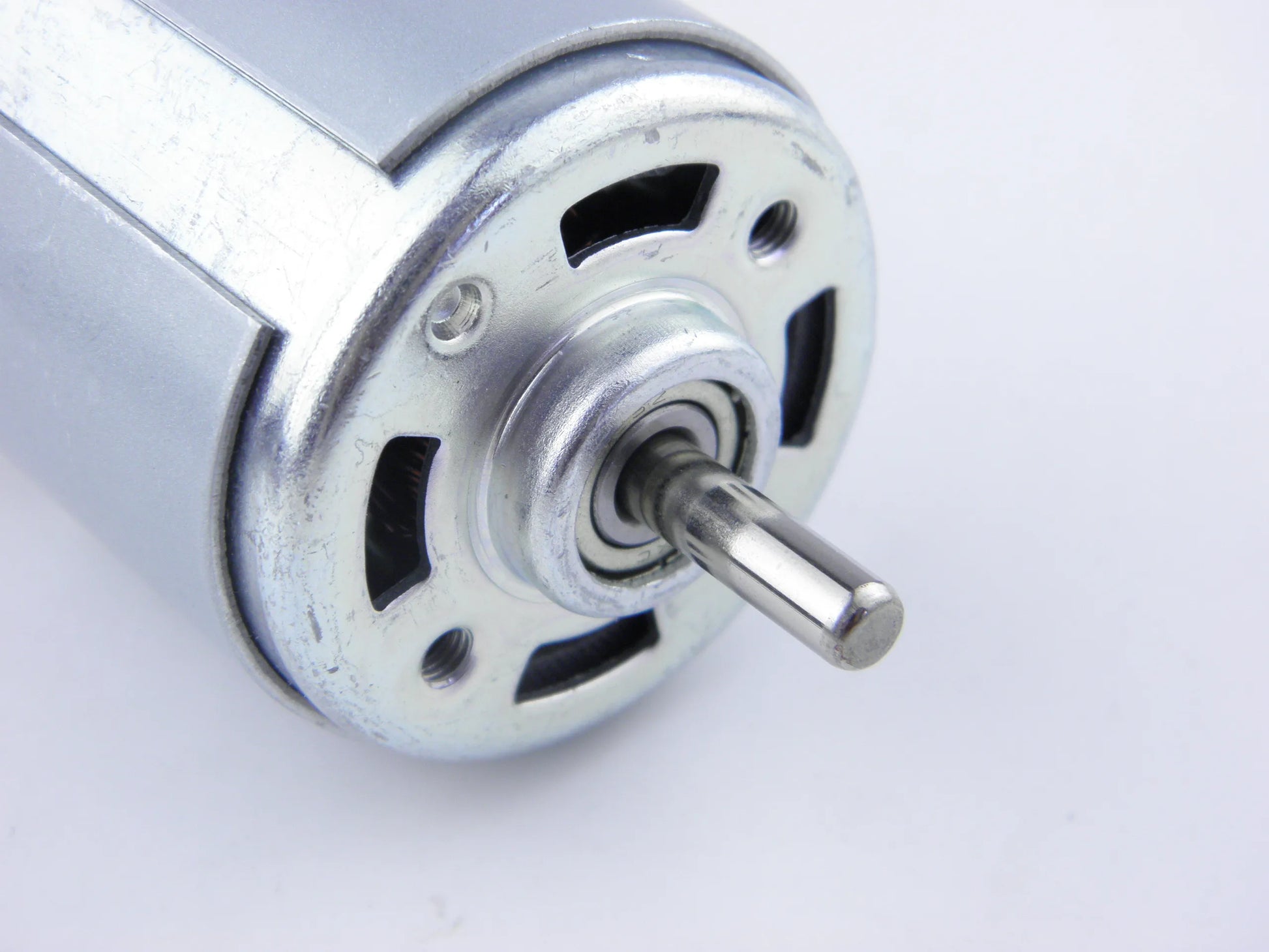

*The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

* Pure copper wire core rotor, with precision winding technology, high-temperature resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

* Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.

*Package: 1PC x DC Motor.

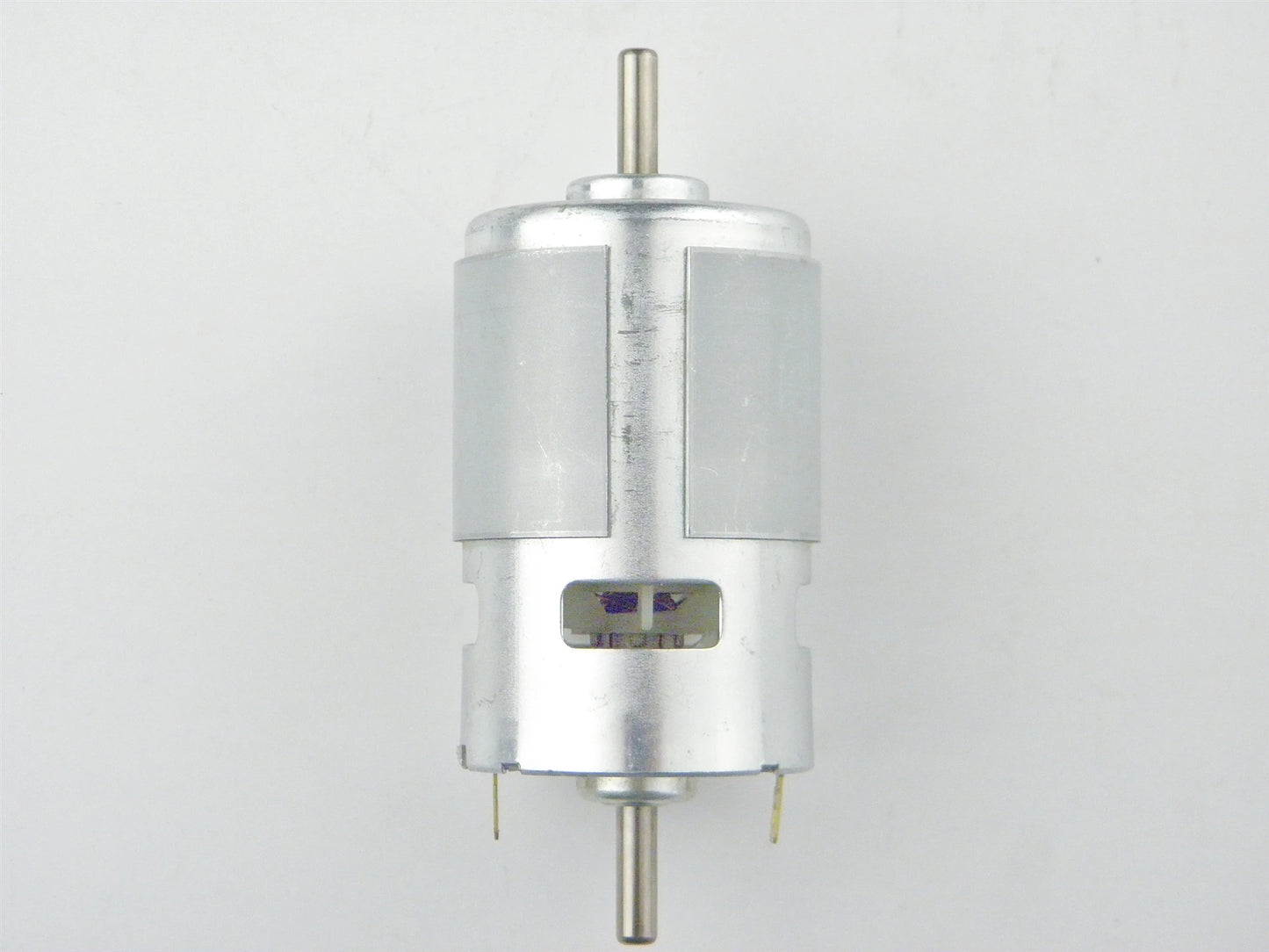

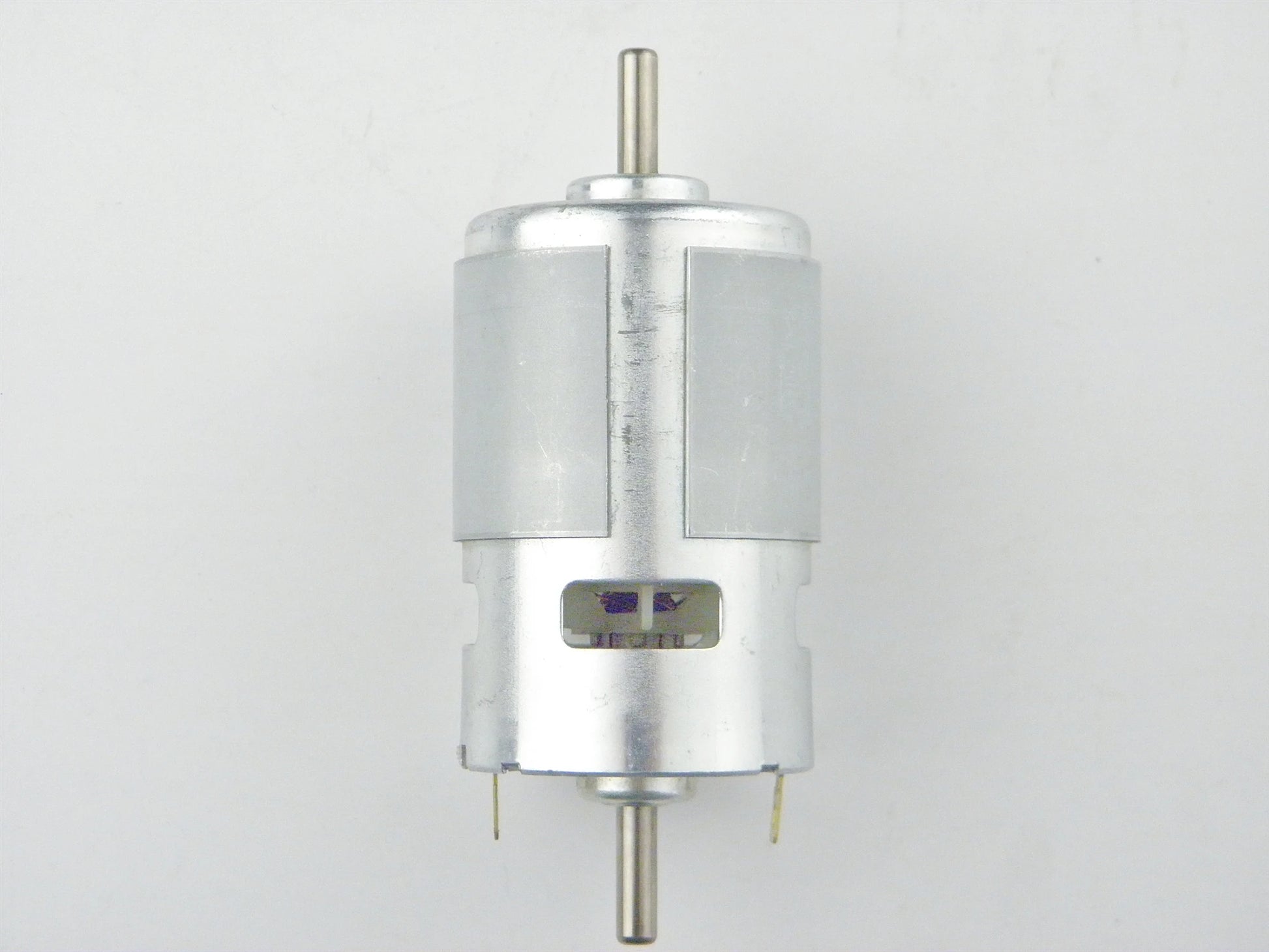

Double Shaft

Type 1:
Rated Voltage: DC 12V, Unloaded Speed: 6000RPM, The Max Torque: 2Kgf.cm;

Rated Voltage: DC 24V, Unloaded Speed: 12000RPM, The Max Torque: 3.8Kgf.cm;

Power: 150-288W;

The Max Current:12A;

Type 2:
Rated Voltage: DC 12V, Unloaded Speed: 4000RPM, The Max Torque: 1.2Kgf.cm;

Rated Voltage: DC 24V, Unloaded Speed: 8000RPM, The Max Torque: 2Kgf.cm;

Power: 80W;

The Max Current:12A;
