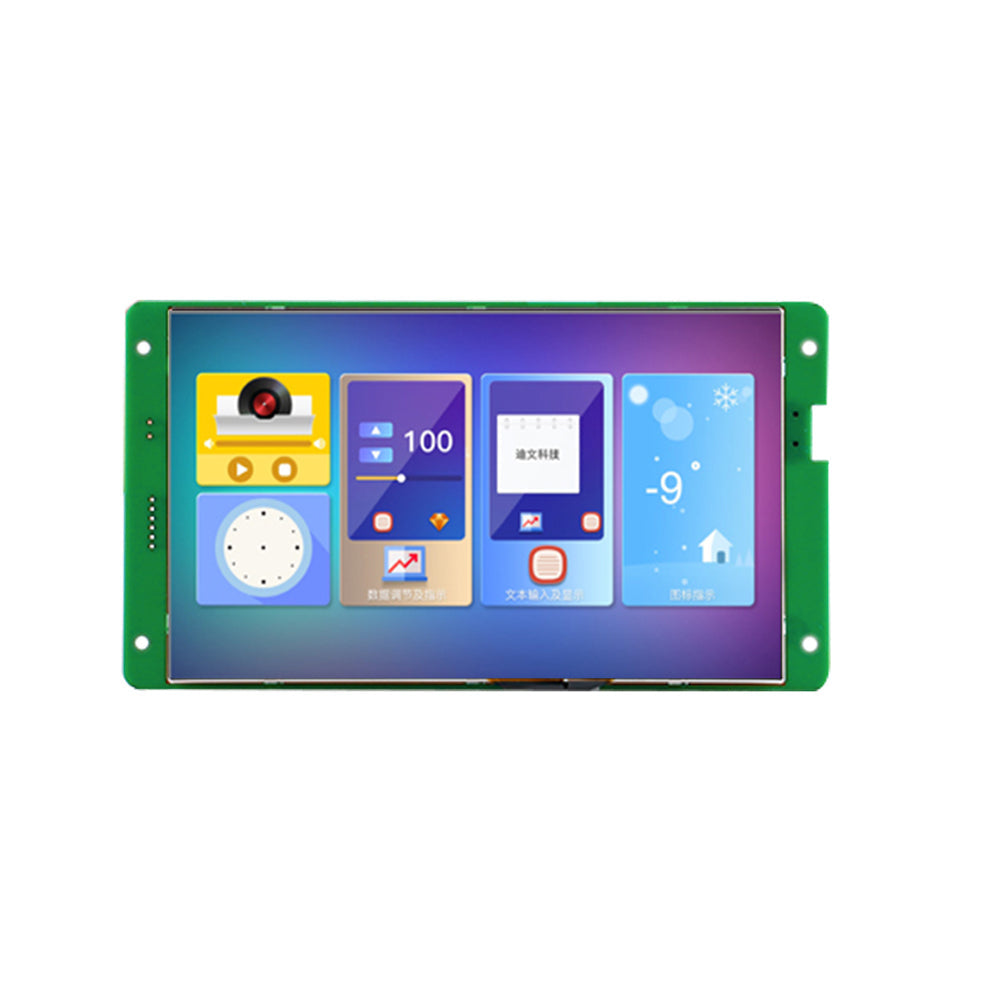

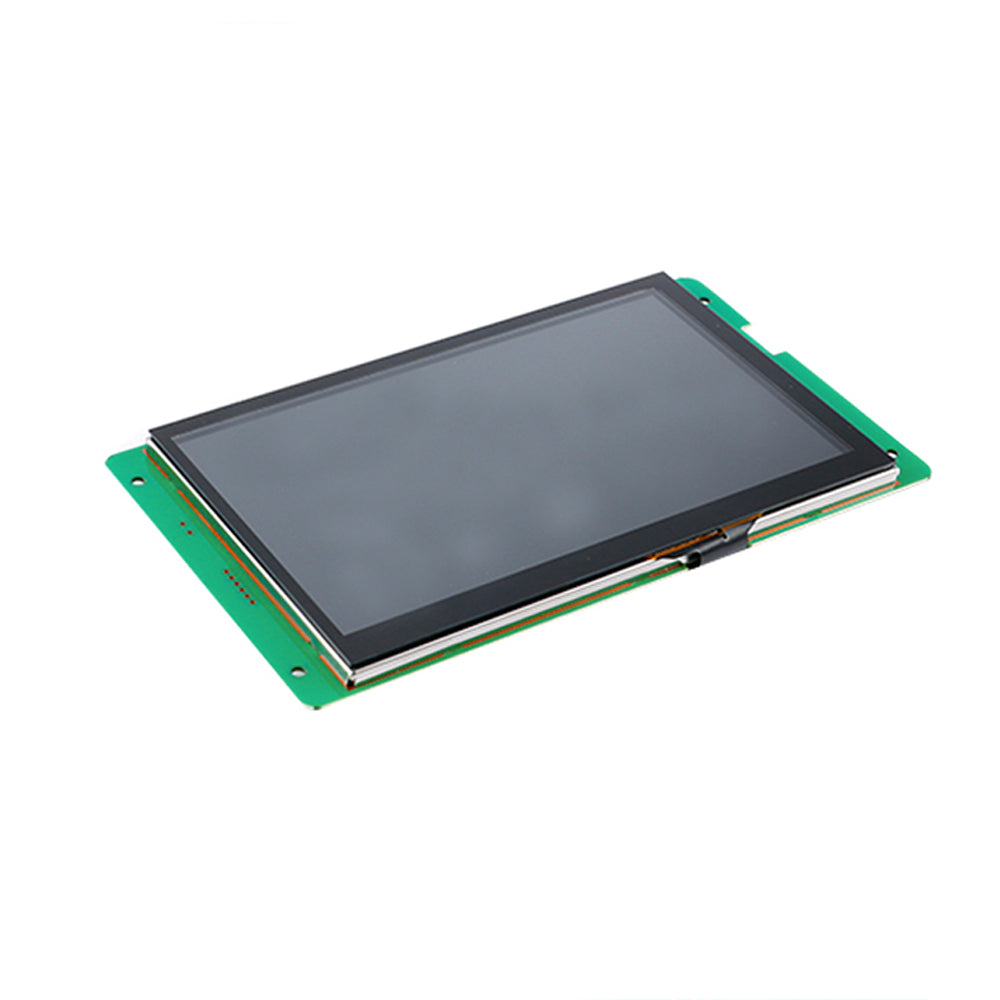

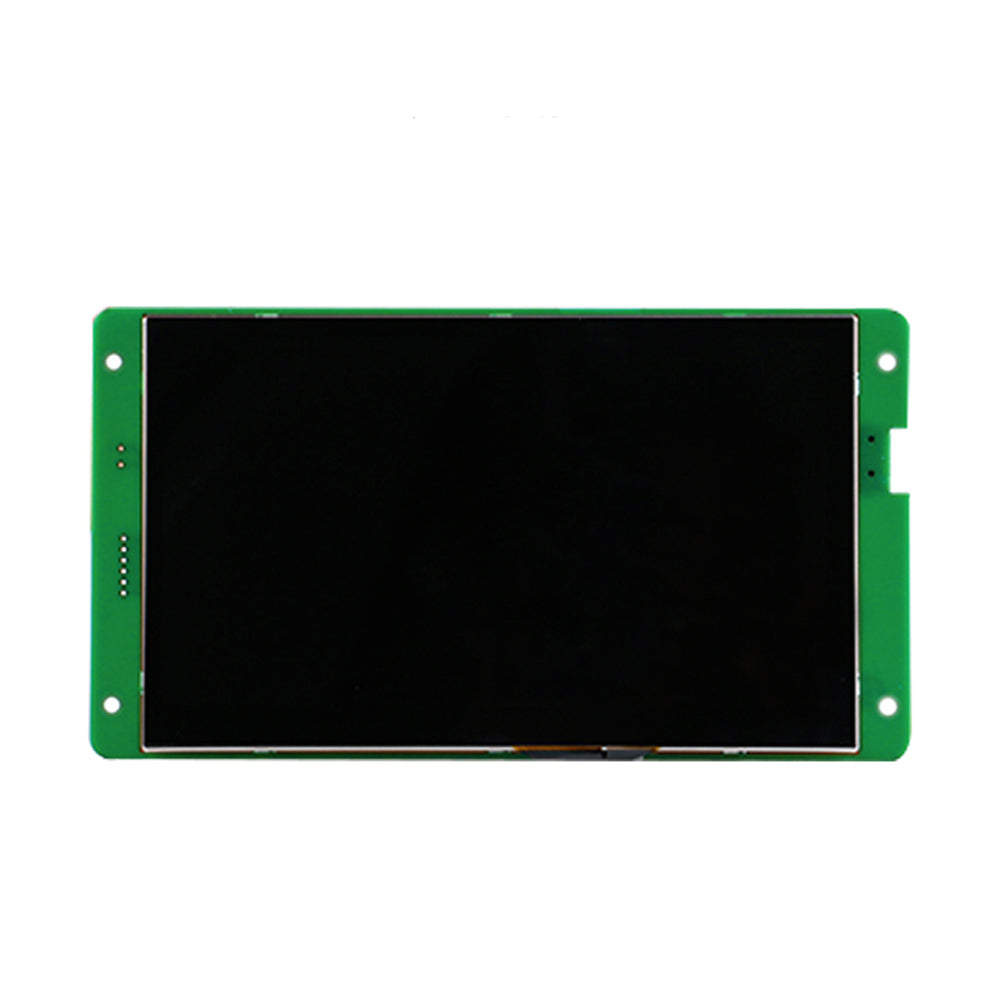

LONTEN 7 inch serial screen DGUS II Smart screen IPS capacitive touch screen display module 480*854 Custom

LONTEN 7 inch serial screen DGUS II Smart screen IPS capacitive touch screen display module 480*854 Custom

Regular price $81.43 USD
Regular price $81.43 USD Sale price $81.43 USD
Sale Sold out

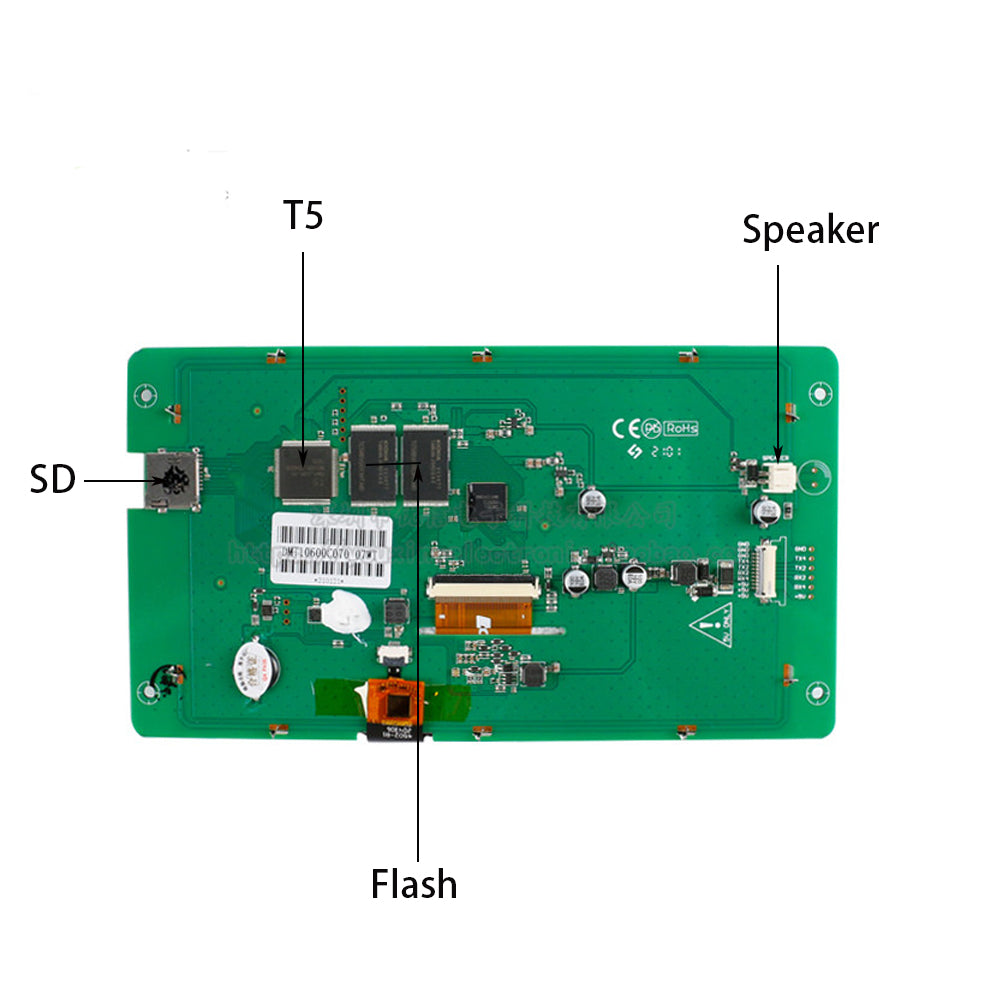

This product is a serial screen, based on T5 dual-core CPu, GUI and OS core running at 250MHz main frequency. The screen supports font library, music, icon and application software updates. Support JPEG image decompression and update image. Up to 255 display variables per page. Functions including display controls and touch controls can be turned on, off or modified in the application to achieve complex display groups including functions.



Product parameters

Storage space: 256Mbytes Flash, of which 192Mbytes is the picture memory, 64Mbytes font space (the latter 32Mbytes font and music reuse)

Playback format: High-quality music playback in 32KHz 16bit WAv format for up to 524.3 seconds. 320Kbytes Nor Flash user database. 128Kbytes SRAM



color :65K

display size:109.7*61.6mm

screen resolution:480*854

backlight:LED

brightness:300nit

voltage:DC5V 1A

SD :FAT32 format SDHC

speaker:2Pin_2.0mm

RAM:128 Kbytes

Nor flash:320 Kbytes

UI version:T5UID2

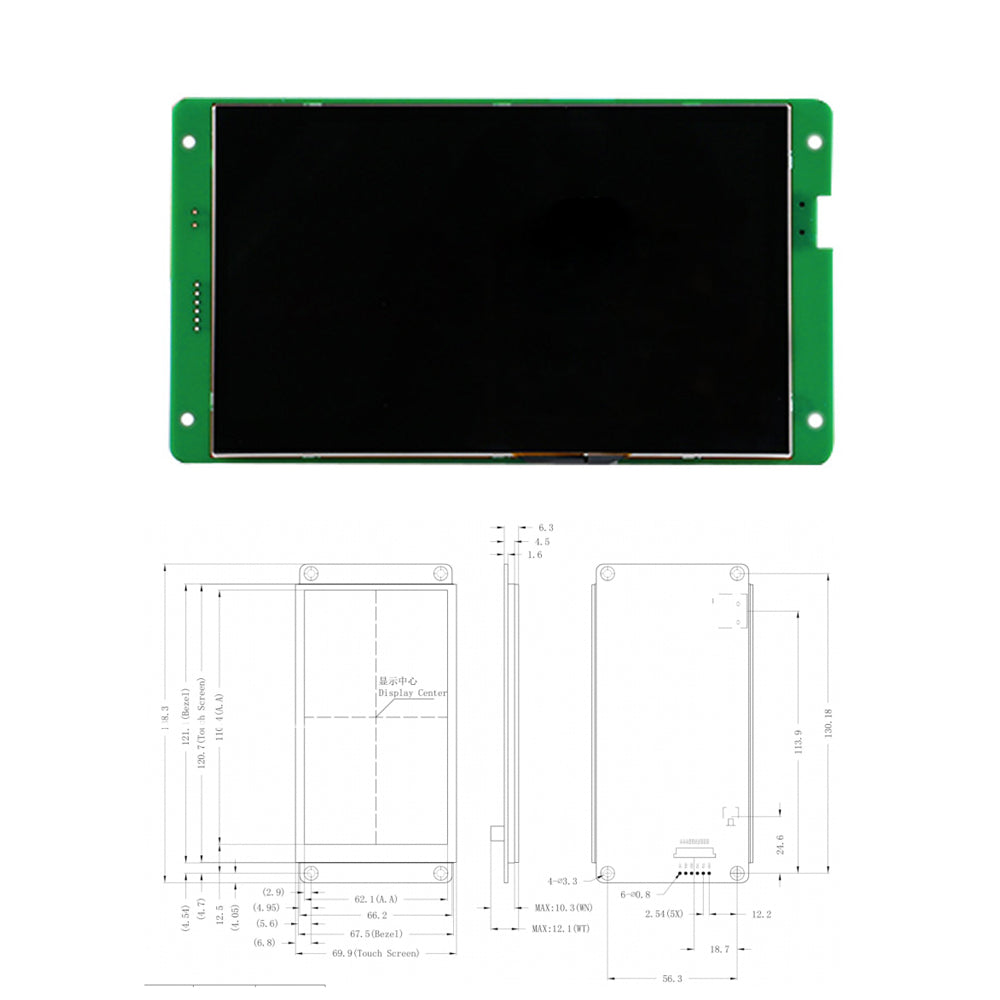

SIZE:138.3*69.9*12.1
