LONTEN 7 inch lcd display capacitive touch IPS 1024*600 monitor with holder speaker for Raspberry Pi win7 Custom

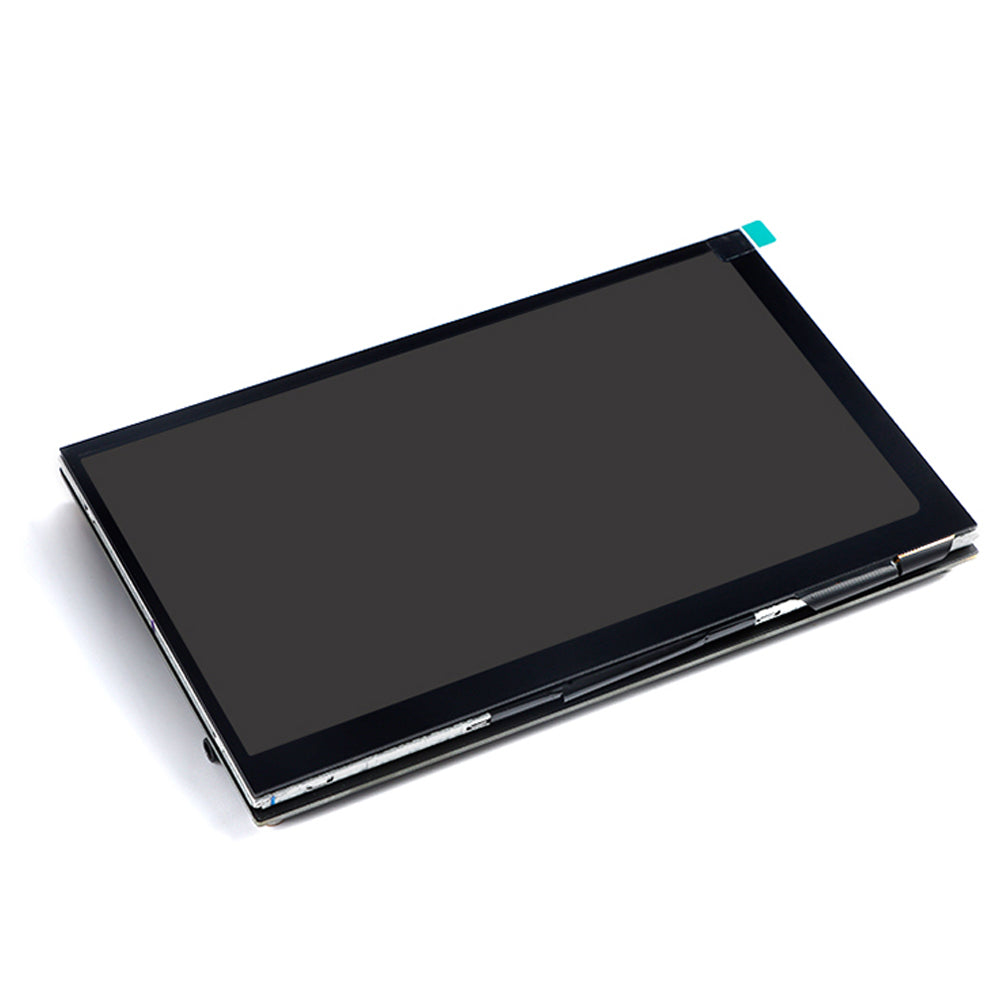

IPS full viewing angle display

1024X600 HD resolution, up to 178° full viewing angle panel for Raspberry Pi display

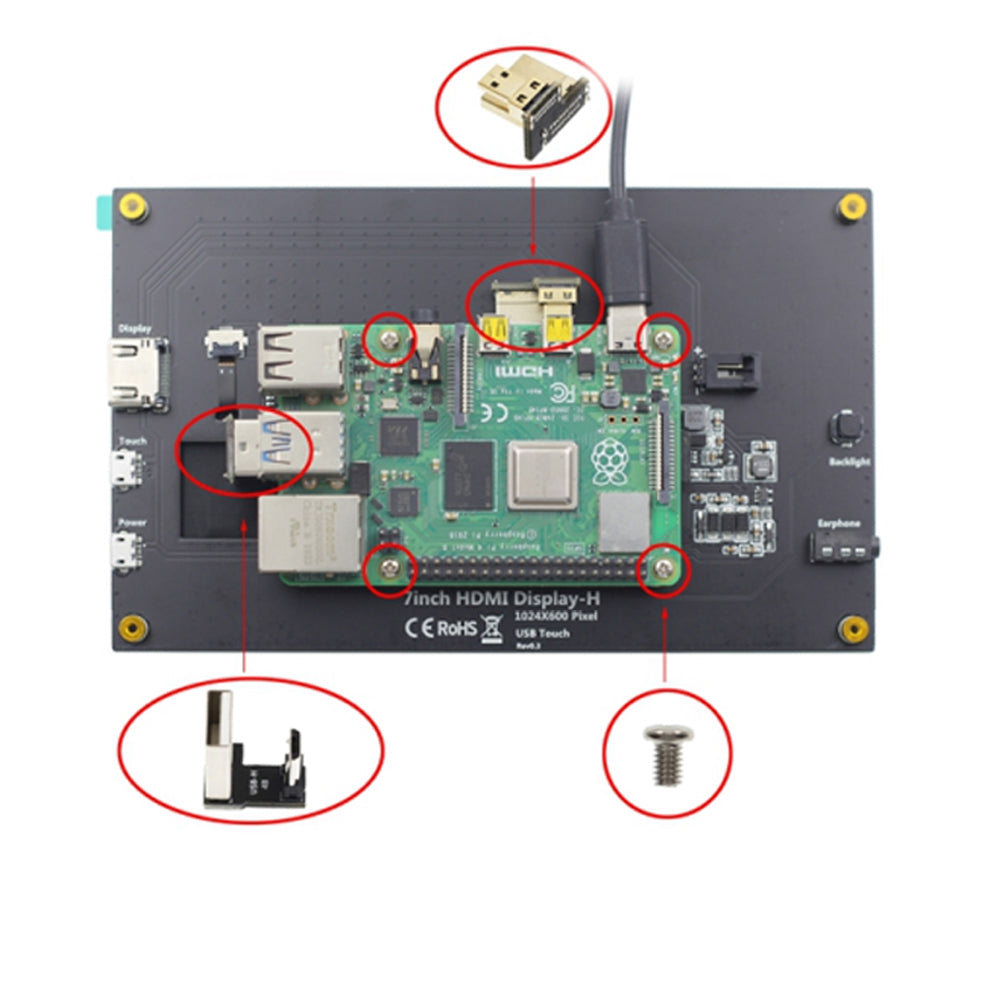

Support Raspberry Pi back-to-back direct installation and locking

Support Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black and other mainstream development boards

When used with Raspberry Pi, it supports Raspbian, Kali linux, ubuntu and other mainstream systems to support touch, plug and play without driver.

Use as a mini PC monitor

Can be used as a secondary computer display (Windows supports 5-point touch), and display with other Mini PC monitors

Mountable bracket

Equipped with a 60° bracket, easy to install, simple and practical, and the backlight of the vertical display can be adjusted in seconds

Built-in backlight adjustment button, you can adjust the backlight brightness as needed Built-in audio system (optional)

Optional Hi-Fi Stereo Dual Speaker Speaker System



Product parameters

Size: 7.0(inch) SKU: MPI7006

Resolution: 1024X600(dots) Touch: Capacitive touch

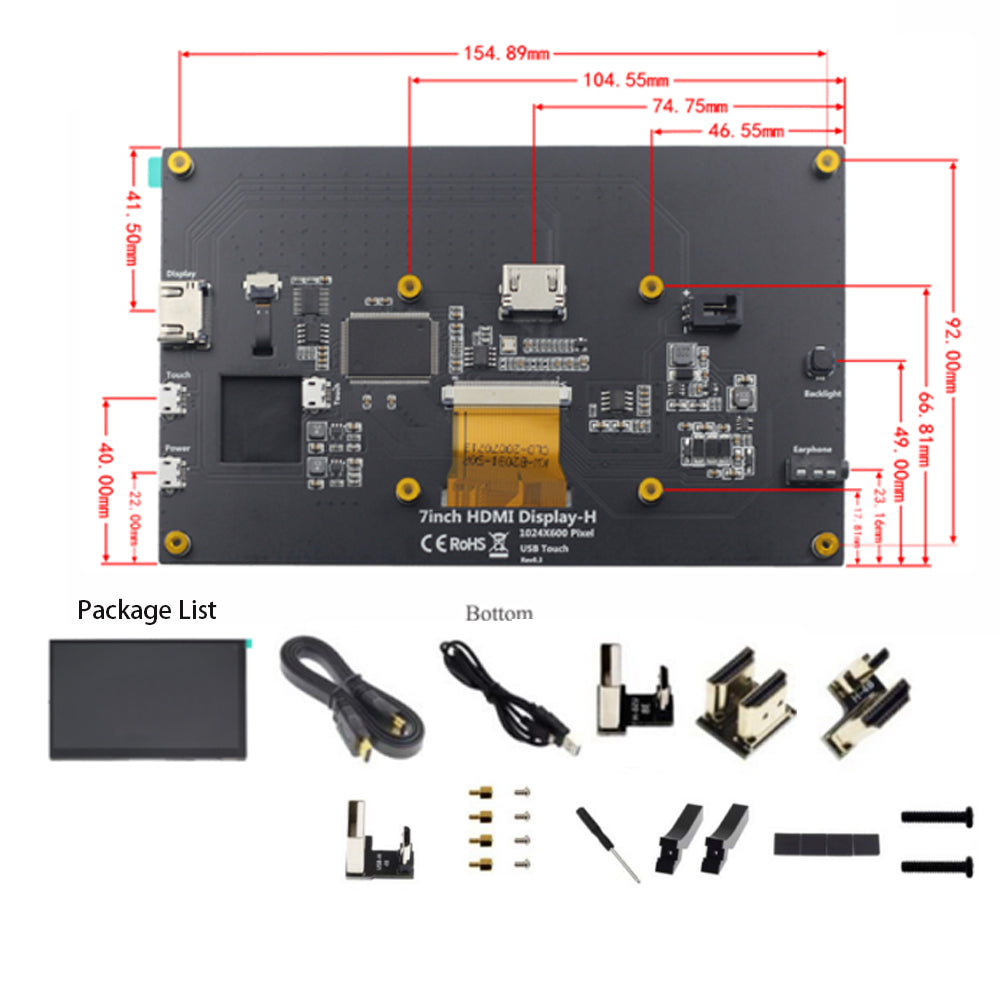

Dimensions: 164.9*102(mm)

Product weight: 510(g)

1. Input HDMI signal: use HDMI cable to connect, often used to connect to a computer,

HDMI interface, the maximum supported resolution is 108OP

2. Touch interface: transmit touch signal, use MicroUSB, wire connection, provide touch and supply

Electric function, often used to connect to a computer

3.Power interface: connect to the power supply, use the MicroUSB cable to connect, only provide the power supply function

4. Touch interface: transmit touch signal, use MicroUSB, wire connection, provide touch and supply

Power function, commonly used to connect to Raspberry Pi

5.3.5mm audio output port: output audio signal, connect audio output device, such as earphone

6. Backlight adjustment Adjust the backlight brightness of the display screen. Each time you press it, the backlight brightness increases by 10

Button: the maximum increase to 100, and then start from 0, long press for 3 seconds to turn off the backlight

7. Cooling fan

Access cooling fan interface: input HDMI signal, use HDMI adapter to connect, only for connecting

8. HDMI interface: Raspberry Pi, the maximum supported resolution is 1024x600
