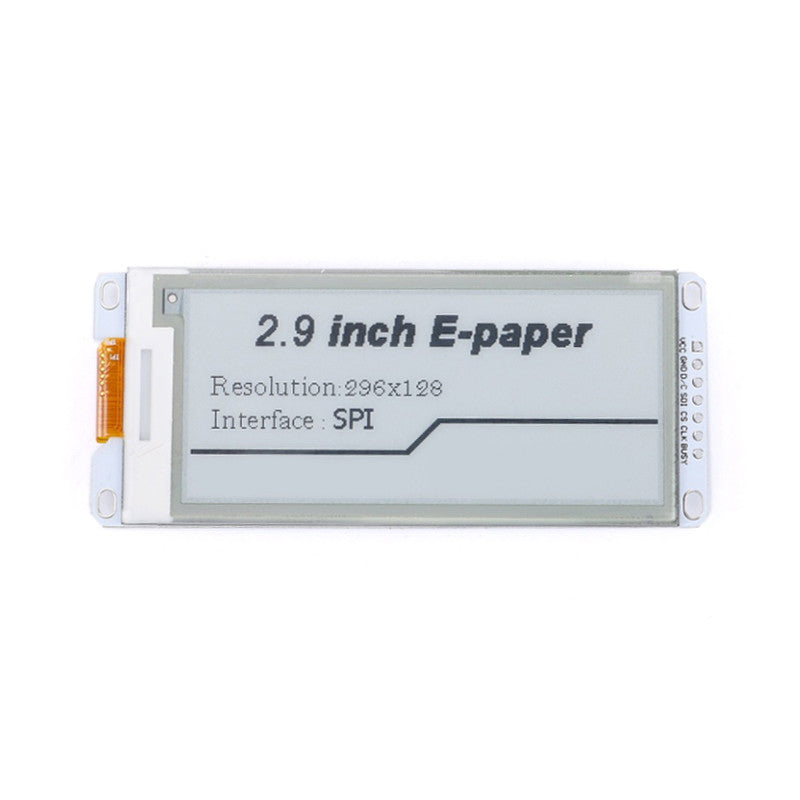

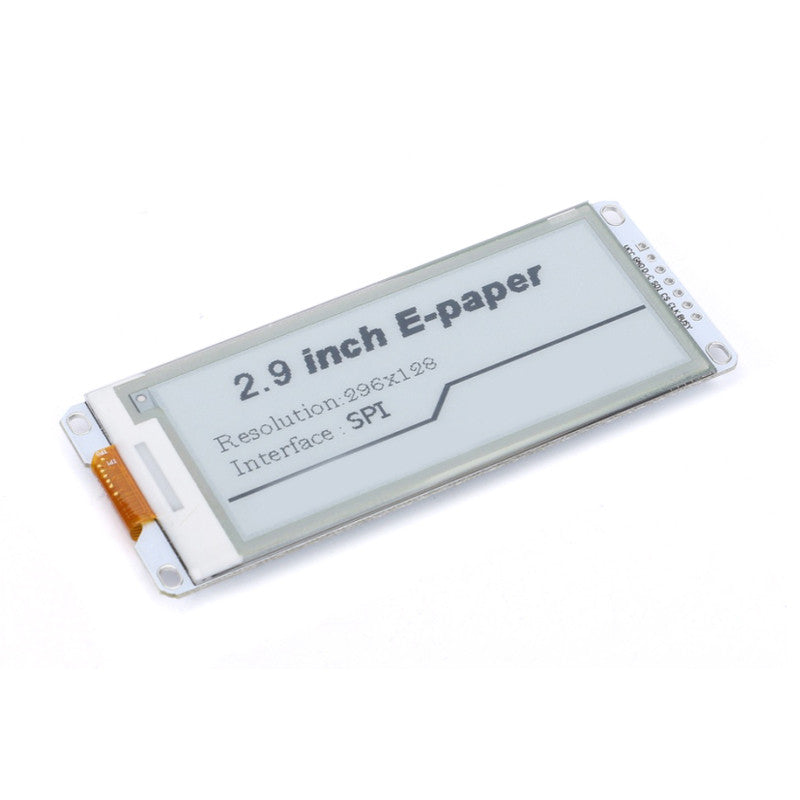

LONTEN 2.9 inch electronic paper display module 196*128 IL3820 SPI screen for Smart Home, IoT, Industrial screens Custom

Size: 2.9 inches

Color: black, white

Viewing angle: > 170°

Global/local refresh time: 1/0.3s

Refresh method: global/local refresh

Communication method: SPI, only 4 I/O interfaces are required

Resolution: 296*128

Controller IC: IL3820

Working temperature: 0~60℃

Working voltage: 3.3v

Size: 87.8*36.7*2.2mm

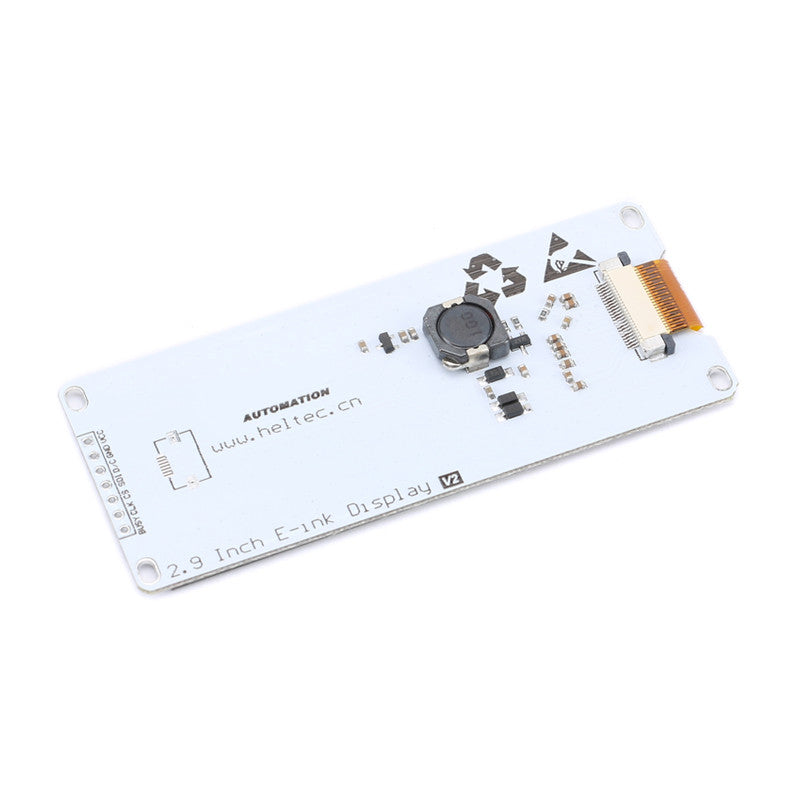

vcc: 3~6V power positive input

GND: power ground

SDI: SPI communication MOSI bow foot

CLK : SPI communication SCK pin | pin

cs: SPI chip select pin (active low)

D/C: data/command control pin (high-level write data, low-level write command)

BUSY: busy output pin (high level means busy)
