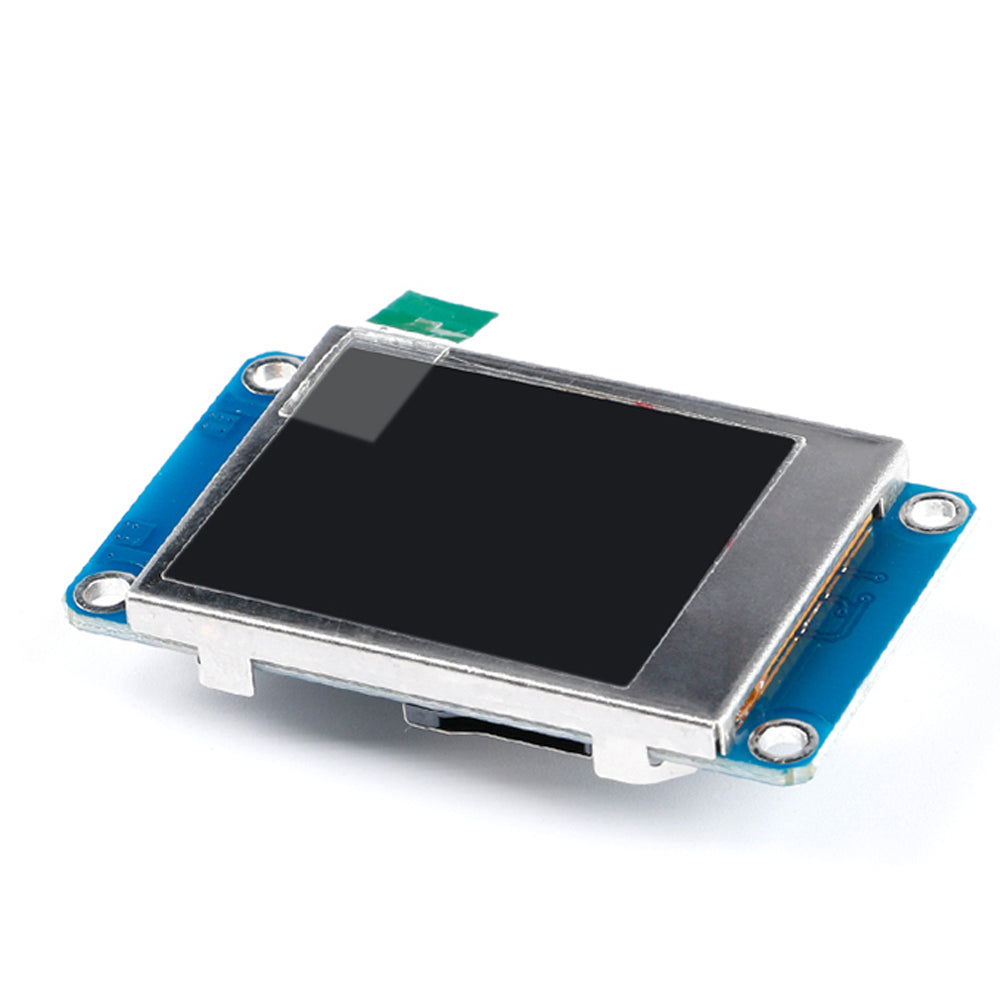

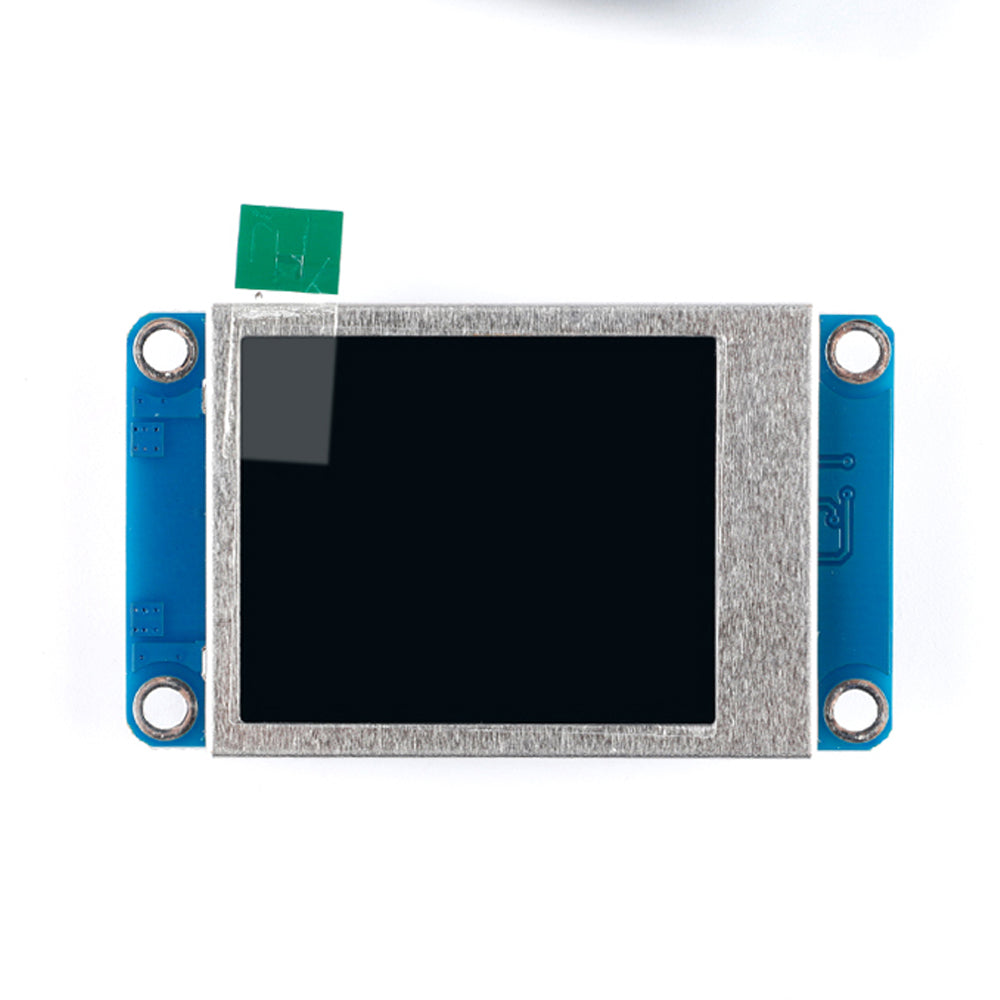

LONTEN 1.8 inch Serial screen display module 160x128 no touch With font library QR code display HMI screen metal frame Custom

Serial screen refers to the liquid crystal screen with serial port control, which is widely used in industrial automation, smart home appliances, transportation tracks, data room, charging pile, electric medical treatment, national defense security, shared equipment and other display fields. Display scheme, the communication part in the display scheme consists of serial communication, UART serial port or SPI serial port, etc.; it is composed of three parts: display driver board, shell, and LCD liquid crystal display. Receive the instructions sent by the serial port of the user's single-chip microcomputer, and complete all the operations of drawing on the LCD.

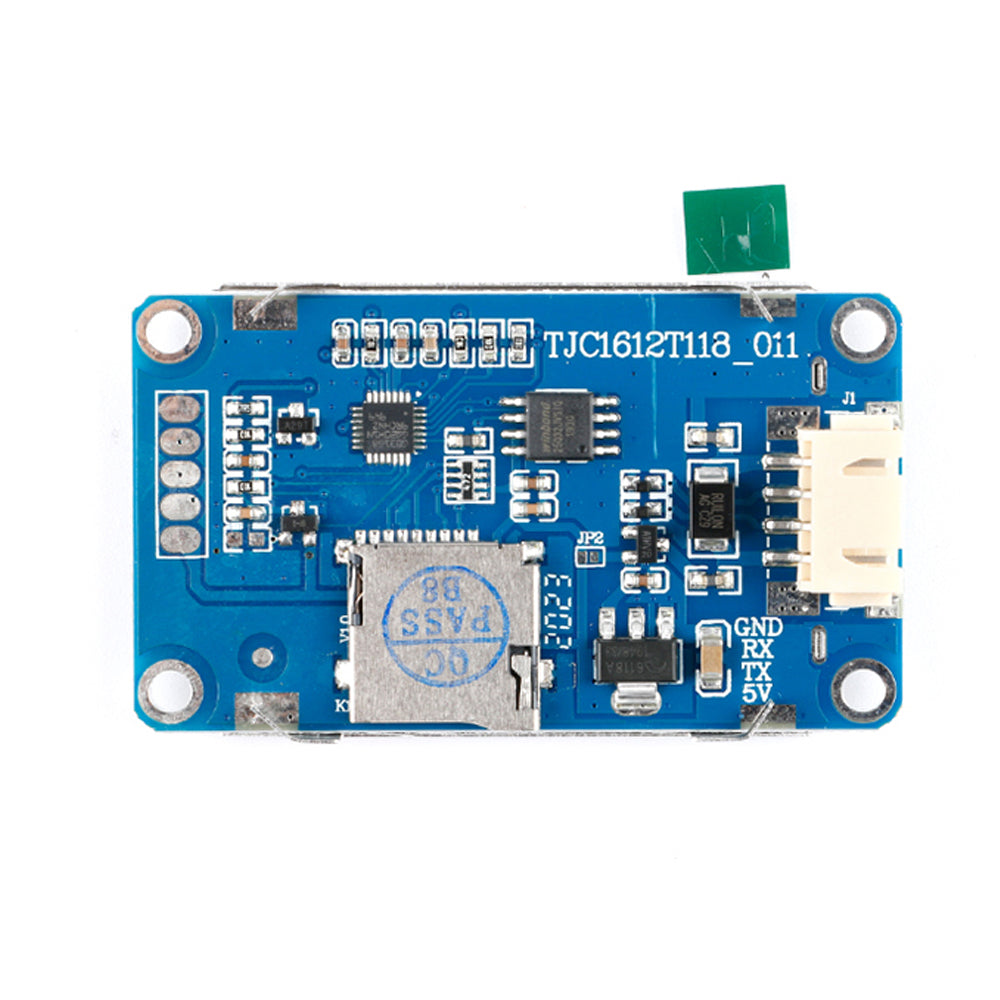

Model: TJC1612T118_011N

Touch type: no touch

TFT type: TN

Effective display size (mm): 28.03(L)×35.04(W)

Operating current (mA): 85

Working temperature(°C):-20~+70

Power-down storage capacity (Bytes): none

Serial command buffer (Bytes): 1K

Expansion I/O: none

Series & Size: T1 1.8 inch

Ratio: 4:3

Resolution: 160×128

Brightness (nit): 300

Working voltage (V): 4.5-6.0

Sleep current (mA): 0.25

flash capacity (Bytes): 4M

Running memory (Bytes): 3584

RTC clock: none
