LONTEN 1.8 inch RGB TFT LCD screen display IPS 128*160 SPI interface ST7735 driver(solder type) screens Custom

Size: 1.8 inches

Material: TFT LCD

Resolution: 128xRGBx160 The display direction can be adjusted, both horizontal and vertical screens can be

Control chip: ST7735S

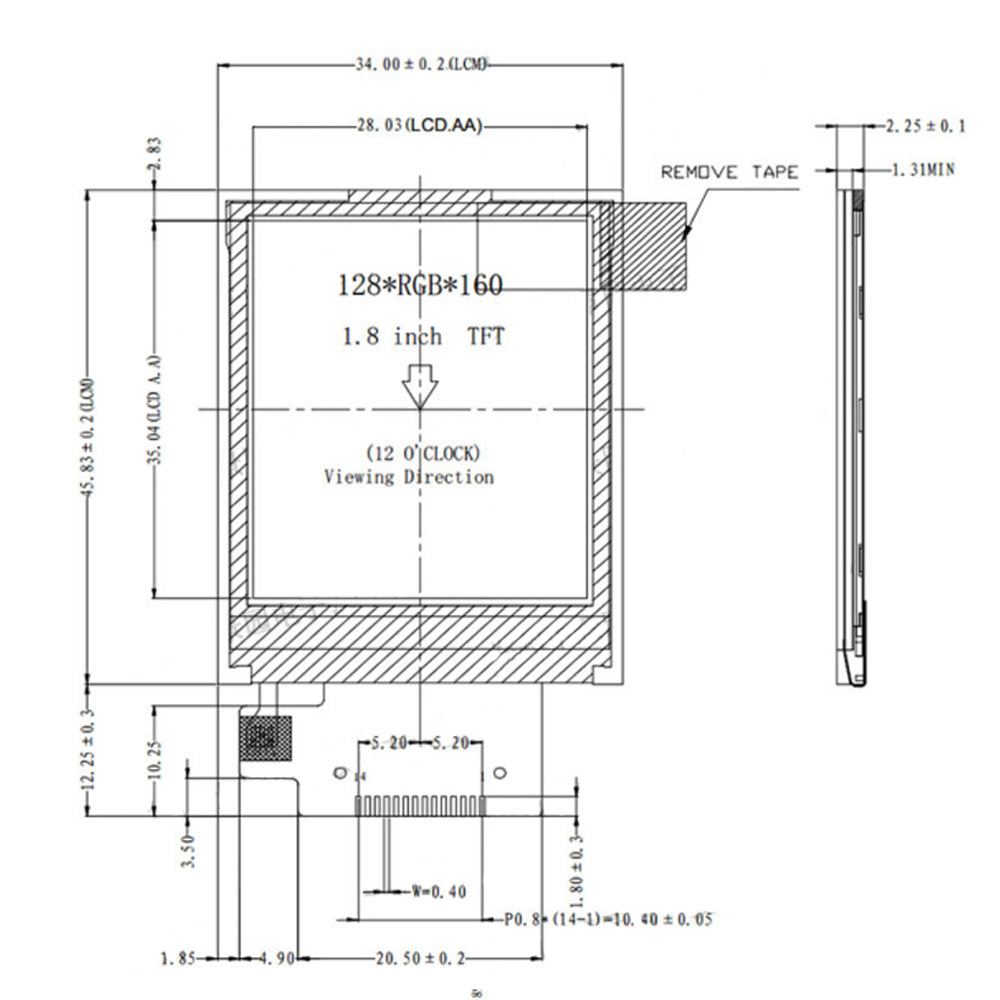

Display area: 28.03(W)*35.04(H)

Dimensions: 34.00(W)*45.83(H)*2.25+/-0.1(T)(FPC not include)

Interface type: 4-wire SPI interface

Backlight type: LED*2

Voltage: 2.8V～3.3V

Current: 30ma

Power consumption: 0.11W

Working temperature: -20 to 70 degrees

Storage temperature: -30~80 degrees

Viewing direction: 12 o'clock

Touch type: without touch

Number of pins: 14PIN (O.8mm pitch welding type)
