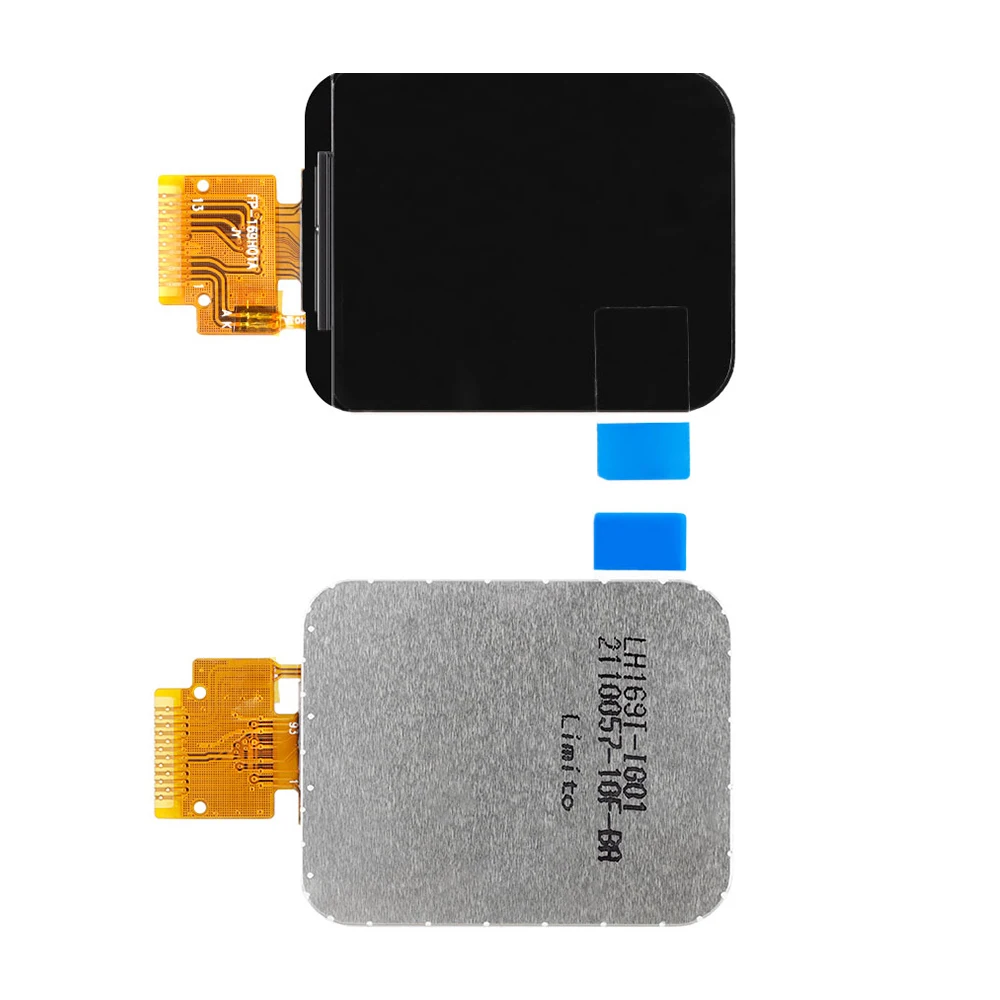

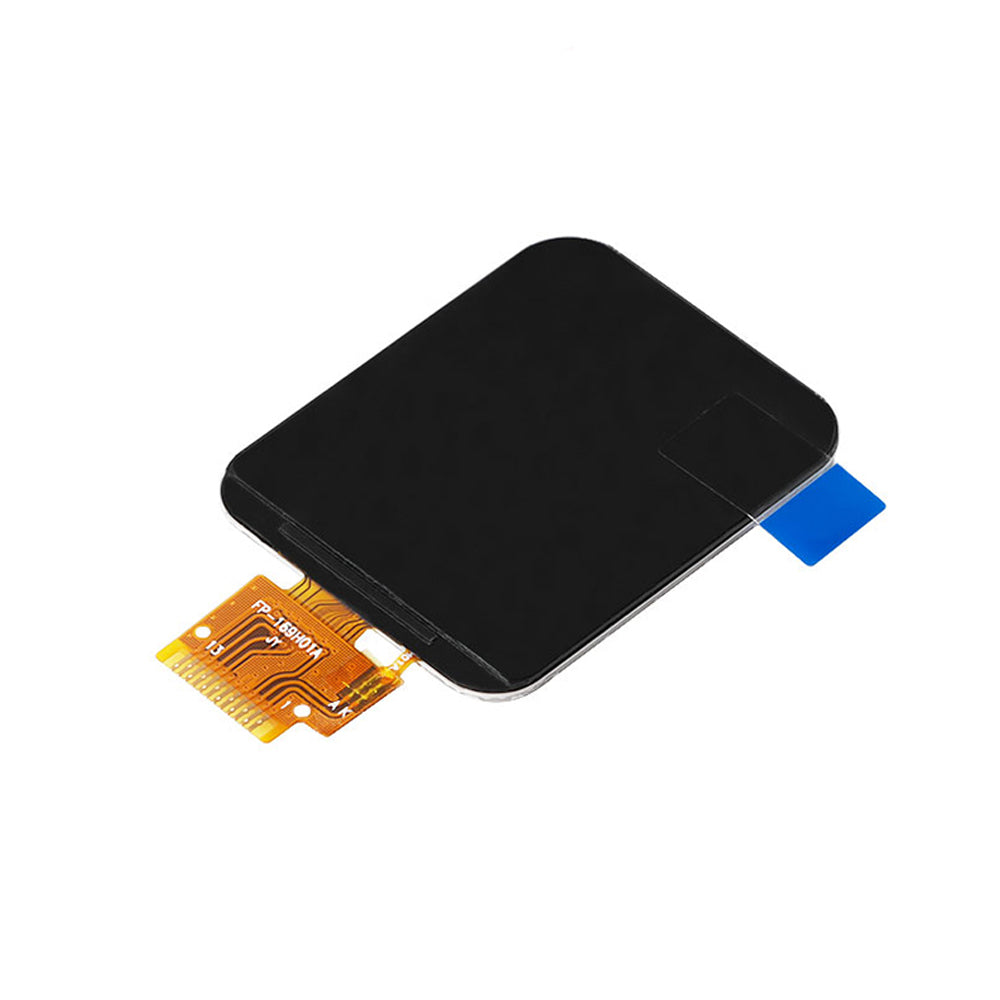

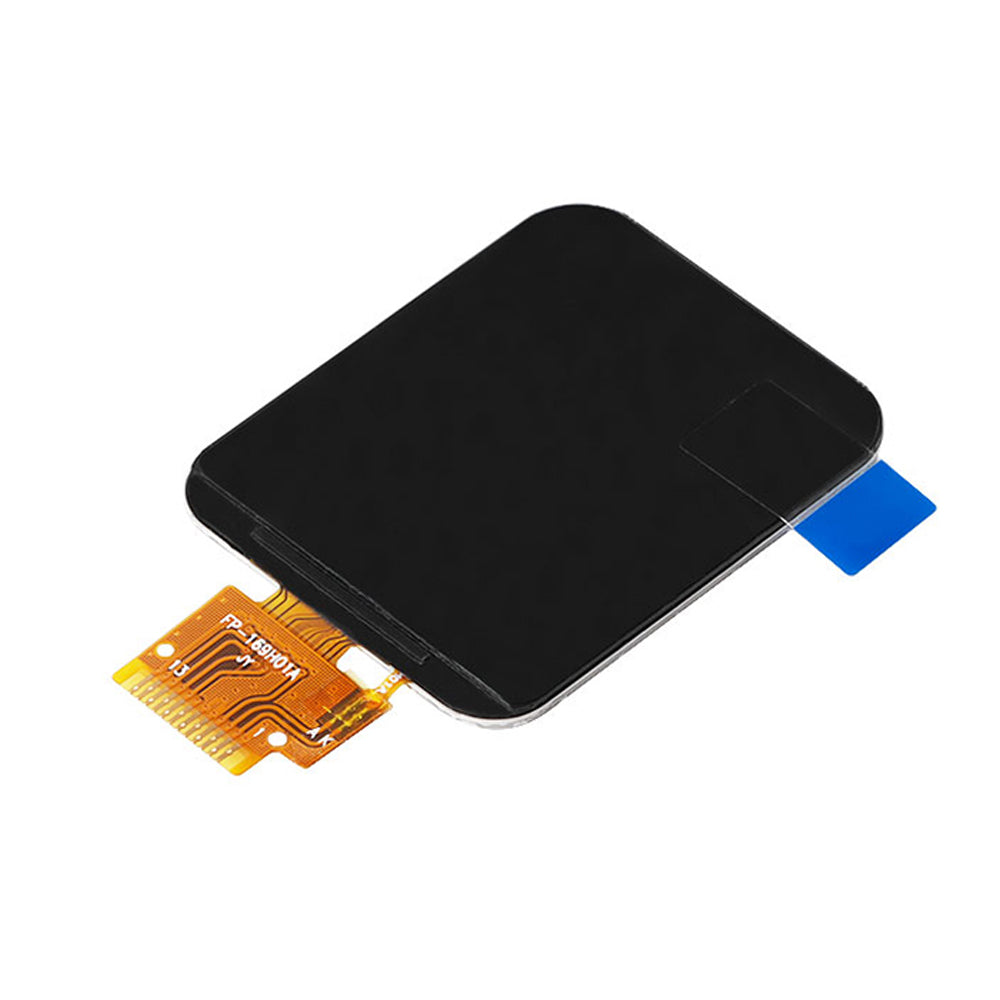

LONTEN 1.69 inch RGB TFT LCD screen display 40*280 IPS screen SPI interface ST7789 driver screens Custom

Size: 1.69 inch IPs color LCD

Resolution: 240(H)RGB x280(v)

Interface type: SPI interface

Control chip: ST7789V2

Advantages of this screen: HD IPs, the display direction can be adjusted.

Display color: color

Display area: 27.972(H)x32.634(v)

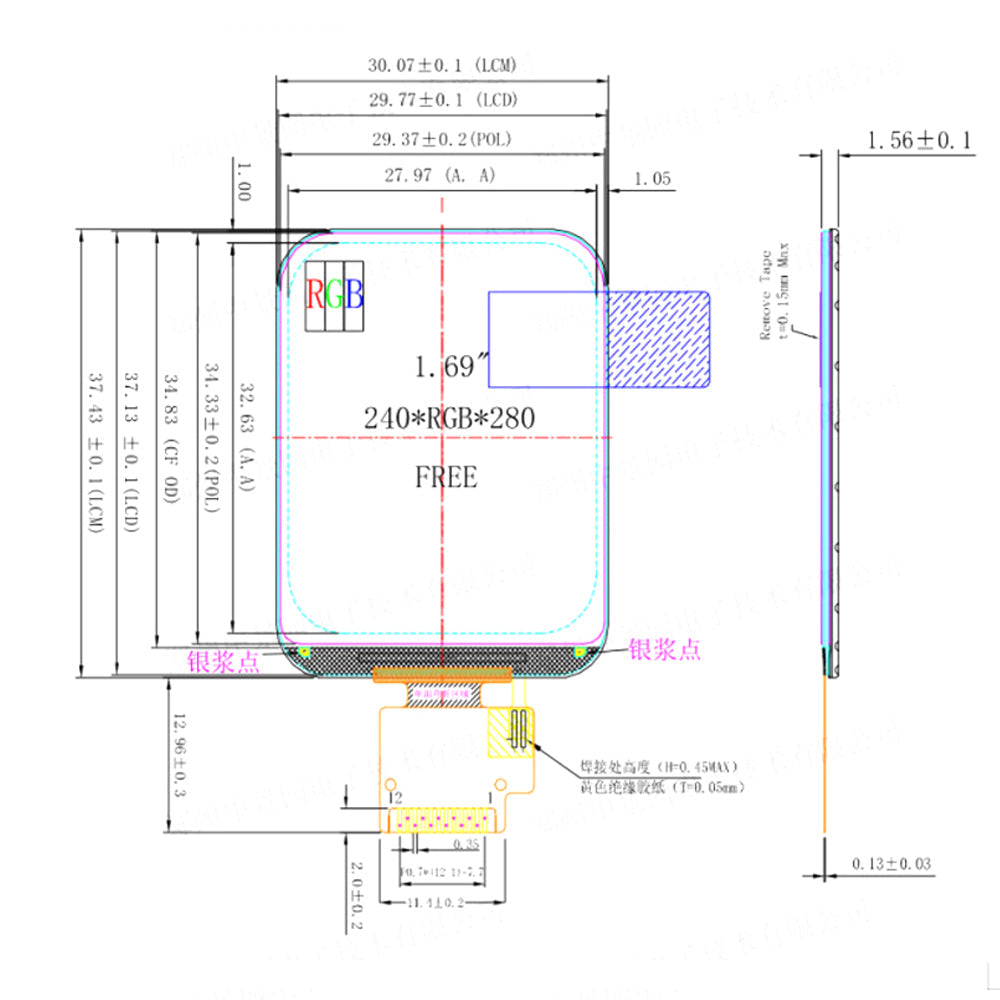

Panel size: 30.07(H)x 37.43(V)x1.56(D)

Pixel pitch: 0.11655(H)x0.11655(v)

Number of pins: 12pin (soldering 12pin, 0.7mm pitch)

Viewing direction: full viewing angle

Working temperature: -20 to 70 degrees

Logic voltage: 3.3v

Backlight Type: 3 White LED Parallel

Brightness: 48o (TYP)Cd/m2

Weight: 3.4g

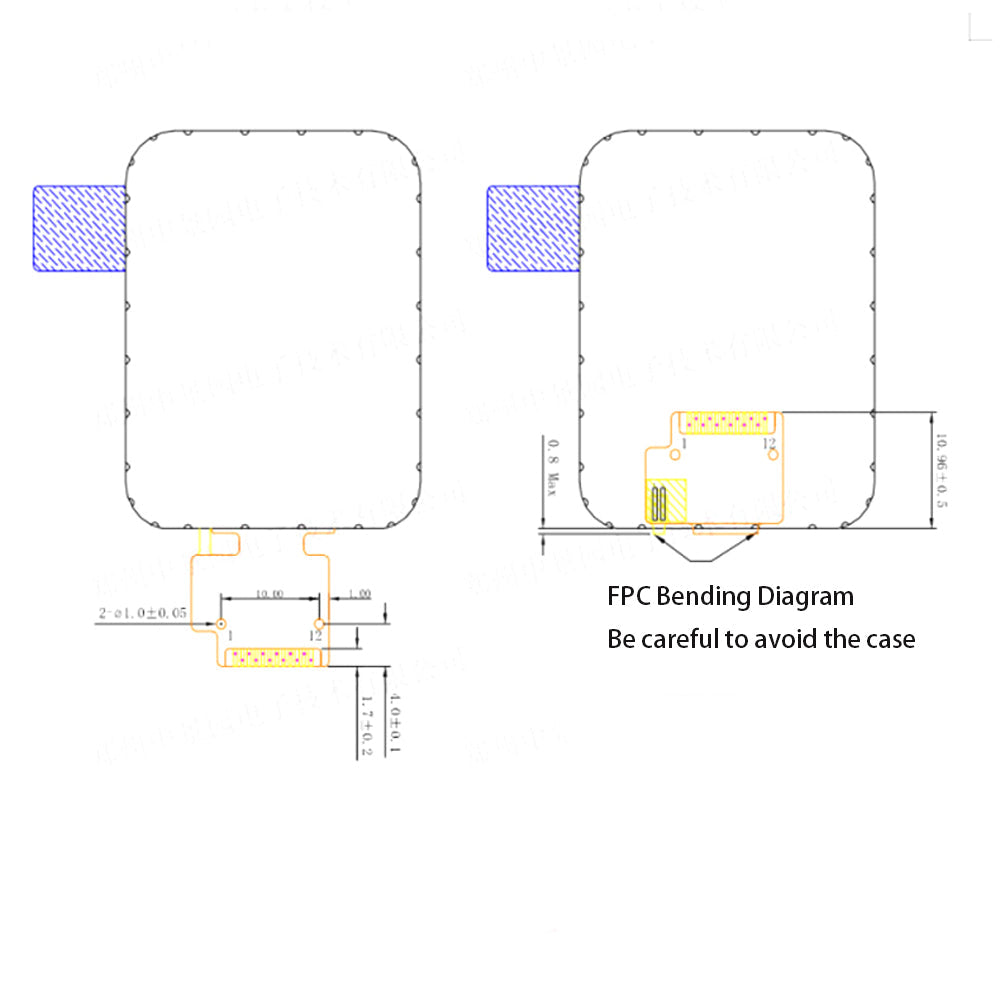

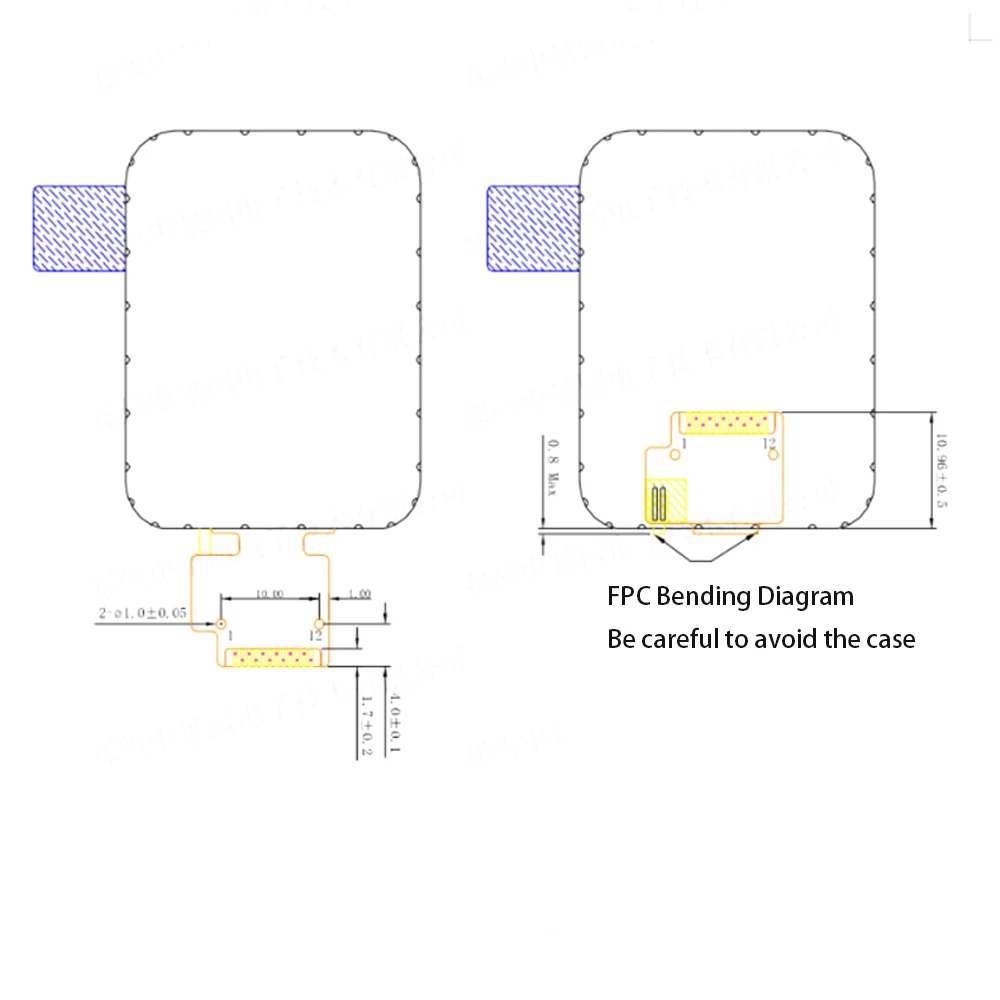

Connection method: 0.7mm pitch welding type FPC
