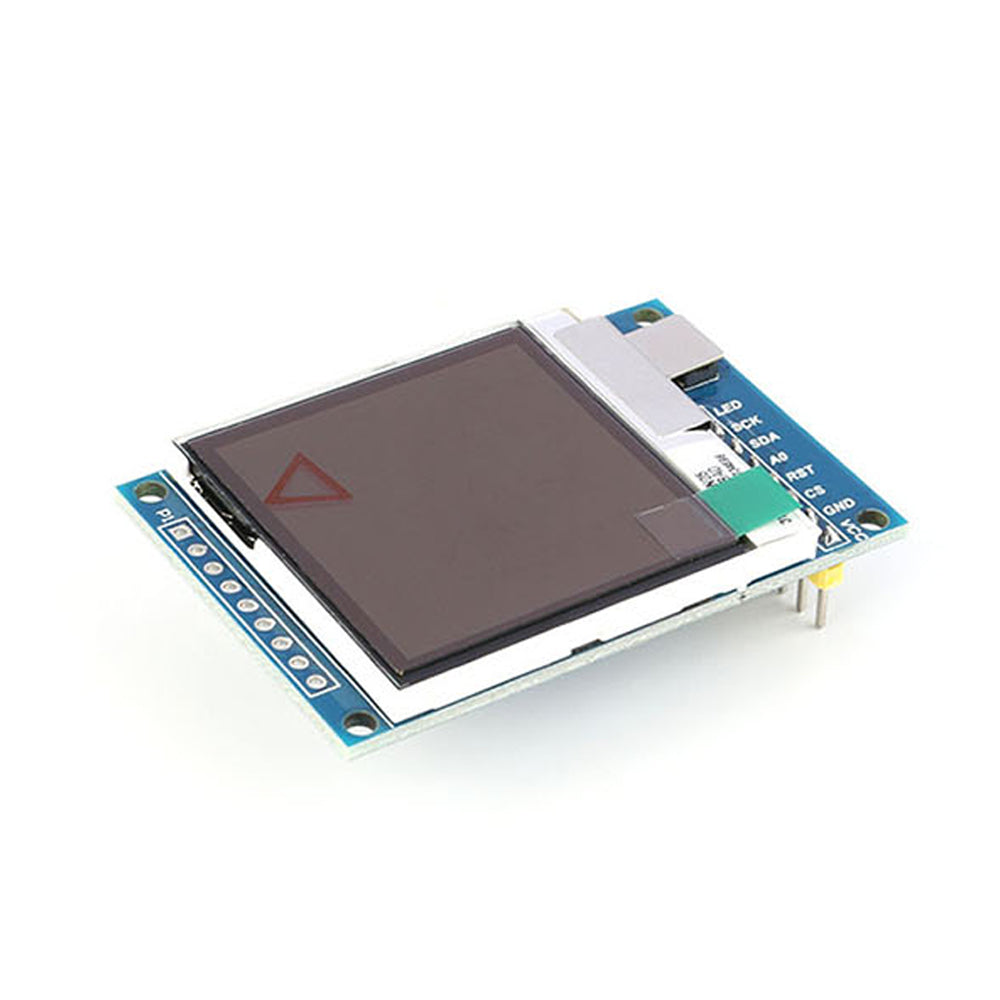

Feature:

1.6-inch color screen, support 65K color display, display rich colors

Transflective LCD, superior performance, clearly visible under strong light

Using SPI serial bus, only a few 10 ports can light up the display

Onboard 3.3V/5V power conversion chip, compatible with 3.3V and 5V voltage levels

The working temperature range is industrial grade (-20℃~70℃)

Military-grade process standards, long-term stable work

Provides rich multi-platform routines

Provide low-level driver technical support

Support backlight control



Parameter

Display color: 65K color

Size "1.6 (inch)

Type: TFT

Driver chip: SSD1283A

Resolution: 130*130(Pixel)

Module interface: 4-wire SP1 interface

Effective display area: 28.86x28.86(mm)

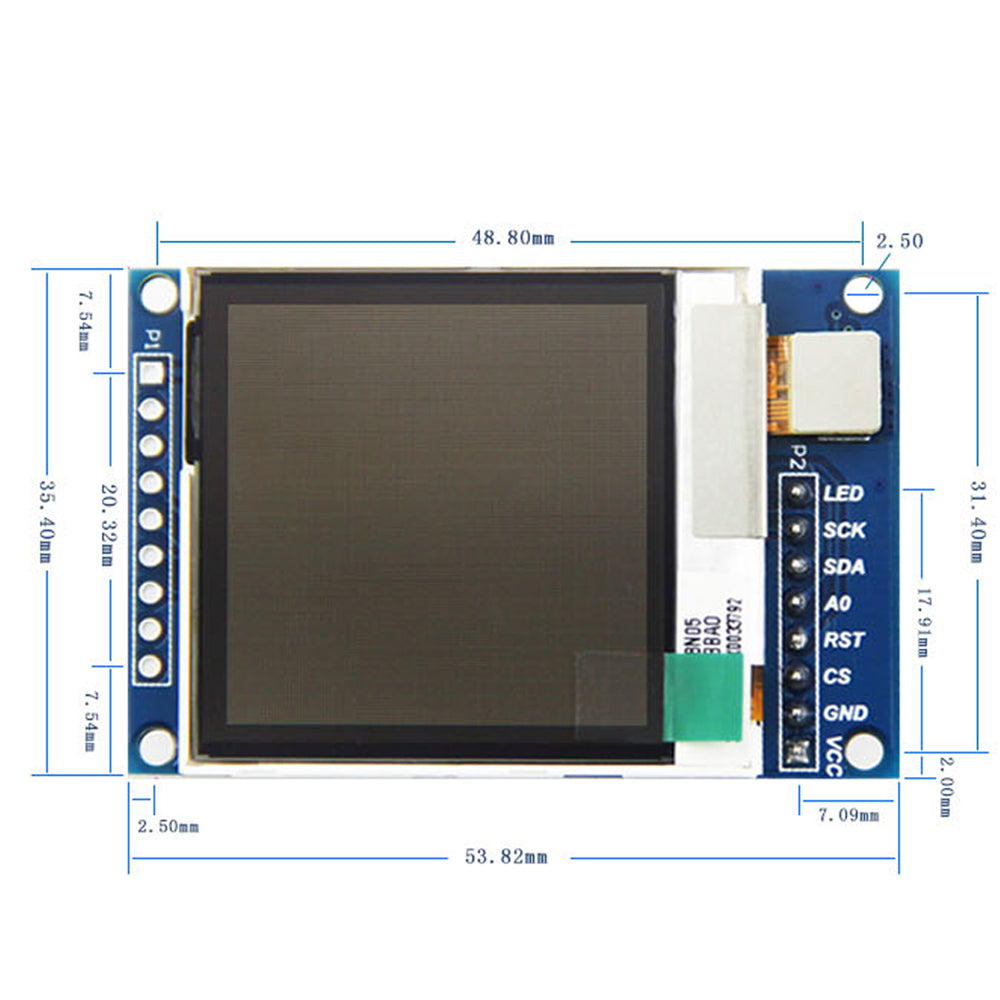

Module size: 35.40X53.82X1.6(mm)

Viewing angle:>60°

Working temperature: -20℃~70℃

Storage temperature: -30°C~80°C

Working voltage: 3.3V/5V

Power consumption: about 100mA for full on, about 10mA for full off.

Product weight: 14(g)

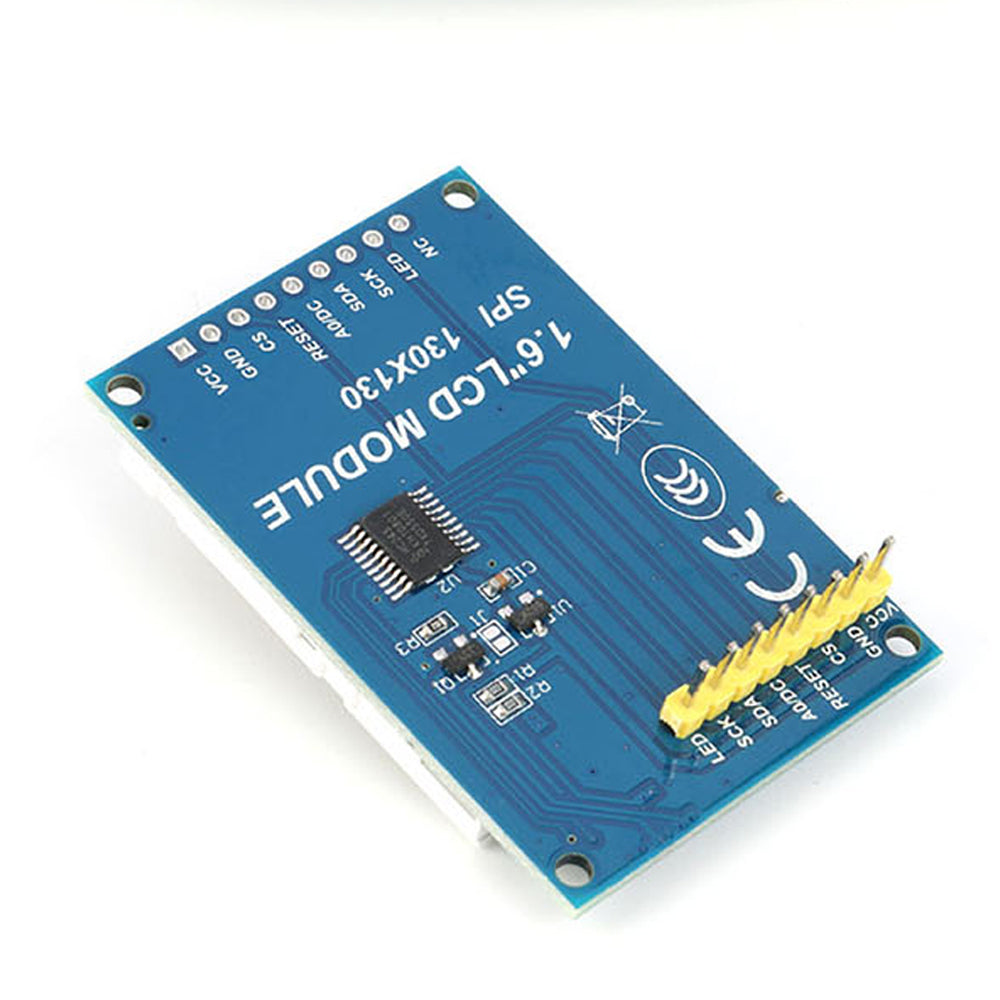

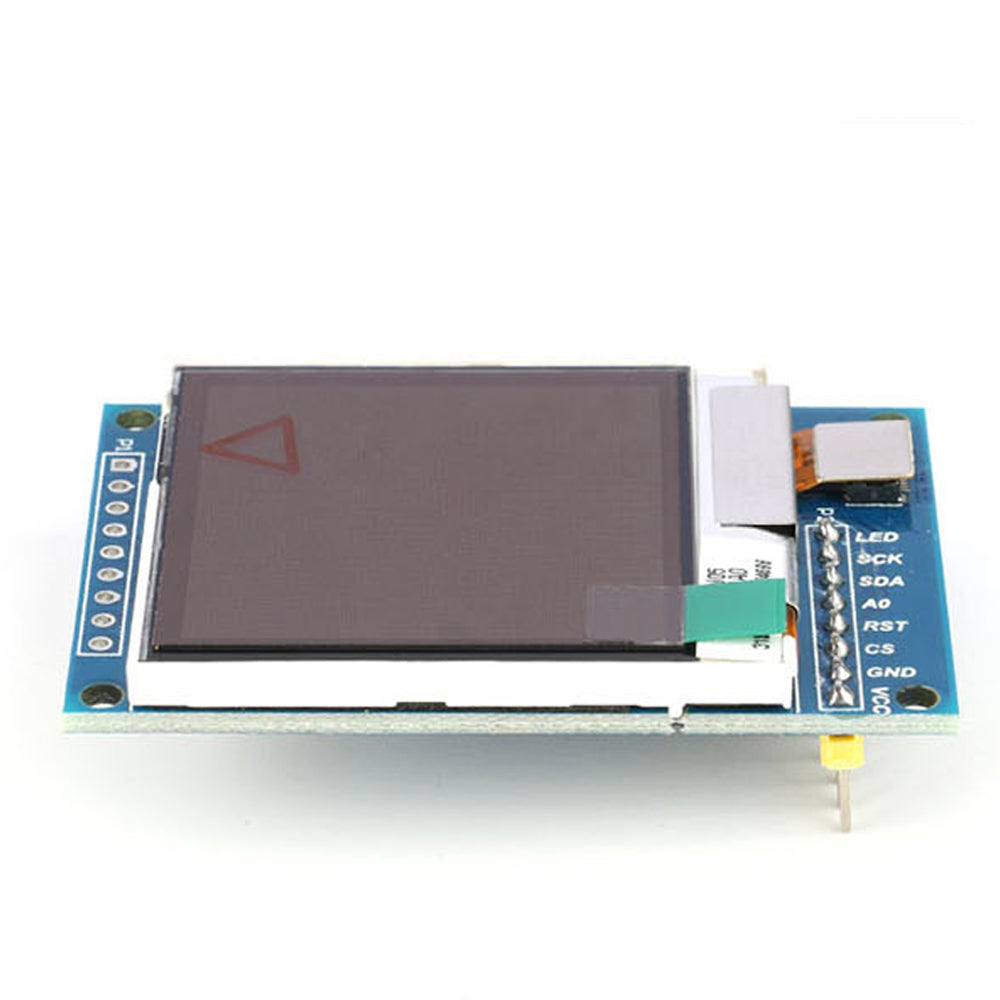

Pins

1 GND: LCD power ground

2 VCC: LCD power positive (3.3V~5V)

3 cs: LCD chip select signal

4 RESET: LCD reset signal

5 AO/DC: LCD register/data selection signal

6 SDA: SPI bus write data signal

7 SCK: SPI bus clock signal

8 LED: Backlight control signal (high level lighting, if no control is required, please connect to 3.3V)

1.6-inch TFT LCD Transparent outdoor screen SSD1283A 130*130 SPI Serial port
